Condensing unit — 220 V, 230V, cooling capacity 1.8~50kw(2.41~67.05hp). The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Condensing Unit
- Horse Power: 1~50HP
- Voltage: 220 V, 230V
- Cooling Capacity: 1.8~50kw(2.41~67.05hp)
- Material Of Surface: Galvanized steel, Stainless steel
- Refrigerant: R404a, R507c, R448a, R449a, R454c, R455a
- Warranty: 2 Years
Technical Specifications
| Cooling Capacity | 1.8~50kw(2.41~67.05hp) |
|---|---|
| Temperature | -40~+15 ℃ |
| Voltage | 220 V, 230V |
| Compressor Type | Scroll |
| Refrigerant | R404a, R507c, R448a, R449a, R454c, R455a |
| Compressor Brand | Invotech,Copeland,Tecumseh |
| Core Components | Pressure Vessel, compressor, customized design |
| Warranty | 2 Years |
| Key Selling Points | Eco-Friendly, High-Accuracy, Competitive Price |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 150 |
| Dimension(L*W*H) | 2.0X1.5X2.2m |
| Product Name | Refrigeration compressor condensing unit |
| Cooling Type | Air cooled direct-cooling |
| Horse Power | 1~50HP |
| Compressor | Bitzer, Copeland, Frascold |
| Condenser Type | Air cooled condenser |
| Material Of Surface | Galvanized steel, Stainless steel |
| Color | White, black or customized |

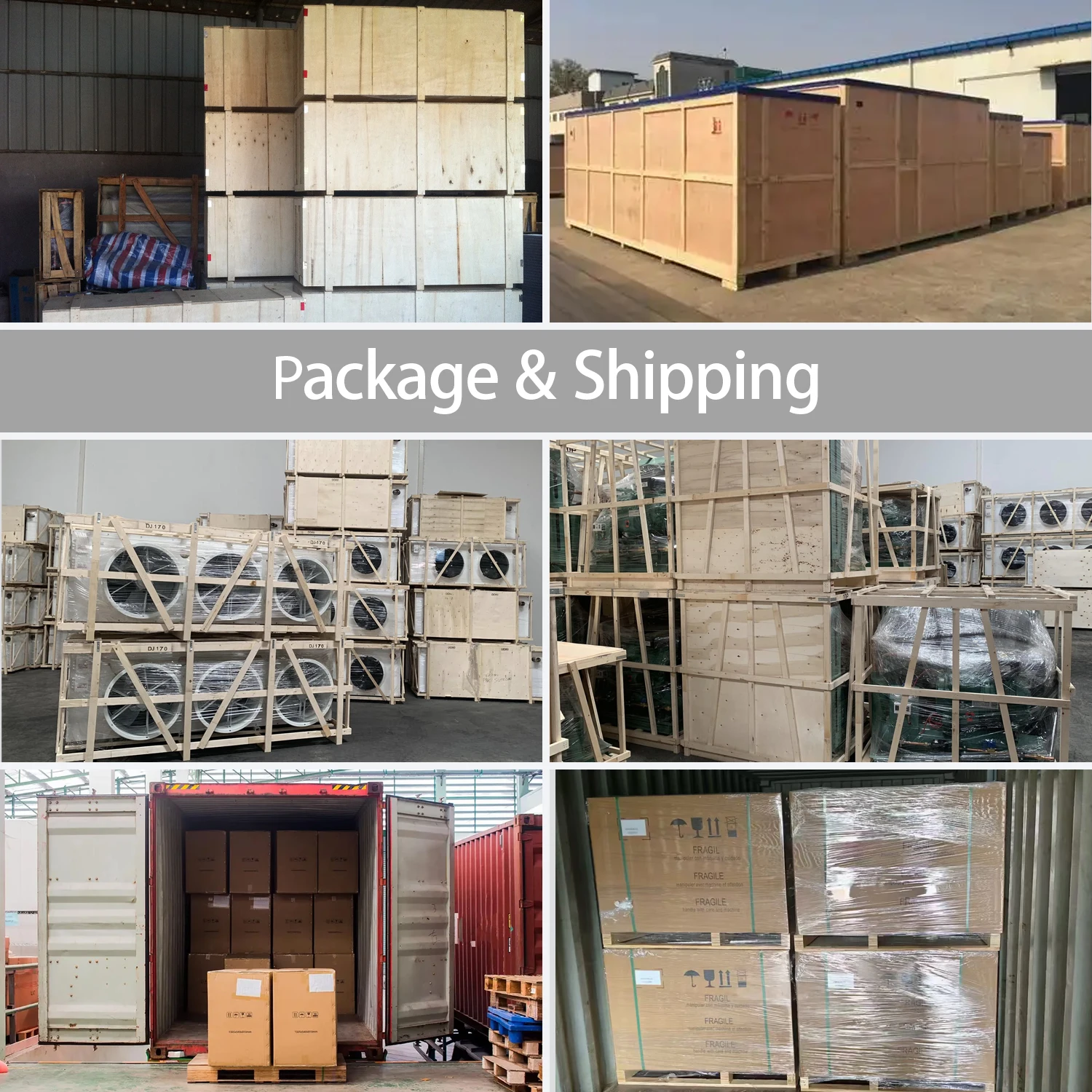

| Package | plywood wooden package |
| Noise Of Machine | 50~70dB |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

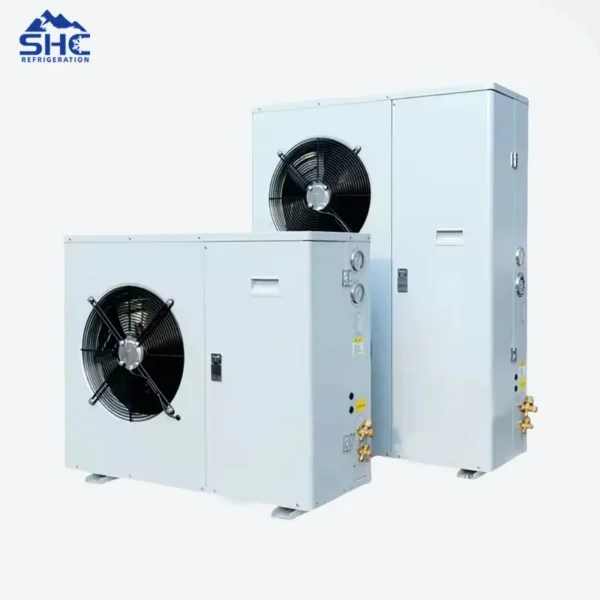

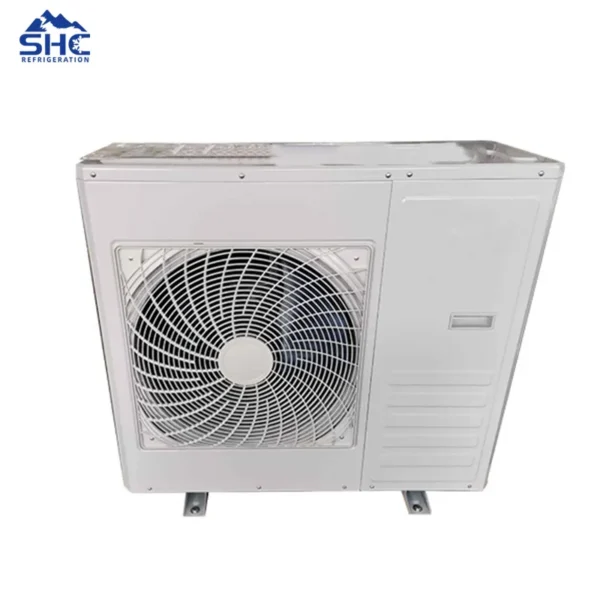

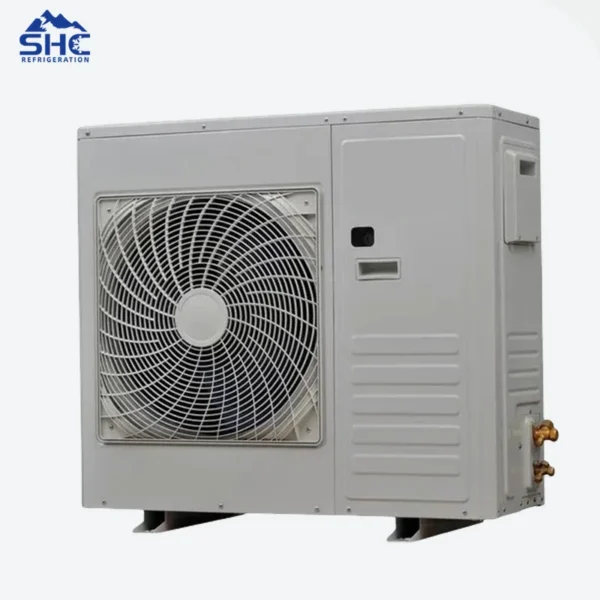

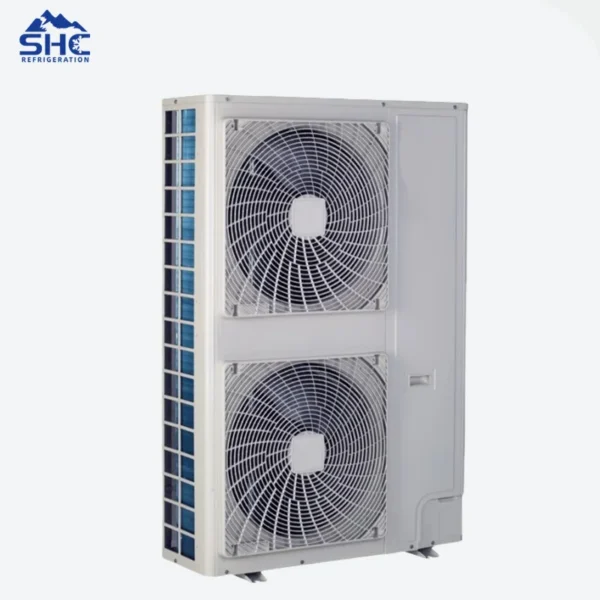

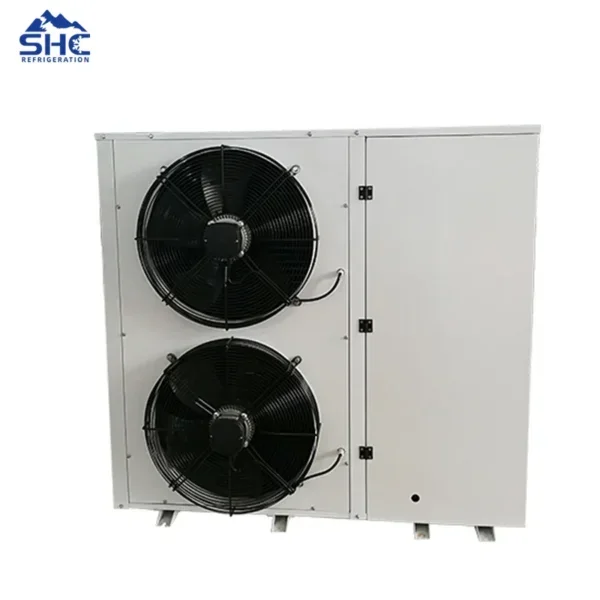

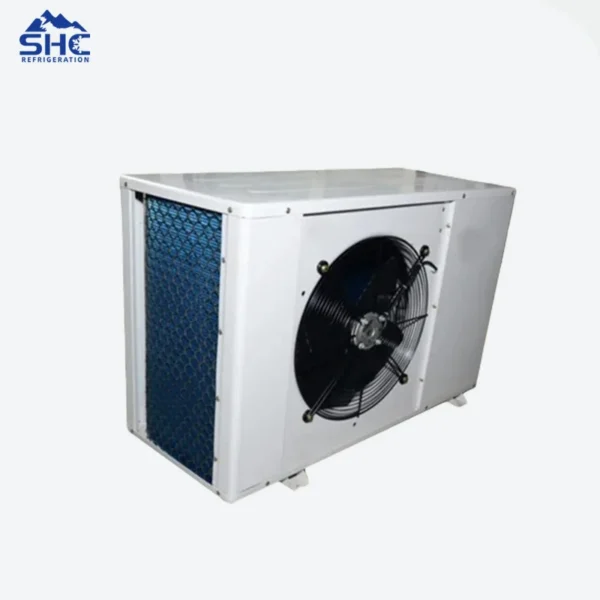

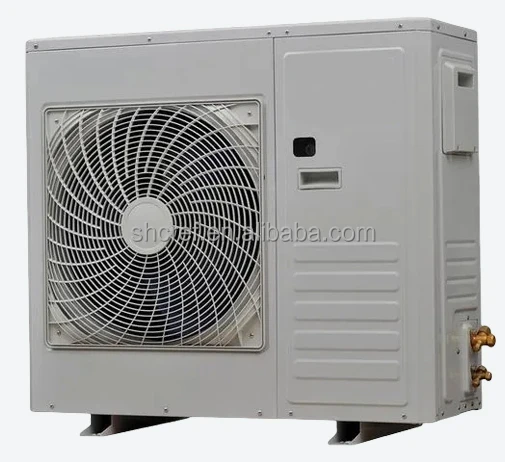

Refrigeration Air Cooled Condensing Unit with Copeland Scroll Compressor
What is Condensing Unit?

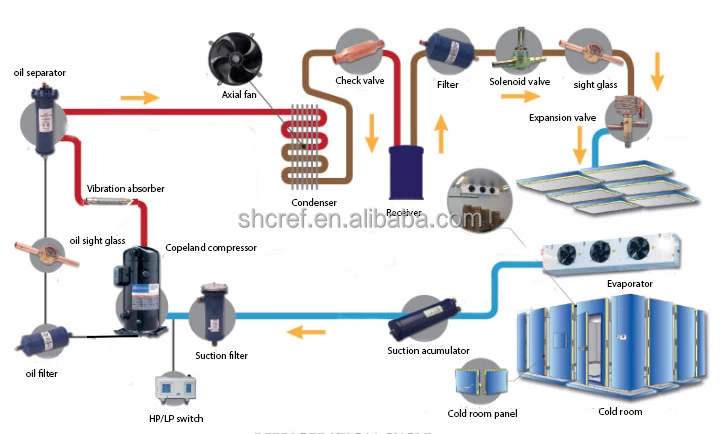

A condensing unit is a key component of an air conditioning or cold room refrigeration system that is responsible for transferring heat from inside the building to the outside. It consists of a compressor, a condenser coil, a fan, and controls, all housed in a single unit.
SHC Refrigeration Series units are designed to reflect the proven reliability and engineering excellence that can only come from the premier manufacturer of heating and cooling products.
The compact and robust structural shape of the condensing units and the use of efficient, optimally coordinated components enable an extensive range of both applications and capacities. They are Eco design-compliant and enable use of low-GWP refrigerants.
SHC Refrigeration condensing unit Features
Outdoor Unit:

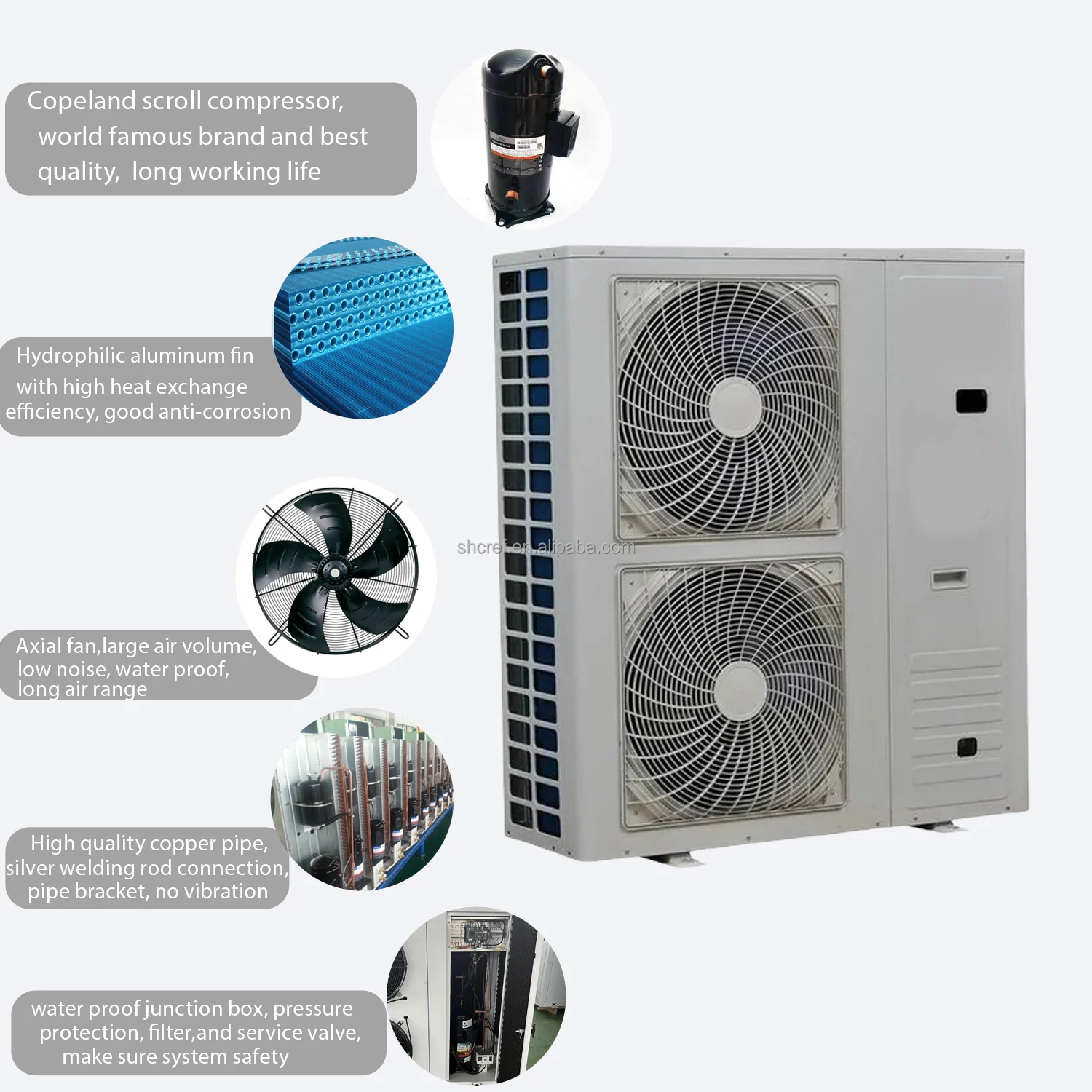

· Spring mount compressor with discharge vibration eliminator.
· Welded-scroll compressor, world famous brand. Copeland, Frascold compressor, etc.
· High efficiency enhanced tube and fin condenser design
· Quiet axial fan motor operation(option 1: can add single pressure switch for condenser fan, power saving
option 2: SmartSpeed EC Fan Motor)
· Energy efficient PSC condenser fan motor on models using chassis 3
(See our Product Data and Specifications for full details)
· Wide-open front design, convenient for heat exchange
· Unit leak tested and shipped with dry Nitrogen gas pre-charged.
· Painted cabinet with galvanized steel, anti-rust.
· Receiver with fusible plug and liquid shut off valve
· Suction service valve
· Copper tubing secured with cushion clamps
· Fixed high and low pressure control
· Painted weather-resistant housing with removable hood
SHC Refrigeration Condensing Unit Specification and Advantage
1. Large capacity range—Cooling capacity: 1.8KW to 100KW, from 1HP to 50HP.
2. Large Cold Room Temperature Range—the working Temperature: +10 ~-30℃.
3. Voltage customized—Voltage: 380V/3PH/50HZ, 230V/3PH/60HZ, 460V/3PH/60HZ.
4. Variety refrigerant using—Many Refrigerant application, can be suitable to different countries: R404a, R507c, R454c, R455a, R448a, R449a.
5. Easy of maintenance— Modular refrigeration system are designed for easy maintenance and service ability, with individual units that can be accessed and serviced independently.
6. Energy Efficiency— Modular refrigeration systems are designed to be energy-efficient, with individual units operating independently to cool designated areas or food items
· Commercial refrigeration
· Food service
· Food retail
· Cold storage warehouses
· Process cooling
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220 V, 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Shc Refrigeration Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jinan Shc Refrigeration Technology Co., Ltd. range on HVACR Nexus.
