Key specification for this scroll compressor: 380V-420V/3Ph/50HZ-60HZ, refrigerant R404a,R407F,R507,R449a. Everything below is reproduced from the factory data sheet. Made by Taizhou Chuangsheng Refrigeration Equipment Manufacturing Co., Ltd. (10 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Scroll Compressor
- Power Supply: 380V-420V/3Ph/50HZ-60HZ
- Refrigerant: R404a,R407F,R507,R449a
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Cold Storage Room Freezer Room
- Type: Cooler
Technical Specifications
| Core Components | COMPRESSOR |
|---|---|
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 86 |
| Type | Cooler |

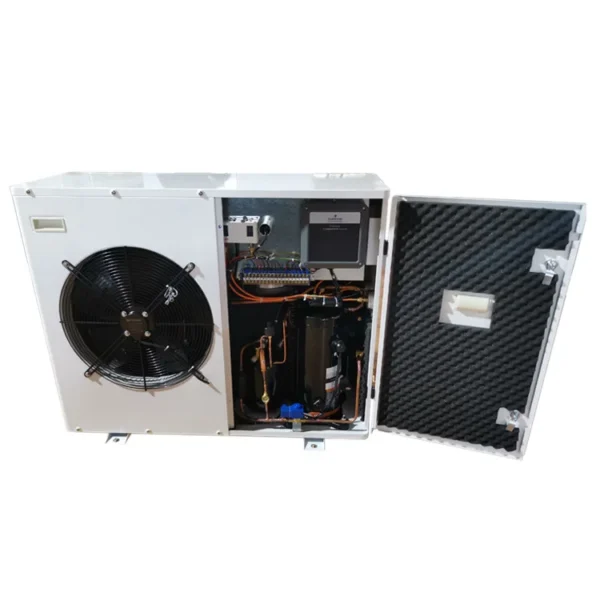

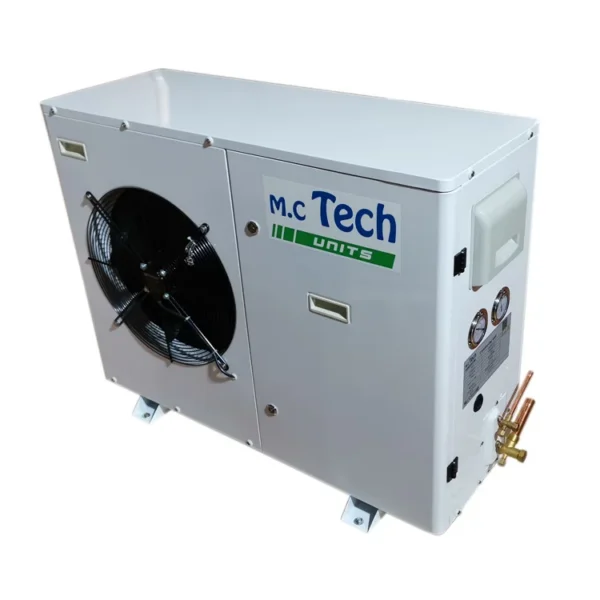

| Product Name | Cold room condensing unit |
| Model | LKPG250S/ZSI08KQE-TFP |
| Refrigerant | R404a,R407F,R507,R449a |
| Compressor | Copeland ZSI scroll |
| Casing Color | white |
| Power Supply | 380V-420V/3Ph/50HZ-60HZ |
| Application | Cold Storage Room Freezer Room |
| Packaging Details | plywood case |
| Port Of Dispatch | Shanghai,Ningbo |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 8000 pieces per Year |
Product Details
Features
* Compact and sophisticated outlook
* Fully assembled and ready to be installed to save on assembly and applied cost
* Wide operating range
– LT and MT from -30℃ to +5℃ evaporating temperature
– Same unit for either MT or LT cold room application
– Reduce inventory for distributors and contractors
* Best-in-class scroll compressor efficiency and reliability
– Up to 30% annual electrical savings from COP improvement as compared with reciprocating systems.
– 70% fewer moving parts than reciprocating compressor
– Superior liquid handling

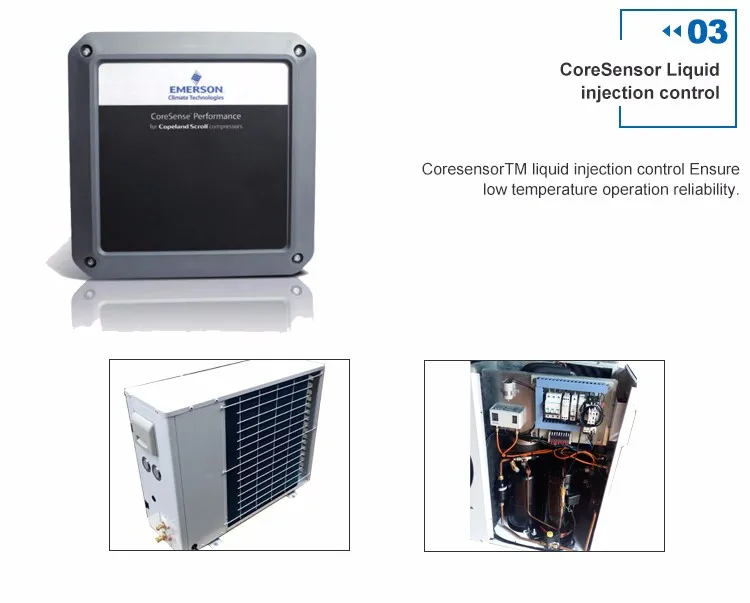

* Built-in CoreSenseTM liquid injection control
– Ensure low temperature operation reliability
– Onboard control for liquid injection by sensing discharge line temperature(DLT)
– Direct communication function by using LED inside CoreSenseTM
* Suit for R404a and R407F refrigerant.

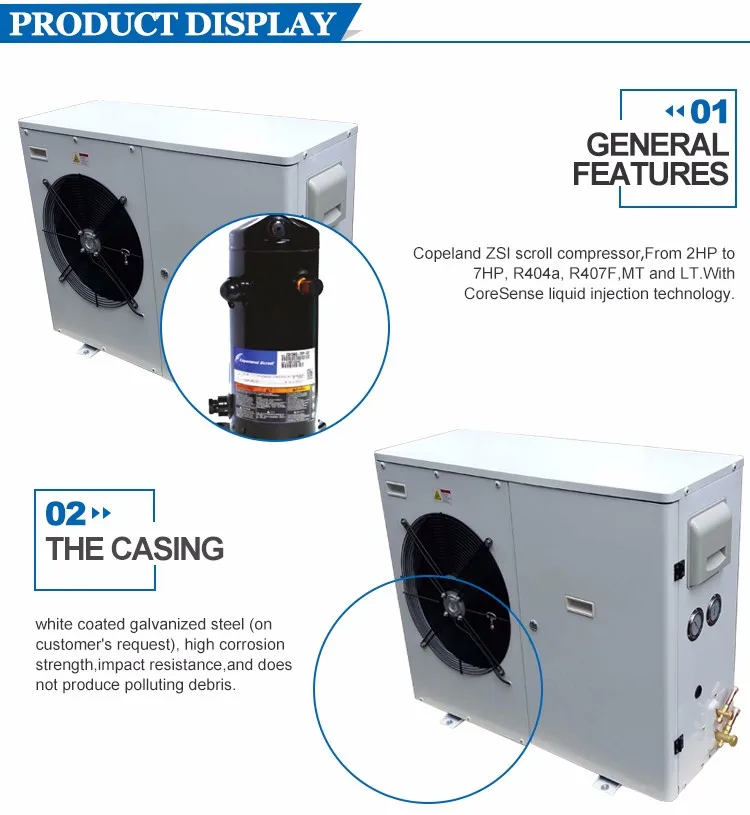

Copeland ZSI scroll compressor for Medium and low temperature R404a,R407F
Nominal data

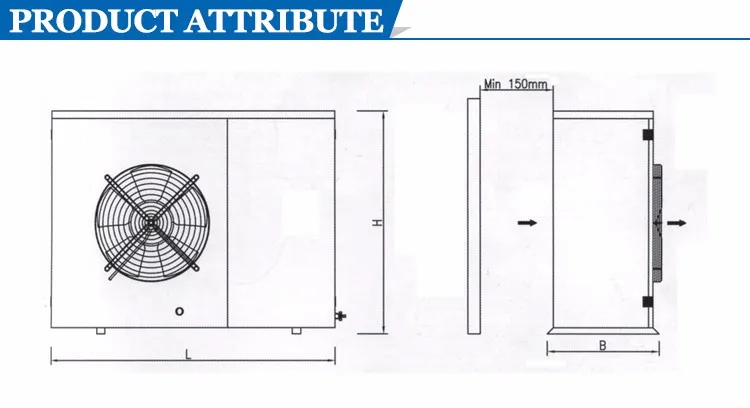

| Model | HP | Compressor | Voltage | Cooling capacity(W) at R404a | Axial Fans | Dimensions | Noisy | Connection | |||||||
| Evaporating temperature(°C) | |||||||||||||||
| (V-Ph-Hz) | -30 | -25 | -20 | -15 | -10 | N°x Diameter | L | W | H | 10m(db) | Inlet | Outlet | |||
| LKPG200 | 2 | ZSI06KQE-PFS | 220-1-50 | 1470 | 1820 | 2240 | 2740 | 3310 | 1 x 450 | 1150 | 480 | 840 | 42 | 3/4" | 3/8" |
| LKPG200S | 2 | ZSI06KQE-TFP | 380-3-50 | 1340 | 1690 | 2110 | 2610 | 3190 | 1 x 450 | 1150 | 480 | 840 | 42 | 3/4" | 3/8" |
| LKPG250 | 2.5 | ZSI08KQE-PFS | 220-1-50 | 1720 | 2160 | 2660 | 3250 | 3930 | 1 x 450 | 1150 | 480 | 840 | 42 | 3/4" | 3/8" |
| LKPG250S | 2.5 | ZSI08KQE-TFP | 380-3-50 | 1710 | 2110 | 2600 | 3180 | 3860 | 1 x 450 | 1150 | 480 | 840 | 42 | 3/4" | 3/8" |
| LKPG300S | 3 | ZSI09KQE-TFP | 380-3-50 | 1800 | 2320 | 2890 | 3540 | 4270 | 1 x 450 | 1150 | 480 | 840 | 42 | 3/4" | 3/8" |
| LKPG350S | 3.5 | ZSI11KQE-TFP | 380-3-50 | 2430 | 3100 | 3810 | 4600 | 5530 | 1 x 450 | 1150 | 480 | 840 | 42 | 7/8" | 3/8" |
| LKPG400S | 4 | ZSI14KQE-TFP | 380-3-50 | 3070 | 3840 | 4740 | 5800 | 7030 | 1 x 450 | 1150 | 480 | 840 | 43 | 7/8" | 1/2" |
| LKPG500S | 5 | ZSI15KQE-TFP | 380-3-50 | 3550 | 4520 | 5530 | 6650 | 7940 | 2 x 450 | 1150 | 480 | 1240 | 43 | 7/8" | 1/2" |
| LKPG600S | 6 | ZSI18KQE-TFP | 380-3-50 | 4380 | 5420 | 6630 | 8020 | 9640 | 2 x 450 | 1150 | 480 | 1240 | 43 | 7/8" | 1/2" |
| LKPG700S | 7 | ZSI18KQE-TFP | 380-3-50 | 4910 | 6050 | 7400 | 8980 | 10800 | 2 x 450 | 1150 | 480 | 1240 | 43 | 7/8" | 1/2" |
| TEST CONDITION: Condensing Temperature: 50°C | |||||||||||||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $980 / piece
- 5–9 piece: US $970 / piece
- 10+ piece: US $960 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this scroll compressor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the scroll compressor be supplied for my local voltage?
The standard configuration is 380V-420V/3Ph/50HZ-60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Chuangsheng Refrigeration Equipment Manufacturing Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taizhou Chuangsheng Refrigeration Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
