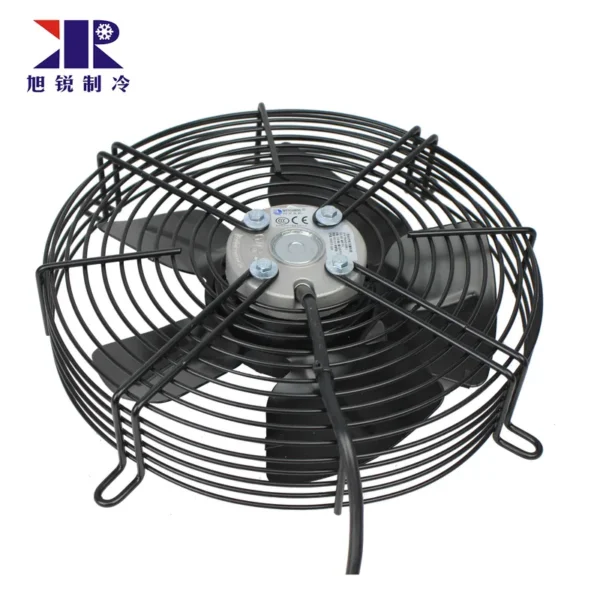

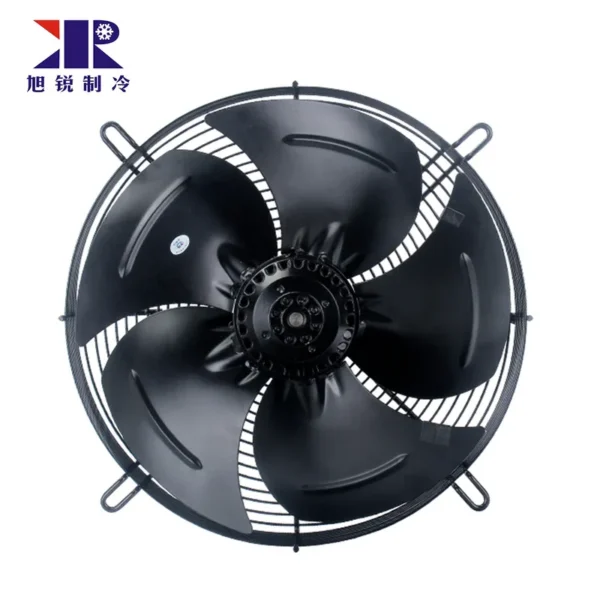

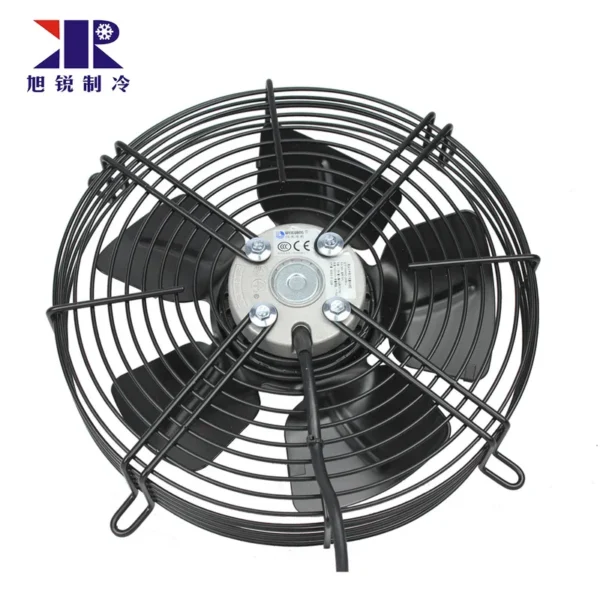

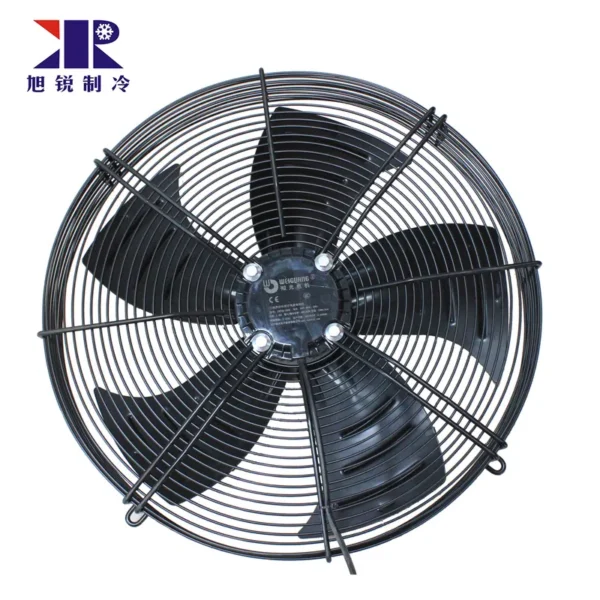

Condensing Unit, YWF, Axial, Plastic, 1300

Key specification for this condensing unit: voltage 220/50, 380/50, 120/60, 220/60, 440/60, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Shanghai Xurui Refrigeration Equipment Co., Ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Condensing Unit

• Model Number: XR001
• Input Power: 414w
• Voltage: 220/50, 380/50, 120/60, 220/60, 440/60
• Blade Material: Plastic
• Speed: 1300 r/min
• Warranty: Unavailable

Technical Specifications

Product Details

VR

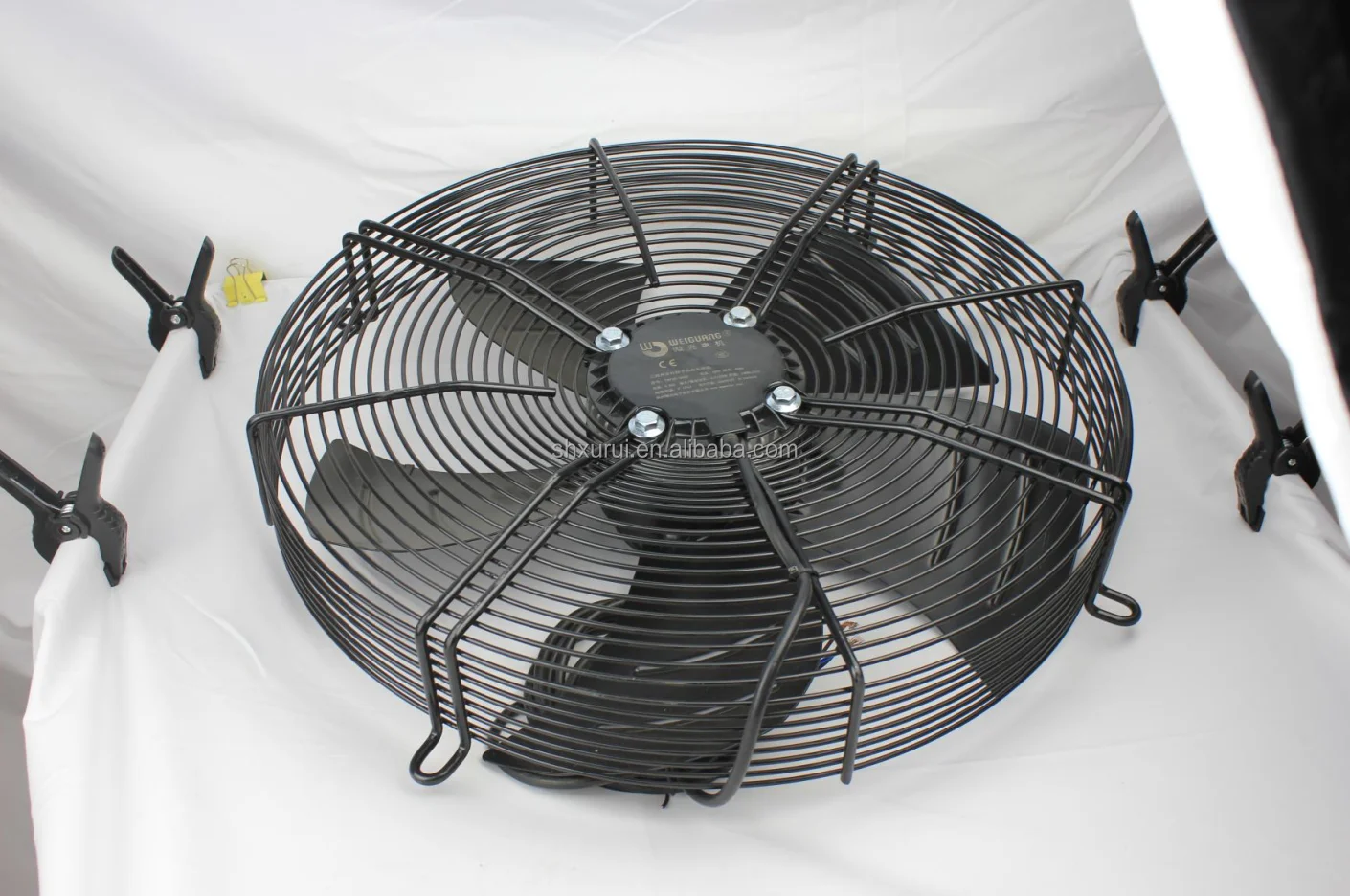

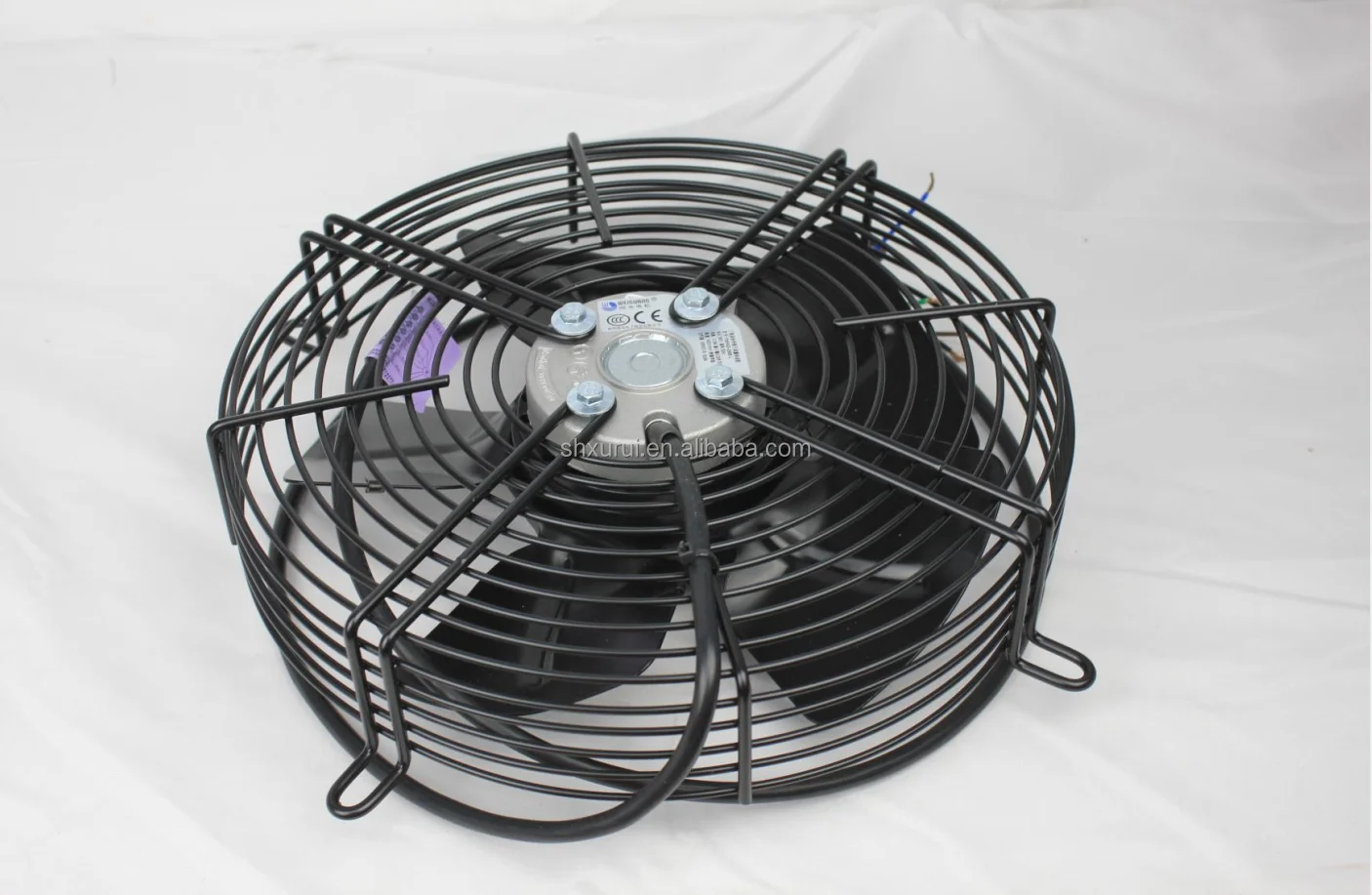

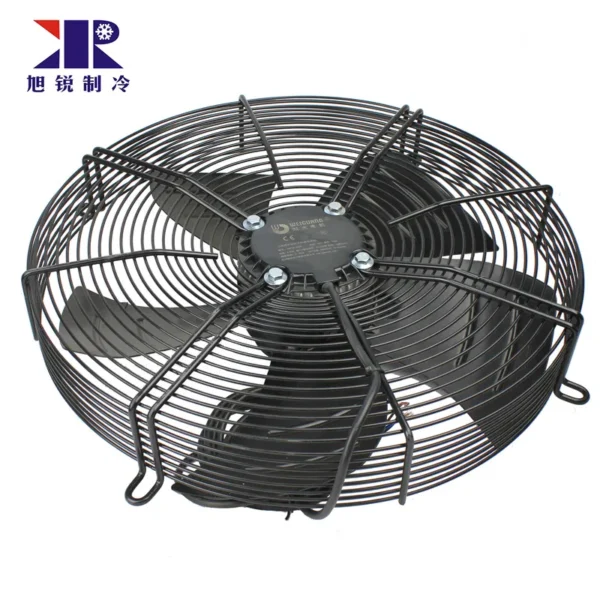

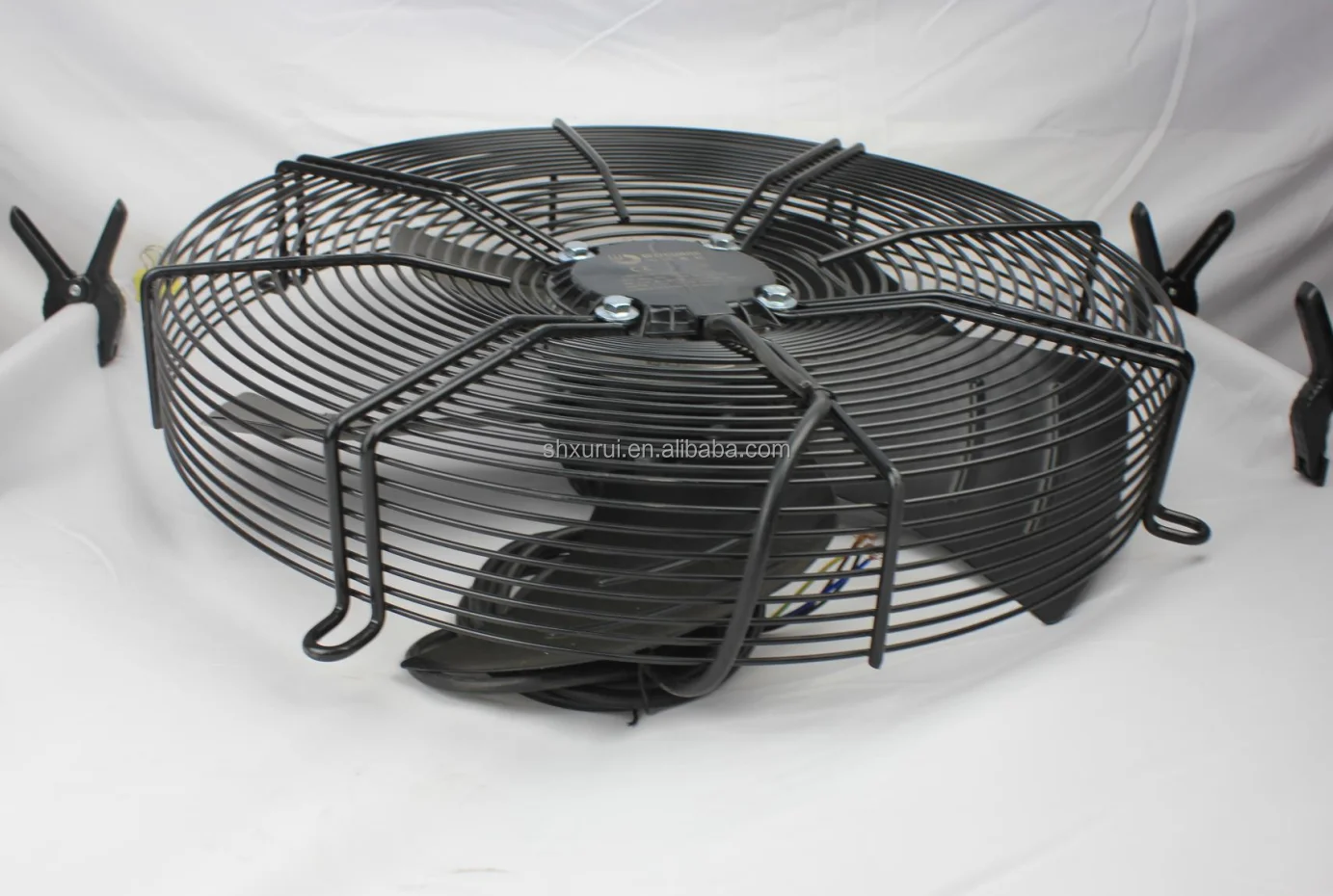

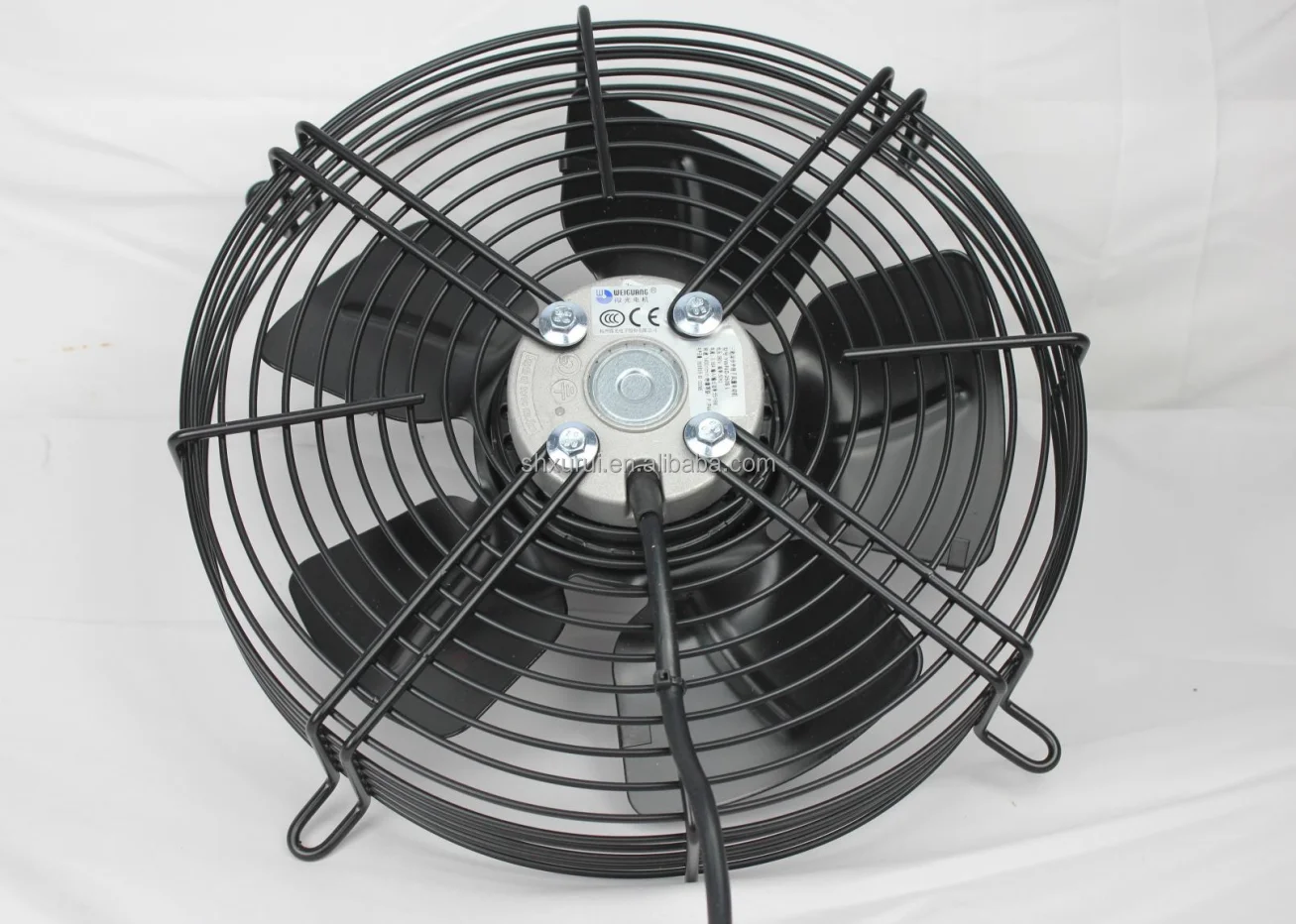

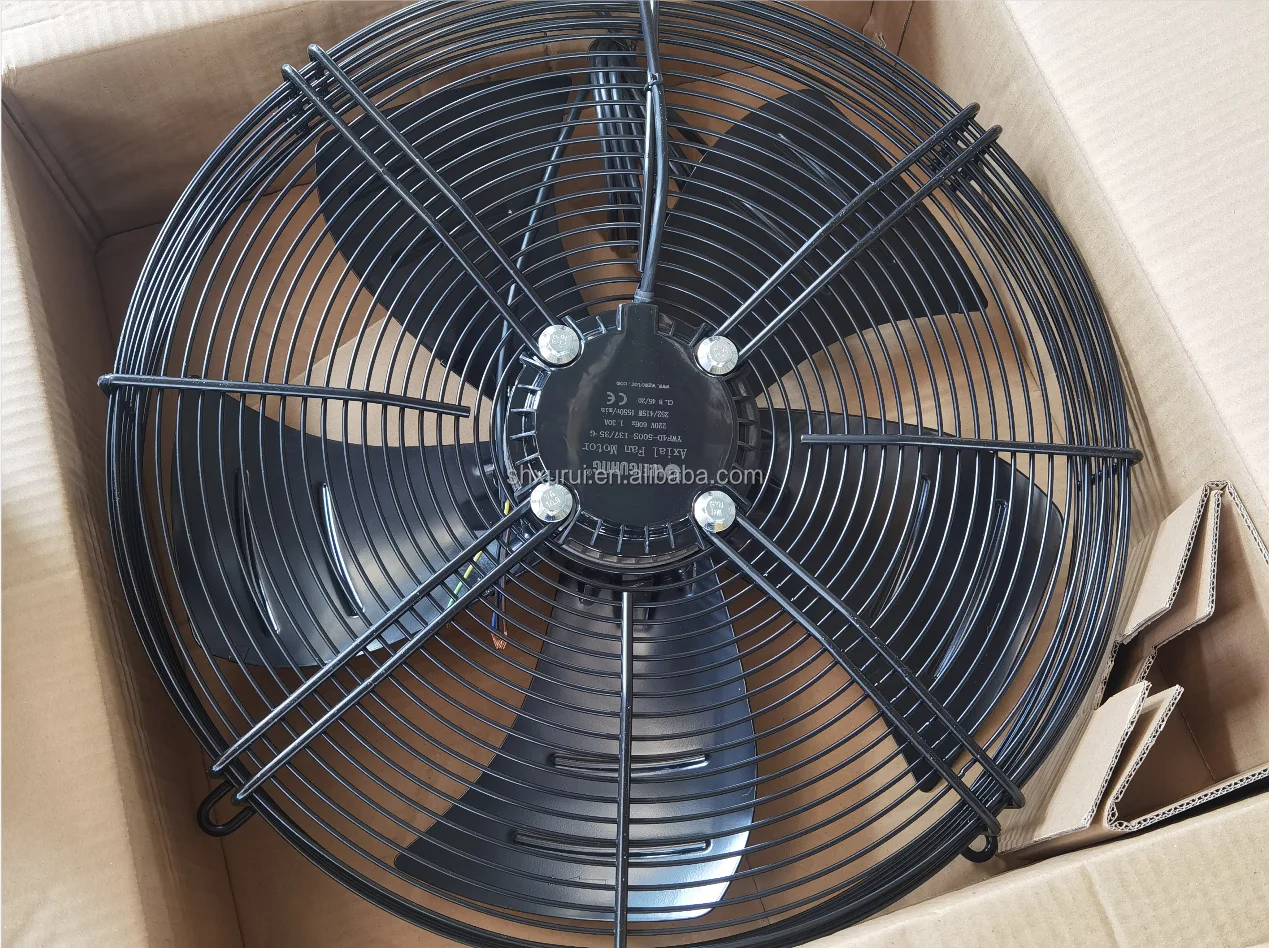

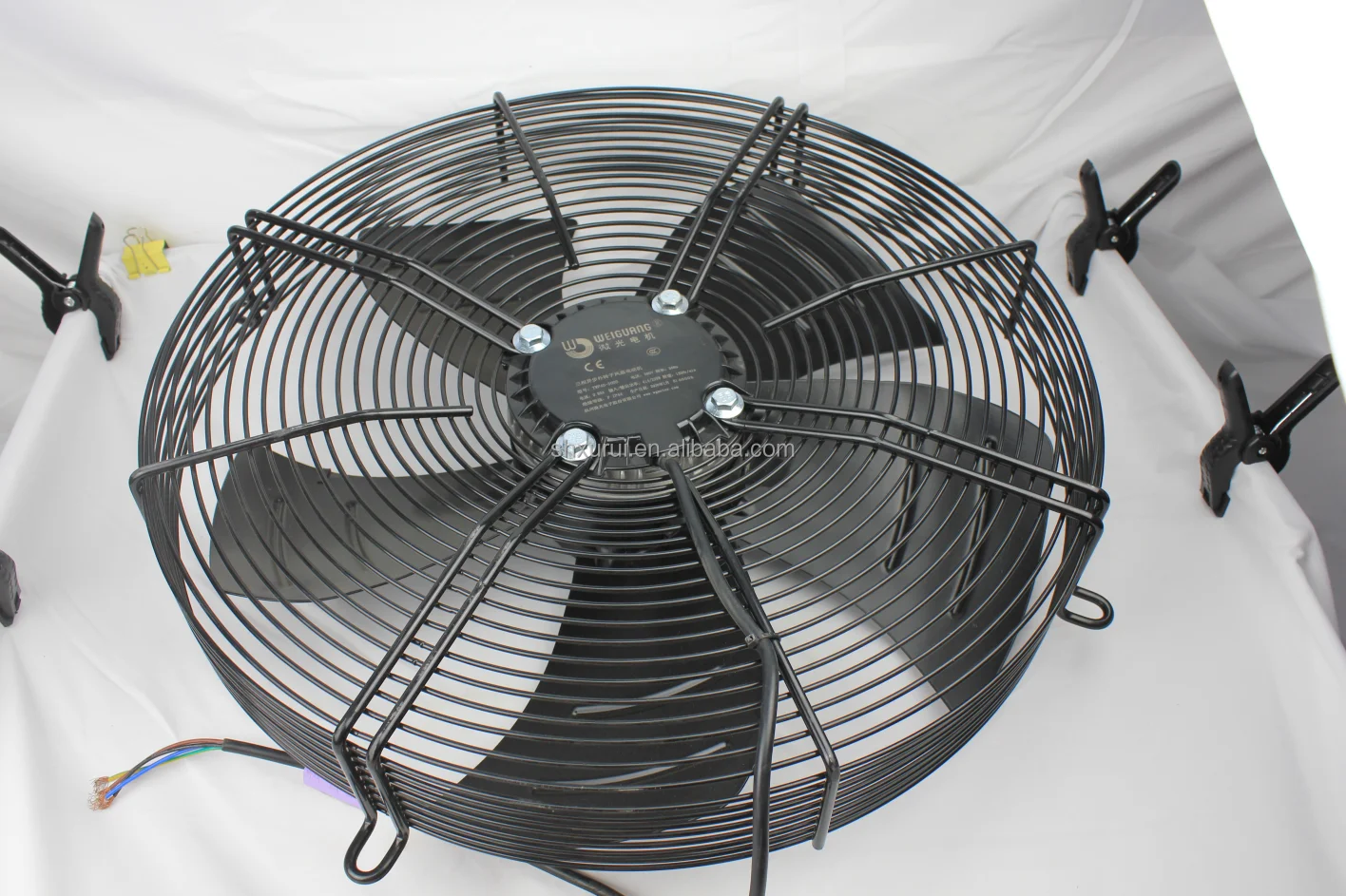

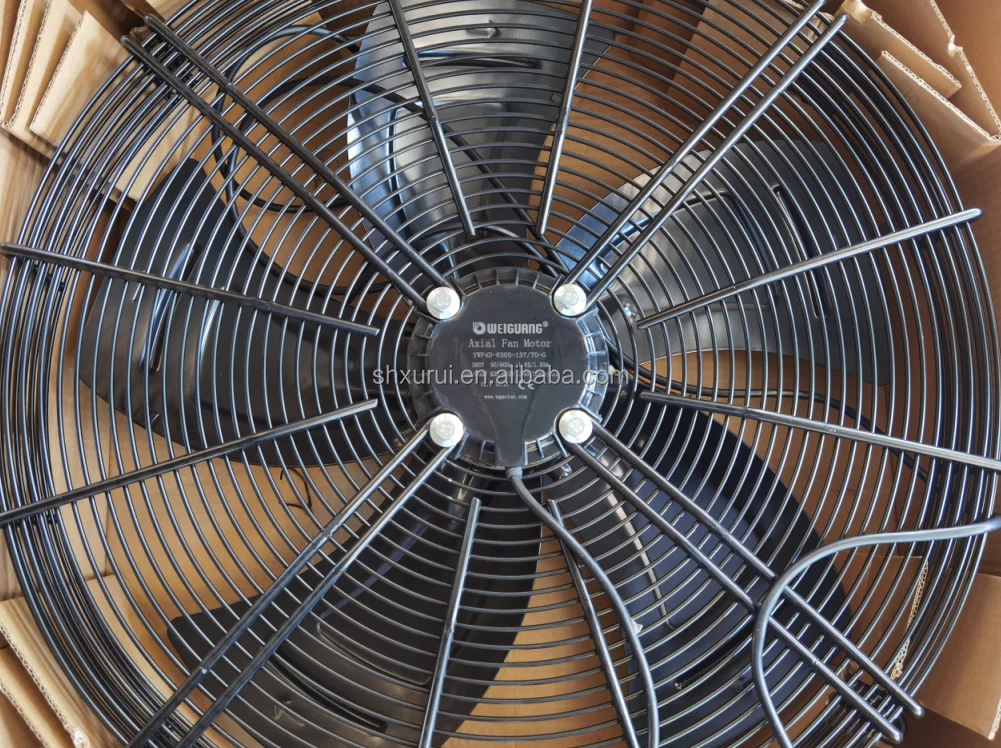

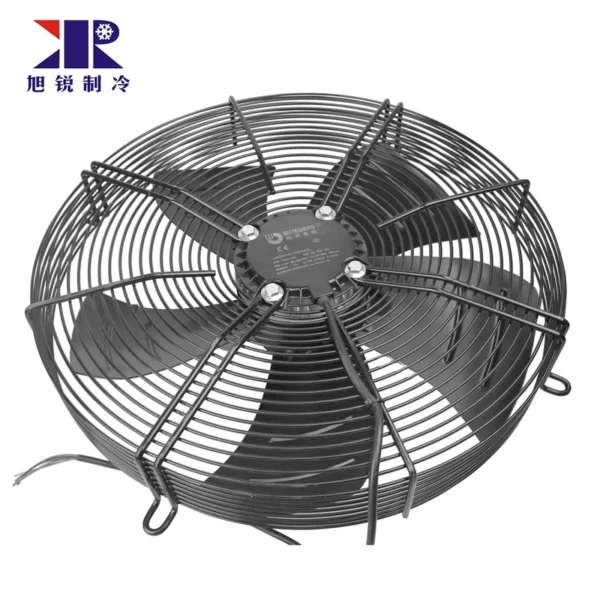

YWF series Axial fan for refrigeration condensing unit evaporator air cooler condenser

YWF Axial Fan Features

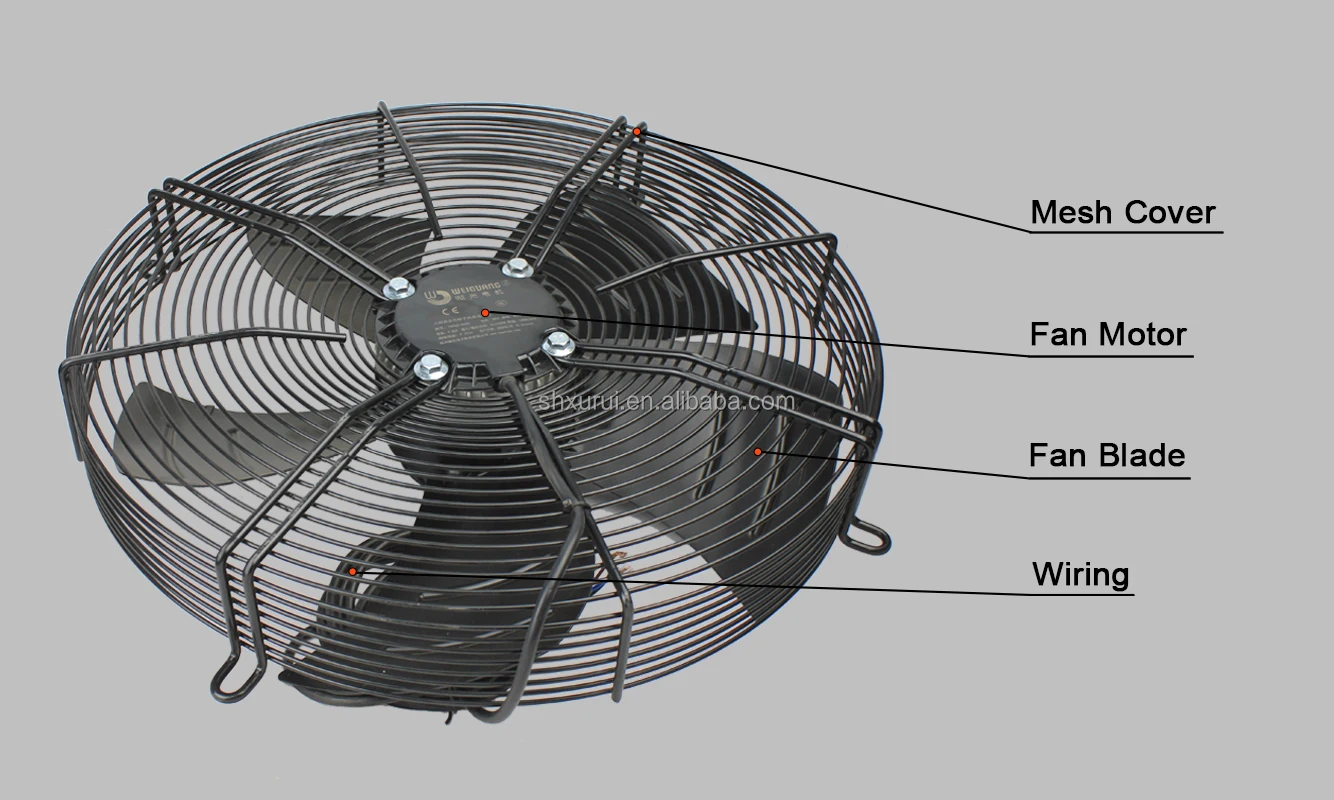

·Standard Axial Fan Include:

Mesh cover, fan motor (customized voltage), fan blade, wiring

Mode of operation: S1

Insulation class: B, F

Type of protection: IP44, IP54

Certificates: CCC, CE, U/L

Ambient temperature: -30℃~+60℃

Target energy efficiency: ErP2015

Energy effciency data according to ErP 2015 directive:

Measurement category: A

Efficiency category: Static

Power range (Pin kW): 0.125≤P≤10

Target energy efficiency: ŋ=2.74 x ln(P) – 6.33 + 40

·Feature:

 1. YWF series axial fans are external rotor fan motors. These motors have characteristics of compact structure, convenient installation, energy conservation and high efficiency.

2. YWF series axial fan motors have two types, single phase asynch ronous capacitor run fan motor and three phase asynchronous fan motor. They are widely used in condenser, evaporator and other refrigeration equipments and ventilating cycle areas.

3. The insulation class of the YWF series axial fans is B or F.

4. Voltage: The voltage of the single phase fan is 220v/50Hz and the voltage of the three phase fan is 380v/50Hz. We can also supply other fan with different voltages and frequescies according to cilents' requirement.

5. The standard length of the electrical wire on the fan is 1.5m and we can also supply the fans with connection box for clients' choices.

6. The applicable ambient temperature of the fans used in condenser is from -30℃ to 60℃.

7. The average service life of fans is over 30000 hours.

8. All fans are certified by CCC, CE, UL.

9. Before operating the fan, make sure the earth wire of the fan connected with the external grounding device.

10. Test condition: Fan characteristic measured is square frame without guard grill.

Parameters Table

Model	Voltage	Input Power (w)	Speed (r/min)	Blade
YWF4E-200S	220v/1p/50hz	40	1400	9
YWF4D-200S	380v/3p/50hz	35	1400	9
YWF4E-250S	220v/1p/50hz	50	1380	5
YWF4D-250S	380v/3p/50hz	55	1400	5
YWF4E-300S	220v/1p/50hz	85	1380	5
YWF4D-300S	380v/3p/50hz	75	1380	5
YWF4E-315S	220v/1p/50hz	95	1380	5
YWF4D-315S	380v/3p/50hz	80	1380	5
YWF4E-330S	220v/1p/50hz	100	1380	5
YWF4D-330S	380v/3p/50hz	85	1380	5
YWF4E-350S	220v/1p/50hz	129	1400	5
YWF4D-350S	380v/3p/50hz	129	1400	5
YWF4E-400S	220v/1p/50hz	180	1380	5
YWF4D-400S	380v/3p/50hz	180	1380	5
YWF4E-450S	220v/1p/50hz	250	1350	5
YWF4D-450S	380v/3p/50hz	250	1350	5
YWF4E-500S	220v/1p/50hz	380	1320	5
YWF4D-500S	380v/3p/50hz	414	1300	5
YWF4E-550S	220v/1p/50hz	550	1300	5
YWF4D-550S	380v/3p/50hz	600	1300	5
YWF4E-600S	220v/1p/50hz	700	1360	5
YWF4D-600S	380v/3p/50hz	780	1360	5
YWF4E-630S	220v/1p/50hz	750	1360	5
YWF4D-630S	380v/3p/50hz	800	1320	5
YWF6D-710S	380v/3p/50hz	830	900	7
YWF6D-800S	380v/3p/50hz	1200	900	7
Axial fans can also be selected according to requirements

YWF Axial Fan Application

Axial fans are widely used in condenser, evaporator and other refrigeration equipments and ventilating cycle areas.

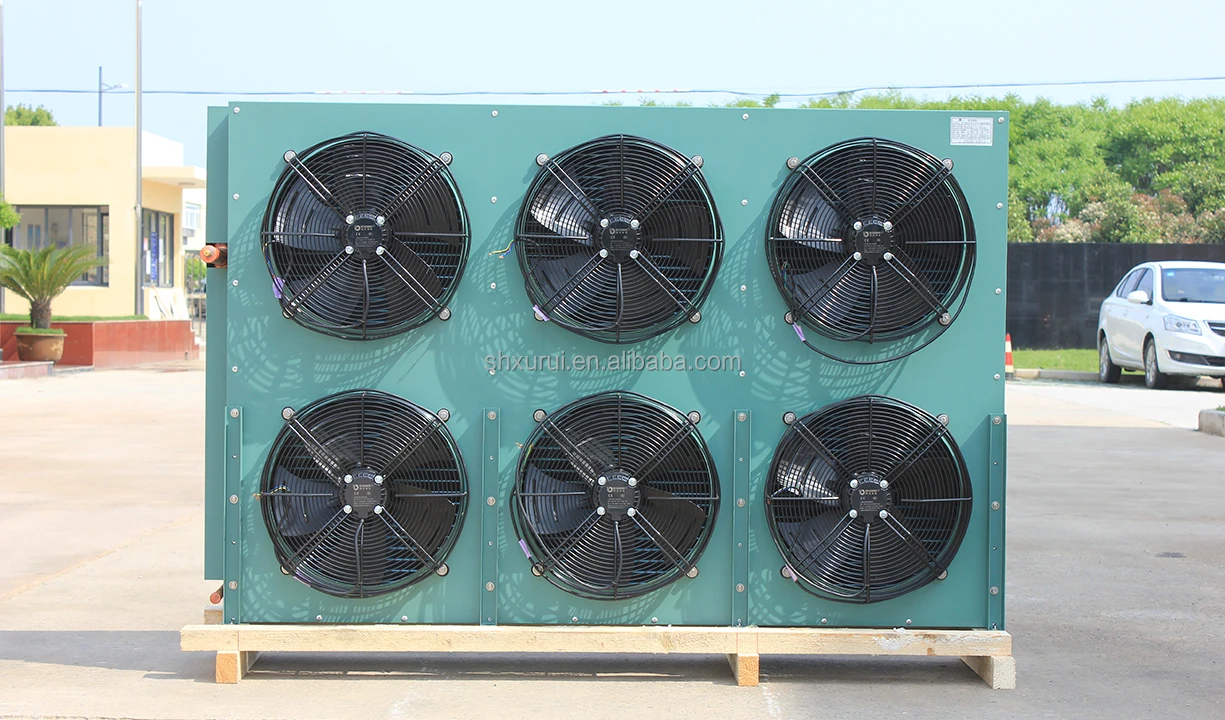

FN Type Condenser

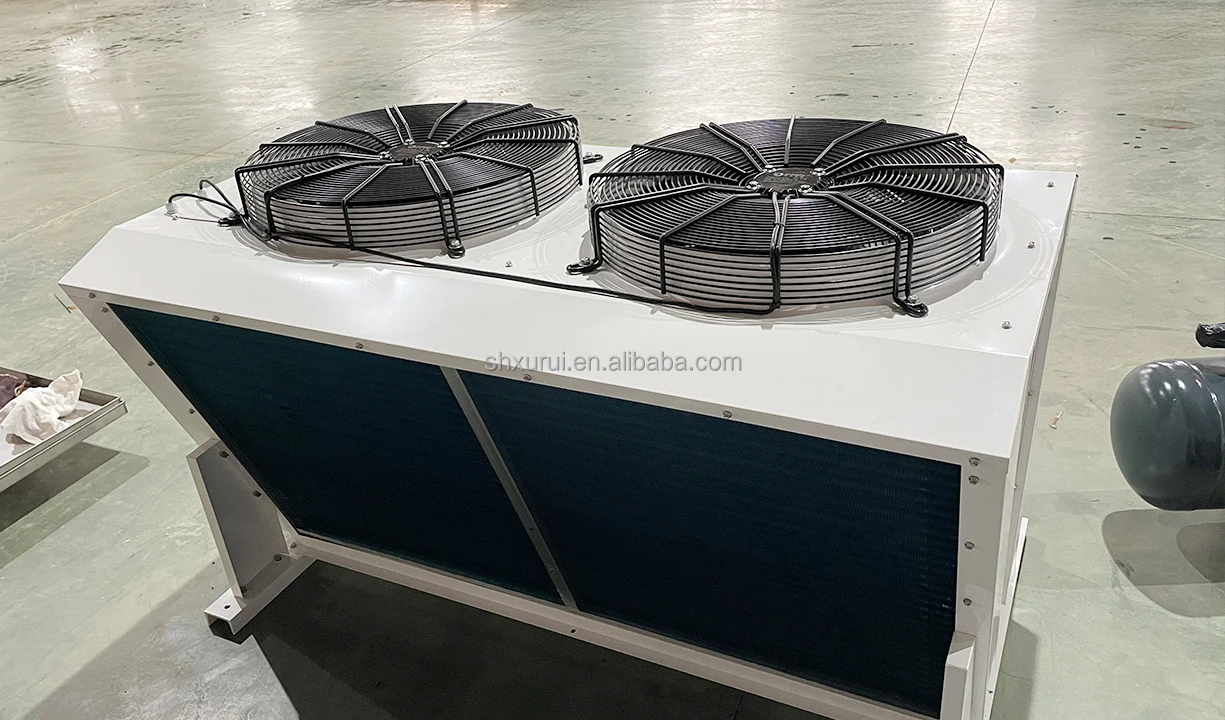

FNV Type Condenser

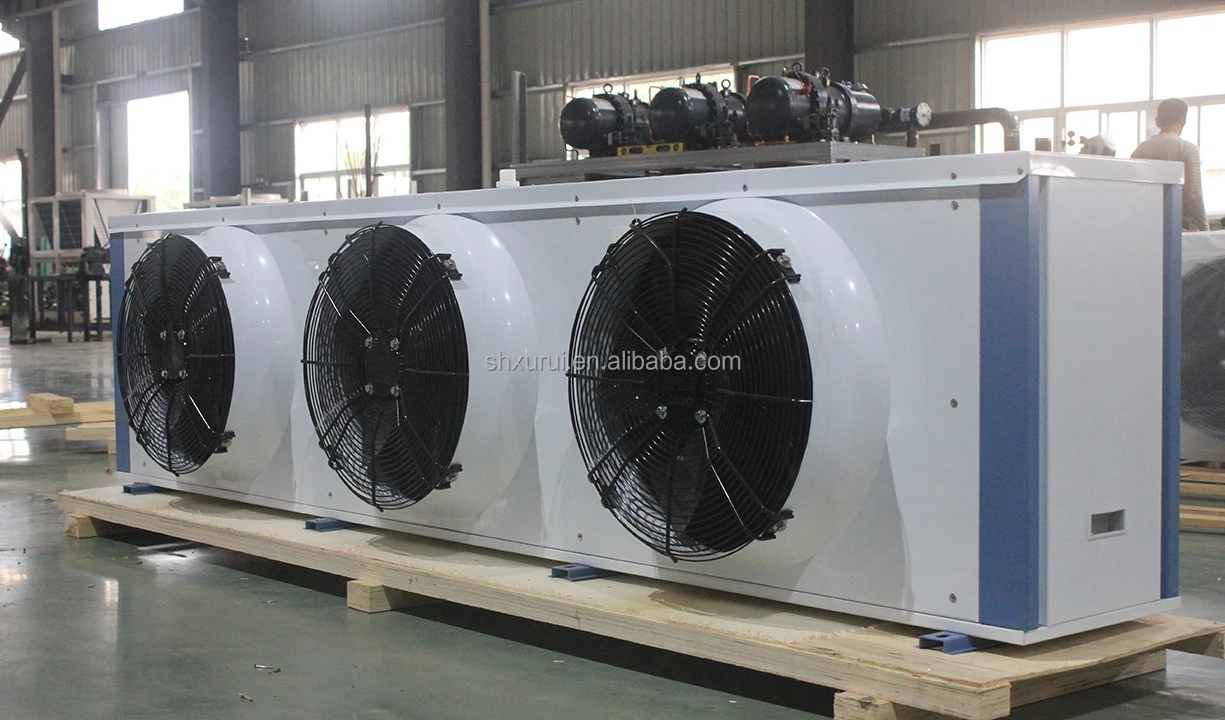

Evaporator

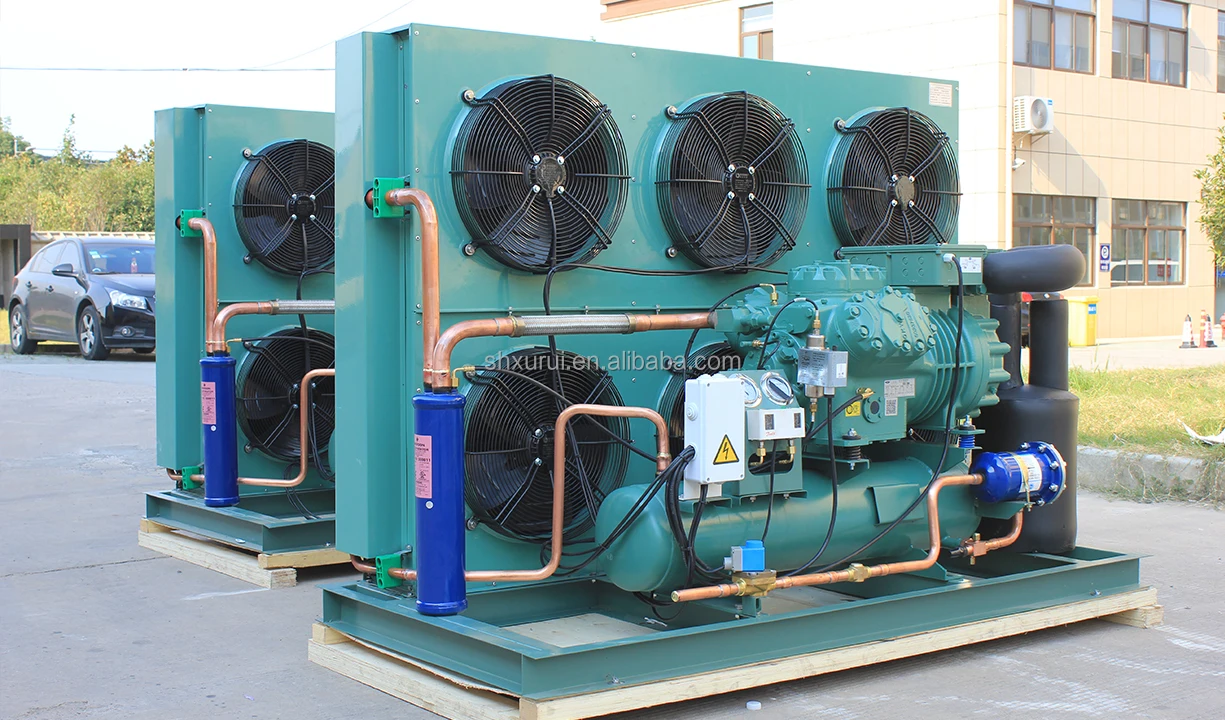

Condensing Unit

Wiring Diagram

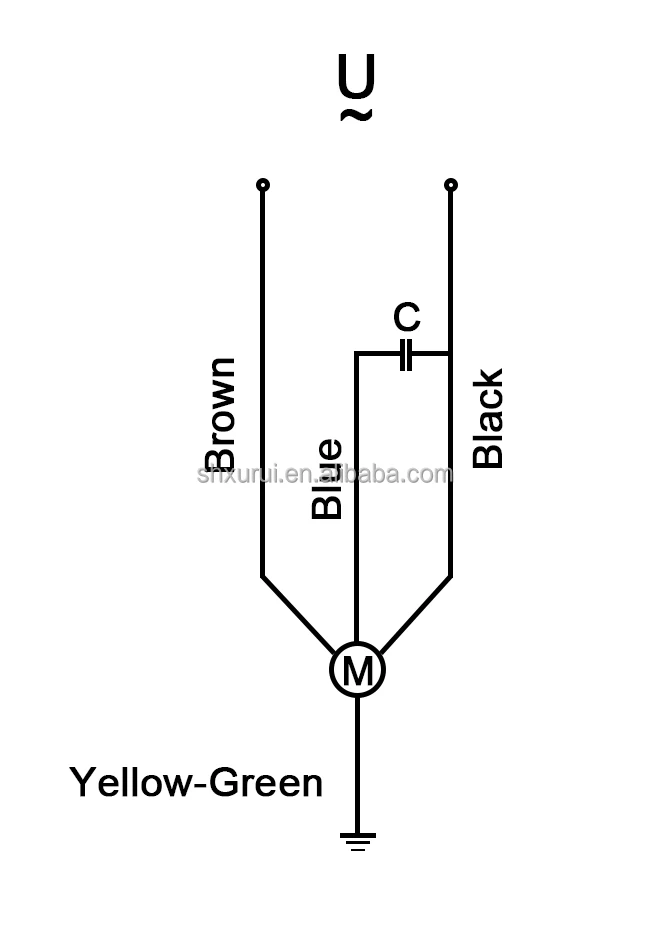

Single Phase

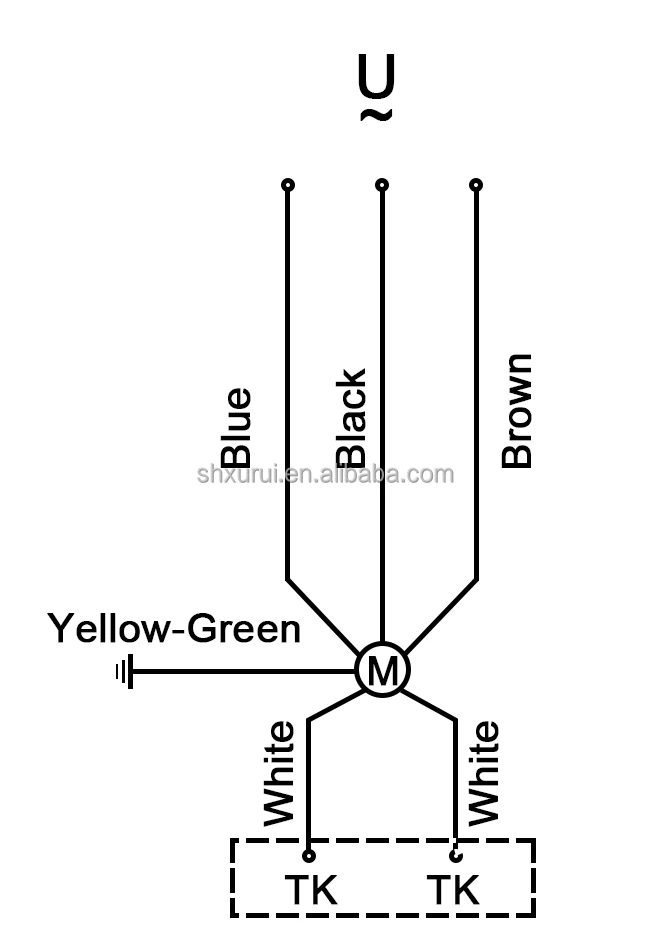

Three Phase
