The condensing unit listed here carries refrigerant R404a, type Condensing unit, documented exactly as the manufacturer publishes it. Made by Shanghai Xurui Refrigeration Equipment Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Condensing Unit
- Horse Power: 28hp
- Power Supply: Customized
- Refrigerant: R404a
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Application: Cold Storage Room Freezer Room
Technical Specifications
| Core Components | Motor |
|---|---|
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shanghai, China |
| Type | Condensing unit |
| Product Name | industrial refrigeration condenser unit |
| Application | Cold Storage Room Freezer Room |
| Horse Power | 28hp |
| Color | Green |
| Refrigerant | R404a |
| Power Supply | Customized |
| Compressor Type | Semi-hermetic piston |
| Function | Frozen Refrigeration Unit |
| Cooling Type | Air Coolded Condenser |
| Package | Woodecase |
| Packaging Details | Standard export wooden packaging |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Supply Ability | 3000 sets per Month |
Product Details
VR

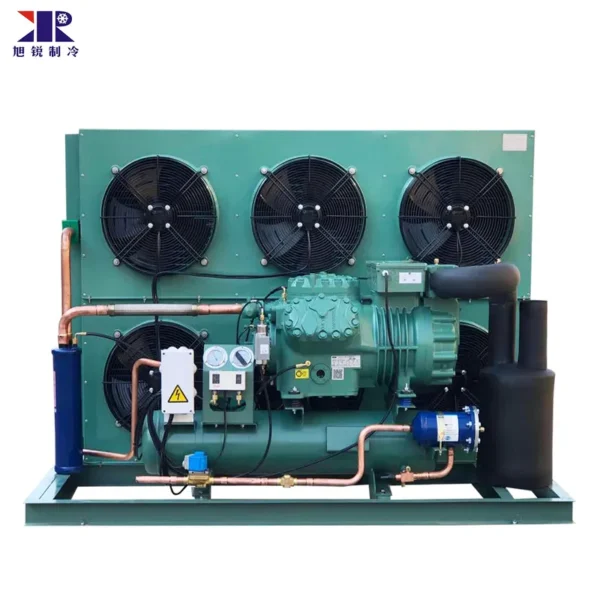

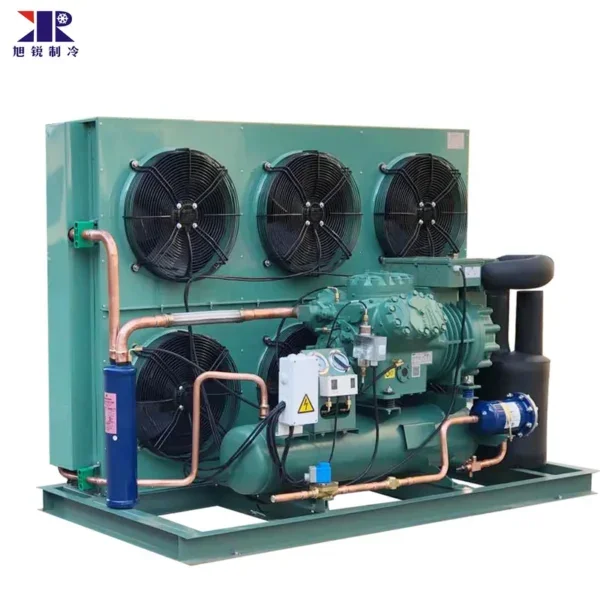

28hp low temperature 6HE-28Y refrigeration compressor condensing unit refrigeration unit for cold storage room
Condensing Unit Features
Advantage:
1. Refrigeration: R22, R404A, R134a, R507.
2. Temperature Range: From – 70°C To + 10°C.
3. Original and handsome shape,light and reasonable structure,convenient installation.
4. Use original brand compressor,strong cold wind force, superior reliability, long service life.
5. Installation without restriction by field, small occupation area, tight structure, convenient for package and transportation.
6. Use efficient, low power, low noise and strong-wind axial fan motor.
7. Efficient heat transfer surface,low noise when operating.
8. Simple structure, accurate and reliable operating system.
9. Integral installation, anticollision, rainproof structure feature.
4. Use original brand compressor,strong cold wind force, superior reliability, long service life.
5. Installation without restriction by field, small occupation area, tight structure, convenient for package and transportation.
6. Use efficient, low power, low noise and strong-wind axial fan motor.
7. Efficient heat transfer surface,low noise when operating.
8. Simple structure, accurate and reliable operating system.
9. Integral installation, anticollision, rainproof structure feature.
10. High efficiency and energy saving design.
11. Full automatic control, easy to operation and management.
Standard Equipment Include:
Compressor, vibration eliminate, oil filter, condenser, liquid receiver, dry filter, sight glasses, solenoid valve, accumulator (low temperature), pressure controller, high and low pressure guage, water-proof connection box.
We promise:
1. Quality assurance
All compressors and well-known brand accessories are 100% authentic. If there are fake goods, one fake will pay ten.
2. Flexible configuration
The accessories of the unit can be customized according to the demand. The condenser / liquid receiver can be enlarged, and the oil filter / solenoid valve / sight glass / pressure controller can be upgraded to international famous accessories
The accessories of the unit can be customized according to the demand. The condenser / liquid receiver can be enlarged, and the oil filter / solenoid valve / sight glass / pressure controller can be upgraded to international famous accessories
3. Exquisite design
Not only the appearance is beautiful and generous, but also all the pipelines have been designed professionally. After many years of customer feedback, the pipeline design meets the design requirements in the operation of the unit
4. Excellent quality
In addition to the use of high-quality accessories, professional design, stable operation and other advantages, all machine frame and sheet metal are produced by XURUI's own factory, and the sheet metal quality is excellent. The appearance adopts the whole spraying technology, the color is even and bright, and does not drop the paint.
5. Installation and after-sales service
No matter what country and region you are in, as long as you need, we will provide professional tech. to the place where we can arrive to solve your worries.
Not only the appearance is beautiful and generous, but also all the pipelines have been designed professionally. After many years of customer feedback, the pipeline design meets the design requirements in the operation of the unit
4. Excellent quality
In addition to the use of high-quality accessories, professional design, stable operation and other advantages, all machine frame and sheet metal are produced by XURUI's own factory, and the sheet metal quality is excellent. The appearance adopts the whole spraying technology, the color is even and bright, and does not drop the paint.
5. Installation and after-sales service
No matter what country and region you are in, as long as you need, we will provide professional tech. to the place where we can arrive to solve your worries.
Suitable Temperature for Various Products
Temperature | Condensing Unit Type | Suitable Products |
-5°C ~ +5°C | Single stage piston/scroll/screw compressor condensing unit | Vegetables, Fruit, Drink, Beer, Medicines, Vaccine… |
-15°C ~ -25°C | Single stage piston/scroll/screw compressor condensing unit | Meat, Fish, Medicines, Seafoods, Ice Cream… |
-30°C ~ -40°C | 2-stage compressor condensing unit | Meat, Fish, Blood… |
-45°C ~ -70°C | Cascade condensing unit | Tuna, Vaccine… |
Available Condensing Unit Types
Piston condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Scroll condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-10℃, -10~-23℃, -10~-30℃
Temperature range: +5~-10℃, -10~-23℃, -10~-30℃
Screw condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Cascade condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: -40~-70℃
Temperature range: -40~-70℃
Monoblock condensing unit
Type: box top blow type and box side blow type
Condenser: air cooled
Temperature range: +10~-5℃, -15~-20℃
Temperature range: +10~-5℃, -15~-20℃
Water chiller
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: ≥0℃, -10~-15℃, -35℃
Temperature range: ≥0℃, -10~-15℃, -35℃
Condensing Unit Application
Cold Storage
Ice Cream Production Line
Quick-freezing Tunnel
Ice Maker
Industrial Cold Water
Cryogenic Aquaculture
Application
Successful Cases
Company Profile
About us
Shanghai Xurui is located in Shanghai with 15 years' experience in producing condensing unit, evaporator, condenser, water chiller for cold room, ice cream production line, quick-freezing tunnel…
All units adopt world famous brand compressors. It has been certified by ISO9001, CE, got import-export license and the license of National Industrial Product Manufacture of China.
Export to more than 30 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
Supply high quality & safety refrigeration equipment. Consecutive sales increase of 15 years.
Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xu Rui
Not only we have our own brand “XU RUI” , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
Our Advantages
At China Wholesale, we can handle your large drive-in refrigerated warehouse projects from start to finish. We have a vast inventory of refrigerant equipment to meet your needs and our nationwide installation teams are ready and waiting to do the job. We offer: • Top quality new equipment for any size refrigerated building. • Experienced crews to build your box from walls to ceiling. • Experience in special needs such as insulated floors, refrigeration parts. • Turnkey projects available. • Custom sizes and design services. • We will go anywhere to do the job. Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
Transportation & Installation
We provide the best packing service to our customers! Arrival safely.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5430 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
