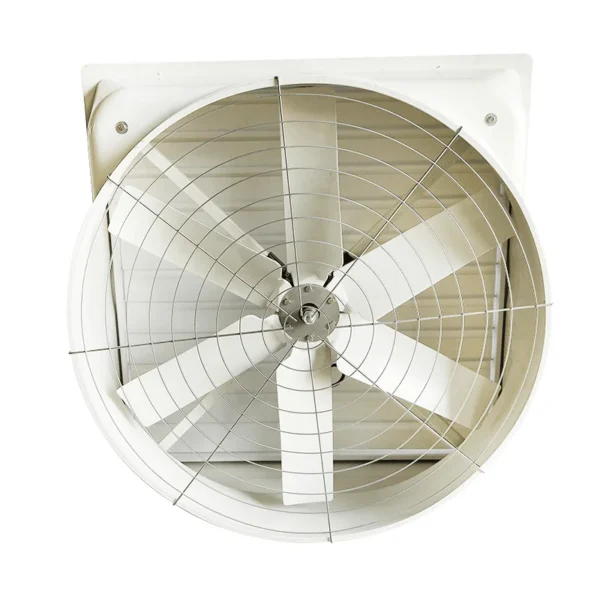

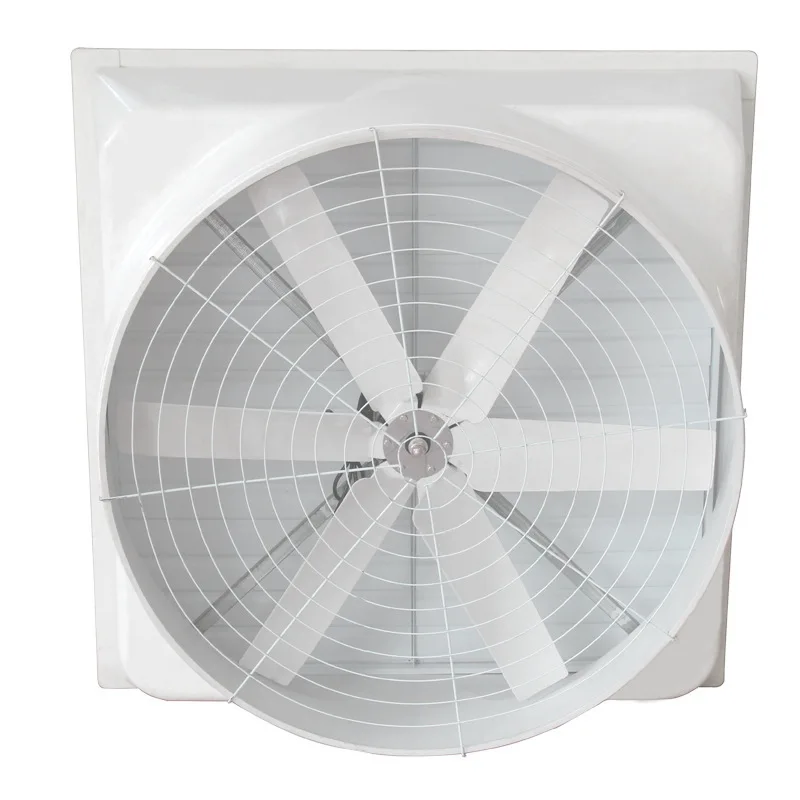

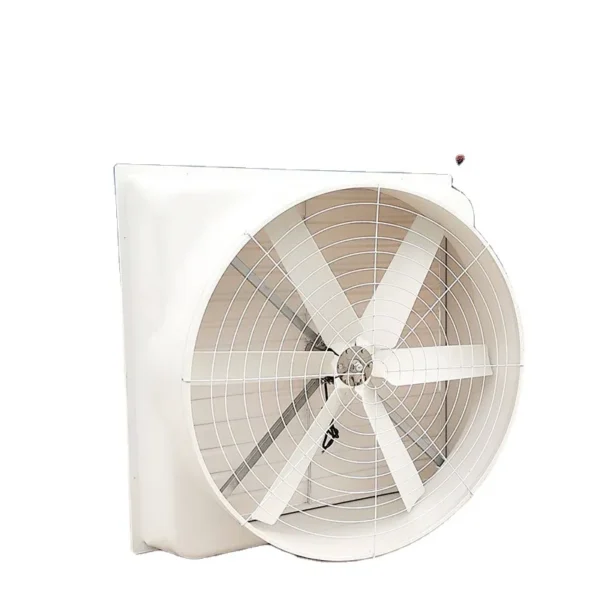

Cone Ventilation Exhaust Fan, FRP, Axial, Aluminum

Key specification for this cone ventilation exhaust fan: 380 V, 220 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shandong Xingmuyuan Agriculture And Animal Husbandry Technology Co., Ltd. (5 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Cone Ventilation Exhaust Fan

• Power Source: Electric
• Voltage: 380 V, 220 V
• Rated Voltage: 220V Single Phase & 380V Three Phase Customizable
• Material: FRP
• Blade Material: FRP
• Outer Shell Material: Fiberglass Reinforced Plastic (FRP) Tapered Cone Housing

Technical Specifications

Product Details

Product Description

Technical Data:
Model	Drive	BladesDiameter	Blades Speed(rm)	Motor Speed(rpm)	Air Flow(m3/h)	InputPower(W)	Noise(db)
XMY(p)-460	Direct	460mm(18'')	1400	1400	8400	550	<70
XMY(p)-610	Direct	610mm(24'')	948	900	16800	550	<70
XMY(p)-915	Direct/Belt	910mm(36'')	950	900	25000	750	60
XMY(p)-1270	Belt	1270mm(50'')	340	1400	45800	1100	<64
XMY(p)-1372	Belt	1372mm(54'')	325	1400	56500	1500	<64

Product Features:
★ The patented design provides excellent performance. Self-draining,sloped housing is quick and easy to clean reducing maintenance costs, high strength, service time more than 10 years.

★ Thick and corrosion resistance SMC housing. Rust-free, corrosion-free, both side is glossy, high output performance and low maintenance.

★ Maximize performance and durable 6 balanced SMC paddle blades, easily assembled, and operate smoothly.

★ Direct drive fan requiring no belts, no bearings to grease with high efficiency with no drive loss.

★.Special shutter design lower resistance with preventing back drafts.

★ FRP Cone Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Details Images

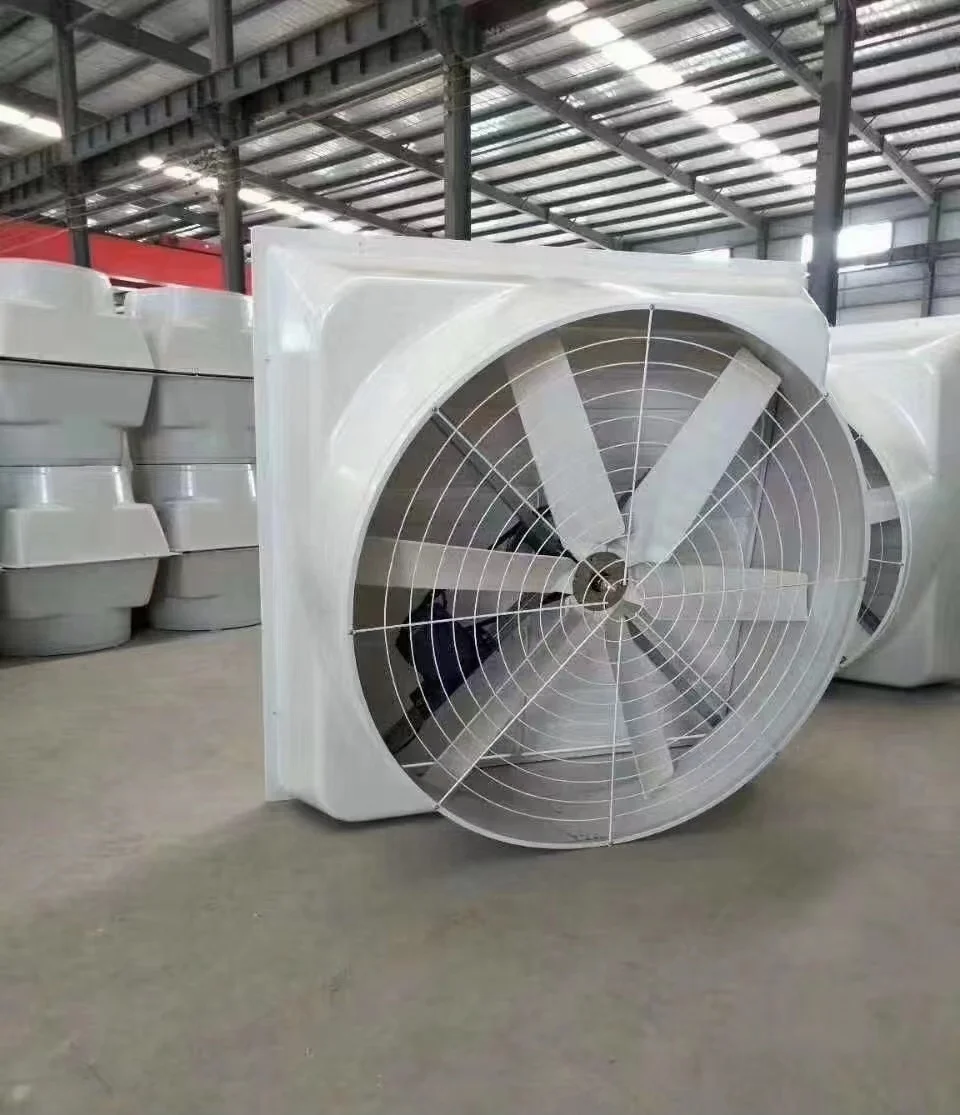

Frame.

It is made of high-strength anti-corrosion FRP material and has a thickened design, beautiful appearance, strong waterproof,
corrosion resistance and strong aging resistance.

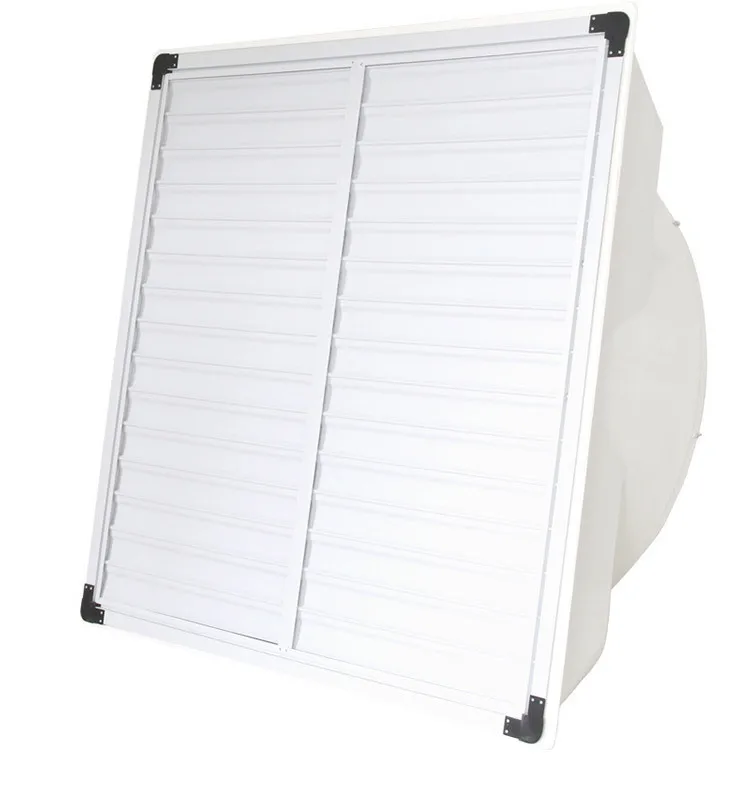

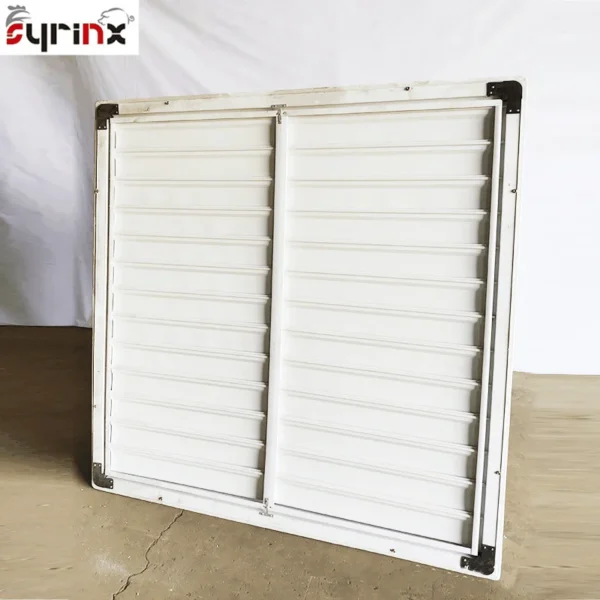

Shutters

PVC Shutters, corrosion resistant, anti-aging.

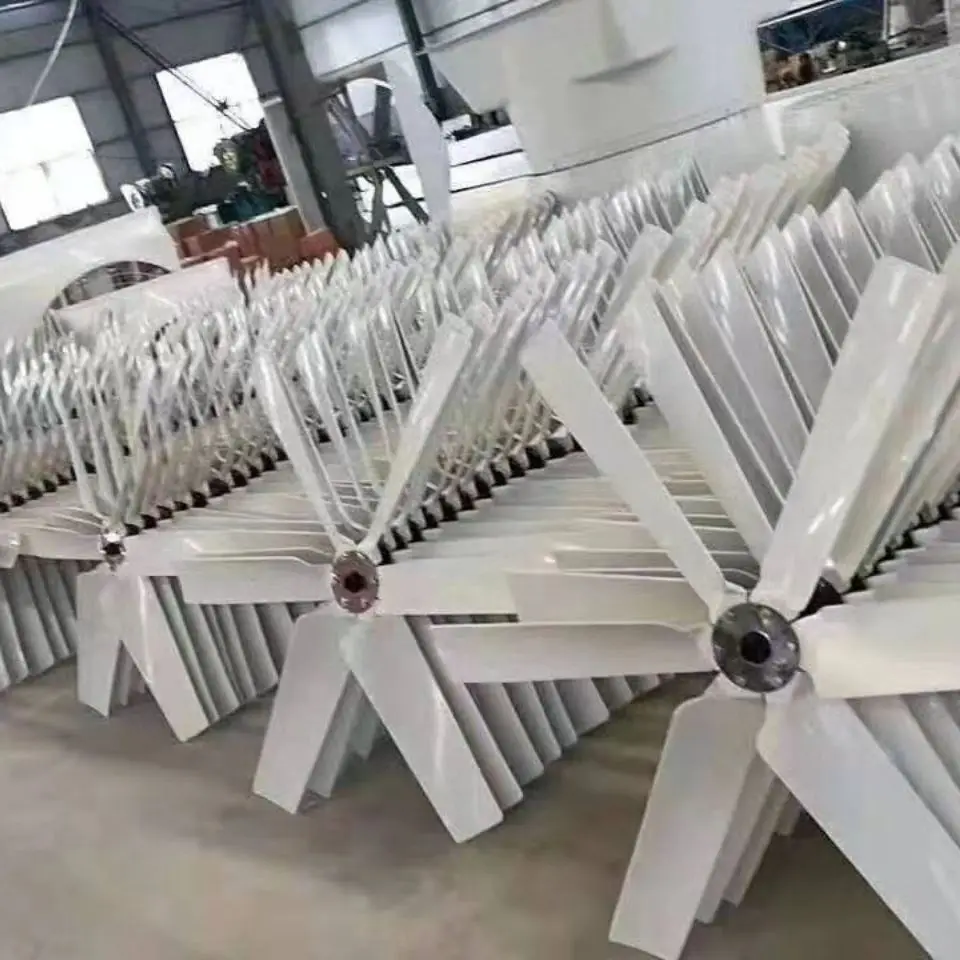

Blades

1. The fan blades are made of high quality plastic, beautiful appearance, low noise.
2. Reasonable fan blade angle design, large air volume and high efficiency.

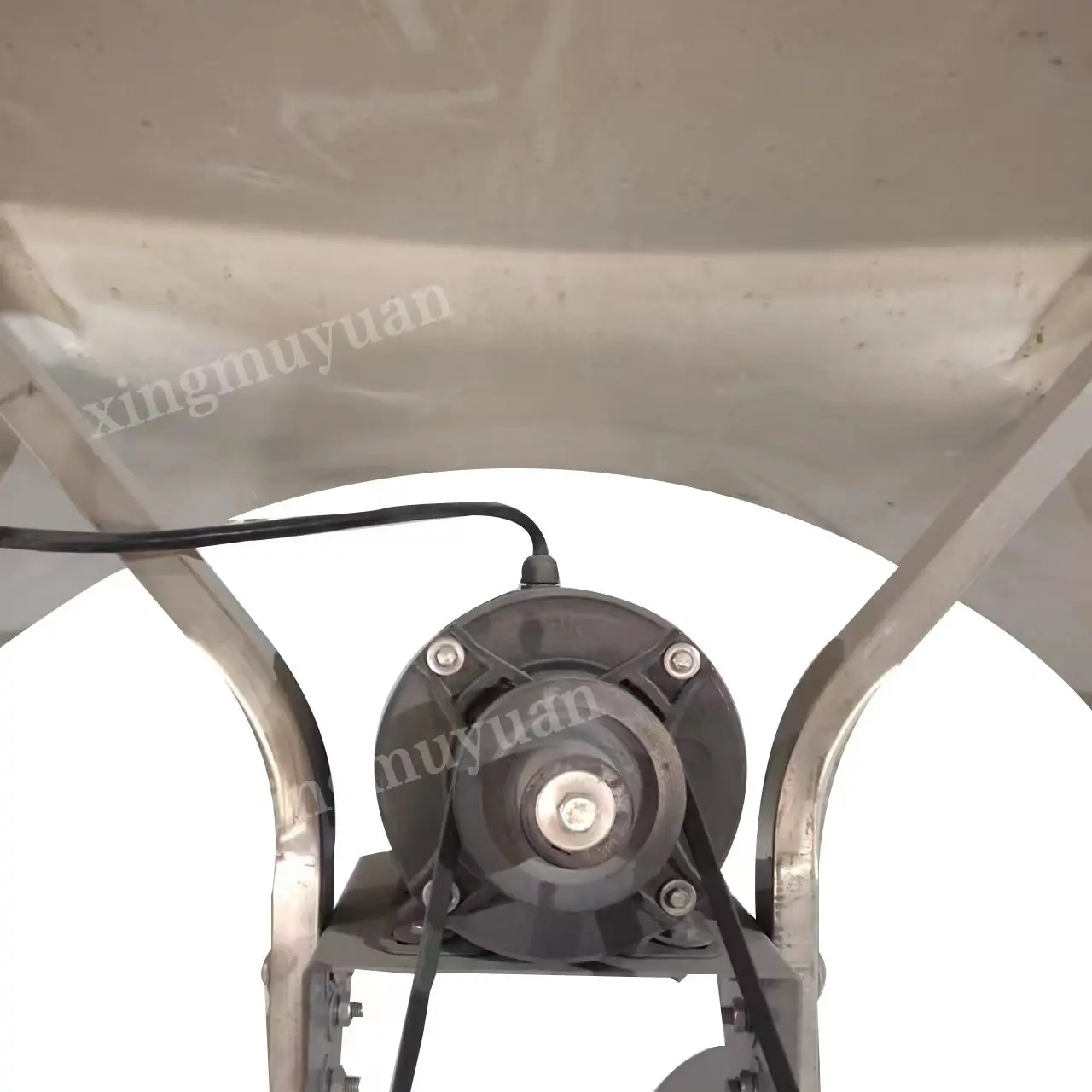

Motor

Motor voltage, frequency and phase can be customized.
Motor protection class: IP55

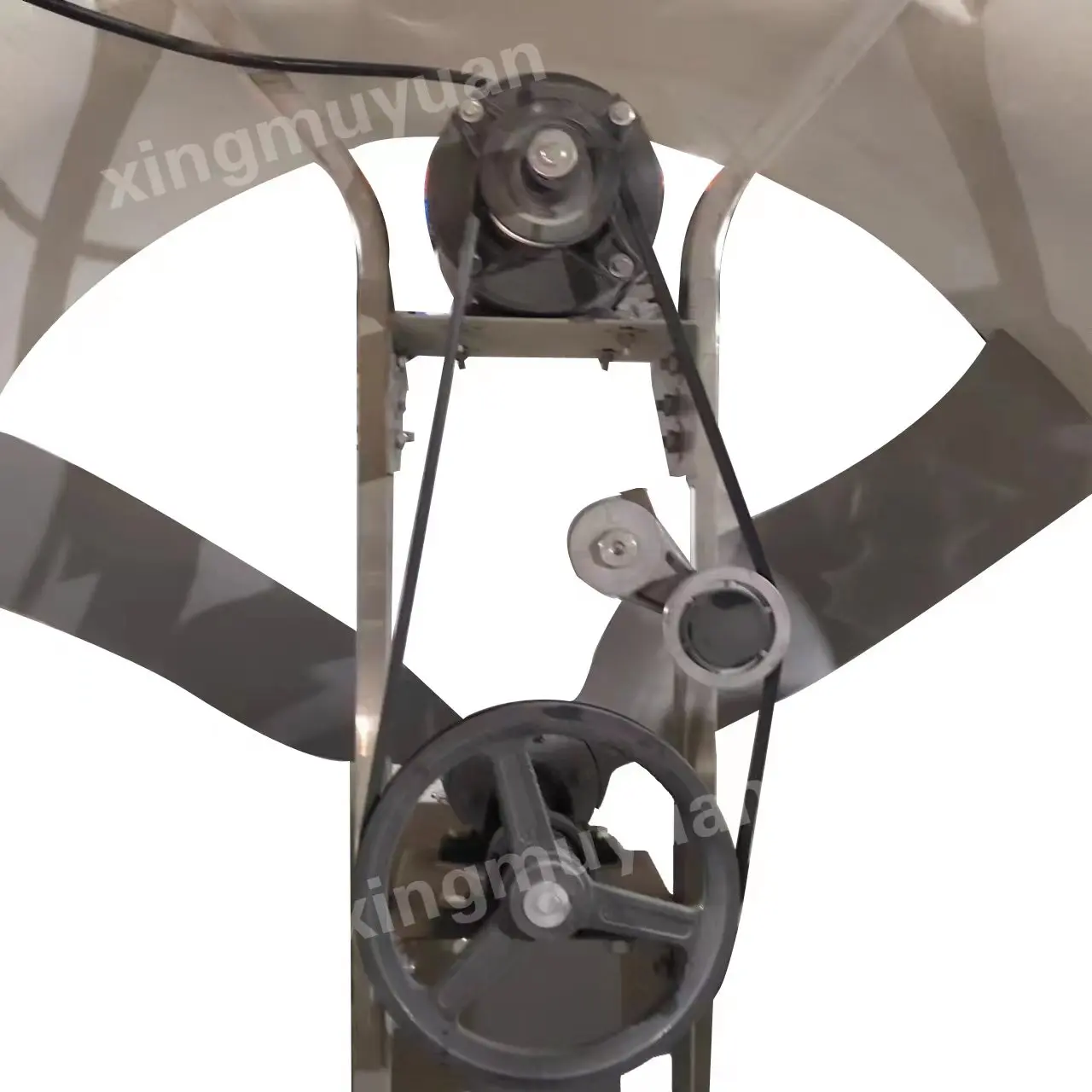

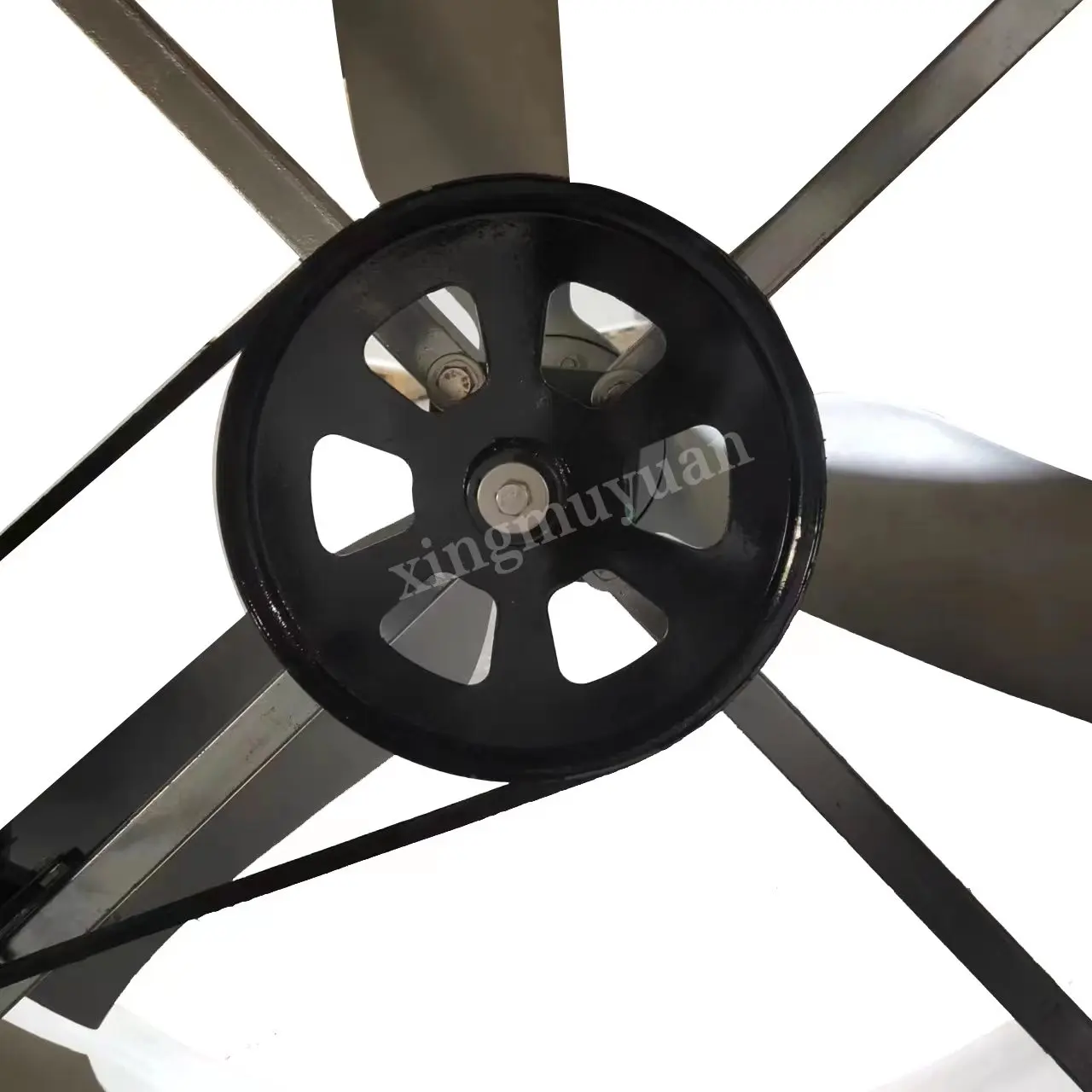

Belt Tensioner

The belt tensioner is made of aluminum alloy, runs smoothly and stably.

Bracket

H-type aluminum alloy bracket, light weight, stable installation.

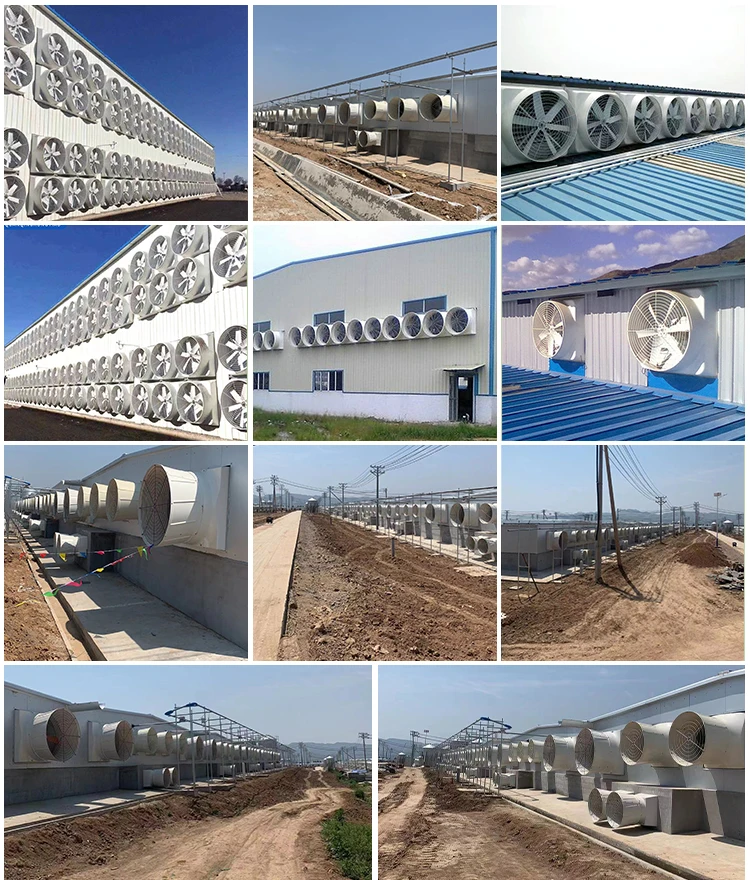

Application

XINGMUYUAN Series FRP Cone Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

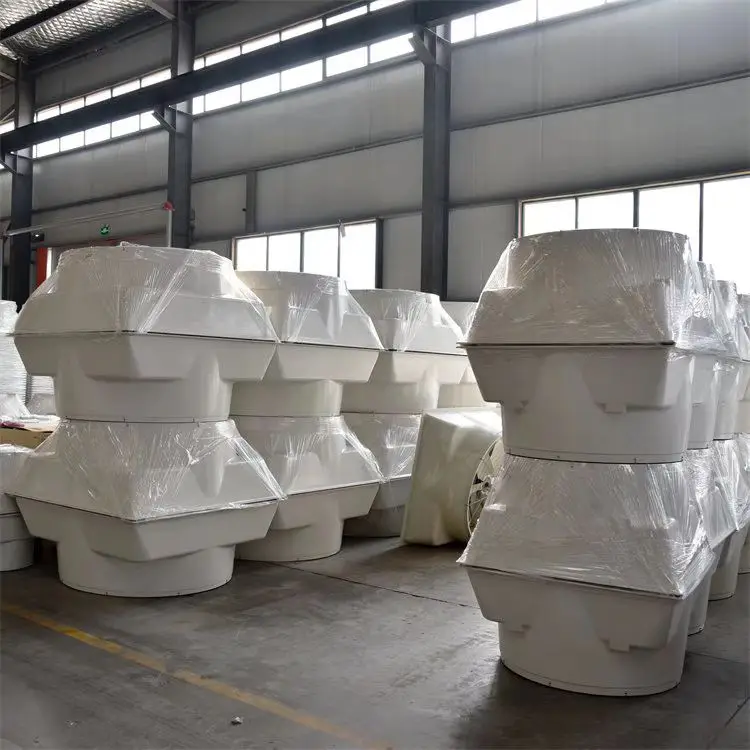

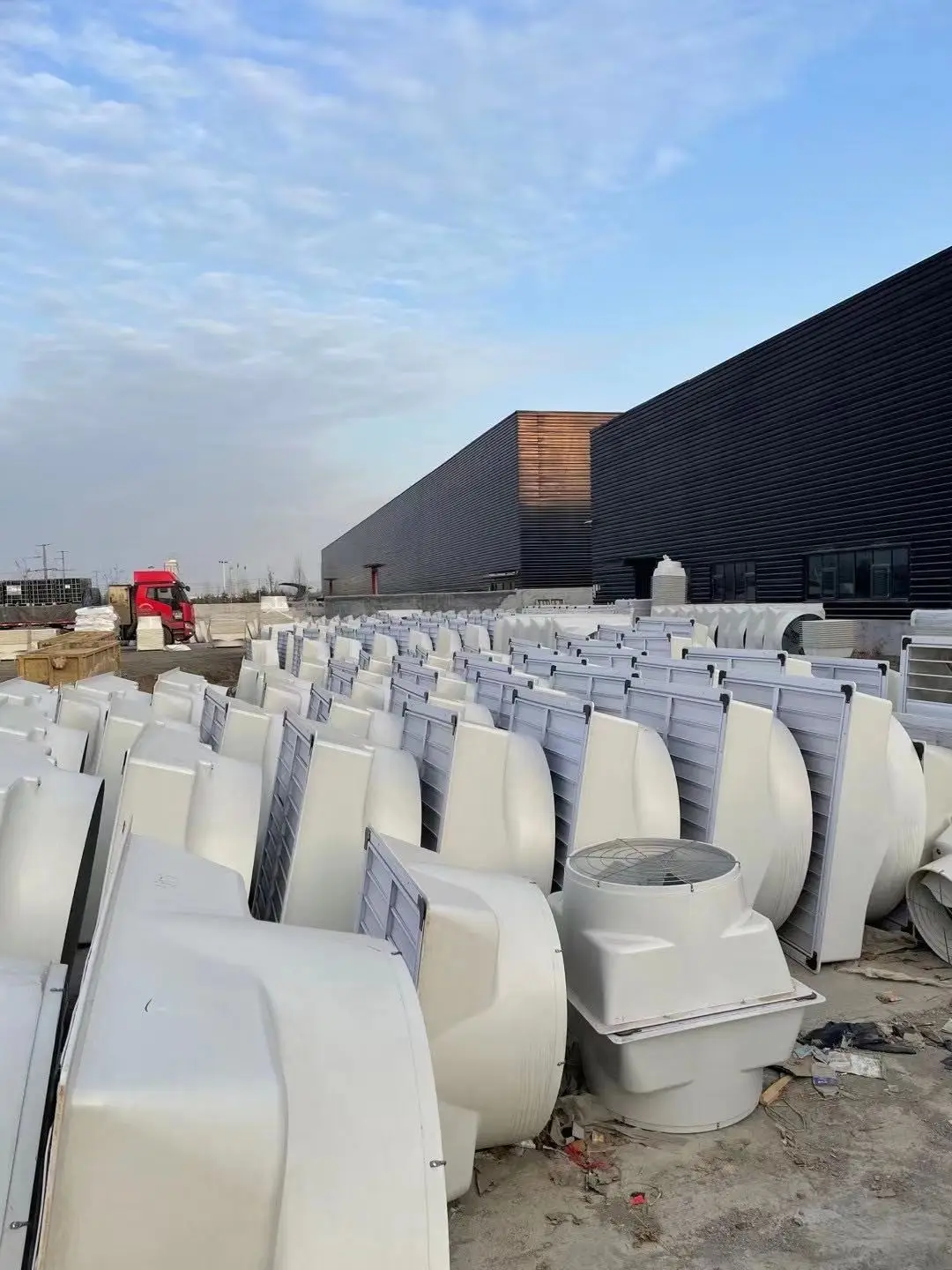

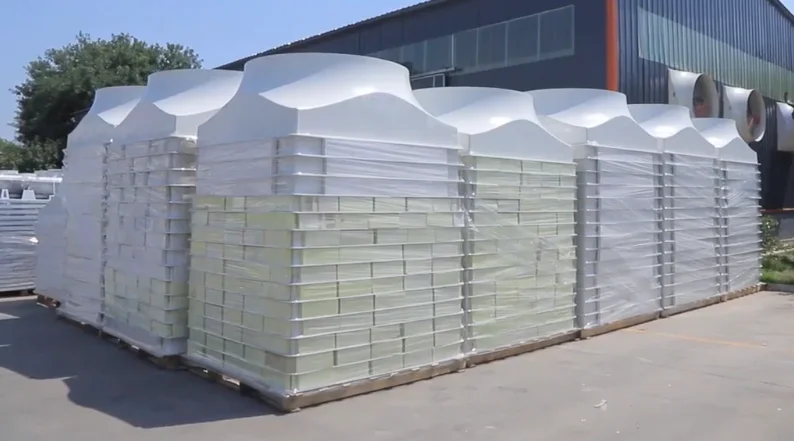

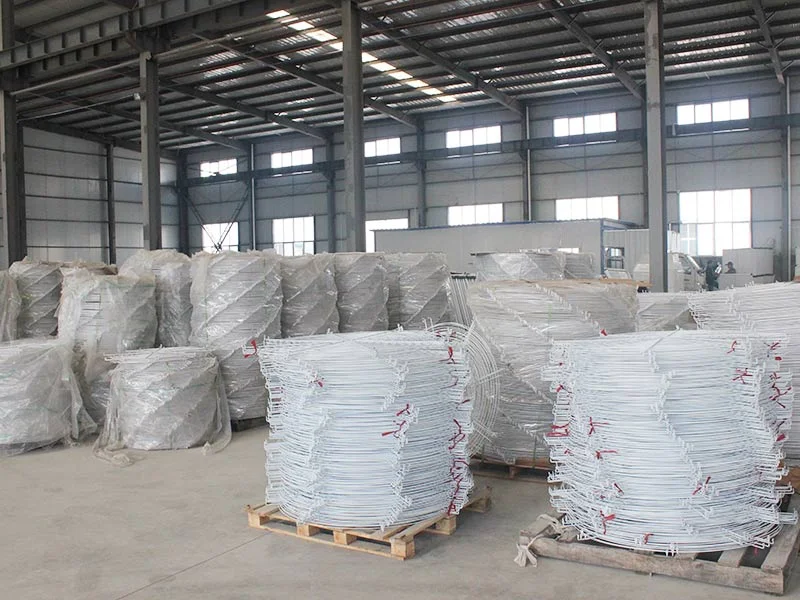

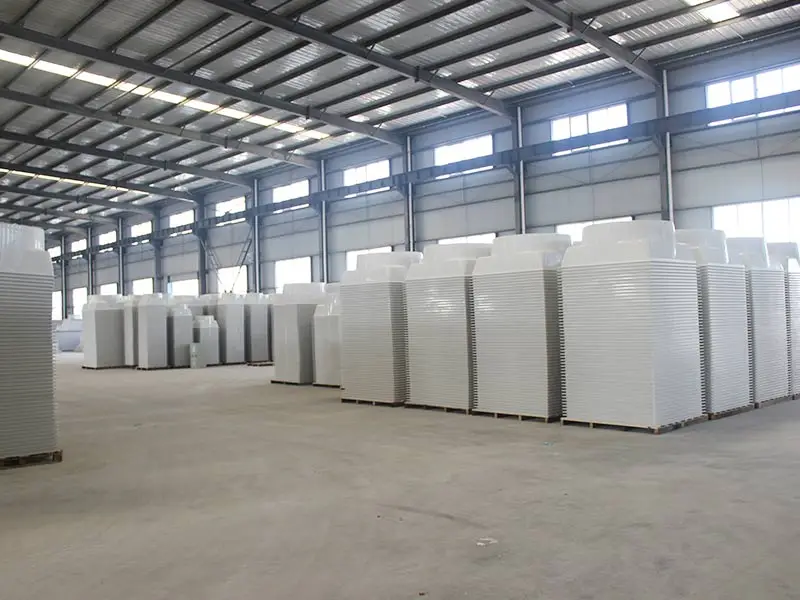

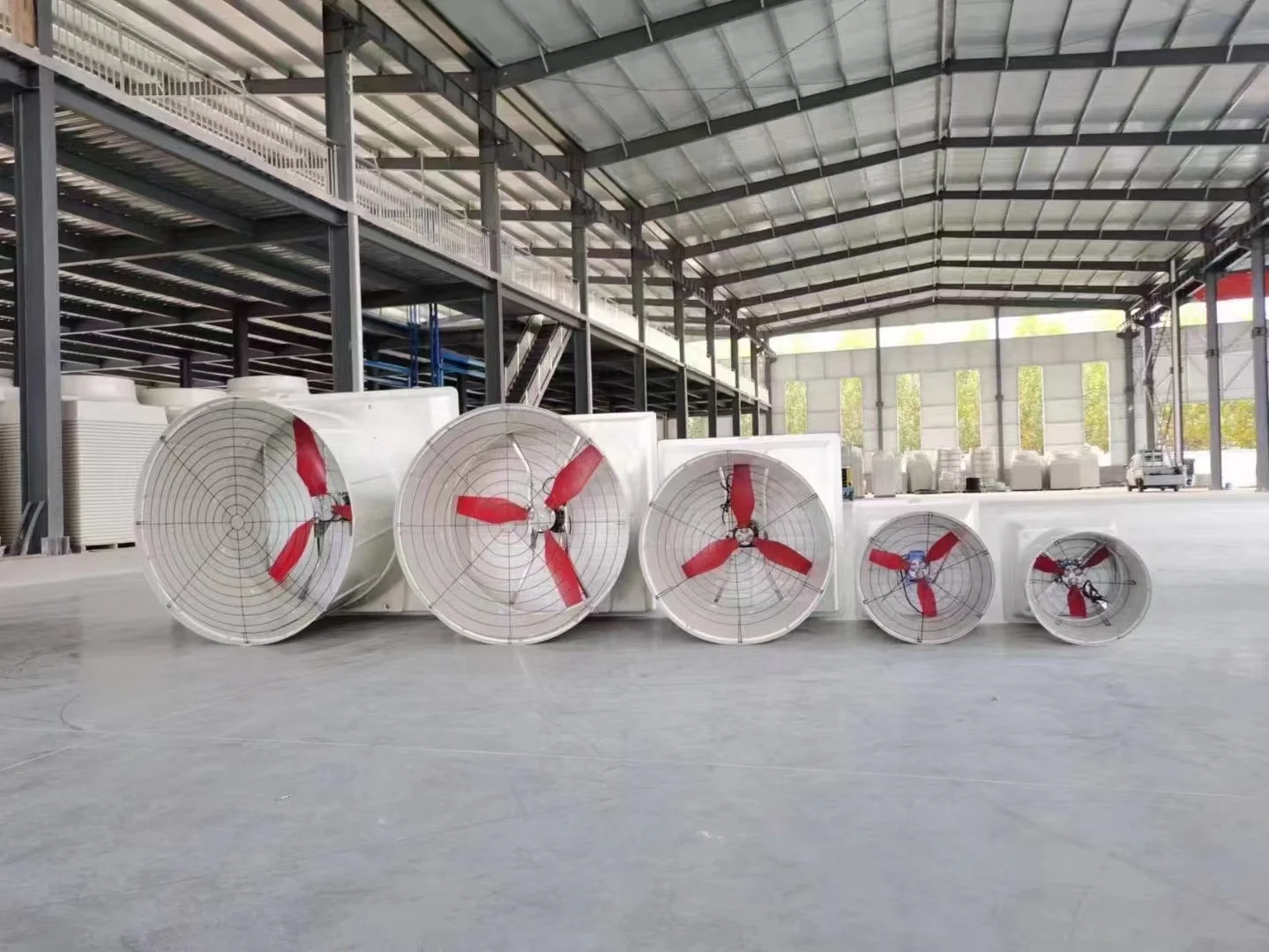

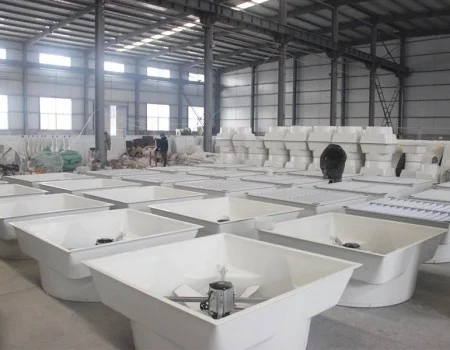

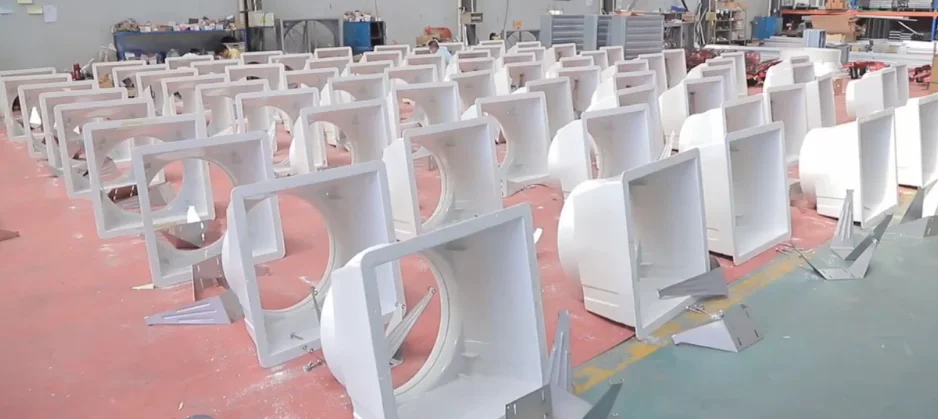

Our Factory

95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring
quality，utmost cost-effective globally.

Company Profile

Xingmuyuan is a professional and comprehensive company engaged in the R&D, production and sales of temperature control equipment. we devotes ourselve to the scientific and technological development of ventilation and cooling equipment, heating equipment , workshop ventilation and cooling,greenhouse ventilation and cooling,animal husbandry machinery. Five series of more than 20 specifications, the main products include cooling pad, animal husbandry fan, poultry and greenhouse exhaust fan, circulation fan, roof exhaust fan, FRP fan and so on, which can be widely used in agriculture, animal husbandry, plant, textile, mining,greenhouse and other industries. We strive to create products with good performance, good in quality,complete in variety and excellent price.
Our overseas customers are mainly concentrated in Southeast Asia, Middle East,West Asia, South Asia and other regions and established good cooperative relations and widely recognized and trusted by users. We do OEM or ODM service,no matter customizepattern, logo, package,all welcome. We have a professional international trading team and complete t esting equipment and strong technical advantage.All of our products have passed strict quality control and been issued certification of CE, ISO. We welcome partners both at home and abroad contact and visit us..

Our advantage：.

Shandong Xingmuyuan Agriculture and Animal Husbandry Technology Co., Ltd Our products professional supplier and factory:
1.PROFESSINAL: Over 8 years of animal husbandry equipment manufacture and export experience. Customers from more than 60 countries and regions.

2.COMPETITIVE PRICE: Reasonable price with good quality and short delivery time.

3.RELIABLE: Strict product QC,Advanced processing equipment and professional operators team.

4.FREE OF WORRY: Excellent service team with 20 persons and negotiate all the time whenever have after-sale matter. 5.TRUSTWORTHY: Relevant authoritative test reports and certificates, such as 3C,CE, ISO.

6.STABLE: Compelete supply chain,patented skills and design team, accept all the OEM & ODM services.

Pre-sales service:

* Accept OEM & ODM, our strong design team support custom products according to customer's requirement.

*Sample testing or small order is welcomed.

* We welcome partners both at home and abroad contact and visit our factory.

* We will give you professional suggestion, according to different market and products for new customers.

* Our Inspection Department will test each batch of product to ensure the quality, including material test & performance test.

After-sales service:

* All enquires will be valued and replied within 2 hours.

* Provide diversified and personalized deliery services.
* Good and standard package to protect your products.
* Your any feedback will be highly appreciate to make sure we do better and better.
*We will return and exchange the products due to the quality problems caused by manufacturing

Certifications

Professional Trustworthy

The products of our company have been granted certificates such and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”XINGMUYUAN”.
Our Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate".

FAQ

## Q1: Why is FRP fiberglass cone fan more suitable for pig farms with heavy ammonia than galvanized iron fans? A: The whole cone housing is made of fiberglass composite material, which is acid, alkali and ammonia resistant. It will never rust, peel paint or corrode like metal frame fans even in damp pig barns full of manure gas, with much longer service life. ## Q2: What’s the advantage of tapered horn cone structure compared with square box exhaust fans? A: The integrated horn-shaped guide shell optimizes airflow path, reduces wind resistance and air backflow. It delivers stronger negative pressure suction, higher ventilation efficiency and lower running power consumption than traditional square exhaust fans. ## Q3: What material are the fan blades of this FRP cone fan made of, and what are its strengths? A: Equipped with cast aluminum serrated blades. The special sawtooth design cuts running noise effectively, light weight but high hardness, no deformation or fracture under long-time continuous operation. ## Q4: Can I choose different louver shutters to match this fiberglass fan? A: Two optional shutters are available: lightweight anti-oxidation PVC louver and durable aluminum alloy louver. Both can close automatically to block cold wind, dust and pests when the fan stops running, preventing air backflow. ## Q5: Does the FRP shell become fragile and crack under impact? A: It adopts thickened reinforced fiberglass molding craft with good toughness and impact resistance. It won’t crack under daily transportation, installation and accidental collision in livestock houses, also anti-ultraviolet to avoid aging outdoors. ## Q6: What transmission system does this cone fan adopt, and is it easy to maintain? A: It uses belt drive with adjustable automotive belt tensioner. You can easily adjust belt tightness without disassembly. We provide spare belts at low cost after wear, simple daily maintenance for breeding farms. ## Q7: How many size specifications are available for this fiberglass ventilation fan? A: Six complete models for selection: XMY-560, XMY-660, XMY-850, XMY-1060, XMY-1260, XMY-1460, covering airflow from 8000 m³/h to 44000 m³/h to fit small, medium and large pig ranches. ## Q8: What voltage options do you support for overseas breeding customers? A: Standard voltage is 380V three phase. We can customize 220V single-phase motors, and match EU, US, AU plugs according to local power grid requirements of different countries. ## Q9: Besides pig houses, what other corrosive breeding scenarios can this FRP fan be used in? A: Ideal for pig farms, chemical greenhouses, sewage treatment plants and poultry houses with high corrosive gas. It is the preferred ventilation equipment for environments where metal fans are easy to rust and damage. ## Q10: Can this fiberglass cone fan work with evaporative cooling pads to build a cooling system? A: Perfect matching solution. Install FRP cone fans on one wall of the barn and honeycomb cooling pads on the opposite wall, forming stable negative pressure circulation to remove ammonia, moisture and heat rapidly all day long. ## Q11: What is your after-sales warranty policy for fiberglass cone exhaust fans? A: We offer 1-year full machine warranty covering FRP housing, aluminum blades and motors. If any spare parts get damaged after warranty expires, we can supply replacements at factory cost price for bulk orders.

Ordering and Pricing

• Minimum order quantity: 1 box
• Volume pricing:
  • 1–9 box: US $200 / box
  • 10–19 box: US $180 / box
  • 20–29 box: US $160 / box
  • 30+ box: US $100 / box
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cone ventilation exhaust fan?

The standard minimum order quantity is 1 box. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cone ventilation exhaust fan be supplied for my local voltage?

The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Xingmuyuan Agriculture And Animal Husbandry Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shandong Xingmuyuan Agriculture And Animal Husbandry Technology Co., Ltd. range on HVACR Nexus.
