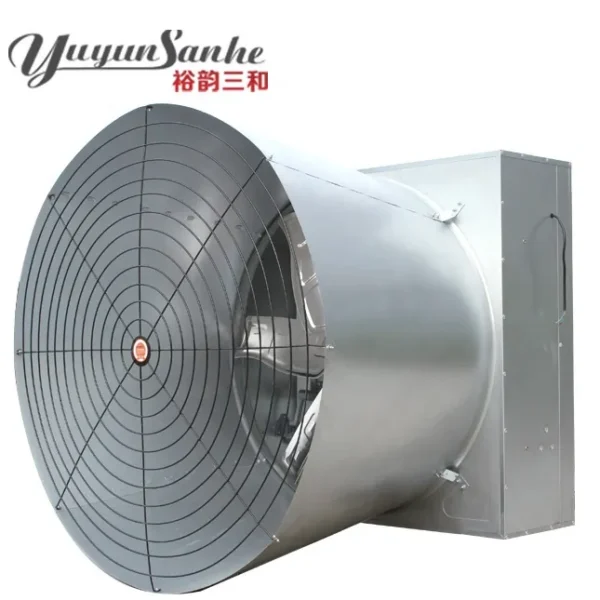

Cone Ventilation Exhaust Fan, Wall, 415V, Electric

Key specification for this cone ventilation exhaust fan: 415V, 380 V, 220 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shandong Yuyun Sanhe Machinery Co., Ltd. (19 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cone Ventilation Exhaust Fan

• Power Source: Electric
• Power: 1100w
• Voltage: 415V, 380 V, 220 V
• Blade Material: galvanized Sheet
• Material: Galvanized Sheet
• Frame Material: Galvanized sheet

Technical Specifications

Product Details

Product Description

Product Application

DJF(c) Series Shutter Cone fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

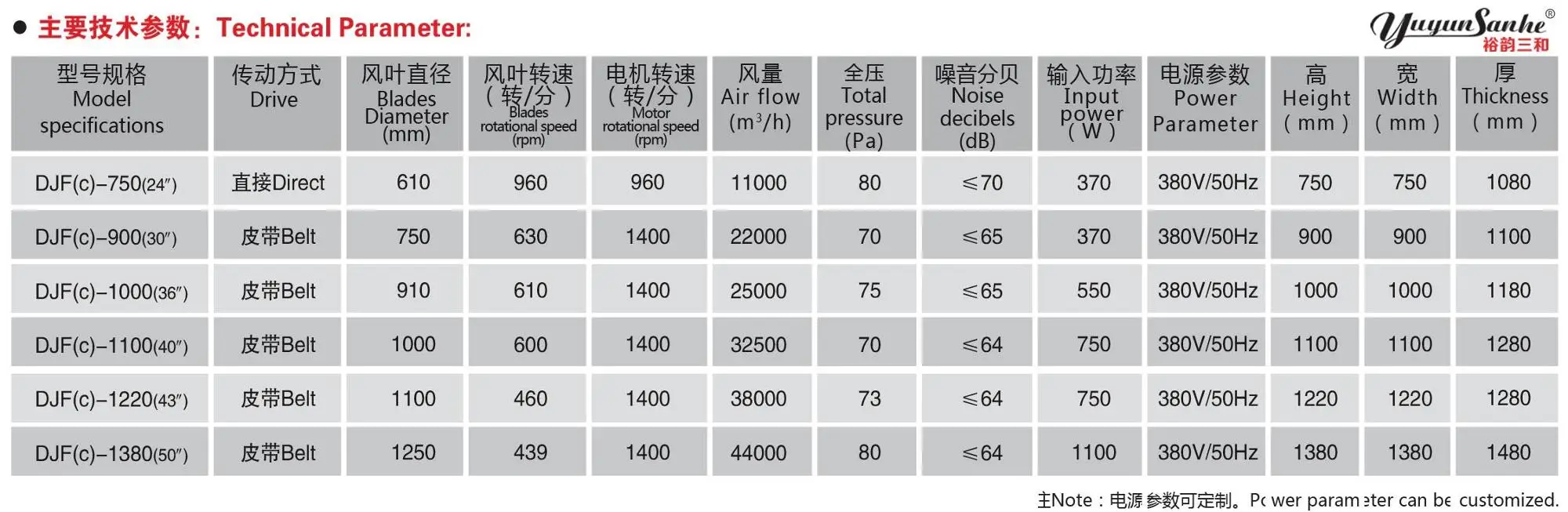

Technical Data:
Model	Drive	Blades Diameter(mm)	Blades Rotational Speed(rpm)	Motor Rotational Speed(rpm)	Air Flow (m³/h)	Input Power (W)	Noise (db)
DJF(C)-750	Direct	610	960	960	11000	370	<70
DJF(C)-900	Belt	750	630	1400	22000	370	<65
DJF(C)-1000	Belt	910	610	1400	25000	550	<65
DJF(C)-1100	Belt	1000	600	1400	32500	750	<64
DJF(C)-1220	Belt	1100	460	1400	38000	750	<64
DJF(C)-1380	Belt	1270	439	1400	44000	1100	<64

Main Features

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Detailed Images

Cone and Shutter

1.Reasonable Cone design for bigger exhaust power, Large airflow and steady air output

2.Aluminum alloy shutters for light weight and attractiveness.

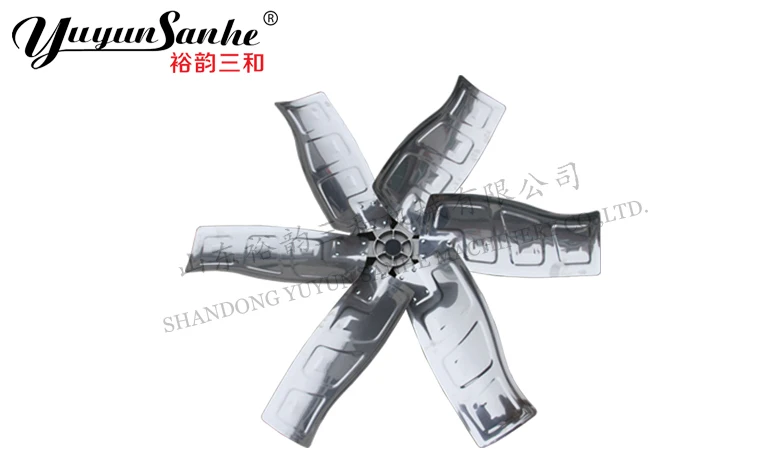

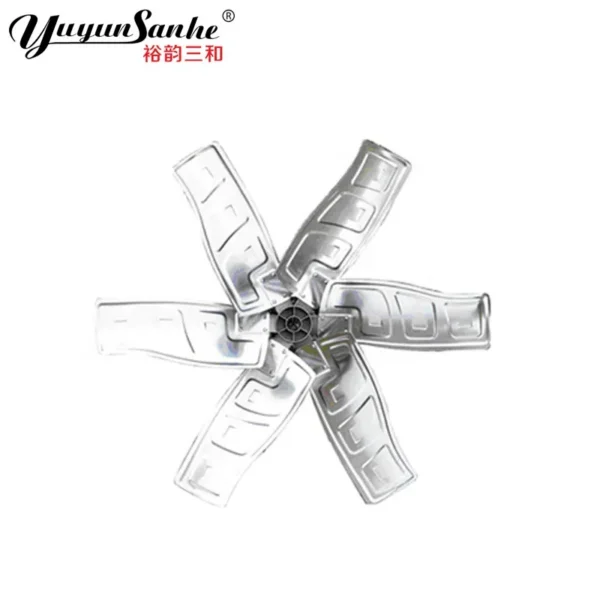

Fan blades

1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:

Blade material also have galvanized sheet, aluminum alloy for option

Belt Pulley

1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.

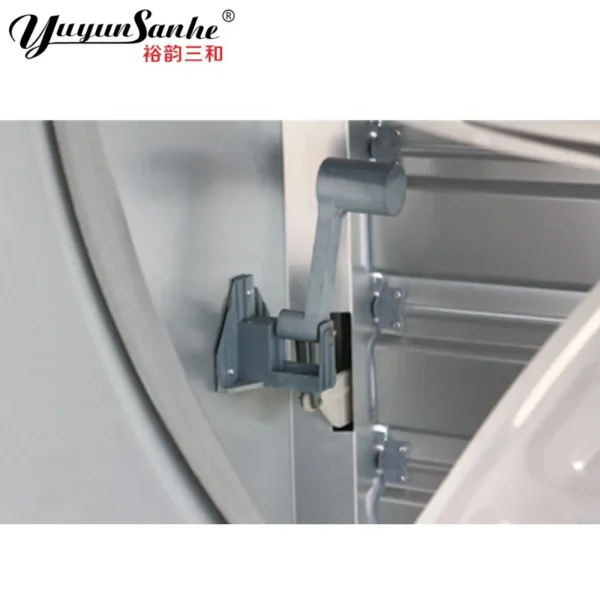

Opening System

1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

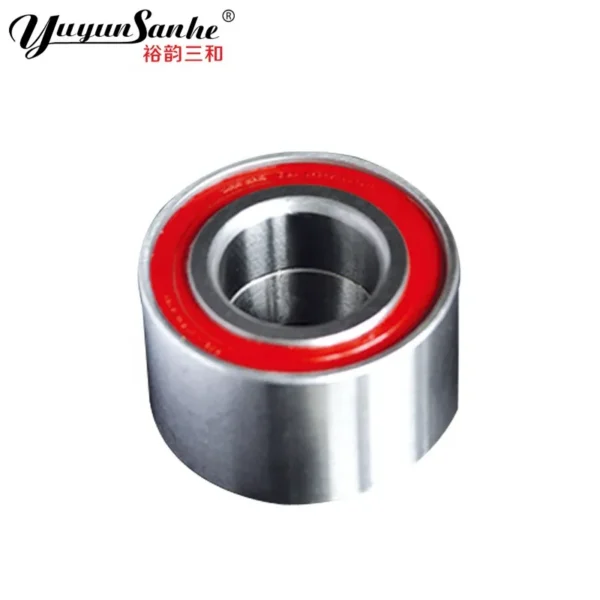

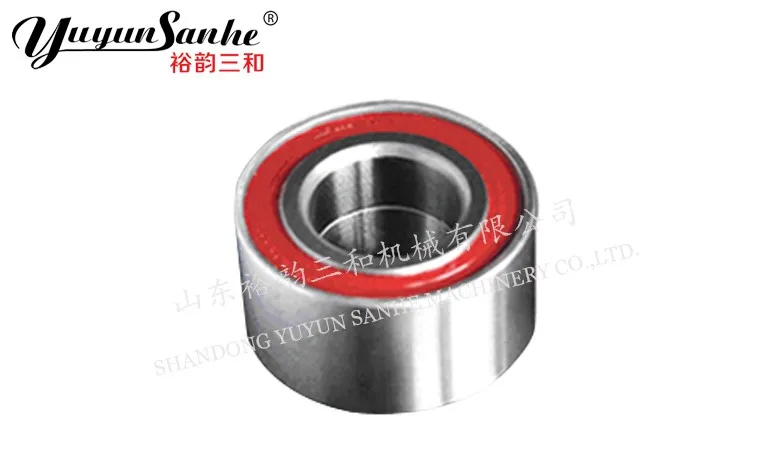

Bearing

Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.

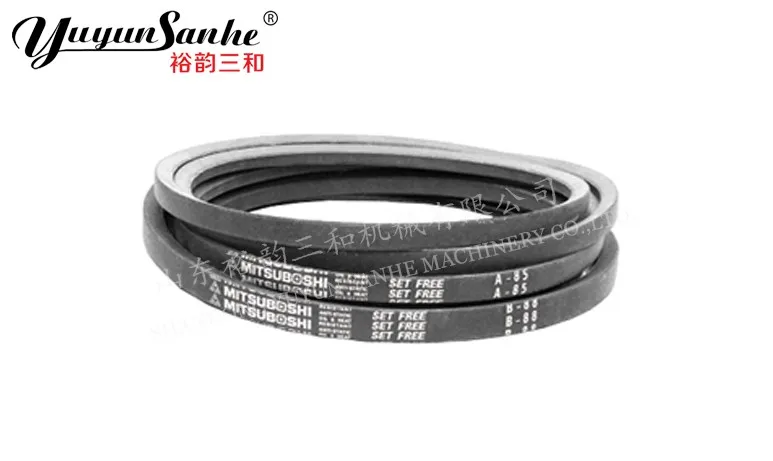

Belt

Brand: Mitsuboshi belt (Japanese)
Type: A type
Advantage:
Famous brand, Long service life, maintenance free

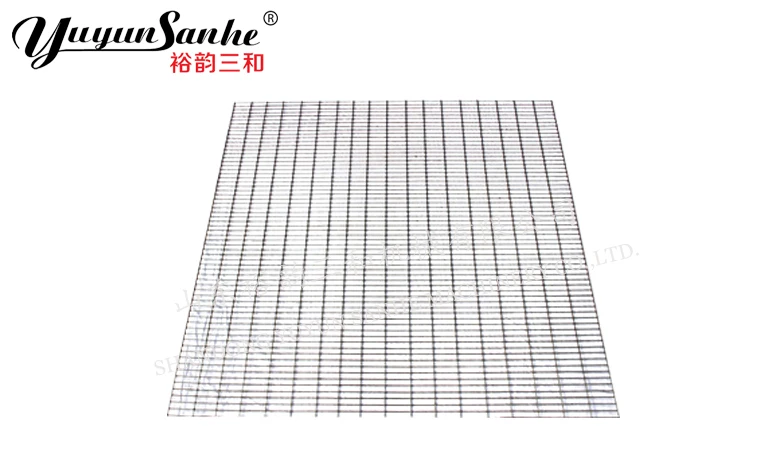

Safe Net

Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.

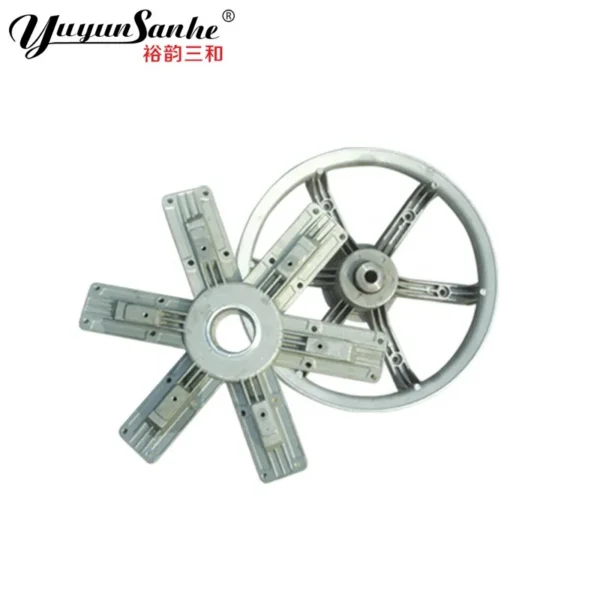

Blade Support Base

1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided

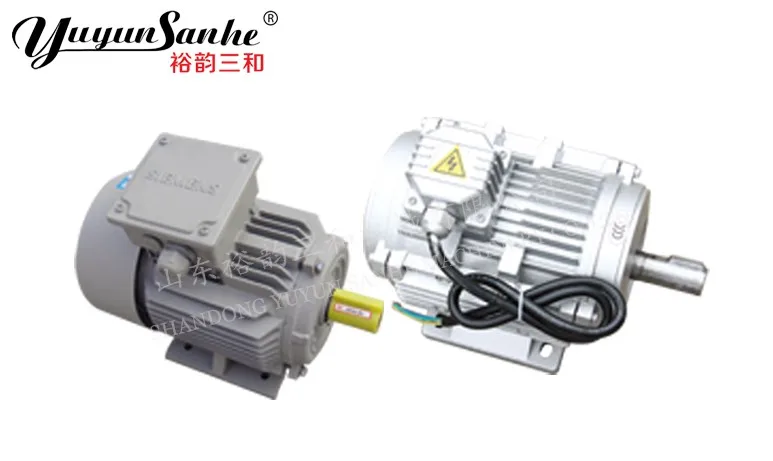

Motor

1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

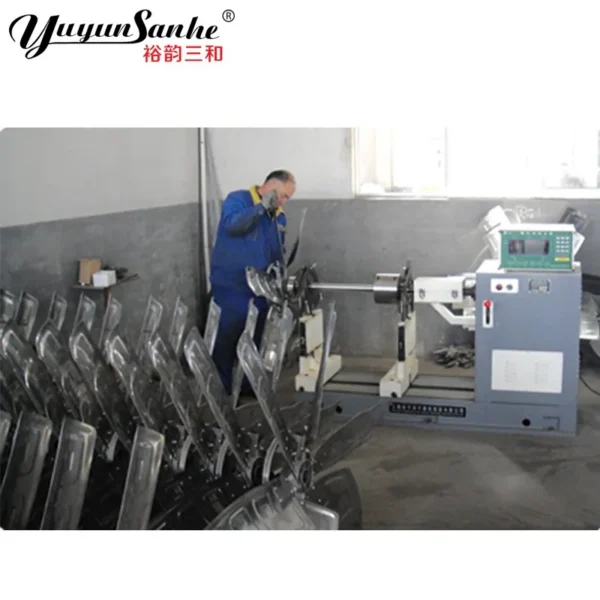

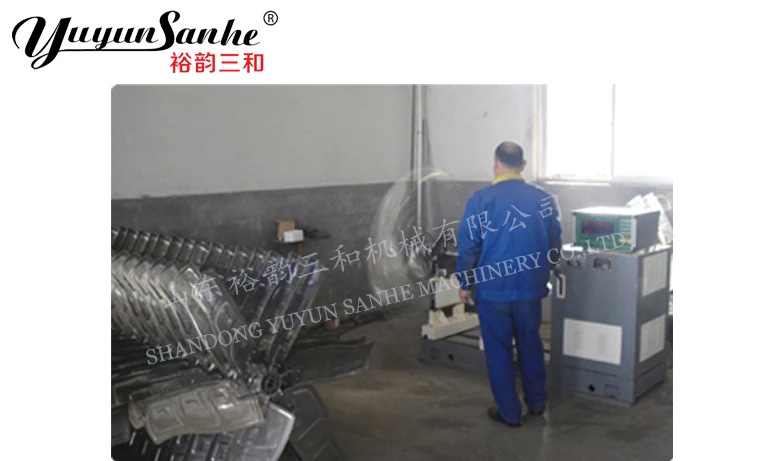

Italligent Dynamic-balance Tester

Fan blades are adjusted by Intalligent dynamic-balance tester

Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.

Recommend Products

Certificate

Yuyun Sanhe Company have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise",  "Alibaba Assessed Supplier".  International authority certified, Trustworthy
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"

Factory&Workshop

No.1 ventilation equipment manufacturer in China, equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.

95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally

Many customers from all over the world come to visit our company every year.  Our company is highly praised by customers

Yuyun Sanhe Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.

Global service, Annual sales over $ 30 million

Yuyun Sanhe Company attend  many domestic exhibitions and abroad exhibitions every year to promote our products,  Continuous improvement in communication with customers

Our Service

Yuyun Sanhe has 20+ years of professional design and production experience, more than 300 efficient R & D and production team.

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.

Main Product

Yuyun Sanhe Main Products are Ventilation fan, Evaporative Cooling Pad, Evaporative Cooling Pad Production Line, Greenhouse Fan, Cow House Fan, Shutter Louver, Heater, Air Inlet, Light Filter, Winch, Pulley, Time/Temperature Controller, Laying Nest etc.

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–99 set: US $216 / set
  • 100–299 set: US $215 / set
  • 300+ set: US $210 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cone ventilation exhaust fan?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the cone ventilation exhaust fan be supplied for my local voltage?

The standard configuration is 415V, 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
