Cooled screw industrial chiller — voltage Customization, model number PC-50ASCS. The complete factory specification follows. Made by TONGSHENG TONGCHUANG INTELLIGENT EQUIPMENT COMPANY LIMITED (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooled Screw Industrial Chiller
- Model Number: PC-50ASCS
- Power: Customization
- Voltage: Customization
- Refrigerant: R-404A, R134a, R-410A, R-32, R-12, R-22, R404A, R134a, R407C, R22, R-407C
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | Customization |
|---|---|
| Power | Customization |
| Refrigerant | R-404A, R134a, R-410A, R-32, R-12, R-22, R404A, R134a, R407C, R22, R-407C |
| Compressor Brand | Customization |
| Pump Type | Vane Pump, Gear Pump, Screw Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, High Productivity, High Safety Level, Famous Brand Low Voltage Components, Energy Saving |
| Plug Type | Australian Plug |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pump |
| Container Volume | Customization |
| Model Number | PC-50ASCS |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 350 |
| Brand Name | TongSheng |
| Dimension(L*W*H) | 2.3*1.7*2.2 |
| Working Temperature Range | 5 to 50 ℃ |
| Product Name | Water Chiller |
| Application | Industrial Cooling Solutions |
| Function | Circulating Cooling Water |
| Keyword | ChiIler |
| Name | Water Chiller Water Cooler Machine |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

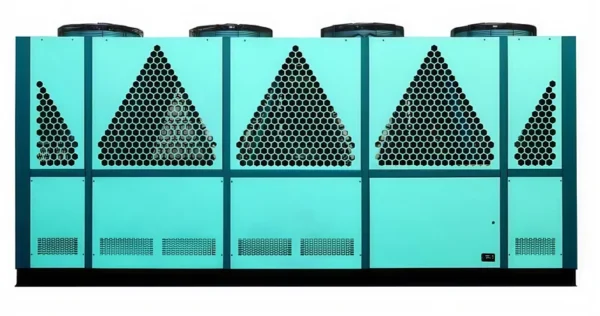

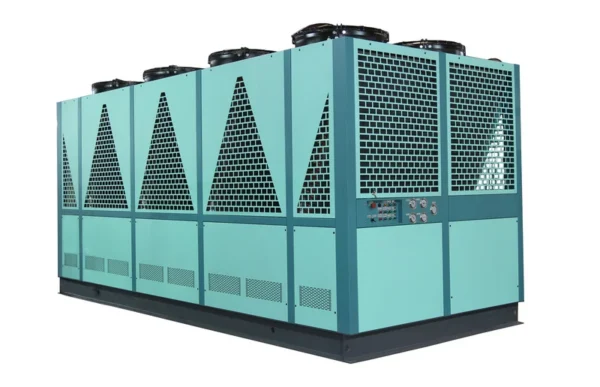

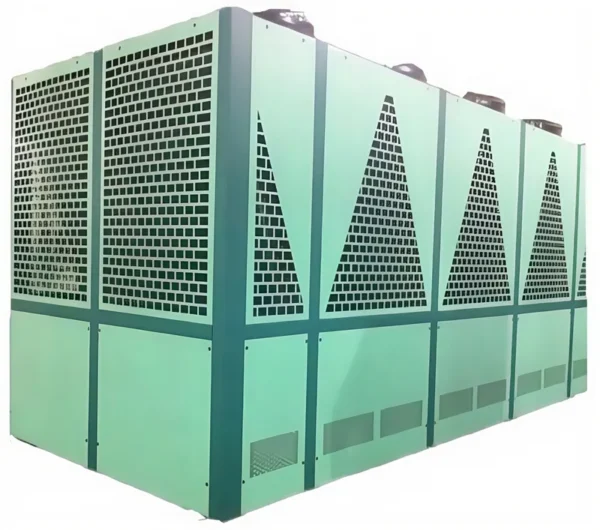

Air-cooled scroll chiller
The air-cooled chiller is equipped with intelligent temperature control and can provide ice water ranging from -25 ℃ to 10 ℃ (customized for ultra-low temperature units ranging from -30 ℃ to -65 ℃). The temperature control accuracy is around 1 ℃, which shortens the molding cycle and accelerates product shaping. It provides stable working temperature, improves product quality and production efficiency, and increases profits. It has been widely used in industrial refrigeration, biopharmaceuticals, food processing, machinery manufacturing, optics, chemical engineering, metallurgy, batteries, electronics, glass bending and other fields.
Characteristics of air-cooled chiller:
1. An air-cooled water circulation device that does not require a cooling tower. 2. Air cooled chillers are most suitable for environments with high levels of impurities and dust, 3. Air cooled chillers are most commonly used in areas with poor water quality. Can save on cold water towers and their piping 4. Adopting a large capacity condenser, it can operate easily even in hot weather.
Product Specifications
Type | Technical Parameters of Air Cooling | |||||||||||||||
Model | PC-1.5AC | PC-2AC | PC-3AC | PC-5AC | PC-6AC | PC-7AC | PC-8AC | |||||||||
Mominal output | 50Hz | Btu/h | 14339 | 20655 | 28541 | 36427 | 48820 | 57082 | 66095 | |||||||
KW | 4.2 | 6.05 | 8.36 | 10.67 | 14.3 | 16.72 | 19.36 | |||||||||
Kcal/h | 3611 | 5202 | 7188 | 9175 | 12296 | 14377 | 16647 | |||||||||
USRT | 1.2 | 1.7 | 2.4 | 3.0 | 4.1 | 4.8 | 5.5 | |||||||||
Power input | 200-220V/1PHASE/50HZ 380-415V/3PHASE/50HZ | |||||||||||||||
Compressor power | KW | 1.52 | 2.08 | 2.5 | 3.68 | 4.82 | 5.6 | 6.16 | ||||||||
Flow regulator | Electronic expansion valve Capillary vessel | |||||||||||||||
Refrigerant | R22(407C/134A Optional) | |||||||||||||||
Condenser | Style | Highly effective red copper pipe socket string aluminum wing piece+low noise axial fan | ||||||||||||||
Eva porator | Style | Dry water tank/Dry hubtube | ||||||||||||||
Water tank capacity | L | 55 | 55 | 55 | 55 | 75 | 75 | 145 | ||||||||
Standard freezing water flow | m3/h | 0.72 | 1.04 | 1.44 | 1.84 | 2.46 | 2.88 | 3.33 | ||||||||
Diameter of standard nipple | DN | 25(1inch) | 25(1 inch) | 25(1 inch) | 25(1 inch) | 25(1 inch) | 25(1 inch) | 25(1 inch) | ||||||||
Built-in pump | Horse power | HP | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | |||||||
Machine weight | Weight | Kg | 89 | 102 | 150 | 176 | 260 | 280 | 320 | |||||||
Machine Dimensions | LxWxH | mm | 800x550x1220 | 870x660x1320 | 1130x660x1500 | 1130x660x1500 | 1350x660x1500 | 1350x750x1600 | 1450x750x1600 | |||||||
If you want more sizes, please contact us for details
Product Actual Shooting
Projects
1、Well-know brands control panel or Tongsheng control system control panel
As the brain output of the chiller, the software technology is continuously upgraded to pursue, with Tongsheng's own control panel, more humane operation, quick processing of the center output of the unit, convenient and efficient, it can improve production efficiency.

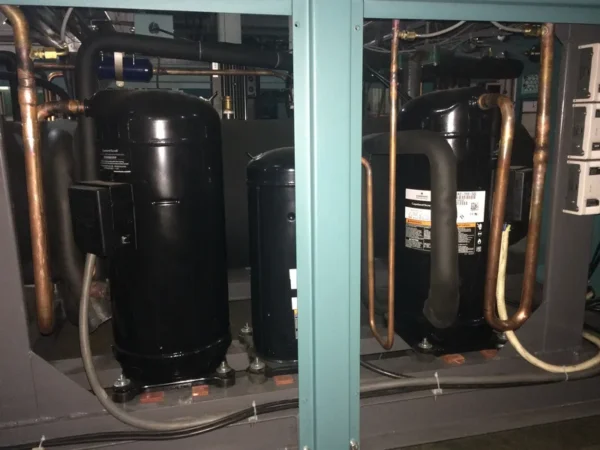

2、Japan Hitachi or other well-known brands scroll type compressor
As the heart of the chiller, Tongsheng scroll chiller is used: Hitachi Japan, Copeland and other well-known brands, built-in safety protection, low noise, eliminate second-hand refurbished compressor, brand guarantee more durable and safe.

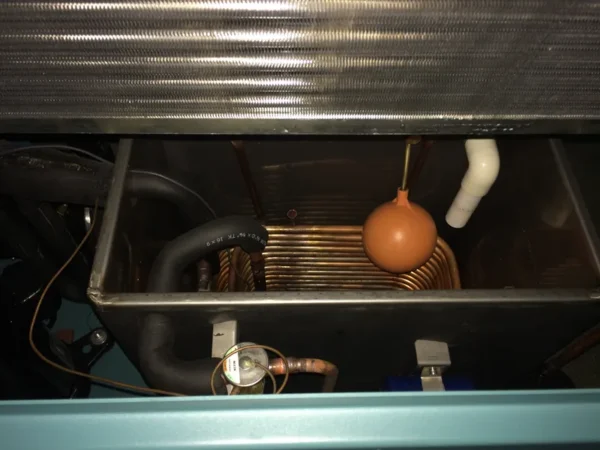

3、Water tank type evaporator
Using stainless steel water tank + copper tube evaporator (replaceable shell and tube type), built-in automatic water supply and other devices, eliminating the expansion water tanks during project installation, convenient installation and maintenance, and suitable for special occasions such as large temperature differences and small water flow.
4、Finned condenser
Tongsheng CNC machining center produces aluminum fin condenser, high-speed punch, reliable turning quality, more close contact between copper tube and fin, high heat exchange efficiency, suitable for use in areas with insufficient water resources or high water hardness.
5、High effective water pump
According to the user's engineering design requirements, other well-known brand water pumps are selected to make the Tongsheng chiller fast and convenient to install.
6、Electronic expansion valve
Upgrade from previous thermal expansion valve to electronic expansion valve (optional), fuzzy control of the unit, dynamic matching of the system, automatic adaptation to changing environments, more energy-saving and reliable operation.

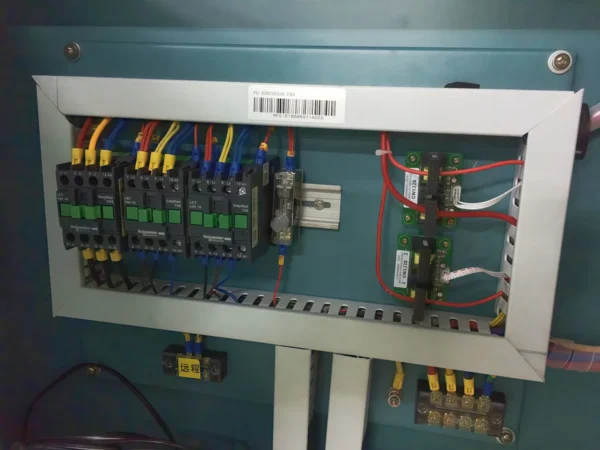

protective system
Current overload protection, high and low voltage protection system and electronic delay, as well as abnormal visual display system
application range
Chillers are used in plastic processing machinery mold cooling, electroplating industry, machinery industry, constructionindustry,vacuum coating and food industry.
best-selling
Our company
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $12999 / set
- Ships from: VN
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled screw industrial chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooled screw industrial chiller be supplied for my local voltage?
The standard configuration is Customization. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
