Air Handling Unit, AHU, 3-Year, 1450kg, Explosion-Proof

Air handling unit — 274KW, refrigerant R410a. The complete factory specification follows. Made by TONGSHENG TONGCHUANG INTELLIGENT EQUIPMENT COMPANY LIMITED (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Handling Unit

• Model Number: LDPTU-60HP
• Cooling Capacity: 274KW
• Refrigerant: R410a
• Warranty: 3 Years
• Place Of Origin: Guangdong, China
• Application: Hospital, Hotel, School, Plant, Warehouse

Technical Specifications

Product Details

Overall

15HP 20HP 25HP air-cooled direct expansion air conditioning unit

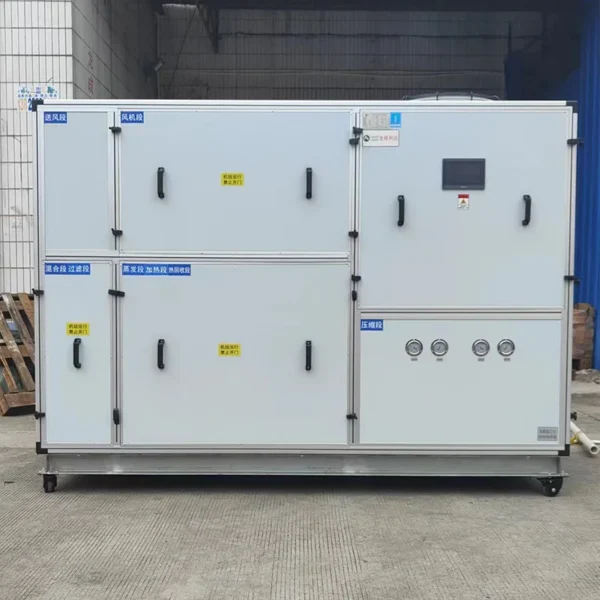

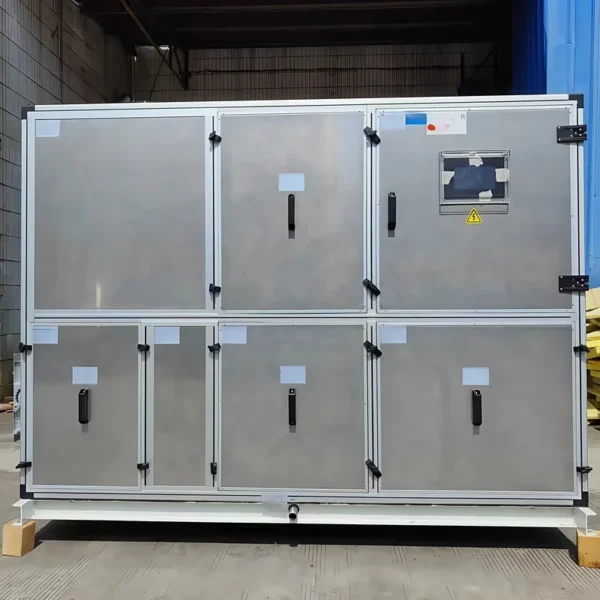

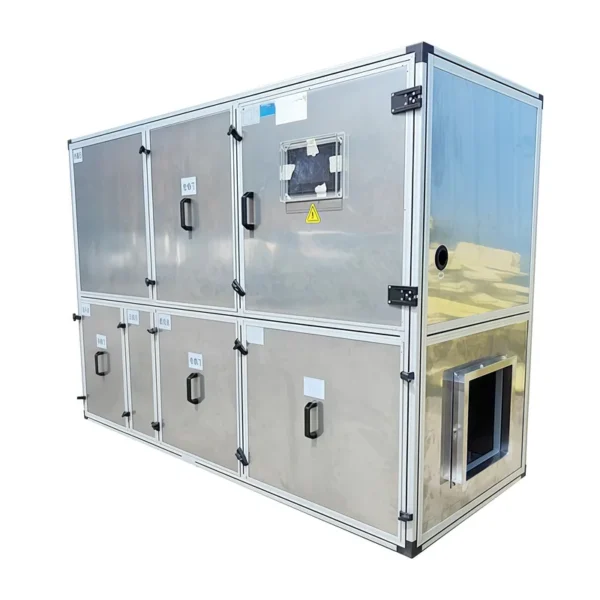

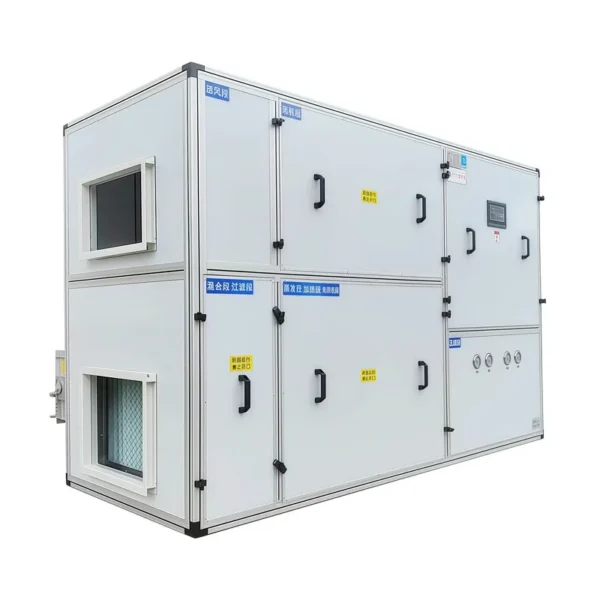

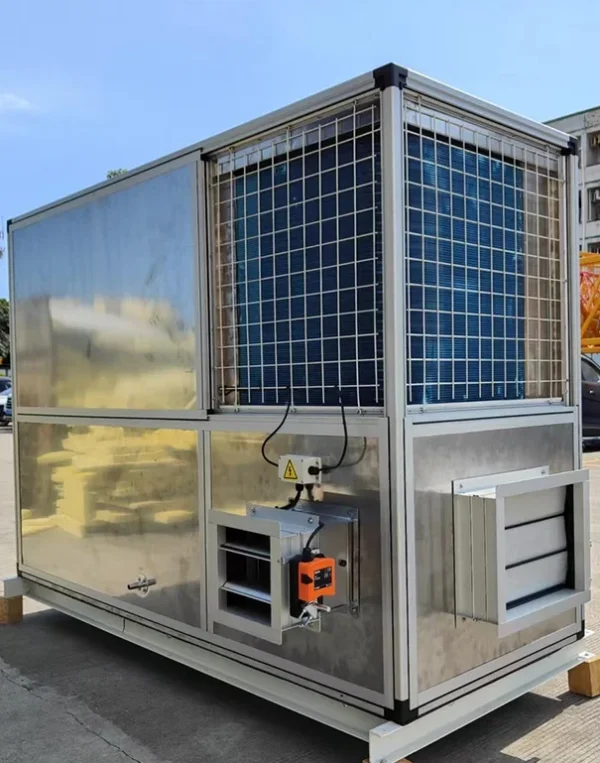

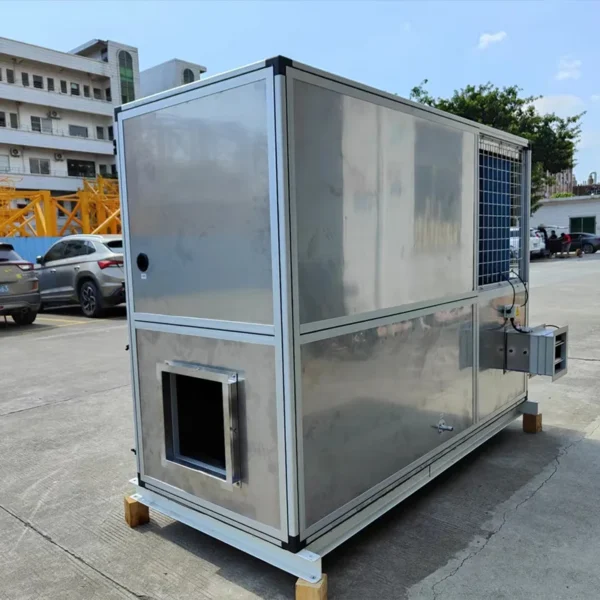

The purified air handling unit adopts a microcomputer controller, which can easily achieve various functions such as cooling, auxiliary heating, air supply, dehumidification, temperature setting, fault alarm, etc. according to customer needs.

Specification

Model	Air volume (CMH)	Cooling Power(kW)	Motor Power(kW)	Electric heat(kW)	Humidification amount(kg/h)	Unit noise dB(A)
LDPTU-03HP	1500	7.8	0.75	6	3	65
LDPTU-05HP	2500	13	1.5	6	5	65
LDPTU-07HP	3500	18	1.5	9	8	65
LDPTU-08HP	4000	20.8	2.2	12	8	65
LDPTU-10HP	5000	26	2.2	15	10	70
LDPTU-12HP	6000	31.2	3	18	10	70
LDPTU-15HP	7500	39	4	18	15	70
LDPTU-20HP	10000	52	5.5	24	15	72
LDPTU-25HP	12500	65	7.5	30	20	74
LDPTU-30HP	15000	78	7.5	36	25	74
LDPTU-36HP	18000	93.6	11	48	32	76
LDPTU-40HP	20000	104	11	54	32	78
LDPTU-50HP	25000	130	15	66	45	80
LDPTU-60HP	30000	156	15	72	45	80

Product Description

Condensing heat recovery

After the air is cooled by the evaporator, the temperature is very low. Usually, adding an auxiliary electric heating tube to
increase the temperature is very energy consuming. If the condensation heat on the condensation side is used instead of electric heating, it not only reduces the risk of open flames, but also saved a lot of electricity.

EC fan

It has the characteristics of high intelligence, high energy saving, high efficiency, long service life, low vibration, low noise,and can work continuously without interruption.

Compressor

Adopting a well-known brand of fully enclosed scroll compressor, it has strong power, stable operation, and low noise.

Intelligence control system

PLC+LCD backlight text operator, world-renowned temperature and humidity sensor, easy and accurate control of temperature,humidity, unit operation status, fault status, network monitoring, and also has fully functional parameter setting and password protection functions.

Maintenance method

Adopting the design concept of modern ergonomics:
The structural design of the unit is reasonable,Maintenance and upkeep are convenient and simple.

Company Profile

Dongguan Tongsheng Tongchuang Intelligent Equipment Co., Ltd. is located in Qishi Town, the middle section of the Guangzhou Shenzhen Economic Corridor, in the eastern part of Dongguan City. The company has inherited the "Tongsheng Machinery" brand for 34 years, and its main products include fully automatic microcomputer plastic hollow blow molding machines, large and small chillers,plastic machinery and other peripheral equipment. The company team has excellent industry management experience and a rich team of engineers and technicians. The head of the technical team has been dedicated to the fields of hollow blow molding machines,chillers, etc., with over 34 years of technical experience in this field and familiarity with the most advanced technology systems in the industry.

Certifications

Brand customer photoes and complete production process

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the videowe can make oftesting the material from our packaging machine if your packing goods easier for us to findfrom our local market.

Q2:How can I trust you for the first time business?

Please note our above business license and certificate.And if you don't trust us, then we can use Alibaba tradeassurance service,guarantee your money, and guarantee your machine's on-time delivery and machinequality.

Q3:ls engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full detailsmachine
installation and assist you till the end.

Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you canarrange for quality
checking by yourself or by your contacts in China.

Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of thearea is ok for us to clearing and sending in your countries.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: VN
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
