Cooled scroll water chiller — 220v 380v 415v 450v…, refrigerant R410a R134A…Environment Friendly. The complete factory specification follows. Made by Jiangsu Huazhao Refrigeration Equipment Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooled Scroll Water Chiller
- Voltage: 220v 380v 415v 450v…
- Refrigerant: R410a R134A…Environment Friendly
- Warranty: 3 Years
- Certification: ce
- Place Of Origin: Jiangsu, China
- Weight (Kg): 3120
Technical Specifications
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 3 Years |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 3120 |
| Place Of Origin | Jiangsu, China |
| Brand Name | huateng |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Compressor | semi-closed double screw |
| Condenser | inlet temp35℃/outlet temp45℃ |
| Evaporator | inlet temp12℃/outlet temp7℃ |
| Noise | low noise |
| Item | chinese chiller |
| Color | Customized |
| Refrigerant | R410a R134A…Environment Friendly |
| Voltage | 220v 380v 415v 450v… |
| Certification | ce |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

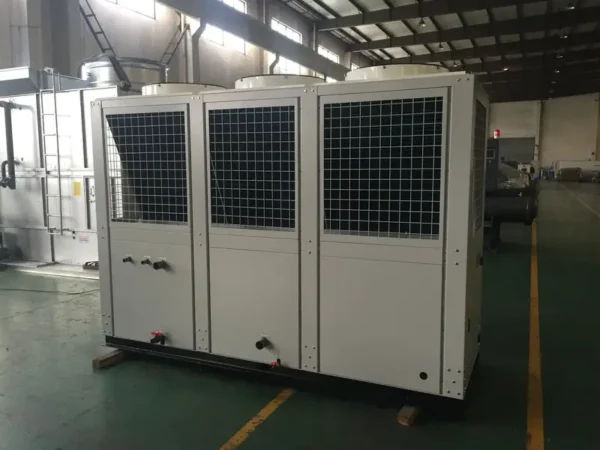

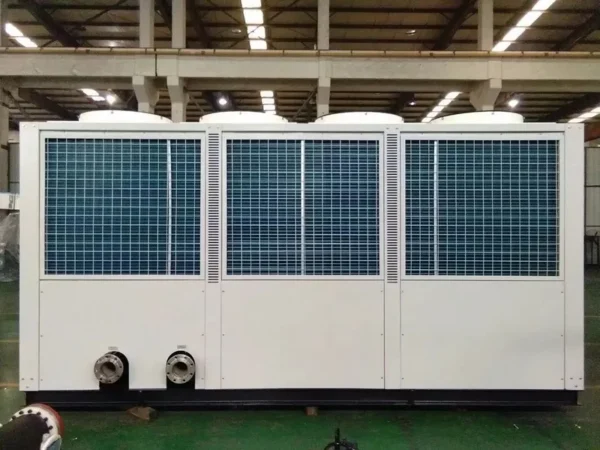

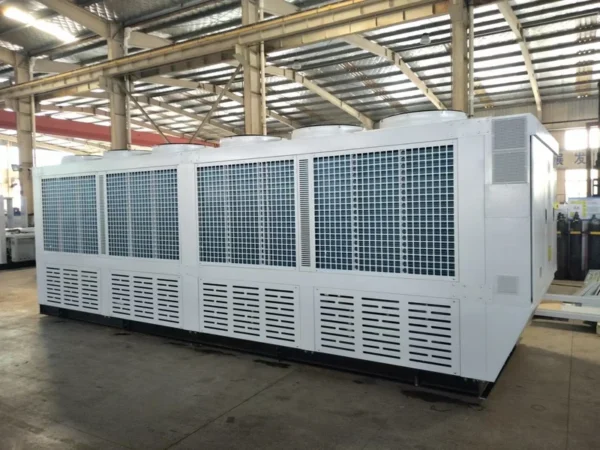

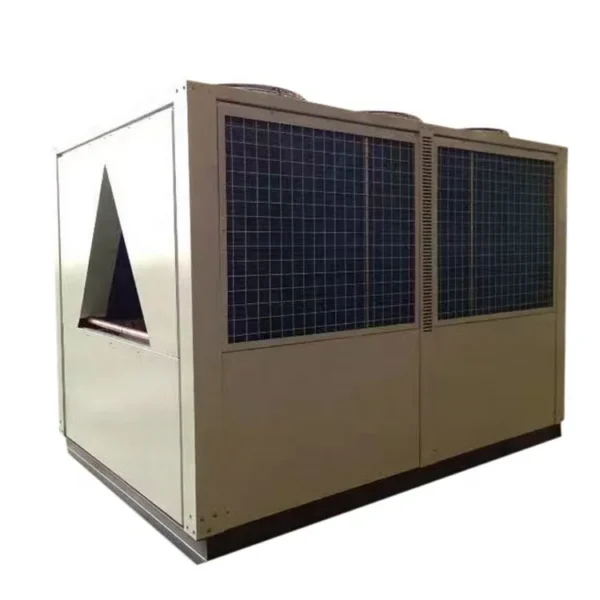

High Efficiency R410A or R134A low temperature Air Cooled Scroll Water Chiller for cooling beverage or wine filling line
| Model | HTK-M120F | HTK-M140F | HTK-M160F | HTK-M180F | HTK-M200F | HTK-M260F | HTK-M300F | HTK-M350F | |
| Cooling | KW | 117 | 143 | 162 | 181 | 195 | 260 | 299 | 349 |
| Capacity | Kcal/Hr | 10620 | 122980 | 139320 | 155631 | 167700 | 223600 | 257140 | 300140 |
| RT | 33.27 | 40.66 | 46.06 | 51.46 | 55.44 | 73.93 | 85.02 | 99.23 | |
| Power | 50HZ | 3P-380V-50HZ | |||||||
| Input power(KW) | 37.2 | 51.5 | 57.3 | 64.1 | 68.8 | 86.2 | 99.6 | 115.7 | |
| EER | COP | 3.15 | 2.78 | 2.83 | 2.82 | 2.83 | 3.02 | 3 | 3.02 |
| Freezing medium | R134a | ||||||||
| control mode | Thermal expansion valve | ||||||||
| Comprosser | Mode | Semi-closed double screw | |||||||
| Working style | Y-Δ/Δ-Δ | ||||||||
| Capacity | 0-25%-50%-75%-100% | ||||||||
| Condensor | Mode | Finned type | |||||||
| Cooling air tempreture | In 35℃/Out 45℃ | ||||||||
| Wind flow (m³/h) | 60000 | 60000 | 90000 | 90000 | 120000 | 120000 | 180000 | 180000 | |
| Fan quantity | 4 | 4 | 6 | 6 | 6 | 8 | 12 | 12 | |
| Motor power(KW) | 0.85*4 | 0.85*4 | 0.85*6 | 0.85*6 | 0.85*6 | 0.85*8 | 0.85*12 | 0.85*12 | |
| Evaporater | mode | Efficient finned tube filled with liquid | |||||||
| Freeze water tempreture | In 12℃/Out 7℃ | ||||||||
| Freeze water flow (m³/h) | 20.1 | 24.6 | 27.9 | 31.1 | 33.5 | 44.7 | 51.4 | 60 | |
| Pressure loss (Kpa) | 52 | 52 | 55 | 58 | 58 | 58 | 58 | 61 | |
| waterpipe | DN80 | DN80 | DN80 | DN80 | DN80 | DN80 | DN100 | DN100 | |
| Safeguard | High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; | ||||||||
| high pressure safety valve protection; oil pressure protection; exhaust over heat protection | |||||||||
| Units Weight | Kg | 2000 | 2500 | 2600 | 2700 | 3500 | 3600 | 4400 | 4600 |
| Size | L(mm) | 2080 | 2080 | 3060 | 3060 | 4040 | 4040 | 6000 | 6000 |
| W(mm) | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | |
| H(mm) | 2220 | 2220 | 2220 | 2220 | 2260 | 2260 | 2260 | 2260 | |
| Noise(dB) | 72 | 72 | 72 | 73 | 74 | 74 | 75 | 75 | |
Note:
1. Above cooling capacity parameters are all based on the conditions of dry bulb temperature 35℃, water temperature (in) 12℃,water temperature(out)7℃
2.We can make order according to your requirement.
3.Please indicate the hot recycled if needed,as the recycle rate can be up to 25%-30% of the unit refrigerating capacity,the temperature can be up to 55℃.
This form is for reference only. We provide customized solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables.
Model Description:
1. Employing original double SCREW compressor, Compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life
2. Employing all-new imported high class component
3. Employing two sets of compressor which can be used jointly or independent
4. Switch control, easy operation and maintenance
5. The weld of brass pipe is non-oxidization
6.Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003,operation safe
| For more product information, please click | CONTACT US > |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $11800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled scroll water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooled scroll water chiller carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooled scroll water chiller be supplied for my local voltage?
The standard configuration is 220v 380v 415v 450v…. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Huazhao Refrigeration Equipment Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Huazhao Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
