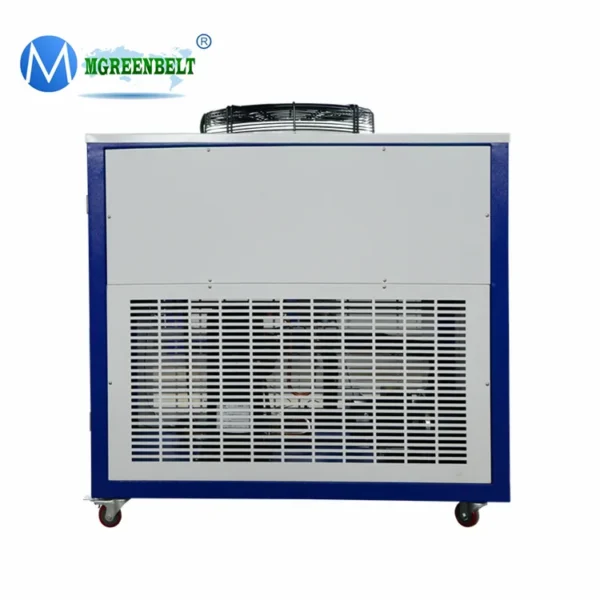

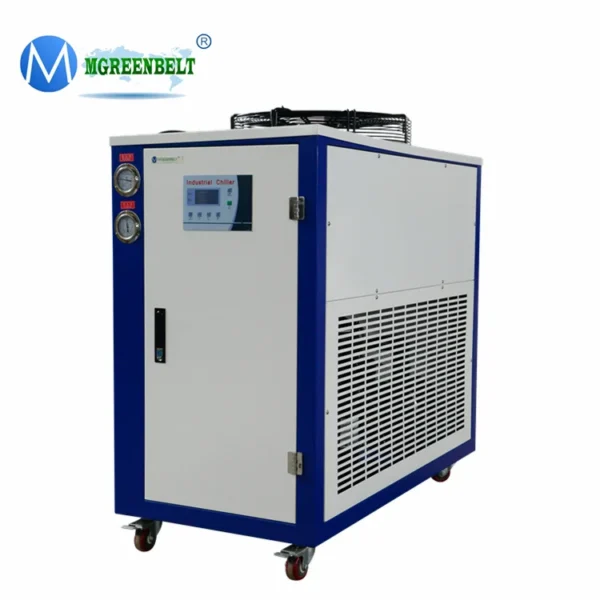

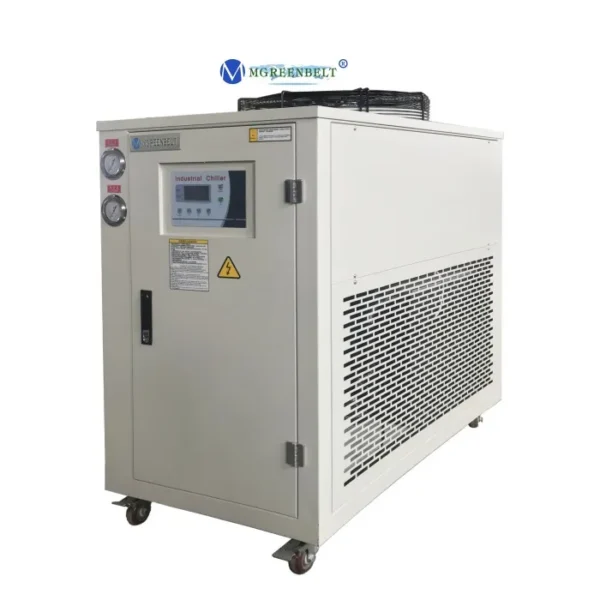

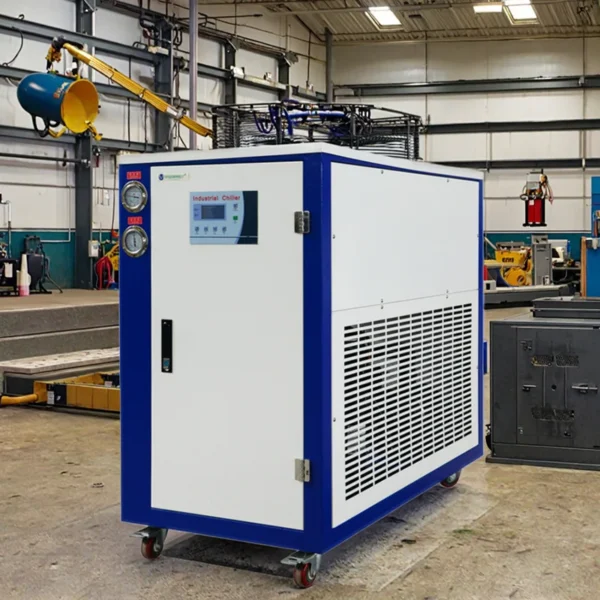

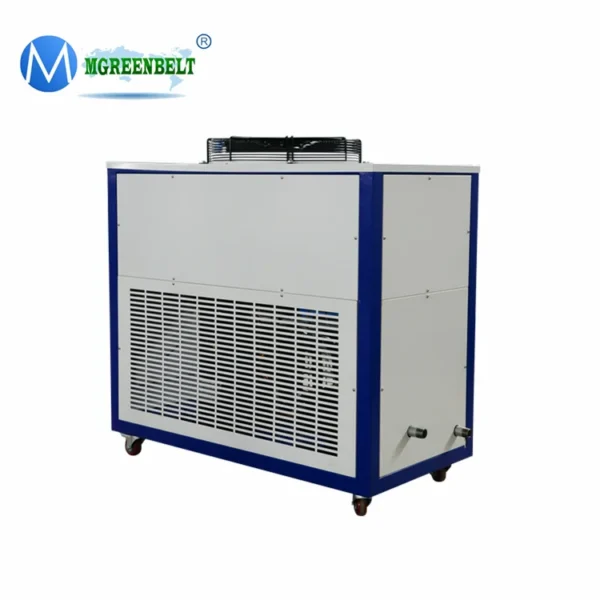

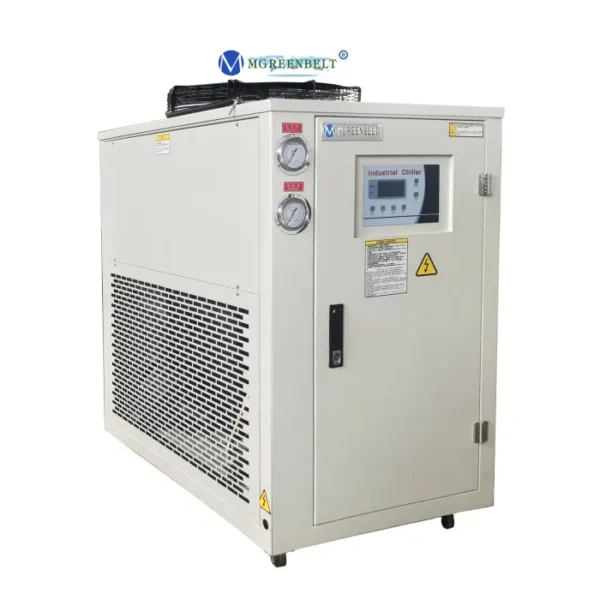

Small glycol chiller — voltage 3PH~220V/380/415V/460V~50HZ/60HZ, 5 kW. The complete factory specification follows. Made by Jinan Mgreenbelt Machinery Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Small Glycol Chiller
- Power: 5 kW
- Voltage: 3PH~220V/380/415V/460V~50HZ/60HZ
- Refrigerant: R-404A, R134a, R-410A
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Compressor Type: Hermetic Scroll Type
Technical Specifications
| Voltage | 3PH~220V/380/415V/460V~50HZ/60HZ |
|---|---|
| Power | 5 kW |
| Refrigerant | R-404A, R134a, R-410A |
| Compressor Brand | Copeland |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate |
| Core Components | Motor, Pump |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 100 |
| Brand Name | MGREENBELT |
| Dimension(L*W*H) | 1300*650*1200mm |
| Compressor Type | Hermetic Scroll Type |
| Compressor Quantity | 1 sets |
| Set Temperature | 5 deg C ~30 deg C |
| Evaporator | Plate Heat Exchanger or Shell and tube |
| Condenser | Copper tube plate fins |
| Custom-Made Brand Logo | OEM/ODM accept |
| Chilled Outlet Temperature | Minus 5 deg C |
| Selling Units | Single item |
| Single Package Size | 140X150X130 cm |
| Single Gross Weight | 100.0 kg |
Product Details
Air cooled water chiller | ||||||||||||||||
Model | MG-5C | MG-10C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | |||||||||
Cooling capacity | Kcal/h | 11524 | 23048 | 35948 | 47558 | 55212 | 71896 | 95116 | ||||||||
kw | 13.4 | 26.8 | 41.8 | 55.3 | 64.2 | 83.6 | 110.6 | |||||||||
power | kw | 5.05 | 9.91 | 13.56 | 19.63 | 24.48 | 30.2 | 38.52 | ||||||||
Power input | 3PH-380V-50HZ / 220V-60HZ /480V-60HZ | |||||||||||||||
Refrigerant | Type | R22/ R407C/ R410A/ R134A/ R404A/ R448A | ||||||||||||||
Control | Thermostatic expansion valve | |||||||||||||||
Compressor | Type | Hermetic scroll type | ||||||||||||||
Power（kw） | 4.1 | 4.1*2 | 5.36*2 | 8.13*2 | 9.79*2 | 8.13*3 | 8.13*4 | |||||||||
Type | SS Water Tank with coil / Shell and tube OR PHE | |||||||||||||||
Water flow m³/h | 2.3 | 4.59 | 7.17 | 9.48 | 11.01 | 14.33 | 18.96 | |||||||||
Capacity L | 80 | 200 | 275 | 360 | 360 | 530 | 740 | |||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | |||||||||
Condenser | Type | High efficiency hydrophilic aluminum foIl finned type | ||||||||||||||
Power | 0.58 | 0.58*2 | 0.67*2 | 0.937*2 | 1.7*2 | 0.937*3 | 1.7*4 | |||||||||
Pump | Type | Centrigual /SS304 water pump | ||||||||||||||
Power kw | 0.37 | 0.55 | 1.5 | 1.5 | 1.5 | 3 | 3 | |||||||||
Lift m | 24 | 20 | 20 | 20 | 20 | 22 | 21 | |||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||||||||||
Dimension | L mm | 1220 | 1560 | 1800 | 2050 | 2050 | 2720 | 2450 | ||||||||
W mm | 600 | 840 | 900 | 990 | 990 | 1120 | 1400 | |||||||||
H mm | 1200 | 1530 | 1600 | 1740 | 1865 | 1800 | 2110 | |||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | ||||||||
Components description | Brand | ||||
Compressor | Copeland / Panasonic /Danfos | ||||
Evaporator | MGREENBELT | ||||
Condenser | MGREENBELT | ||||
Thermal expansion valve | EMERSON/DANFOSS | ||||
Control Panel | PUNP | ||||
Drier Filter | EMERSON/DANFOSS | ||||
Electric Components | SCHNEIDER | ||||
adjustment, enabling intelligent operation according to specific requirements, enhancing system stability and performance.
1. High Efficiency and Energy Saving:
It utilizes advanced scroll compressor technology, providing higher compression efficiency and energy efficiency ratio, resulting
in effective energy utilization and reduced operational costs.
such as overload protection,high/low-pressure protection, and temperature protection, ensuring safe operation of the equipment.
allows us to tailor the chiller to specific processes and ensure optimal cooling performance.
ensuring a stable cooling effect.
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
1. 12 Months warranty and life time technical maintenance offered.
2. All extra parts for the machine can be purchased with agent price from Mgreenbelt3. 24 Hours working phone call/WA/WECHAT/EMAIL/Trade manager online to support.
4. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
If this chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -35 deg C~+35 deg C based on different industry working need.
Q: How to choose the water chiller model you need?
A: Please make sure the details as follow :
1. Flow rate
2. Inlet and outlet temperature
3. Power supply ( Phase-Voltage/Frequency)
4. Refrigerant (R22,R407c,R410A,R134a and etc)
5. Cooling capacity
6. Other requirement
Q: What's the lead time ?
A: Standard configuration 10 days, speical request need 25 days.
Q: What is the payment terms?
A: 50% in advance and the balance before delivery.
Please feel free to contact me,if you have any questions:
Amanda Wu | Manager
Jinan Mgreenbelt Machinery Co.,ltd.
Professional water chiller & refrigeration equipment Manufacturer/Supplier
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–4 unit: US $1800 / unit
- 5+ unit: US $1500 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this small glycol chiller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the small glycol chiller be supplied for my local voltage?
The standard configuration is 3PH~220V/380/415V/460V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
