Cooler — 220V/110V/380, cooling capacity 50ton. The complete factory specification follows. Made by Guangdong Dachang Energy-Saving Insulation Technology Ltd. (18 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooler
- Voltage: 220V/110V/380
- Cooling Capacity: 50ton
- Warranty: 1 years
- Certification: ISO9001:2008
- Place Of Origin: Guangdong, China
- Feature: Container
Technical Specifications
| Cooling Capacity | 50ton |
|---|---|
| Temperature | -5℃ ~ +5℃ |
| Compressor Brand | Copeland, Bitzer, Sanyo |
| Voltage | 220V/110V/380 |

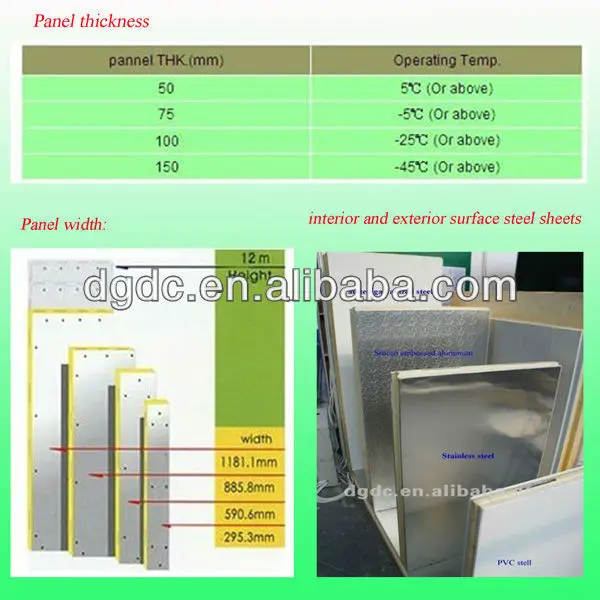

| Panel Thickness | 100 mm |
| Machinery Test Report | Provided |
| Warranty | 1 years |
| Feature | Container |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC, Pump, Engine |
| Key Selling Points | Long Service Life |
| Place Of Origin | Guangdong, China |
| Brand Name | DC |
| Dimension(L*W*H) | As Depend |
| Product Name | air conditioner cold room for vegetables and fruit |
| Usage | Prefabricated Cold Room to storage refrigerated food |
| Compresser | Copeland scroll condensing unit |
| Panel Fireproofing Grade | B1 |
| Prefabricated Cold Room Door | Flush door (auto close) |
| Cooling System | air cooling |
| Prefabricated Cold Room Inner Size | 3800*1800*2300 mm (15m3) |
| Panel Surface Steel Sheet | Painted galvanized steel |
| Certification | ISO9001:2008 |
| Selling Units | Single item |
| Single Package Size | 150X50X30 cm |
| Single Gross Weight | 50.000 kg |
Product Details

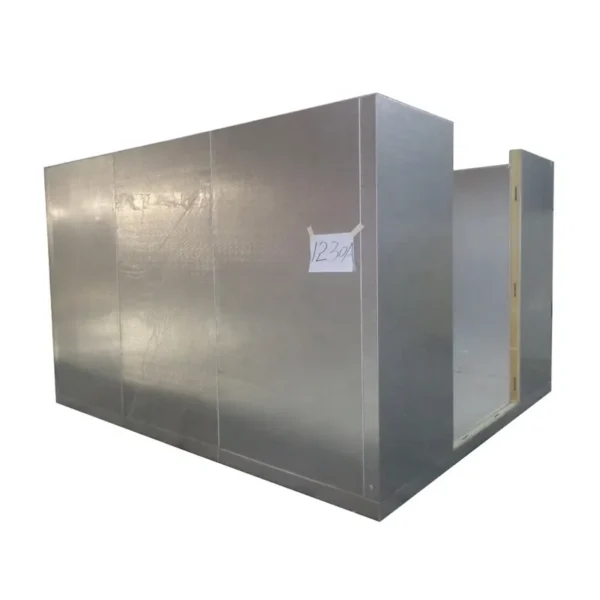

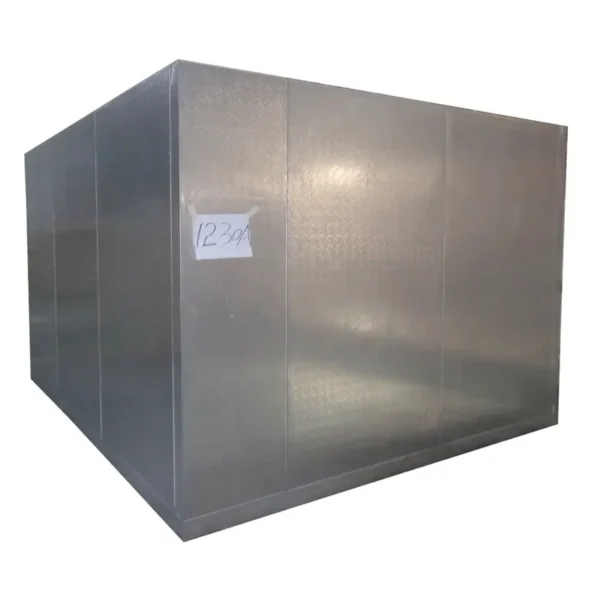

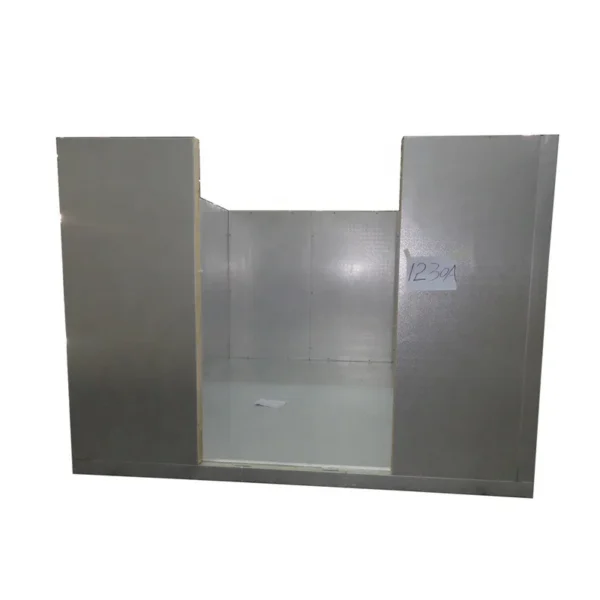

20 CBM walk in cooler room 2 degree C for fruits storage cooling

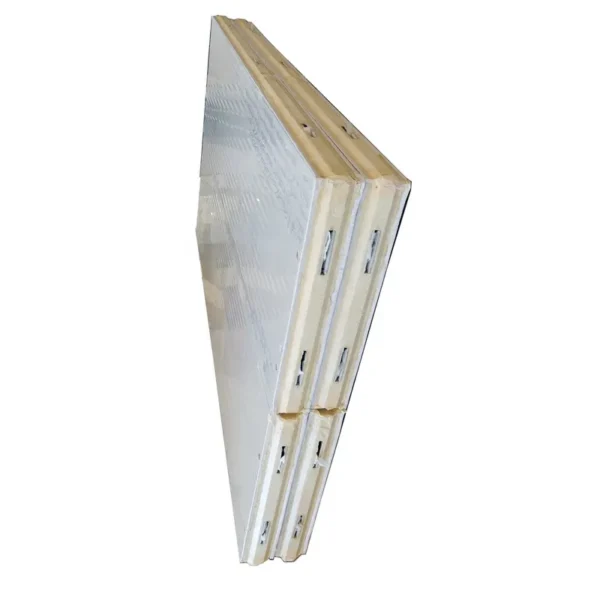

Prefabricated Cold Room / Freezer room are made of modular fabrication with polyurethane insulation with different dimensions, which make it flexible for construction different sizes of an ideal Prefabricated Cold Room . The modular design allows for easy assembly and disassembly.
All panels are injected with 100% polyurethane with an average density of 40KG/M3 firmly glued to the metal, which has a variety of finishes available to meet the customers specific requirement..
Please find the following Prefabricated Cold Room information about our customized Cold Room :
| cold room External Dimension | 4000L*2000W*2500H (mm) |
| Panel | Wall & Ceiling panels:
Floor panels: |
| Foaming material | BASF,with fire retardant, fireproofing grade is B1 Level |
| door | flush door 832W*1860H (mm) |
| Temp.of room | 2~+5 Celsius degree |
| Purpose of cold room | to storage refrigerated food |
| Refrigeration unit | Copeland scroll air cold condensing unit (2hp) |
| power | 2.45 kw |
| Fittings | shelf , light , Ventilator , Alarme , Temperature recorder ,ect |
| Place to assemble | indoor |
| Voltage | 220V/50HZ, 220V/60HZ optional |
OEM order is welcome . In order to customized the suitable Prefabricated Cold Room for you, please answer us the following questons :
1. what's the Prefabricated Cold Room External Dimension yourequired ? such as length , width , height
2.what kind of food will be put into the Prefabricated Cold Room ?
3.what's the Prefabricated Cold Room inner temperature you required ?
4. The Prefabricated Cold Room will be installed indoor or outdoor ?
5.what's the ambient temperature in your local country ?
6.what's the voltage for the Prefabricated Cold Room ?
7.what kind of door for the Prefabricated Cold Room you like ? swing door(hinged door) or sliding door or glass door ?
8.will forklift drive into the Prefabricated Cold Room ?
Prefabricated Cold Room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k | 0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Our Prefabricated Cold Room panel advantage :

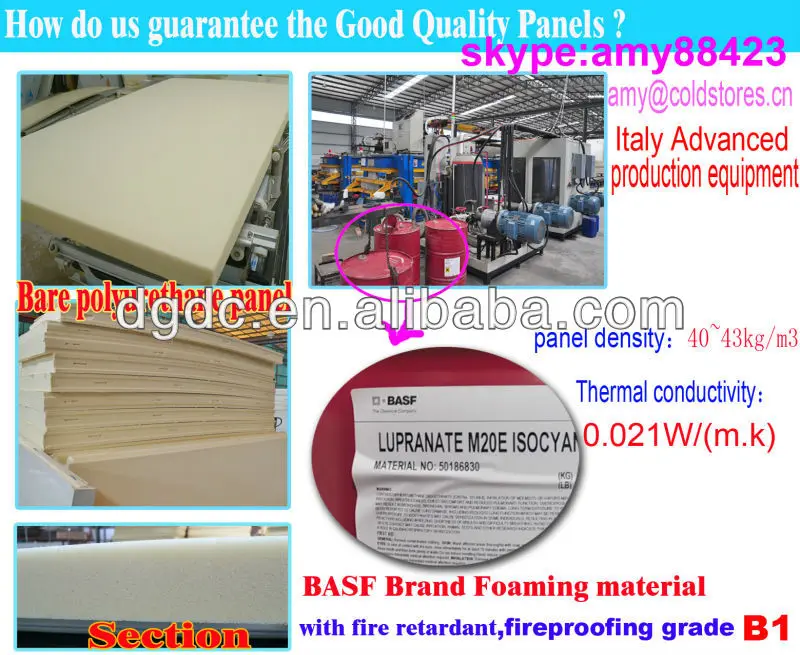

1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years

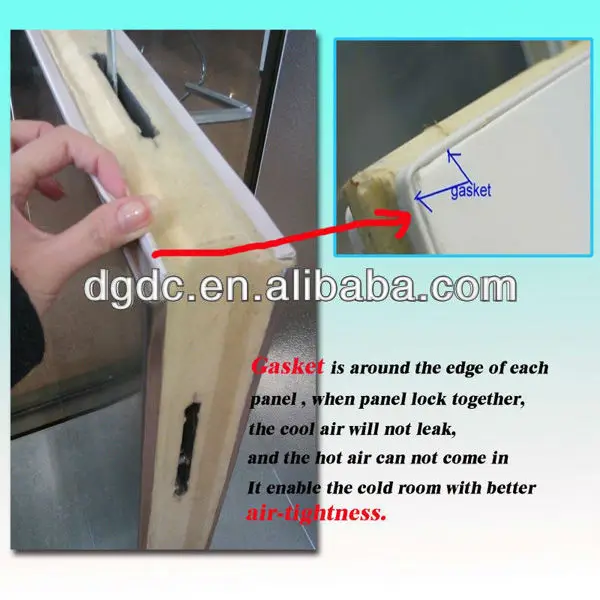

4.Gasket is around the edge of each Prefabricated Cold Room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

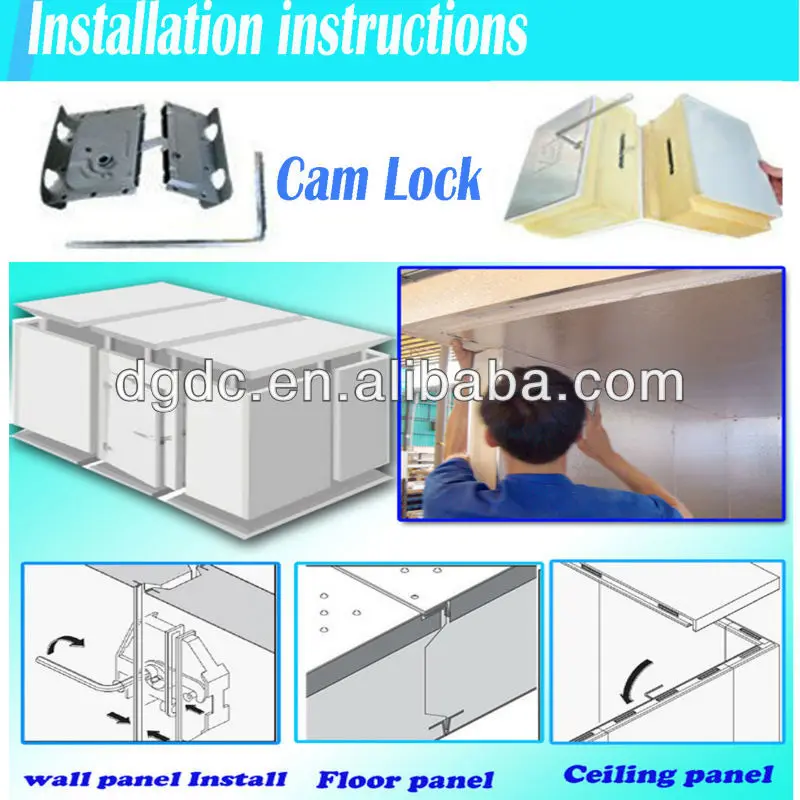

Prefabricated Cold Room Installation :

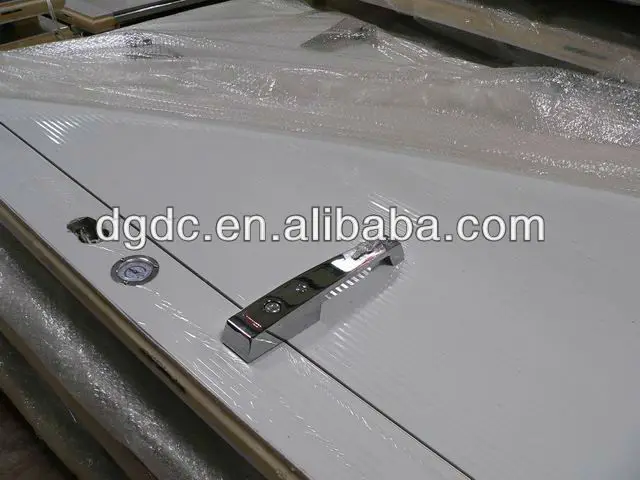

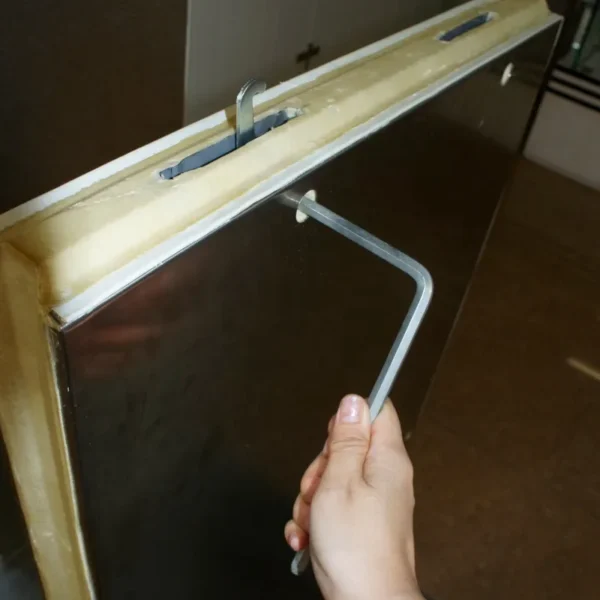

Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

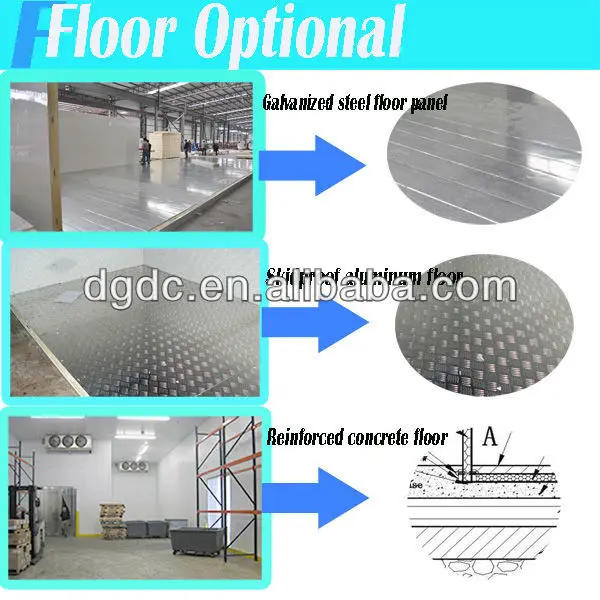

Prefabricated Cold Room floor:
can do the PU Panel floor or concrete floor .

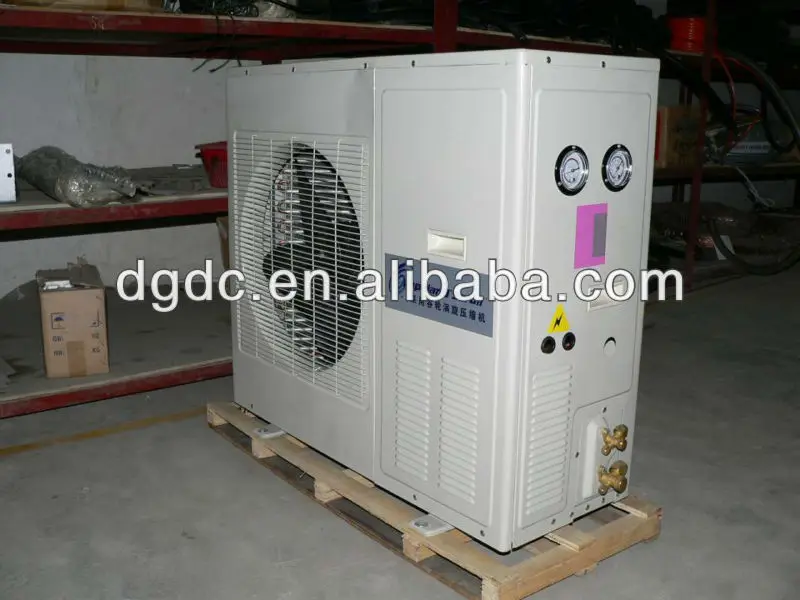

Prefabricated Cold Room condensing units: Copeland scroll air cold condensing unit (2hp)

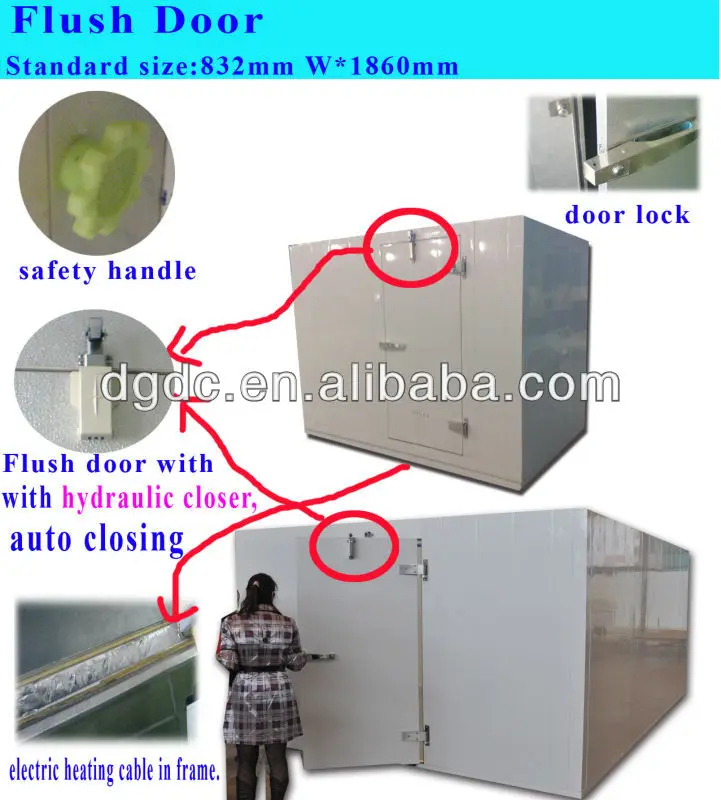

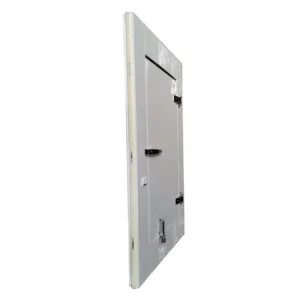

Flush door for the Prefabricated Cold Room
The Temperature recorder is intalled in the door fram
More door for your choose (the size can be customize )
| No | Door type | door size | door heater voltage |
| 1 | Flush door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 832mm W*1860mm H | 24V / 36V |

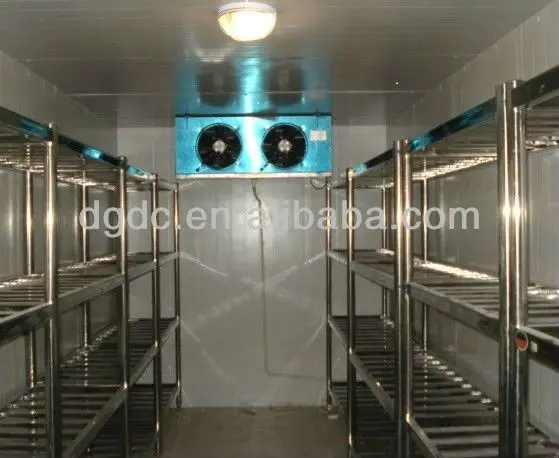

You can install te shelf into the Prefabricated Cold Room

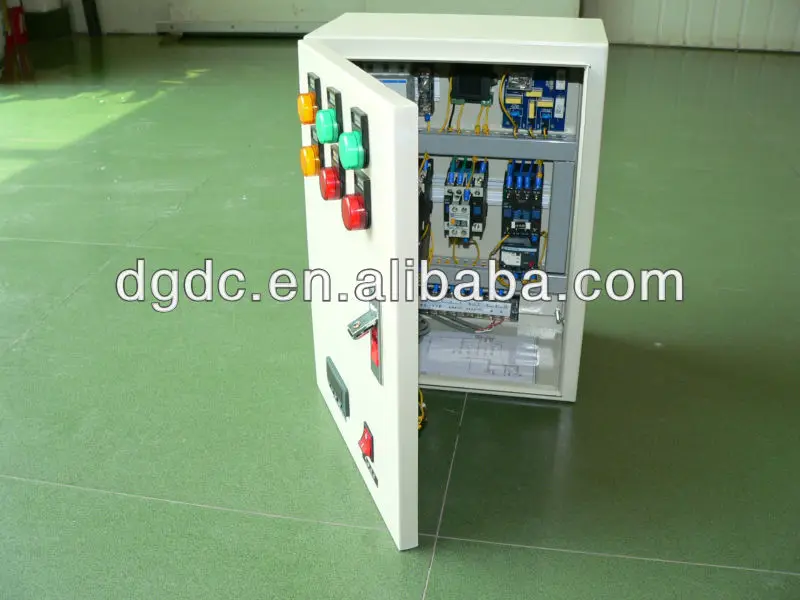

Electric Control box :

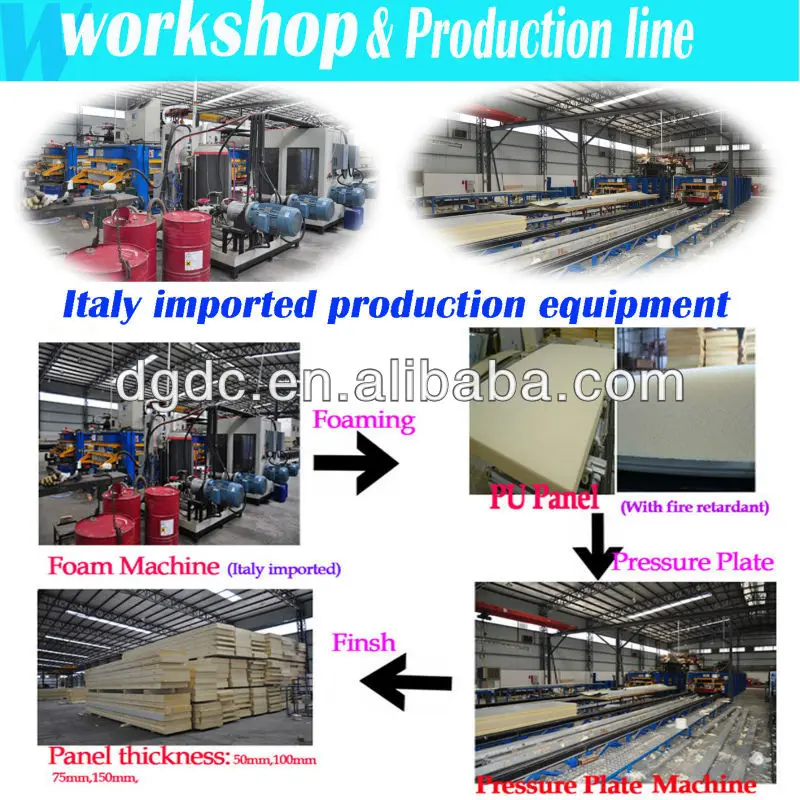

production line for our Prefabricated Cold Room

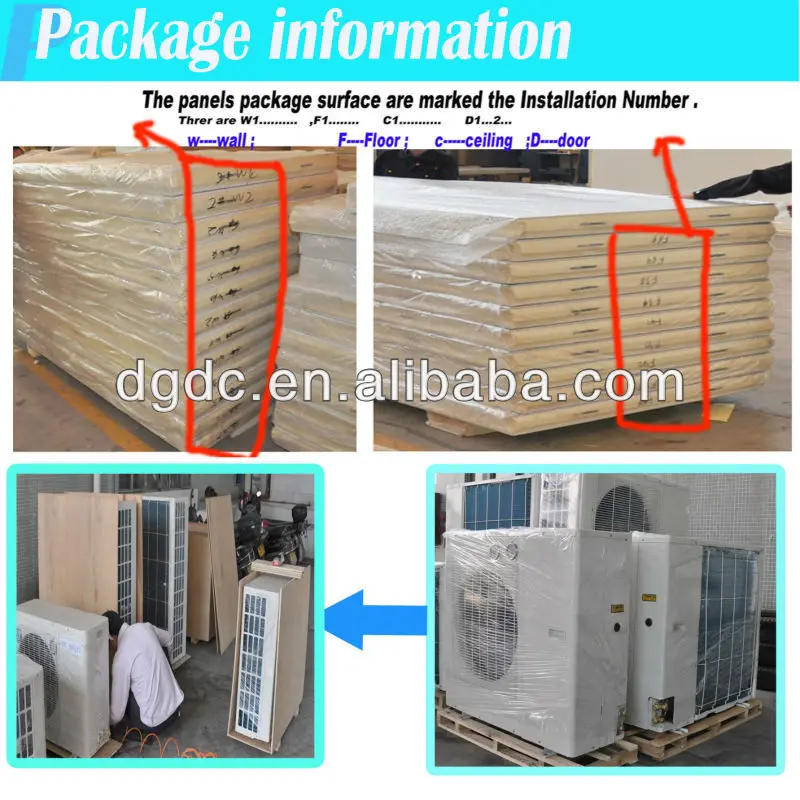

Prefabricated Cold Room Package

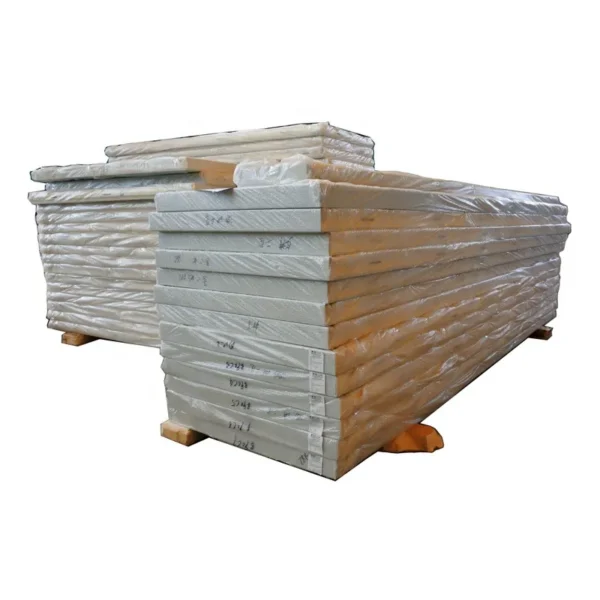

Polyurethane sandwich insulation panels are packed with bubble paper
Refrigeration unit: condensing unit and evaporator cooling unit are packed in plywood box
Cold Room parts are packed in cartons

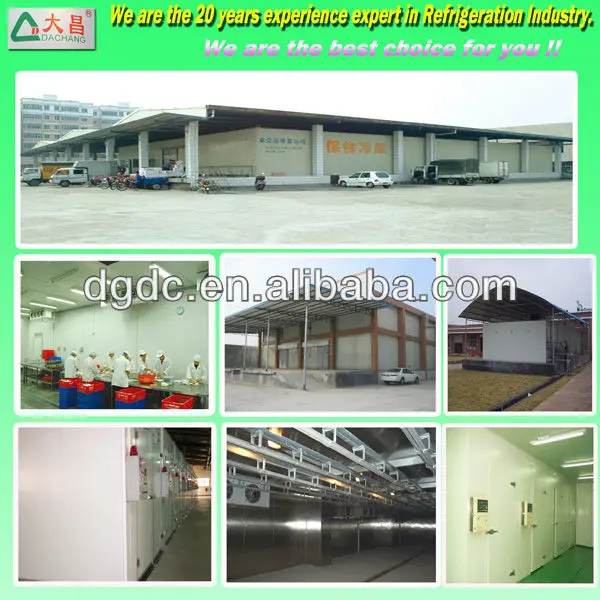

Some of our Prefabricated Cold Room Project :(Domestic and Overseas )
Take part in the Exhibition every year:
Ordering and Pricing
- Minimum order quantity: 10 square meter
- Volume pricing:
- 10–99 square meter: US $35 / square meter
- 100+ square meter: US $28 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooler?
The standard minimum order quantity is 10 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooler carry?
It is supplied with ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooler be supplied for my local voltage?
The standard configuration is 220V/110V/380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
