The cooling axial flow fan listed here carries voltage 23~41V DC, power source Solar, documented exactly as the manufacturer publishes it. Made by Jiangmen Sunny Photoelectricity Technology Limited (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Axial Flow Fan
- Model Number: SN2024017+SN2024021(APP+Remote-Controller), SN2024017(APP)
- Power Source: Solar
- Voltage: 23~41V DC
- Material: Aluminum-alloy
- Blade Material: aluminum-alloy propeller
- Speed: 83~463RPM
Technical Specifications
| Blade Diameter | 48 in |
|---|---|
| Voltage | 23~41V DC |
| Speed | 83~463RPM |
| Type | Wall-Mounted Axial Fan |
| Material | Aluminum-alloy |
| Blade Material | aluminum-alloy propeller |
| Mounting Type | Wall Fan, Roof Fan, Ceiling Fan, Duct Fan, Free Standing, Shop Window |
| Bearing Type | Ball Bearing |
| Power Source | Solar |
| Warranty | More Than 5 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | SIPL |
| Model Number | SN2024017+SN2024021(APP+Remote-Controller), SN2024017(APP) |
| Fan Host | aluminum-alloy ultra-thin box, 1220x1220x300mm (48”) |
| Fan Blade | aluminum-alloy airfoil-type double-layer, dia.1084mm, 8 blades |
| Fan Motor | brushless and permanent magnet DC motor, IP68 waterproof |

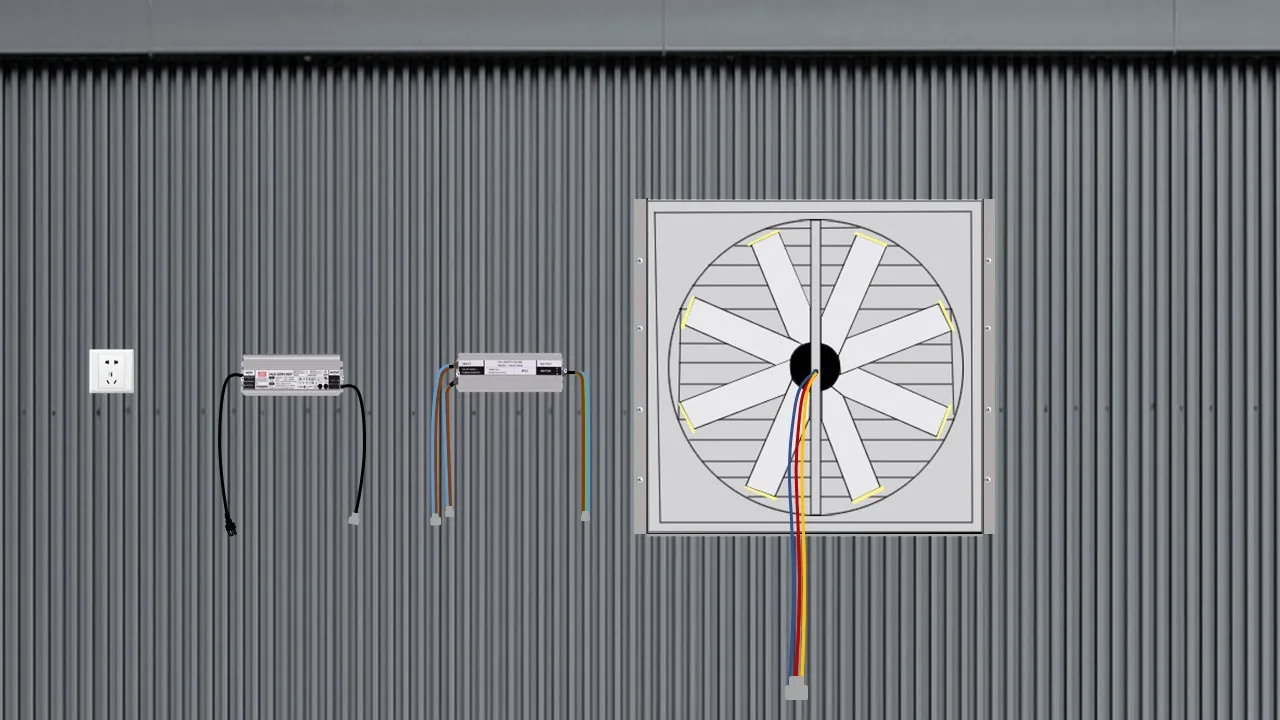

| Motor Driver (Electric Junction Box) | apart from motor, of a 2m cable Temp-Humid sensor, APP controllable |
| Fan Shutter & Fan Guard | front side fixed electric shutter, rear side detachable S/S fan guard |
| Fan Type | negative pressure axial flow fan, solar DC type extractor & cooler |

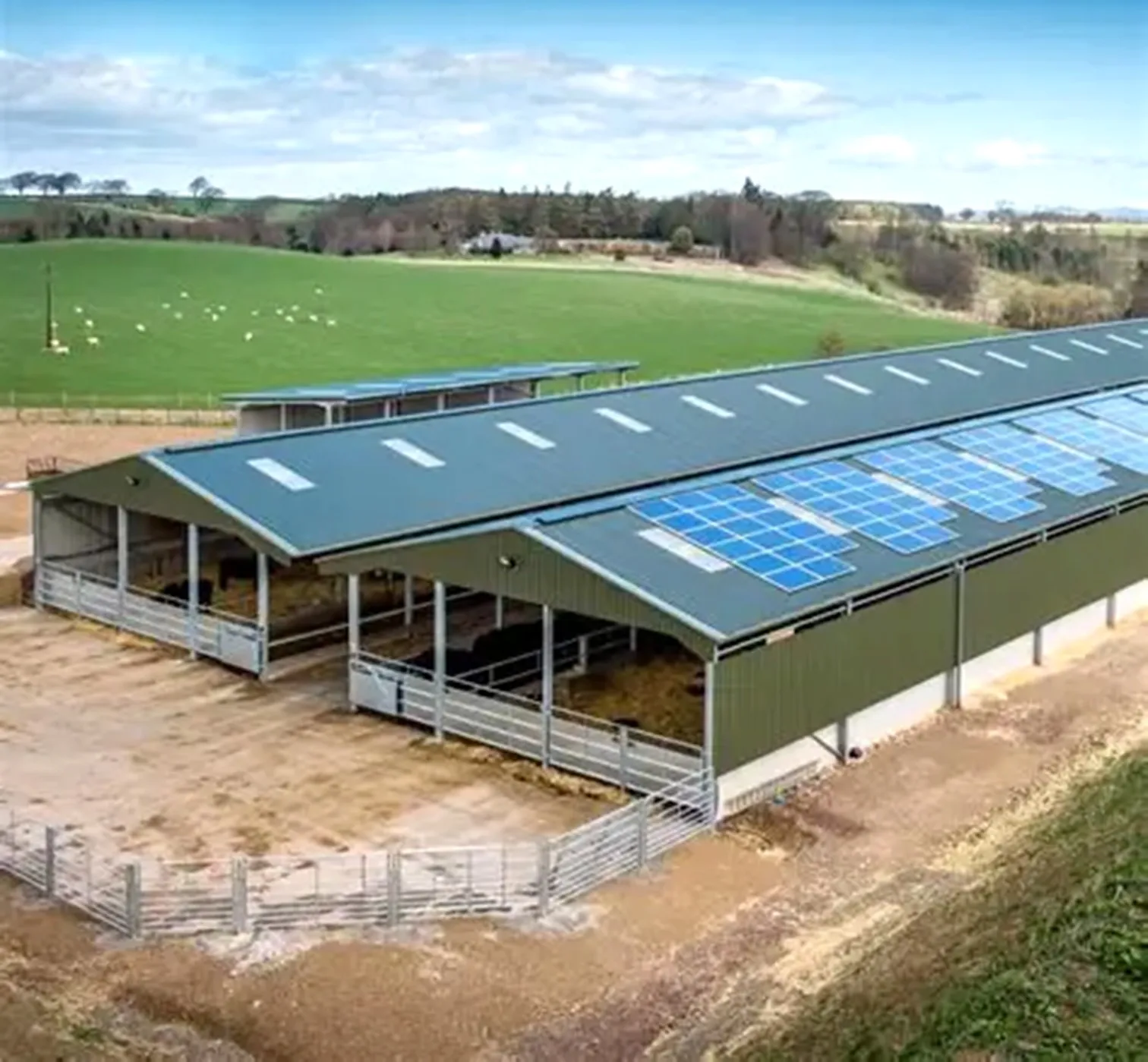

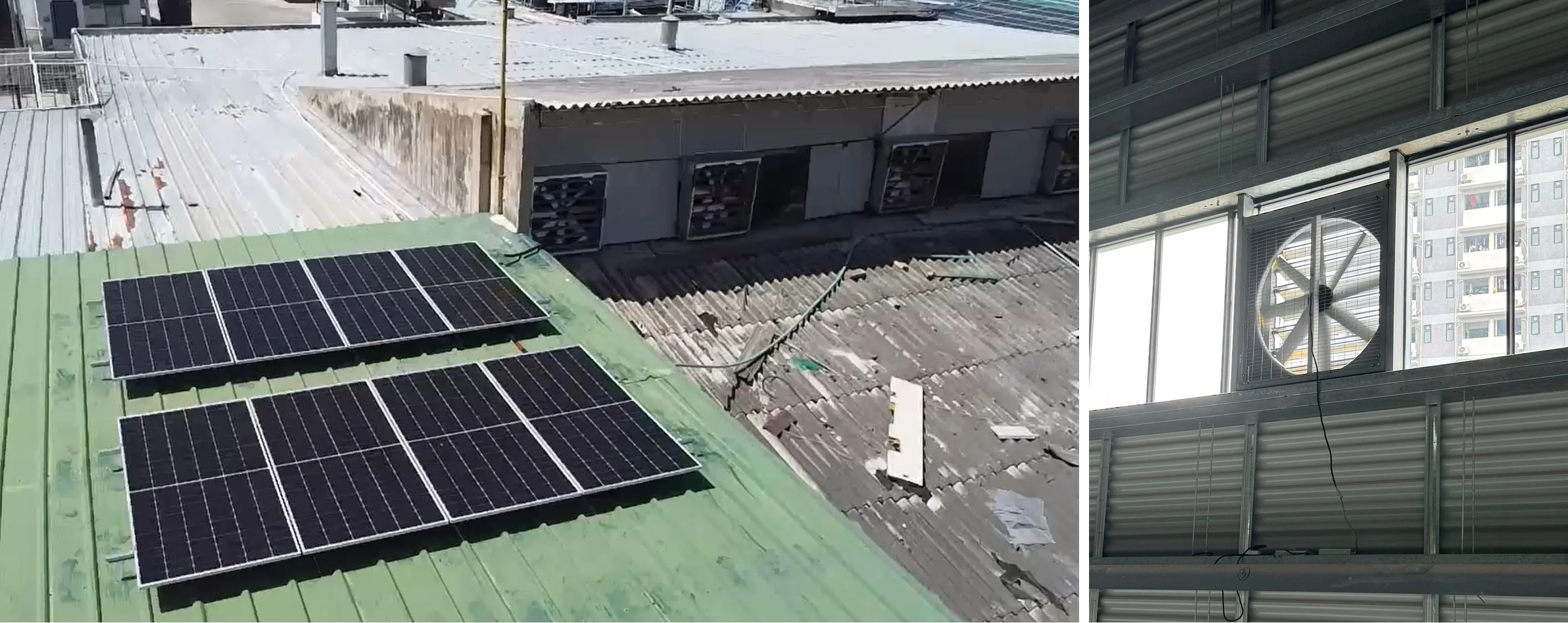

| Application (Installation) | anywhere that is available with sunlight & needs heat extraction |

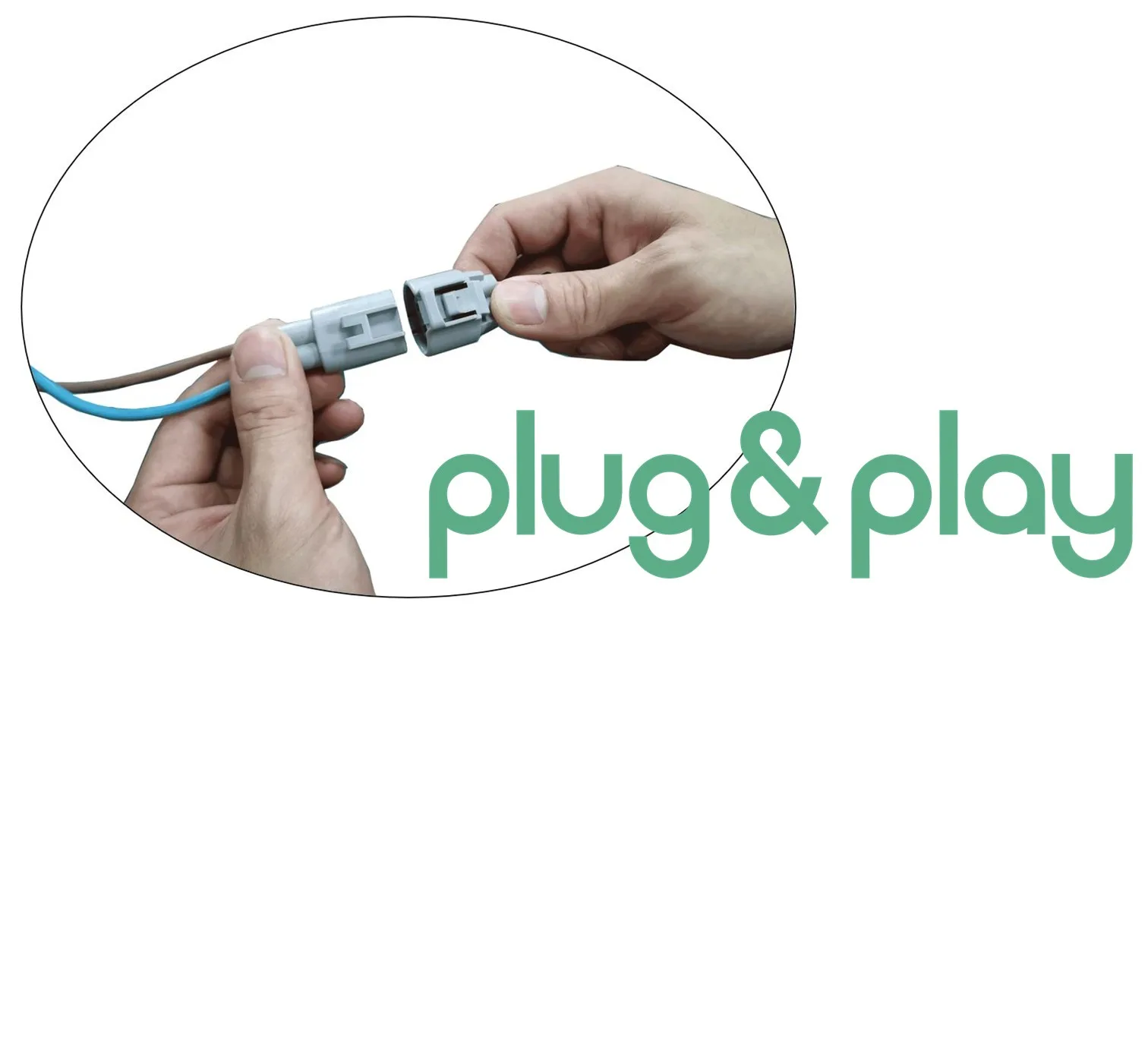

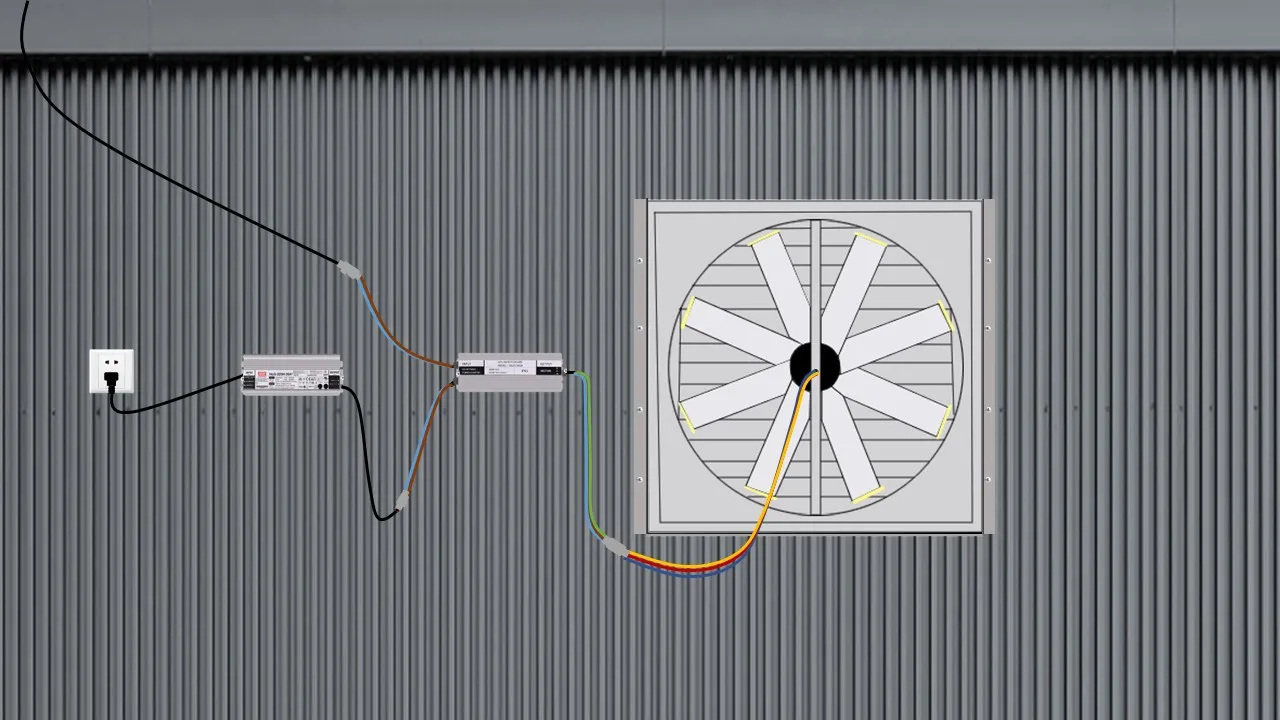

| Wire Connection | 20m cable with MC4 plug-and-play connectors join-up fan & solar panels |

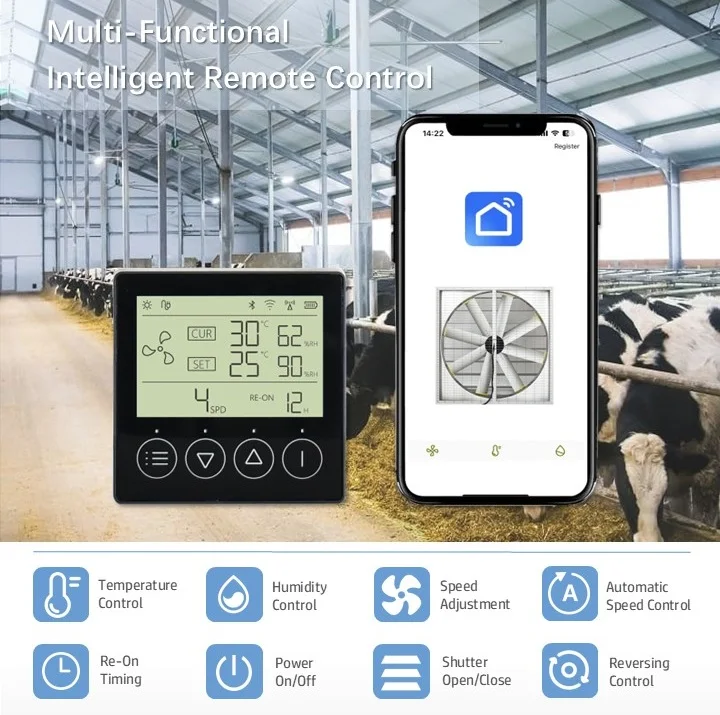

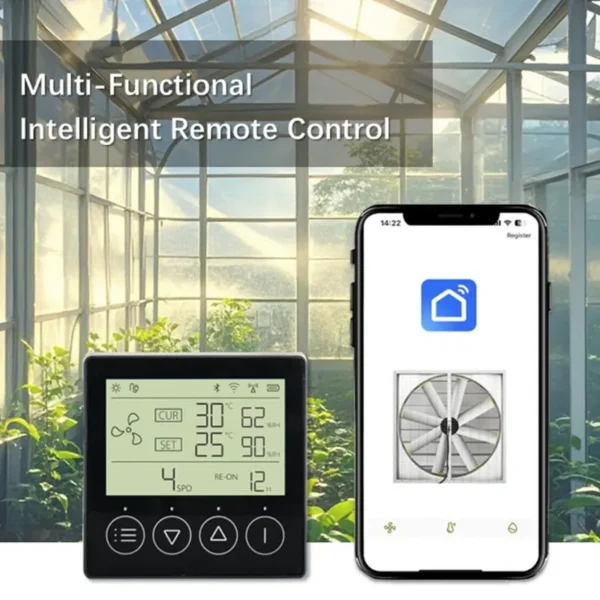

| Remote Control Platform | cellphone APP "Smart Life" + hand-held remote control transmitter |
| Selling Units | Single item |
| Single Package Size | 234X126X40 cm |
| Single Gross Weight | 157.0 kg |
Product Details

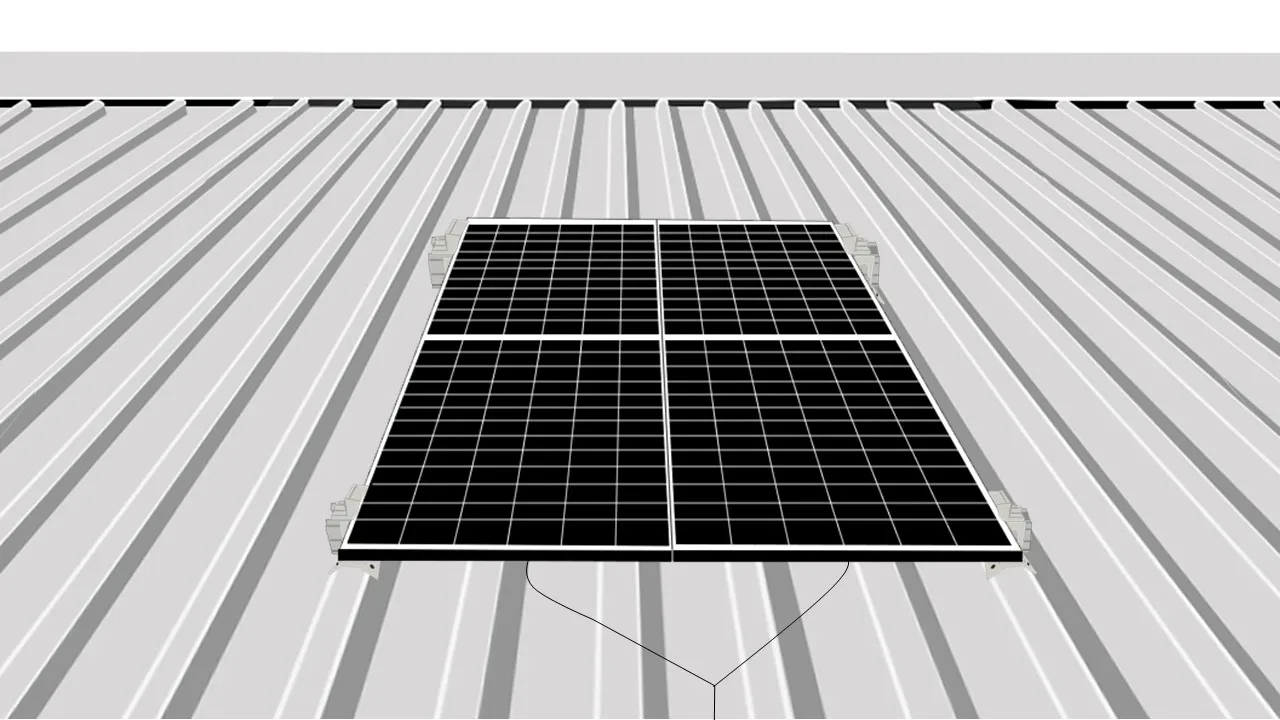

Solar Panel 2pcs * 555W/41V
Exhaust Fan 48'' Ultra-Thin
1110W Mono Solar Panels | designed lifespan > 25 years, warranty: 15 years |
Aluminum-alloy Fan Host | designed lifespan > 20 years, warranty: 15 years |
IP68 BLDC Motor & 48'' Fan Blades | designed lifespan > 15 years, warranty: 5 years |

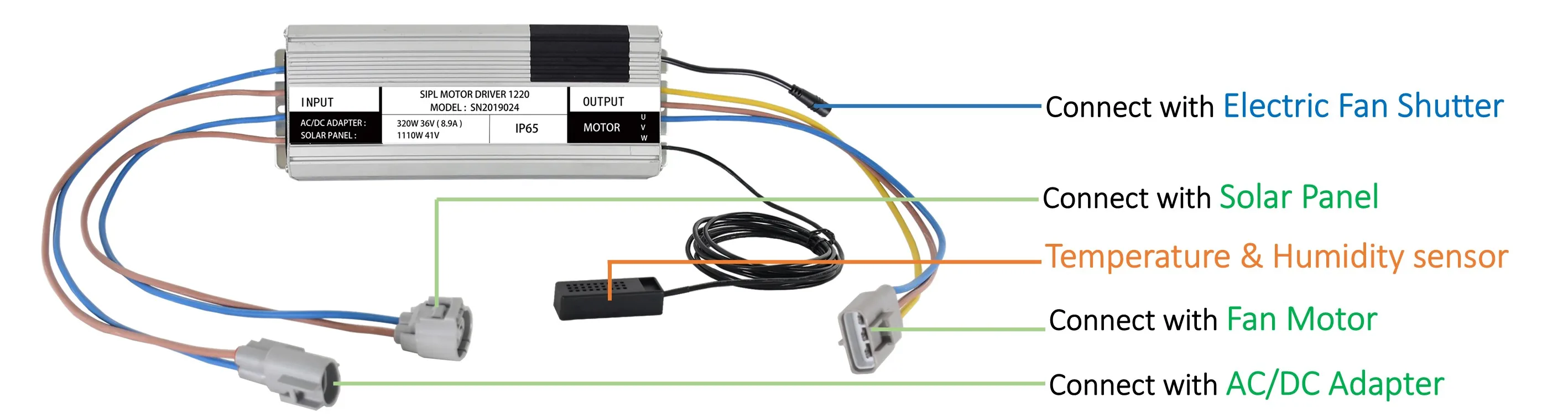

separated Motor Driver = Power Controller | designed lifespan > 10 years, warranty: 5 years |
Remote Controller | designed lifespan > 10 years, warranty: 2 years |
other electric components | designed lifespan > 10 years, warranty: 5 years |

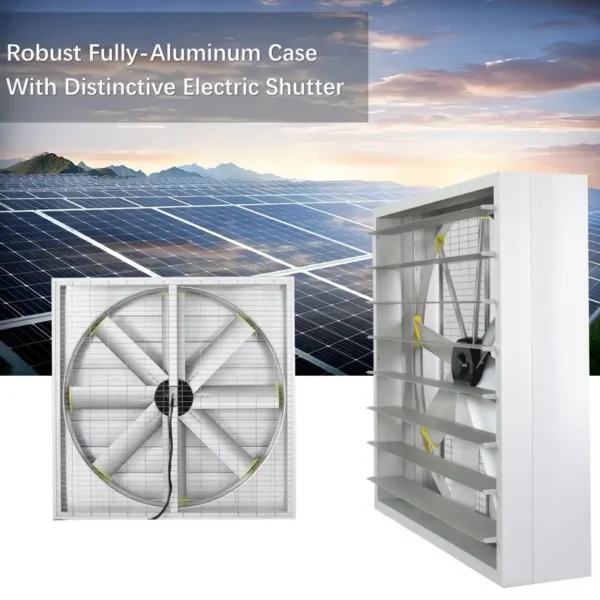

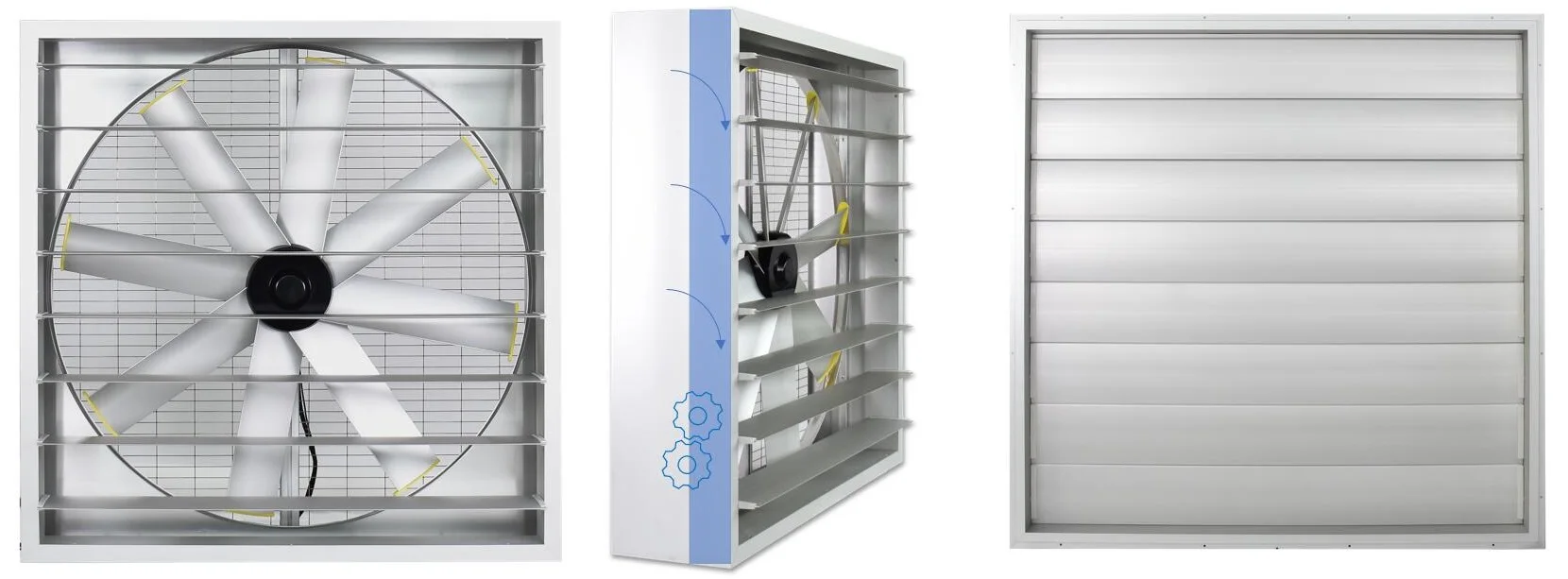

Brandnew Aluminum-alloy Fan Case
* the best ever durability
Innovative Electric Fan Shutter
* open immediately when gets powered
* always open to its max of 90°
Professtional Sun-driven Motor
* variable speed in accordance with the sunlight intensity

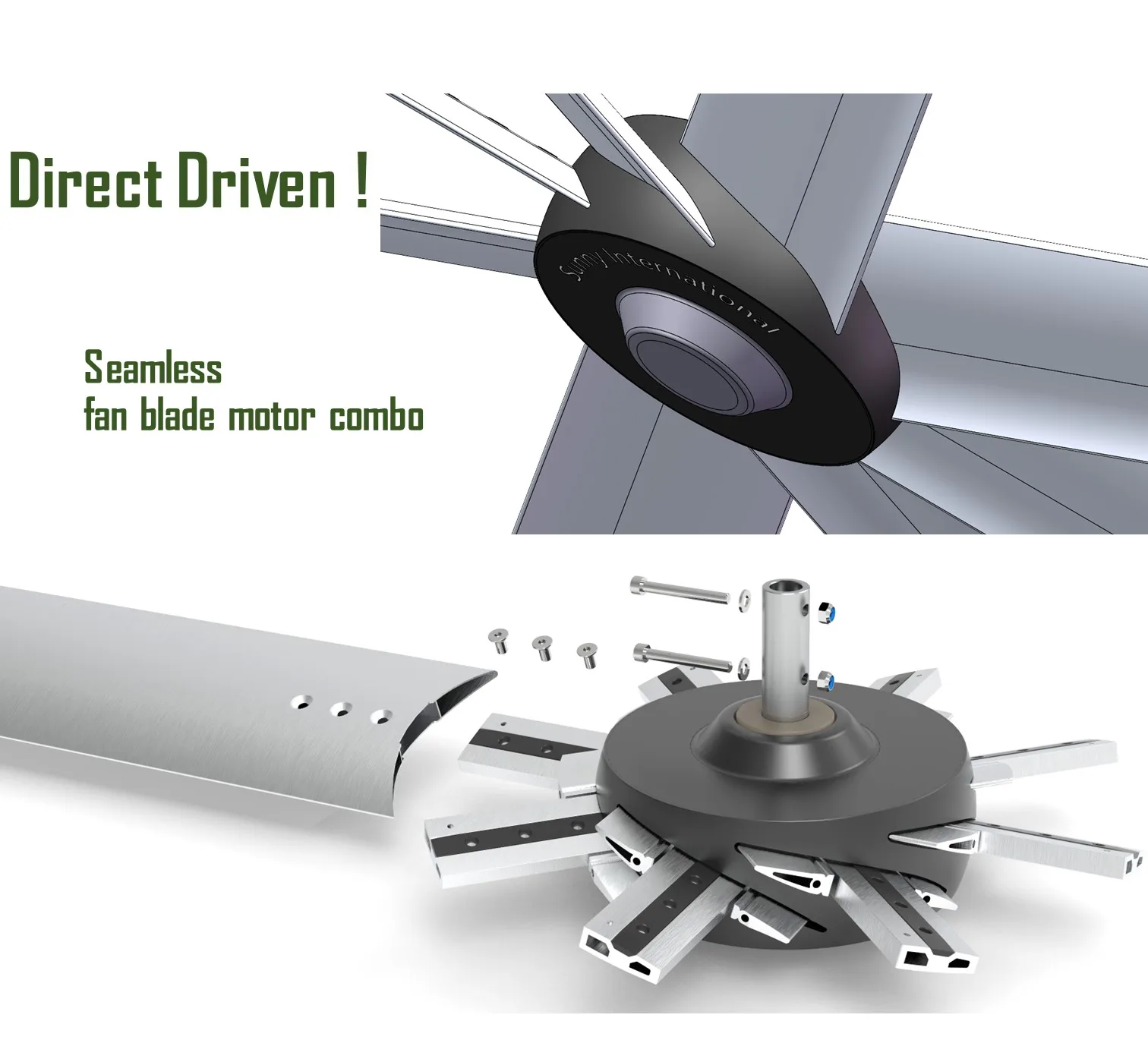

100% Energy Efficiency
* no belt, only direct driven
Ultrastrong Airfoil-type Double-layer Structure Fan Blade
* allow perfect streamline of airflow
* ensure minimumized strain on motor
axial flow ball bearing motor solar DC type negative pressure turbine roof ventilator for industrial greenhouse commercial ventilation
new type AC DC electric solar extractor for warehouse factory workshop cooling heat extraction air exhaust thin box farming wall fan
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling axial flow fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling axial flow fan be supplied for my local voltage?
The standard configuration is 23~41V DC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

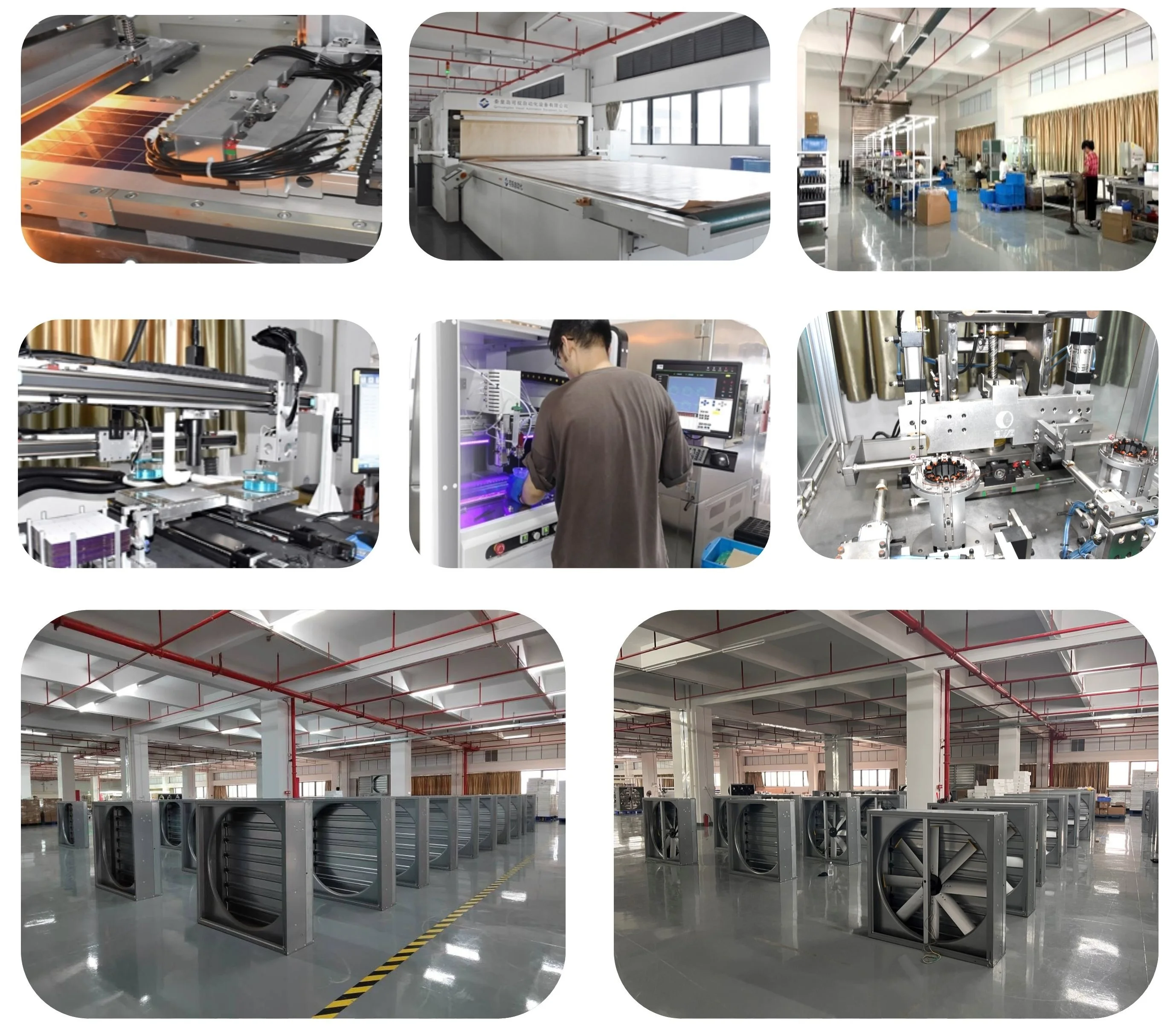

About the Manufacturer
This product is produced by Jiangmen Sunny Photoelectricity Technology Limited, based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangmen Sunny Photoelectricity Technology Limited range on HVACR Nexus.
