Key specification for this cooling circulating water chiller: 220V/380V 50HZ, or customization, capacity of liquid storage 15~60L. Everything below is reproduced from the factory data sheet. Made by LNEYA Thermo Refrigeration Co., Ltd. (16 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Circulating Water Chiller
- Power: custom
- Cooling Power: 0.2~6KW
- Voltage: 220V/380V 50HZ, or customization
- Capacity Of Liquid Storage: 15~60L
- Refrigerant: R-404A/R508B
- Warranty: 1 Year
Technical Specifications
| Voltage | 220V/380V 50HZ, or customization |
|---|---|
| Power | custom |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Energy Saving |
| Core Components | PLC, Bearing, Gearbox, Pressure Vessel, Gear, Pump |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 210 |
| Brand Name | LNEYA |
| Dimension(L*W*H) | 50*85*130~80*120*185CM |
| Working Temperature Range | -80 ~ -20℃ (optional: -120 ~ 30℃) |

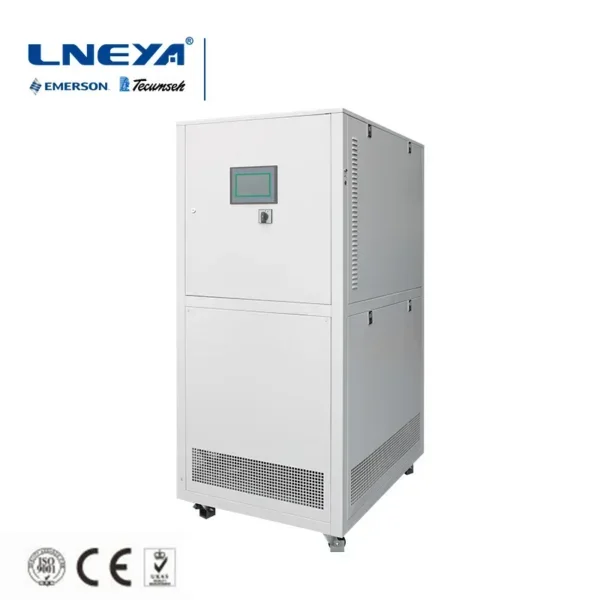

| Product Name | -40 -60 -80 -100C Low Temperature Cooling Circulating Water Chiller |
| Temperature | -80 ~ -20℃ (optional: -120 ~ 30℃) |
| Refrigerant | R-404A/R508B |
| Dimension | 50*85*130~80*120*185CM |
| Cooling Power | 0.2~6KW |
| Circulation Pump | 20~50L/min 0.7~1BAR |
| Compressor | brand compressor, customization |
| Capacity Of Liquid Storage | 15~60L |
| Evaporator | Plate heat exchanger |
| Shell | SUS304 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |

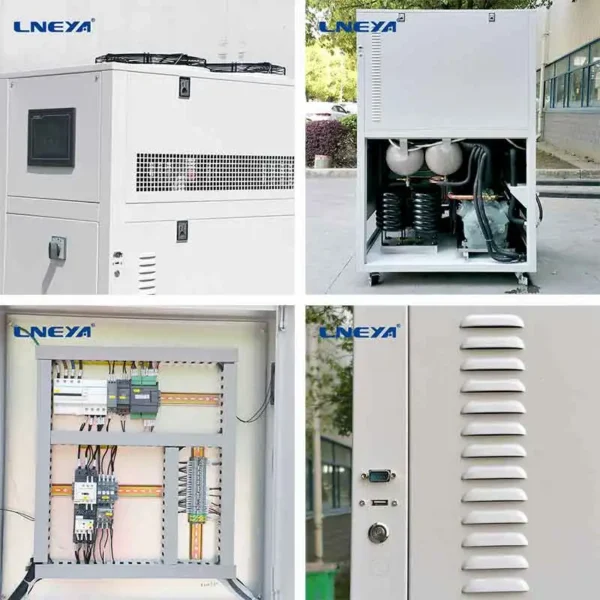

Product Details
Products Description
A water chiller is a cooling system that removes heat by circulating heat-absorbing a refrigerant through a series of mechanisms through which the heat is released. The essential components of a chiller are a compressor, condenser, expansion valve, and evaporator. They work in unison to circulate a refrigerant that removes heat from a process, operation, or space.
There are several different types of chillers, each of which has a different process for removing heat. All chillers use air or water as a cooling method. For example, air cools a chiller system using fans, while a water-cooled chiller circulates water with a cooling tower. Aside from the two cooling processes, chillers are further differentiated by the type of compressor they have. Compressors in all chillers have the same function: to compress the refrigerant and increase its temperature and pressure before it moves on to the condenser.
Features and Advantages of chillers
1. Precise temperature control capability Accurate temperature control capability is very important for chillers. Our company’s chillers all use imported microcomputer digital temperature controllers, which are not only capable of precise control, but are also energy-saving and environmentally friendly. Temperature control range: -150℃ to +250℃. 2. High heat exchange efficiency The chiller adopts internationally renowned brand shell-and-tube condensers and evaporators. Its heat exchange performance is more than 20% higher than that of ordinary products, and it also has less cooling loss, easy oil return, and the heat transfer tube will not freeze and crack. Overall good value for money. 3. Stable and reliable operation The compressor is the core part of the operation of the chiller. It uses high-quality compressors imported from Europe, the United States, Japan, etc. High-quality accessories can improve the operating efficiency of the chiller, are safe and energy-saving, have a long service life and are noise-free. 4. Full range of protection devices Our company’s chillers are specially equipped with a full range of safety protection devices, such as: chiller protection device, phase loss and reverse phase protector device, high and low pressure pressure protection device, water shortage automatic alarm device, low temperature, anti-icing protection device , Oil gauge pressure protection device, etc. 5. Energy saving and environmental protection The chiller adopts advanced refrigeration technology and has high refrigeration efficiency and energy utilization. Using environmentally friendly refrigerant, it will not cause damage to the atmospheric ozone layer.
Customized products
We support customization services, pls click to consult us for details.
Product Paramenters
We provide complete industrial chiller design and manufacturing. From standard models to complete customized chiller systems up to 1000 tons. We specialize in customer service and are dedicated to helping each customer have the optimal air or water chiller system for their specific need. We provide non-standard customized solutions. Both single cooling chillers and cooling & heating chillers are available.

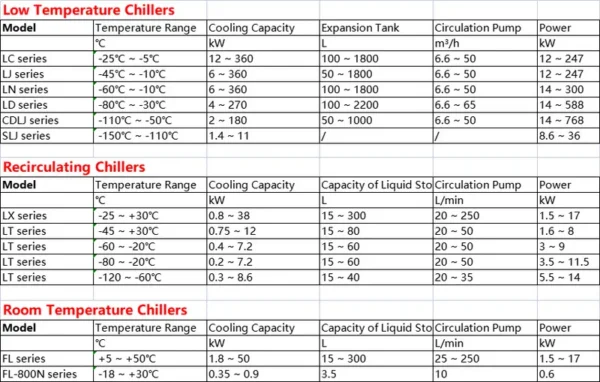

Low Temperature Chillers | ||||||||
Model | Temperature Range | Cooling Capacity | Circulation Pump | Power | ||||
℃ | kW | m³/h | kW | |||||
LC series | -25℃ ~ -5℃ | 12 ~ 360 | 6.6 ~ 50 | 12 ~ 247 | ||||
LJ series | -45℃ ~ -10℃ | 6 ~ 360 | 6.6 ~ 50 | 12 ~ 247 | ||||
LN series | -60℃ ~ -10℃ | 6 ~ 360 | 6.6 ~ 50 | 14 ~ 300 | ||||
LD series | -80℃ ~ -30℃ | 4 ~ 270 | 6.6 ~ 65 | 14 ~ 588 | ||||
CDLJ series | -110℃ ~ -50℃ | 2 ~ 180 | 6.6 ~ 50 | 14 ~ 768 | ||||
SLJ series | -150℃ ~ -110℃ | 1.4 ~ 11 | / | 8.6 ~ 36 | ||||
High Temperature Chillers | ||||||||
Model | Temperature Range | Cooling Capacity | Circulation Pump | Power | ||||
℃ | kW | L/min | kW | |||||
FLT series | +5 ~ +40℃ | 6 ~ 40 | 10 ~ 75 | 3.5 ~ 16 | ||||
FLT series | -25 ~ +40℃ | 2 ~ 15 | 10 ~ 75 | 3 ~ 17 | ||||
FLT series | -45 ~ +40℃ | 1 ~ 8 | 10 ~ 75 | 3 ~ 15 | ||||
FLT series | -80 ~ +80℃ | 0.6 ~ 3 | 7~ 45 | / | ||||
FLT series | -100 ~ +80℃ | 1.5 ~ 3 | 7~ 45 | / | ||||
Recirculating Chillers / Refrigerated Circulators | ||||||||
Model | Temperature Range | Cooling Capacity | Circulation Pump | Power | ||||
℃ | kW | L/min | kW | |||||
LX series | -25 ~ +30℃ | 0.8 ~ 38 | 20 ~ 250 | 1.5 ~ 17 | ||||
LT series | -45 ~ +30℃ | 0.75 ~ 12 | 20 ~ 50 | 1.6 ~ 8 | ||||
LT series | -60 ~ -20℃ | 0.4 ~ 7.2 | 20 ~ 50 | 3 ~ 9 | ||||
LT series | -80 ~ -20℃ | 0.2 ~ 7.2 | 20 ~ 50 | 3.5 ~ 11.5 | ||||
LT series | -120 ~ -60℃ | 0.3 ~ 8.6 | 20 ~ 35 | 5.5 ~ 14 | ||||
Small Chillers / Precision Chillers | ||||||||
Model | Temperature Range | Cooling Capacity | Circulation Pump | Power | ||||
℃ | kW | L/min | kW | |||||
FL series | +5 ~ +35℃ | 1.8 ~ 50 | 25 ~ 250 | 1.5 ~ 17 | ||||
FL-800 | -18 ~ +30℃ | 0.35 ~ 0.9 | 10 | 0.6 | ||||
Why Choose Us
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment. Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India. Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs. Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $2900 / set
- 3+ set: US $2400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling circulating water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling circulating water chiller be supplied for my local voltage?
The standard configuration is 220V/380V 50HZ, or customization. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by LNEYA Thermo Refrigeration Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LNEYA Thermo Refrigeration Co., Ltd. range on HVACR Nexus.
