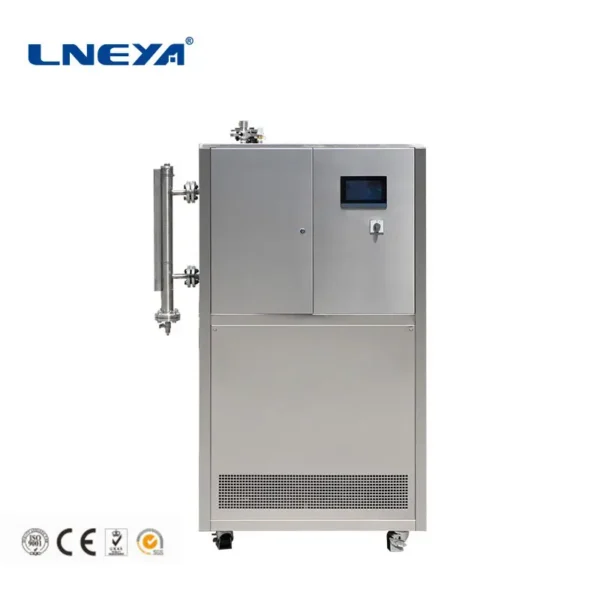

This temperature control system heater is published with the manufacturer’s full specification — 380V 50HZ, or customization. Made by LNEYA Thermo Refrigeration Co., Ltd. (16 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Temperature Control System Heater
- Power: custom
- Voltage: 380V 50HZ, or customization
- Case Material: SUS 304
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Weight (Kg): 230
Technical Specifications
| Voltage | 380V 50HZ, or customization |
|---|---|
| Power | custom |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 230 |
| Brand Name | LNEYA |
| Dimension(L*W*H) | 55*100*175~300*160*225cm |
| Working Temperature Range | -90 ~ 250℃ (optional: -120 ~ 350℃) |
| Temperature Range ℃ | -90 ~ 250℃ (optional: -120 ~ 350℃) |
| Refrigeration Pump | R-404A/R14/R23 |
| Evaporator | KAORI Plate heat exchanger |
| Operation Panel | 7-inch color touch |
| Case Material | SUS 304 |
| Oil Separator | Emerson |
| Compressor | Tecumseh/Emerson and so on |
| Advantages1 | Ultra high and low temperature control |
| Refrigeration Technology | The pinnacle of temperature technology |
| Selling Units | Single item |
Product Details
Products Description
Structural design principles and functional advantages of industrial chiller
When the temperature is high, there is no evaporation of heat conducting medium, and the continuous temperature control of -90~195℃，-70~220℃，-55~250℃ and -25~300℃ can be realized without pressure.
Adopt the design of fully closed pipeline, reduce the demand of heat-transfer fluid, improve the heat utilization rate of the system, and achieve rapid temperature rise and fall. The heat conducting medium in the expansion vessel does not participate in the circulation, which can reduce the risk of moisture absorption and volatilization during the operation of the heat conducting medium.
Customized products
We support customization services, pls click to consult us for details.
Product Paramenters
Model | SUNDI- 925W | SUNDI- 935W | SUNDI- 955W | SUNDI- 975W | SUNDI-9A10W | SUNDI-9A15W | SUNDI-9A25W | SUNDI-9A38W | SUNDI-9A60W | ||||||||
Temp range | -90 ~ +250 ℃ (optional: -120 ~ 350℃) | ||||||||||||||||
Heating power (KW) | 3 | 3.5 | 5.5 | 7.5 | 10 | 15 | 25 | 38 | 60 | ||||||||
Cooling capacity (KW) | 2.5@250℃ | 3.5@250℃ | 5.5@250℃ | 7.5@250℃ | 10@250℃ | 15@250℃ | 25@250℃ | 38@250℃ | 60@250℃ | ||||||||
2.5@0℃ | 3.5@0℃ | 5.5@0℃ | 7.5@0℃ | 10@0℃ | 15@0℃ | 25@0℃ | 38@0℃ | 60@0℃ | |||||||||
1.1@-60℃ | 1.9@-60℃ | 2.8@-60℃ | 3.2@-60℃ | 4.2@-60℃ | 6@-60℃ | 10@-60℃ | 16@-60℃ | 24@-60℃ | |||||||||
0.35@-80℃ | 0.5@-80℃ | 0.8@-80℃ | 1.2@-80℃ | 1.6@-80℃ | 2.1@-80℃ | 3.5@-80℃ | 6@-80℃ | 11@-80℃ | |||||||||
0.2@-85℃ | 0.3@-85℃ | 0.5@-85℃ | 0.7@-85℃ | 0.85@-85℃ | 1.3@-85℃ | 1.9@-85℃ | 3.5@-85℃ | 6@-85℃ | |||||||||
Medium acccuracy | ±0.5℃ | ±1℃ | |||||||||||||||
Material accuracy | ±1℃ | ||||||||||||||||
Circulation pump max L/min bar | 20 | 35 | 35 | 50 | 60 | 110 | 150 | 250 | 400 | ||||||||
2 | 2 | 2 | 2 | 2.5 | |||||||||||||
Compressor | Tecumseh closed compressor/Dorin semi-closed compressor | ||||||||||||||||
Expansion valve | Emerson thermal expansion valve/Emerson electronic expansion valve/danfoss thermal expansion valve. | ||||||||||||||||
Evaporator | DANFOSS/KAORI Plate heat exchanger | ||||||||||||||||
Refrigerant | R-404A/R508B | ||||||||||||||||
Connection size | G3/4 | G3/4 | G3/4 | G1 | G1 | G1 | DN32 | DN40 | DN65 | ||||||||
Dimension cm | 55*100*175 | 55*100*175 | 70*100*175 | 70*100*175 | 70*100*175 | 100*150*185 | 205*145*205 | 205*145*205 | 245*145*225 | ||||||||
Weight kg | 260 | 295 | 365 | 570 | 680 | 950 | 1400 | 1750 | 2400 | ||||||||
Power 380V 50HZ | 8KW | 11KW | 16KW | 21KW | 27KW | 38KW | 54KW | 79KW | 120KW | ||||||||
Why Choose Us
Structural design principles and functional advantages of industrial chiller
When the temperature is high, there is no evaporation of heat conducting medium, and the continuous temperature control of -90~195℃，-70~220℃，-55~250℃ and -25~300℃ can be realized without pressure.Adopt the design of fully closed pipeline, reduce the demand of heat-transfer fluid, improve the heat utilization rate of the system, and achieve rapid temperature rise and fall. The heat conducting medium in the expansion vessel does not participate in the circulation, which can reduce the risk of moisture absorption and volatilization during the operation of the heat conducting medium.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment. Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India. Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs. Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $4500 / set
- 3–4 set: US $4300 / set
- 5+ set: US $4000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this temperature control system heater?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the temperature control system heater be supplied for my local voltage?
The standard configuration is 380V 50HZ, or customization. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by LNEYA Thermo Refrigeration Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LNEYA Thermo Refrigeration Co., Ltd. range on HVACR Nexus.
