Cooling four-wire pwm fan — type Other Modules,Other Modules, model number C8-6. The complete factory specification follows. Made by Shenzhen Linshi Hui Electronics Co., Ltd. (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Four-Wire Pwm Fan
- Model Number: C8-6
- Place Of Origin: China
- Features: -4-wire, PWM, automatic temperature contro
- Type: Other Modules,Other Modules
- Single Package Size: 15X15X5 cm
- Single Gross Weight: 0.1 kg
Technical Specifications
| Main Purpose | fan thermostat, automatic temperature control |
|---|---|
| Type | Other Modules,Other Modules |
| Description | Computer cooling PWM fan thermostat |
| Model Number | C8-6 |
| Place Of Origin | China |
| Brand Name | other |
| Package | electrostatic bag packaging |
| Function | automatic temperature control, speed regulation |
| Features | -4-wire, PWM, automatic temperature contro |
| Selling Units | Single item |
| Single Package Size | 15X15X5 cm |
| Single Gross Weight | 0.1 kg |
Product Details

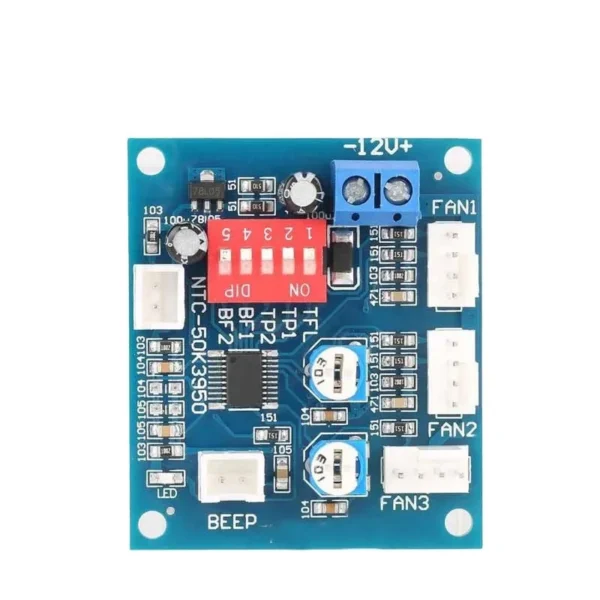

Function setting switch description:
TFL (No. 1): The lowest PWM setting of the temperature control channel, the lowest PWM of FAN1 is 40% in the ON state, and the lowest PWM of FAN1 is 20% in the OFF state.
TP1 TP2 (No. 2,3): The temperature control channel controls the temperature zone. The specific settings are as follows (need to be used with temperature probe):
TP1 TP2 Acceleration temperature Full speed temperature
OFF OFF 35 45
ON OFF 40 55
OFF ON 50 70
ON ON 60 90
Below the acceleration temperature, the minimum speed is output, and above the full speed temperature, the full speed is always output.
BF1 BF2 (No. 4,5): corresponding to FAN1 FAN2 stop alarm function switch. When the corresponding switch is turned on, the channel fan fails to stop, and the controller will sound (buzzer is required) light alarm. After the fan resumes rotation, the alarm will be automatically eliminated. If both BF1 and BF2 are turned on (ON), any one or both of FAN1 and FAN2 will stop, and the controller will alarm!
Basic parameters:

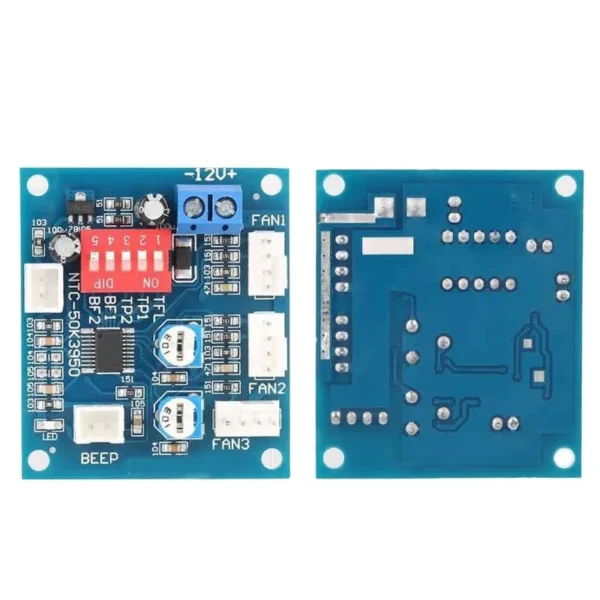

Circuit board size: length width height 50mm * 43mm * 13mm,
Location hole position: 44mm * 37mm,
Diameter: 3mm
Working voltage: DC12V
Circuit load capacity: each output maximum current 5A, bus current up to 9A
Output range: first 20%-100 or 40%-100 (TFL = ON)
Second and third roads 10%-100
Note: The above range is only the PWM range, and the actual fan control effect will vary according to different fans.

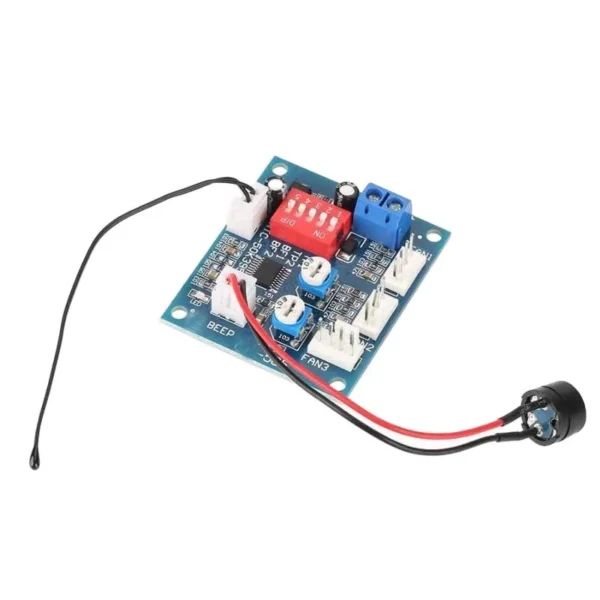

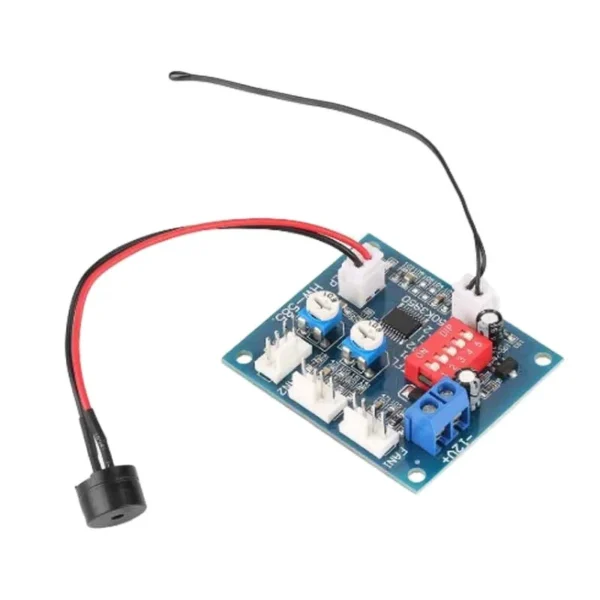

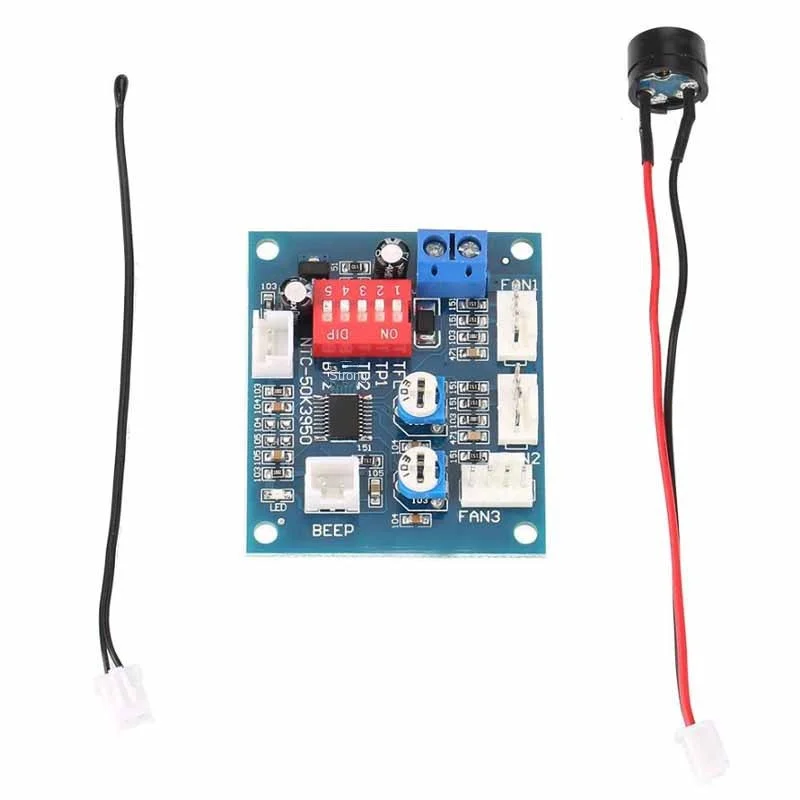

Temperature probe parameters: 50K B = 3950
Temperature control temperature zone error: according to the temperature probe error, generally 3-5%
Stall alarm minimum speed: 700-800 rpm
| item | value |
| Type | Other Modules,Other Modules |
| Description | Computer cooling PWM fan thermostat |
| Model Number | C8-6 |
| Place of Origin | China |
| Brand Name | other |
| Package | electrostatic bag packaging |
| Function | automatic temperature control, speed regulation |
| Main Purpose | fan thermostat, automatic temperature control, speed regulation |
| Features | -4-wire, PWM, automatic temperature control, speed regulation |
