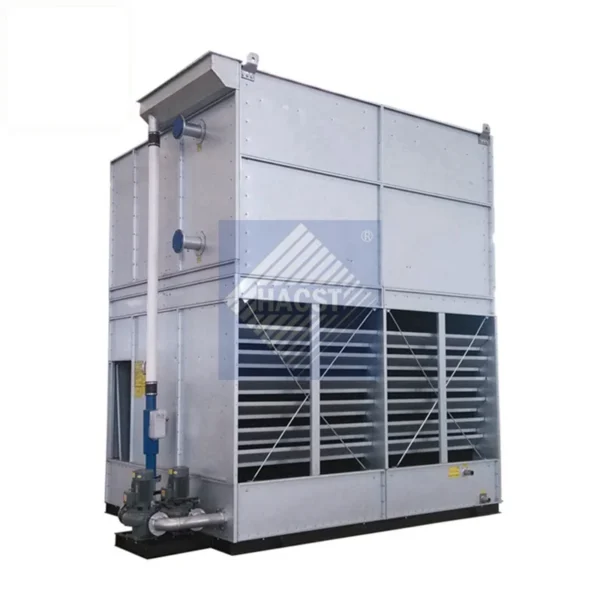

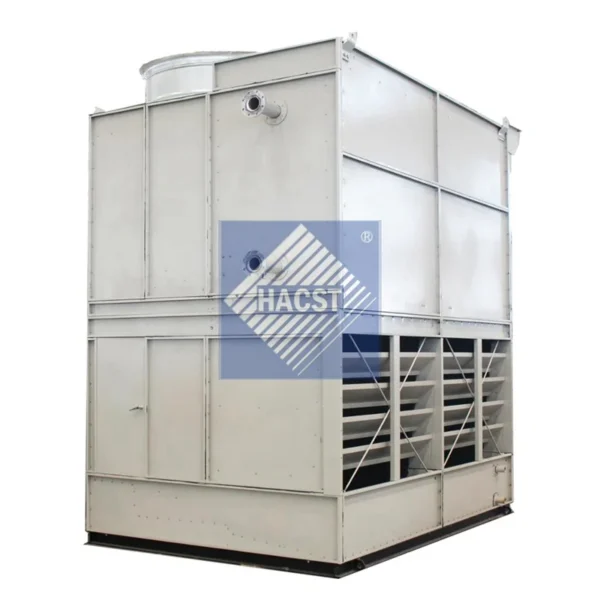

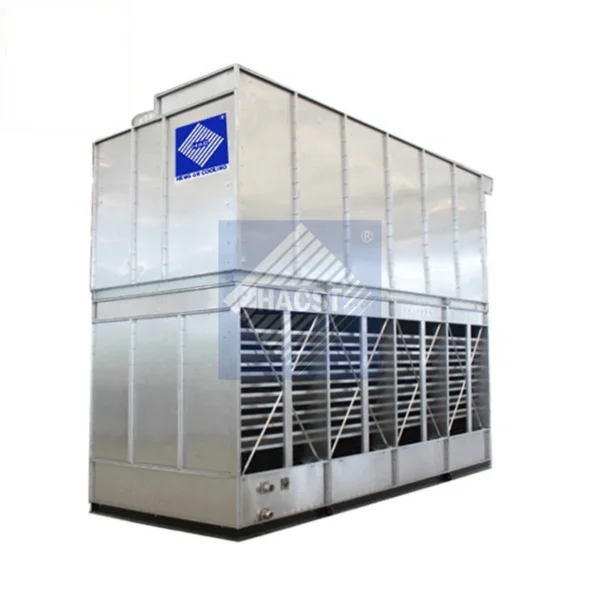

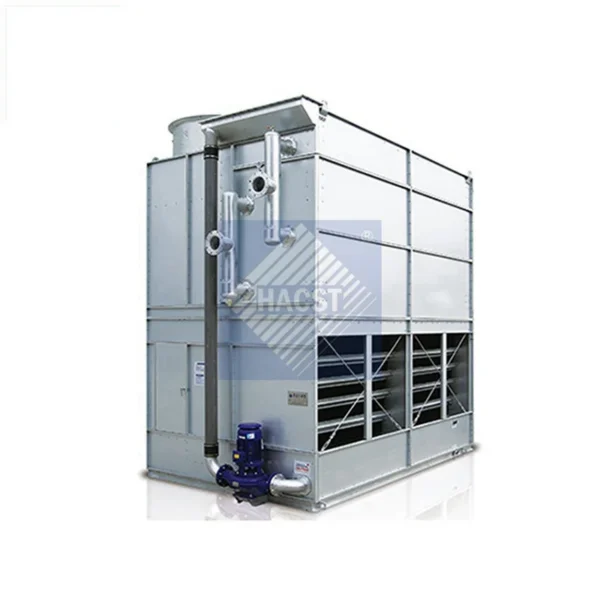

This cooling tower is published with the manufacturer’s full specification — 380V/220V, power 4-32KW. Made by Weifang Heng An Imp & Exp Co., Ltd. (12 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Power(W): 4-32KW
- Voltage: 380V/220V
- Material: Metal
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Cooling Type: Cross Flow
Technical Specifications
| Voltage | 380V/220V |
|---|---|
| Cooling Type | Cross Flow |
| Power(W) | 4-32KW |
| Material | Metal |
| Core Components | Motor, Pump |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 4500 |
| Brand Name | HACST |
| Dimension(L*W*H) | Customized |
| Type | Wet Cooling Tower Closed Circuit Cooling Towers |
| Fluid | Water, Glycol, and others |
| Shape Of Coil Tube | Round, Oval |
| Removable Drift Eliminator | PVC |
| Fills | PVC Fills |
| Model | BHX, BNX |
| Key Words | Cooling Tower |
| Type Of Cooling Tower | Counter Flow and Combined Flow Cooling Tower |
| Selling Units | Single item |
| Single Package Size | 2500X2200X1500 cm |
| Single Gross Weight | 2000.0 kg |
Product Details

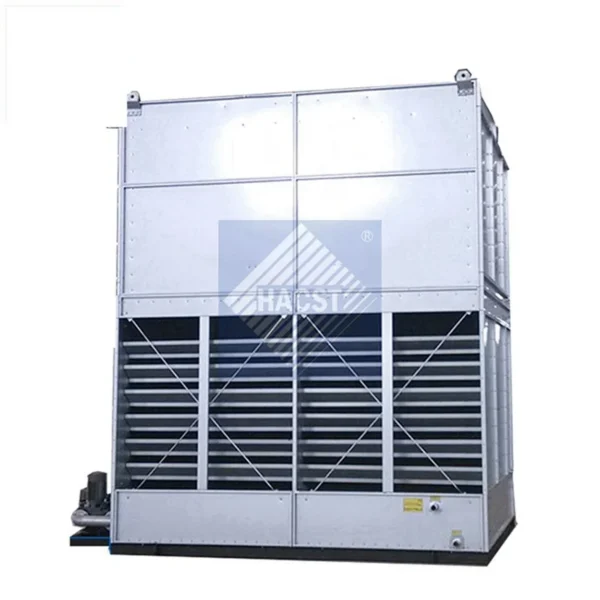

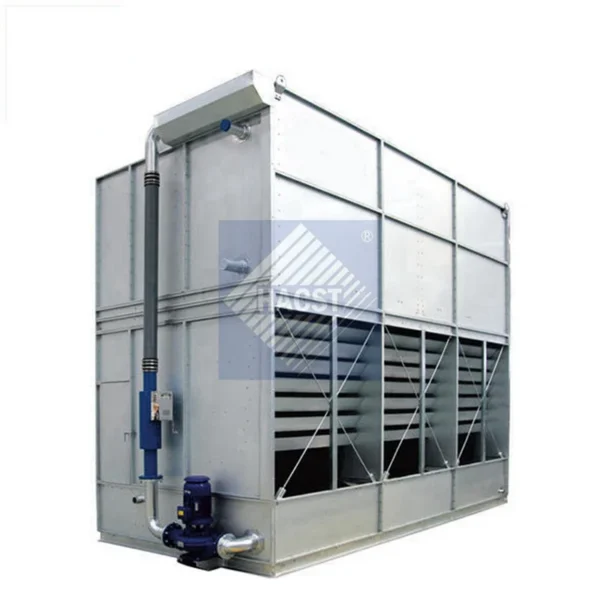

Manufacturer price 100rt 200ton custom design water industrial refrigeration combined flow cooling tower
Operation principle for Cooling Tower
The process fluid to be cooled is circulated within a serpentine cooling coil, which is continuall wetted on the outside by the spraying water system. The heat is transferred by the wall of coil, becomes saturated steam when it meets spray water and air. Then the heat will be discharged into atmosphere by fan, but water will be collected in the basin by drift eliminator for recirculated spraying. The temperature of spraying water is reduced by PVC fill. spraying water flows in the same direction as the fresh air, to cool coil mainly by significant heat conduction way, which is especially suitable to the cases when cooling tower outlet temperature is much closer to the wet bulb temperature.
What is Wet Cooling Tower Closed Circuit Cooling Towers?
Hybrid cooling combines dry and evaporative cooling to provide heat rejection and reduce water and energy consumption.
Globally, we are all becoming more conscious of our water consumption as freshwater is recognized as a critical natural resource; utilizing hybrid cooling solutions where applicable can dramatically reduce annual water consumption.
Technical date for Cooling Tower
Details of Closed Circuit Cooling Tower
1. Coil material: Galvanized steel / stainless steel / red copper
2. Casing material: Al-Zn alloy coated steel sheet / stainless steel
3. Fan type: Axial flow type
4. Cooling tower fill: 100% original PVC material
5. Drift eliminator: Special designed anti-corrosion PVC
6. Water flow loss: Less than 0.005%
7. Maintenance: with access door and ladder
8. Noise Control: Low speed fan, noise damping
7. Fan & water pump motor: Siemens, WEG
8. Customization: Yes
| Model of cooling tower | Combined flow, counter flow |
| Coil tube size | 25*1.5mm, 31.8*21.6*1.5mm |
| Material of cooling tower | Galvanized, SS304, SS316L |
| Type of cooling tower | Dry and wet cooling tower |
Advantage of Closed Circuit Cooling Tower
1. Excellent Heat Exchange Performance
Parallel air and water path as well as the combination of coils and PVC fill, this effectively avoid the dry spot and scale fo rmation, and improve the heat exchange performance.
2. Convenient Maintenance
Huge maintenance space makes it convenient to inspect the produ ct. Technicians can enter the cooling tower during operation time.
3. Convenient Transportation and Installation

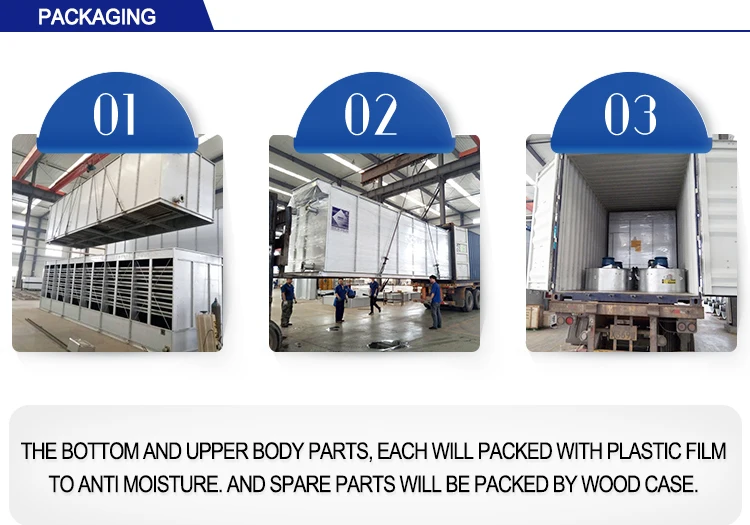

The cooling tower is designed to be standard upper body part an d bottom body part, making it is able to be shipped separately and saves transportation and installation cost.
4. Slope Water Basin Design
Suspended PVC fill and sloped water basin floor toward the drai n facilitate cleaning.

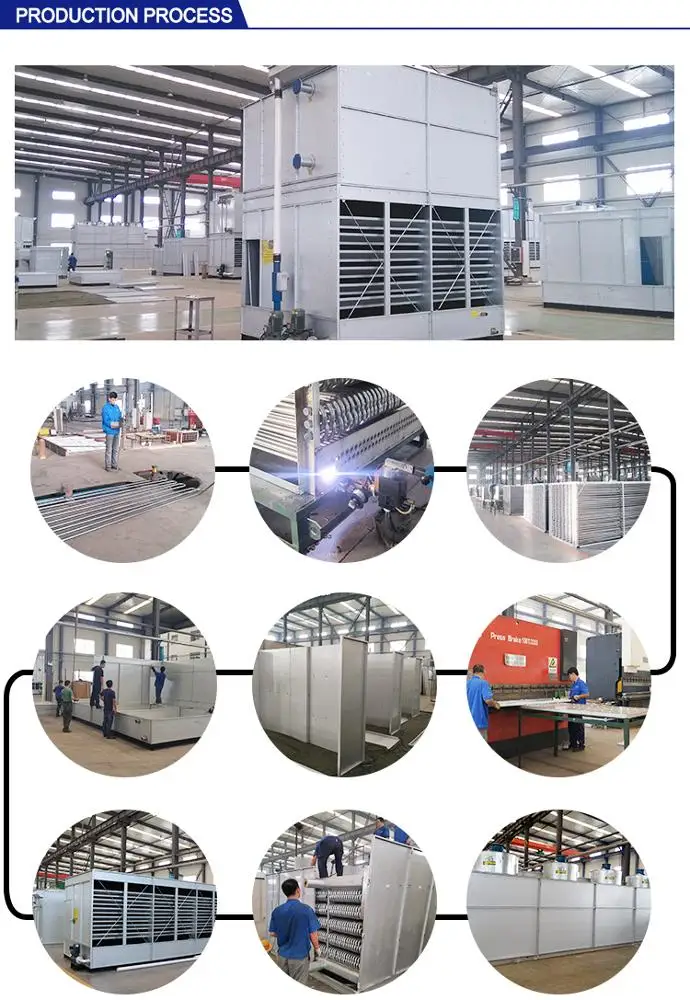

Production Process for Cooling Tower
Production Process for Closed Cooling Tower
Application of closed cooling tower

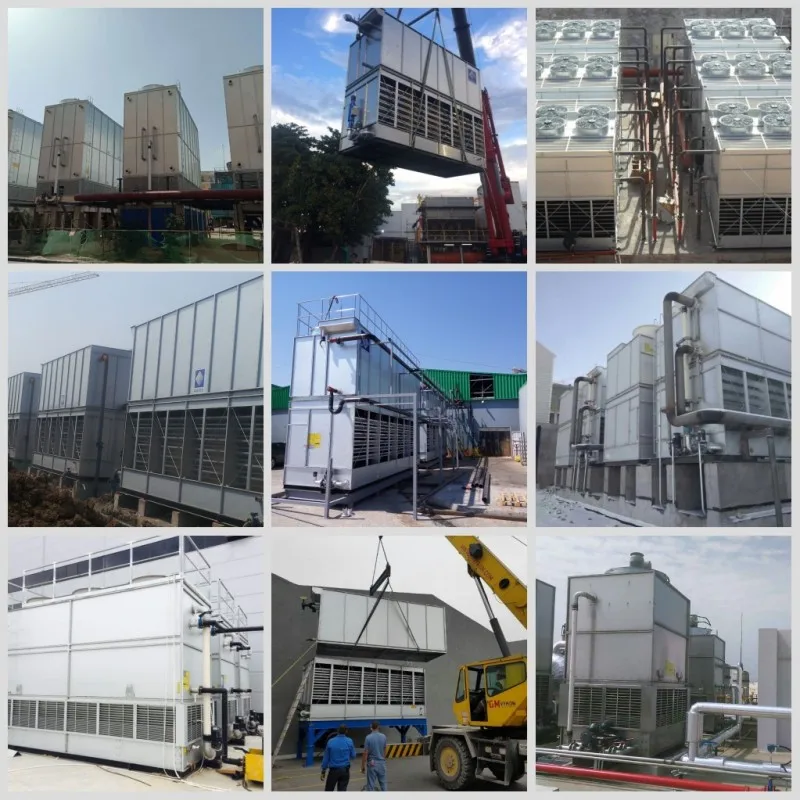

Our cooling tower already have projects for industries such as Chemical, Petrochemical, Pharmaceutical, Plastic, Dairy, Plating, Textiles, Food & Beverages, Oil & Solvents, Cement, Industrial Gases, Information & Technology, Infrastructure, etc
What we can supply
Open and closed cooling tower

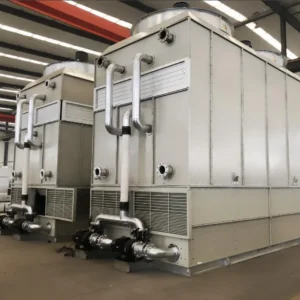

Evaporative condenser
Evaporative towers
Closed circuit evaporative coolers
Evaporative condensers
Air condensers
Dry cooler (adiabatic and hybrid)
Air cooled heat exchanger
V type air cooler
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $10000 / set
- 2–2 set: US $9950 / set
- 3+ set: US $9900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
