This cooling tower is published with the manufacturer’s full specification — material PVC, type Fin Tube. Made by Weifang Heng An Imp & Exp Co., Ltd. (12 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Material: PVC
- Raw Material: Imported from South Asia
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application: Refrigeration Parts
- Type: Fin Tube
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Fin Tube |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 100 |
| Place Of Origin | Shandong, China |
| Brand Name | HENG AN |
| Name | Cooling Tower PVC fill |
| Material | PVC |
| Factory | Weifang Heng An Radiator Group Co., Ltd. |
| Raw Material | Imported from South Asia |
| Pattern | rolls and rectangular type avaialble |
| After-Sales Service Provided | Video technical support |
| Selling Units | Single item |
Product Details

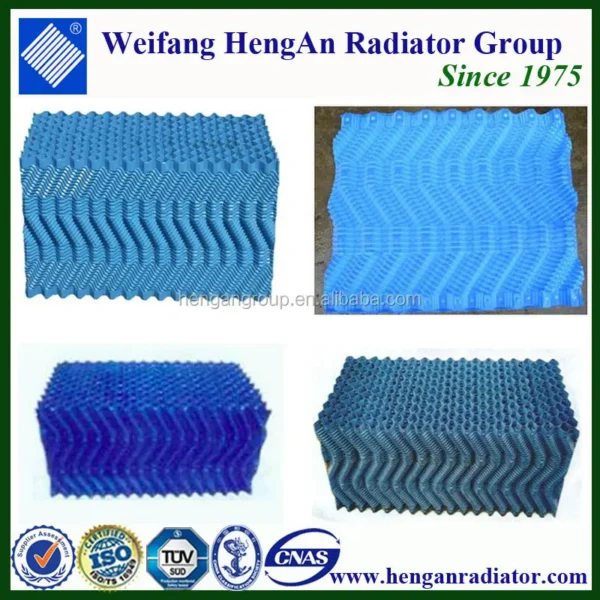

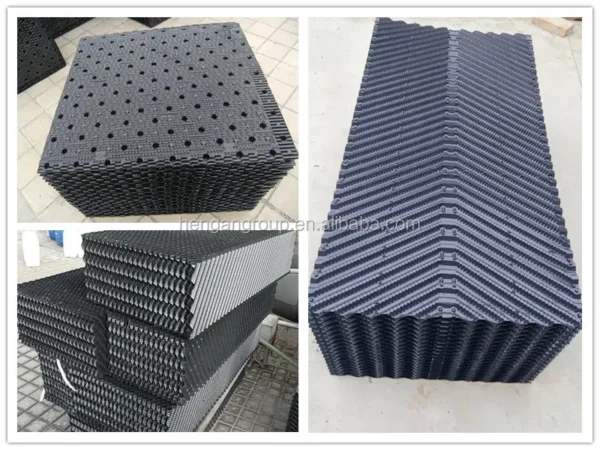

evapco cooling tower use honeycomb type pvc fills
Introduction:
Cooling Tower Fill is one of the most important components for exchange of gas and water in cooling Tower.It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation. With the development of the plastic industry,countercurrent tower drench water plastic packing "S" shape ladder wave, obliquely wave, which has the heat dissipation, good performance, ventilated small resistance, durable, based on the easy and other advantages, it is widely used in different types of cooling towers and evaporative condensers.

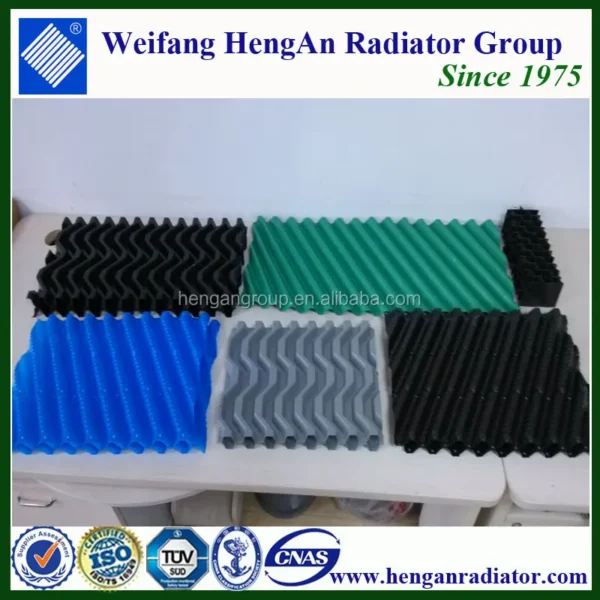

Technical Data:
|
| Length(mm) | Height(mm) | Film thickness(mm) | |||
| Size | Tolerance | Size | Tolerance | Size | Tolerance | |
| “S” Wave | 1000 | ±10 | 500 250 | ±5 | 0.4 | ±0.05 |
| 2000 | ±10 | 500 250 | ±5 | 0.4 | ±0.05 | |
| Double Inclined | 1000 | ±10 | 500 250 | ±5 | 0.4 | ±0.05 |
| Inclined Wave | 1000 | ±10 | 500 | ±5 | 0.4 | ±0.05 |
|
| Fill Height | Cooling No. (Volume Scattered Coefficient: Ka) | Resistance Equotion:P/p1=9.81*A*Vcpm |
| “S” Wave | 1m | =1.83y0.65 | A=-0.0019q2+0.0685q+0.06543 |
| Ka=4746g0.56q0.36 | M=-0.0028q2-0.0170q+1.9480 | ||
| Double Inclined | 1m | =1.92y0.68 | A=-0.0006q2+0.0306q+0.06376 |
| Ka=4342g0.69q0.36 | M=-0.0002q2-0.0026q+1.9029 | ||
| Inclined Wave | 1m | =1.85y0.64 | A=-0.0001q2+0.189q+0.6374 |
| Ka=4296g0.63q0.38 | M=-0.0006q2-0.0122q+2.0178 |
Weifang Hengan Radiator Group Co, Ltd. is a professional cooling towers manufacturers, who located in Weifang City, Shangdong Province of China. We are a large group compnay with rich producing and exporting experience for years, we supply top class products and service for clients from all over the world, and be the cooperation parter of many world famous large companies and enterprises. We looking forward to our cooperation. Welcome to visit us!
Q 1: Your company is a factory or trading company?
A: Weifang Heng An Radiator Group is a big group company found in 1975, have 5 factories at present.
Weifang Heng An Industrial Heat Exchanger Co., Ltd., a subsdiary of the group who mainly produce closed type cooling tower, evaporative condensers, air cooled condenser and other industrial heat exchanger equipement. Weifang Heng An Imp&Exp Co., Ltd. is subsdiary of the group, who take charge of all group products exporting business.
Q 2: Why choose closed cooling tower?
A: To supply clean water to main equipement to protect the equipment from scaling, so will prolong its life span
Q 3: Which business zone can be machine be used in?
A: precision equipments such like plasctic injection molidng machine, brazing furnace, melting furnace etc., chemical plants, power plants and other industries
Q 4: Why choose "Heng An" cooling tower?
A: Easy maintenance, no need professional. Big group company products, quality ensure.
Ordering and Pricing
- Minimum order quantity: 1 kilogram
- Volume pricing:
- 1+ kilogram: US $4000 / kilogram
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 kilogram. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
