This cooling tower is published with the manufacturer’s full specification — 380V or Customized, material: Metal. Made by Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd. (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Tower
- Voltage:: 380V or Customized
- Cooling Capacity:: Customized
- Material:: Metal
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application:: Industrial Cooling System
Technical Specifications
| Core Components | Engine |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 1180 |
| Place Of Origin | Henan, China |
| Brand Name | Heleng |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops |
| Key Selling Points: | Sustainable |
| Dimension(L*W*H): | Customized |
| Voltage: | 380V or Customized |
| Product Name: | Evaporative Condenser |
| Cooling Capacity: | Customized |
| Fan Blade: | Aluminum alloy/Aluminum alloy hollow/Carbon fiber |
| Type: | Closed |
| Material: | Metal |
| Application: | Industrial Cooling System |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 68.000 kg |
Product Details
Stainless steel cooling coil industrial efficient evaporative condenser water cooled closed cooling tower cooling tower
| HELENG EVAPORATE PARAMETER | |||||||||||
| Type | Intake(Dia) | liquid(Dia) | Axial fan | Pump | |||||||
| Dimension#KW | Sets | A(L) | B(W) | H1 | H2 | H(H) | |||||
| ZFLA100 | 57 | 57 | 8#1.5 | 1 | DN65 1.1 | 1 | 1695 | 1126 | ~ | ~ | 2303 |
| ZFLA120 | 57 | 57 | 8#1.5 | 1 | DN65 1.1 | 1 | 1695 | 1324 | ~ | ~ | 2303 |
| ZFLA150 | 57 | 57 | 8#1.5 | 1 | DN65 1.1 | 1 | 1695 | 1090 | ~ | ~ | 2525 |
| ZFLA200 | 57 | 57 | 8#1.5 | 1 | DN65 1.1 | 1 | 1695 | 1380 | ~ | ~ | 2525 |
| ZFLA250 | 57 | 57 | 7#0.75 | 2 | DN65 1.1 | 1 | 2175 | 1078 | ~ | ~ | 2755 |
| ZFLA300 | 76 | 57 | 7#0.75 | 2 | DN65 1.1 | 1 | 2175 | 1258 | ~ | ~ | 2755 |
| ZFLA350 | 76 | 57 | 7#0.75 | 2 | DN65 1.1 | 1 | 2175 | 1370 | ~ | ~ | 2755 |
| ZFLA400 | 89 | 76 | 8#1.5 | 2 | DN80 2.2 | 1 | 2150 | 1280 | 1050 | 1610 | 3268 |
| ZFLA450 | 89 | 76 | 8#1.5 | 2 | DN80 2.2 | 1 | 2150 | 1440 | 1050 | 1610 | 3020 |
| ZFLA500 | 89 | 76 | 8#2.2 | 2 | DN80 2.2 | 1 | 2170 | 1320 | 1050 | 1820 | 3226 |
| ZFLA550 | 89 | 76 | 8#2.2 | 2 | DN80 2.2 | 1 | 2170 | 1420 | 1050 | 1820 | 3226 |
| ZFLA600 | 89 | 76 | 12#4.0*1 | 1 | DN80 2.2 | 1 | 2170 | 1540 | 1050 | 1820 | 3226 |
| ZFLA650 | 89 | 76 | 12#4.0*1 | 1 | DN80 2.2 | 1 | 2170 | 1640 | 1050 | 1820 | 3226 |
| ZFLA700 | 76 | 57 | 10# 2.2 | 2 | DN80 2.2 | 1 | 2888 | 1630 | 1150 | 1693 | 3245 |
| ZFLA700 | 89 | 76 | 10# 2.2 | 2 | DN80 2.2 | 1 | |||||
| ZFLA800 | 89 | 76 | 10#3.0*2 | 2 | DN80 2.2 | 1 | 2895 | 1836 | 1150 | 1863 | 3415 |
| ZFLA900 | 89 | 76 | 10#4.0*2 | 2 | DN80 2.2 | 1 | 2895 | 2056 | 1150 | 1828 | 3415 |
| ZFLA950 | 89 | 76 | 11.2#4.0 | 2 | DN80 2.2 | 1 | 2895 | 2140 | 1150 | 1863 | 3415 |
| ZFLA1000 | 76 | 57 | 11.2#4.0 | 2 | DN100 4.0 | 1 | 3071 | 2170 | 1170 | 1828 | 3400 |
| ZFLA1050 | 76 | 57 | 11.2#4.0 | 2 | DN100 4.0 | 1 | 3260 | 2148 | 1170 | 1828 | 3400 |
| ZFLA1100 | 76 | 57 | 12 4.0*2 | 2 | DN100 4.0 | 1 | 3426 | 2148 | 1170 | 1828 | 3400 |
| ZFLA1200 | 89 | 76 | 13 4.0*2 | 2 | DN100 4.0 | 1 | 3690 | 2170 | 1170 | 1863 | 3035 |
| ZFLA1200 | 89 | 76 | 13 4.0*2 | 2 | DN100 4.0 | 1 | |||||
| ZFLA1300 | 89 | 76 | 13 4.0*2 | 2 | DN100 4.0 | 1 | 3808 | 2148 | 1170 | 1740 | 3415 |
| ZFLA1400 | 89 | 76 | 13 4.0*2 | 2 | DN100 4.0 | 1 | 4072 | 2148 | 1170 | 1740 | 3415 |
| ZFLA1500 | 89 | 76 | 11.2#4.0 | 3 | DN100 4.0 | 1 | 4336 | 2148 | 1170 | 1740 | 3415 |
| ZFLA1600 | 89 | 76 | 11.2#4.0 | 3 | DN100 4.0 | 1 | 4888 | 2170 | 1170 | 1830 | 3400 |
| ZFLA1700 | 89 | 76 | 11.2#4.0 | 3 | DN100 4.0 | 1 | 5144 | 2170 | 1170 | 1830 | 3400 |
| ZFLA1800 | 89 | 76 | 15#5.5*2 | 2 | DN100 2.2 | 2 | 4012 | 2880 | 1170 | 1830 | 3360 |
| ZFLA1900 | 89 | 76 | 15#5.5*2 | 2 | DN100 2.2 | 2 | 4180 | 2880 | 1170 | 1830 | 3360 |
| ZFLA2000 | 89 | 76 | 15#5.5*2 | 2 | DN100 2.2 | 2 | 4400 | 2880 | 1170 | 1830 | 3360 |
| ZFLA2100 | 89 | 76 | 15#5.5*2 | 2 | DN100 2.2 | 2 | 4620 | 2880 | 1170 | 1830 | 3360 |
| ZFLA2200 | 89 | 76 | 13#5.5 | 3 | DN100 4.0 | 2 | 5140 | 2880 | 1170 | 1865 | 3395 |
| ZFLA2300 | 89 | 76 | 13#5.5 | 3 | DN100 4.0 | 2 | 5080 | 2880 | 1170 | 1865 | 3395 |
| ZFLA2400 | 89 | 76 | 13#5.5 | 3 | DN100 4.0 | 2 | 5190 | 2880 | 1170 | 1865 | 3395 |
| ZFLA2500 | 89 | 76 | 13#5.5 | 3 | DN100 4.0 | 2 | 5410 | 2880 | 1170 | 1865 | 3395 |
| ZFLA2600 | 89 | 76 | 13#5.5 | 3 | DN100 4.0 | 2 | 5630 | 2880 | 1170 | 1865 | 3395 |
| ZFLA2700 | 89 | 76 | 13#5.5 | 4 | DN100 4.0 | 2 | 5850 | 2880 | 1170 | 1865 | 3395 |
| ZFLA2800 | 89 | 76 | 13#5.5 | 4 | DN100 4.0 | 2 | 6070 | 2880 | 1170 | 1865 | 3395 |
| ZFLA2900 | 89 | 76 | 13#5.5 | 4 | DN100 5.0 | 2 | 6290 | 2880 | 1170 | 1865 | 3395 |
| ZFLA3000 | 89 | 76 | 13#5.5 | 4 | DN100 5.0 | 2 | 6510 | 2880 | 1170 | 1865 | 3395 |

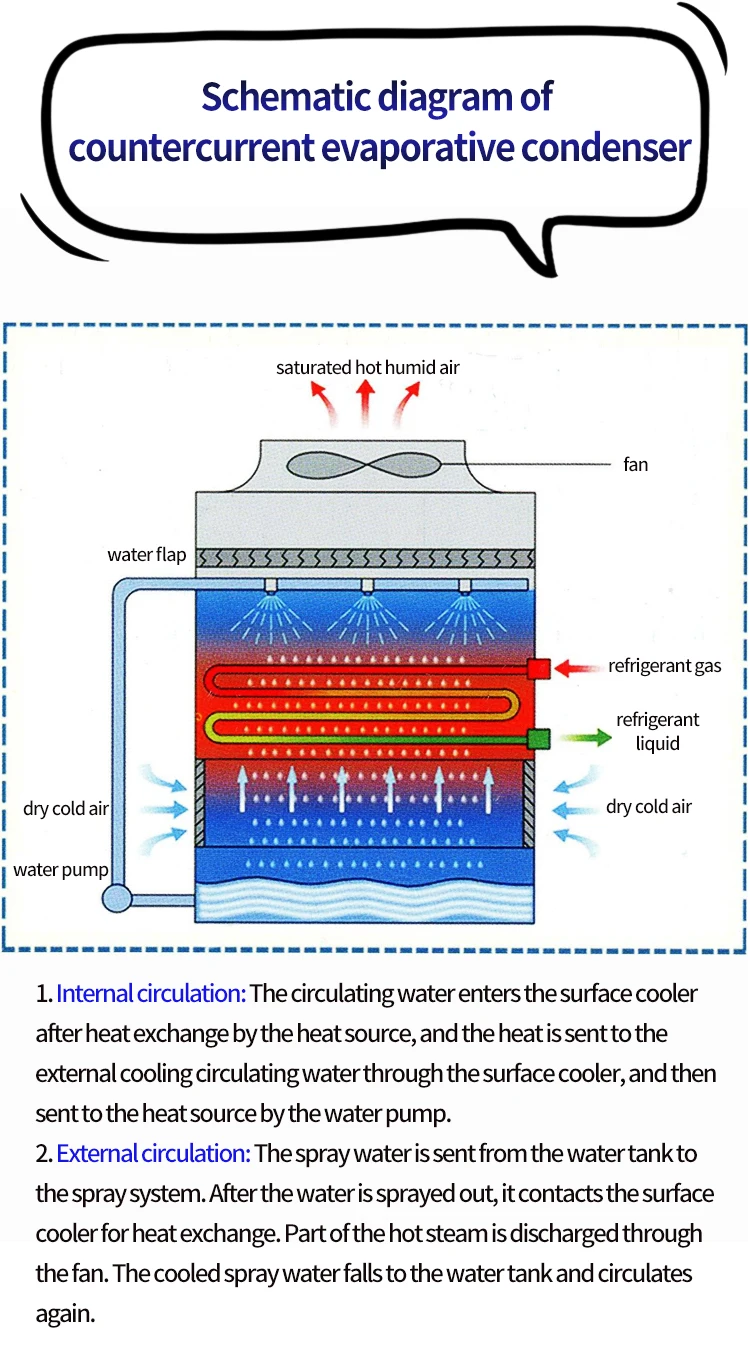

Process principle
The heated working fluid inlet from cooling coils, then the waste heat be took away by the fall down spray water and reverse flow with the cold dry air which is inlet from the bottom of the tower and form to saturated vapor in the process. The heat is exhausted out of tower by the top fan and the water is collected to bottom tank and circulate continuously by the special evaporator.

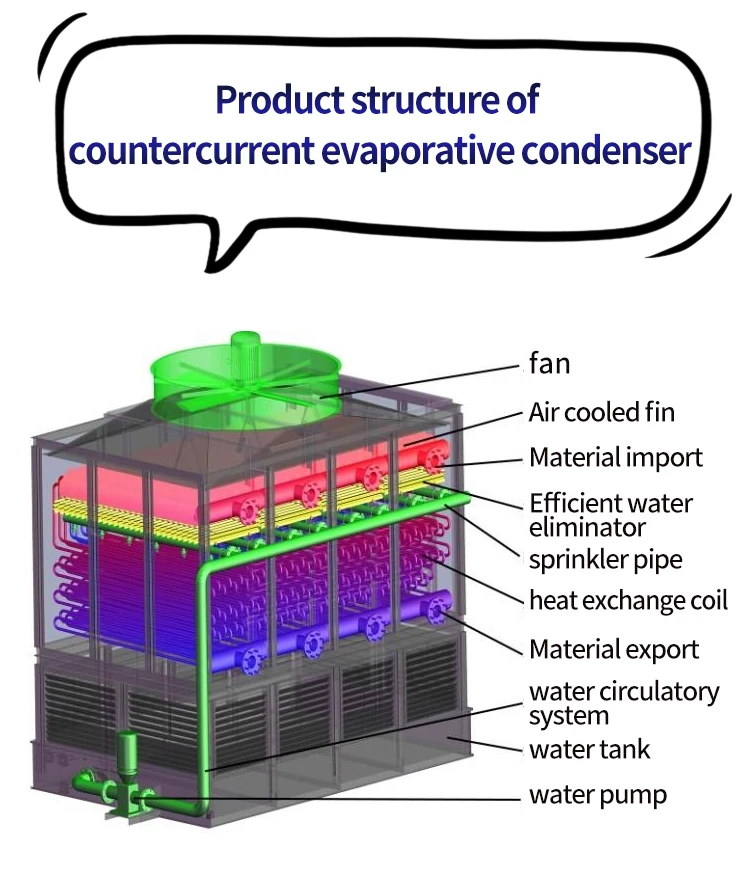

Characteristics
1.Compact Structure
Counter-flow closed tower has four faces for wind inlet,which is relatively uniform . The inner structure of the tower is more compact , reducing the footprint and meeting the needs of user space . Under the same occupation area , the heat transfer efficiency is higher than that of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet . and will not to short flow . which can ensure that the
saturation humidity of the inlet air is relatively low . And the arrangement of the fan ensures the uniform distribution of air
volume , less heat dissipation blind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit , it will convenient for customers to operate , and easy to transportation & installation.
Counter-flow closed tower has four faces for wind inlet,which is relatively uniform . The inner structure of the tower is more compact , reducing the footprint and meeting the needs of user space . Under the same occupation area , the heat transfer efficiency is higher than that of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet . and will not to short flow . which can ensure that the
saturation humidity of the inlet air is relatively low . And the arrangement of the fan ensures the uniform distribution of air
volume , less heat dissipation blind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit , it will convenient for customers to operate , and easy to transportation & installation.
Our company is located in Henan , we have convenient transportation and elegant environment , with modern factory , advanced technologyand equipments. Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller, RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling, light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings .
Our company is located in Wuxi national industrial park , we have convenient transportation and elegant environment , with modern factory , advanced technologyand equipments. Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller, RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling, light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings .
More information needed when you request a proper cooling tower
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase .
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $5999 / piece
- 5+ piece: US $5666 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd. range on HVACR Nexus.
