Cooling tower — 380V or Customized, cooling capacity 50,000Kcal/h~2,500,000Kcal/h. The complete factory specification follows. Made by Wuxi Master Cooling Machinery Manufacturing Co., Ltd. (5 years on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Power(W): 75000
- Voltage: 380V or Customized
- Cooling Capacity: 50,000Kcal/h~2,500,000Kcal/h
- Material: Metal
- Warranty: 1 Year
- Warranty Of Core Components: 1 Year
Technical Specifications
| Voltage | 380V or Customized |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 75000 |
| Material | Metal |
| Core Components | PLC, Bearing, Motor, Pressure Vessel, Pump |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Place Of Origin | Jiangsu, China |
| Brand Name | MASTER |
| Dimension(L*W*H) | Multiple sizes |

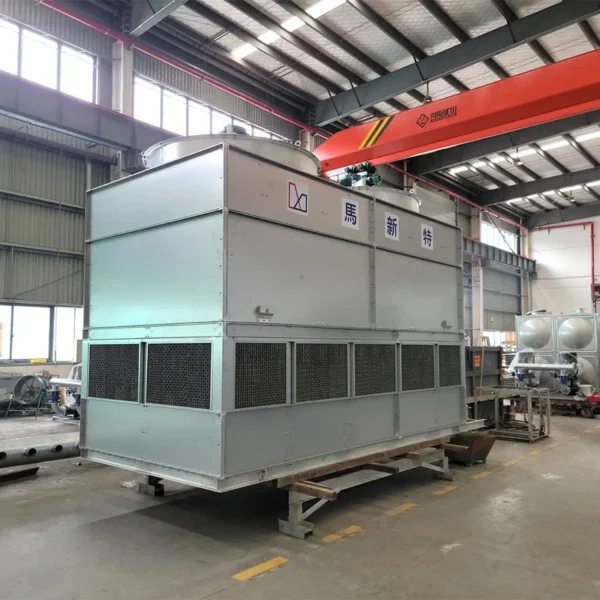

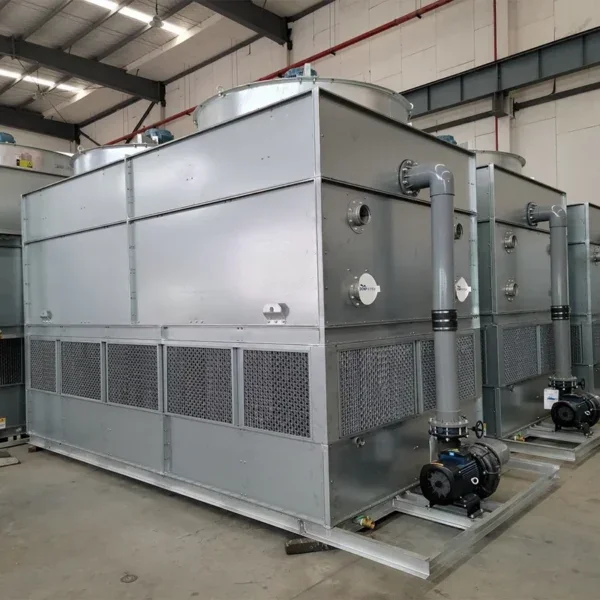

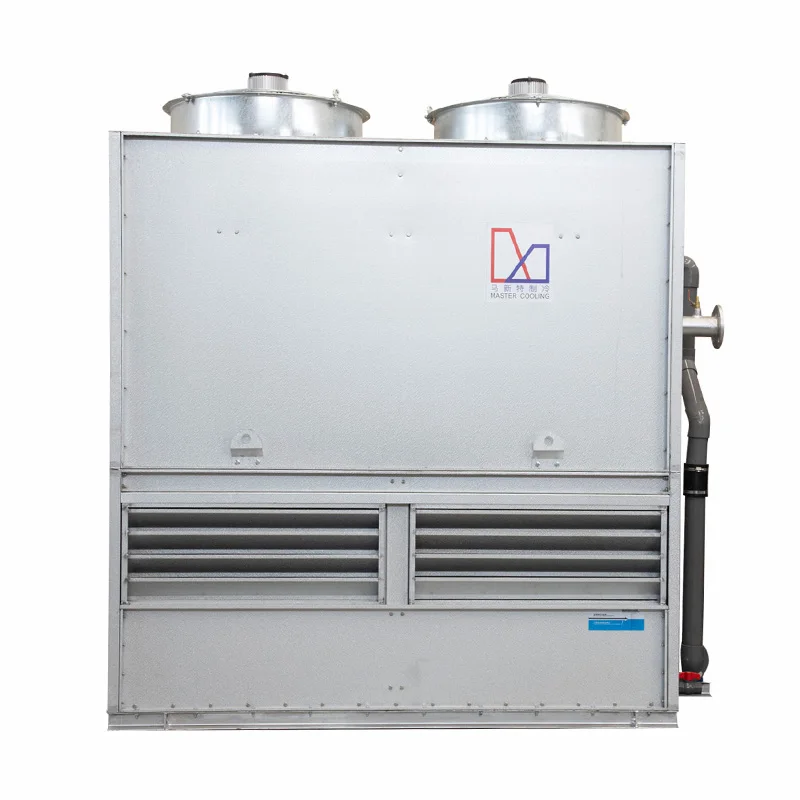

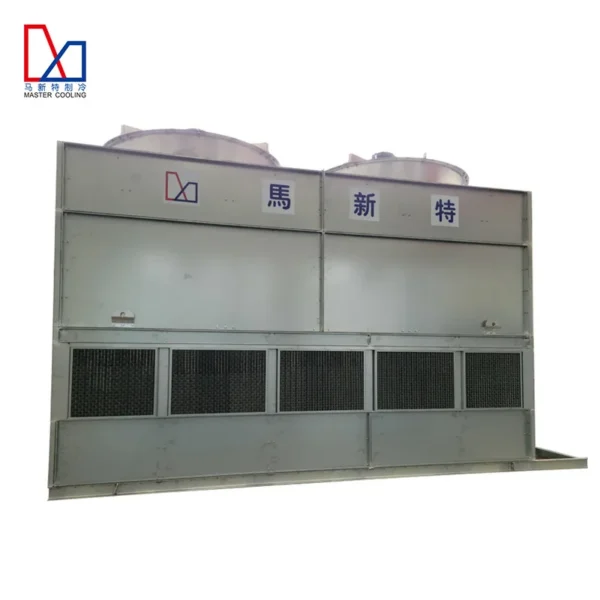

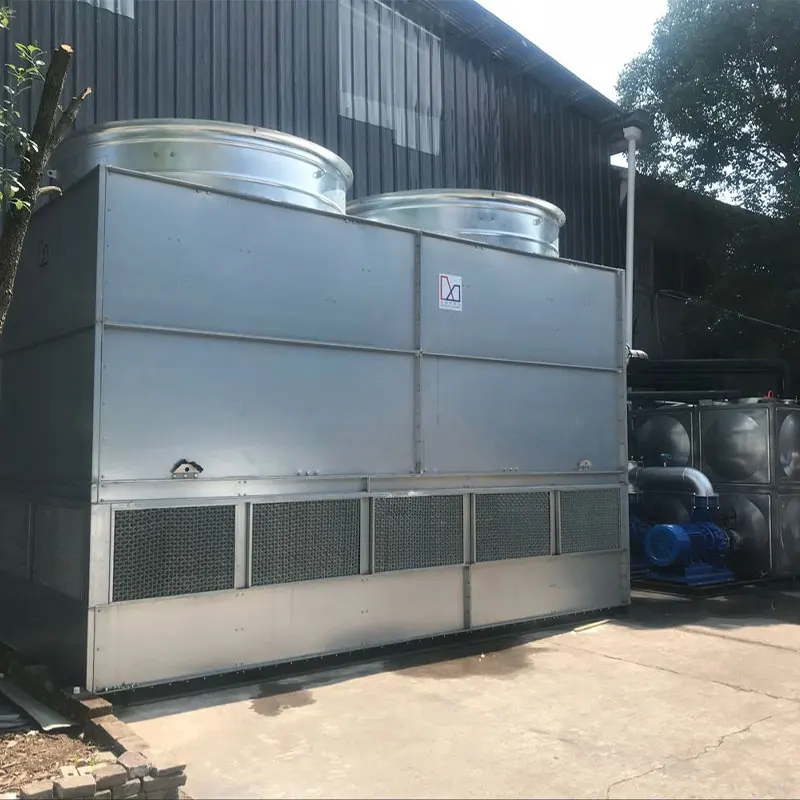

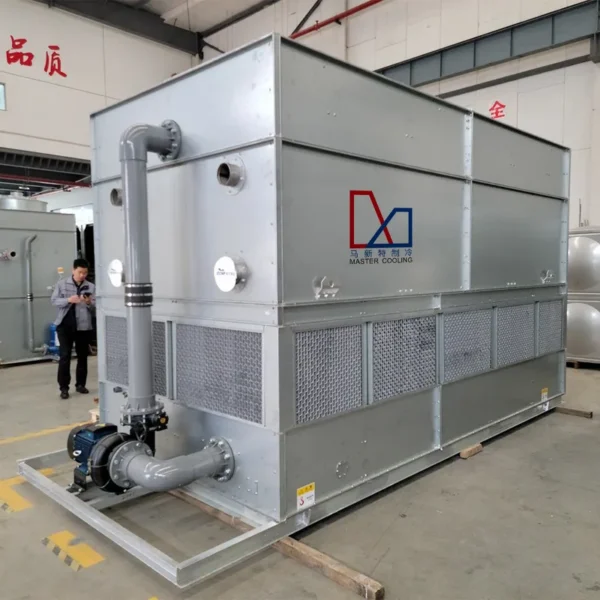

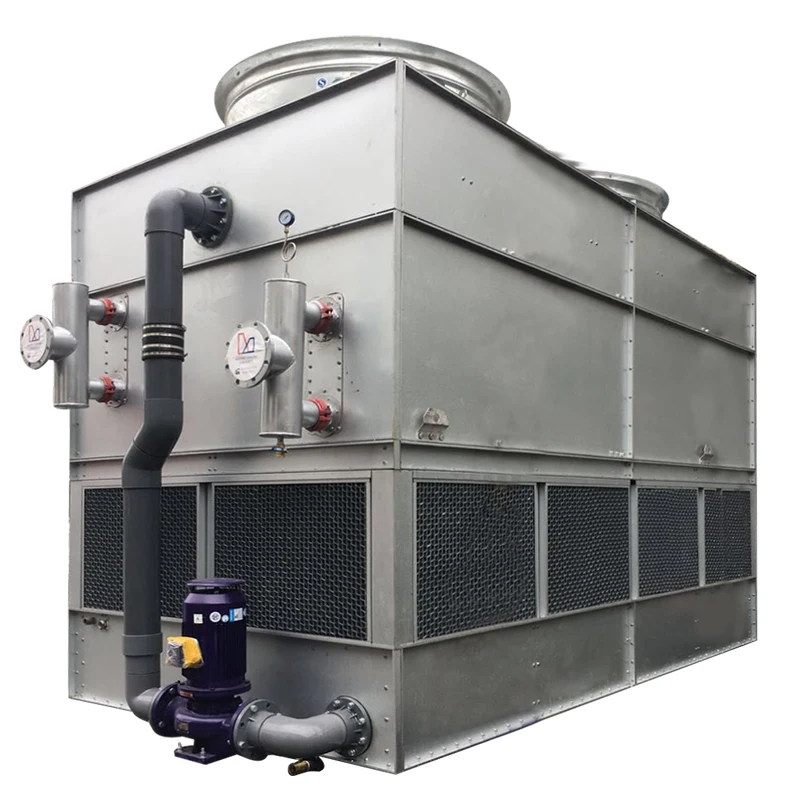

| Product Name | Counter Flow Closed Cooling Tower |
| Item NO | MSTNB |
| Shape | Square Shape |
| Application | Industrial Cooling System |
| Water Flow | 10~500t/h |
| Fan Blade | Aluminum alloy/Aluminum alloy hollow/Carbon fiber/polyethylene |
| Cooling Capacity | 50,000Kcal/h~2,500,000Kcal/h |
| Motor | IP55 |
| Ventilation Mode | Mechanical Ventilation |
| Type | Closed |
| Applicable Industries | hotels, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining |
| Showroom Location | Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Indonesia, India, Mexico, Russia, Spain, Japan, Malaysia, Australia |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| Weight | 2650 |
| Selling Units | Single item |
Product Details
Product parameters
Product Name | Counter Flow Closed Cooling Tower |
Model NO. | MSTNB |
Certification | CE/ISO |
OEM | Supported |
Products Description
Process principle
The heated working fluid inlet from cooling coils, then the waste heat be took away by the fall down spray water and reverse flow with the cold dry air which is inlet from the bottom of the tower and form to saturated vapor in the process. The heat is exhausted out of tower by the top fan and the water is collected to bottom tank and circulate continuously by the special evaporator.
Characteristics
1.Compact Structure
Counter-flow closed tower has four faces for wind inlet，which is relatively uniform . The inner structure of the tower is more compact , reducing the footprint and meeting the needs of user space . Under the same occupation area , the heat transfer efficiency is higher than that of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet . and will not to short flow . which can ensure that the
saturation humidity of the inlet air is relatively low . And the arrangement of the fan ensures the uniform distribution of air
volume , less heat dissipation blind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit , it will convenient for customers to operate , and easy to transportation & installation.
Counter-flow closed tower has four faces for wind inlet，which is relatively uniform . The inner structure of the tower is more compact , reducing the footprint and meeting the needs of user space . Under the same occupation area , the heat transfer efficiency is higher than that of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet . and will not to short flow . which can ensure that the
saturation humidity of the inlet air is relatively low . And the arrangement of the fan ensures the uniform distribution of air
volume , less heat dissipation blind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit , it will convenient for customers to operate , and easy to transportation & installation.
Application
"MSTNB" type apply to the low cooling temperature ( Temp . < 45℃ or not higher than the location wet bulb temperature too much ) or needs a small cooling range projects ( △T = 5-10 ℃ ) The counter-flow closed cooling tower avoids the circulation system of water pollution caused by direct contact between external circulating water and air. This circulation system is an automatic frequency conversion control system. Save electricity and water to a great extent.
Product Structure & Details
Fan–Low noise large diameter fan
Low speed fully sealed motor adopts blades with super width. The fan is composed of aluminum blades and steel wheel hub, featuring low wind resistance, high rate of air flow, low noise, high efficiency and reliable performance and so on. The protective level is IP55, suitable used for out door.
( Blade options: aluminum alloy, aluminum alloy hollow, carbon fiber, polythylene )
Outer Sheel–Imported Aluminum-zinc Plate
The imported Aluminum-zinc plate is one of the best corrosion resistant materials at present, with life span 3-6 times than common galvanized steel. And has follwing advantages such like high strength and toughness, good heat resistance and beautiful appearance, etc.
( Shell material options: Aluminum-zinc plate, SuperDyma, 304 Stainless steel )
Cooling Coils–Different choices of material
Red Copper Coils: Good heat exchange effect, high antifreeze requirements. Pressure design 1.6Mpa.
Stanless Steel Coils: Pressure design 2.5Mpa, corrosion-resistance ability, cheaper.
Adopt advanced automatic welding equipment to ensure no leakage.
PLC–Brand:Siemens, Schneider
PLC intelligent control, local/remote control, can be adjusted according to different working conditions.
PVC Fills–High efficiency PVC material
High quality PVC material may effectively transfer heat and reducing the water flow to save energy resources.
( Air window options: steel louver type, pvc honeycomb type )

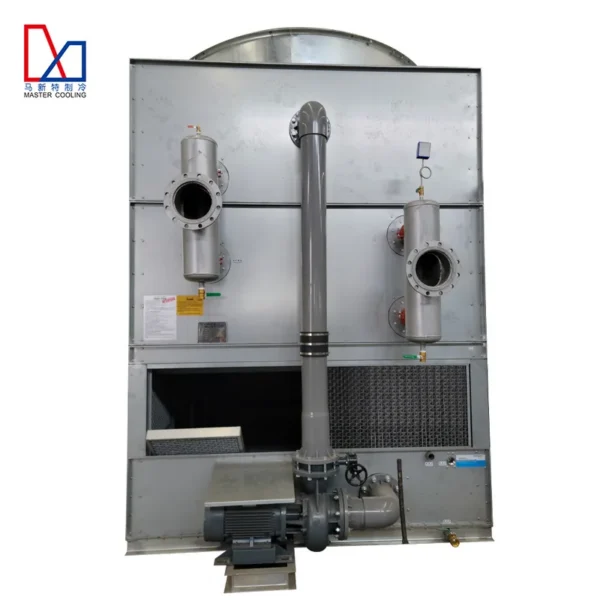

Spraying System–Efficient spray system
Spraying Nozzle: The high-efficiency water spary system provides important guarantee for the cooling capacity. Spray water is evenly distributed, and the spray nozzles are easy to clean and replace.
Spraying pump: Special circulating spary pump with the protective level is IP55, no leakage, long life span.
Auxiliary–Choose depend on your needs

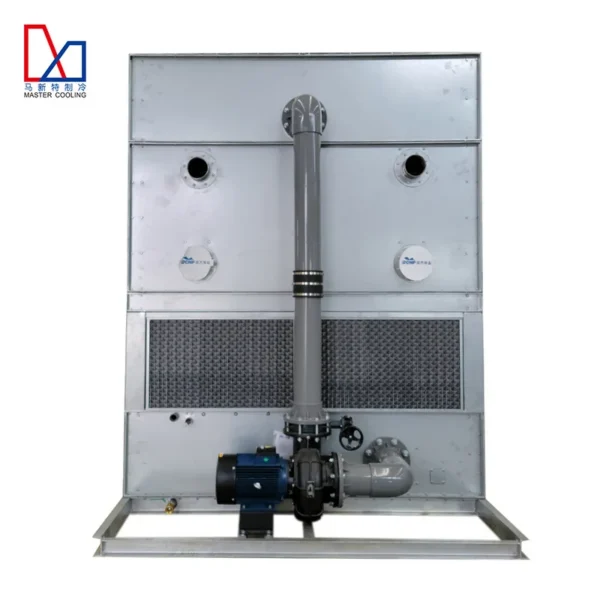

Main circulationg pump
A pump with a backup, failure occurs the backup pump can automatically put into operation high efficiency. Low-vibration, low-noise and high energy efficient.
( Motor options: Simens, ABB, Datang, Dongyuan )
Company Profile
Wuxi Master Cooling Machinery Manufacturing Co , Ltd is a professional manufacturer of cooling system .
Our company is located in Wuxi national industrial park , we have convenient transportation and elegant environment , with modern factory , advanced technologyand equipments. Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller, RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling, light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings .
Certifications
Why Choose Us
(1)We have complete service of cooling tower equipment
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
FAQ
More information needed when you request a proper cooling tower
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase .
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase .
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $5800 / set
- 2+ set: US $2300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
