This cooling tower is published with the manufacturer’s full specification — 220V/380V, air flow 16000-23500 m³/h. Made by Fujian Huada Electric Co., Ltd. (12 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Model Number: NTA/TZA
- Power Source: Electric
- Power: 1.8kw
- Voltage: 220V/380V
- Rated Voltage: 220v/380v
- Air Flow: 16000-23500 m³/h
Technical Specifications
| Voltage | 220V/380V |
|---|---|
| Speed | 960rpm |
| Type | Axial Flow Fan |
| Blade Material | aluminum |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Fujian, China |
| Brand Name | Huada |
| Model Number | NTA/TZA |
| Frequency | 50HZ/60HZ |
| Working Method | continuous (S1) running |
| Protection Class | IP66 |
| Insulation Class | Class H |
| Rated Voltage | 220v/380v |
| Diameter | 900mm |
| Air Flow | 16000-23500 m³/h |
| Static Pressure | 80-190 Pa |
| Power | 1.8kw |
| Selling Units | Single item |
| Single Package Size | 55X55X45 cm |
| Single Gross Weight | 25.0 kg |
Product Details

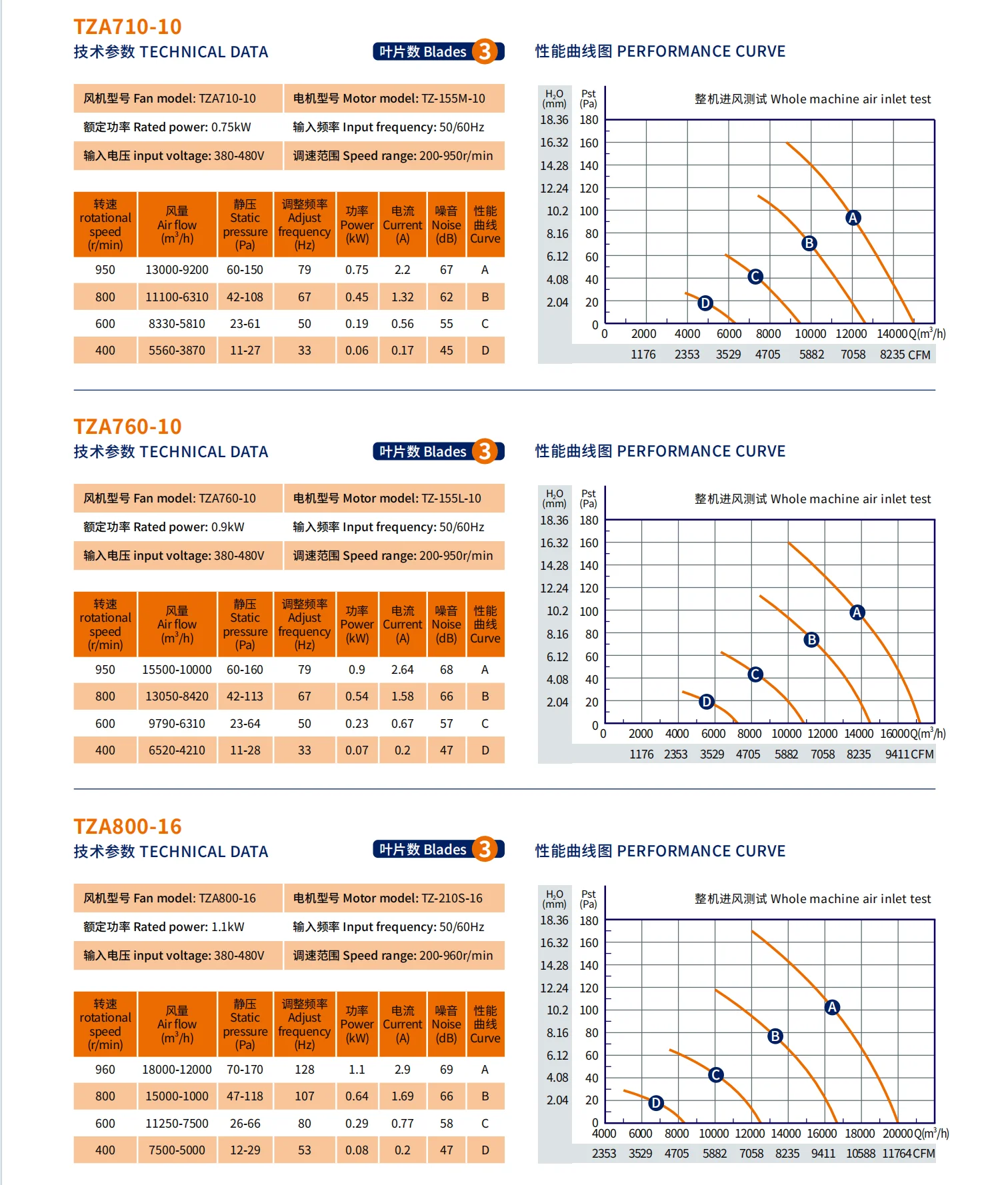

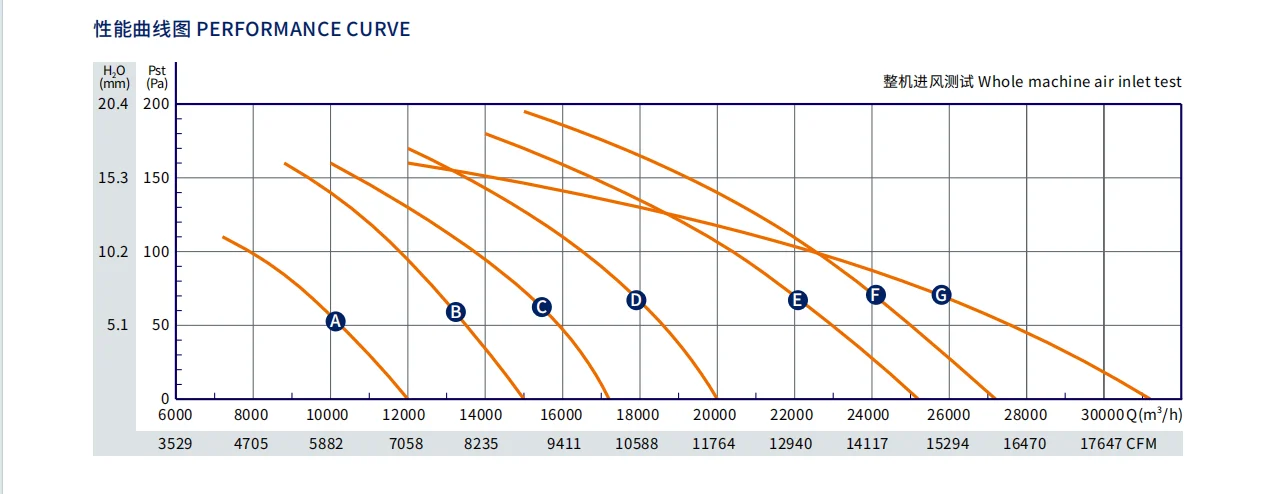

Model | Speed (rpm) | Air Flow (m³/h) | Static Pressure (Pa) | Power (kw) | No. of blades | Curve |
NTA630-6 | 950 | 10000-7600 | 60-100 | 0.55 | 3 | A |
NTA710-6 | 950 | 13000-9200 | 60-150 | 0.75 | 3 | B |
NTA760-6 | 950 | 15500-10000 | 60-160 | 0.9 | 3 | C |
NTA800-6 | 960 | 18000-12000 | 70-170 | 1.1 | 3 | D |
NTA850-6 | 960 | 22000-14000 | 70-180 | 1.5 | 3 | E |
NTA900-6 | 960 | 23500-16000 | 80-190 | 1.8 | 3 | F |
NTA1000-8 | 715 | 25000-15000 | 80-150 | 1.8 | 5 | G |
A: Of course, we are a factory focusing on large ceiling fans based in Fujian, China, be your direct fan supplier.
Q:Where does your fan use in?

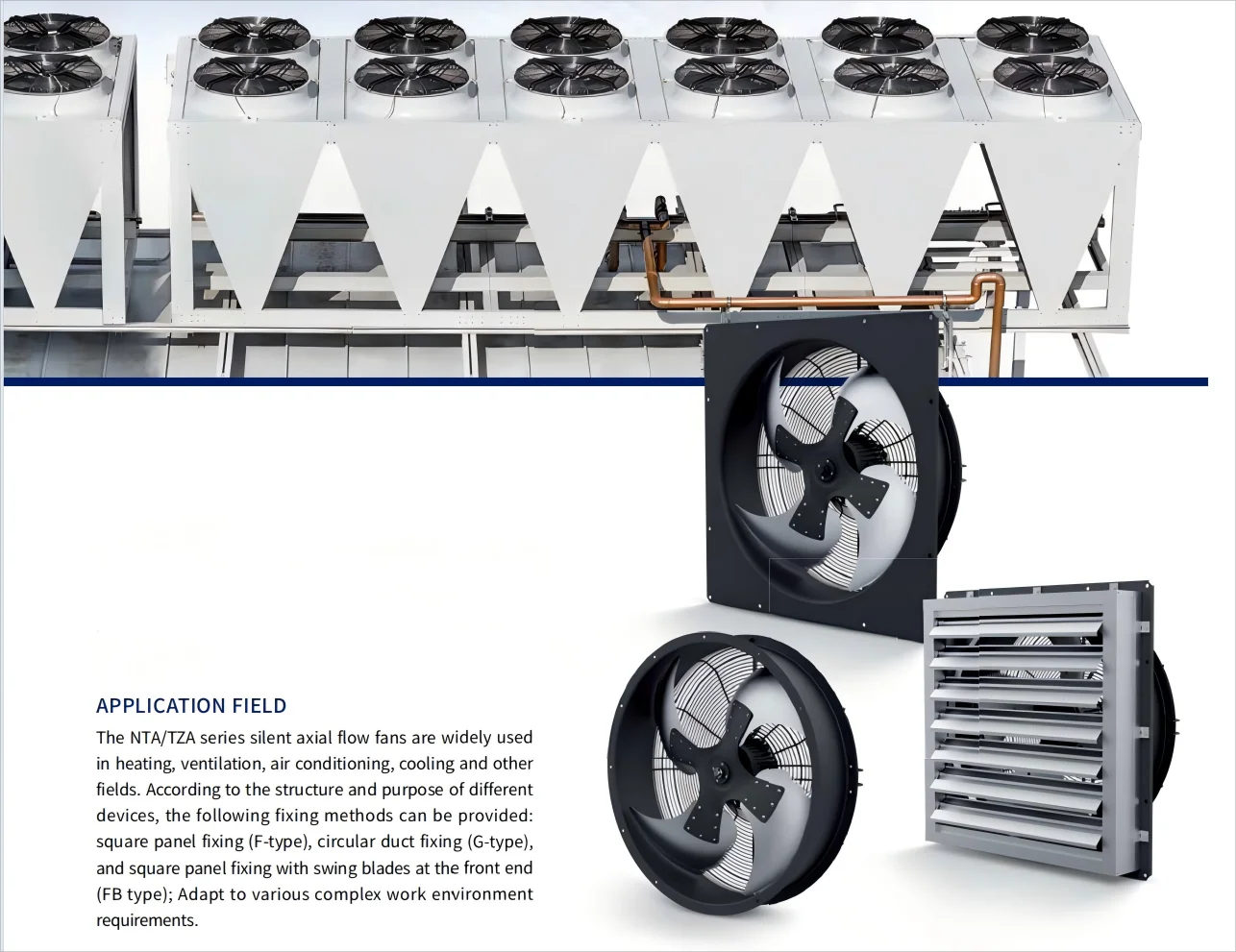

A: This fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electricity?
A: Yes, it's power supply is electricity, but only 1.1KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $345 / set
- 20–99 set: US $278 / set
- 100+ set: US $247 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

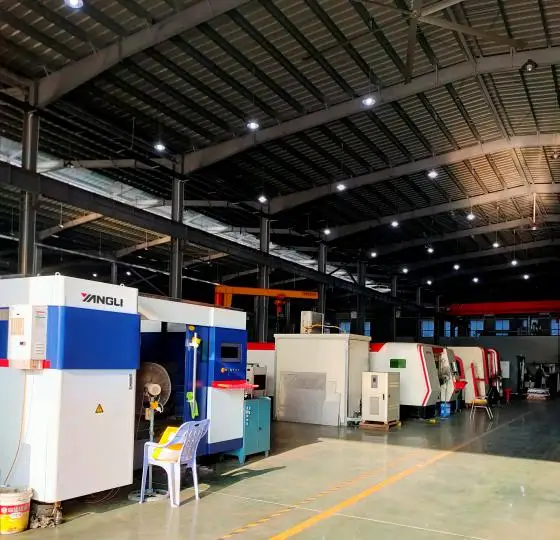

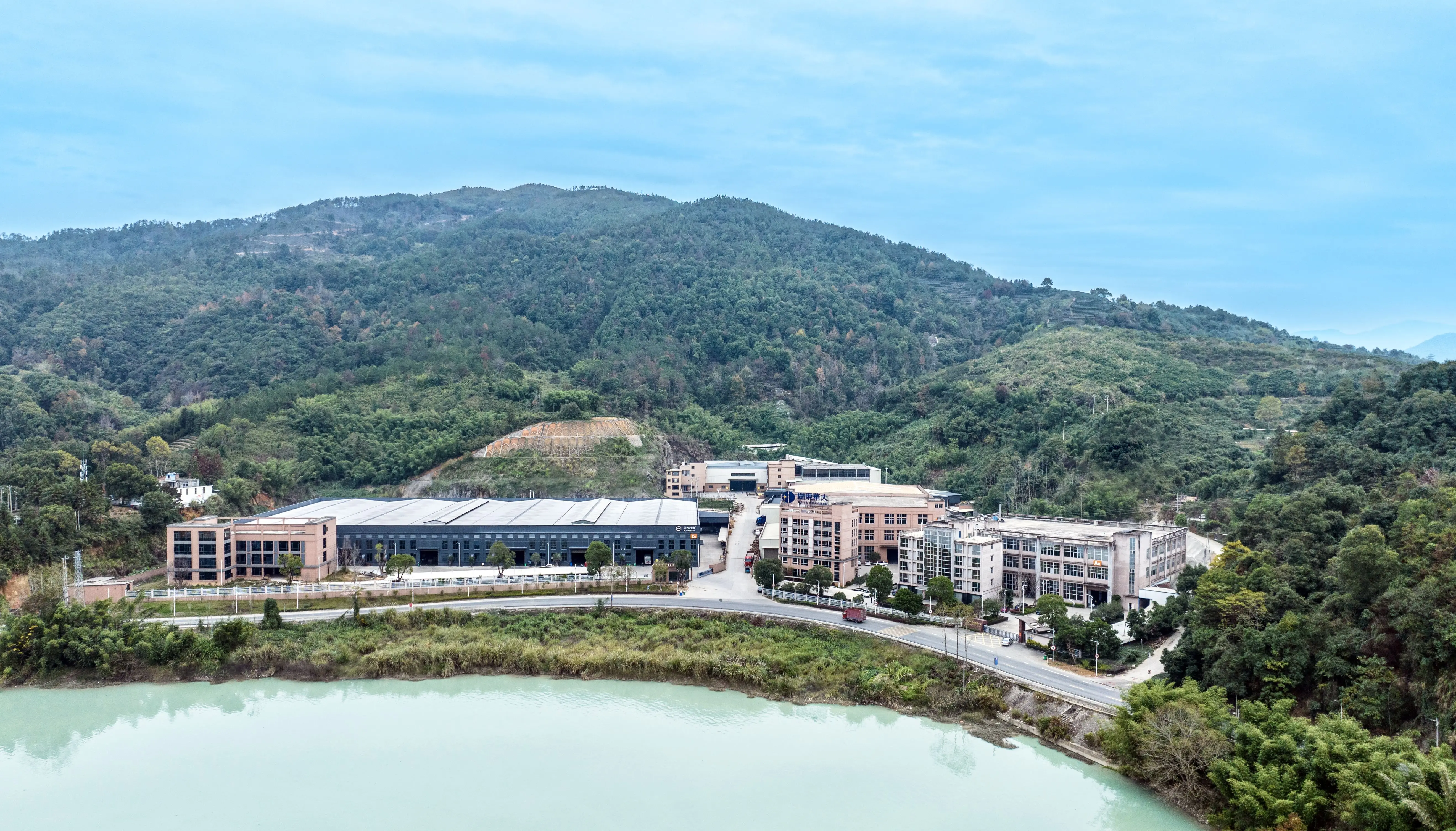

About the Manufacturer
This product is produced by Fujian Huada Electric Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fujian Huada Electric Co., Ltd. range on HVACR Nexus.
