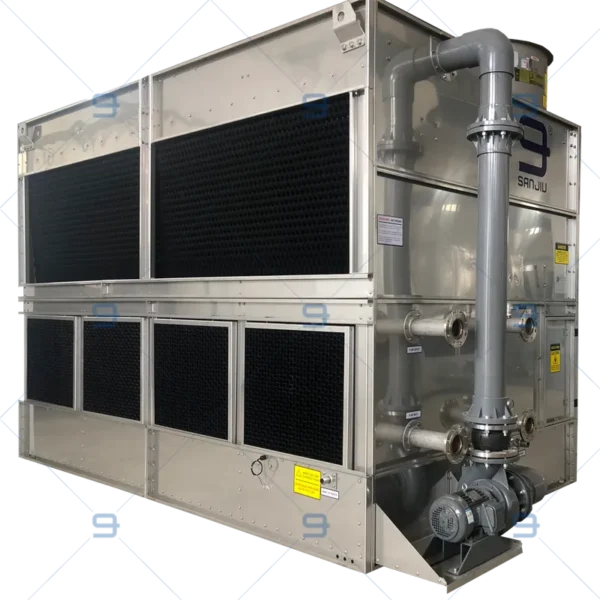

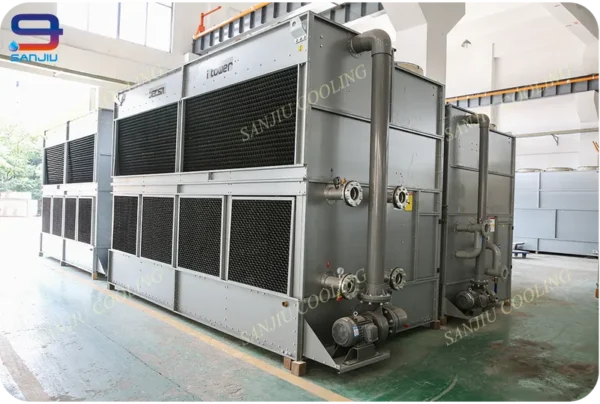

Cooling Tower, PVC

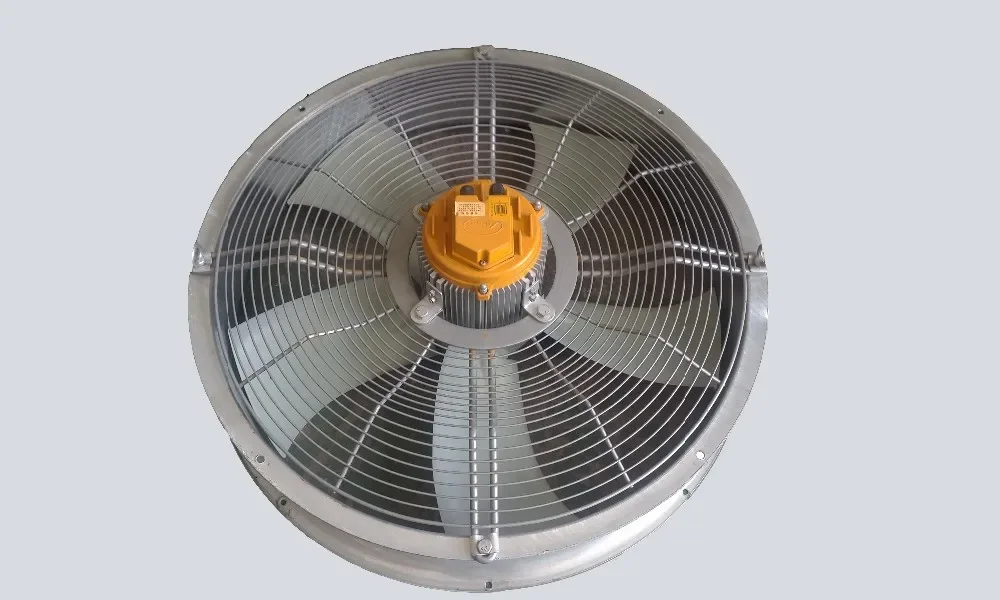

Direct-drive Axial Fans

The standard closed loop series adopt direct-drive axial fans, fitted with resin or al-alloy airfoil blades perfectly balanced and coupled to a weather proof TEFC three-phases electric motor. The fan casing is a galvanized steel cylinder to draw the air vertically and avoid the risk of recirculation. The tip speed of the impeller is limited to keep the noise level within acceptable limits.

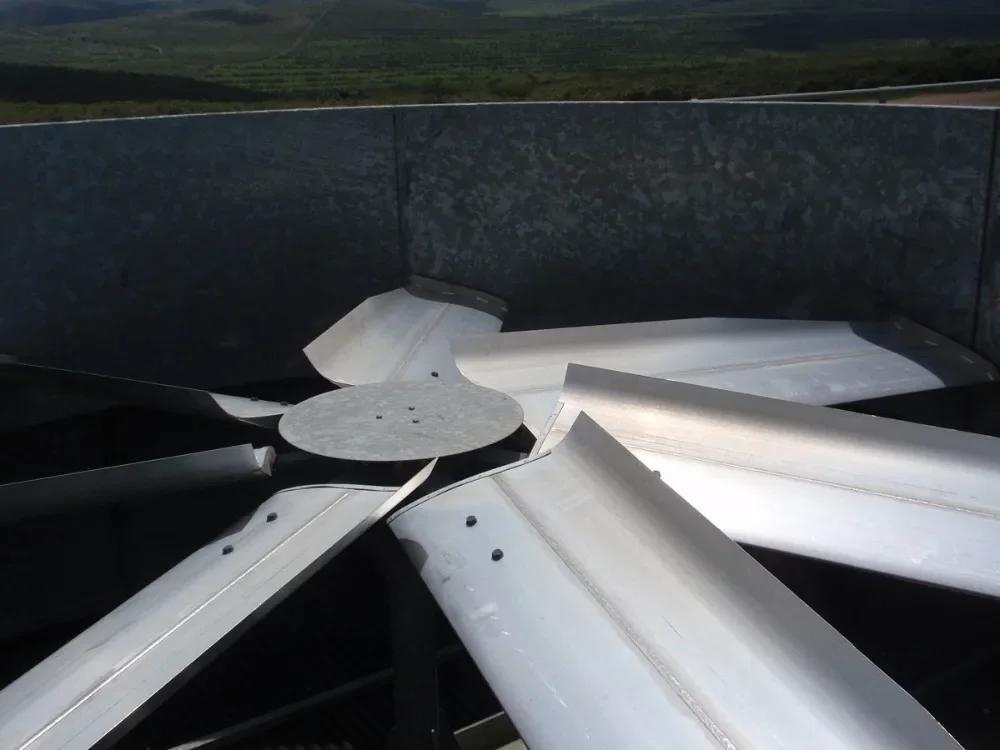

NON-DIRECT DRIVE AXIAL FANS

A part of open loop series adopt non-direct drive axial fans, fitted with al-alloy airfoil blades perfectly balanced and coupled with gear box or belts with spead reducer, to a weather proof TEFC three-phases electric motor. The fan casing is a galvanized steel cylinder to draw the air vertically and avoid the risk of recirculation. The tip speed of the impeller is limited to keep the noise level within acceptable limits.

SPRAY PUMP

Standard spray pumps are of GZ horizontal centrifugal series from GSD brand, with motor of brand TECO, specially designed for evaporative cooling equipments, of generally large flow rate but low pumping head. The selected pumps are of dynamic-static balance, with shaft as an extended section from the motor, for most reliable concentricity. With first grade bearings, the pumps runat minimized vibration and low noise. Mechanicseals avoids abrasion to shaft, no leakage in long term service life. Overload protected on any point of the performance curve, not exceeding the rated power during the whole working period. Enclosure materials and installation arrangement can be optional and modified to suit different projects requirements.

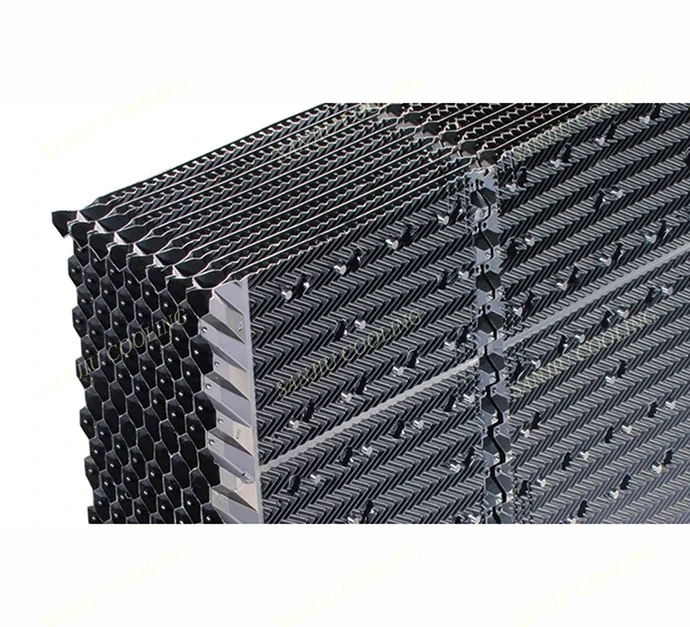

WET DECK FILL

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

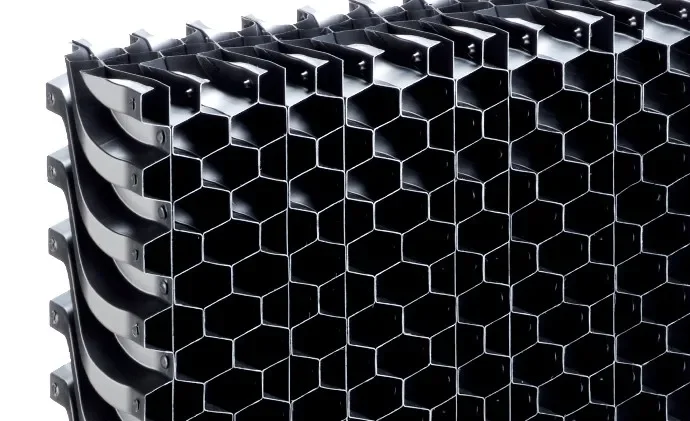

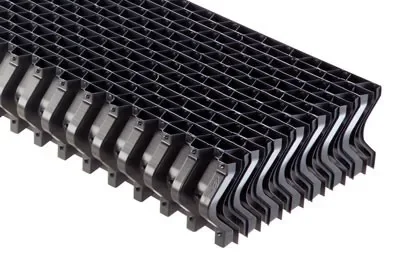

DRIFT ELIMINATOR

Cellular Drift Eliminators are specifically designed to achieve maximum drift removal. With significantly lower pressure drop. The modules are constructed of a series of sinusoidal-shaped, corrugated PVC sheets that are mechanically assembled to mating sinusoidal structural waves, forming closed cells. These cells force the drift droplets being carried in the leaving airstream to make three distinct changes in direction. When the air is forced to change direction, the inertia of the water droplets keeps them moving in a straight line, causing them to impact the wall of the drift eliminator and drain back into the wet section of the tower.

AIR INLET LOUVERS

Cellular air Inlet louvers with advanced design improve air flow into the cooling tower, keep out debris, eliminate water splash-out, which otherwise can cause icing, near-site water damage, and unnecessary water loss. The deign restrict the amount of sunlight into the cooling tower to impede algae growth, reduce noise from the tower, and improve the tower's appearance.

SPRAY NOZZLES FOR OPEN TOWERS

The Spiral Target Nozzles used for GOM Series open towers, injection molded in polypropylene unit consisting of two parts, main body with integral target diffuser and a snap-on insert or orifice cap. The nozzles installed in bottom of the hot water distribution basins, to eliminate water diffusion decks below the hot water basins, provide full water coverage of the fills by gravity flow, removable and replaceable but of long service life. Sizes and variety depends on the tower size, water flow rate and water quality.

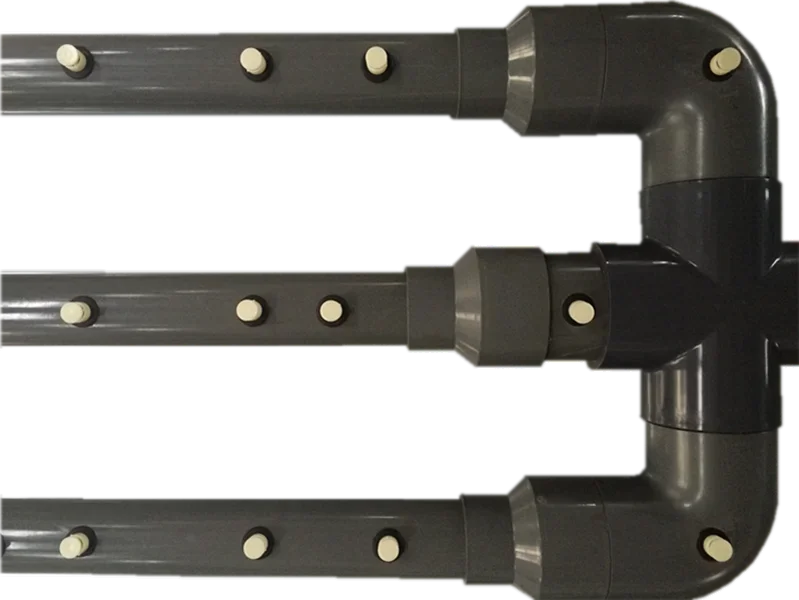

SPRAY PIPE

Spray Pipes made in U-PVC from FPC, of high mechanical strength and long service life, holding pressure1.0 Mpa, accessible to inspect and maintain from outside of the tower, convenient to check with when running fully, completed with buttonholes for quick and tight installations of spray nozzles.

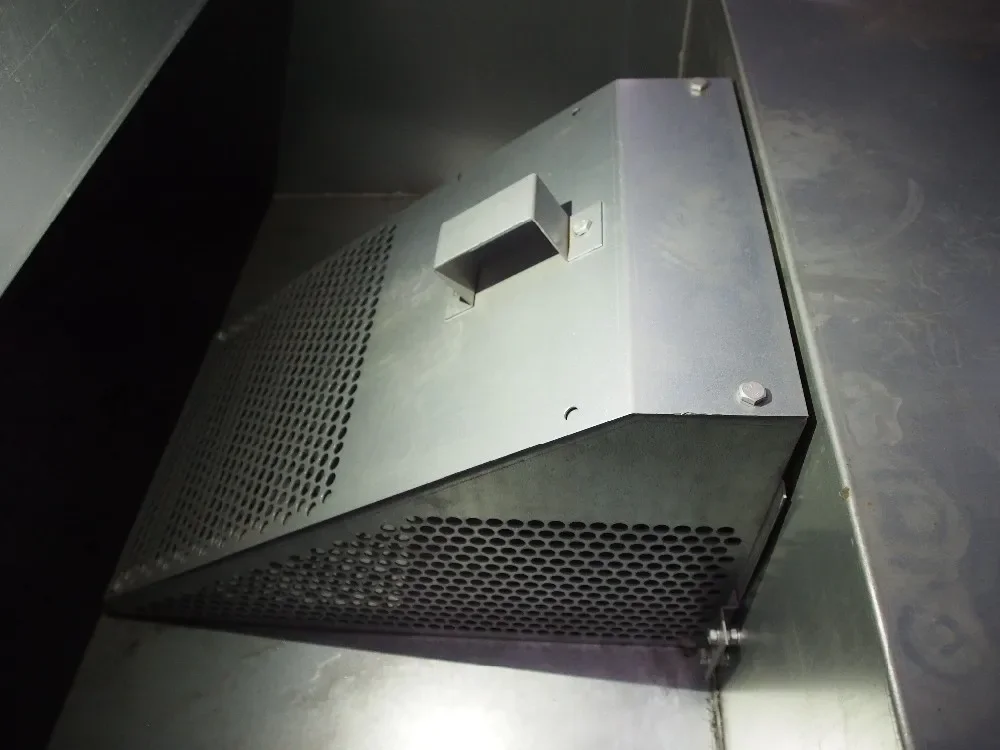

ANTI-EDDY FILTER

Effectively filting the sundries, with anti-eddy arrangement, preventing air bubbles sucked into the pumps, punched in the same material as the enclosure, highly corrossion resistant.

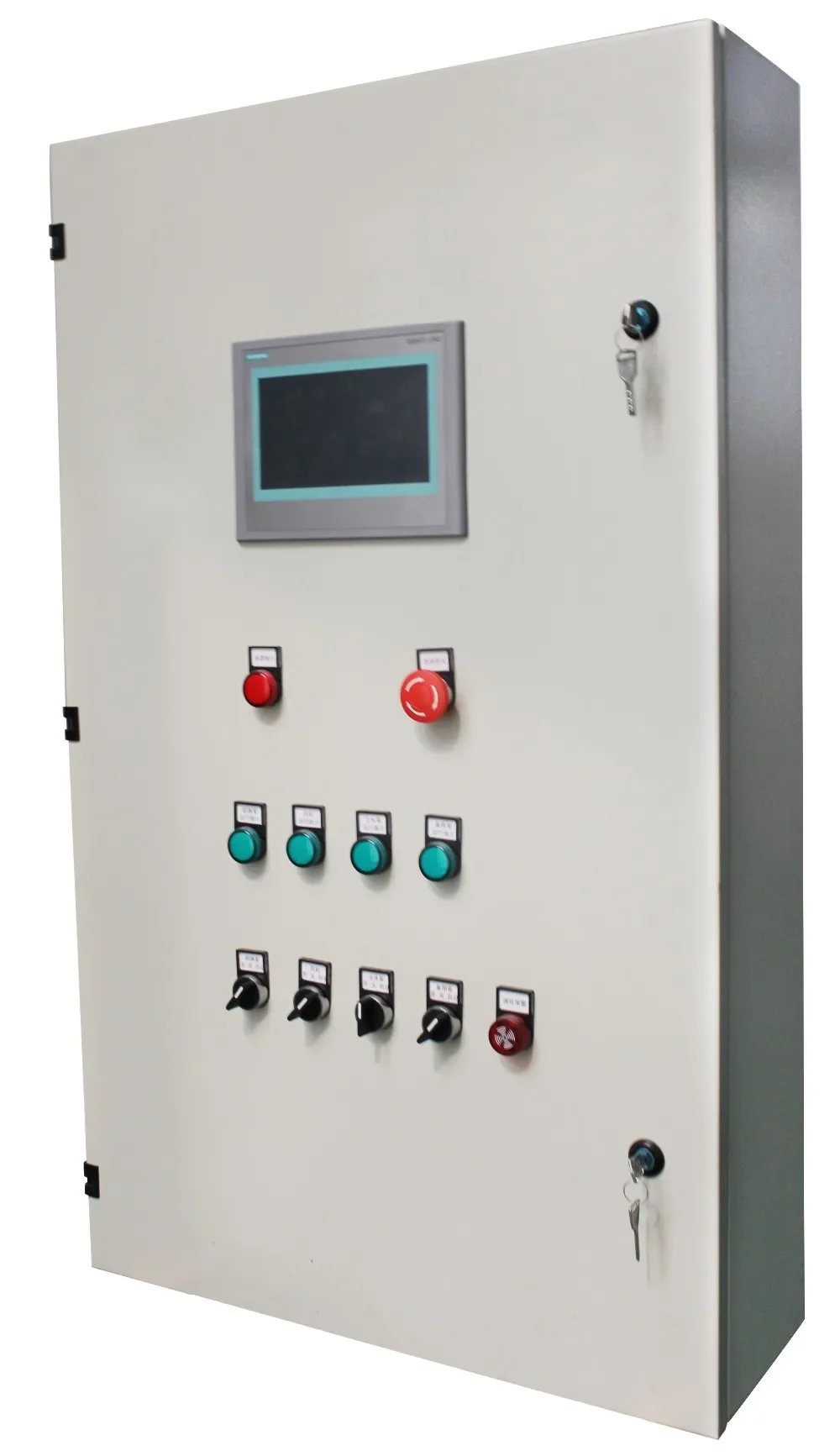

CONTROL PANEL

The control panel is optional for each cooling tower, or a group of towers can share a central control station. The enclosure can be made in powder coated carbon steel, or stainless steel on options, with or without weather proof arrangement.

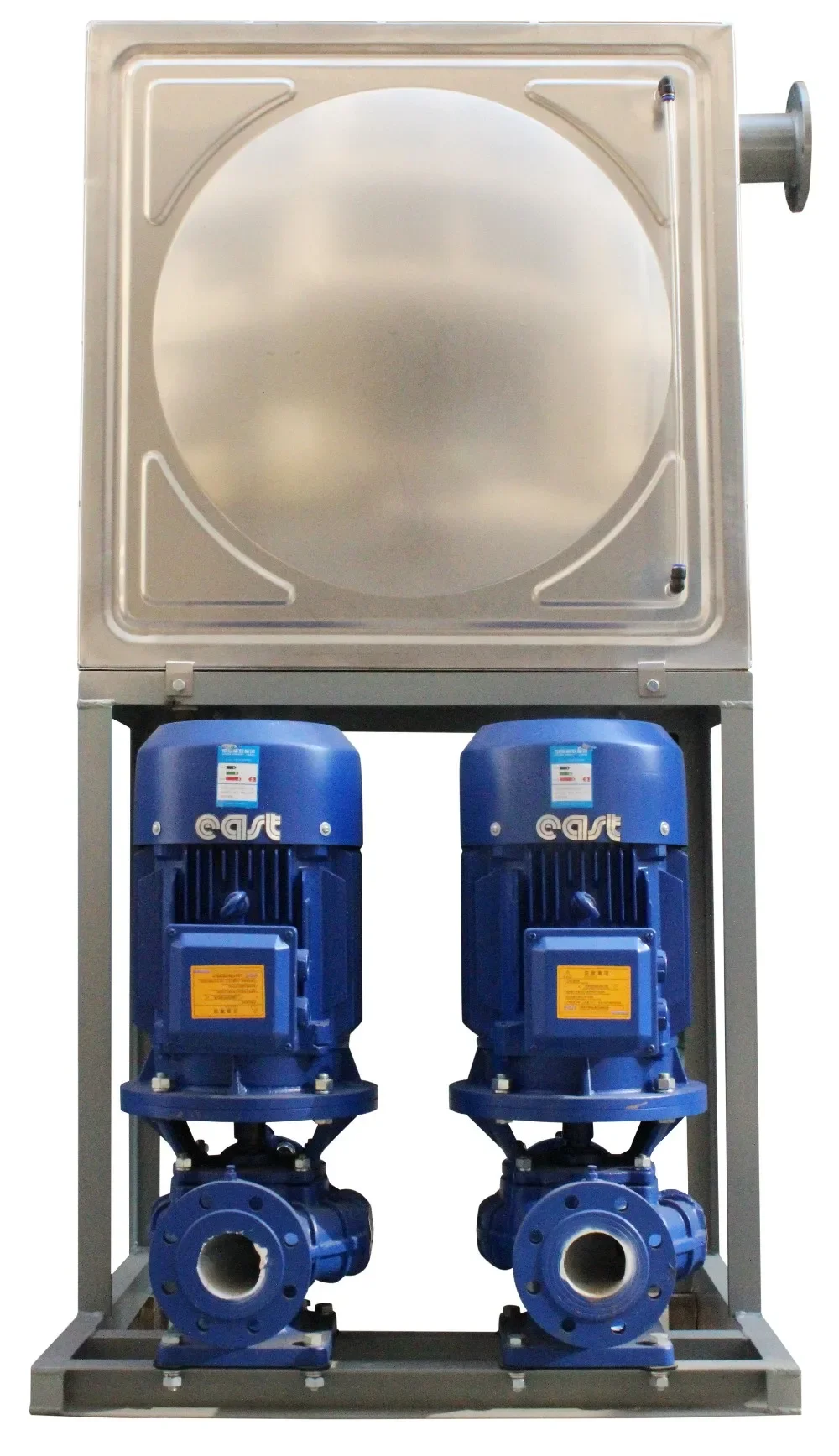

CIRCULATION AUXILIARY SECTION

Circulation Pumps with Transfer Water Tank, as an integrated solution of circulating system, with PID design on request.

ELETRICAL HEATER

Applied to heat the freezing water when restarting the tower during winter season in some area.

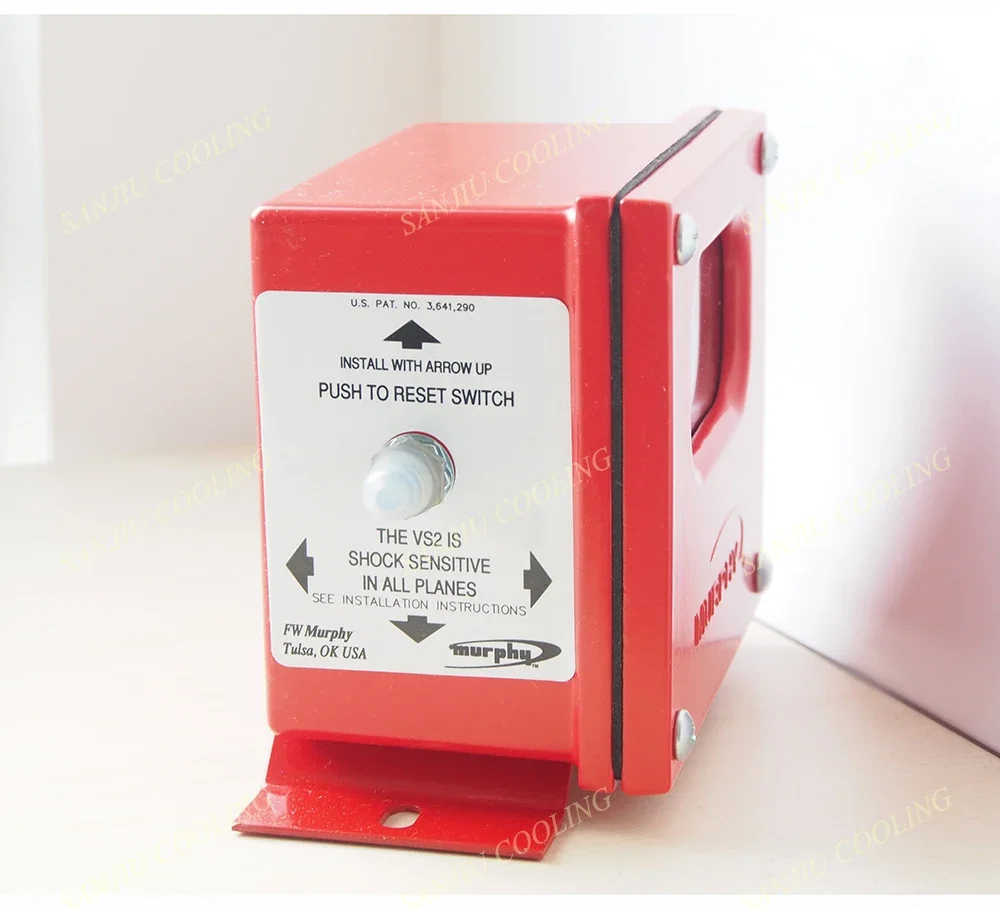

VIBRATION LIMIT SWITCH

Used to switch off the tower automatically when the vibration is out of limit when the tower is working abnormally.

AUTO MAKE UP UNIT

An optional part to make up the liquid automatically, to be working together with liquid level controller.
