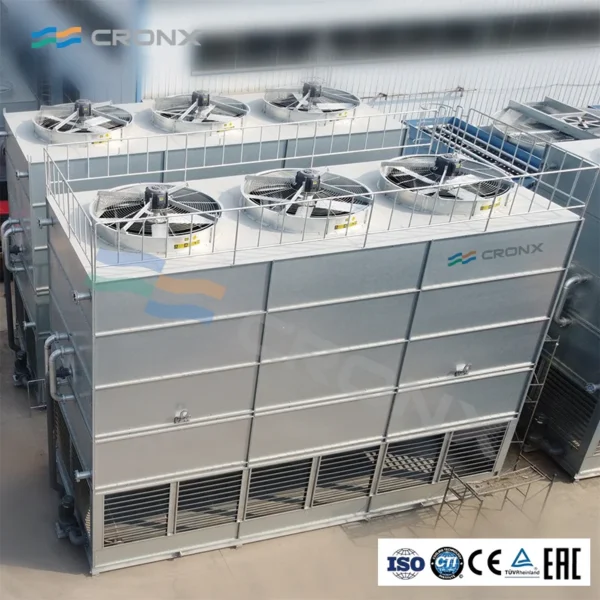

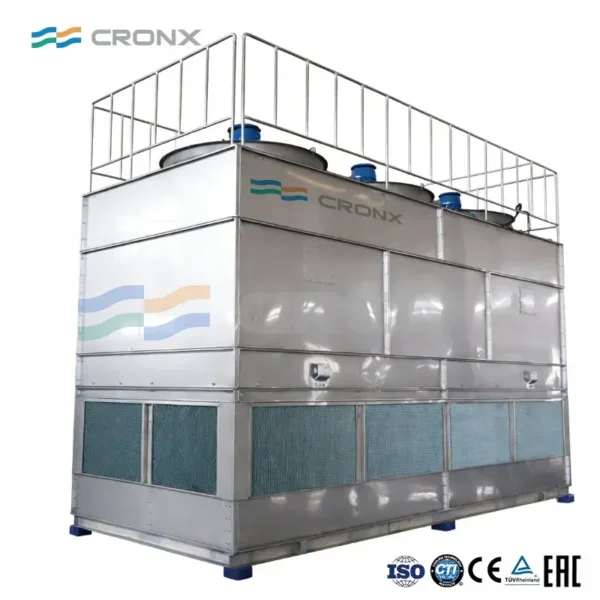

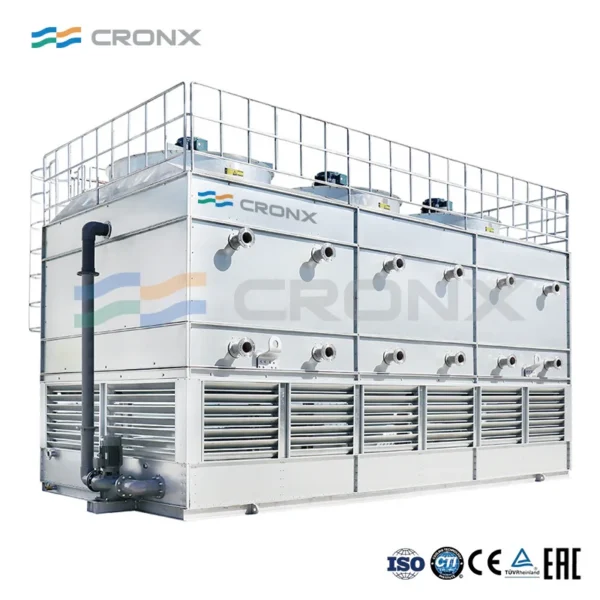

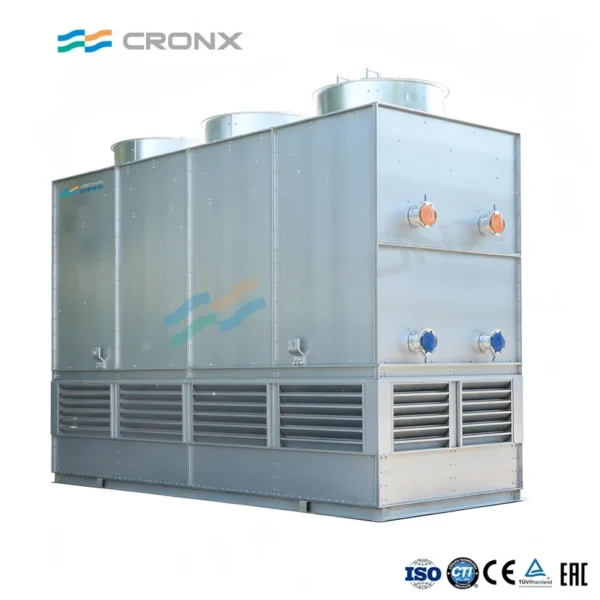

The cooling tower listed here carries 380 V, cooling capacity Specific Requirement customized, documented exactly as the manufacturer publishes it. Made by Shandong Cronx Heat Transfer Technology Co., Ltd. (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Power(W): 800 W, 600 W, 1000 W
- Voltage: 380 V
- Cooling Capacity: Specific Requirement customized
- Material: Metal
- Coil Material: Ss304/ss316/copper/hot Dipped Galvanised Steel
- Warranty: 1 Year
Technical Specifications
| Voltage | 380 V |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 800 W, 600 W, 1000 W |
| Material | Metal |
| Core Components | Motor, Pump |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy, Easy To Operate, Eco-Friendly, Competitive Price |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 5400 |
| Brand Name | Cronx(Casen) |
| Dimension(L*W*H) | 6040*2200*4070 |
| Application | Industrial Fluids Cooling |
| Coil Material | Ss304/ss316/copper/hot Dipped Galvanised Steel |
| Cooling Tower Shell | Magnesium Aluminum Zinc |
| Spray Pump | 304 Stainless Steel Impeller |
| Fan Type | Axial Flow |
| Fan Blade | SS304/PAG/aluminum |
| Water Flow | Specific Requirement customized |
| Quality | High Standard |
| Cooling Capacity | Specific Requirement customized |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

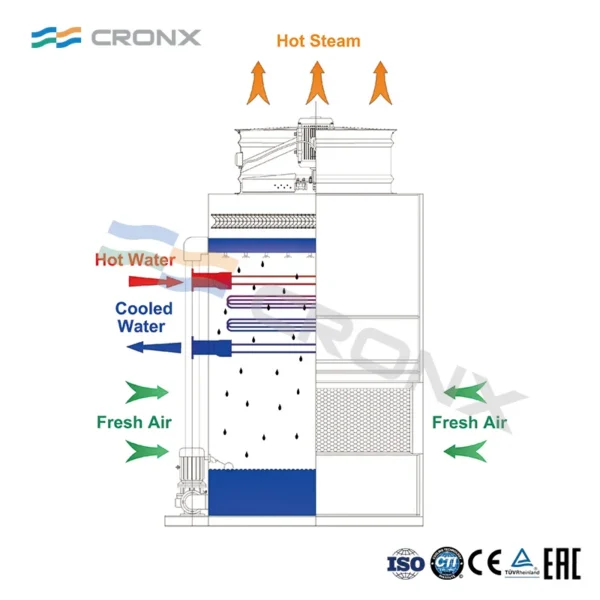

Work Principle
In a closed circuit cooling tower, the working fluid circulates inside a coil, transferring heat through the coil wall to spray water on its surface. Ambient air, drawn in by a fan from the bottom intake, flows upward against the falling water. A portion of the water evaporates, absorbing heat, and the warm air exits from the top. The remaining water collects in the basin and is pumped back to spray over the coil.
Details Images

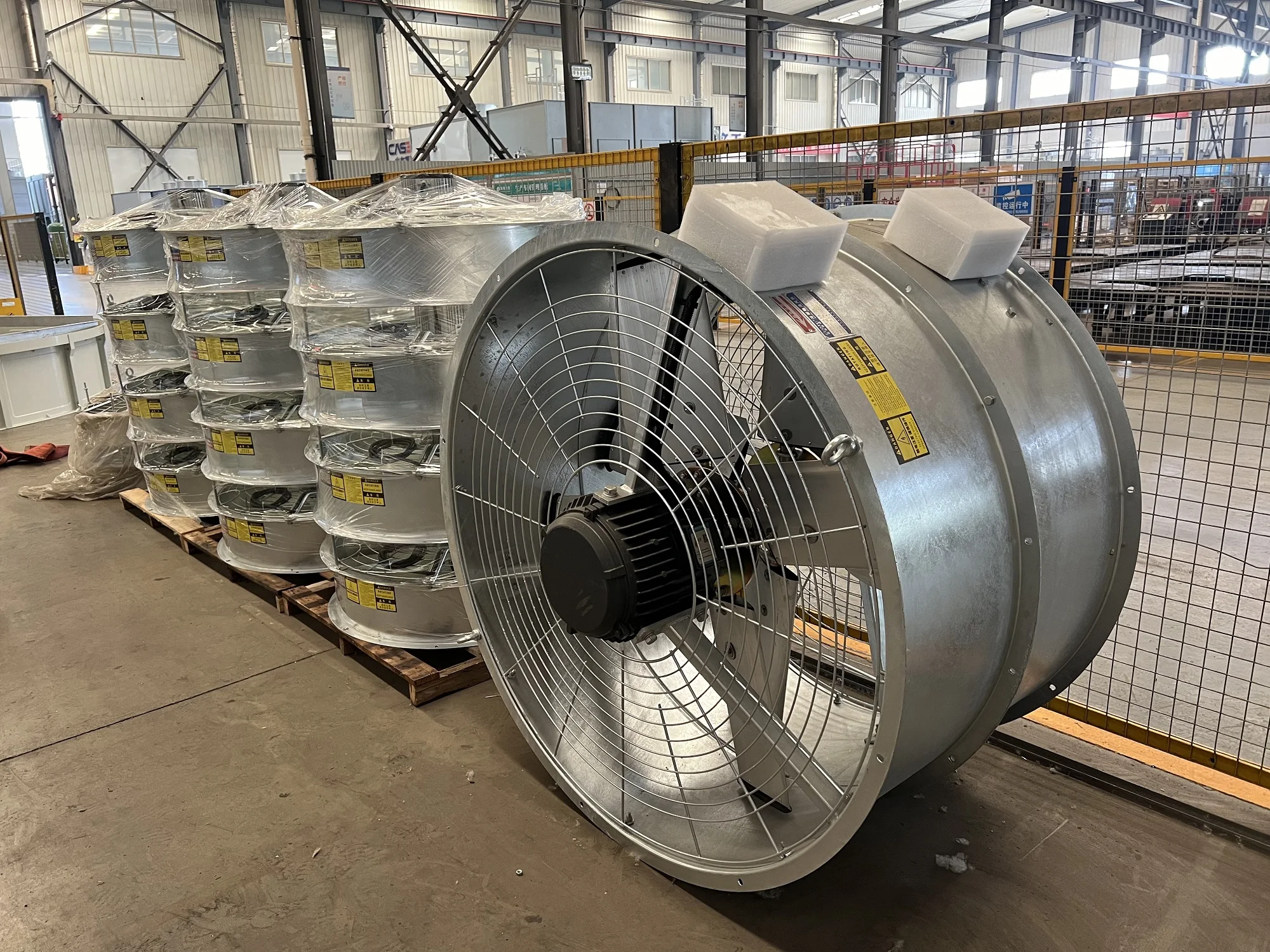

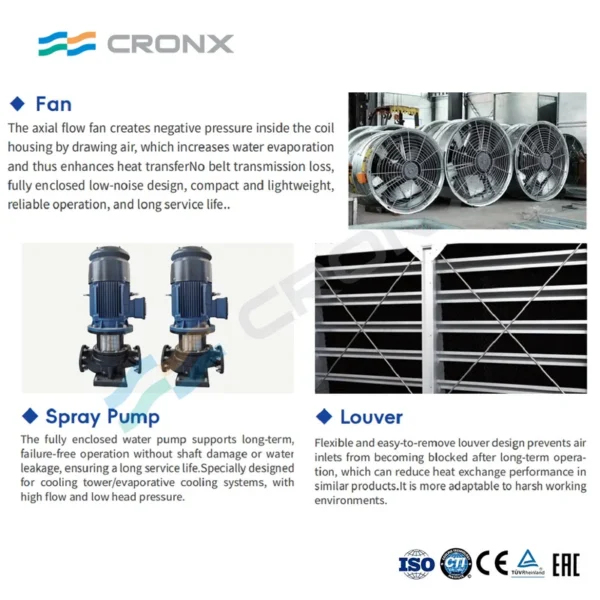

Fan
The axial flow fan creates negative pressure inside the coil housing by drawing air, which increases water evaporation and thus
enhances heat transferNo belt transmission loss, fully enclosed low-noise design, compact and lightweight, reliable operation, and
long service life..
enhances heat transferNo belt transmission loss, fully enclosed low-noise design, compact and lightweight, reliable operation, and
long service life..

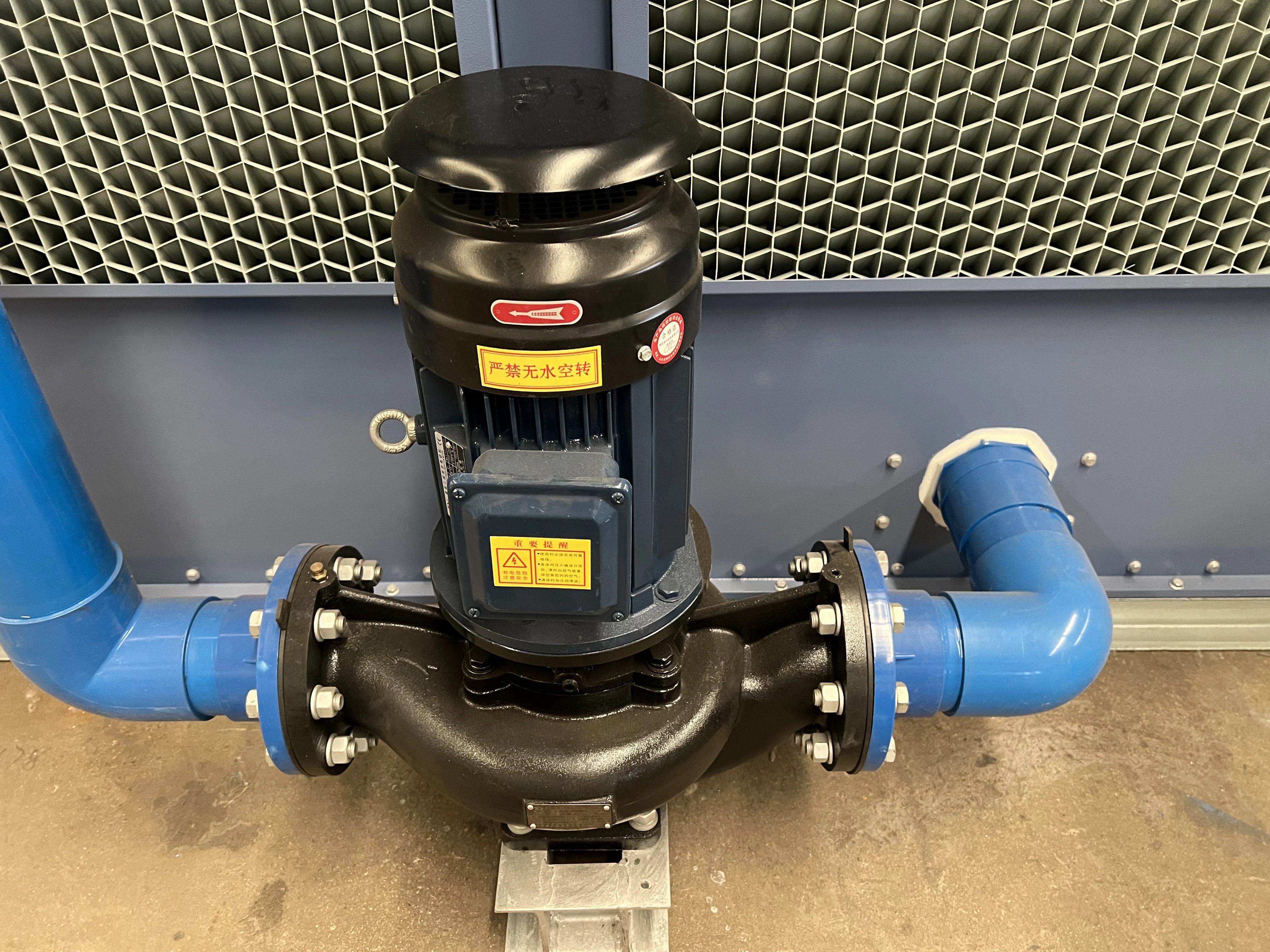

Spray Pump
The fully enclosed water pump supports long-term,failure-free operation without shaft damage or water leakage, ensuring a long
service life.Specially designed for cooling tower/evaporative cooling systems, with high flowand low head pressure.
service life.Specially designed for cooling tower/evaporative cooling systems, with high flowand low head pressure.

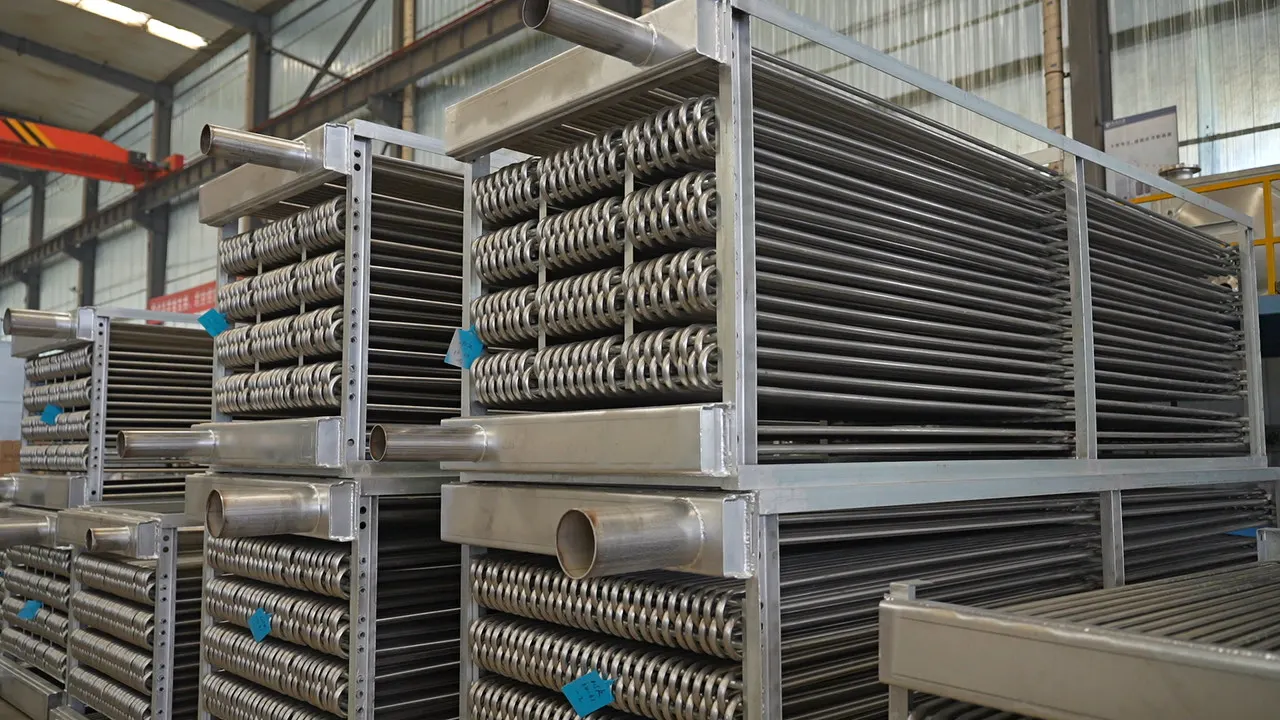

High-Efficiency Coil Heat Exchanger
Multiple types and materials available. Circular coils are durable, low water resistance, and an inclined design for better drainage and reduced pressure. Oval coils increase the contact area by 40%, significantly improving heat transfer.
Nozzles
The specially designed ABS/PP one-piece injection-molded basket-type nozzles maximize the contact between cooling water and the coil surface for optimal heat exchange.Features include high flow rate, uniform spraying, easy cleaning, clog resistance, easy maintenance, and long service life.

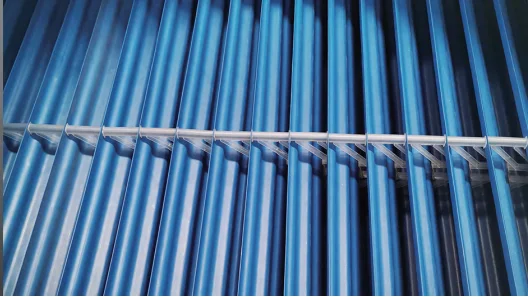

High-Efficiency Drift Eliminator
Made of high-efficiency PVC, it prevents corrosion and biochemical erosion.lts unique multi-curved surface design effectively captures moisture from humid air, minimizing water drift to the lowest level.

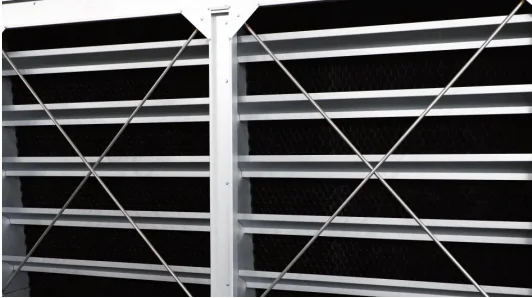

Louver
Flexible and easy-to-remove louver design prevents air inlets from becoming blocked after long-term operation, which can reduce heat exchange performance in similar products.It is more adaptable to harsh working environments.
Specification
Model | Overall Dimensions(mm) | Fan | Spary Pump | Medium Inlet/Outlet | ||||||||||
Length | Width | Height （Without Fan） | Quantity | Air Volume per Fan | Quantity | Flow Rate | Medium Inlet | Medium Outlet | ||||||
KCN-53A | 2760 | 1800 | 3550 | 1 | 70000 | 1 | 70 | 2-DN80 | 2-DN80 | |||||
KCN-66A | 2760 | 1800 | 3790 | 1 | 70000 | 1 | 70 | 2-DN80 | 2-DN80 | |||||
KCN-103A | 3260 | 2200 | 3790 | 1 | 96000 | 1 | 100 | 2-DN80 | 2-DN80 | |||||
KCN-130A | 3900 | 2200 | 3810 | 2 | 65000 | 1 | 120 | 2-DN100 | 2-DN100 | |||||
KCN-160A | 4650 | 2200 | 3810 | 2 | 75000 | 1 | 150 | 2-DN100 | 2-DN100 | |||||
KCN-175A | 5040 | 2200 | 4070 | 2 | 85000 | 1 | 150 | 2-DN100 | 2-DN100 | |||||
KCN-190A | 6040 | 2200 | 4070 | 3 | 68000 | 1 | 180 | 2-DN100 | 2-DN100 | |||||
KCN-200A | 6040 | 2200 | 4070 | 3 | 68000 | 1 | 180 | 2-DN100 | 2-DN100 | |||||
KCN-215A | 6040 | 2200 | 4070 | 3 | 68000 | 1 | 180 | 2-DN100 | 2-DN100 | |||||
KCN-230A | 7420 | 2200 | 3980 | 3 | 85000 | 1 | 233 | 4-DN100 | 4-DN100 | |||||
KCN-266A | 7420 | 2200 | 3980 | 3 | 85000 | 1 | 233 | 4-DN100 | 4-DN100 | |||||
KCN-280A | 7420 | 2200 | 3980 | 3 | 85000 | 1 | 233 | 4-DN100 | 4-DN100 | |||||
KCN-290A | 8560 | 2200 | 4250 | 4 | 78000 | 1 | 286 | 4-DN100 | 4-DN100 | |||||
KCN-307A | 8560 | 2200 | 4250 | 4 | 78000 | 1 | 286 | 4-DN100 | 4-DN100 | |||||
KCN-322A | 8920 | 2200 | 4250 | 4 | 85000 | 1 | 286 | 4-DN100 | 4-DN100 | |||||

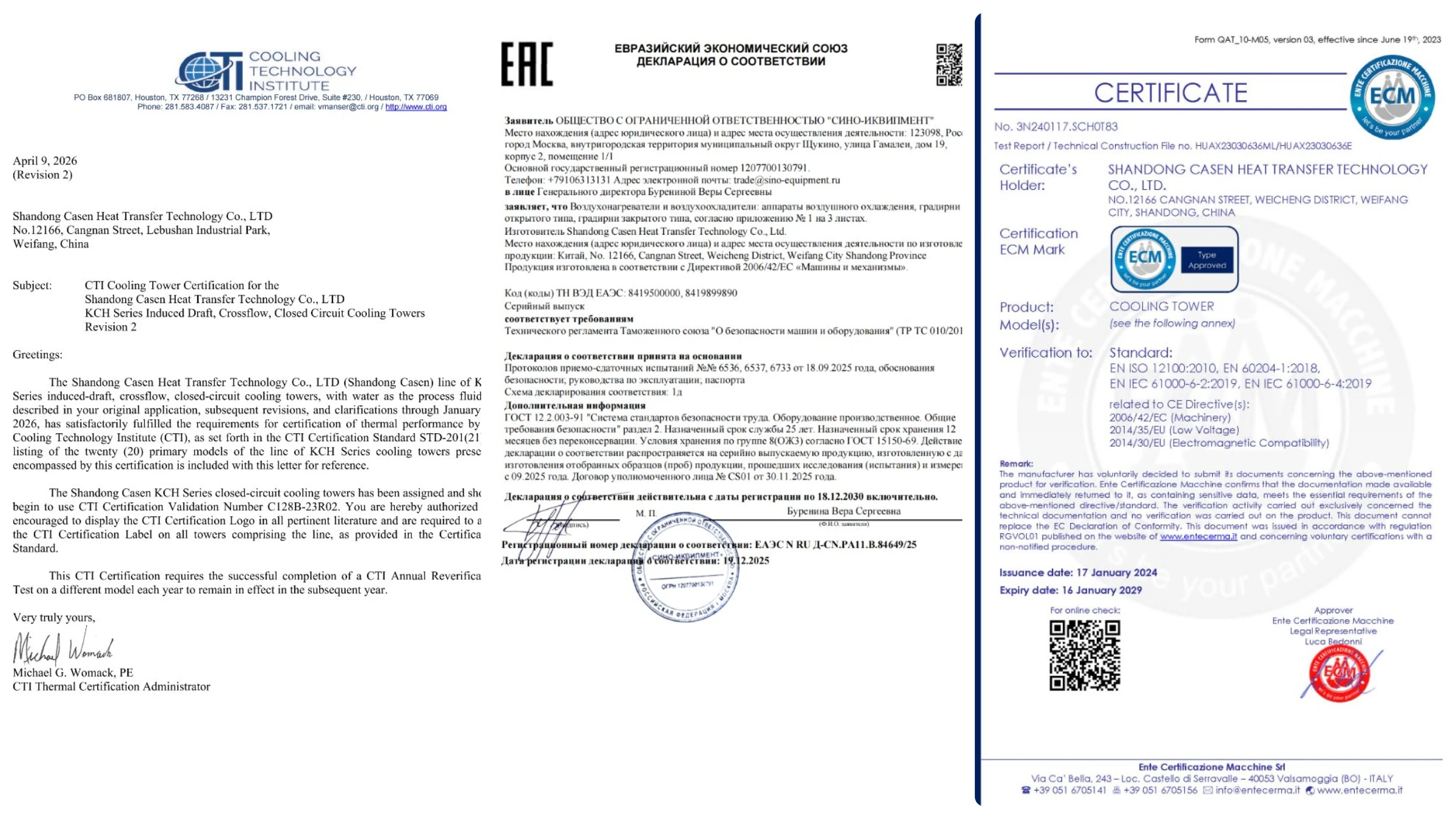

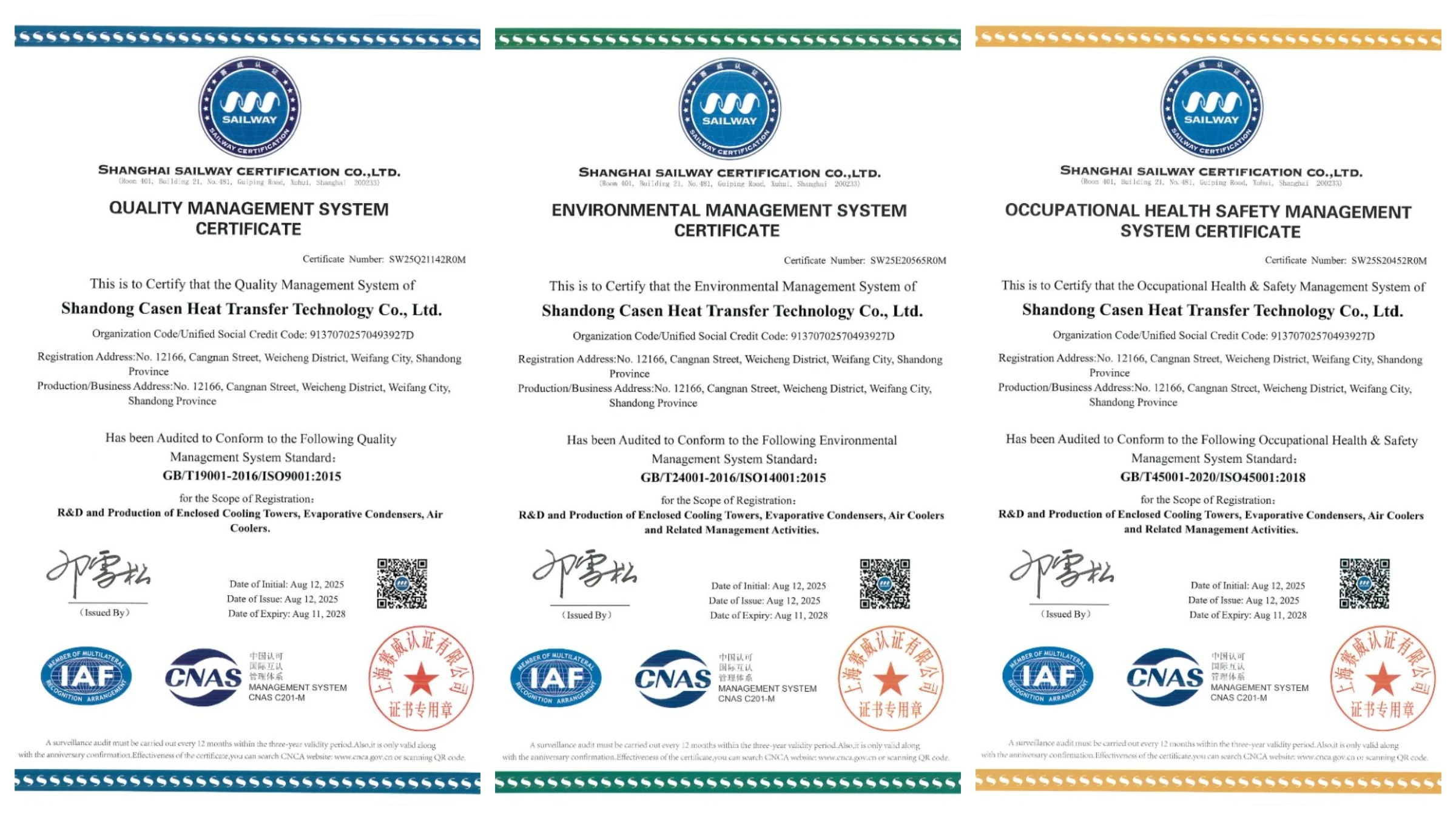

Certifications

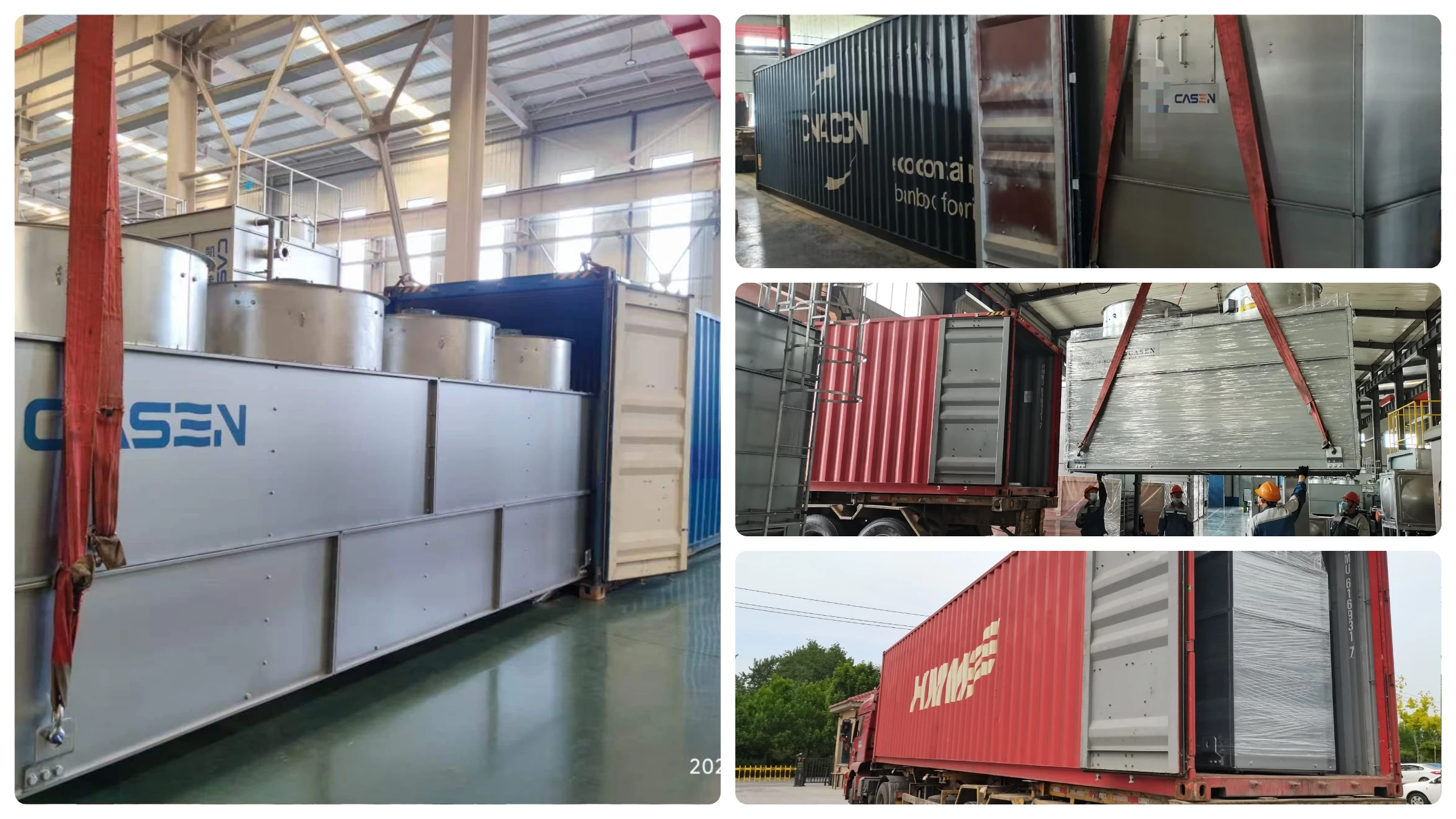

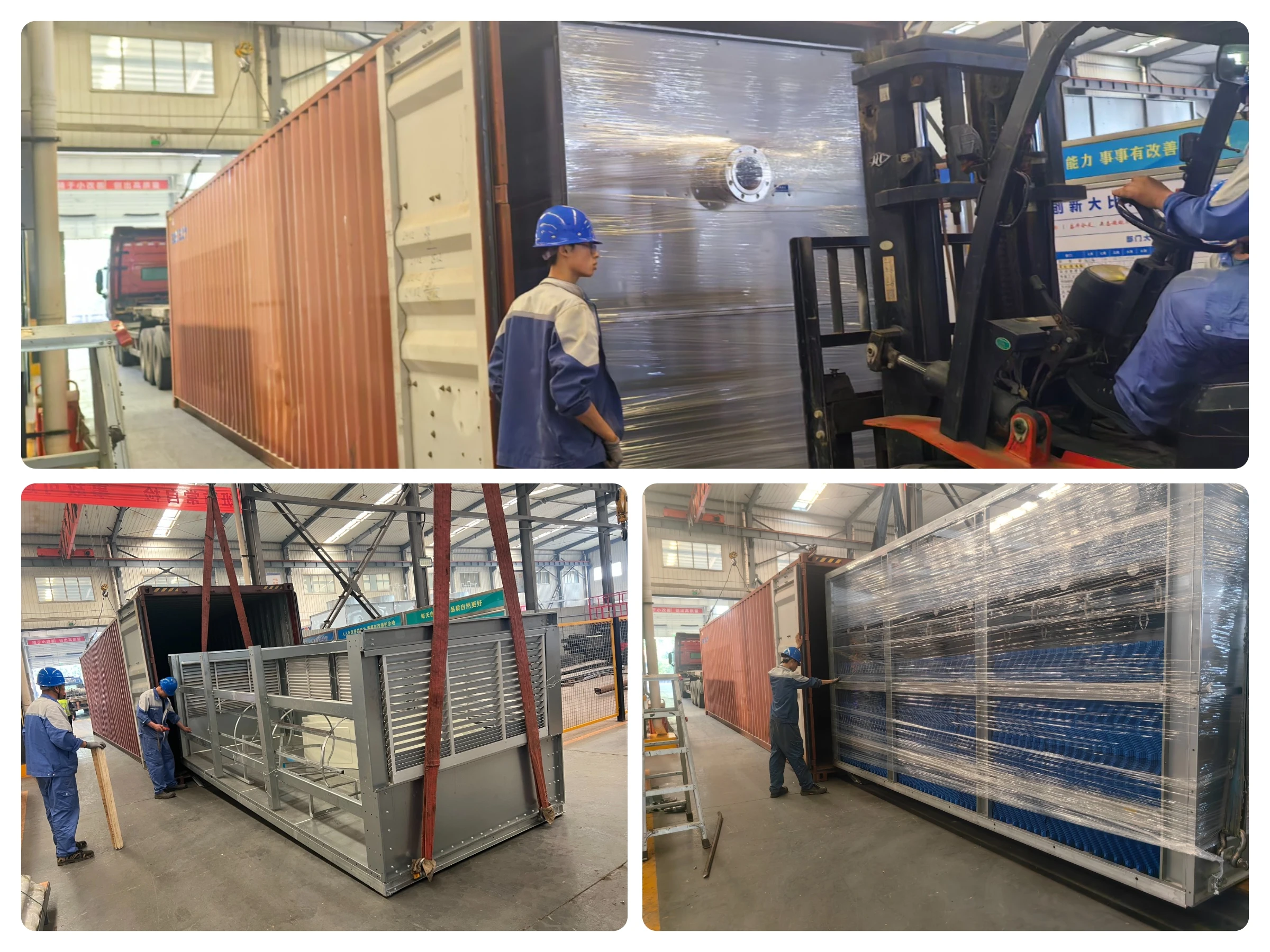

Packing & Delivery
The use of 20"GP or 40"HQ containers allows the installation to be done in the workshop to the maximum, thus saving installation time and costs.

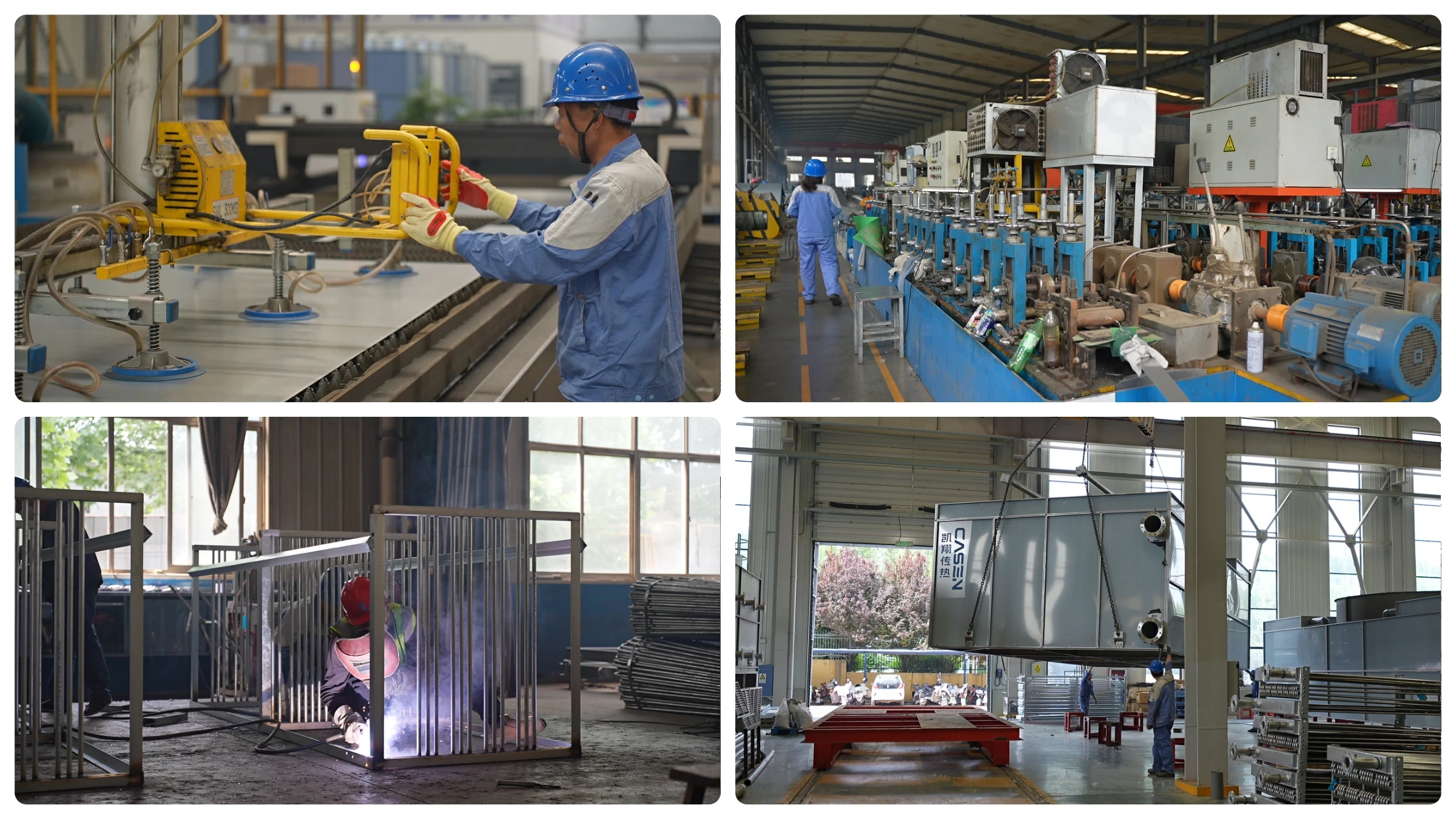

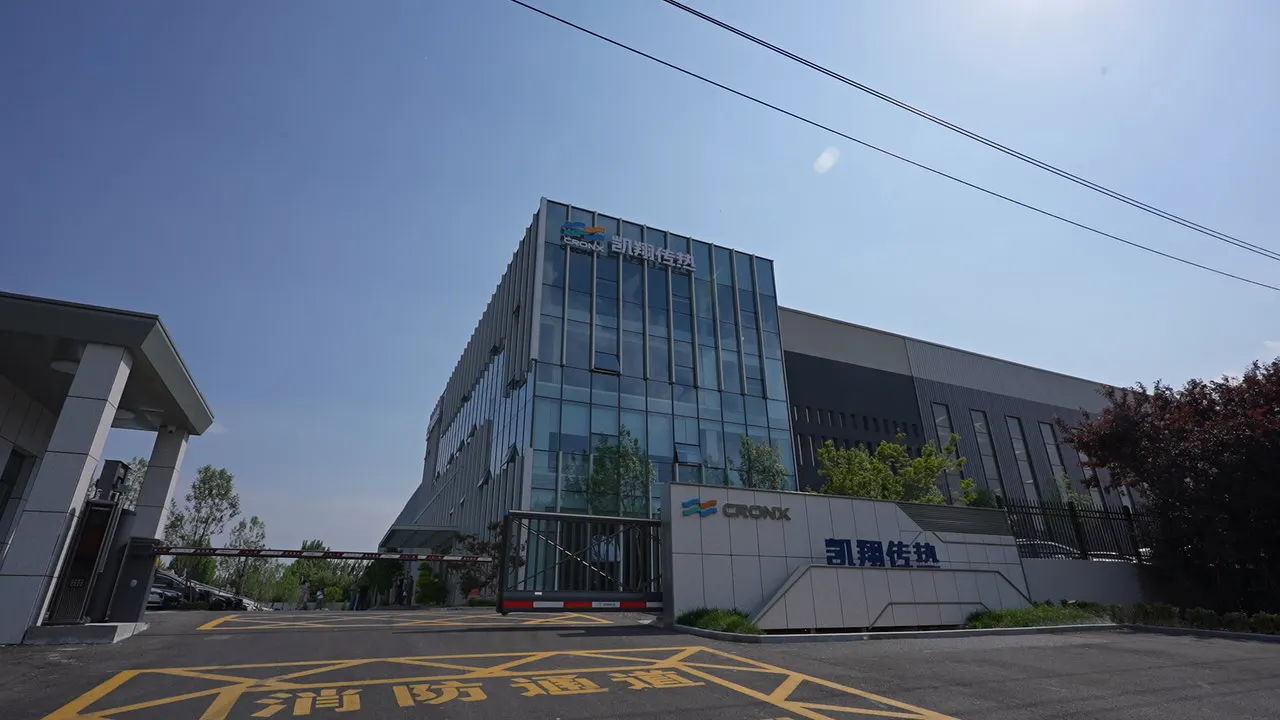

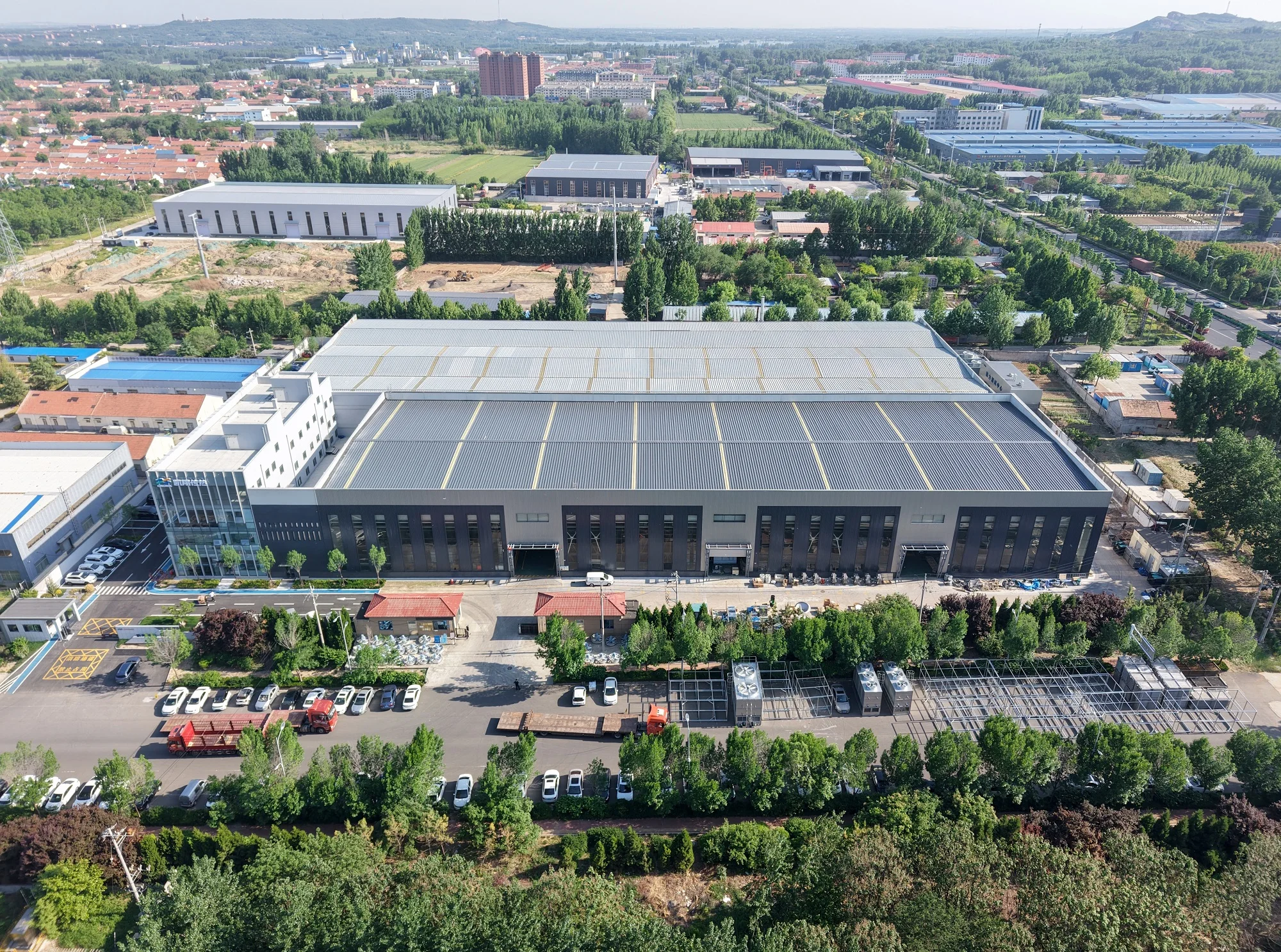

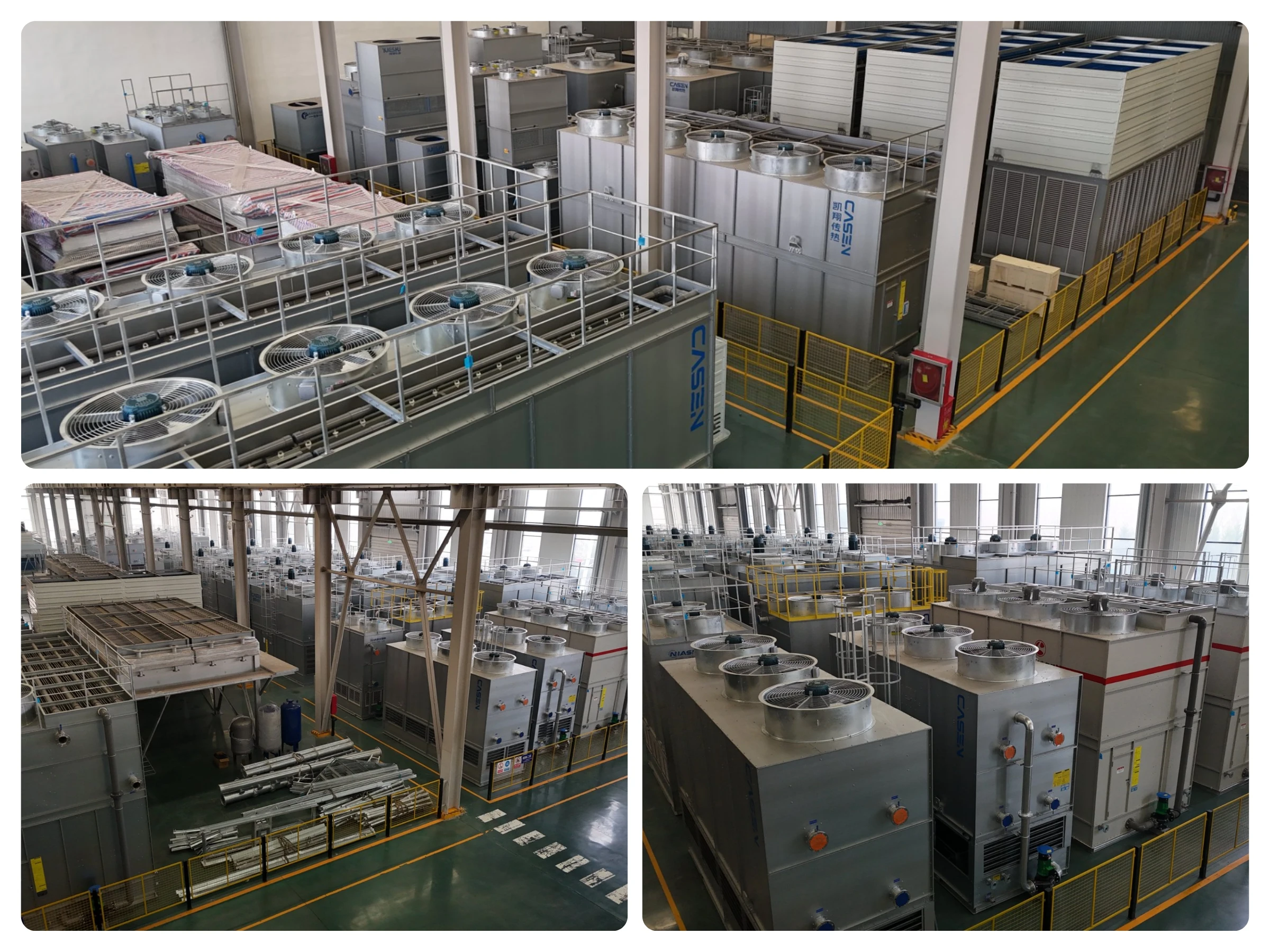

Company Profile
CRONX (Shandong CRONX Heat Transfer Technology Co.,Ltd ) ,former CASEN,is an professional manufacturer of heat rejection equipment for a wide range of applications. Products include closed cooling towers, evaporative cooling, air coolers, adiabatic air coolers and various related accessories. CRONX is experienced in the design and manufacture of products from small point-of service cooling to large complex plant-wide systems. Our equipment range from simple manually controlled equipment to complex PLC-driven systems for automated operation.And we are also constantly providing new solutions to meet the requirements from different clients.
At Cronx, we always adhere to the philosophy of "innovation." Any small improvement that makes work more efficient, products better, and customers more satisfied is worth encouraging. We encourage the entire company to participate in innovation by holding monthly innovation award ceremonies.
Exhibition
FAQ
1. Are you manufacturer?
Yes we are a cooling tower manufacturer located in Shandong Province China. With 12 years of manufacturing and OEM service for several brand of famous cooling tower.
2.Can you provide the cooling tower parts different with the specification in above showing form?
We can manufacturer and newly design for special order based on your provided specification and drawing or performance requirements.Our parts can also be sold separately.
3. What products are you manufacturing?
We mainly produce Cooling tower, Evaporative condenser, Air cooled exchanger
4.What's your delivery time?
Our delivery time is 4-6 weeks depending on the stock.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–1 piece: US $8200 / piece
- 2–9 piece: US $8000 / piece
- 10+ piece: US $7000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
