The cooling tower listed here carries 240V, 38OV, 440V, 29KW(38.89hp), documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Tower
- Power(W): 29KW(38.89hp)
- Voltage: 240V, 38OV, 440V
- Material: Metal
- Coil Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
Technical Specifications
| Voltage | 240V, 38OV, 440V |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 29KW(38.89hp) |
| Material | Metal |
| Core Components | PLC, Engine, Motor, Pump, Fan, Filling, Finned tube |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy |
| Place Of Origin | Henan, China |
| Weight (Kg) | 11700 |
| Brand Name | YLGH |
| Dimension(L*W*H) | 5660*3190*4935 |
| Name | Closed cooling tower |
| Application | Industrial Fluids Cooling |
| Type | Counter Flow closed cooling tower |
| Product Name | Evaporative condenser |
| Keyword | Industrial closed cooling tower |
| Application Fields | Industial |
| Key Words | closed cooling tower |
| Motor | IP55 |
| Coil Material | Stainless Steel |
| Fan Type | Aluminum -alloy Axia-flow |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 4.0 kg |
Product Details
Why Choose Us
GH COOLING is a professional and modern enterprise integrating R & D, manufacturing, marketing, maintenance, and other service in the fields of cooling technology and products. The company is located in Luoyang PengPo Industrial in Henan Province, with a 40000m2 area and 14400m2 production plant area. We focus on continuous innovation around customer requirements and upgrade product quality. Meanwhile, we keep open cooperation with partners, supplying solutions for customers in water treatment, electric power, metallurgy, coal chemical, petrochemical, refrigeration, and other industries. Our main products are air-cooled heat exchangers （air coolers）, evaporative condensers, closed cooling towers, RFP cooling towers, "air cooling + evaporative cooling" composite closed cooling systems, dry wet combined closed water cooling systems, anti-white mist efficient cooling systems, etc. The products are sold in about 30 provinces, cities, or autonomous regions of China, and also exported to Nigeria, Algeria, Chile, Peru, Germany, Canada, Türkiye, Southeast Asia, and other countries and regions.
Products Description
Product Description of Evaporative Condenser
NZL Evaporative Condenser
The NZL evaporative condenser is a energy-saving, water-saving, high-efficiency and eco-friendly cooling tower which uses evaporation and condensation as the main mode of heat exchange. The vapor to be condensed is circulated through a condensing coil, which is continually wet on the outside by a recirculating water system. Air is pulled over the coil, causing a small portion of the recirculating water to evaporate. The evaporation removes heat from the vapor in the coil, causing it to condense. It takes up a small area and is easy to operate and maintain.
Details Description
Details Description of Evaporative Condenser
Product Paramenters
Parameters of Evaporative Condenser
Model | Dimension W×L | Coil Specifications | Axial fan Model | Fan power (KW) | Air volume | Pump model | Water flow m3/h | Inlet/Outlet Size |
NBT-27 | 1430×1180 | 1260×1000*6 | 6.3# | 1.1 | 15000 | 80/125-0.75/4 | 25 | DN150/DN150 |
NBT-36 | 1430×1180 | 1260×1000*8 | 6.3# | 1.1 | 15000 | 80/125-0.75/4 | 25 | DN150/DN150 |
NBT-45 | 1430×1180 | 1260×1000*10 | 6.3# | 1.5 | 18500 | 80/125-0.75/4 | 25 | DN150/DN150 |
NBT-48 | 2600×1430 | 1260×2430*4 | 6.3# | 1.1*2 | 15000*2 | 80/160-1.1/4 | 35 | DN150/DN150 |
NBT-72 | 2600×1430 | 1260×2430*6 | 6.3# | 1.1*2 | 15000*2 | 80/160-1.1/4 | 35 | DN150/DN150 |
NBT-93 | 2600×1430 | 1260×2430*8 | 9# | 2.2*2 | 26000*2 | 80/160-1.1/4 | 35 | DN150/DN150 |
NBT-120 | 2600×1430 | 1260×2430*10 | 9# | 2.2*2 | 26000*2 | 125/125-2.2/4 | 60 | DN150/DN150 |
NBT-145 | 2600×1430 | 1260×2430*12 | 9# | 2.2*2 | 26000*2 | 125/125-2.2/4 | 60 | DN150/DN150 |
NBT-96 | 2620×2720 | 1260×2430*4 | 13# | 4 | 55000 | 125/125-2.2/4 | 60 | DN150/DN150 |
NBT-145 | 2620×2720 | 1260×2430*6 | 15# | 5.5 | 78000 | 125/125-2.2/4 | 60 | DN150/DN150 |
NBT-193 | 2620×2720 | 1260×2430*8 | 15# | 5.5 | 78000 | 125/125-2.2/4 | 60 | DN150/DN150 |
NBT-241 | 2620×2720 | 1260×2430*10 | 16# | 5.5 | 80000 | 125/150-3/4 | 78 | DN150/DN150 |
NBT-290 | 2620×2720 | 1260×2430*12 | 16# | 7.5 | 10000 | 125/160-4/4 | 78 | DN150/DN150 |
NBT-181 | 3190×2720 | 1260×2430*6 | 16# | 7.5 | 10000 | 125/160-4/4 | 120 | DN150/DN150 |
NBT-241 | 3190×2720 | 1260×3000*8 | 16# | 7.5 | 10000 | 125/160-4/4 | 120 | DN150/DN150 |
NBT-302 | 3190×2720 | 1260×3000*10 | 18# | 11 | 125000 | 125/160-4/4 | 120 | DN150/DN150 |
NBT-362 | 3190×2720 | 1260×3000*12 | 18# | 11 | 125000 | 125/160-4/4 | 120 | DN150/DN150 |
Our Advantages
(1) Power-saving; Water-saving; Space-saving;
(2) High Heat Exchange Ability;
(3) Easy to install;
(4) Low maintenance cost;
(5) Long lifetime.
(2) High Heat Exchange Ability;
(3) Easy to install;
(4) Low maintenance cost;
(5) Long lifetime.
Main Parts

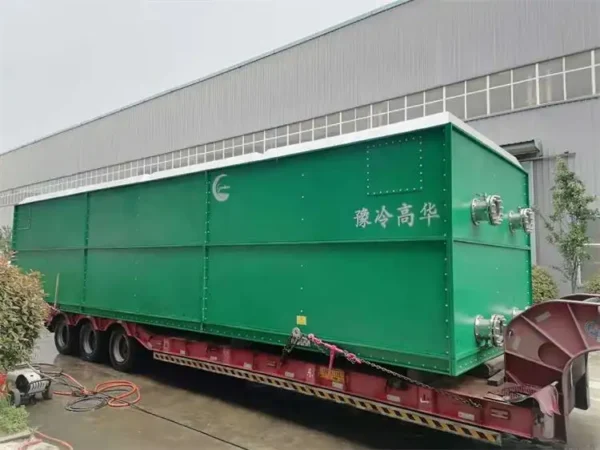

Packaging & Delivery

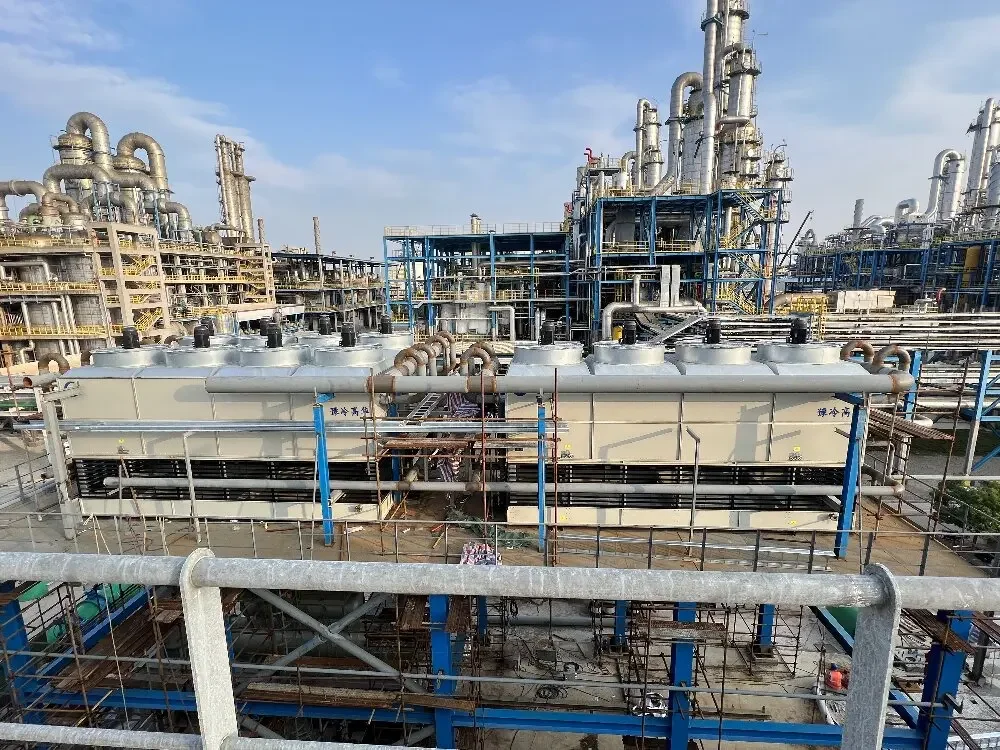

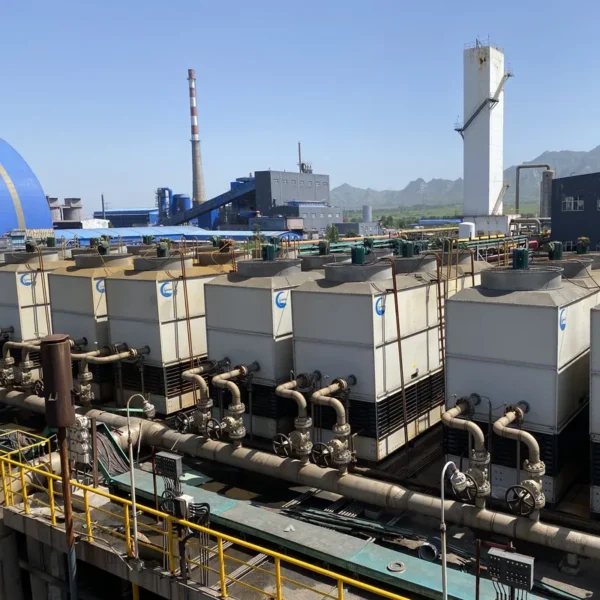

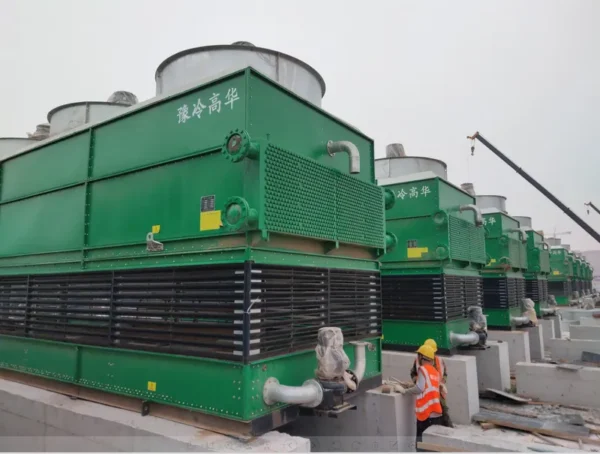

Project cases
You may like
FAQ
Q1. If I want to get a quotation quickly, what necessary parameters should I provide? A: Flow rate, Inlet and Outlet temperature, Wet-bulb temperature. Q2. Which industries can evaporative condensers be used in? A: Evaporative condensers can be used in electric power, metallurgy, petrochemical, coal chemical, food refrigeration and other industries. Q3. What material of heat exchange tube should I choose? A: If the medium of the cooling tower is not corrosive, carbon steel hot-dip galvanizing is recommended, which is cheap; if the medium is corrosive, you can choose stainless steel with high corrosion resistance. Q4. How long is the delivery time? A: Usually, the delivery time is 45 days after receiving the advanced payment and drawing confirm.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $32800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 240V, 38OV, 440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Luoyang Gaohua Environmental Cooling Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Luoyang Gaohua Environmental Cooling Technology Co., Ltd. range on HVACR Nexus.
