Key specification for this copper tube: power 1/2HP, material Copper, Aluminum Alloy. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Copper Tube
- Power: 1/2HP
- Material: Copper, Aluminum Alloy
- Case Material: Galvanized Steel/Aluminum plate
- Tube Material: copper tube
- Fin Material: Aluminun Fin
- Warranty: 1 Year
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Condenser |
| Material | Copper, Aluminum Alloy |
| Warranty | 1 Year |
| Weight (Kg) | 3 |
| Place Of Origin | Guangdong, China |
| Brand Name | CDDQ |
| Product Name | FNF-1.0/4.4 |
| Copper Tube Diameter | 9.52mm |
| Power | 1/2HP |
| Heat Exchange Area | 4.4㎡ |
| Fan | 250mm |
| Case Material | Galvanized Steel/Aluminum plate |
| Tube Material | copper tube |
| Fin Material | Aluminun Fin |
| Packaging | 4 units per box |
| Production Cycle | In stock |
| Selling Units | Single item |
| Single Package Size | 50X30X15 cm |
| Single Gross Weight | 5.0 kg |

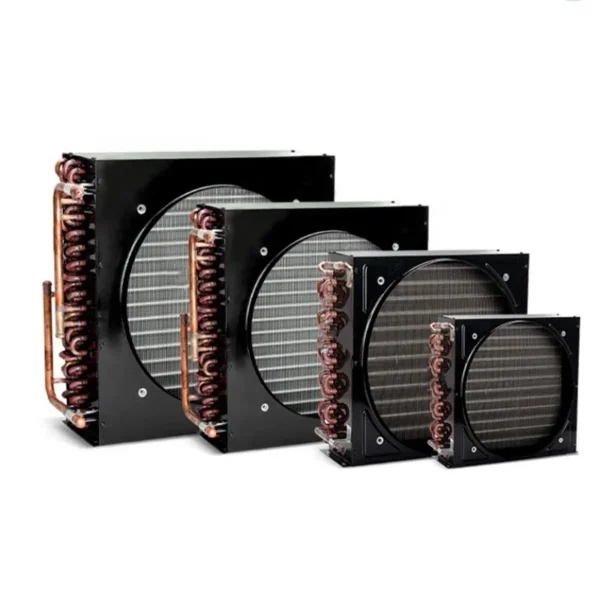

Product Details
MODEL | HP | FAN（mm） | L*H*W(mm） | Weight（kg） |
FNF-0.8/1.7 | 1/2HP | 1×200 | 250*230*120 | 1.5 |
FNF-0.8/3.4 | 3/8HP | 1×200 | 250*230*120 | 2 |
FNF-1.0/4.4 | 1/2HP | 1×250 | 320*280*130 | 2.5 |
FNF-1.2/5.4 | 1.0HP | 1×300 | 360*330*150 | 3.5 |
FNF-1.6/8.4 | 1.0HP | 1×300 | 450*330*150 | 4.5 |

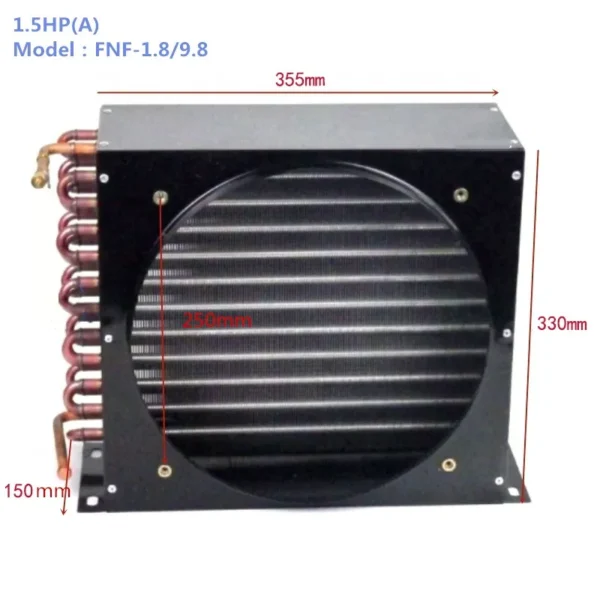

FNF-1.8/9.8 | 1.5HP | 1×300 | 355*330*150 | 4.5 |

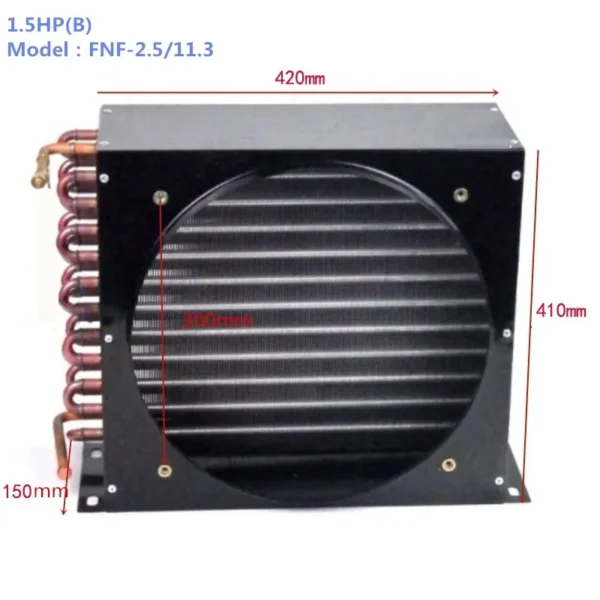

FNF-2.5/11.3 | 1.5HP | 1×350 | 420*410*150 | 5.5 |
FNF-2.8/13.0 | 2.0HP | 1×350 | 420*410*165 | 6 |
FNF-4.4/16.5 | 2.5HP | 1×350 | 460*410*165 | 7 |
FNF-5.5/20.0 | 3HP | 1×400 | 530*480*165 | 9 |
FNF-6.0/22.0 | 3HP | 1×400 | 530*480*200 | 10.5 |
FNF-7.2/26.0 | 3HP | 2×350 | 780*430*165 | 12.5 |
FNF-8.8/30.0 | 4HP | 2×400 | 910*610*180 | 17 |
FNF-9.0/42.0 | 5HP | 2×400 | 940*590*200 | 20 |
FNF-10.2/50 | 5HP | 2×400 | 910*530*200 | 20 |
FNF-15.2/53 | 6.5HP | 2×400 | 940*590*200 | 22.5 |
FNF-19/63.0 | 7.5HP | 2×400 | 920*630*200 | 24 |
FNF-21.5/75 | 8.5HP | 2×400 | 920*630*220 | 27 |
A2:The normal construction period is 7-15 working days after the arrival of the payment, and it will be postponed under special circumstances
Q3：What is your logistics packaging method?
A3: Express or air: carton + stuffing Shipping: Wooden case or carton + base
Q4:Price description
A4:All products in this link are customized products for manufacturers, all pictures are sample layout, not for sale; All prices are for the convenience of payment, not the actual price of the product, please do not place orders directly
Q5：Pressure leakage
A5:1. Before leaving the factory, we will carry out nitrogen pressure protection for the product (except for special welded
joints), please check when receiving the goods. If you find pressure leakage after receiving the goods, please inform us as soon as possible.
Q6:Transport causes the fin to deform
A6.:Please contact the logistics party for claim immediately after receiving the goods.The fin texture is soft, bump in
transportation may cause the fin to overwhelm the deformation, (Fin deformation is a normal phenomenon, you can contact the customer service to inform the solution, if there is no damage, it does not affect the use, non-product quality problems, do not support return and replacement, thank you)
Ordering and Pricing
- Minimum order quantity: 2 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this copper tube?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
