Cross Flow Fan, 12Volt, 65mm, Tangential, 570

This cross flow fan is published with the manufacturer’s full specification — voltage 12 VDC, 570.85 CFM / 970 m3/H. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Cross Flow Fan

• Model Number: PC65B12870L
• Voltage: 12 VDC
• Air Flow: 570.85 CFM / 970 m3/H
• Blade Material: Aluminium alloy
• Warranty: 5 year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

PRODUCT SPECIFICATIONS

1.General Characters

Rated Voltage	12 VDC	Insulation Class	Class B
Operating Voltage	9 ~ 15 VDC	Static Pressure	6.63 mmH₂O / 65 Pa
Rated Speed	1800 RPM	Input Power	38.4 W
Input Current	3.2 A	Speed Control	Control input 0~10VDC
Acoustical Noise	53 dB(A)	Air Flow	570.85 CFM / 970 m³/H
Life Expectance	50,000Hours(L10) At 40℃ room, humidity 15%~65%RH.	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
Direction of Rotation	Clockwise seen on motor	Protection Type	IP44

2. Mechanical Characters

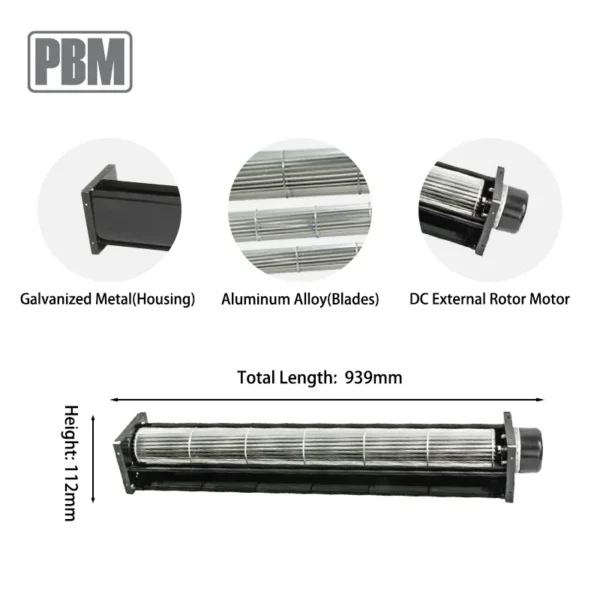

Dimension	100x112x939 (see dimension drawing)	Bearing System	NMB ball bearing
Material of Impeller	Aluminum alloy	Lead Wire	Red , Black, White AWG22#
Number of Blades	22	Package	Standard

3. Airflow Curve

Testing Condition

Input Voltage—-Operating voltage (12VDC) Temperature—–Room temperature Humidity———65%RH Test distance—–1m

4. Outline Drawing

Note

Connection line 3X (Red, Black, White AWG22#);Red=+12VDC, White=0-10VDC, Blue=GND.

Certifications

Application Scopes

Recommend Products

Model Part No.	Rated  Voltage VDC	Air  Flow m³/H	Air  Pressure Pa	Rated  Speed RPM	Sound  Level dB(A)	Total  Length mm
PC65B12520L	12	705	64	1800	50	589
PC65B24520L	24	705	64	1800	50	589
PC65B12620L	12	825	64	1800	51	659
PC65B24620L	24	825	64	1800	51	659
PC65B12720L	12	860	64	1800	50	789
PC65B24720L	24	860	64	1800	50	789
PC65B12750L	12	880	64	1800	50	819
PC65B24750L	24	880	64	1800	50	819
PC65B12820L	12	920	65	1800	53	889
PC65B24820L	24	920	65	1800	53	889
PC65B12870L	12	970	65	1800	53	939
PC65B24870L	24	970	65	1800	53	939
PC65B241105L	24	1225	55	1600	56	1174
PC65B241305L	24	1445	55	1600	56	1374

PBM DC Tangential Blowers with Different Impeller Sizes

PBM Cross Flow Fan 30mm Blades

Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.

PBM Cross Flow Fan 40mm Blades

Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.

PBM Cross Flow Fan 43mm Blades

Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.

PBM Cross Flow Fan 45mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 50mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 60mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 65mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM DC Tangential Blowers with Different Motor Sizes

PBM DC 37.5mm Motor

Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater, Rooms, Public Places, Vehicles, Underfloor Convectors, Air Doors.

PBM DC 50mm Motor

Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery, Storage Heaters,
Underfloor Convectors, Air Doors, Stove Jacket Cooling,.

PBM DC 72mm Motor

Application: Refrigeration and Display Cabinets, Air Conditioning Fans (Air Conditioning Fans, Building Fans, Tower fans), Air Heaters, Electric Fireplaces, Air Curtain Machines, Embedded Ovens, Wood-burning Stoves, Air Conditioners and Storage Heaters etc.

PBM DC Tangential Blowers with X1/X2/X3 Machine Type

Single Tangential Blower

Double Tangential Blower

Triple Tangeltial Blower

Product Overview

Exhibition Show

Packing Detail

FAQ

Q: What are the typical applications for these cross-flow blowers?

A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.

Q:How about the delivery time ?
A:Within 25 days after we receive the order.

Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.

Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–499 piece: US $59.46 / piece
  • 500–999 piece: US $56.16 / piece
  • 1000+ piece: US $54.64 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fan?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the cross flow fan be supplied for my local voltage?

The standard configuration is 12 VDC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
