Cross flow fan — 24 V, blade material aluminum. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cross Flow Fan
- Model Number: DFG65180-3P
- Voltage: 24 V
- Blade Material: aluminum
- Material: Aluminum Alloy
- Speed: 1400 RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 24 V |
|---|---|
| Speed | 1400 RPM |
| Mounting | Industrial Equipment |
| Blade Material | aluminum |
| Material | Aluminum Alloy |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | DFG65180-3P |
| Type | CROSS FLOW FAN |
| Certification | Ce |
| Size | 65mm |
| Selling Units | Single item |
| Single Package Size | 30X17X17 cm |
| Single Gross Weight | 1.0 kg |
Product Details

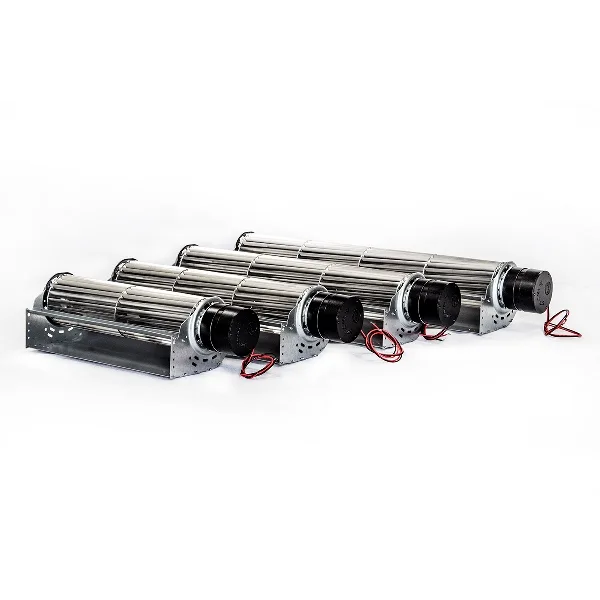

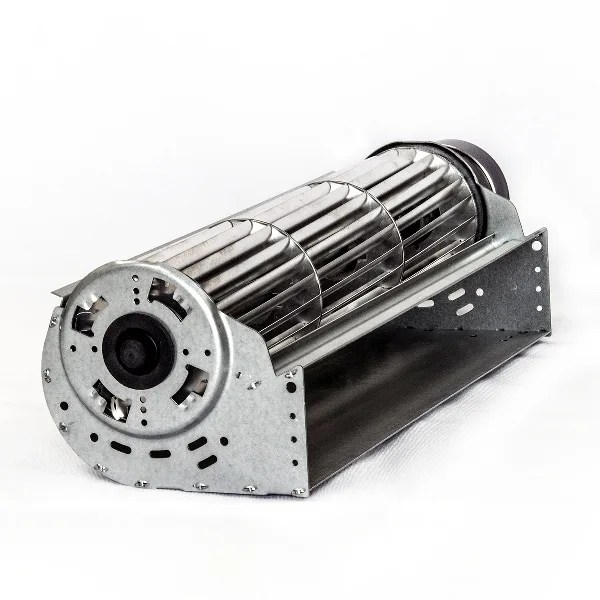

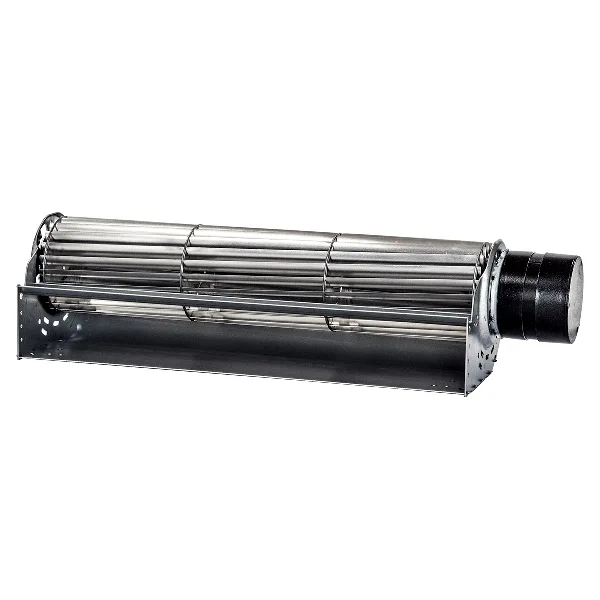

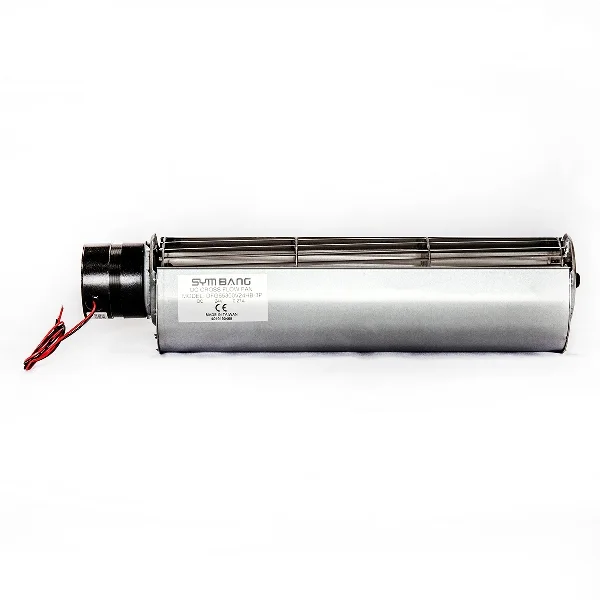

SYMBANG Taiwan Made Aluminum Blade 65mm 24V Tangential Fan (DFG65180-3P)
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum,Ø65mm |
| BEARING | Ball |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| MOTOR TYPE | DC Brushless Motor |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | Special IP Rating On Request |
| FAN IS FOR HORIZONTAL USE ONLY | |
| Model No. | RATED | RATED | INPUT | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) | ||
| VOLTAGE | CURRENT | POWER | (RPM) | @1M | |||||
| (V) | (A) | (W) | inchH2O | mmH2O | CFM | m3/min | |||
| DFG65180V24HB-3P | 24 | 0.2 | 4.8 | 1400 | 0.11 | 2.8 | 77.74 | 2.2 | 34 |
| DFG65240V24HB-3P | 24 | 0.23 | 5.52 | 1300 | 0.106 | 2.7 | 102.47 | 2.9 | 35 |
| DFG65300V24HB-3P | 24 | 0.27 | 6.48 | 1250 | 0.102 | 2.6 | 134.28 | 3.8 | 36 |
| DFG65360V24HB-3P | 24 | 0.29 | 6.96 | 1200 | 0.094 | 2.4 | 155.48 | 4.4 | 38 |
| DFG65420V24HB-3P | 24 | 0.32 | 7.68 | 1150 | 0.091 | 2.3 | 180.21 | 5.1 | 37 |
Company profile:
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|

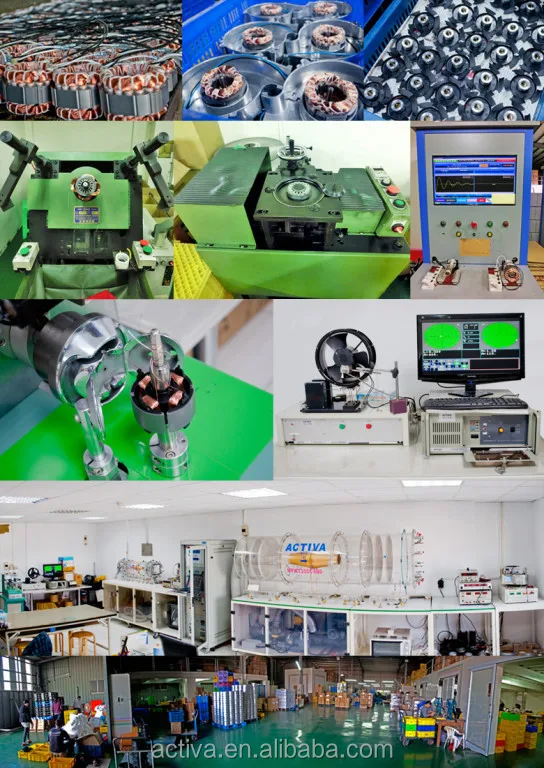

Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fan carry?
It is supplied with Ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 24 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
