This cross flow fan is published with the manufacturer’s full specification — 380V, 220V, Customized, blade material Stainless Steel. Made by Zhuji Ruifeng Import & Export Co., Ltd. (3 years on the platform, typical reply ≤9h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: Size 1530
- Voltage: 380V, 220V, Customized
- Blade Material: Stainless Steel
- Warranty: 2 Years
- Place Of Origin: Zhejiang, China
- Electric Current Type: AC/ DC
Technical Specifications
| Voltage | 380V, 220V, Customized |
|---|---|
| Blade Material | Stainless Steel |
| Electric Current Type | AC/ DC |
| Mounting Type | Wall Fan |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Ruilinfan |
| Model Number | Size 1530 |
| Function | Exhaust Air |
| Motor | 100% Copper Motor |
| Frequency | 50HZ/60HZ/customized |
| Selling Units | Single item |
| Single Package Size | 153X153X40 cm |
| Single Gross Weight | 59.000 kg |
Product Details
Products Description
Galvanized Sheet Metal/ Stainless Steel Negative Pressure Fan
Negative pressure fan uses the cooling principle of air convection and the negative pressure air exchange, air is discharged to outdoor which makes the indoor air pressure drop, indoor air becomes thinner, forming a negative pressure zone, then outdoor air, due to the air pressure difference compensates into the room, so that the indoor stuffy gas can be quickly forced to dischargeoutdoor.
By this way,cooling effect can reach 90%-97%.Thus,negative pressure fan has the advantages of less investment, low energy consumption, significant cooling effect, etc.
Ruilin exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for factory workshop, animal husbandry, poultry house, livestock breeding, textile, greenhouse, etc.
Product photos
1. Frame: 80g/m2 hot galvanized iron plate, thickness can do 0.6/0.7/0.8mm.
2. Net: galvanized wire spray, Column: hot galvanized iron plate.
3. Shutter: 180g/m2 hot galvanized iron, thickness 0.3/0.4mm.
4. Motor: China brand Taicheng, meet national standard, 100% pure copper.
5. Belt: Brand sanlux.
6. Blade: stainless steel material with large air volume, low noise, non-deformation, no broken.

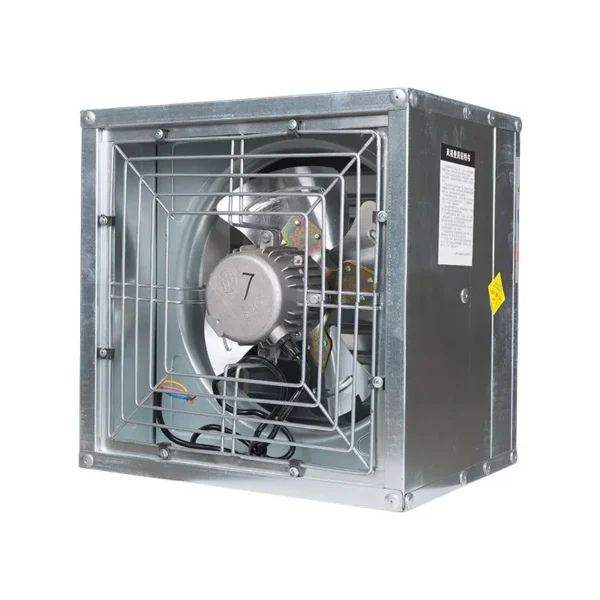

small size direct-coupled

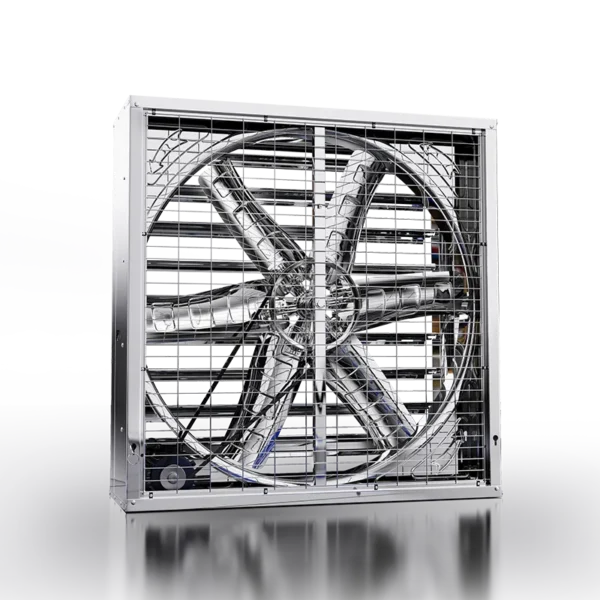

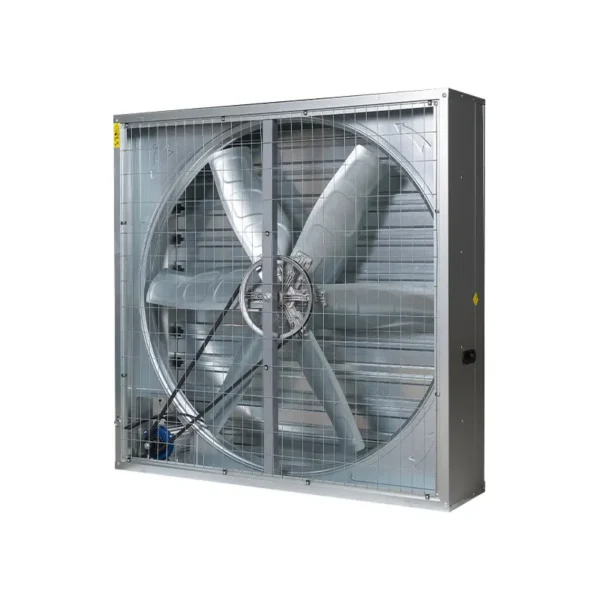

large size heavy hammer with belt type

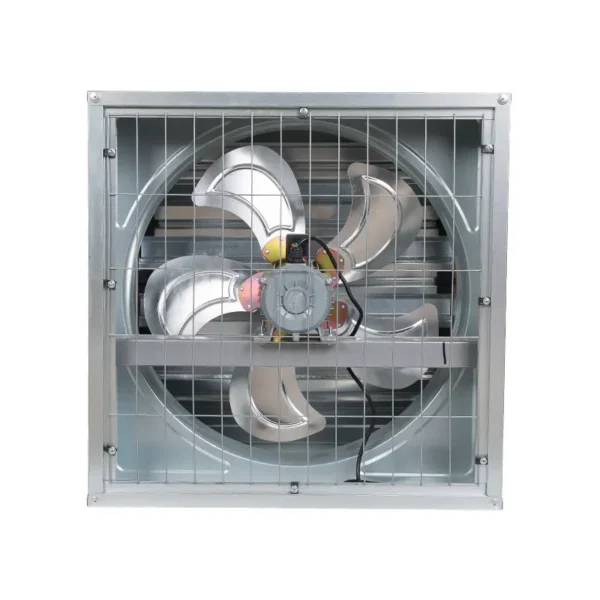

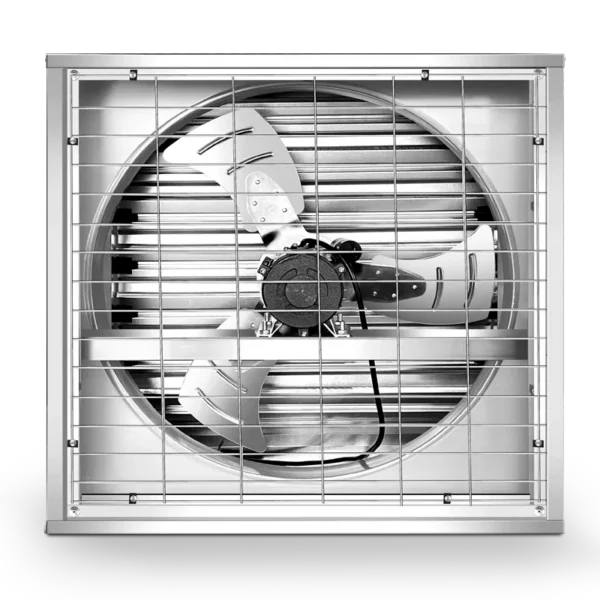

large size direct-coupled type
Product Paramenters
Products | Galvanized sheet metal negative pressure fan [Direct-coupled type] | ||||||||||
Model size | Type 300 | Type 400 | Type 500 | Type 600 | Type 700 | Type 800 | |||||
Body size | 30*30*21cm | 40*40*31cm | 50*50*31cm | 60*60*31cm | 70*70*31cm | 80*80*40cm | |||||
Fan blade diameter | 185mm | 280mm | 385mm | 485mm | 585mm | 680mm | |||||
Blade rotate speed | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 616rpm | |||||
Motor speed | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | |||||
Air volume（m³/h） | 2000 | 2500 | 5000 | 8000 | 10000 | 22000 | |||||
Noise level（db） | ≤50 | ≤60 | ≤60 | ≤60 | ≤60 | ≤65 | |||||
Input power | 45w | 85w | 140w | 200w | 250w | 250w | |||||
Voltage | 220V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | |||||
Products | Galvanized sheet metal negative pressure fan [Heavy hammer with belt type] | ||||||||||
Model size | Type 900 | Type 1000 | Type 1100 | Type 1220 | Type 1380 | Type 1530 | |||||
Body size | 90*90*40cm | 100*100*40cm | 110*110*40cm | 122*122*40cm | 138*138*40cm | 153*153*40cm | |||||
Fan blade diameter | 750mm | 900mm | 1000mm | 1100mm | 1250mm | 1400mm | |||||
Blade rotate speed | 616rpm | 513rpm | 513rpm | 427rpm | 427rpm | 427rpm | |||||
Motor speed | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | |||||
Air volume（m³/h） | 27000 | 30000 | 34000 | 37000 | 44500 | 55700 | |||||
Noise level（db） | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | |||||
Input power | 370w | 550w | 750w | 750w | 1100w | 1500w | |||||
Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | |||||
Details Images
Motor
Chinese motor, CCC Protection
100% copper, IP55 grade
Fan baldes
430 stainless steel, thickness 1.2mm
Large air flow, low noice,long-service life
Belt pulley
Aluminum-magnesium alloy
Lightweight, good look and durable
Belt
Sanlux belt, supper quliaty
Long service life and no repair

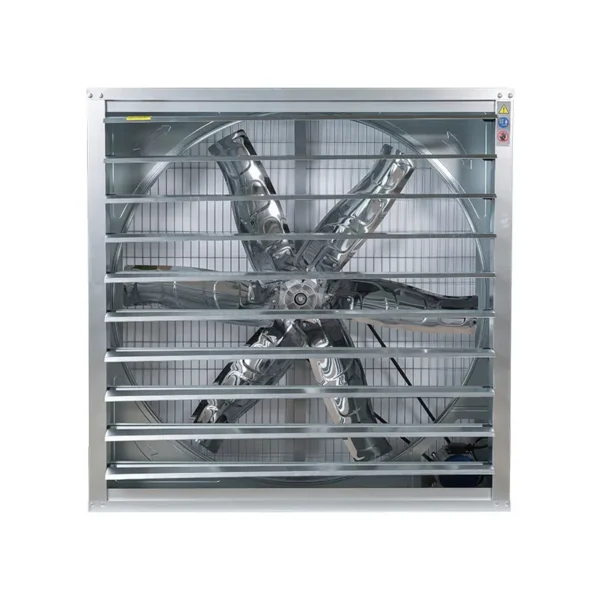

Shutters
open/close automatically
Prevent rain and dust
Fan safe net
hot-dip galvanized wire with electrostafic plastic spraying Attractive and durable
Installation Instruction
Company images
Zhuji Ruilin Ventilation Equipment Co., Ltd
Zhuji Ruilin Ventilation Equipment Co., Ltd. is a factory specializing in the production of sheet iron negative pressure fans, glass fiber reinforced plastic fans, environmental friendly air conditioners and mobile air coolers.
Since its establishment for ten years, the company has focused on the research, development and production of ventilation and cooling equipment.
At present, the company has 15 assembly lines for negative pressure fans, 800 complete machines per day, 10 assembly lines for cooling fans, 400 complete machines per day, and a full range of FRP fans. Ruilin's continuous stable supply have achieved great advantages in application fields and won recognition from customers and industries.
Shearing machine
CNC Laser Cutting Machine
Bending Machine
CNC Punching Machine
Assembling
Storage
VR
Our Service
Pre-sale service
* Inquiry and consulting support.
* Sample testing support.
* Company visiting reception
* Sample testing support.
* Company visiting reception
After-sale service
* Provide machine install video,
* Online guide for how to use the machine.
* Online guide for how to use the machine.
* Video support for all kinds of problem
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for for more than ten years in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service for you, put your logo on the product.
Q:What is your minimum order quantity?
A:We accept small order quantity even one piece, but usually the freight cost will be high for small qty.
Q:What Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3 Phase, or 220V-50Hz-Single Phase, it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification, ISO9001:2015 international quality management system.
Q:Can you accept an inspection of a Third-party detection before goods loading?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before, and have got perfect inspection report.
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service for you, put your logo on the product.
Q:What is your minimum order quantity?
A:We accept small order quantity even one piece, but usually the freight cost will be high for small qty.
Q:What Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3 Phase, or 220V-50Hz-Single Phase, it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification, ISO9001:2015 international quality management system.
Q:Can you accept an inspection of a Third-party detection before goods loading?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before, and have got perfect inspection report.
