Cross Flow Fan, Tangential, 110V, 220V

This cross flow fan is published with the manufacturer’s full specification — voltage AC 220V~240V, blade material Aluminum Alloy. Made by Guangzhou Yuexun Electric Appliance Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cross Flow Fan

• Voltage: AC 220V~240V
• Blade Material: Aluminum Alloy
• Material: Galvanized Steel
• Noise Level: ≤48 dB(A)
• Speed: 1800 RPM – 2800 RPM
• Warranty: 2 Years

Technical Specifications

Product Details

PRODUCT HIGHLIGHTS

• High-Efficiency AC Cross Flow Fan: Delivers powerful airflow with quiet operation.
• Compact Cooling: Ideal for electronics ventilation and air curtains applications.
• Superior Airflow: Ensures efficient cooling for compact spaces.
• Quiet Operation: Operates at ≤48 dB(A), ideal for sensitive environments.

OVERVIEW

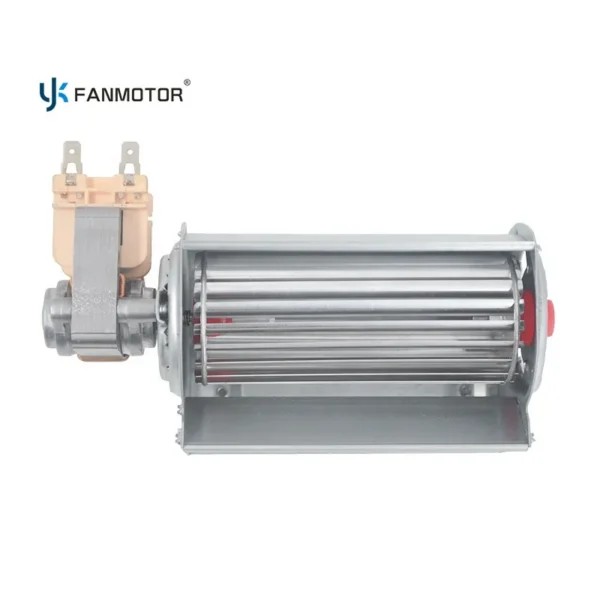

Product Name	High-efficiency Industrial/Household AC Cross Flow Fan/ Tangential Fan
Matching Motor Type	Single-Phase AC Shaded Pole Motor (Stator: 48mm, Thickness: 15mm)
Impeller Diameter	φ30mm/ φ40mm/ φ50mm/ φ60mm(Customizable)
Impeller Length	90mm-420mm(Customizable)
Product Material	Fan casing (high-quality galvanized steel sheet); Impeller (high-strength aluminum alloy)
Main Application Scenarios	HVAC & wall-Mounted appliances, Commercial refrigeration, Electronics & Industrial cooling, Home appliance support
Operating Characteristics	Simple structure, Stable operation, Ultra-low noise

DETAIL SHOT

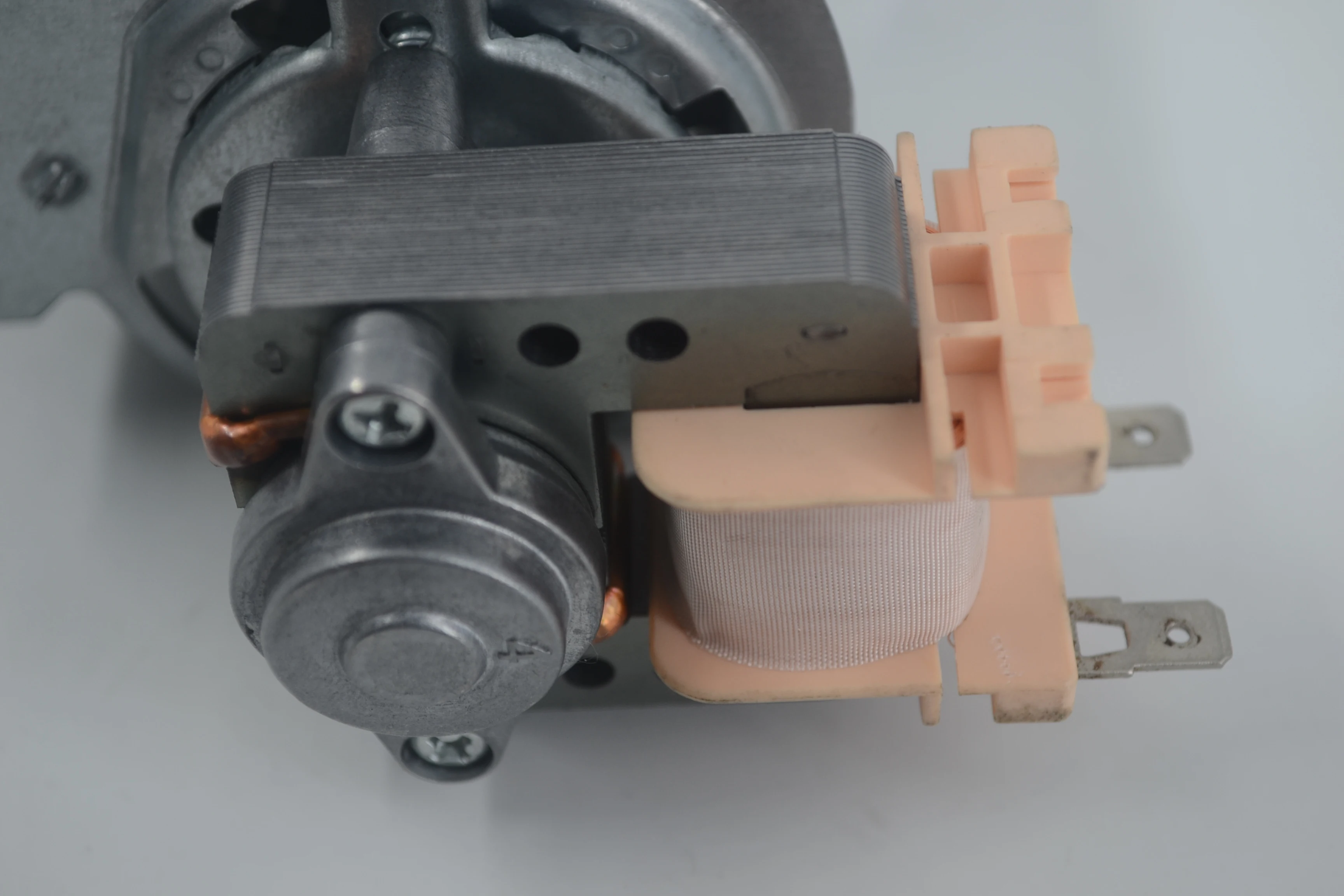

48*15mm Ultra-Thin Shaded Pole Motor

Features a 15mm stack high-permeability silicon steel core, 100% pure copper wire winding, and quick-connect spade terminals. Low heat rise, high temperature resistance, and extreme space efficiency.

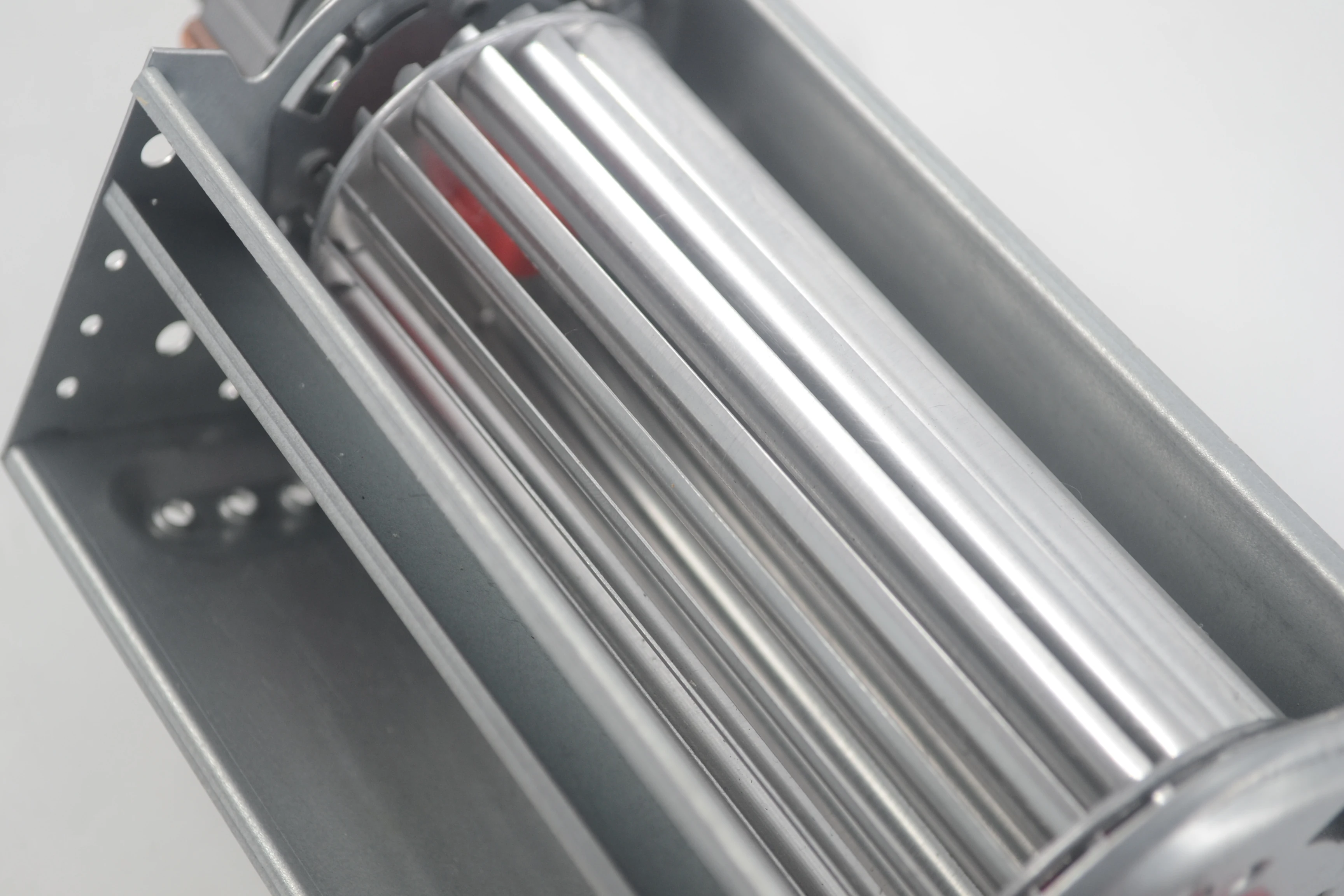

Dynamically Balanced Aluminum Impeller

Built with a high-rigidity multi-blade aluminum alloy cross-flow wheel. Every unit is strictly dynamically balanced to eliminate eccentric noise, ensuring smooth laminar airflow without deformation.

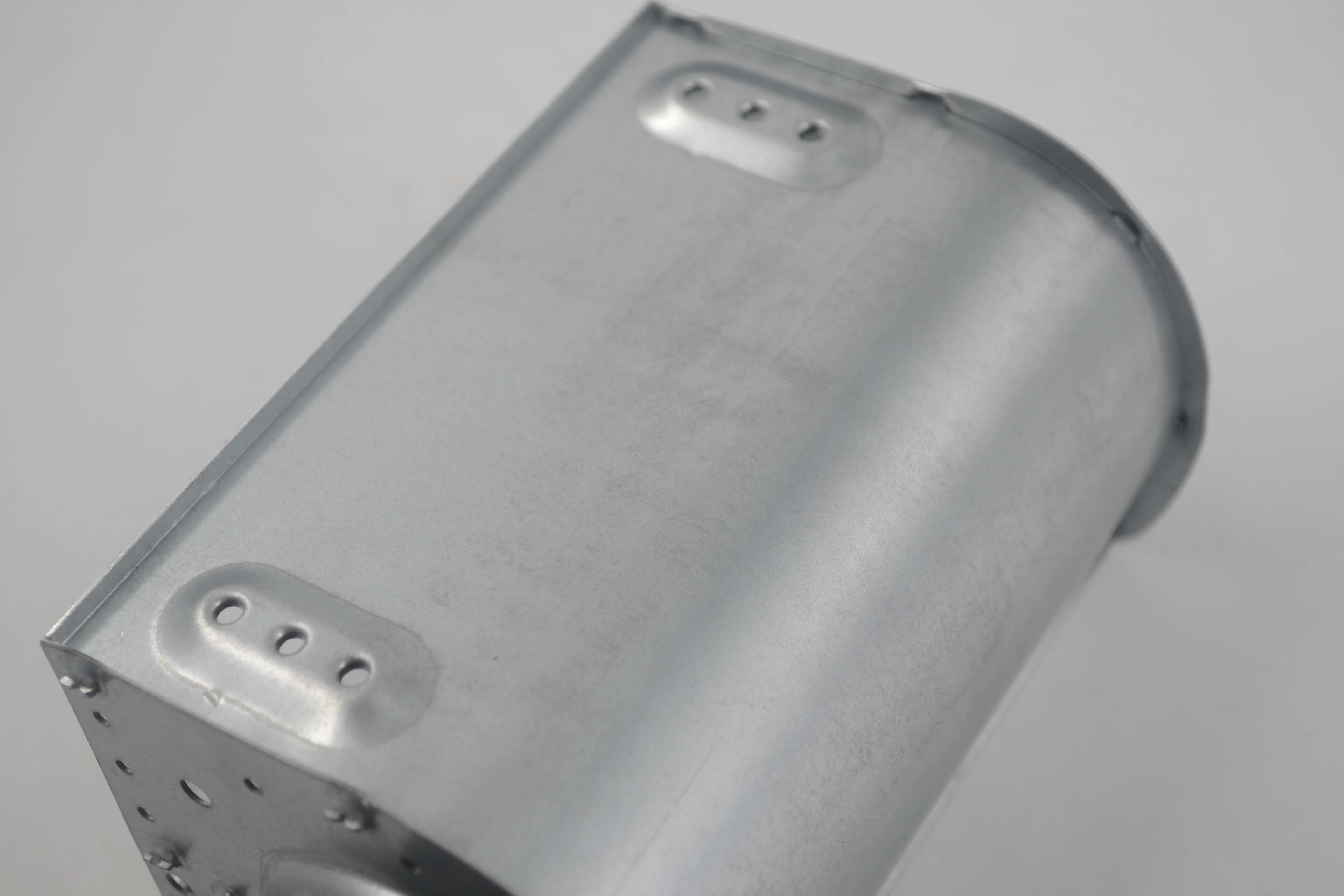

Compact Integrated Metal Housing

Made of premium thickened galvanized steel sheet, stamped and integrated by precision molds. Rugged, anti-oxidation, and rust-resistant with optimized aerodynamic air ducting.

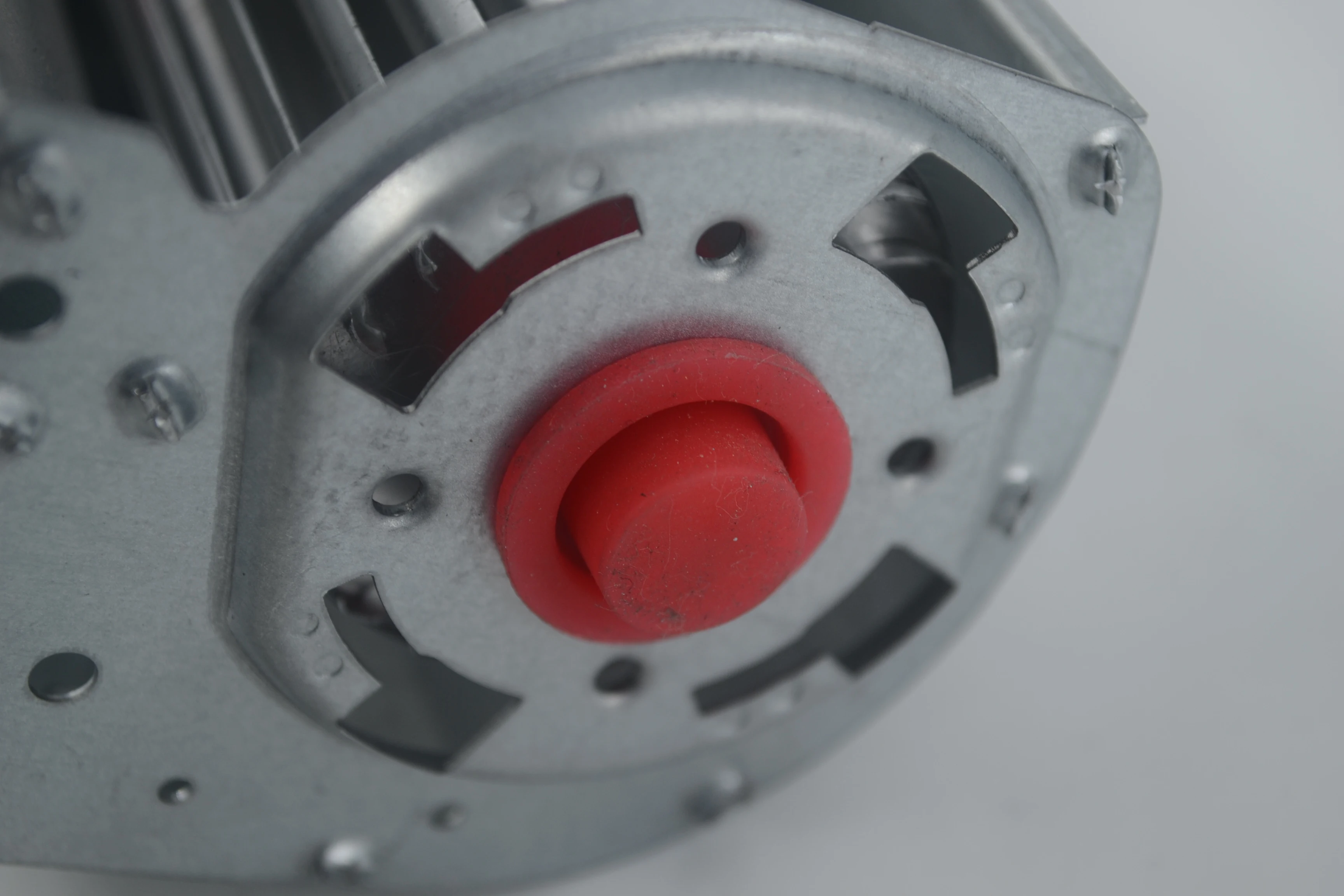

Flexible Rubber Damping System

Innovatively embedded with a high-elasticity, anti-aging red silicone damper ring at the bearing end. Effectively absorbs micro-vibrations and stops noise from propagating through the metal shell.

TECHNICAL SPECIFICATIONS

Item	Specifications
Rated Voltage	110V – 120V / 220V – 240V AC
Frequency	50Hz /60Hz
Input Power	10W – 25W
Speed	1800 RPM – 2800 RPM
Air Flow	50 CFM – 180 CFM
Static Pressure	15 Pa – 45 Pa
Noise Level	35 dB(A) – 48 dB(A)
Insulation Class	Class B / Class F
Wire Winding Material	Pure Copper/ Aluminum/ CCA
Motor Bearing	Ball Bearing / Oil Bushing

SCENE IMAGE

ABOUT THE SUPPLIER

Guangzhou Yuexun Electric Appliance Co., Ltd. is a professional motor manufacturer integrating R&D, production, and sales. With 28 years of industry experience, we focus on producing high-quality shaded-pole motors, capacitor-start motors, and various fan accessories. Leveraging our 13,000-square-meter factory and over 60 experienced technical craftsmen, we have achieved a daily production capacity of 10,000 units and possess strong OEM/ODM customization capabilities. From household appliance cooling to industrial ventilation, Yuexun Electric Appliance, with its precise technical solutions, strict quality assurance, and comprehensive after-sales service, has become a trusted partner for customers worldwide.

FACTORY PROFILE

PRODUCTION WORKFLOW

CERTIFICATION

PACKAGING & SHIPPING SPECIFICATIONS

FAQs

Do you offer OEM/ODM customization?

Yes, we support full customization (specs, design, packaging) for OEM/ODM projects.

What applications are your motors suitable for?

Home appliances, HVAC, commercial refrigeration, industrial manufacturing, medical equipment, etc.

Is free sample available?

Yes, free samples are provided (you only pay shipping cost). Lead time: 7-10 days.

What certifications & quality guarantee do you have?

Products meet ISO9001,RoHS,CE standards. 100% pre-shipment inspection, 2 years warranty.

What about logistics & after-sales service?

We support sea/air/express shipping. Online technical support and problem-solving after delivery.

Ordering and Pricing

• Minimum order quantity: 1000 piece
• Volume pricing:
  • 1000–2999 piece: US $3.52 / piece
  • 3000+ piece: US $3.29 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fan?

The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this cross flow fan carry?

It is supplied with CE / RoHS / CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the cross flow fan be supplied for my local voltage?

The standard configuration is AC 220V~240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
