Cross flow fan — 230V, blade material customizable. The complete factory specification follows. Made by Xiamen Boland Refrigeration Equipment Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Voltage: 230V
- Blade Material: customizable
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Application: Air curtains, air conditionging and heating application
- Mounting: Tangential Fan
Technical Specifications
| Voltage | 230V |
|---|---|
| Mounting | Tangential Fan |
| Blade Material | customizable |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China |
| Brand Name | Cross Flow fan Tangential Fan motor |
| Model | MTTF-30.90, MTTF-30.120, etc. |
| Application | Air curtains, air conditionging and heating application |
| Impeller | Aluminum construction |
| Bearing | Sleeve bearing or ball bearing |
| Working Temp | 0 to +60°C |
| Certificate | CE |
| Lead Wire | Cable or terminal |
| Noise | 35 DBA |
| Frequency | 50Hz |

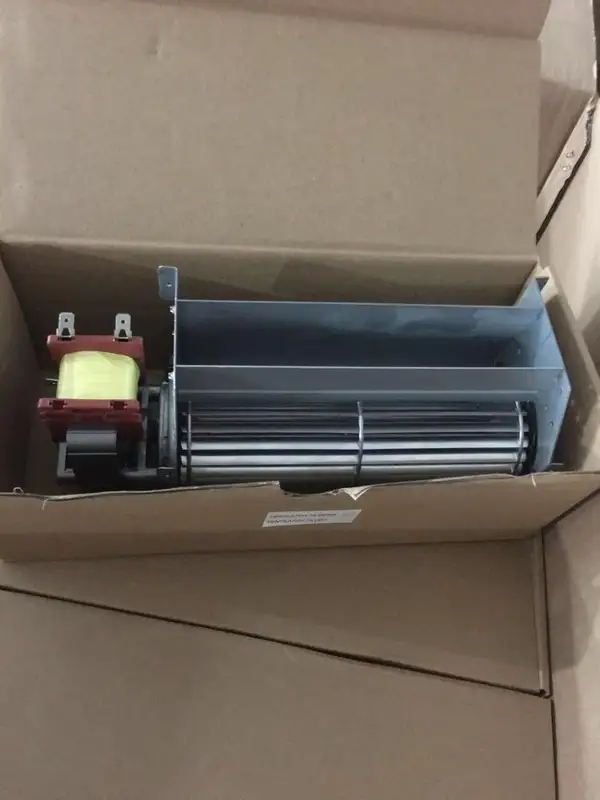

| Packaging Details | each one in a small box and 8 pcs in a strong carton box |
| Port Of Dispatch | Ningbo or Shanghai Port |
| Selling Units | Single item |
| Supply Ability | 10000 pieces per Week Cross Flow fan Tangential Fan motor with CE Certification |
Product Details

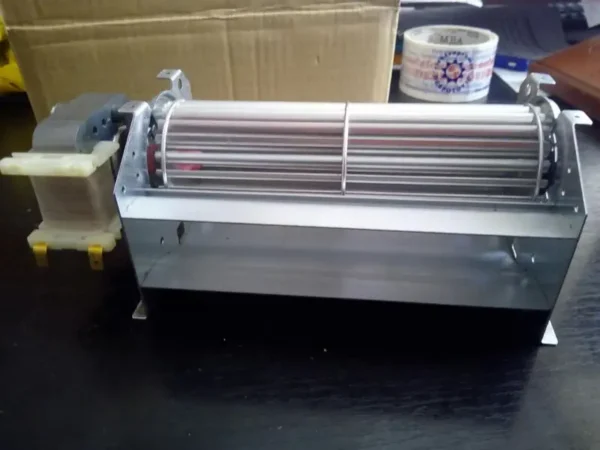

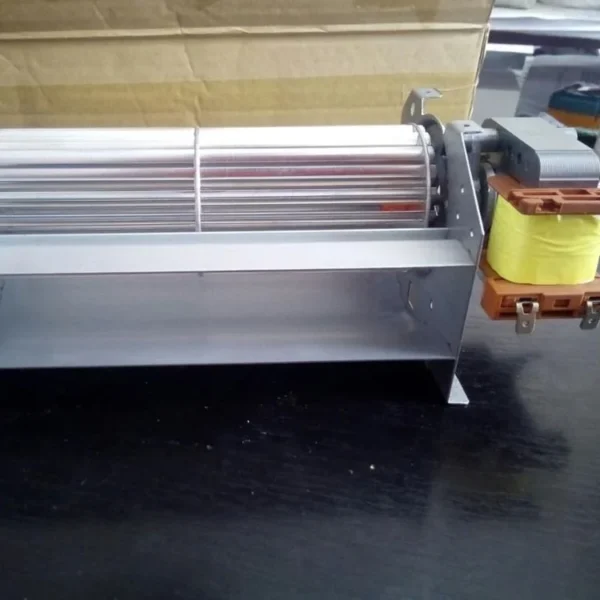

Cross Flow fan Tangential Fan motor with CE Certification
Tangential Fan
Cross flow or tangential fans provide wide, uniform air delivery of high capacity, widely used in air curtains, air conditioning and heating applications.
– Impeller: aluminum construction
– Bearing: sleeve bearing or ball bearing
– Working Temp: 0 to +60°C
– Insulation class: class B, class F
– Certificate: CE
– Lead wire: cable or terminal
Designation
Contact us
ICEAGE sales team is waiting to provide more detailed technical information and help you fine out proper products that meet your application.
Specification
|
Model |
Voltage(V) |
Frequency (Hz) |
Current(A) |
Input Power(W) |
Speed(RPM) |
Max.Air Volume (m³/h) |
Noise dB(A) |
|
MTTF-30.90 |
230 |
50 |
0.06 |
8.5 |
2800 |
40 |
35 |
|
MTTF-30.120 |
230 |
50 |
0.10 |
15 |
2800 |
55 |
36 |
|
MTTF-30.240 |
230 |
50 |
0.11 |
16 |
2800 |
100 |
37 |
|
MTTF-30.300 |
230 |
50 |
0.10 |
16 |
2800 |
120 |
39 |
|
MTTF-40.120 |
230 |
50 |
0.08 |
13 |
2750 |
90 |
35 |
|
MTTF-40.180 |
230 |
50 |
0.13 |
21 |
2700 |
140 |
36 |
|
MTTF-40.240 |
230 |
50 |
0.11 |
17.5 |
2700 |
190 |
37 |
|
MTTF-40.300 |
230 |
50 |
0.13 |
21 |
2700 |
230 |
39 |
|
MTTF-45.180 |
230 |
50 |
0.10 |
12.5 |
1300 |
64 |
45 |
|
MTTF-45.240 |
230 |
50 |
0.22 |
23 |
1600 |
135 |
45 |
|
MTTF-45.300 |
230 |
50 |
0.19 |
22.5 |
1300 |
107 |
41 |
|
MTTF-45.360 |
230 |
50 |
0.22 |
26 |
1400 |
158 |
42 |
|
MTTF-50.120 |
230 |
50 |
0.08 |
15 |
2500 |
130 |
40 |
|
MTTF-50.180 |
230 |
50 |
0.23 |
20 |
2650 |
210 |
41 |
|
MTTF-50.240 |
230 |
50 |
0.11 |
20 |
2200 |
220 |
42 |
|
MTTF-50.300 |
230 |
50 |
0.13 |
22 |
2200 |
270 |
45 |
Basic Information
Business Type: Trading Company
Main Products: Refrigerant Gas, Copper Tube, A/C Bracket, Compressor, Insulated Tube, Axial Fan Motor, etc.
Location : Fujian, China(Mainland)
Year Established: 2009
Total Employees: 101-200 Peoples
Total Annual Revenue: US$ 2.5Million – US$ 5 Million
Main Markets: Mid East, South America, North America, Southeast Asia, Africa, North America.
√ Verification Type: Third-party Verification service provider
Business License
Registeration No.: 350203200185516
Date of Issue: 2009.09.04
Registered Capital: RMB 1,000,000
√ Company Name: Xiamen Boland Refrigeration Equipment Co., Ltd.
√ Country/Territory: China(Mainland)
√ Registered Address: Unit 601-602, No. 1517, Fanghu North 2nd Road, Huli Dist., Xiamen, Fujian, China (Mainland)
√ Year Established: 2009
√ Legal Representative/CEO: Xianggeng Wang
√ Legal Form: Limited Liability Company (Invested or Controlled By Natural Persons)
√ Issuing Authority: Xiamen City Huli Administration for Industry and Commerce.
√ Operational Address: Unit 601-602, No. 1517, Fanghu North 2nd Road, Huli Dist., Xiamen, Fujian, China (Mainland)
√ Other Information
Name: Ms. Cheryl Hoo
Department: Foreign Trade Dept.
Job Title: Sales Representative
Professional Certification
Main Markets
| Main Markets | Total Revenue (%) | |
| Mid East | 30.00% | |
| South America | 30.00% | |
| Africa | 30.00% | |
| Southeast Asia | 5.00% | |
| North America | 3.00% | |
| Eastern Europe | 2.00% | |
| Total Annual Revenue: | US$2.5 Million – US$5 Million |
Business Terms
Accepted Delivery Terms: FOB, CFR, CIF
Accepted Payment Currency: USD, EUR
Accepted Payment Type: T/T, L/C
Nearest Port: NINGBO, SHANGHAI
Trade Ability
No. of Employees in Trade: 11-20 People
Average Lead Time: 30 Days
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500+ piece: US $3.2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
