This cross flow fans comes from Jiangsu Jitian International Trade. The specification below is the factory’s own. Supplier profile: 7 years on the platform, factory-assessed. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Cross Flow Fans
- Total Power Of Dryer: 45.4kw
- Batch Processing Capacity: 20T
- Warranty: 1 Year
- Place Of Origin: China
- Structural Type(Continuous/Batch Cycle): 5HY-20T Double Bin Batch Cycle Grain Dryer
- Weight (Kg): 7600
Technical Specifications
| Machinery Test Report | Provided |
|---|---|
| Core Components | Engine |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 7600 |
| Place Of Origin | China |
| Use | Corn and other grain drying |
| Structural Type(Continuous/Batch Cycle) | 5HY-20T Double Bin Batch Cycle Grain Dryer |
| Drying Method | Direct heating |
| Dimensions | 8.1*3.2*7.2m |
| Batch Processing Capacity | 20T |
| Machine Weight | 7.6T |
| Drying Section Height | 3m |
| Hot Air Temperature Range | 0-200℃ |
| Total Power Of Dryer | 45.4kw |
| Dryer Productivity | 60-80 t/24h |
| Selling Units | Single item |
Product Details

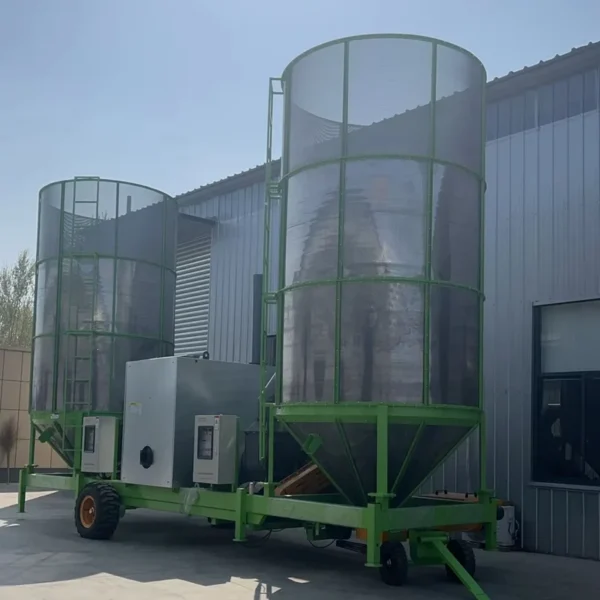

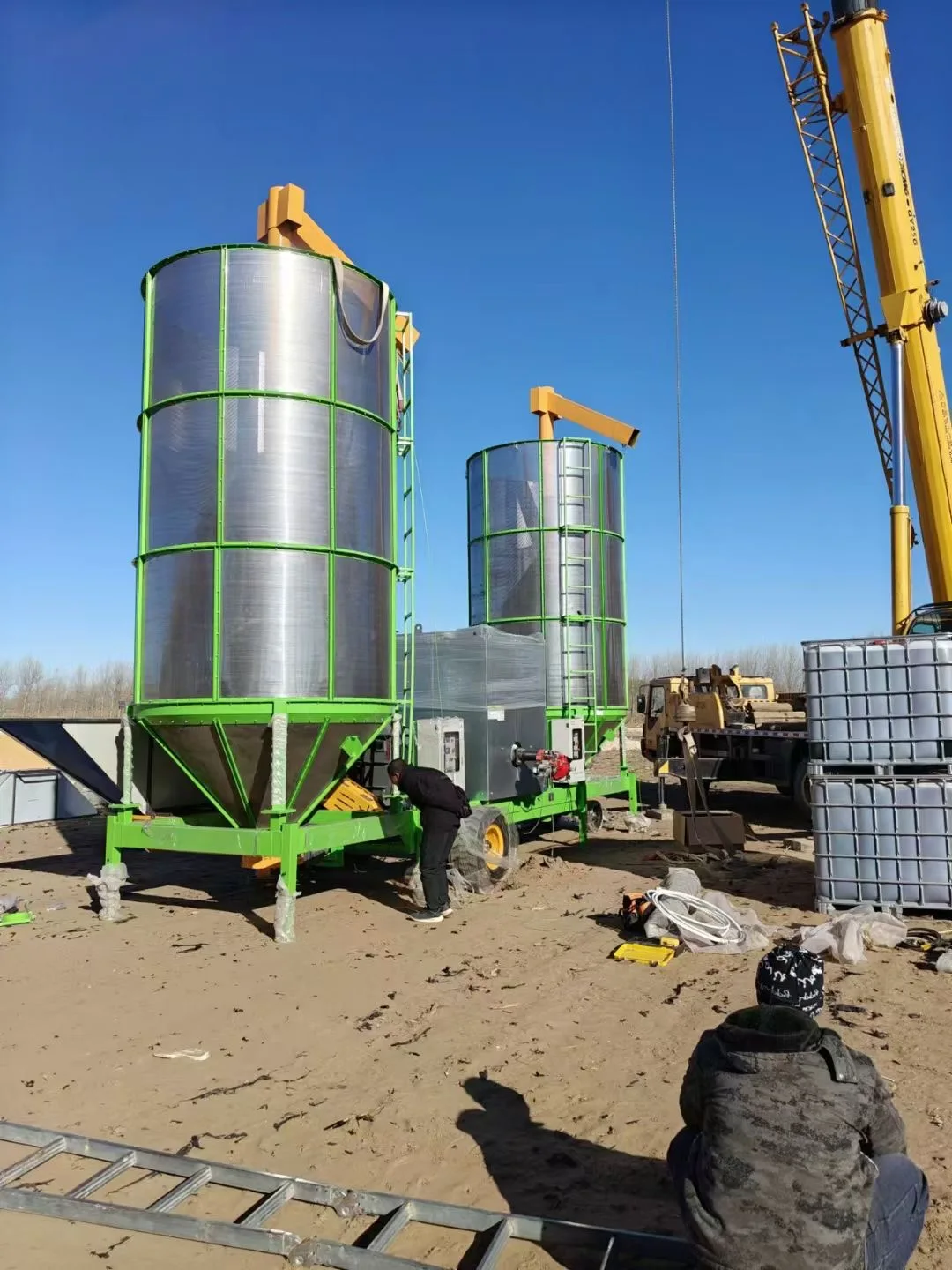

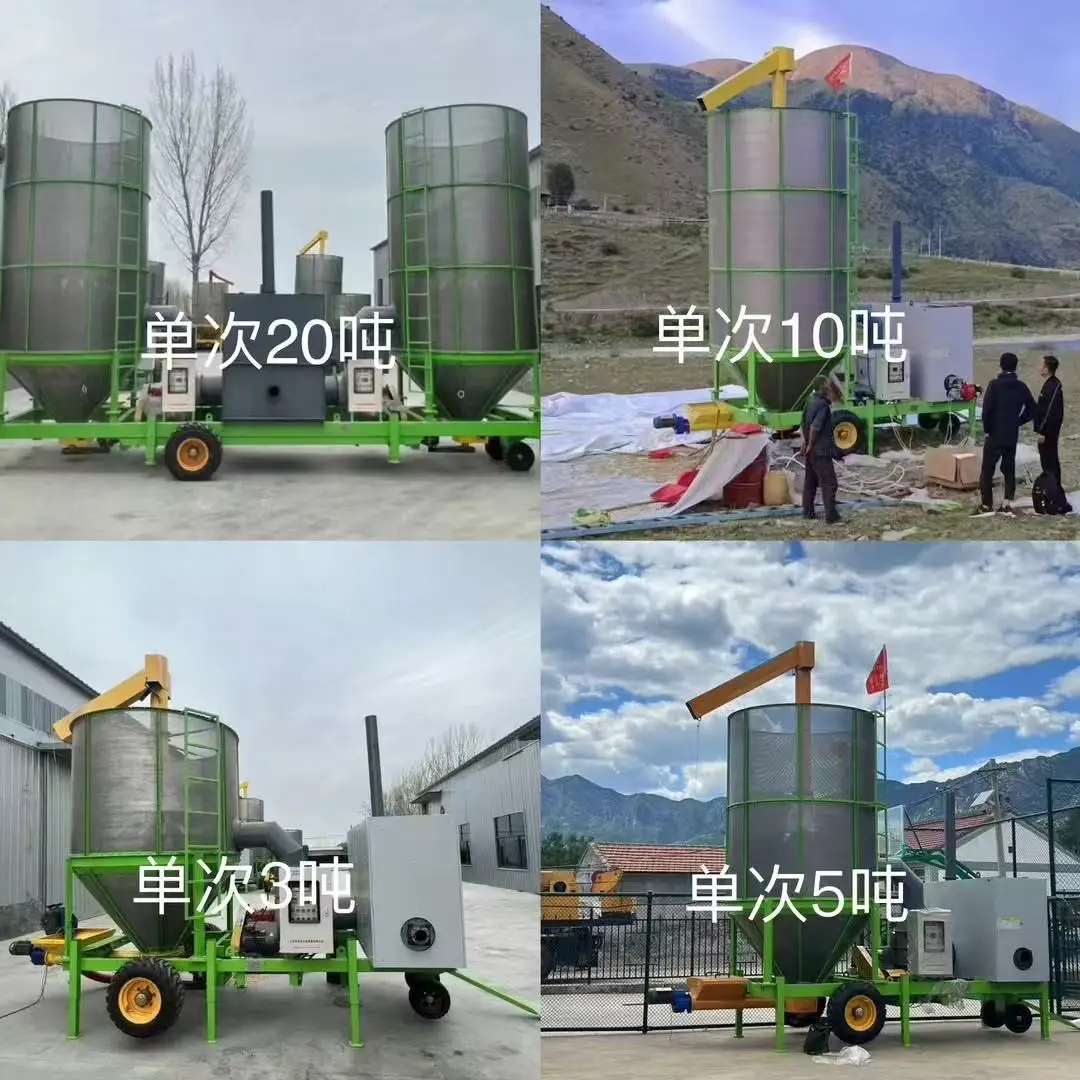

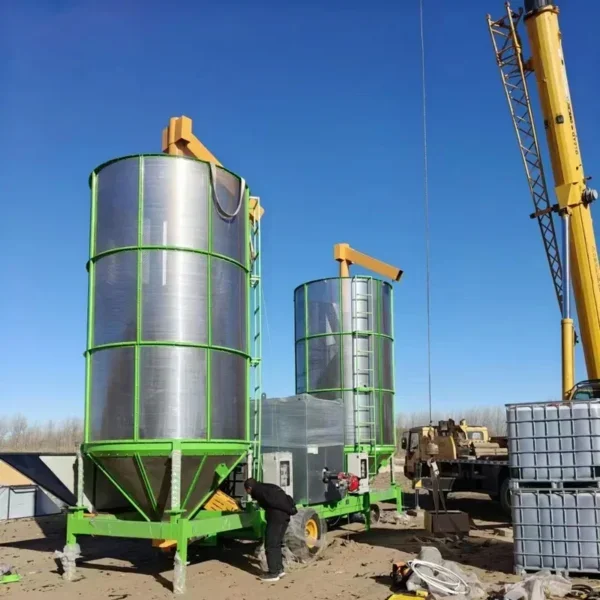

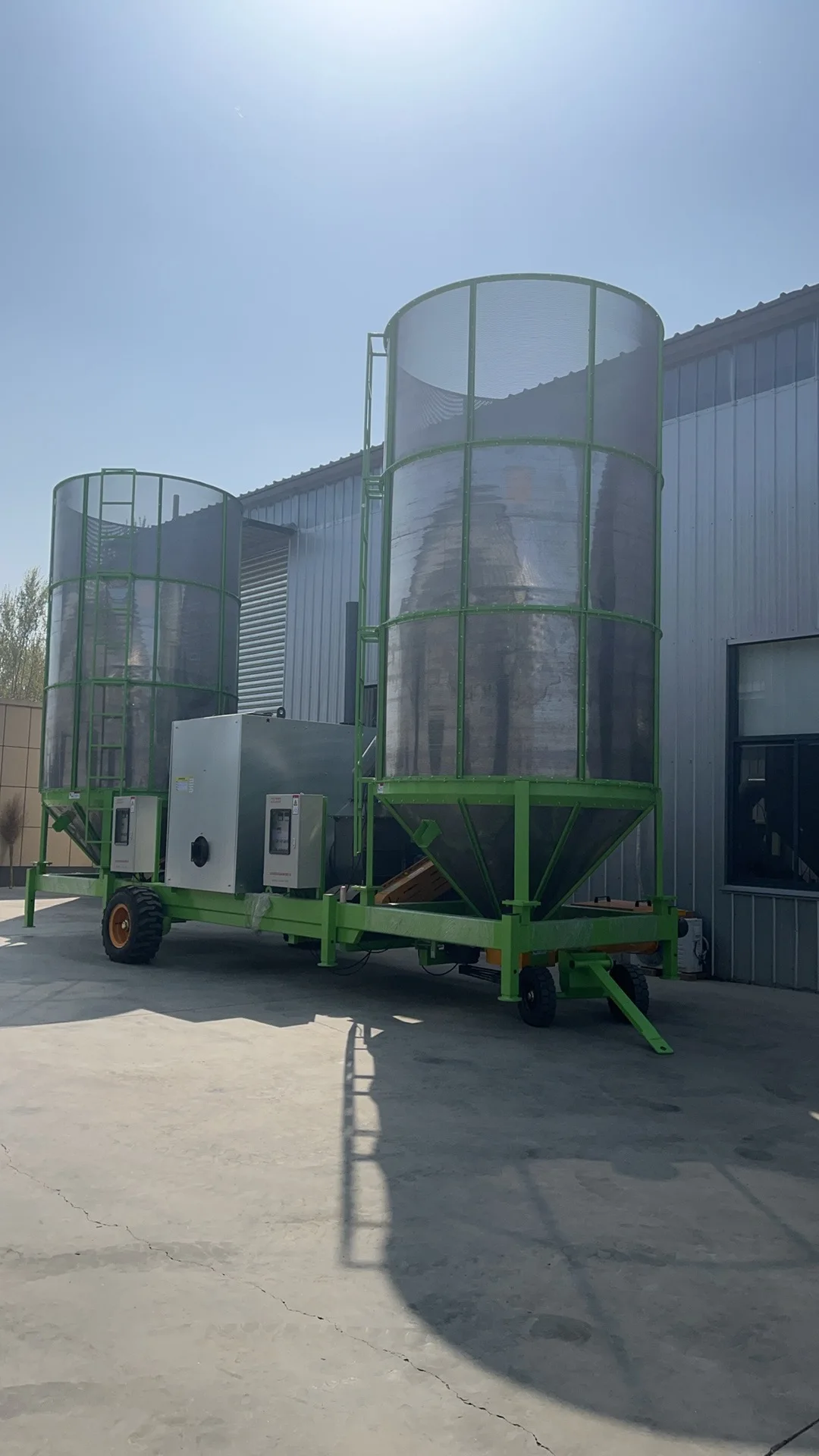

Batch Cycle Mobile Grain Dryer， It is an efficient and convenient grain drying equipment, suitable for drying various grain crops. This machine adopts advanced hot air circulation technology, which can dry grain quickly and evenly, maintaining the nutritional content and taste of grain.
project | unit | parameter |
Structural type(Continuous/Batch Cycle) | / | 5HY-20T Double Bin Batch Cycle Grain Dryer |
Drying method(direct heating/indirect heating) | / | Direct heating |
Drying method (cocurrent/cross-flow/mixed flow) | / | Cross Flow |
Dryer dimensions (length*width*height) | m | 8.1*3.2*7.2 |
Dryer travel dimensions | m | 8.6*3.2*7.2 |
Batch processing capacity | T | 20 |
Machine weight | T | 7.6 |
Drying chamber material | / | Stainless steel mesh thickness 1.5mm |
Anti-rust treatment of the whole dryer | / | Electrostatic spraying process |
Precipitation rate | %/h | 2.2-2.5 |
Number of drying sections | / | 1 |
Drying section height | m | 3 |
Hot air temperature range | ℃ | 0-200 |
Number of hot air blowers | / | 2 |
Hot air supply mode (full pressure/negative pressure) | / | full pressure |

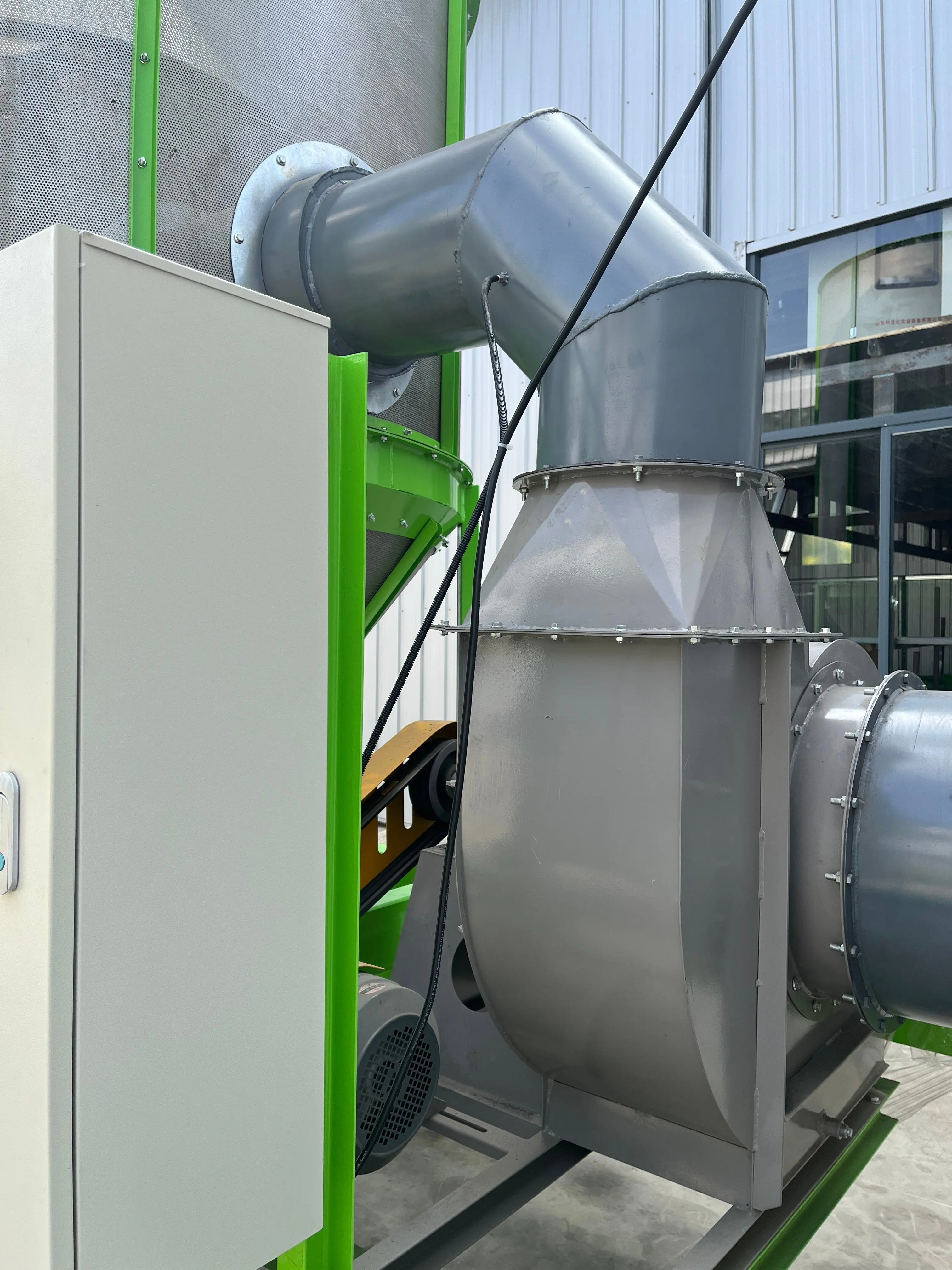

Fan model name | / | 4-72 – Centrifugal Fan |
Fan motor power | KW | 15*2 |

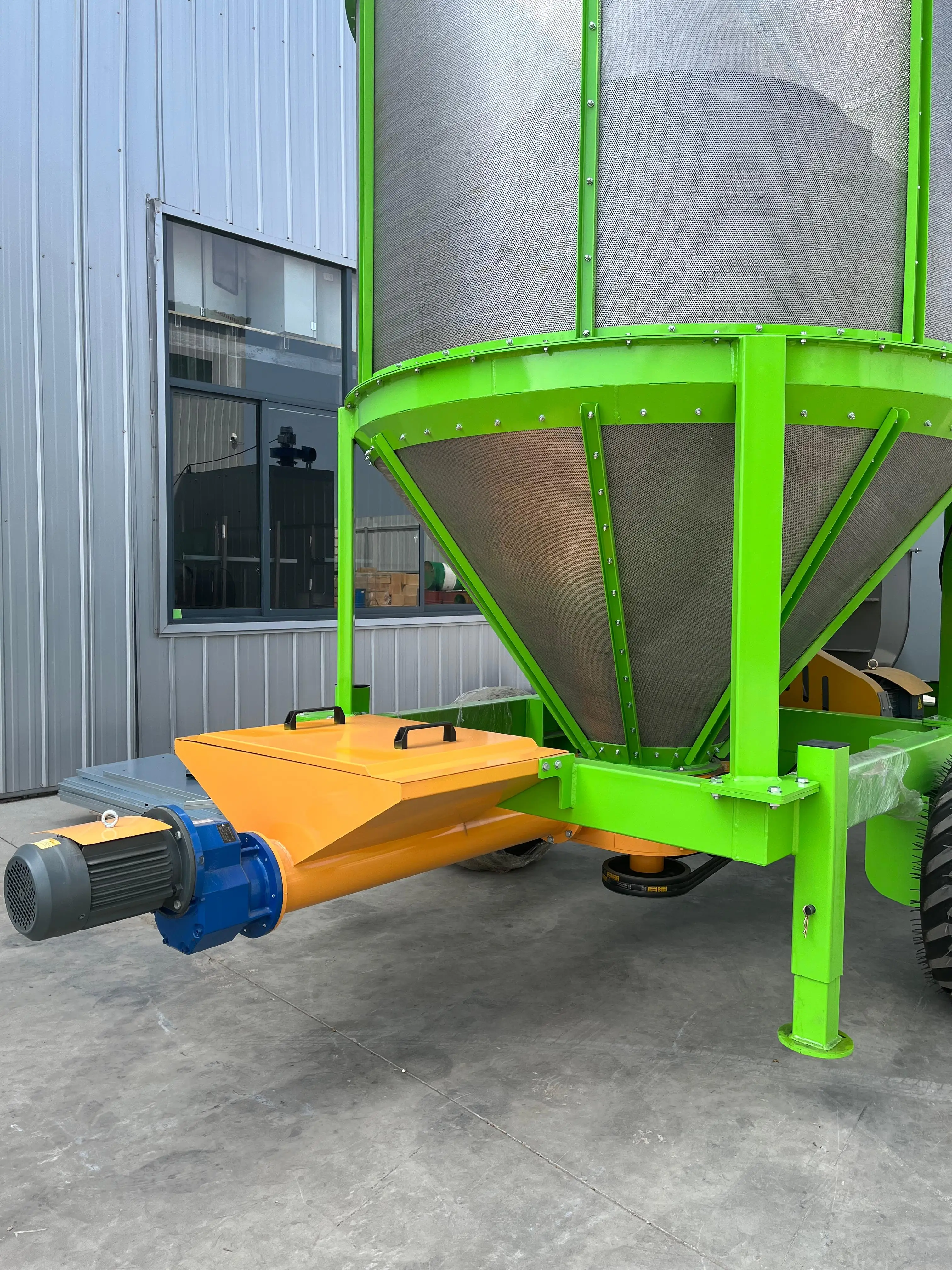

Grain lifting motor | KW | 5.5*2 |
Reducer motor | KW | 2.2*2 |
Total power of dryer | KW | 45.4 |
Dryer productivity | t/24h | 60-80 |
Heat source type | Coal, firewood, biomass pellets, natural gas, liquefied gas, boiler oil, tire oil, diesel, methanol, etc. |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $22500 / set
- 10+ set: US $21600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Jitian International Trade Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Jiangsu Jitian International Trade Co., Ltd. range on HVACR Nexus.
