Cross Flow Fans, 230V, 0-10V, HVAC

Manufactured by Pbm Motor And Fan(suzhou), this cross flow fans is documented here exactly as the factory publishes it. Supplier profile: 4 years on the platform. Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Cross Flow Fans

• 电压: 230伏交流电
• 安装方式: 自立式
• 刀片材质: 铝合金
• 定制服务: OEM, ODM
• 售后服务: 在线支持
• 保修: 5年

Technical Specifications

Product Details

PRODUCT HIGHLIGHTS

•  Dia:30-150mm;    Power:10-330W;    Air flow:35-4,200m³/h   Air pressure:17-110Pa
• Compact Design: The long, cylindrical impeller paired with a flat, thin body results in a smaller footprint and lower space requirement. The modular structure allows for narrow-frame concealed installation, and high-precision airflow guidance ensures smoother air delivery.
• Low Noise: Scientifically optimized flow channel structure eliminates vortex noise. Combined with angled blades, precision dynamic balancing of the impeller, and multiple noise reduction features including shock-absorbing silicone clips and sound-absorbing airflow guidance in the volute, the operation is quiet and low-noise.

ABOUT THE SUPPLIERPBM Motor and Fan (Suzhou) Co., Ltd located in mainland China, is a professional manufacturer specializing in EC motors, fans, and system solutions. The company has developed rapidly and, with its extensive product line and consistent reliability, has become a trusted supplier for many of the world’s leading ventilation and refrigeration equipment brands.

FACTORY PROFILE

SCENE IMAGE

1.General Characters

Rated Voltage	230 VAC	Life Expectance	30,000 Hours
Frequency	50 Hz	Direction of Rotation	Clockwise seen on rotor
Rated Speed	2500 RPM	Dimension	See dimension drawing
Input Current	0.11A	Material of Impeller	Aluminum alloy
Input Power	14.6 W	Air Flow	33.54 CFM / 57 m³/H
Acoustical Noise	36 dB(A)	Static Pressure	1.94 mmH₂O / 19 Pa

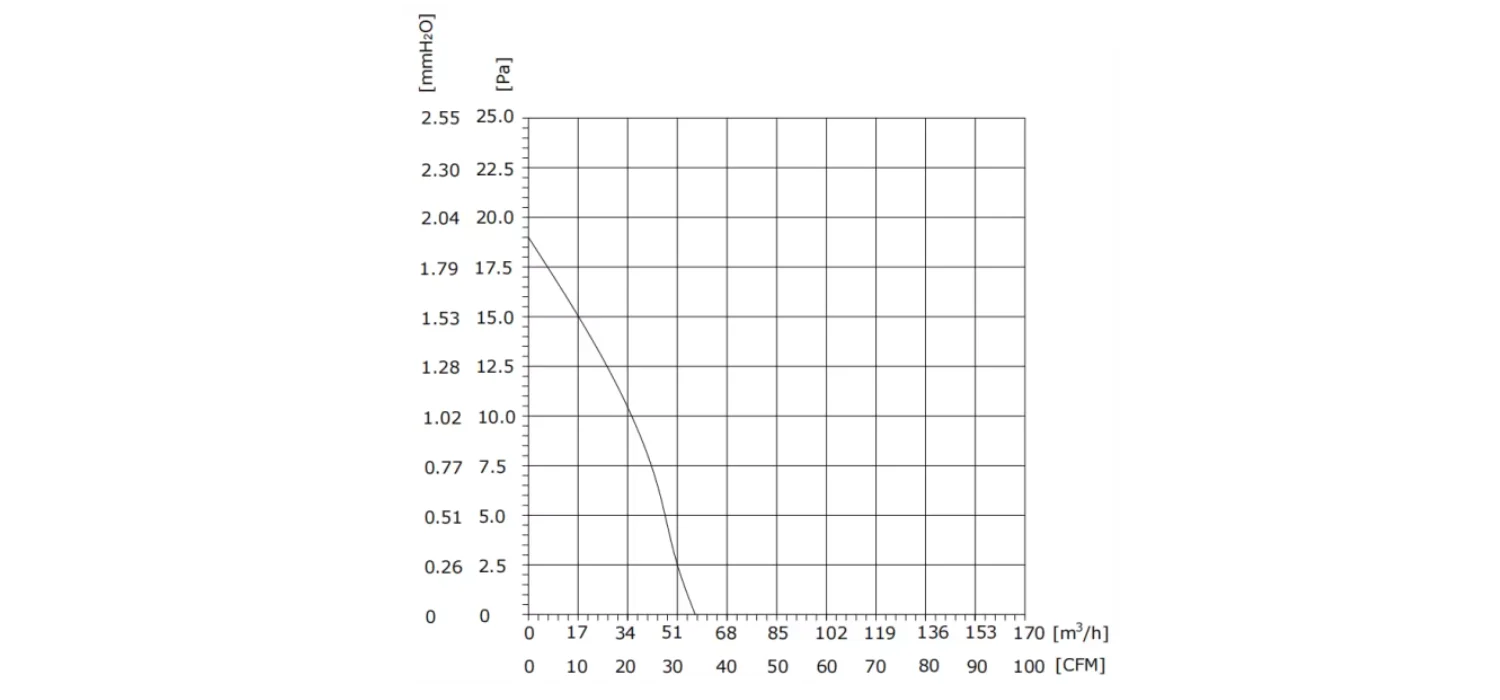

2. Performance Curve

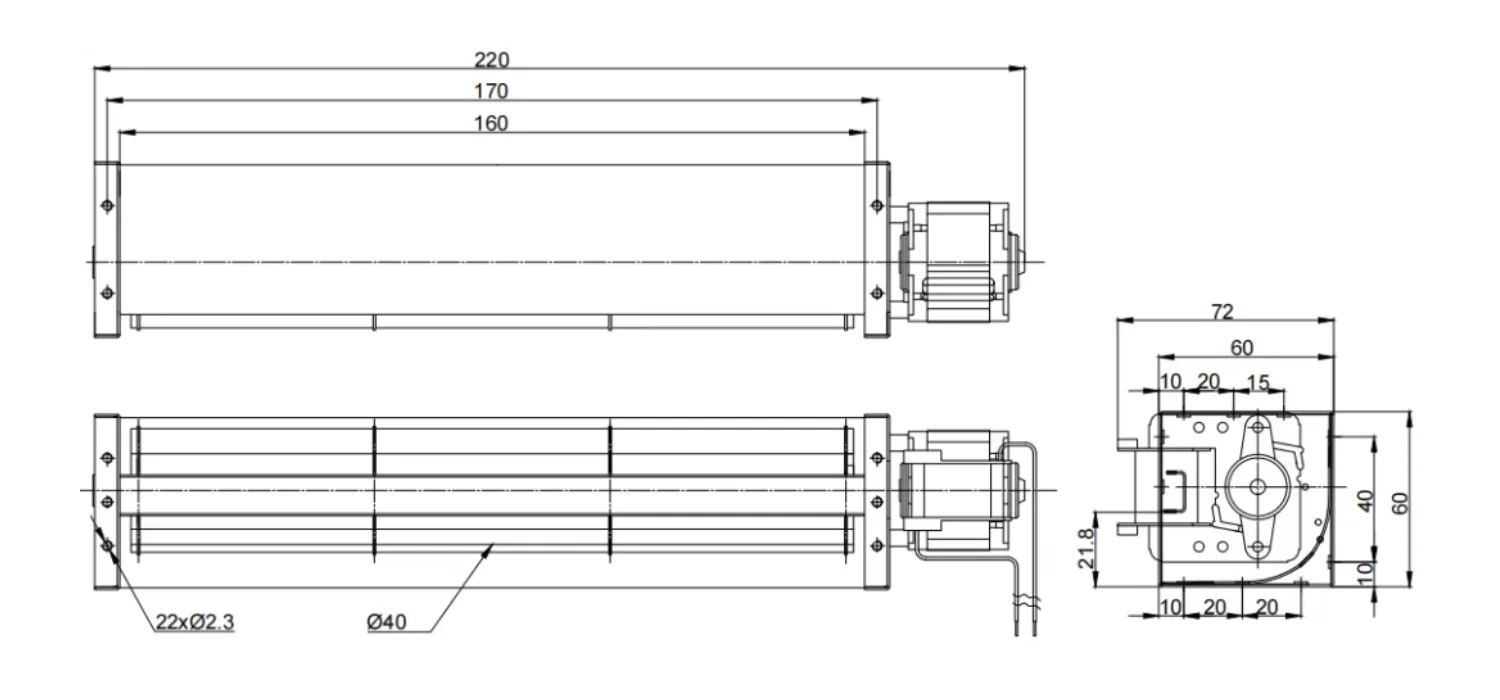

3. Outline Drawing

Model Part No.	Rated Voltage VAC	Air Flow m³/H	Air Pressure Pa	Rated Speed RPM	Sound Level dB(A)	Total Length mm
PC40B1A98B	115	40	25	3200	35	158
PC40B2A98B	230	36	20	2700	35	158
PC40B1A160B	115	62	24	3000	36	220
PC40B2A160B	230	57	19	2500	36	220
PC40B1A198B	115	77	24	2900	38	258
PC40B2A198B	230	68	19	2400	36	258
PC40B1A250B	115	98	24	3000	38	315
PC40B2A250B	230	90	19	2500	37	315
PC40B1A300B	115	113	23	2800	39	365
PC40B2A300B	230	106	19	2400	38	365
PC40B1A348B	115	152	24	2900	39	418
PC40B2A348B	230	132	19	2500	37	418
PC40B1A420B	115	170	22	2700	38	490
PC40B2A420B	230	163	19	2500	37	490

CERTIFICATIONS

TRADE SHOW PARTICIPATION

PACKAGING & SHIPPING SPECIFICATIONS

FAQs

Q: What are the typical applications for these cross-flow blowers?

A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors,
air curtains, air conditioners, and heaters.

Q:How about the delivery time ?
A:Within 25 days after we receive the order.

Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.

Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–499 piece: US $9.35 / piece
  • 500–999 piece: US $8.83 / piece
  • 1000+ piece: US $8.59 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fans?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
