Cross flow fans — 380V, 22.9KW. The complete factory specification follows. Made by Henan New Guoxin Machinery Manufacturing Co., Ltd. (9 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Cross Flow Fans
- Power(W): 22.9KW
- Voltage: 380V
- Humidity Discharge Capacity: 875-937.5kg/hr
- Material: SUS304
- Warranty: 1 Year
- Place Of Origin: Henan, China
Technical Specifications
| Type | Hot Air Furnace |
|---|---|
| Voltage | 380V |
| Heating Method | Gas Heating |
| Material | SUS304 |
| Power(W) | 22.9KW |
| Application | Chemicals Processing, Food Processing |
| Core Components | Pump, Motor, PLC |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Weight (Kg) | 4000 |
| Brand Name | Guoxin |
| Dimension(L*W*H) | 12*2*2.5m |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Item | hemp biomass dryer |
| Mesh Layer | 4-5 |
| Humidity Discharge Capacity | 875-937.5kg/hr |
| Fuel | Diesel,gas,electricity, hot air etc. |
| Drying Space | 104m2 |
| Design | Fully automatic and continuous drying. |
| Certificate | CE/ISO9001:2008 |
| Packaging Details | hemp biomass dryer packing: standard container 20GP, 40GP,40HQ |
| Port Of Dispatch | Qingdao Port,Shanghai Port, as you required |
| Selling Units | Single item |
| Single Package Size | 20X20X2 cm |
| Single Gross Weight | 10.000 kg |
| Supply Ability | 20 sets per Month hemp biomass dryer |
Product Details

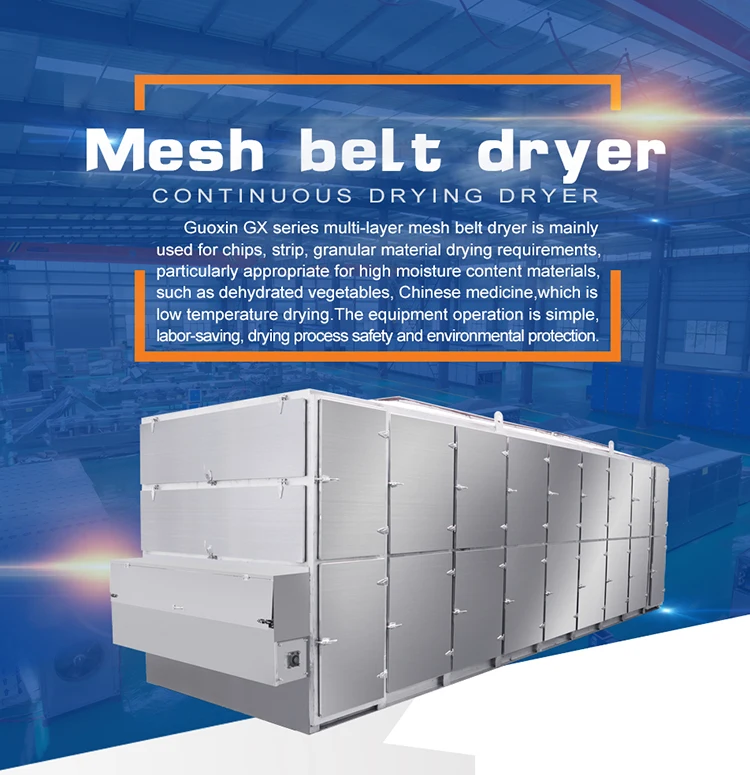

Big capacity Continuous mesh belt hot air hemp biomass dryer for CBD oil
Brief introduction of Hemp biomass dryer:
The Hemp biomass dryer is widely used for foods, Agriculture products, dehydrated vegetables, fodder and chemical material and other processing industry.

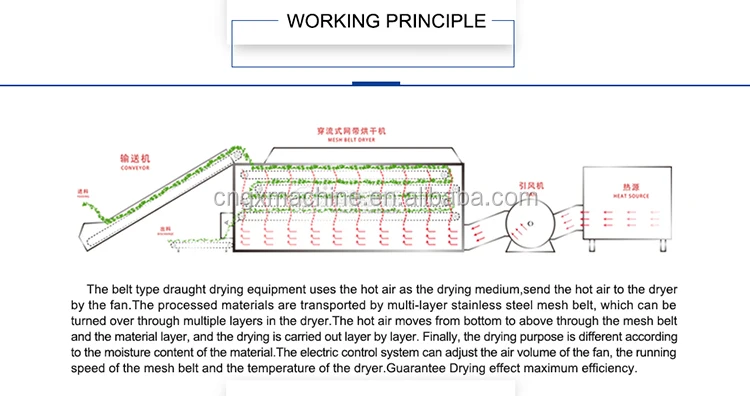

The working principle of Hemp biomass dryer:
Hemp are fed by the feeding conveyor to the dryer. The material passes from the first layer to the last layer via the conveyor belt, it use hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the hemp dryer. After drying, the dried material is conveyed by the discharge conveyor.
The structure of Hemp biomass dryer:
1.Feeding conveyor
2.Drying system
3.Fan
4.Heat resource
5.Discharge conveyor
6.Control system
Technical Parameters of Hemp biomass dryer:
| Model No. | GX4-6 | GX4-8 | GX4-10 | GX4-12 | |
| Dimension L*W*H (mm) | 6000*2000*2300 | 8000*2200*2300 | 10000*2000*2300 | 12000*2000*2400 | |
| Layers | 4 | 4 | 4 | 4 | |
| Drying area (m2) | 29 | 45 | 57 | 69 | |
| Drying capacity of fresh hemp leaf (30-40 ℃) | 100-150 kg/hr | 200 kg/hr | 300 kg/hr | 400 kg/hr | |
| Total Power | 15kw | 19kw | 26kw | 27kw | |
| Fan Power | 11kw | 15kw | 18kw | 22kw | |
| Operating hours | 24 hrs continuous working | ||||
| Drying temperature | 0-120 ℃ | ||||

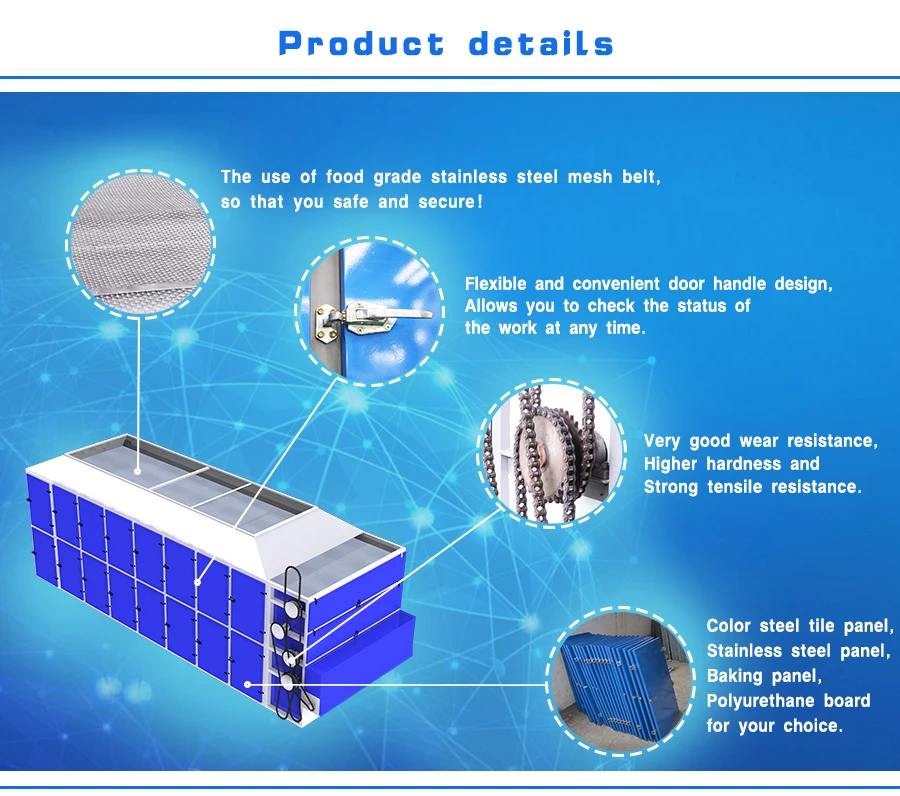

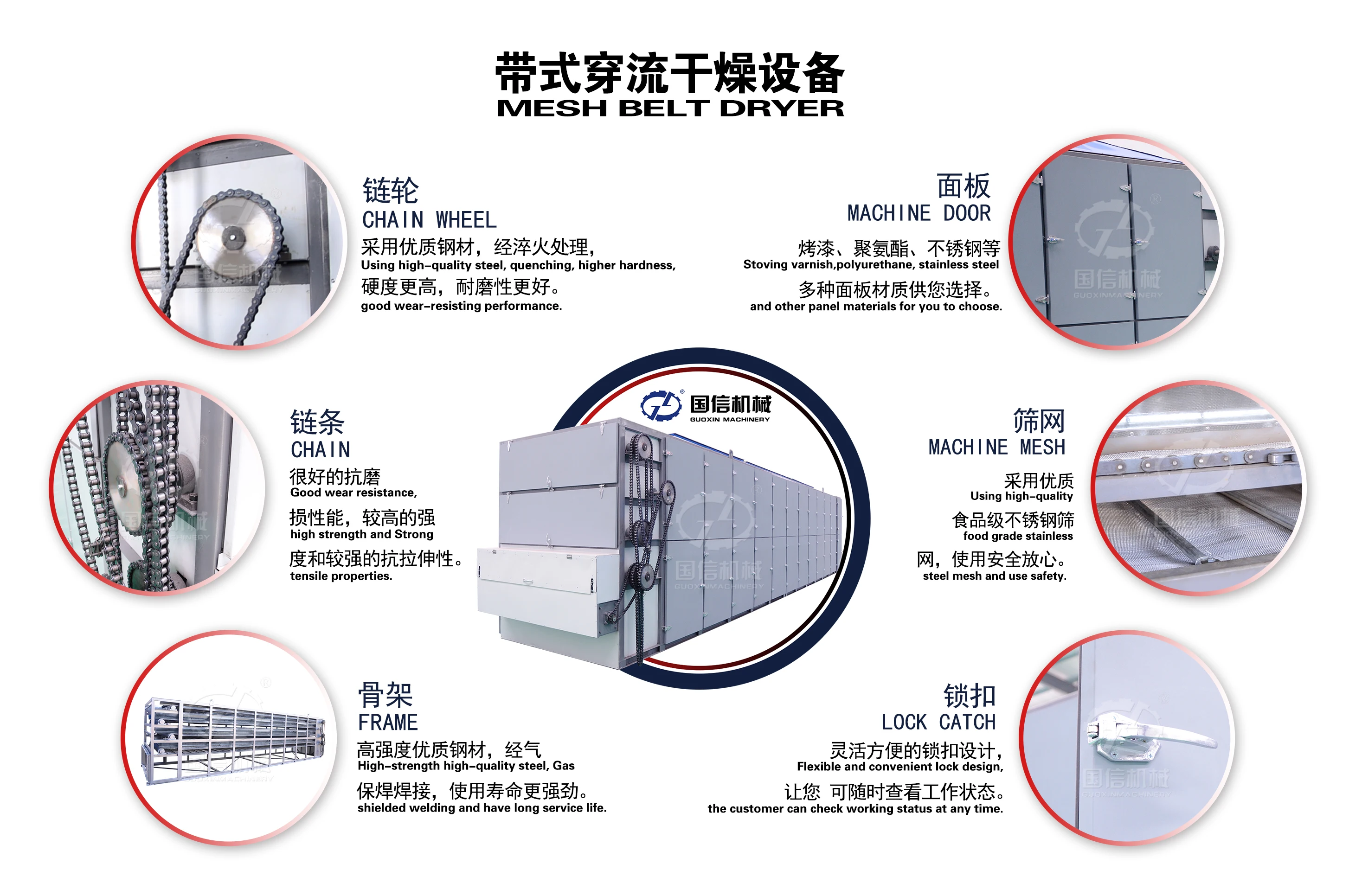

The details of Hemp biomass dryer:
The advantage of Hemp biomass dryer:
1. Big Capacity
2. Continuous work
3. High drying quality for each layer
4. Clean drying, not direct heating, heat exchange system
Our Techinical Support for Hemp biomass dryer:
1. After sale center in Oregon
2. More spare parts free when delivery
3. One year warranty

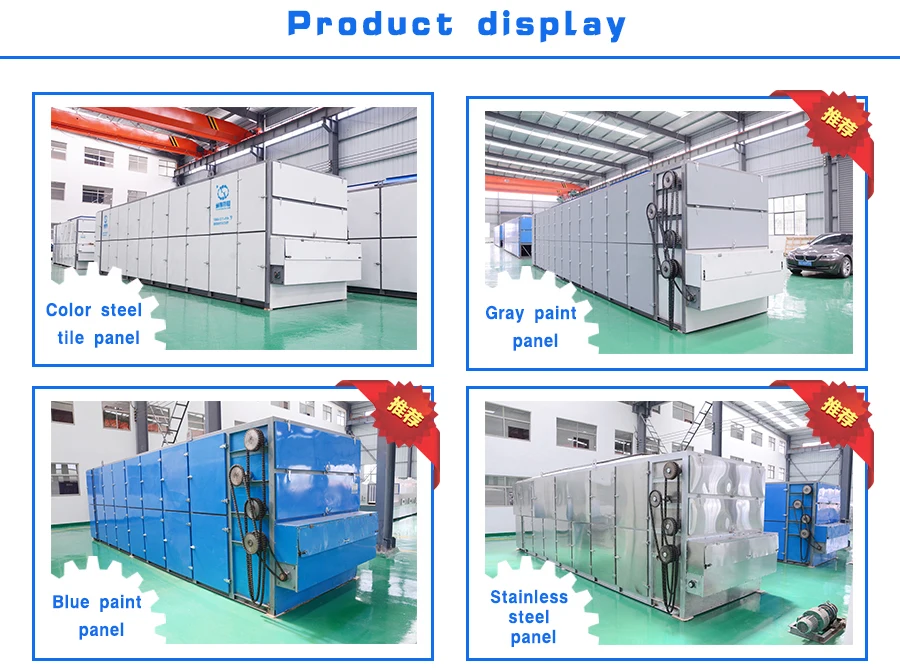

Options for Material for Hemp biomass dryer:
1. Color Steel tile
2. Stoving varnish paint steel
3. Stailess Steel
Customer visit our factory to check Hemp biomass dryer:

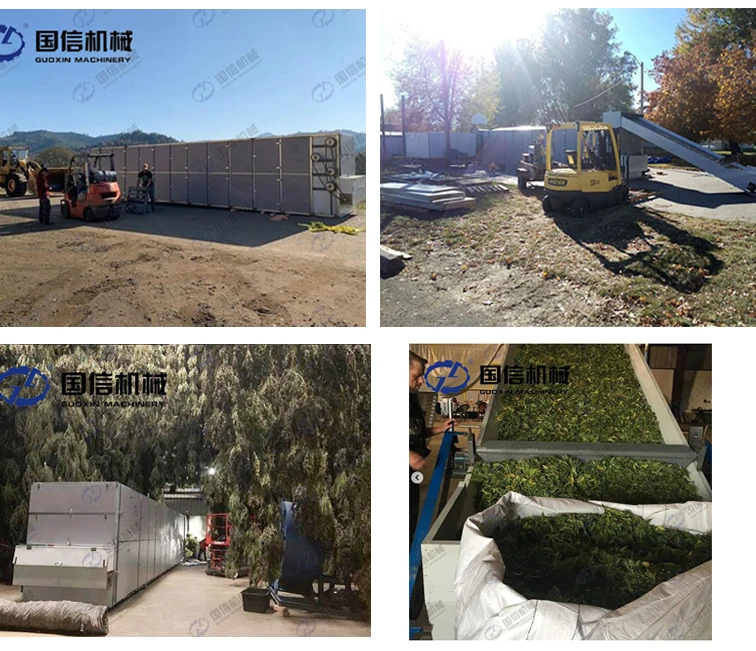

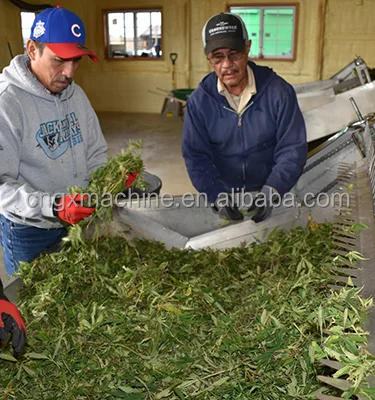

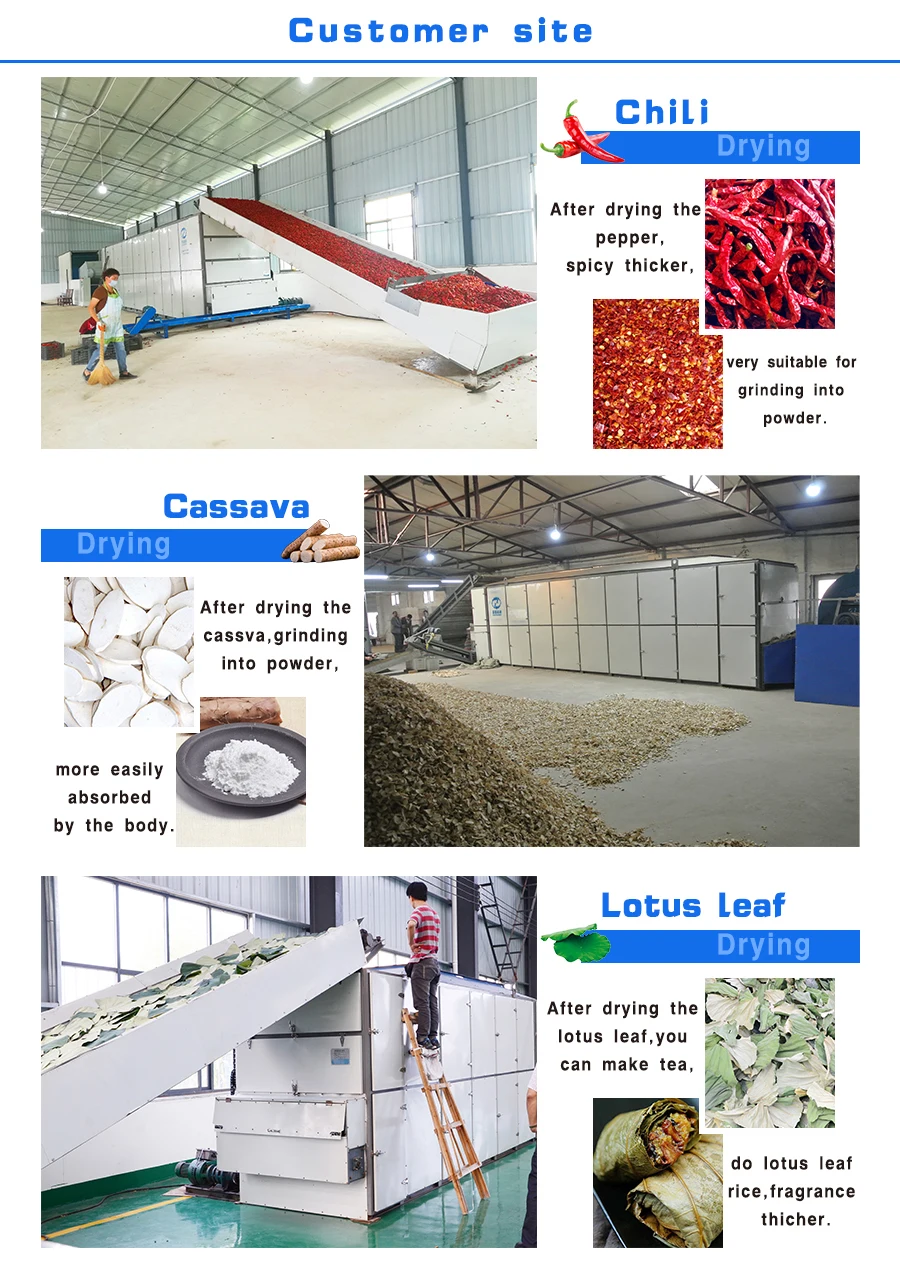

The working sites of Hemp biomass dryer:
About GUOXIN:
After sales service:
Guoxin Machinery Factory will dispatch one engineer to buy's working sites help buyer install drying processing line until the dryer get good effect.then our engineer will back to China.
If you are interested in our Hemp biomass dryer, please contact.
Stella Liu (sales manager)
Mol/What'sapp:86-18203680570
Email: stella.liu(at)cngxmachine.cn
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $55000 / set
- 5+ set: US $50000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fans carry?
It is supplied with CE/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fans be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
