This cross flow fans is published with the manufacturer’s full specification — 380V, 4kw. Made by Gongyi Xiaoyi Mingyang Machinery Plant (13 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Cross Flow Fans
- Power(W): 4kw
- Voltage: 380V
- Material: wood waste,sawdust,wood chips etc
- Raw Material Diameter: between 1-5mm
- Warranty: 1 Year
- Certification: CE ISO
Technical Specifications
| Type | Flash Drying Equipment |
|---|---|
| Voltage | 380V |
| Power(W) | 4kw |
| Application | Chemicals Processing |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Place Of Origin | Henan, China |
| Brand Name | Mingyang |
| Material | wood waste,sawdust,wood chips etc |
| Product Shape | hexagon or as you need |
| Output | 0.4-0.6t/h |

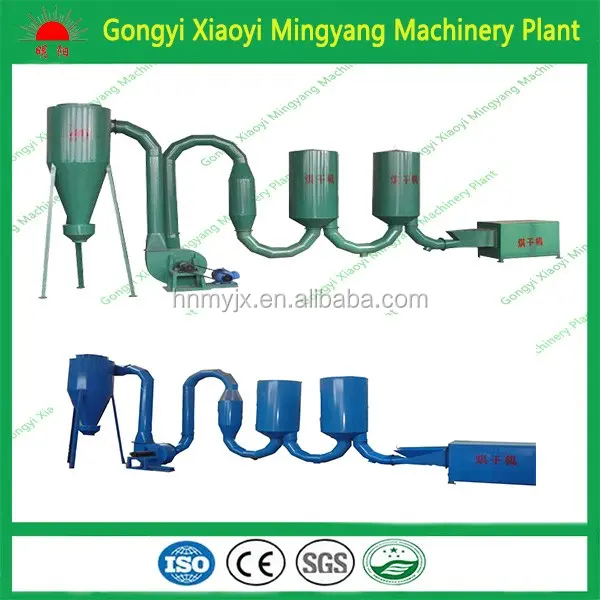

| Name | Wood Sawdust Flash Dryer |
| Fuel | wood,fuel gas or oil |
| Raw Material Diameter | between 1-5mm |
| The Moisture Before Processing | 20-40% |
| The Moisture After Processing | 8-12% |
| Feature | High Efficiency Low Cost |
| After-Sales Service Provided | Field installation, commissioning and training |
| Certification | CE ISO |
| Port Of Dispatch | Qingdao or Shanghai port |
| Selling Units | Single item |
| Supply Ability | 160 sets per Month |
Product Details
Product Application

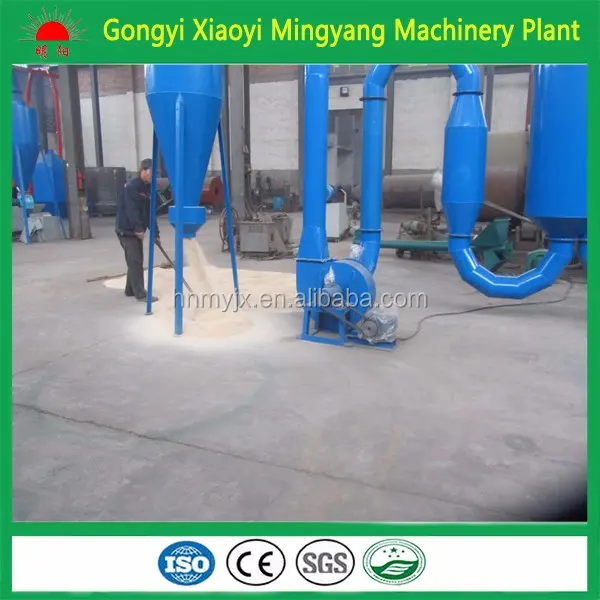

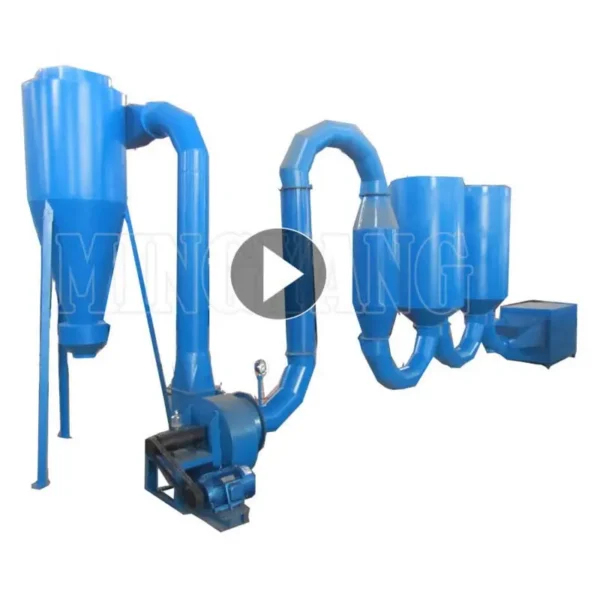

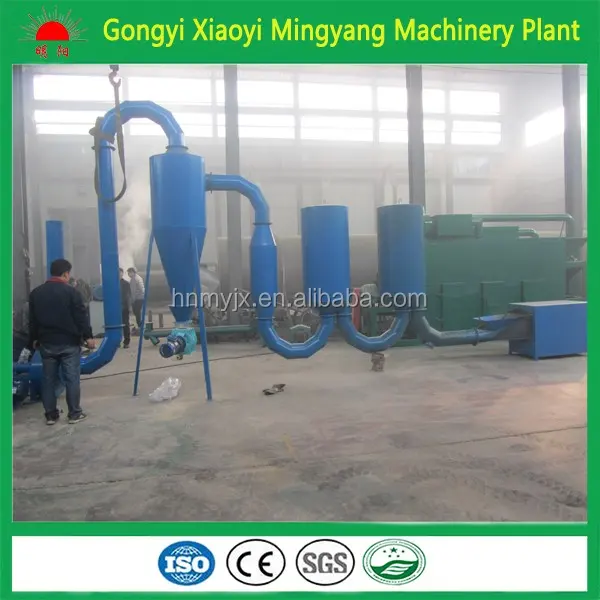

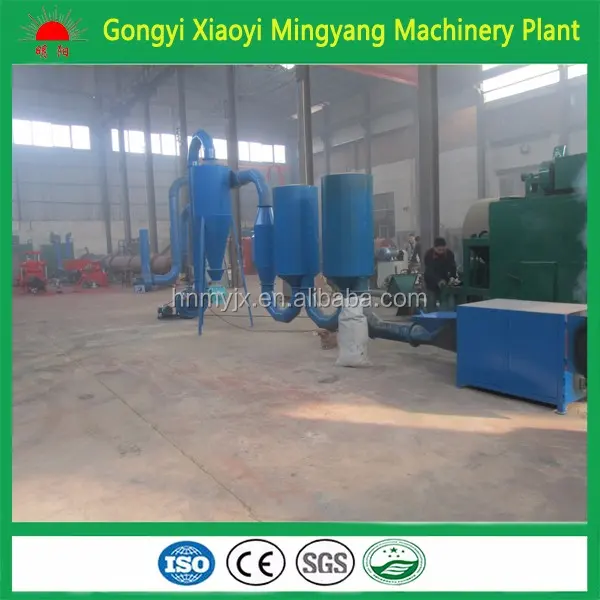

This dryer is suitable for drying materials of moisture 30~60%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.
Hot airflow type:
1. Raw materials should be sawdust, suitable for drying the moisture from 20-50% to 8-12% ;
2. Diameter of raw materials: >3mm & < 5mm;
3. Temperature of Hot Air: 180-250 ;
4. Working principle: The stoves (boilers) generate hot air, then through the fan to dry the materials;
5. This wood dryer reduces the moisture to 8-12% with the advantages of lower cost consumption and high efficiency;

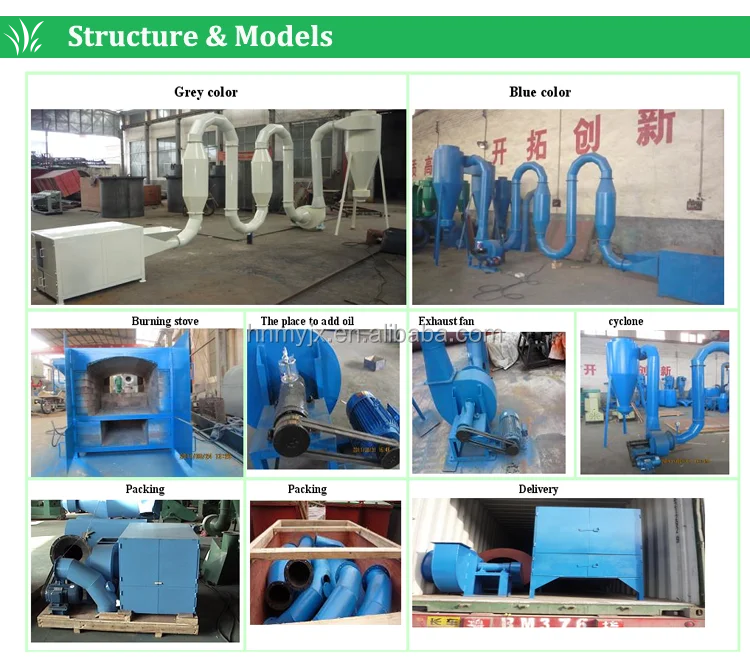

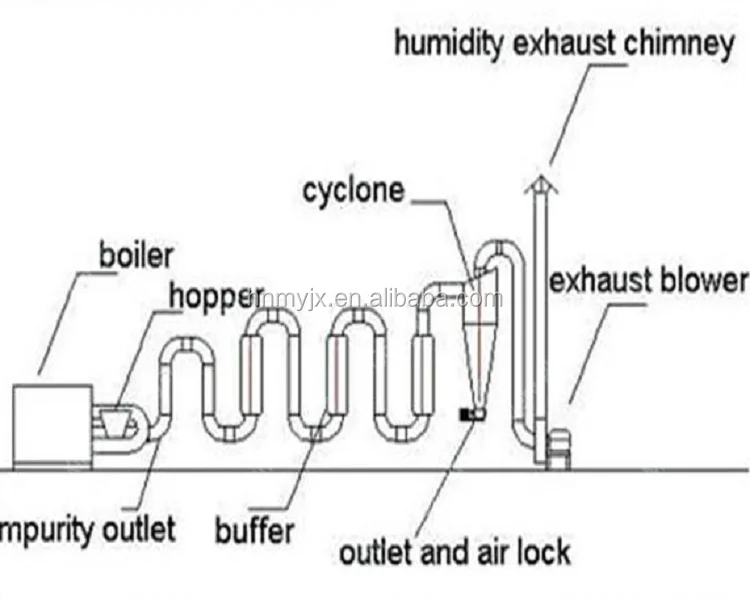

6. The wood dryer is equipped with one fuel boiler, inlet, steel pipe, exhaust blower (fan), cyclone.Wet materials are input into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan).
Advantages of the Dryer:
1.High efficiency
2.Easy to operate
3.Good quality
4.Durable parts
5.Stable performance

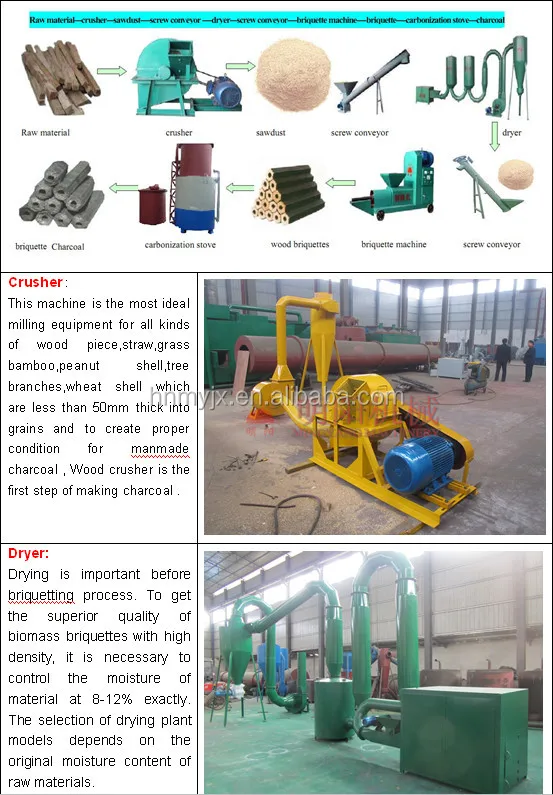

The whole line of making wood briquette charcoal:
1.Crush the raw material into small pieces (diameter is about 3-5mm).
2.Dry the material by machine or dried it in the sun , till the moisture is less than 12%.

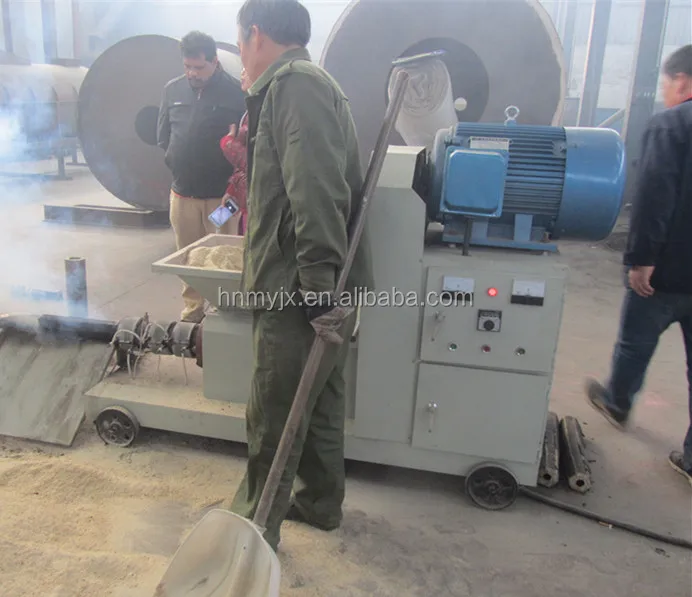

3.Put the material into feed let of briquette machine.
4.Produce the briquette stick from biomass material without any additive.
5.Carbonized the briquette stick.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.

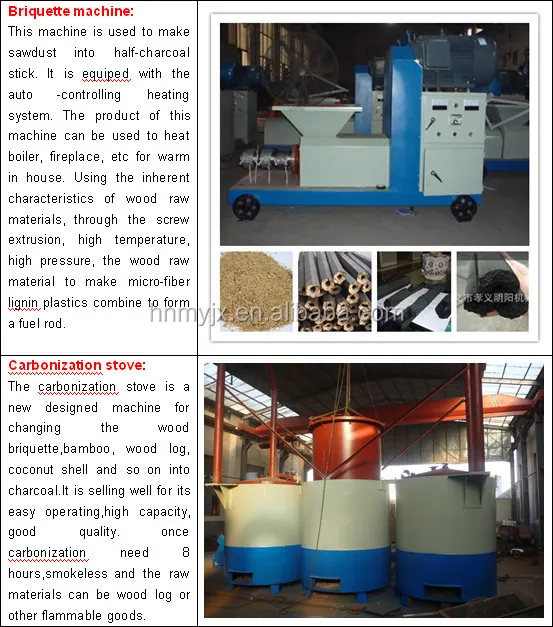

There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,
production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)
production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)
and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.
Our machines have the best quality and we have got many certification such as CE, ISO, BV.
ave got many certification such as CE, ISO, BV.
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $2860 / set
- 5+ set: US $2800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fans carry?
It is supplied with CE ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cross flow fans be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Gongyi Xiaoyi Mingyang Machinery Plant, based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Gongyi Xiaoyi Mingyang Machinery Plant range on HVACR Nexus.
