Cross flow fans — capacity 37U,42U,47U, material Cold-rolled steel. The complete factory specification follows. Made by Ningbo Gelante Electric Co., Ltd. (18 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Cross Flow Fans
- Model Number: JB800
- Capacity: 37U,42U,47U
- Material: Cold-rolled steel
- Place Of Origin: Zhejiang, China
- Size: 37U,42U,47U
- Products Status: Stock, Used
Technical Specifications
| Products Status | Stock, Used |
|---|---|
| Cabinet Standard | Standard Configurations |
| Size | 37U,42U,47U |
| Place Of Origin | Zhejiang, China |
| Material | Cold-rolled steel |
| Brand Name | HUIPAI |
| Model Number | JB800 |
| Product Name | rack server |
| Model | JB800 |
| Color | Any color |
| Certificate | CE,ROHS,ISO9001 |
| Packing | Firm carton |
| Capacity | 37U,42U,47U |
| Minimum Order | 10 |
| Payment | T/T |
| Packaging Details | Carton packing or wood package |
| Port Of Dispatch | FOBNINBGO |
| Selling Units | Single item |
| Supply Ability | 1000 pieces per Week Communication Cabinet |
Product Details

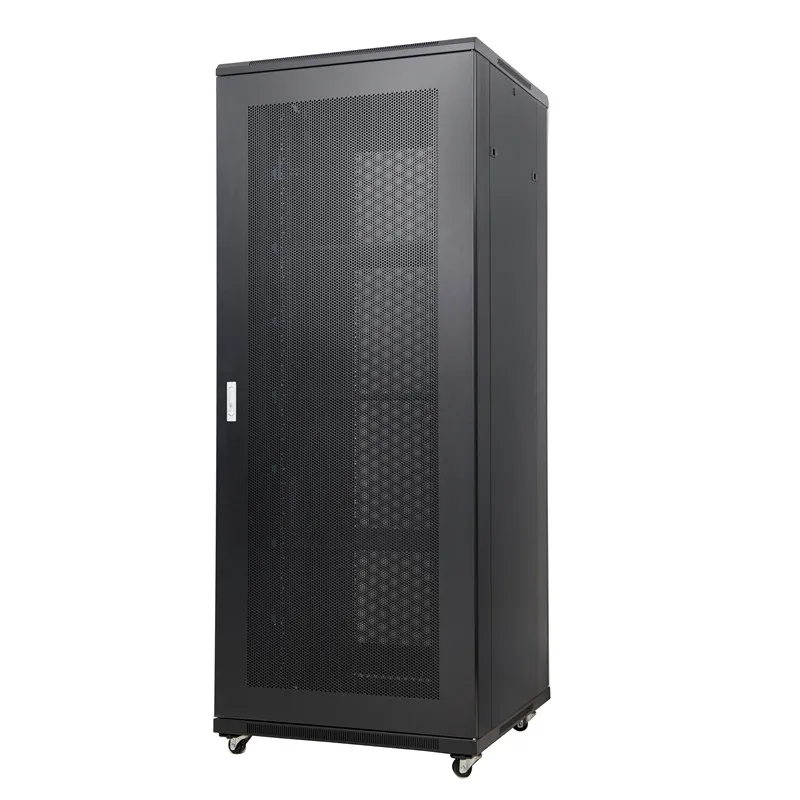

42u mesh network server rack , rack mounted server
| 42u mesh network server rack , rack mounted server | |
| Standards | Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41494;PART1,DIN41494;PART7, ETSI standard |
| Features | |
| 1. | Exquisite design with precise dimensions and craftsmanship; |
| 2. |
Easy installation; |
| 3. | Optional locks for side panels; |
|
4. |
Closable top/bottom cable entry openings; |
| 5. | Removable side panels and front/back doors for operation and watching; |
| 6. |
Doors can be opened from the left or right; |
| 7. |
Top cover is available to fans. |
| Main material | |
| 1. | Cold-rolled steel |
| 2. | Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm. |
| Surface treatment | |
| 1. | Degreasing, pickling, phosphating, laundering, powder coating |
| 2. | Doors can be opened from the left or right |

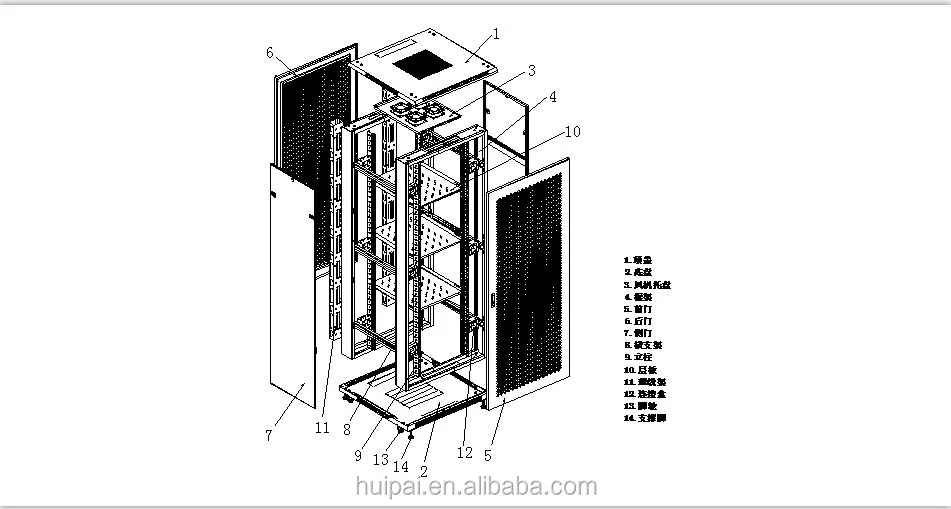

| Standard Configurations | |||||
| Item | name | quantity | nit | materials | surface treatment |
| 1. | top covers | 1 | pic | 1.2mm cold-rolled steel | powder coating |
| 2. | bottom plates | 1 | pic | 1.2mm cold-rolled steel | powder coating |
| 3. | fan plate with 4 fans | 1 | pic | 1.2mm cold-rolled steel | powder coating |
| 4. | frames | 2 | pic | 1.2mm cold-rolled steel | powder coating |
| 5. | front doors | 1 | pic | 1.2mm cold-rolled steel | powder coating |
| 6. | back doors | 1 | pic | 1.2mm cold-rolled steel | powder coating |
| 7. | side panels | 2 | pic | 1.0mm cold-rolled steel | powder coating |
| 8. | beams | 6 | pic | 1.2mm cold-rolled steel | powder coating |
| 9. | rails | 4 | pic | 2.0mm cold-rolled steel | powder coating |
| 10. | shelves | 3 | pic | 1.2mm cold-rolled steel | powder coating |
| 11. | cable managers | 2 | pic | 1.2mm cold-rolled steel | powder coating |
| 12. | junction boxes | 6 | pic | 2.0mm cold-rolled steel | powder coating |
| 13. | casters | 4 | pic | — | — |
| 14 | M12 support feet | 4 | pic | — | — |
| 15. | cage nuts | 40 | pic | — | — |
| 16. | sockets with 6 outlets | 1 | pic | — | — |

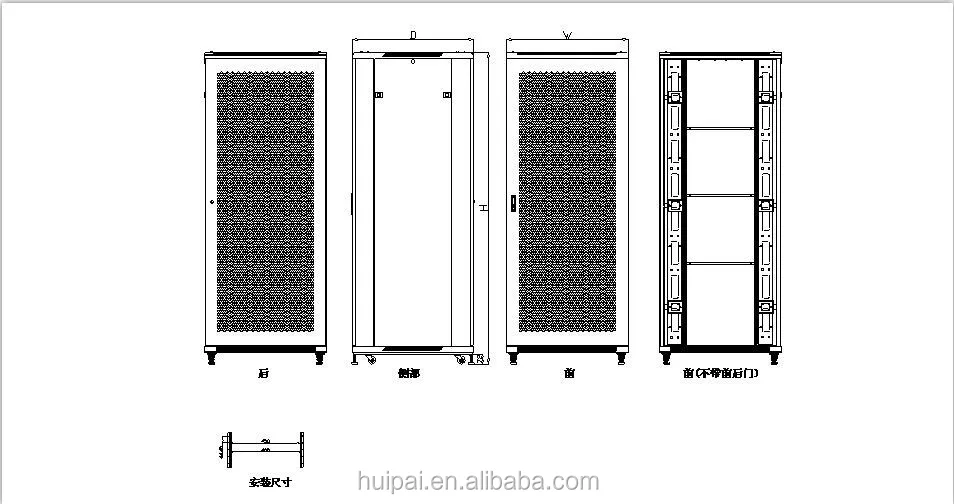

| Type | capacity | width (mm) | depth (mm) | height (mm) | packing dimensions | volume |
| JB8837-fb | 37U | 800 | 800 | 1833 | 815*815*130 | 0.545 |
| JB8842-fb | 42U | 800 | 800 | 2055 | 815*815*130 | 0.597 |
| JB8142-fb | 42U | 800 | 1000 | 2055 | 1015*815*130 | 0.623 |
| JB8847-fb | 47U | 800 | 800 | 2277 | 815*815*130 | 0.661 |
| JB8147-fb | 47U | 800 | 1000 | 2277 | 1015*815*130 | 0.775 |
f=front door
| 1. | Inquiry will be replied in 24hrs; |
| 2. | According to the actual situation or special circumstances to send samples |
| 3. | OEM&ODM are welcome |
| Believe us is the best choice for you ! If you have any doubts or if you need any information ,please don’t hesitate to contact me. |
Our product delivery packing
Shipment pictures
|
1.Are you Trading Company or manufacturer? |
|
A: We are manufacturer, our factory has been established for 10 years |
| 2.What are your main market? |
| A:Mostly Europe and America, then Australia,South Africa |
| 3.How long time to make a sample: |
|
2-7 days if we make a new sample for you. If you just select our existing sample, we can send you sample the next day. |
| 4.Lead time: |
| 7- 30 days, it depends on the quantity and power sockt plug itself. |

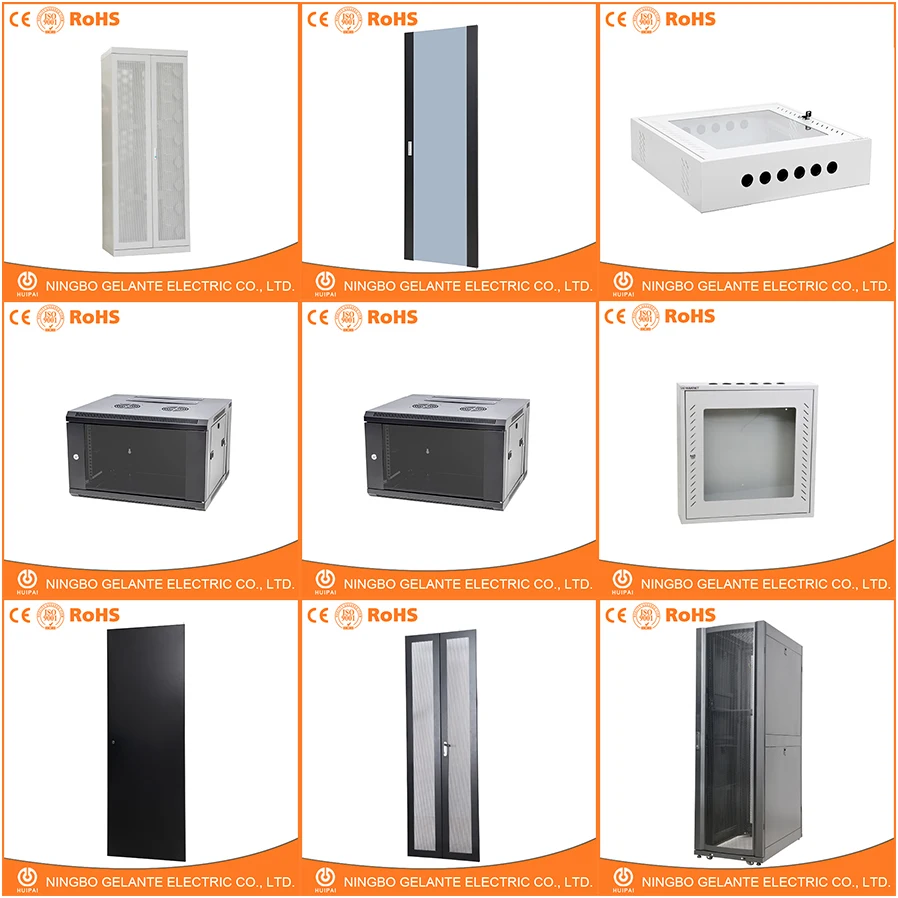

More models and product display
Ordering and Pricing
- Minimum order quantity: 10 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this cross flow fans carry?
It is supplied with CE,ROHS,ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

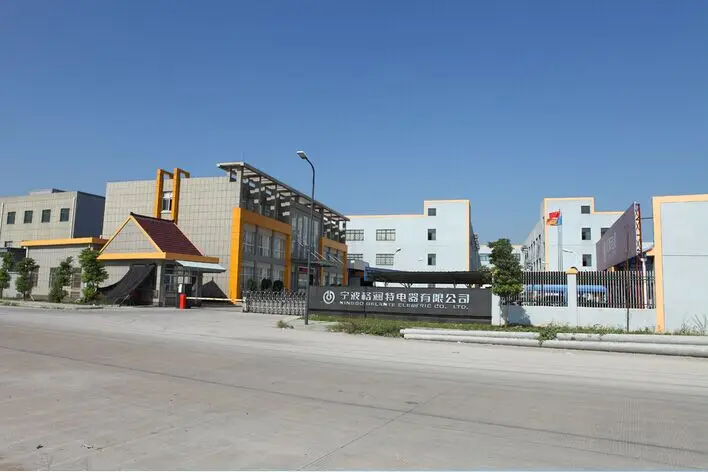

About the Manufacturer
This product is produced by Ningbo Gelante Electric Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Gelante Electric Co., Ltd. range on HVACR Nexus.
