Dongguan Xin Bin Ming Cooling Fan lists this cross flow fans with its own published specification, unedited. Supplier profile: 7 years on the platform. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Cross Flow Fans
- Sizet: 92x92x38mm
- 电压: 12V-48V
- 刀片材质: 塑料
- 电流类型: 直流
- 安装方式: 落地式
- 保修: 1年
Technical Specifications
| 电压 | 12V-48V |
|---|---|
| 刀片材质 | 塑料 |
| 电流类型 | 直流 |
| 安装方式 | 落地式 |
| 保修 | 1年 |
| 提供的售后服务 | 在线支持 |
| 定制服务 | OEM, ODM |
| 产地 | Guangdong, China |
| 品牌名称 | XBM |
| 型号 | 9238 |
| 产品名称 | 直流轴流风机 |
| 轴承类型 | 套筒/2球/液压轴承 |
| 电机类型 | 100% 铜电机 |
| 功能 | FG PWM |
| 框架 | PBT |
| 叶轮 | PBT |
| 压力 | 11.65-49.97mmAq |
| 噪声 | 46.7-65.8dBA |
| Sizet | 92x92x38mm |
| 称重 | 198克 |
| 销售单位 | 单个商品 |
| 单个包装尺寸 | 9.2X9.2X3.8 厘米 |
| 单个产品毛重 | 0.198 公斤 |
Product Details
Products Description
Item | Value |

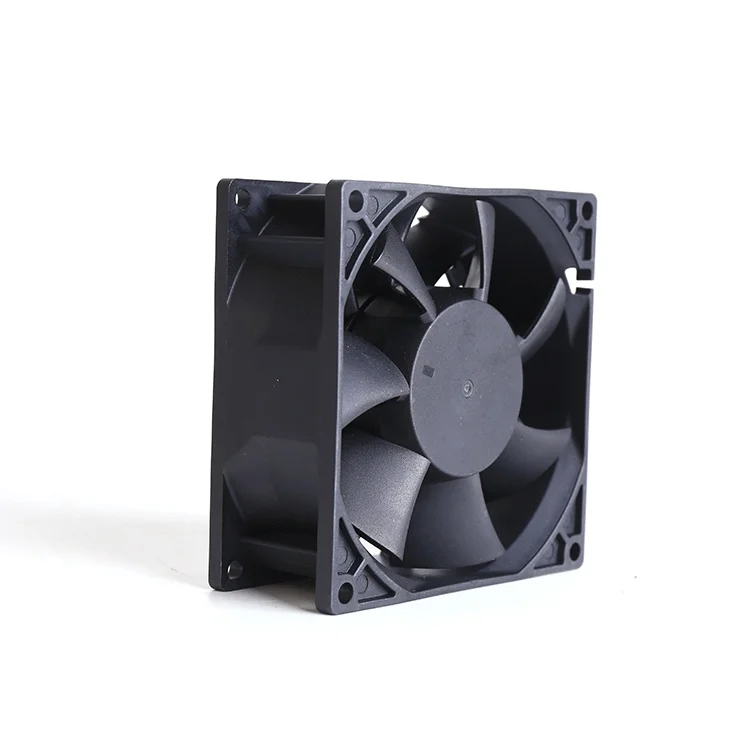

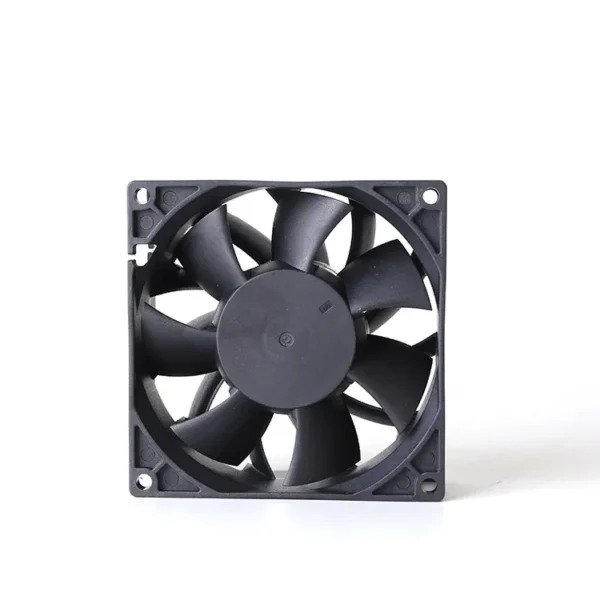

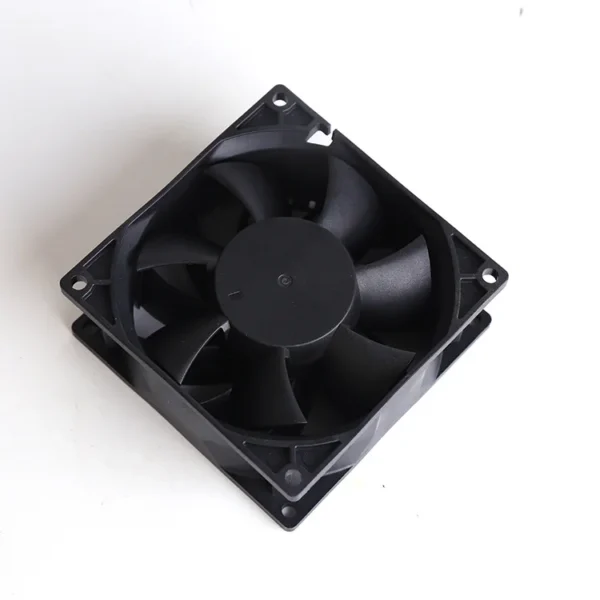

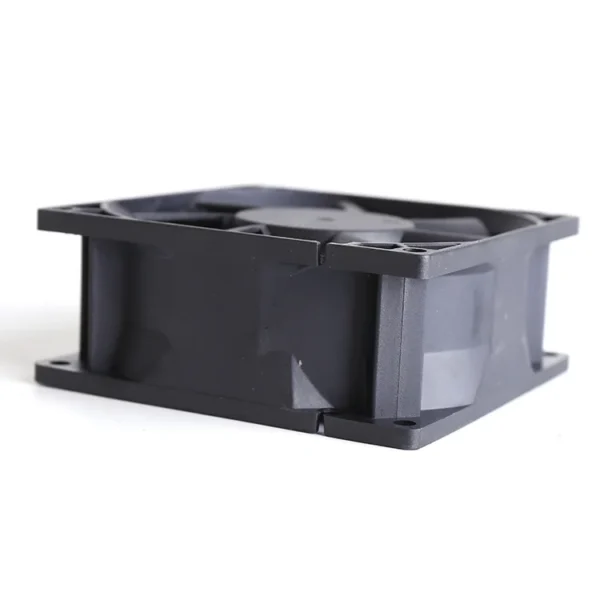

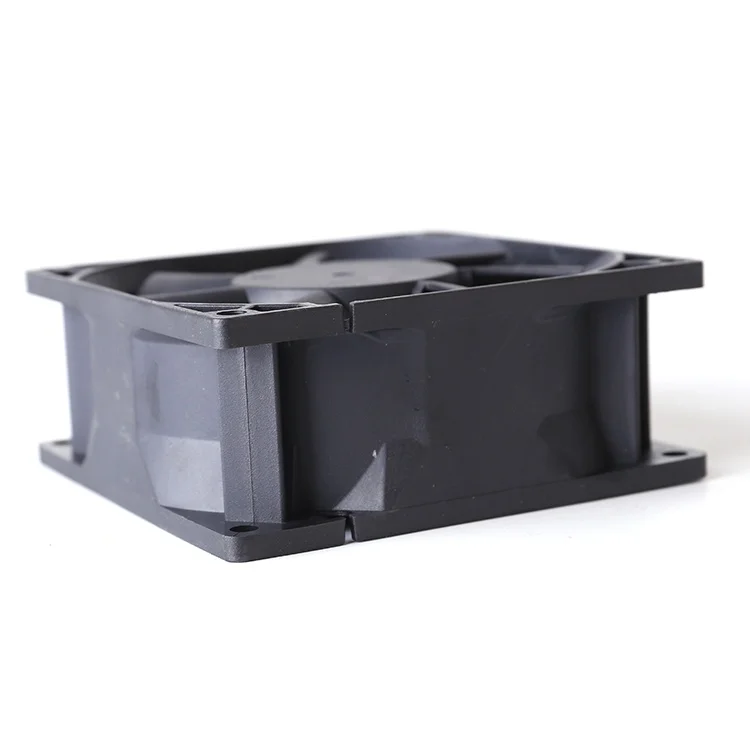

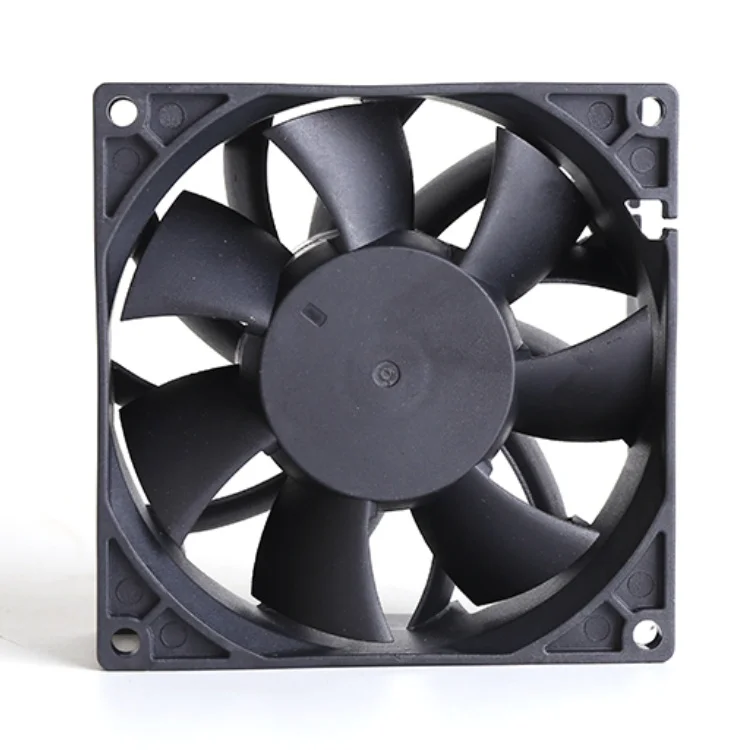

Type | Axial Flow Fan |
Size | 92X92X38MM |
Electric Current Type | DC |
Customized Support | OEM, ODM |

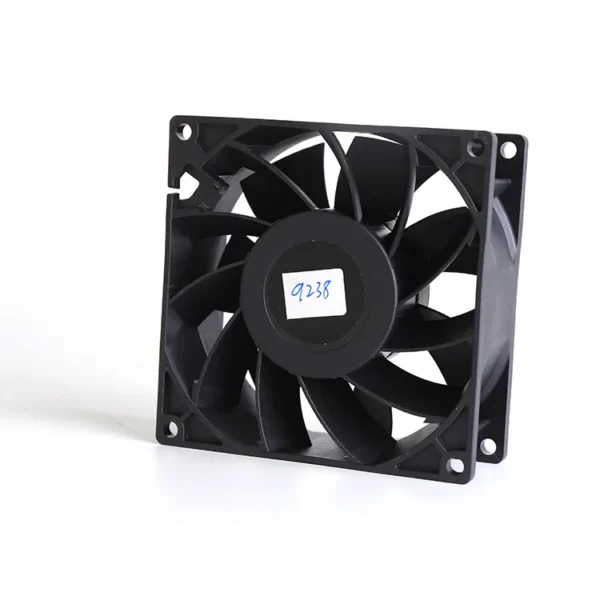

Model Number | 9238 |
Mounting | FREE STANDING |
Place of Origin | Guangdong,China |
Brand Name | XBM |
Material | PBT UL94-V0 |
Warranty | 1 Year |
Usage | Air Cooling System |
Keyword | Large Air Flow Cooling Fan |
Motor | 100% Copper Motor |
Function | FG PWM |
Wire | 2pin/3pin/4pin/5pin |
Signal Output | FG/RD/BDB/LD |
Speed Control Model | PWM/VC/TC/RC/NONE |
CFM | 92.18/125.10/158.02/190.95 |
Voltage | 12v/24v/48v |
Current | 0.35a/0.78a/1.70a/2.60a |
Speed | 4000/5500/7000/8500 |
Bearing Type | Sleeve/ 2Ball/ Hydraulic Bearing/FDB/Long Life Sleeve |
After-Sales Service Provided | Online support |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Energy & Mining, Other, Advertising Company |
Our Advantage
Low Noise
Large Airflow1 year Warranty
Remote Warranty
Fast Sample Time
Shipment On Time
24 hours online after-sales service
We have an R&D department that can provide customized services. As long as
you tell us your needs, we can meet them and have complete instruments and equipment for testing.
Our Cooling fan accessories advantage:
Application
Company Profile
Dongguan XinBinMing Cooling Fan Co., Ltd., a manufacturer which is always focusing on the R&D, production and selling the cooling fans.
We passed the ISO9001, IATF16949, the products passed UL, RoHS, TUV, CE, SGS, CCC certificates. Our products are widely used in automobile, power supply, home appliances, medical treatment, communication all over the world.
We passed the ISO9001, IATF16949, the products passed UL, RoHS, TUV, CE, SGS, CCC certificates. Our products are widely used in automobile, power supply, home appliances, medical treatment, communication all over the world.
Services:
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give warranty on quality of products, and will give you solution if any quality problems occurs when you receive our items.
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give warranty on quality of products, and will give you solution if any quality problems occurs when you receive our items.
Workshop Show
Certifications
We passed the ISO9001, IATF16949, the products passed UL, RoHS, CUL, TUV, CE, SGS, CCC certificates
FAQ
1. Do you customized cooling fans?
Yes, Cooling fans can be customized base on your requirement.
2. How do you guarantee the quality of products?
We use selected raw materials, strict production methods, and 100% inspection and certification before leaving the factory to ensure that the goods received by customers are consistent with our description.
3. How many kinds of bearings do you have for cooling fans?
We have sleeve bearings, hydraulic sleeve bearings and double ball bearings. The service life of sleeve fan is 25000 hours, that of hydraulic sleeve bearing is 30000 hours, and that of ball bearing is 50000 hours.
4. What kind of cooling fans can your company provide?
We can provide DC/AC brushless fans, which are mainly divided into three categories: axial flow fans, blowers (centrifugal fans) and cross flow fans (tangential fans).
5. What functions can the fan choose?
Optional functions: automatic restart, speed detection, shutdown alarm, waterproof (IP68 optional), PWM function, temperature control, etc.
7. How to select a DC fan?
To choose a DC fan, you should consider the following points: Fan size (mm), Fan speed (RPM), Fan airflow (CFM), Fan noise level (DBA), Fan starting voltage (V), Fan current (a ), Fan connector.
Please feel free to contact us if any confuse, we always on your service!
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–4999 piece: US $3.15 / piece
- 5000+ piece: US $2.97 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
