This cross flow fans is published with the manufacturer’s full specification — material SPCC Cold rolled steel, model number ACS62110. Made by Suzhou A-Rack Information Technology Co., Ltd. (13 years on the platform, typical reply >24h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Cross Flow Fans
- Model Number: ACS62110
- Material: SPCC Cold rolled steel
- Place Of Origin: China
- Design Features: Modular design with welded frames
- Size: W600mm*D1100mm
- Products Status: Stock
Technical Specifications
| Products Status | Stock |
|---|---|
| Cabinet Standard | Comply with ANS/EIA RS-310-D |
| Size | W600mm*D1100mm |
| Place Of Origin | China |
| Material | SPCC Cold rolled steel |
| Brand Name | A-Rack |
| Model Number | ACS62110 |

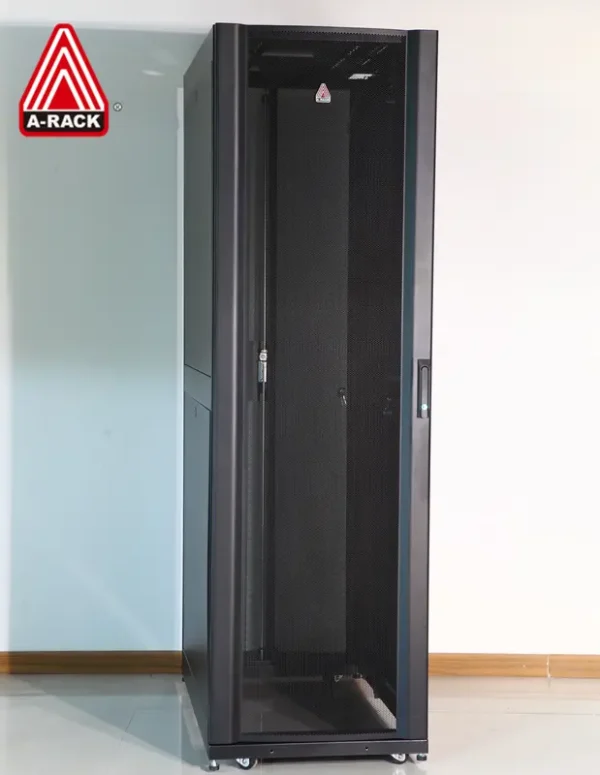

| Product Name | Server Rack Cabinet |
| Static Load Rating | 1500kg |
| Dynamic Load Rating | 1200kg |
| Open Rate | 70%-85% |
| Environment Protection | IP20 |
| Design Features | Modular design with welded frames |
| Qualification | CE,SGS,ROHS |
| Hinge System | Removable |
| Color | Black, other colors is available but need extra cost |
| Surface Finish | Power Coated |

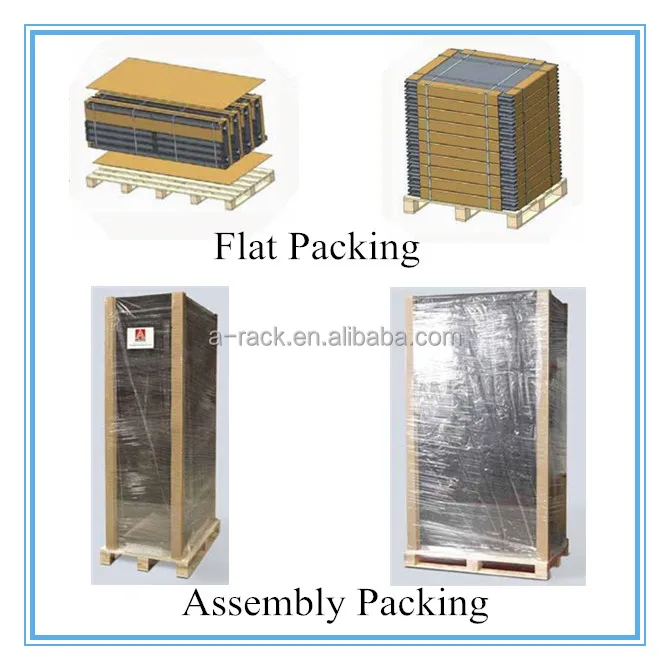

| Packaging Details | Flat packaging and Assembly packaging |
| Port Of Dispatch | shanghai |
| Selling Units | Single item |
| Supply Ability | 2000 sets per Month |
Product Details

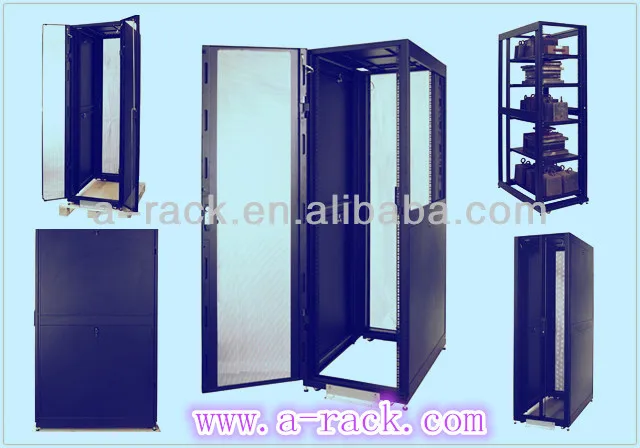

Ø AS Series Rack introduction
A – rate is dedicated to meet different customs demand based on the principle of environment protection. The high density cabinet provides a brand new platform to customers.With its feasible installation design,convenient layouts,adjustable vertical frames,diverse top panels,front doors and casters,delicate design and craftmanship,the cabinet system is a wonderful option for customers to set up their data center quickly without compromising the quality.
Product details
|
Part No. |
ACS62110 |
|
Net Weight |
120.00 KG |
|
Hight Width Depth |
1990*600*1100(mm) |
|
Load capacity(static load) |
1500KG |
|
Load capacity(dynamic load) |
1200KG |
|
Minimum Mounting Depth |
204mm |
|
Maximum Mounting Depth |
737mm |
|
Rack Height |
42U |
|
Color |
Black |
|
Vertical Posts |
16gauge |
|
Front door |
16gauge |
|
Roof |
18gauge |
|
Warranty period |
2 years |

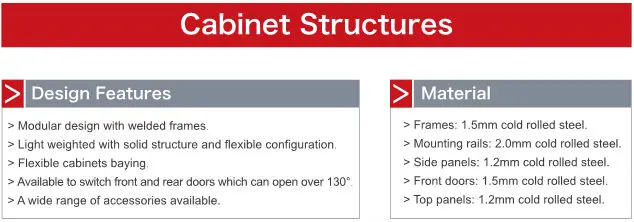

- Ø ACS Series Rack Structures

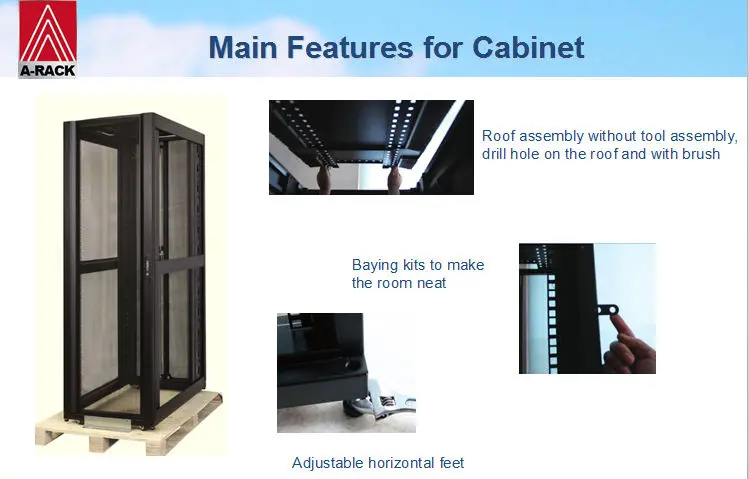

Design Features
u Modular design with welded frames
u Light weighted with solid structure and flexible configuration
u Flexible cabinets baying
u Available to switch front and rear doors which can open over 130°
u A wide range of accessories available
Material
u Frames;1.5mm cold rolled steel.
u Mounting rails:2.0mm cold rolled steel
u Side panels:1.2mm cold rolled steel.
u Front door:1.5mm cold rolled steel.
u Top panels:1.2mm cold rolled steel.
- Ø ACS Series Rack Structures
Design Features
u Greatly enhance the room space utilization
u Beautiful,good compatibility,perfect ventilation design
u Comply with the requirements of the various room environment
u Easy removal, installation
Material
u Frames;1.5mm cold rolled steel.
u Mounting rails:2.0mm cold rolled steel
u Side panels:1.2mm cold rolled steel.
u Front door:1.5mm cold rolled steel.
u Top panels:1.2mm cold rolled steel.

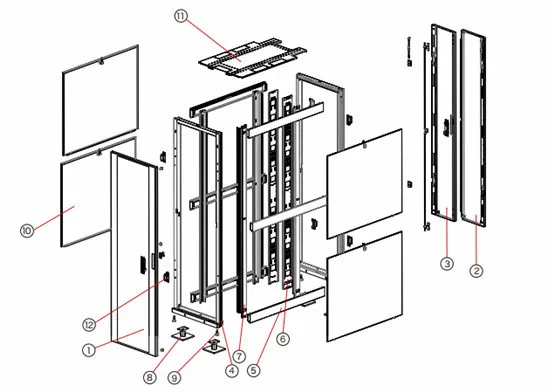

- Ø ACSSeries Racks Structures
|
Items |
Name |
Qty(kit) |
|
1 |
Front door |
1 |
|
2 |
Left rear door |
1 |
|
3 |
Right rear door |
1 |
|
4 |
Frame |
2 |
|
5 |
Side Brace |
6 |
|
6 |
PDU Rail and Patch Panel |
2 |
|
7 |
Vertical Mounting Rail |
4 |
|
8 |
Casters |
4 |
|
9 |
Leveling leg |
4 |
|
10 |
Side Panel |
4 |
|
11 |
Top Panel |
1 |
|
12 |
Door Hinge |
6 |
- Ø ACS Series Rack Advantage

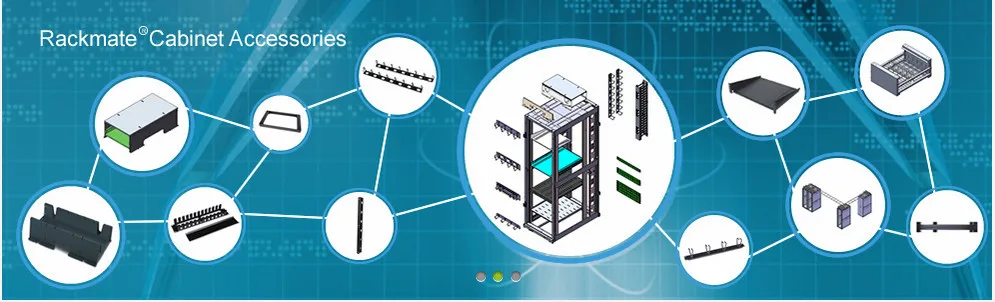

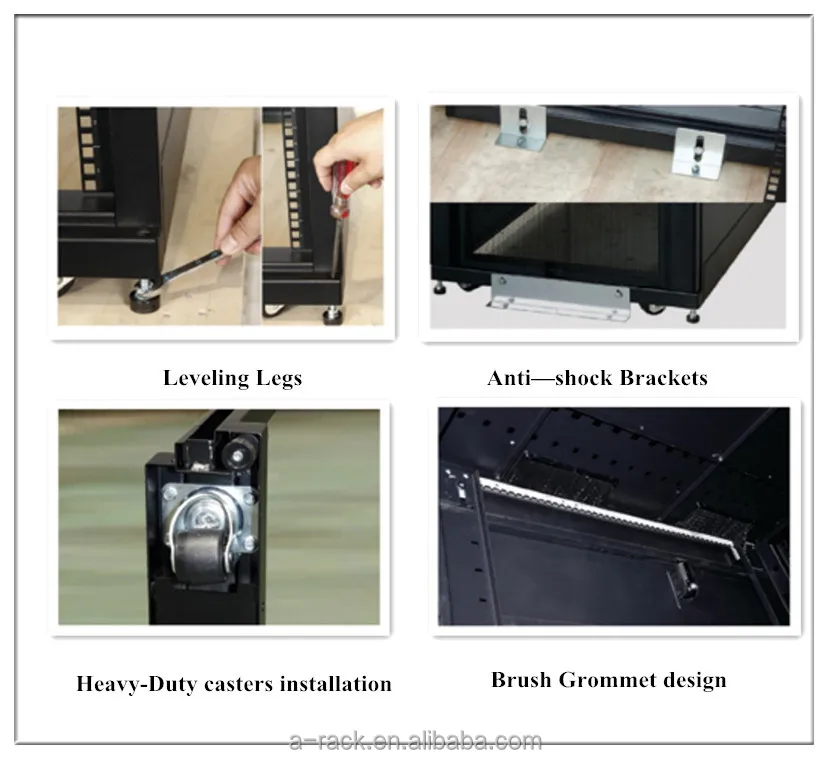

Some of Our Accessories
What we can do:
1,All of our products have proceeded aging test before shipment and we guarantee to use our products safety.
2,Support imprint your logo on the products.
3,OEM/ODM orders are warmly welcome.
4,Any special need concerning the accessories or the design of the cabinet please let us to know without any hesitation,your contaction will be highly appreciated.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $500 / set
- 10–24 set: US $480 / set
- 25+ set: US $450 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
