Cross Flow Fans, XTCM215, Wall, Aluminum Alloy, J1900

This cross flow fans is published with the manufacturer’s full specification — power supply Built-in power supply 220V ~ 10A, material Aluminum Alloy. Made by Shenzhen Xingtong IOT Technology Co., Ltd. (9 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of These Cross Flow Fans

• Power Supply: Built-in power supply 220V ~ 10A
• Hard Disk Capacity: 64 GB
• Material: Aluminum Alloy
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Special Feature: No

Technical Specifications

Product Details

Product Description

Specification

System parameter

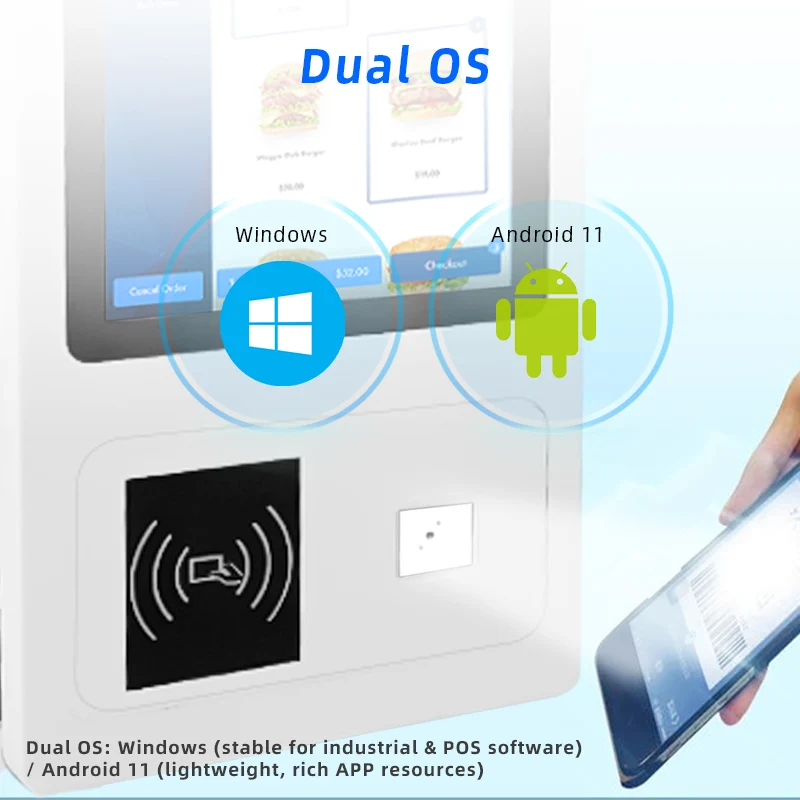

Operating system	Windows/Android
CPU	Intel® Celeron® Processor J1900, quad-core, 2.00GHz
Memory	DDR Ⅲ 4G + 64G SSD

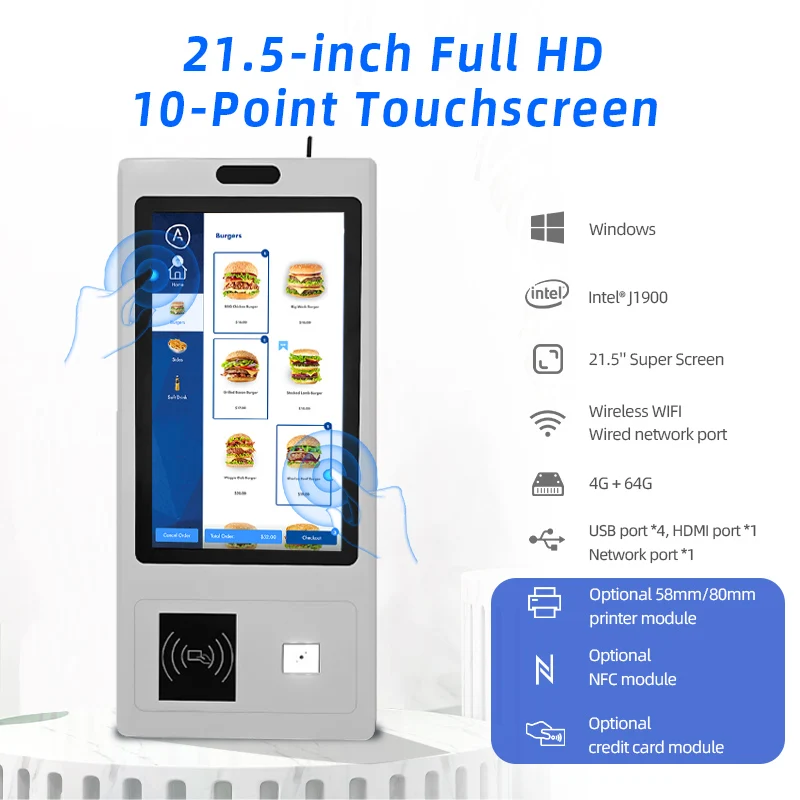

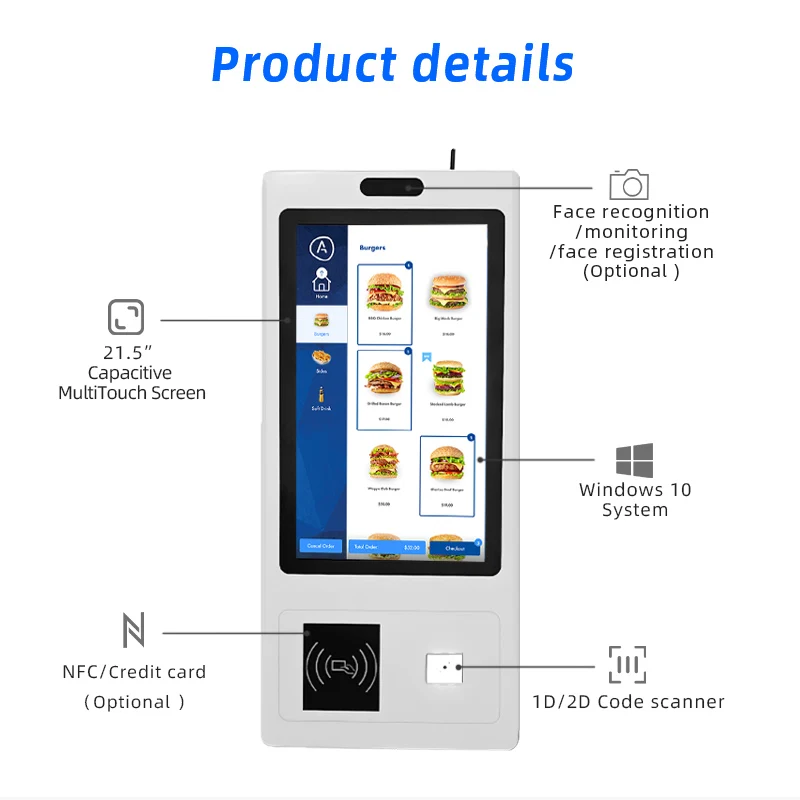

Touch screen	21.5-inch capacitive touch screen, supporting 10-point capacitive touch; Resolution 1080*1920
Power supply	Built-in power supply 220V ~ 10A
Interface	USB interface *4, HDMI interface *1, network interface *1
network	Wireless WIFI; wired network port
horn	Dual 5W loudspeakers
Scan engine parameters		2D barcode scanning engine
Resolution	640px*480px CMOS
Readable code system	1D Code128/AIM128/EAN128/NL128, UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93, Code 11, ITF-25/ITF-14/ITF-6/ Deutsche12/ Deutsche14, Industrial 25, Matrix 25, Japan Matrix 25/NEC 25, Standard 25, DataLogic 25, MSI-Plessey, Plessey, RSS-EXP /RSS_14/GS1 Data, Telepen 2D AZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code, Micro QR
Read depth of field	1D：EAN-13 (5mil) 30-60mm 1D：EAN-13 (13mil) 20-130mm 2D：QR Code (15mil) 15-110mm 2D：QR Code (30mil) 15-200mm
Optional parameters
NFC (optional)	NFC card reader
			XT802F-POE Power interface    POE*1(48V / 48V+ network) Cable interface     POE*1(48V / 48V+ network)
Printer (optional)	80 Fully automatic printer with knife
Id card module (optional)	Id card reading module
Card module (optional)	Swipe card module
List of accessories
Appearance parameter	Size 380mm（W）* 835mm（L）* 86mm（H） Weight 12.5kg
Packing list	XTCM215*1, power cord *1, wall mount *1

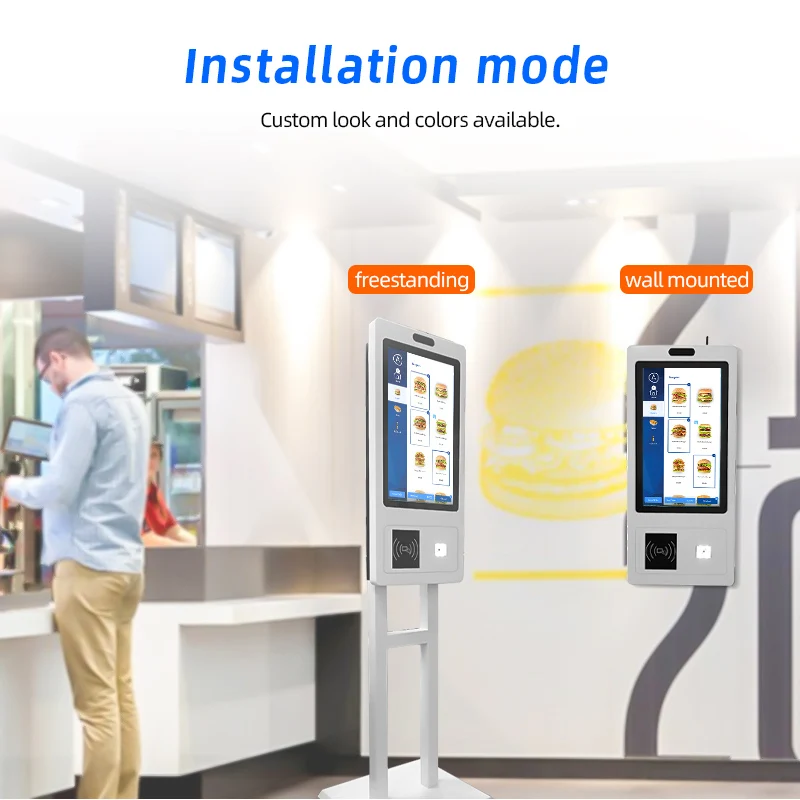

other	Optional vertical bracket: XT215-Bracket

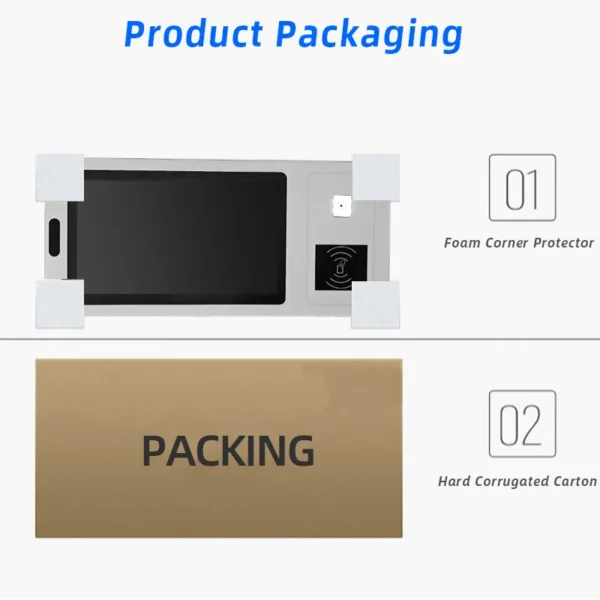

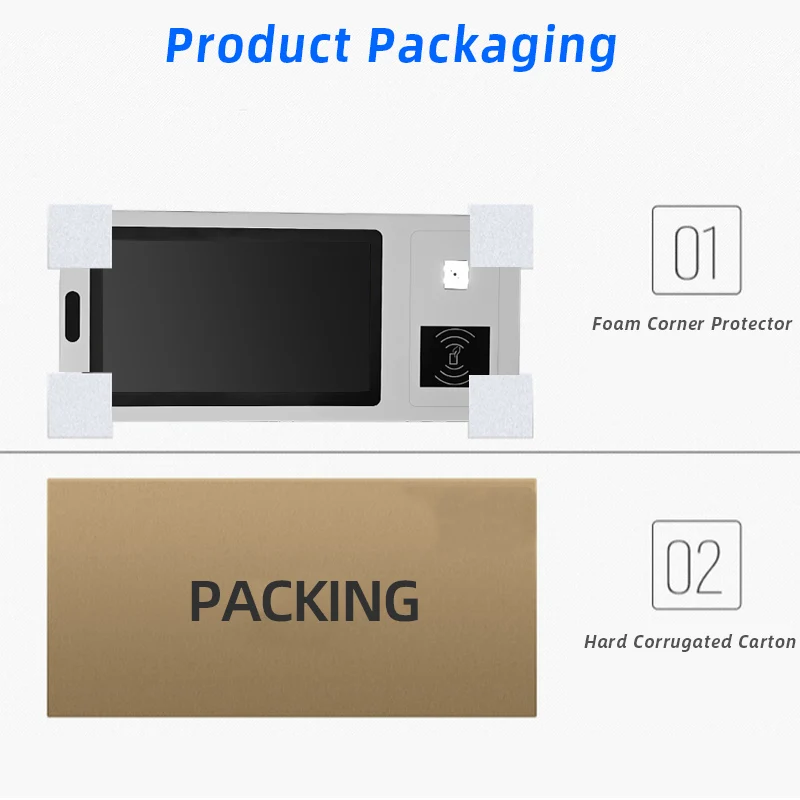

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

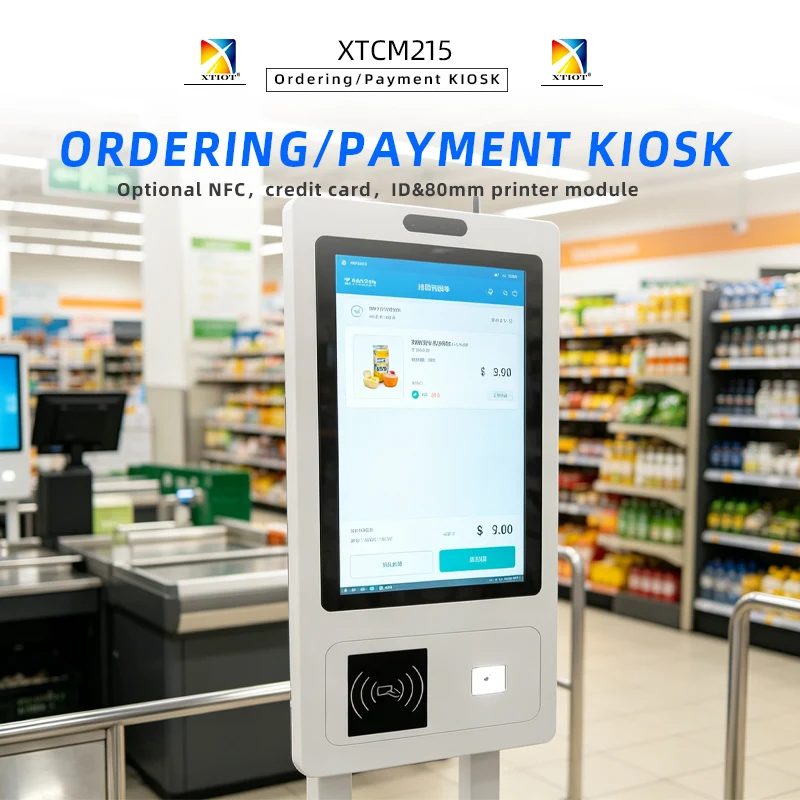

Q: What is the XTCM215? A: The XTCM215 is a 21.5 inch all in one touch terminal with a built in 2D barcode scanner. It runs Windows/Android operating system and is designed for industrial workstations, MES data collection, production line scanning, and self service kiosks . Q: What type of screen does it have? A: 21.5 inch large capacitive touch screen that supports ten point touch. The screen is responsive and supports multi finger gestures for smooth operation . Q: Does it have a built in barcode scanner? A: Yes. It comes with a built in 2D imaging scan engine that can quickly read both paper barcodes and screen barcodes (QR codes from phones) . Q: What barcode types can it read? A: It reads 1D and 2D barcodes including QR codes, Data Matrix, PDF417, Code128, EAN 13, and UPC. It reads from paper labels and mobile phone screens. Q: What interfaces does it have? A: Rich IO interfaces for easy connection to peripherals. Specific ports include USB, Ethernet, serial, and other industrial interfaces . Q: Where can the XTCM215 be used? A: Self ordering kiosks, retail price check kiosks, self service information terminals, and hospital registration kiosks . Q: What are the key features? A: Simple Windows interface, 21.5 inch ten point capacitive touch, built in 2D scanner, rich IO ports, industrial grade durability, stable for 24/7 operation . Q: Does it support OEM customization? A: Yes. Custom logo, custom color, and custom packaging are available with MOQ requirements. Contact XTIOT sales for details. Q: What is the warranty? A: 1 year warranty with lifetime technical support.

Recommend Products

Our Company

Our Advantages

Transportation & Payment

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fans?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cross flow fans be supplied for my local voltage?

The standard configuration is Built-in power supply 220V ~ 10A. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Xingtong IOT Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Xingtong IOT Technology Co., Ltd. range on HVACR Nexus.
