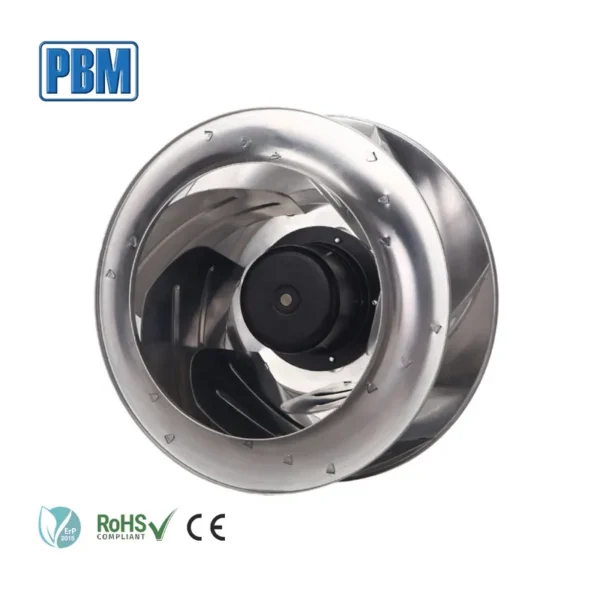

355×171.5mm EC-DC Backward Curved Centrifugal Cooling Fan
u1.General Characters
| 1-1 | Rated Voltage | 48 VDC |
| 1-2 | Operating Voltage | 36~57 VDC |
| 1-3 | Low-Start Voltage | 30VDC |
| 1-4 | Rated Speed | 1580RPM |
| 1-5 | Input Current | 3.4A |
| 1-6 | Input Power | 163W |
| 1-7 | Air Flow | 1531CFM /2600m3/H |
| 1-8 | Static Pressure | 1.95inH2O / 487Pa |
| 1-9 | Acoustical Noise | 69dB(A) |
| 1-10 | Life Expectance | 50,000Hours(L10) At 40℃ room, humidity 15%~65%RH. |
| 1-11 | Direction of Rotation | Anti-clockwise seen on motor |
| 1-12 | Direction of Air Flow | All around |
| 1-13 | Insulation Class | Class B |
| 1-14 | Insulation Resistance | 50 Mega Ohm minimum at 500VDC Between frame and (+) terminal |
| 1-15 | Motor Protection | Locked rotor protection Polarity protection Automatic restart capability |
| 1-16 | Speed Control | Control input 0~10VDC / PWM |
| 1-17 | Protection Type | IP44 |
| 1-18 | Dielectric Strength | 10mA maximum at 1000VAC 50Hz five second Between frame and (+) terminal |
| 1-19 | Signal Output | FG (Frequency Generator) |

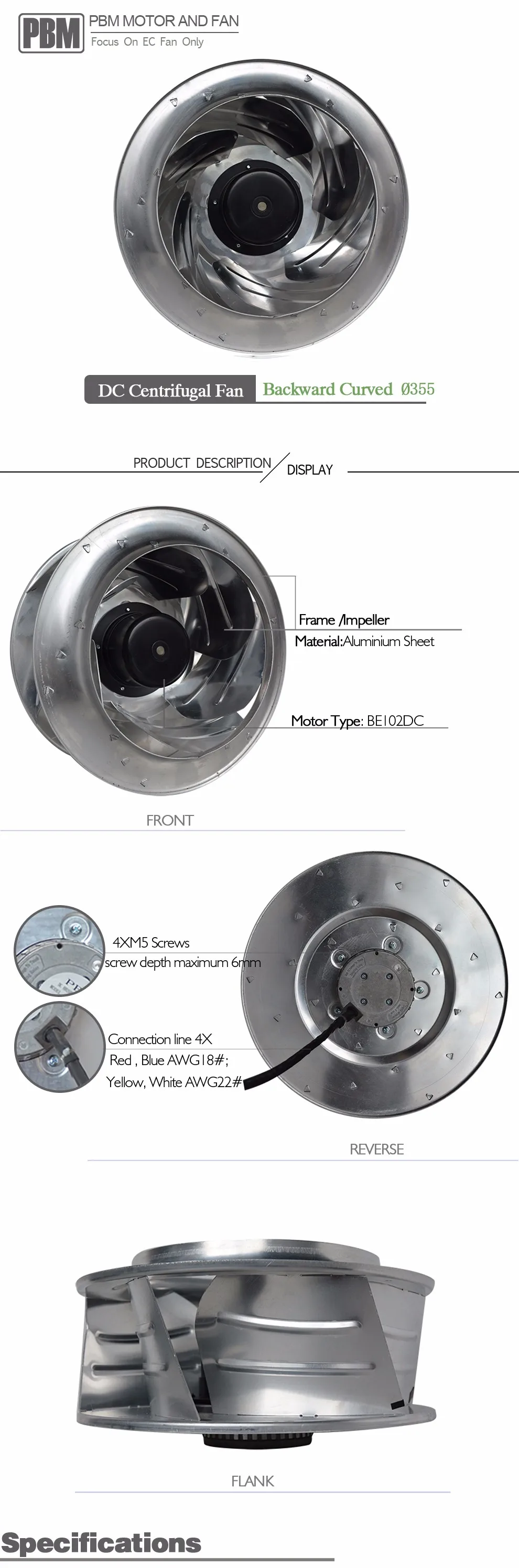

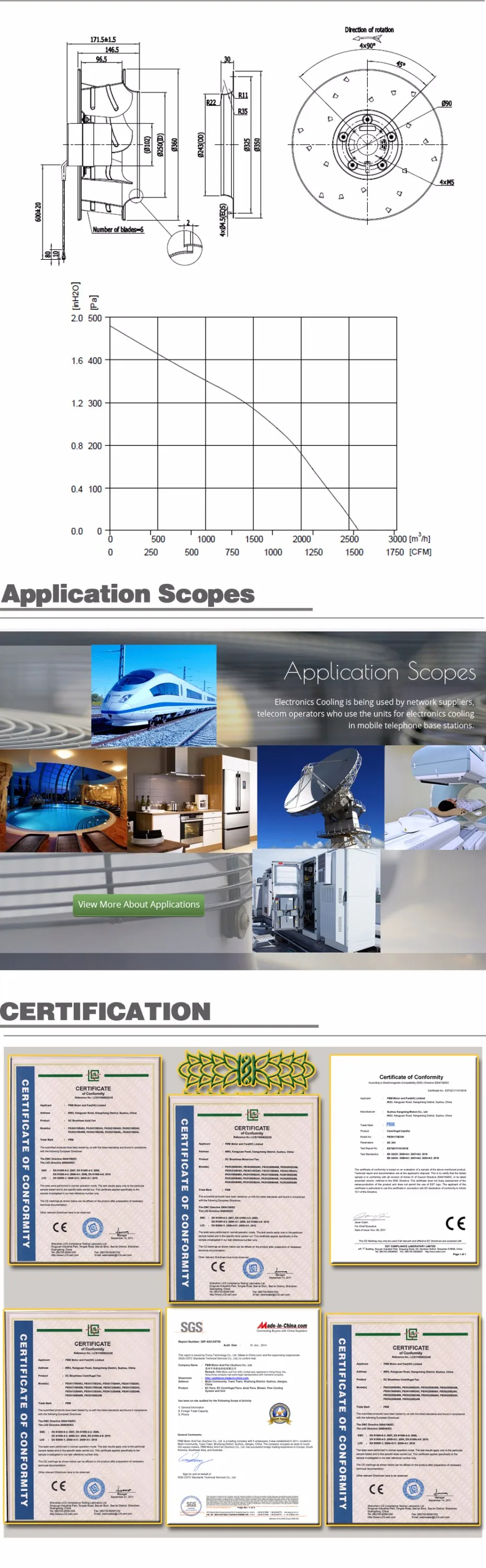

u2. Mechanical Characters
| 2–1 | Dimension | Ø360mm X 171.5mm (see dimension drawing) |
| 2–2 | Material of Impeller | Aluminium Sheet |
| 2–3 | Number of Blades | 6 |
| 2–4 | Impeller Plate | Aluminium Sheet |
| 2–5 | Mounting Position | Any |
| 2–6 | Surface of Rotor | Coated in black |
| 2–7 | Bearing System | NMB ball bearing |
| 2–8 | Lead Wire | Red , Blue AWG18#; Yellow, White AWG22# |
| 2–9 | Weight | 4600g |
| 2–10 | Package | Standard |
u3. Electrical Protection
| 3–1 | Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
| 3–2 | Maximum Current under Locked Rotor
| A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current. |
| 3–3 | Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
| 3–4 | Over Voltage Protection | The circuit will be shut down automatically when input voltage over 60VDC. And re-started when Voltage down to 60VDC below. |
| 3–5 | Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above. |
u4. Environmental Characters
| 4–1 | Operating Temperature | -25℃ to 60℃ |
| 4–2 | Storage Temperature | -40℃ to 75℃ |
| 4–3 | Operating Humidity | 5% to 90% RH |
| 4–4 | Storage Humidity | 5% to 95% RH |
| 4–5 | Drop Test | In minimum packaging condition fan withstand each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board. |
| 4–6 | Vibration Test | Sine Wave. Displacement amplitude: 0.75mm (Equivalent 10G). Frequency Range: 10Hz~55Hz / 30 sec. 55Hz~10Hz / 30 sec Linear Scanning 120 Cycle Endurance timer per axis: 2 Hours Orientation: X,Y,Z. |
| 4–7 | Shock Test | Apply peak acceleration 50g and keep duration of the pulses for 11ms (Half sine wave). |
| 4–8 | Dustproof Test | Temperature range: 15℃ to 35℃. 1mm diameter metal wire cannot go through the gap between rotor cup and base. Follow IEC 60592 IP4X. |
| 4–9 | Waterproof Test | Temperature range: 15℃ to 35℃ and duration of test: at least 10 minutes, to spray water from all direction (360°). Follow IEC 60529 IPX4 |
| 4–10 | RoHS | All the material meets RoHS standard. |
| Model | Motor Type | Bearing System | Rated Voltage | Operating Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air pressure | Noise Level |
| Part NO. | Type | B / S | VDC | VDC | A | W | RPM | M3/H | Pa | dBA |
| PB3N355B48H | BE102DC | BALL | 48 | 36~57 | 3.4 | 163 | 1,580 | 2600 | 487 | 69 |
Packaging: Packing individually by foam carton , with pallet.
Shipping: Within 25 days after we receive the order.
