| Features

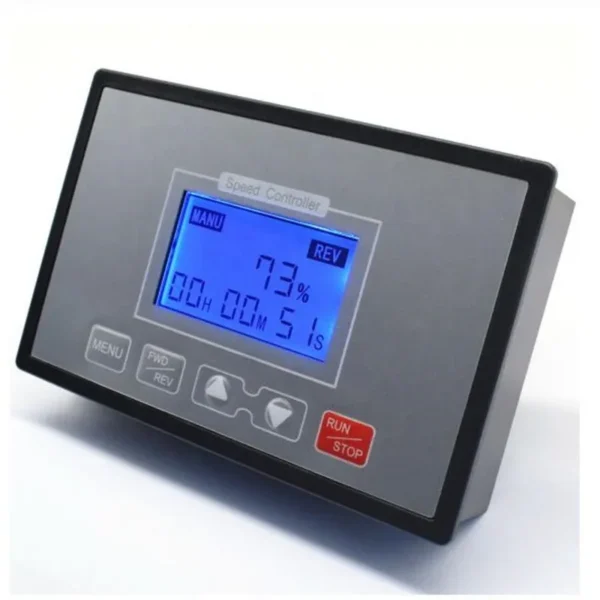

LCD screen with backlight, can display working time, percentage of rotation speed, current mode, forward rotation, reverse rotation status
Multiple limit modes available
Can be set to start slowly
Upper and lower speed limits can be set
Can set the total working time
Support separate speed regulation of forward speed and reverse speed
Two modes, manual and automatic, are available
Touch switch to switch forward and reverse, jog acceleration and deceleration solve the problem of the traditional potentiometer
Product parameters
Input voltage: DC10-55V (the specific voltage is equal to the rated voltage of the motor)
Output voltage: linear under load
Instantaneous current: 60A Continuous current: Within 40A

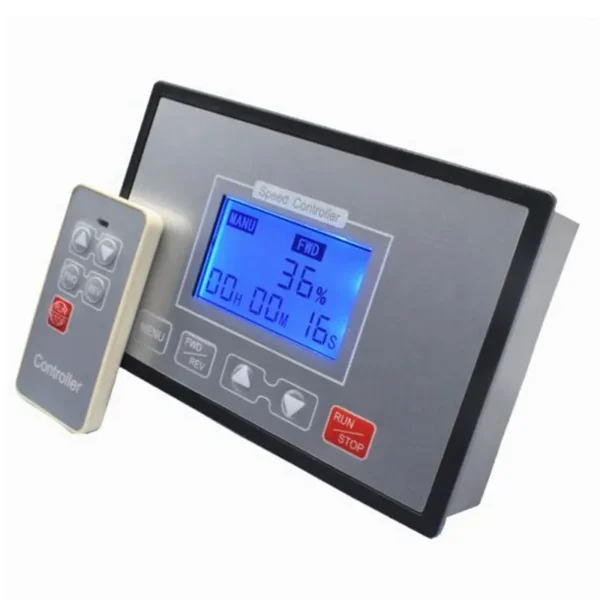

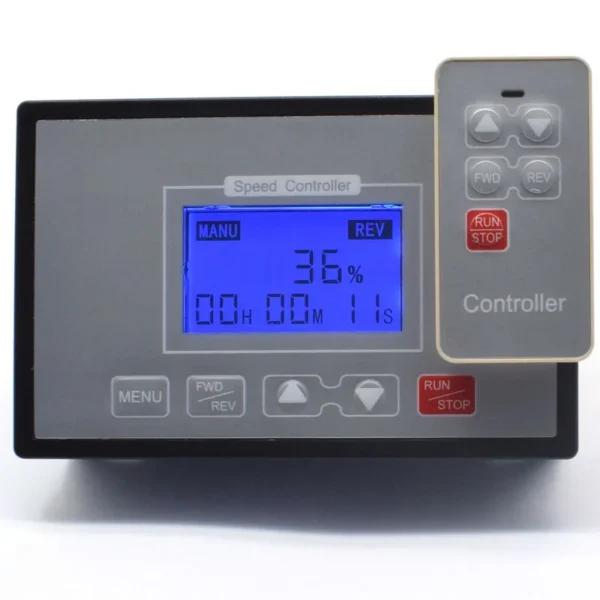

Forward rotation: Support Wireless remote control: Support
Timing timing: Yes
Limit function: Yes
Slow start slow stop: can be set
Speed digital display: 0-100 percentage table
Speed regulation type: Flow regulation
Speed regulation mode: Jog +-
Speed range: 0-100% Control frequency: 15KHZ
Wiring type: Fence type terminal Support motor: Brushed motor

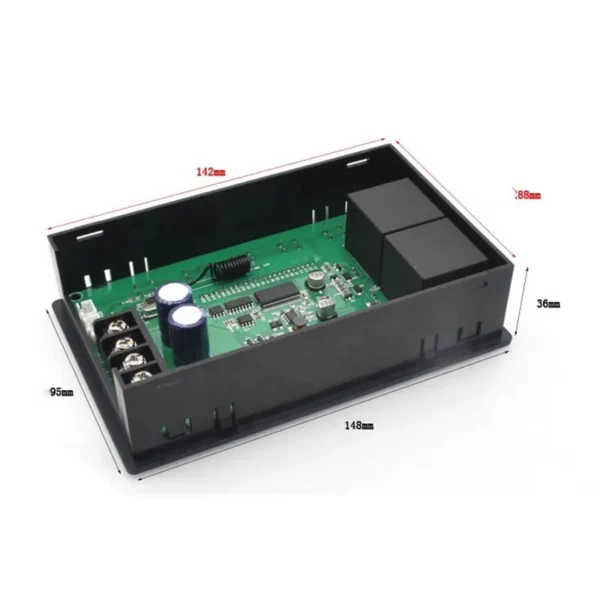

Module size: length * width * height 148mm * 95mm * 36mm
Panel opening: length * width 142mm * 88mm
Press and hold the FWD / REV button to turn off the backlight
For reverse start, press FWD / REV to reverse start

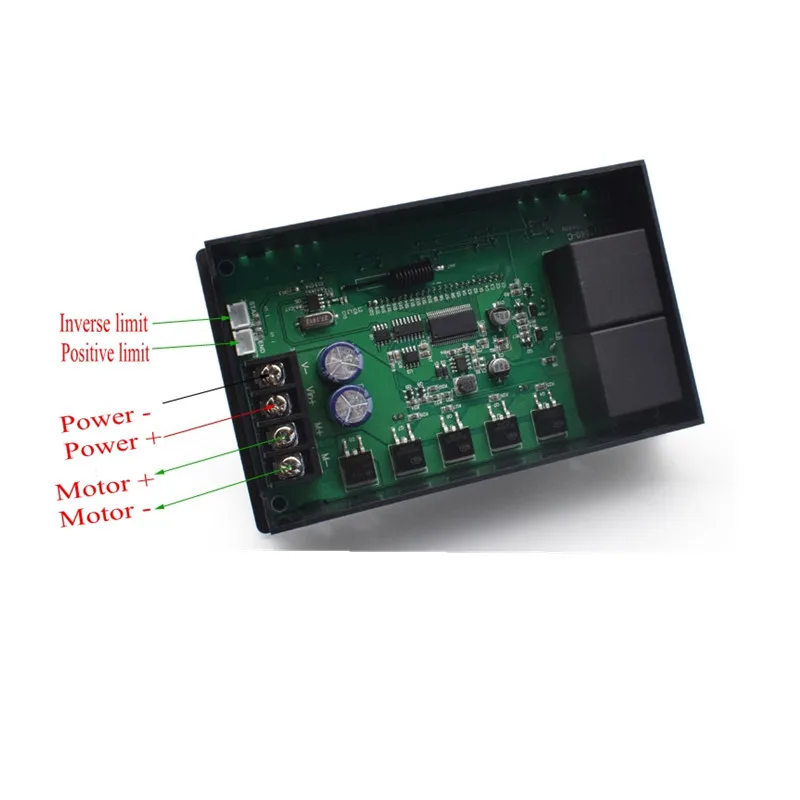

Note: The input must be divided into positive and negative. The input voltage must be equal to the rated voltage of the motor (within 10-55V).
For example, the rated voltage of the motor is 12V and the input voltage of the governor is 12V. The rated voltage of the motor is 36V and the input voltage of the governor is 36V.
0-1-2-3-4-5-6-7-8-9-E functions are set as follows
Manual automatic mode selection Function 0: 1 is manual mode 2 is automatic mode The default is 1 manual mode.
Slow start time setting Function 1: 000-100 Slow start to 100% speed time adjustable between 0-10 seconds The default is 1 second.
Slow stop time setting Function 2: 000-100 Slow stop time is adjustable between 0-10 seconds. The default is 1 second.
Speed lower limit setting Function 3: 000-080 The minimum speed is adjustable between 0-80% and less than the maximum speed setting value. The default is 0.
Speed upper limit setting Function 4: 000-100 The maximum speed is adjustable between 0-100% and is greater than the minimum speed setting value. The default is 100%.
Acceleration / deceleration value setting Function 5: 001 002 005 010 015 020 025 Each time the key is pressed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Total motor running time setting Function 6: 1 second minimum-99 hours 59 minutes 59 seconds maximum The default is 99 hours 59 minutes 59 seconds.
The following function 7.8.9. Is time setting in full automatic mode
Forward rotation time setting Function 7: 0 seconds minimum-99 hours maximum Default is 10 seconds
Stop time setting Function 8: 0 seconds minimum-99 hours maximum Default is 10 seconds
Reverse time setting Function 9: 0 seconds minimum-99 hours maximum Default is 10 seconds
Limit mode selection Function E: E1 Unlimited bit Default unlimited bit
E2 Press to start the motor to rotate forward.
E3 Press to start the motor, forward rotation, forward rotation to positive limit motor, reverse rotation, reverse rotation to reverse limit motor, stop
E4 Press the start motor to rotate forward.

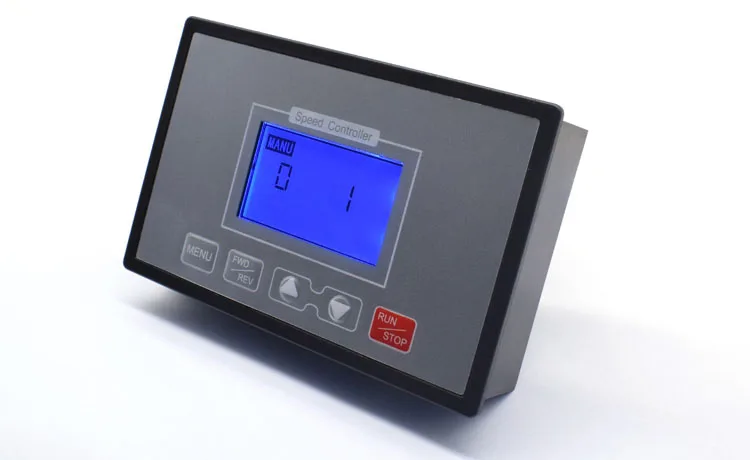

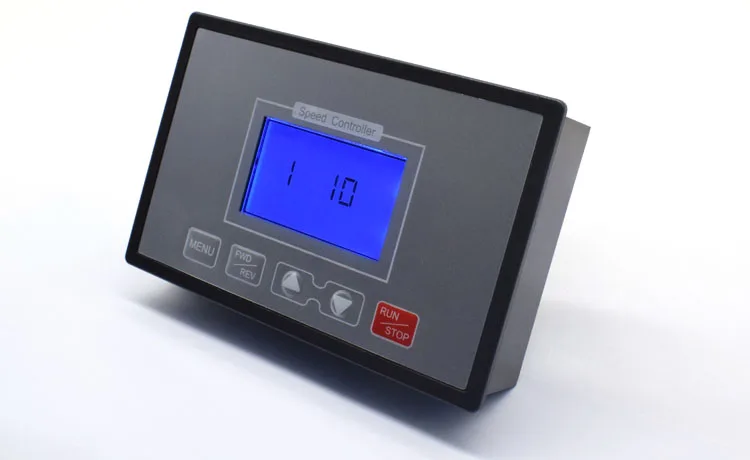

Manual and automatic mode selection Press the MENU button 1 to display 0 to enter manual and fully automatic mode selection 1 for manual mode 2 for automatic mode Press the plus and minus keys to switch Press RUN / STOP to save and exit. Press Slow start time setting Press the MENU key 2 to enter the function 1 setting key surface Press the plus and minus key to set the time

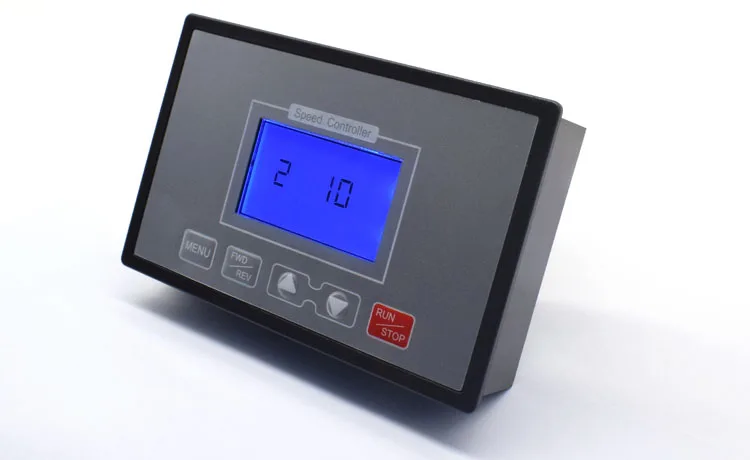

Slow stop time setting Press the MENU key 3 to enter the function 2 setting key surface Press the plus and minus keys to set the time Press RUN / STOP to save and exit (10 is 1 second and 100 is 10 seconds)

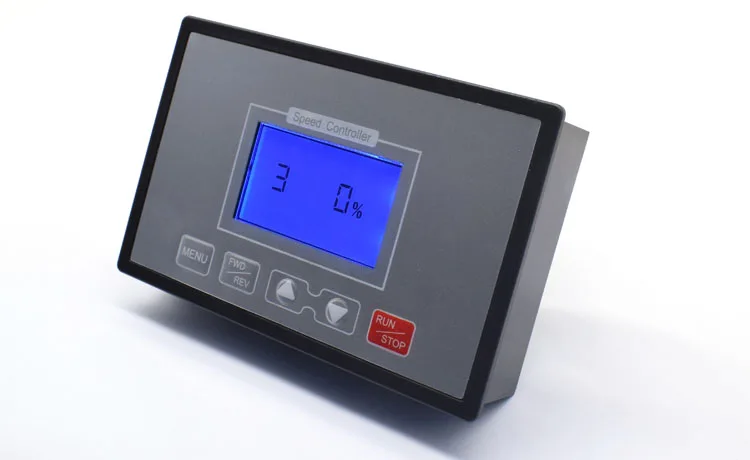

Speed lower limit setting Press MENU key 4 to enter function 3 key surface Press plus and minus keys to set Press RUN / STOP to save and exit

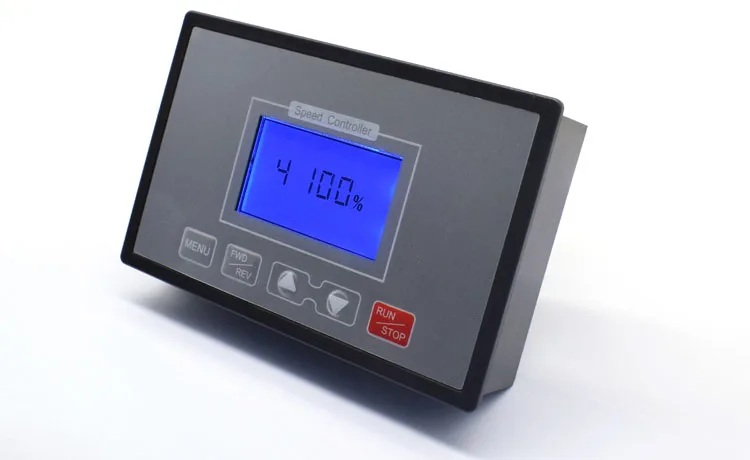

Speed upper limit setting Press the MENU key 5 to enter the function 4 key surface Press the plus and minus keys to set the value

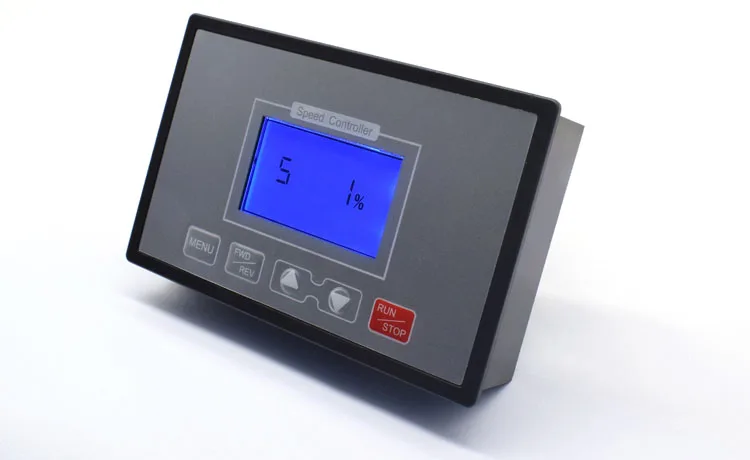

Acceleration / deceleration value setting Press the MENU key 6 to enter the function 5 key surface Press the plus / minus key to switch Press RUN / STOP to save and exit

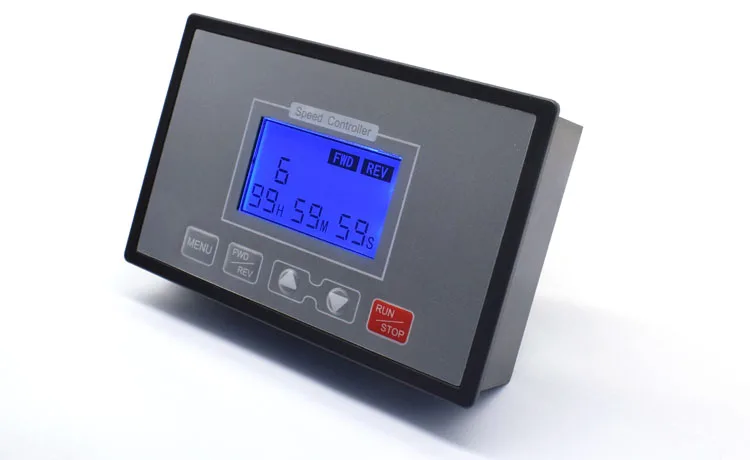

Motor total running time setting
Press MENU key 7 to enter function 6 key surface. The default is 99 hours, 59 minutes, and 59 seconds. FWD / REV key switching hours, minutes, and seconds
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

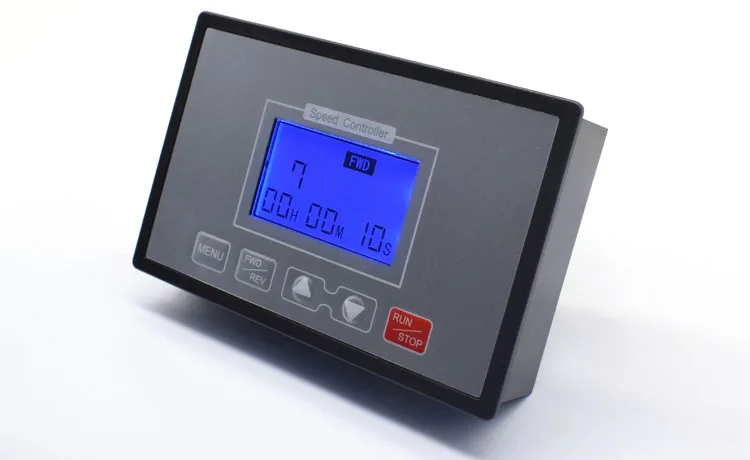

Function 7 Forward rotation time setting in fully automatic mode
Press the MENU key 8 times to enter the function 7 key surface. The default is the maximum time 0 hours 0 minutes 10 seconds. FWD / REV key switching hours minutes seconds
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

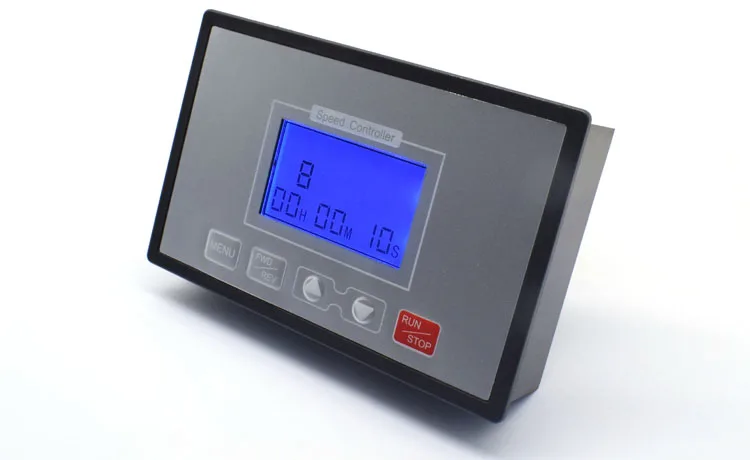

Function 8 Stop rotation time setting in fully automatic mode
Press the MENU key 9 times to enter the function 8 key surface. The default is the maximum time 0 hours 0 minutes 0 seconds.
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

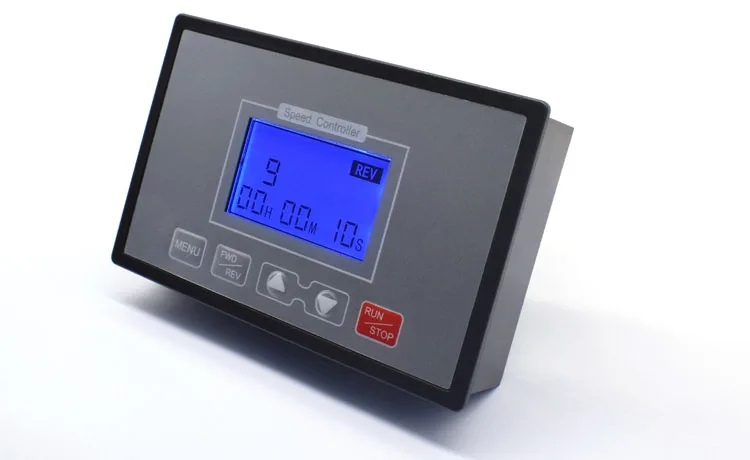

Function 9 Reverse time setting in fully automatic mode
Press the MENU key 10 times to enter the function 9 key surface. The default is the maximum time 0 hours 0 minutes 10 seconds. FWD / REV key switching hours minutes seconds
Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

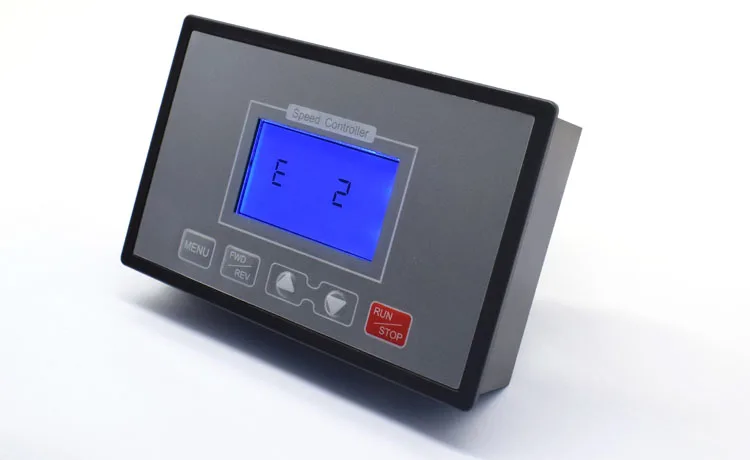

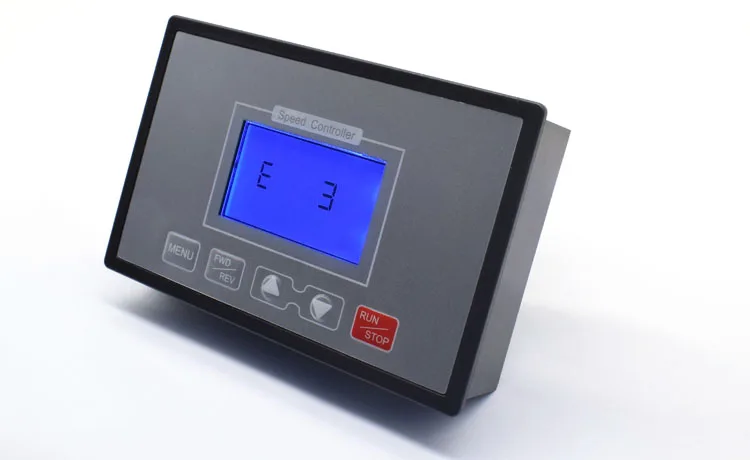

Function E limit mode selection E1 E2 E3 E4
Press MENU key 11 to enter the function E key surface. The default is E1 infinite position. Press plus or minus to switch E1 E2 E3 E4 Press RUN / STOP to save and exit
E2 function: Press to start the motor to rotate forward.
E3 function: press start motor forward rotation forward rotation to positive limit motor reverse rotation reverse rotation to reverse limit motor stop
E4 function: Press to start the motor and rotate forward.
|
