This cross flow fan is listed with the manufacturer’s full published specification — voltage 110v/220v/380v, power 370W, blade material galvanized sheet. It is produced by Dongguan Linyue Electric Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: TSL50
- Power: 370W
- Voltage: 110v/220v/380v
- Blade Material: galvanized sheet
- Speed: 2300~2800RPM
- Certification: CE
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 110v/220v/380v |
| Speed | 2300~2800RPM |
| Blade Material | galvanized sheet |
| Electric Current Type | AC |
| After-Sales Service Provided | No overseas service provided |
| Model Number | TSL50 |
| Place Of Origin | Guangdong, China |
| Power | 370W |
| Air Volume | 55~226m³/H |
| Brand Name | TSL |
| Certification | CE |
| Packaging Details | carton |
| Port Of Dispatch | sekou |
| Selling Units | Single item |
| Supply Ability | 100000 pieces per Month |
Product descriptions from the supplier
 |

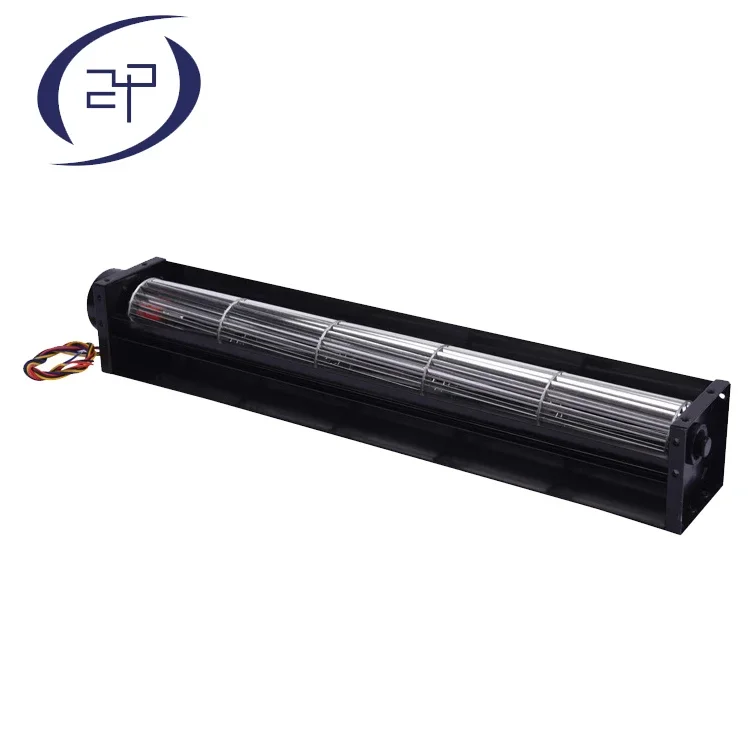

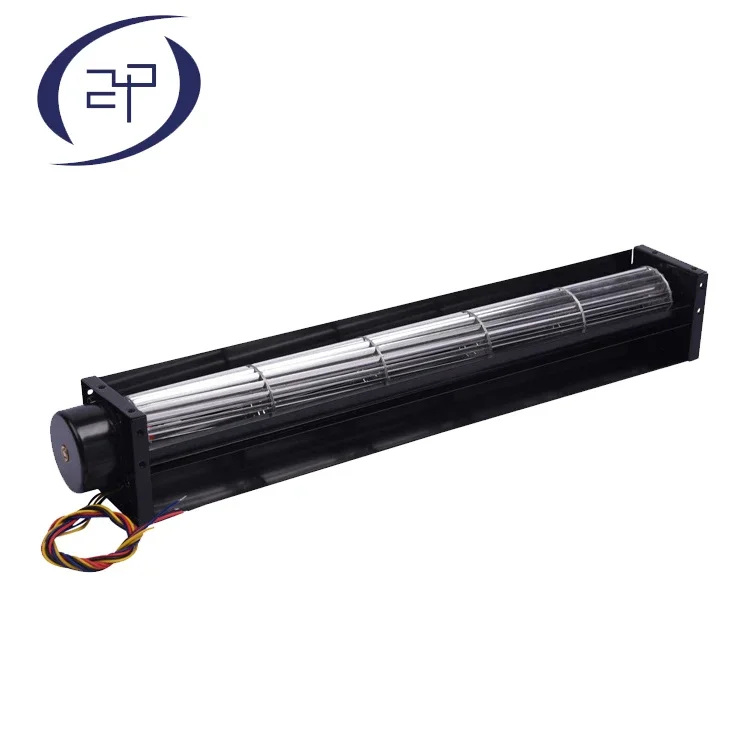

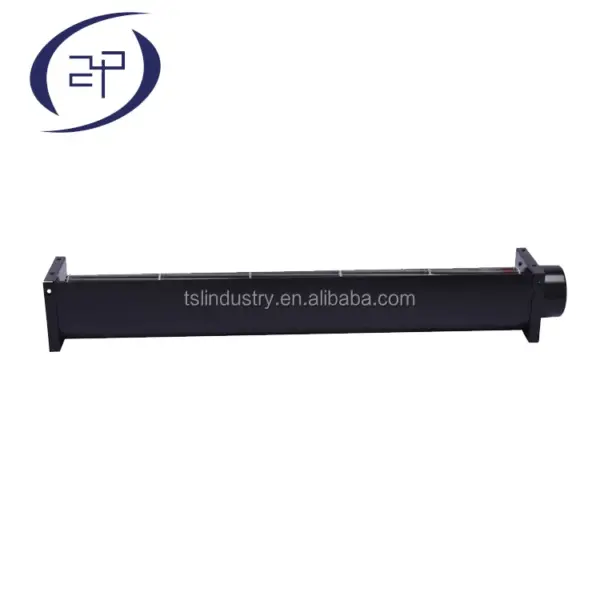

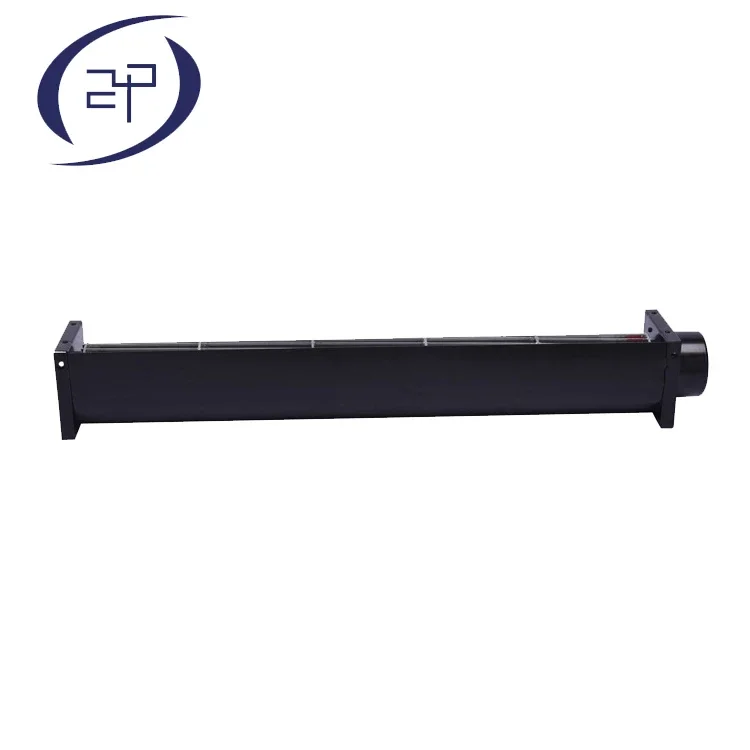

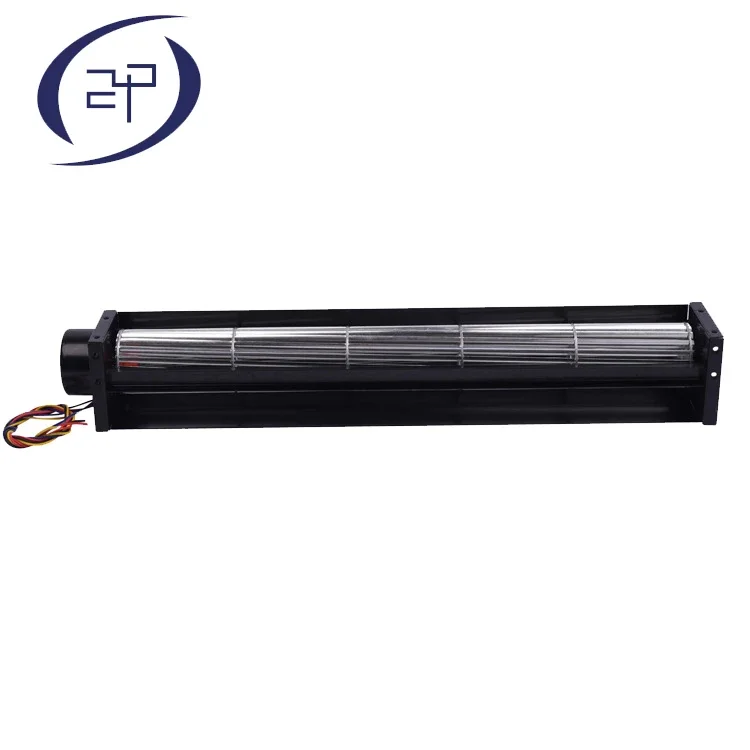

Cross flow fan
· Impeller Material:Aluminum Alloy. · Bearing:Ball Bearing/Sleeve Bearing. · Safety Approval:UL,CE,CCC,TUV. · Operating Temperature:-25℃~+60℃.
If any items you are interested,Warmly welcome you feel free to contact us. |

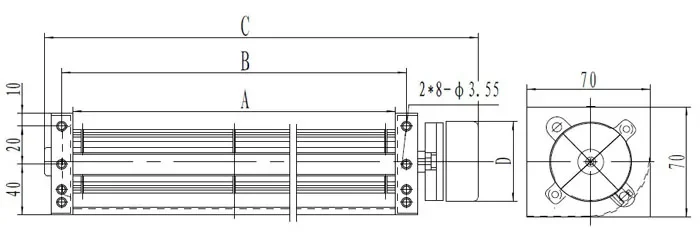

| Model | Size(mm) | Rated Voltage | Rated Current | Input Power | Speed | Static Pressure | Air Flow | Noise | Weight | ||
| Part Number | A | B | C | VDC | A | W | RPM | mmH2O | M3/H | dBA | g |
| GLF5098D12H3B-RF | 98 | 108 | 155 | 12 | 0.31 | 3.7 | 2800 | 3.2 | 55 | 35 | 335 |
| GLF5098D24H3B-RF | 24 | 0.19 | 4.6 | 2800 | 3.2 | 55 | 35 | ||||
| GLF50198D12H3B-RF | 198 | 208 | 255 | 12 | 0.48 | 5.8 | 2000 | 2.5 | 110 | 33 | 460 |
| GLF50198D24H3B-RF | 24 | 0.25 | 6.0 | 2000 | 2.5 | 110 | 33 | ||||
| GLF50298D12H3B-RF | 298 | 308 | 360 | 12 | 0.68 | 7.9 | 2400 | 4.1 | 215 | 42 | 720 |
| GLF50298D24H3B-RF | 24 | 0.41 | 9.8 | 2400 | 4.1 | 215 | 42 | ||||
| GLF30358D12H3B-RF | 358 | 368 | 420 | 12 | 0.76 | 9.1 | 2300 | 3.5 | 226 | 41 | 780 |
| GLF30358D24H3B-RF | 24 | 0.46 | 11.0 | 2300 | 3.5 | 226 | 41 | ||||
,
![langdi_20121210092050_2[1].jpg](https://i.hvacrnexus.com/wp-content/uploads/2026/01/1769256005189_02.webp)
 |
 |
| Trade Term: Payment: 30% deposit By T/T, Western Union, Paypal, 70% before delivery. Production Lead time: 7~25days; If we have this item of your q’ty in stock, 2days delivery. Shipping methods: You can choose EMS/DHL/UPS/FedEx/TNT/standard airfreight or ocean freight via international forwarder according to gross weight & Volume. In order not to increase the risk of losing goods and shipping time, we don’t suggest although it would be much cheaper than other shipping ways. FOB Shipping port: Guangzhou or Shenzhen, mainland China, Hong Kong Port If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry. |
|
Q: What voltages you can do , if you can make special voltages ?
A: Normal standard is 380V for 3phase, 220V for singple(OR 24V/12V).The voltage and herz can be customized as your requirement.For example,400V,240V,50.60Hz.(OR 24V/12V)
Q: Hong long is the warranty?
A: One year.
Q: What is the MOQ , can I order a sample for test?
A: MOQ is 10sets, it’s for convenience to arrange products. If you need sample for test ,then order large quantity, 1 set for sample is ok,too.
Q: Are you real manufacturer or ..?
A: Yes, we are 100% original manufactuer of blower fan. Our factory located at DongGuan city , GuangDong province . Welcome to visit us .As a manufacturer, we have strict control of the material purchase and productions quality. Make sure the goods delivery to you are unwounded and perfect.
Q: How can I pay?
A: We accept TT(Telegraphic transfer) and Western Union
Q: want to use our own brand , is it ok?
A: Of course it’s OK , we can make OEM products and also can provide our own brand products , it’s all by your request .
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Which certifications are available?
CE documentation is supplied with the product. Additional test reports can be issued on request for specific import markets.
Can it be built for my local voltage?
The standard specification is 110v/220v/380v. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
