Key specification for this direct-driven fiberglass fan: blade material Nylon. Everything below is reproduced from the factory data sheet. Made by Shandong Runte Machinery Technology Co., Ltd. (9 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Direct-Driven Fiberglass Fan
- Blade Material: Nylon
- Blade Speed: 600 RPM
- Warranty: 2 Years
- Place Of Origin: Shandong, China
- Application: Livestock Farm
- Mounting Type: Wall Fan
Technical Specifications
| Blade Material | Nylon |
|---|---|
| Mounting Type | Wall Fan |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | Qilu Runte |
| Product Name | Entilation Exhaust Poultry Farming Shed Wall Frp Fans Exhaust Fan |
| Keywords | poultry farm motor exhaust large air flow greenhouse axial fan |
| Application | Livestock Farm |
| Drive | Direct Driven |
| Motor | ABB/Regal/Chinese Motor |
| Mounting | Wall fan |
| Size | 1460*1460*1270 |
| Blade Speed | 600 RPM |
| Selling Units | Single item |
| Single Package Size | 146X146X127 cm |
| Single Gross Weight | 70.0 kg |
Product Details
Products Description

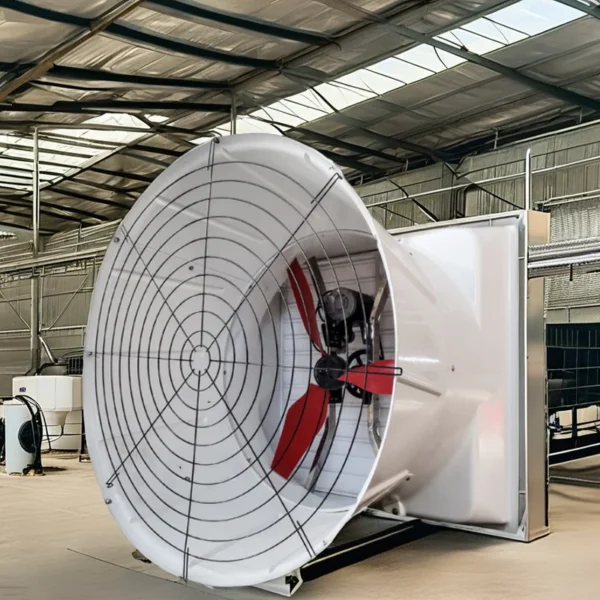

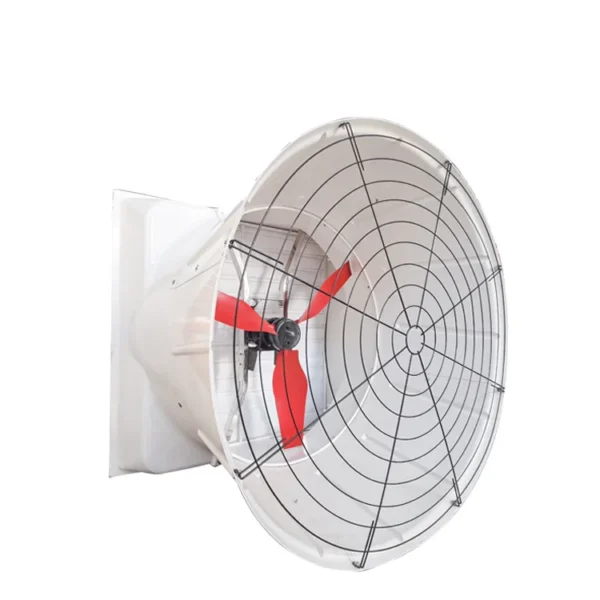

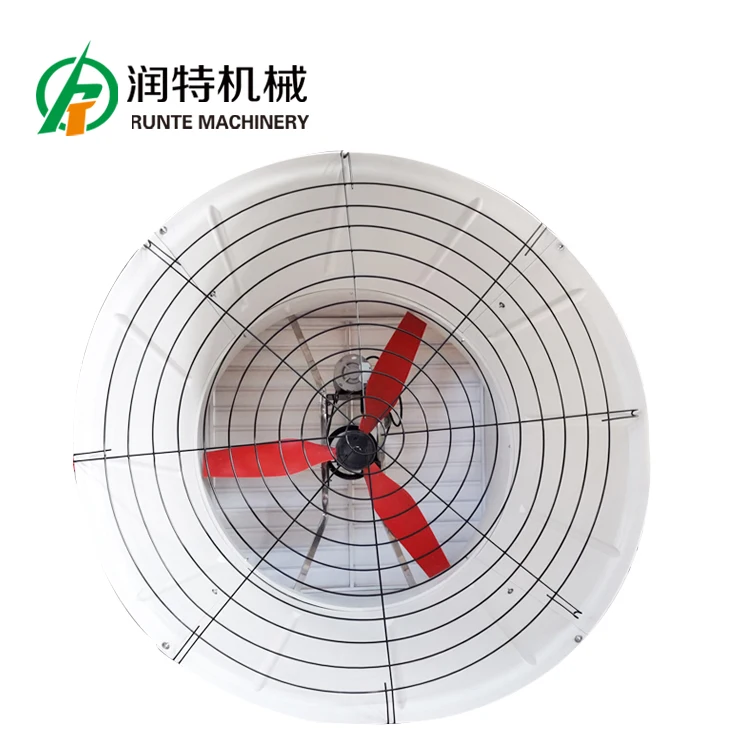

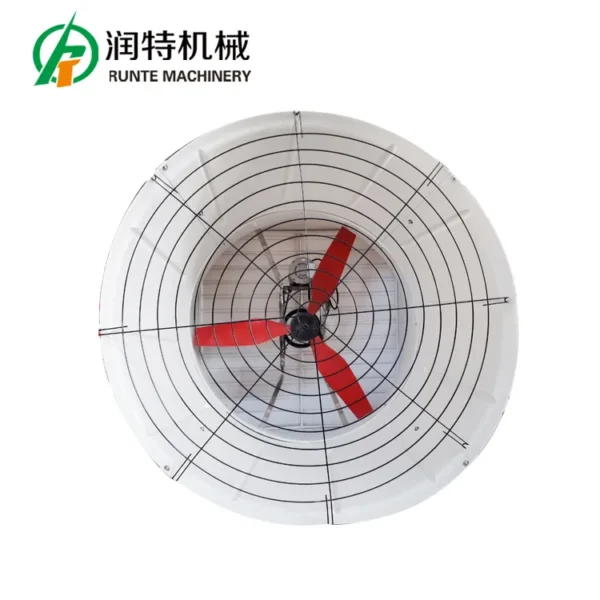

Fiberglass direct drive exhaust Fan for high negative pressure pig farming
FRP Cone Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for high negative pressure animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Technical Parameter

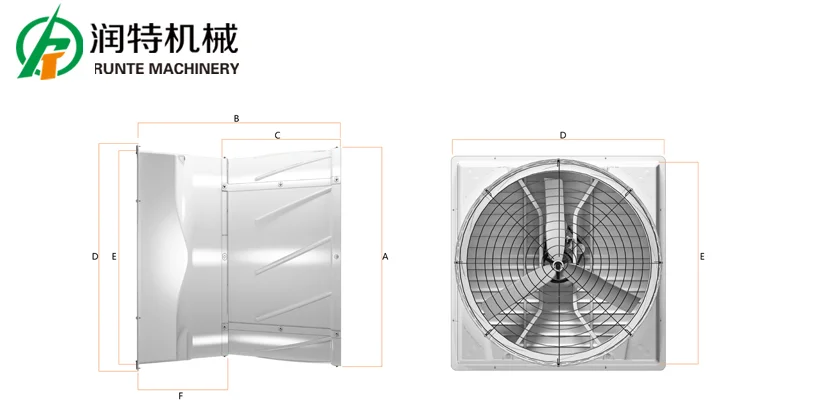

Model | A | B | C | D | E | F |
55 Inch | 1590 | 1480 | 850 | 1630 | 1540 | 660 |
51 Inch | 1510 | 1220 | 645 | 1530 | 1460 | 600 |
50 Inch | 1450 | 1240 | 705 | 1460 | 1400 | 590 |
36 Inch | 1130 | 1200 | 625 | 1170 | 1080 | 550 |
Model | Motor Kw | Blade RPM | Air capacity | Voltage | Installation | Horn Cone |
55 Inch | 1.5kw/2HP | 550 | 54800 | 380 | 1540*1540mm | with |
51 Inch | 1.1kw/1.5HP | 580 | 46500 | 380 | 1460*1460mm | with |
50 Inch | 1.1kw/1.5HP | 600 | 42500 | 380 | 1400*1400mm | with |
36 Inch | 0.75kw/1HP | 900 | 24500 | 380 | 1080*1080mm | with |
Details Images

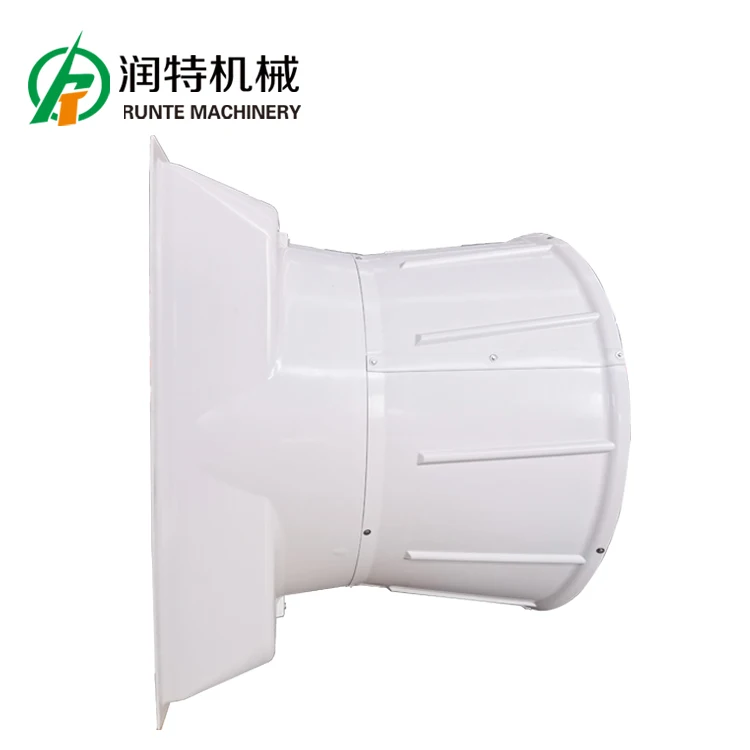

Shell
1. The frame is designed according to the aerodynamic principle. 2. It is made of high-strength anti-corrosion FRP material beautiful appearance, strong waterproof, corrosion resistance and strong aging resistance. 3.Equipped with FRP horn-cone, the exhaust performance is significantly improved.

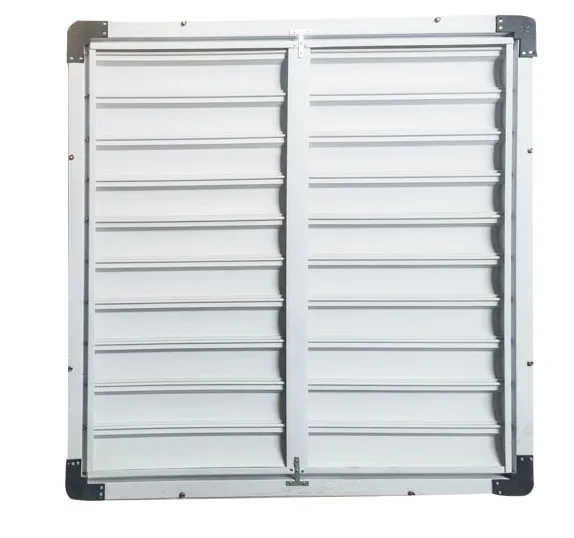

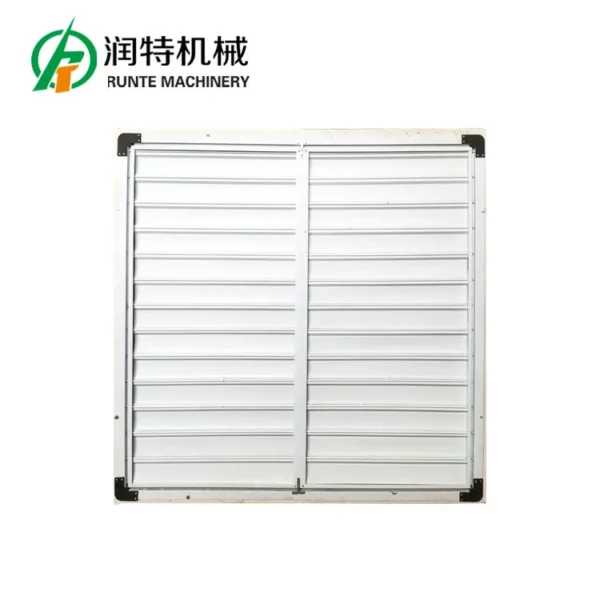

Shutters
PVC Shutters, corrosion resistant, anti-aging. High quality material available.

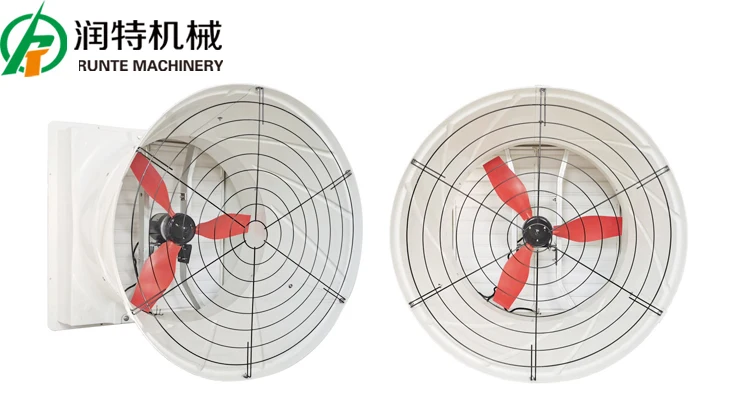

Nylon Blade

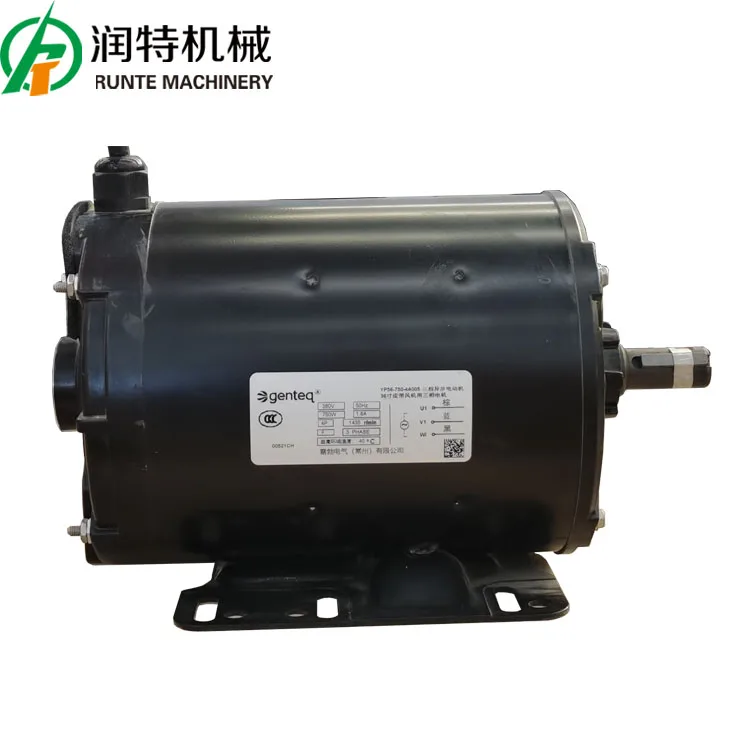

1. The fan blades are made of high quality nylon , beautiful appearance, low noise and large air capacity. 2. Reasonable fan blade angle design, large air capacity and high efficiency.Motor

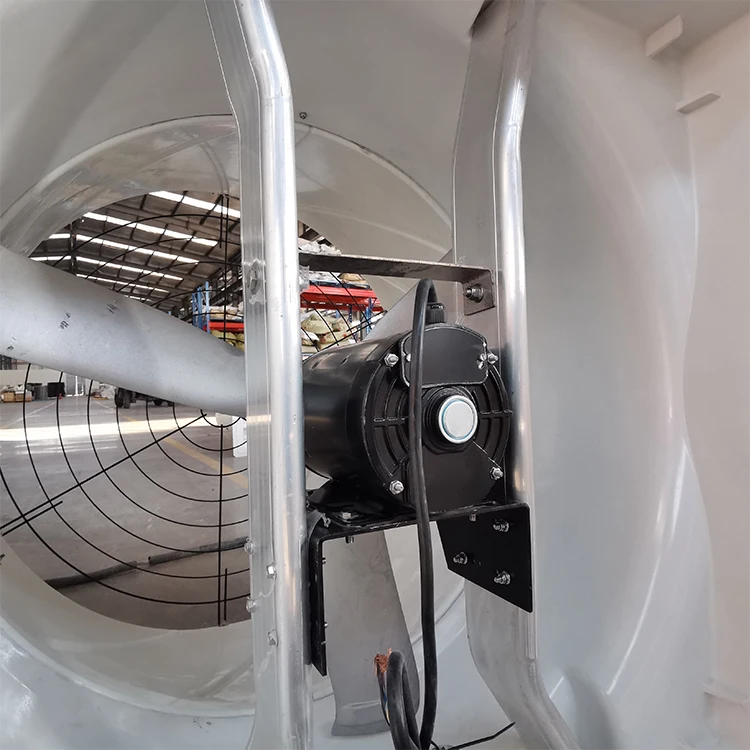

1. Chinese famous motor, ABB motor, WEG motor and America Legal brand are available. 2. Motor voltage, frequency and phase can be customized. 3. Motor protection class: IP55 4. Insulation class: F 5. Motor Certification: UL / CE

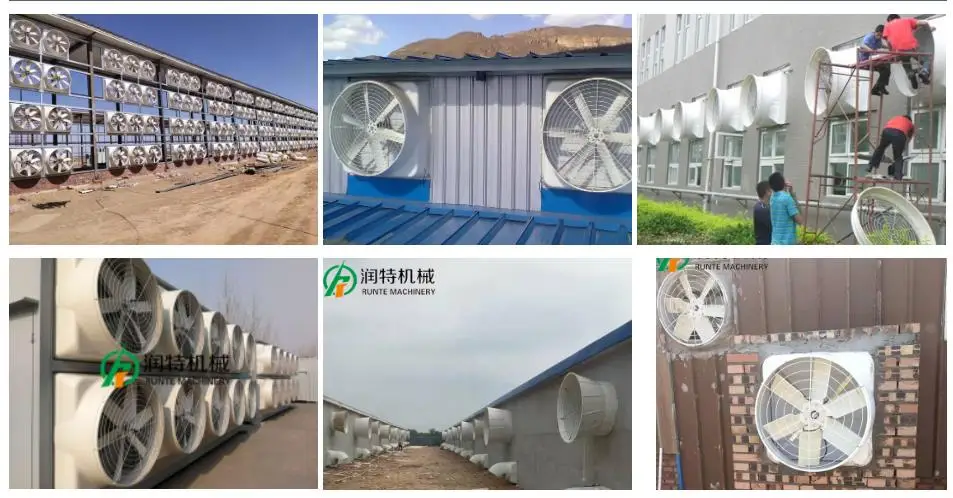

Product Application

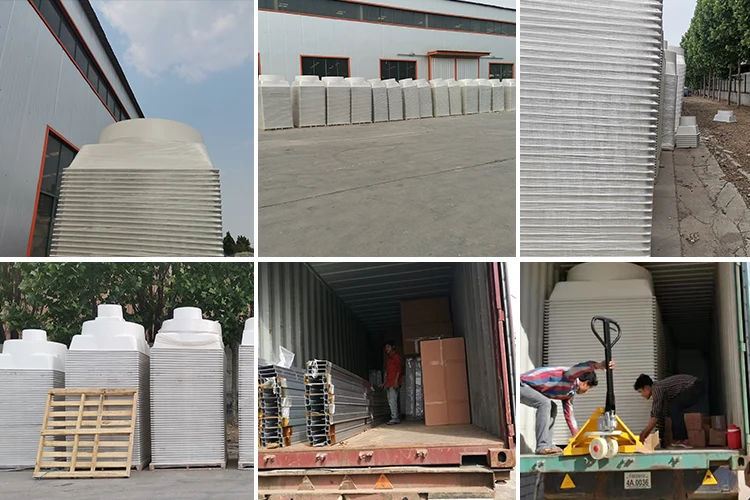

Package
Certificate Identification

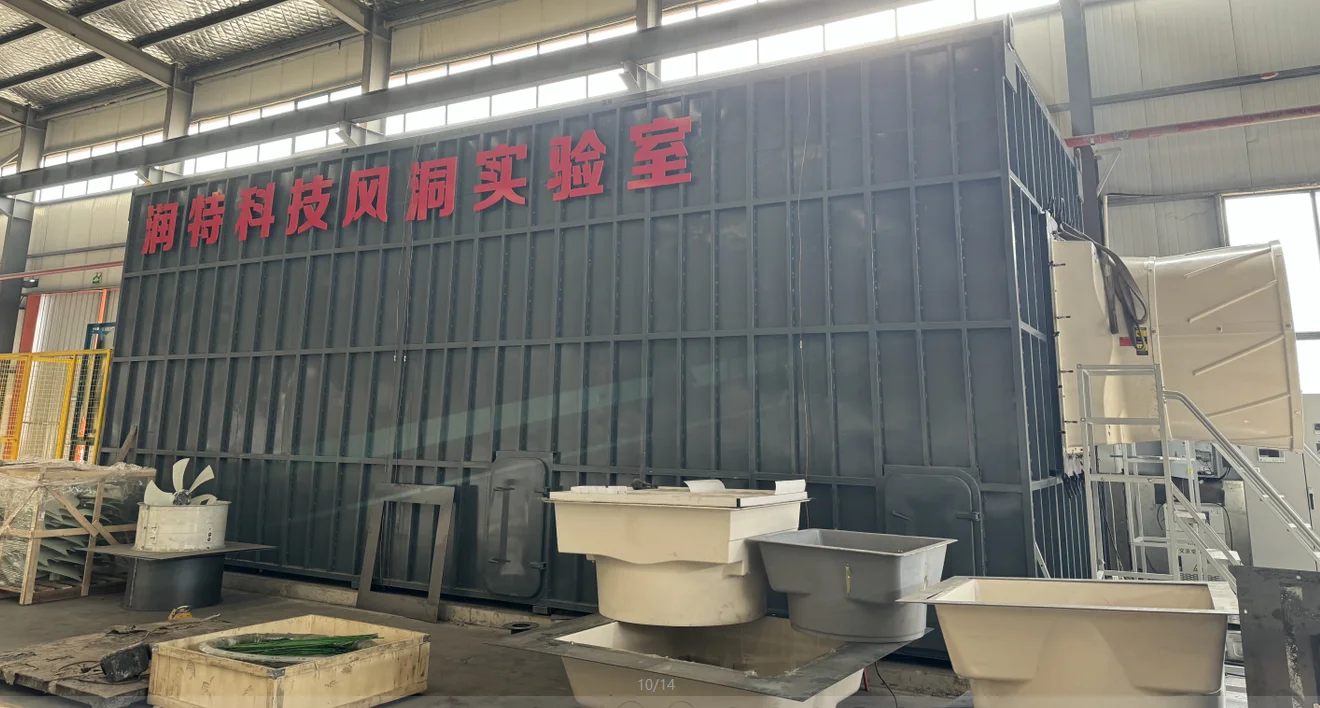

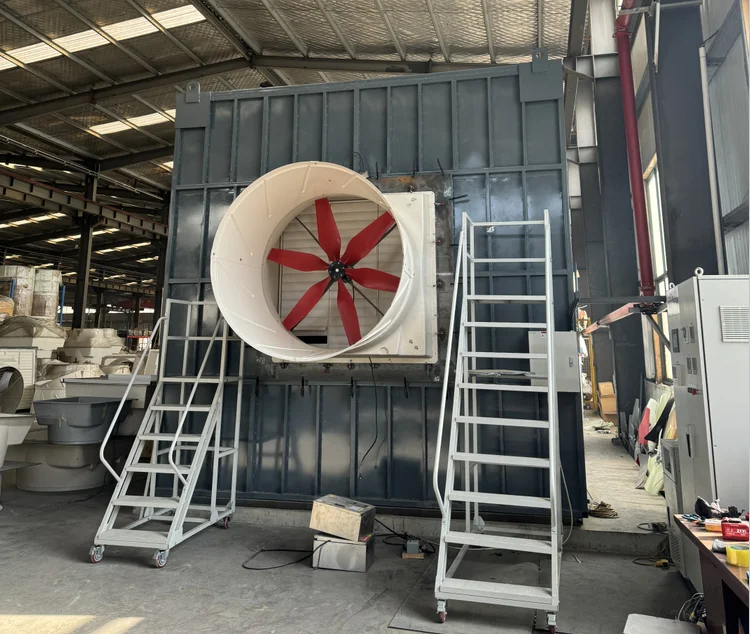

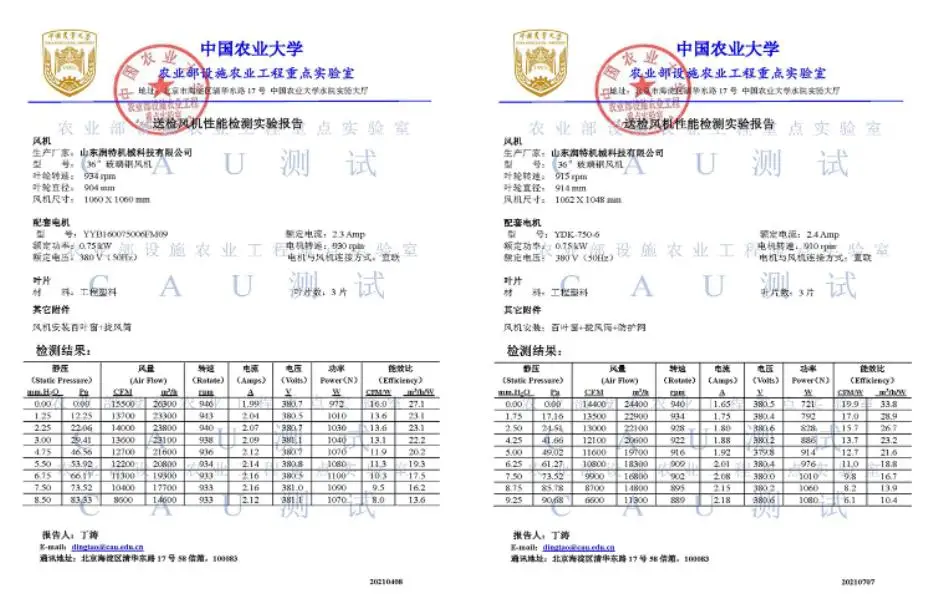

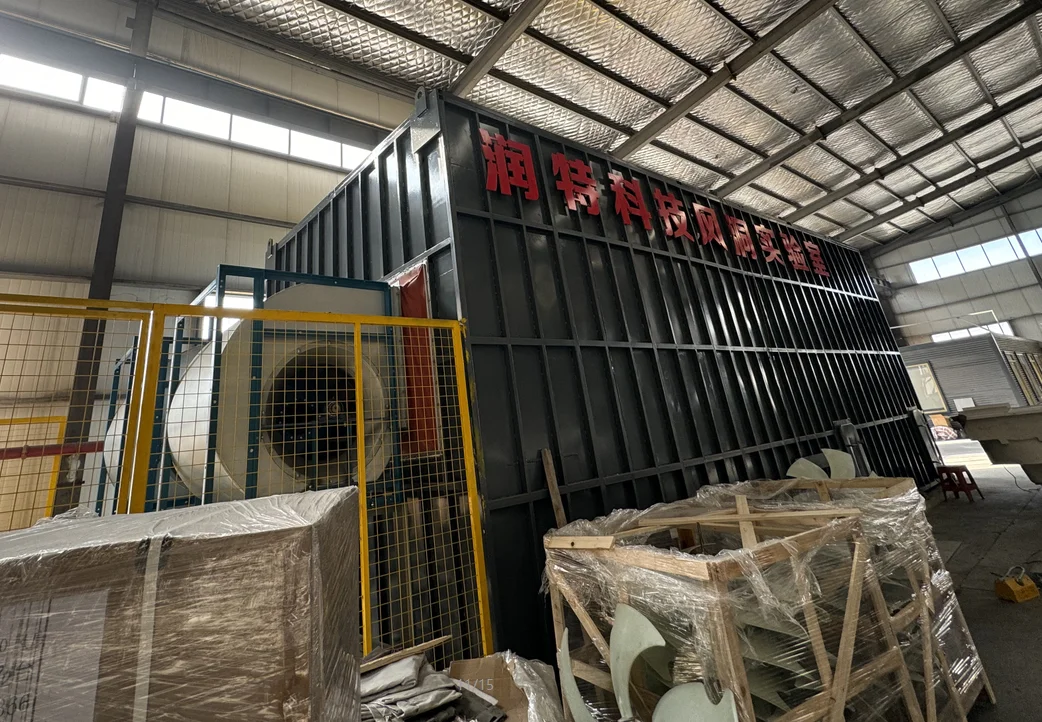

Air Capacity Examination
Exhibition
Our Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous
improvement in communication with customers
improvement in communication with customers

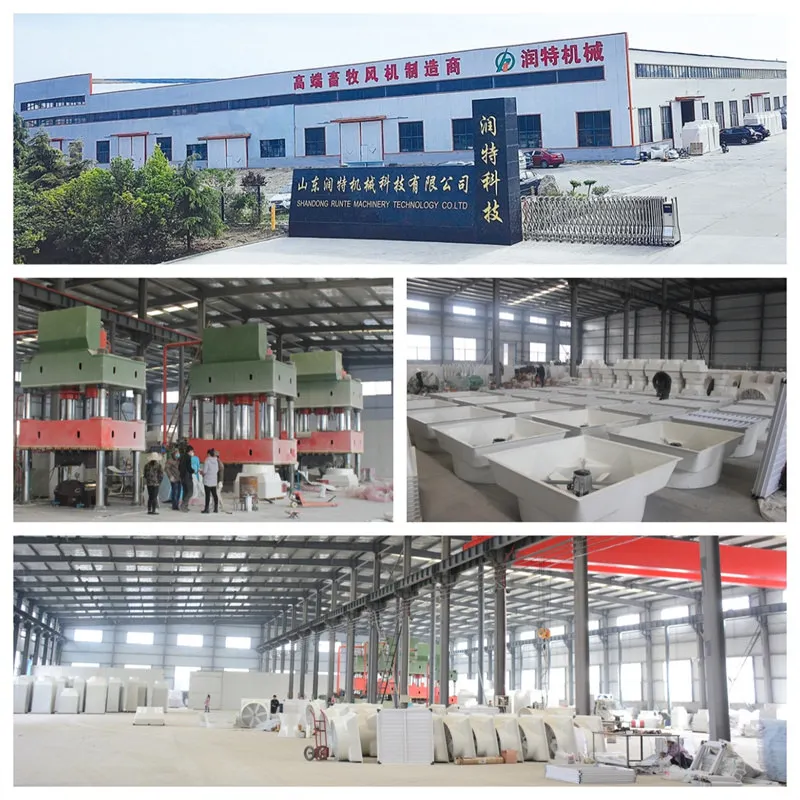

Company Profile
Shandong Runte machinery technology Co.,ltd was established in the year of 2016, registered capital 10 million CNY, located in Qingzhou City, Shandong province ,China. Our company is the first professional factory manufactured the fiberglass fan in north of China, our mainly products is the fiberglass fan and its spare parts.
Our company has five sets large press machines, and the pressure of biggest one is 2000 tons. We have the full production line of the SMC materials, can guarantee the quality from the most beginning. We have dozens of high quality moulds, punching machines, and assembled fan lines, all these make us manufacture more than 1000 sets fiberglass fans. Besides our company also have technology research and development department, quality inspection department, sales department, annual output reach 150 thousands to all China market, also exported to countries in South East Asia, Middle East and South America.
Corporate Concept: Top Credit, Constant Innovation; Customer Uppermost. Quality First, Corporate Tenet; Credit-based, Commitment
stressed, Contract-abiding, Top Quality, Perfect Service.
FAQ & Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
1.Q: Are you a trading company or a factory ?
A: We are the first factory of the fiberglass fan in north of China , and export by our company ourselves
2.Q: what kind of voltage can You do, can you customize the voltage?
A: We can do almost all types of voltage, but for special voltages , Universal voltage is 380V and 50HZ
3.Q: Can you cheaper ?
A: We have many different types fiberlgalss steel exhaust fan to chosen , all the products with high quality. If you really want
cheaper fans , we suggest you choose the low stage product, we can also ensure the quality of the exhaust fan .
4.Q: I want to use our own brand , is it ok?
A: No problem , we can provide OEM products and our own brand products , no matter what you demand, we can meet you.
5.Q:Can you send spare parts?
A:Yes,of course. Our warehouse is a considerable inventory, If you expend artificially cheap
A: We are the first factory of the fiberglass fan in north of China , and export by our company ourselves
2.Q: what kind of voltage can You do, can you customize the voltage?
A: We can do almost all types of voltage, but for special voltages , Universal voltage is 380V and 50HZ
3.Q: Can you cheaper ?
A: We have many different types fiberlgalss steel exhaust fan to chosen , all the products with high quality. If you really want
cheaper fans , we suggest you choose the low stage product, we can also ensure the quality of the exhaust fan .
4.Q: I want to use our own brand , is it ok?
A: No problem , we can provide OEM products and our own brand products , no matter what you demand, we can meet you.
5.Q:Can you send spare parts?
A:Yes,of course. Our warehouse is a considerable inventory, If you expend artificially cheap
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $215 / set
- 100+ set: US $210 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this direct-driven fiberglass fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
