This axial flow fans is listed with the manufacturer’s full published specification — voltage 115/230V, power source Electric, blade material Plastic. It is produced by Shenzhen Shengshida Electronics Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Fans
- Model Number: SE1238
- Power Source: Electric
- Voltage: 115/230V
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 115/230V |
|---|---|
| Mounting Type | Free Standing |
| Type | axial fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Plastic |
| Bearing Type | Ball Bearing |
| Place Of Origin | Guangdong, China |
| Brand Name | Sensdar |
| Model Number | SE1238 |
| After-Sales Service Provided | No overseas service provided |
| Selling Units | Single item |
Product descriptions from the supplier
EC motor drive Large Air Flow AC Fan 12038 240V 4 Inch Wall Mounted Ventilation Fan 115V 220V AC Axial Cooling Fan
Fast details:
- Model No.: SE1238
- Size:120x120x38mm
- Volt:115V 230V 220V to 240V
- Motor:EC Axial Fan, Impedence Protected
- Features:Water Proof/ FG/RD signal/PWM
- Bearing: Sleeve/Ball
- ROHS,CE
We provide high quality and best cost-effective heat solutions to customers dealing in wide fields such as communication equipment, household appliances, medical equipment, industrial equipment, industrial control, power supplies, cabinets, audio-visual equipment, Computer and so on.

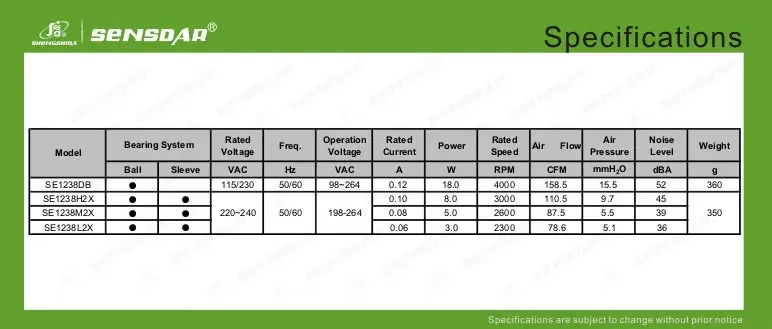

Specifications:
- Model No.: SE1238
- Size:120x120x38mm
- Volt:115V 230V 220V to 240V
- Motor:EC Axial Fan, Impedence Protected
- Features:Water Proof/ FG/RD signal/PWM
- Bearing: Sleeve/Ball
- ROHS,CE
“X” in model list can be B,S and C, meaning Dual Ball Bearing, Sleeve Bearing and 1 Ball 1 Sleeve Bearing.

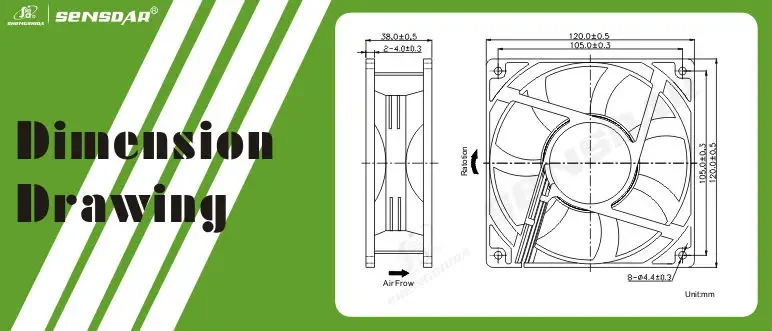

l Dimension Drawing

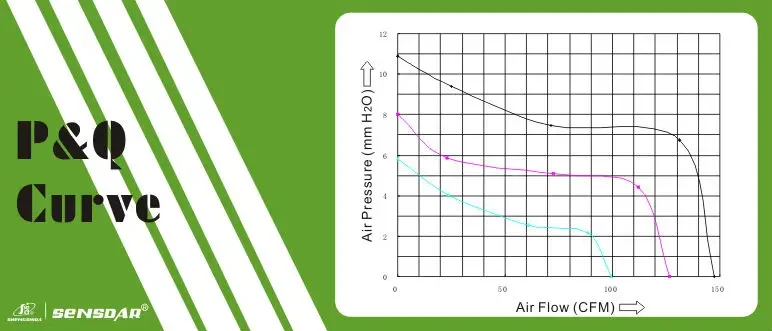

l P&Q Curve
All reading are typical vaqlues at rated voltage.
Shipping: by Air, Courier, or Sea
Payment Terms: EXWork Shenzhen / FOB Shenzhen/ FOB HongKong / CNF / CIF
Sample Policy: Free Sample with Freight Collect
Sample Lead Time: 2-5 Days
MOQ : 100PCS
Order Lead Time: 5-20 Days
Other: OEM & ODM available
( Mould design or modifications/ PCB designs / Advanced Features)
Shenzhen Shengshida Electronics Co., Ltd.(SHENGSHIDA ® / SENSDAR ®) is a manufacturing SME with more than ten years experience in R & D, manufacturing and sales of cooling fans. Our product lines include DC cooling fan, AC cooling fan, new energy-saving variable frequency AC fans, blowers, fan guards and filters. For many years, Shengshida has been specialized in providing comprehensive cooling solutions for a variety of household and industrial products while our products have won a wide application and recognition in the industries of power supply, communications equipment, servers machines, cabinets, home electronics, automotive electronics and so on. Also we can offer superior service according to our customers’ demand from design, R & D, mold opening, test to manufacturing.
OFFICIAL WEBSITE: WWW.SENSDAR.COM
1. What is EC axial fan motor?
An EC axial fan is also a kind of AC axial fan, wholy designed by our engineer, powered by 115VAC or 230VAC.
2. What is fan sizes available now?
The sizes available now is 60mm, 70mm, 80m, 90mm, 120mm, 150mm and 200mm. Cover most of the fan size in normal AC fan.
3. How does an EC fan differ from normal AC fan?
a. Much more airflow
b. Much less power consumption , 50% lower or even.
c. Much longer life expectancy, it is not easily getting hot while working.
d. No much higher cost
e. Can be featured with PWM, water proof, FG signal, RD signal and Thermal control.
4. What some models are in plastic frame?
The fan does not easily get hot itself, so it is not necessary to apply aluminum alloy frame. It is good for delivery too.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fans?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fans?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 115/230V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
