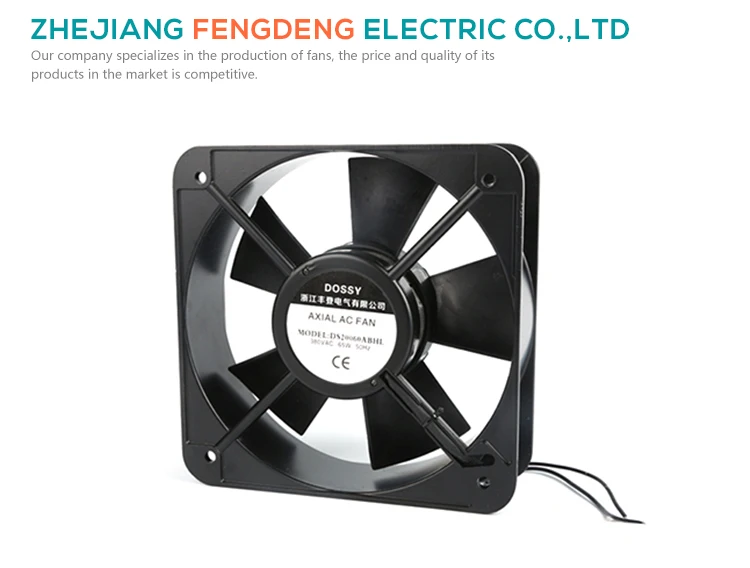

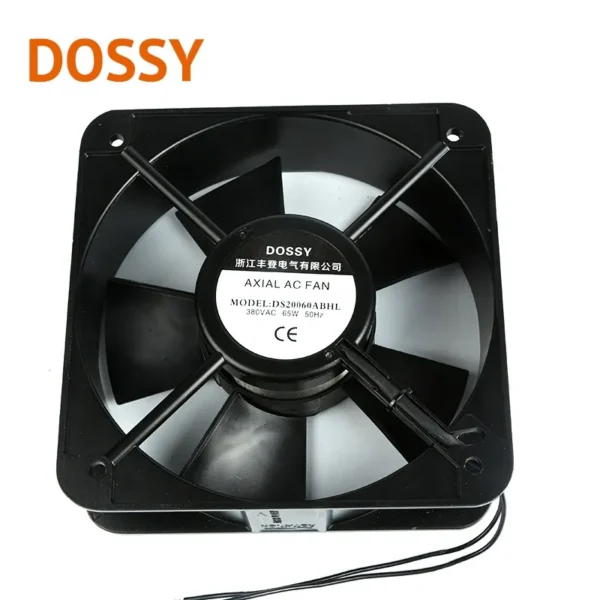

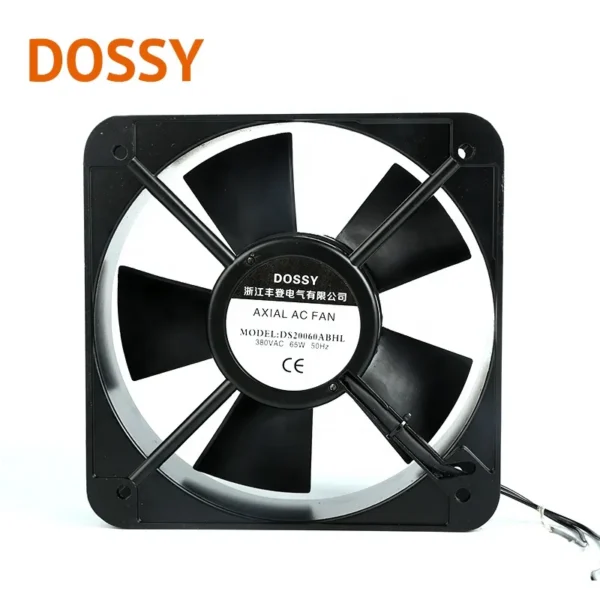

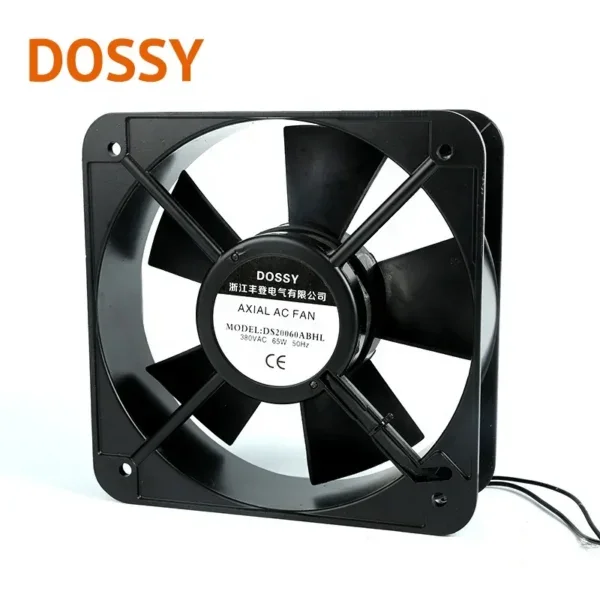

This electric axial fan is published with the manufacturer’s full specification — 110V/220V/380, power source Electric. Made by Zhejiang Fengdeng Electric Co., Ltd. (14 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Electric Axial Fan
- Model Number: DS20060ABHL
- Power Source: Electric
- Voltage: 110V/220V/380
- Rated Voltage: 110v/220v/380v
- Material: Aluminum Alloy
- Blade Material: Plastic
Technical Specifications
| Blade Diameter | 8 in |
|---|---|
| Voltage | 110V/220V/380 |
| Speed | 2550RPM |
| Type | ac axial fan |
| Material | Aluminum Alloy |
| Blade Material | Plastic |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | DOSSY |
| Model Number | DS20060ABHL |
| Blades | 5 blades |
| Color | Black |
| Rated Voltage | 110v/220v/380v |
| Fan Type | Wall Air Fan |
| Frame | Alluminum Alloy |
| Frequency | 50/60 Hz |

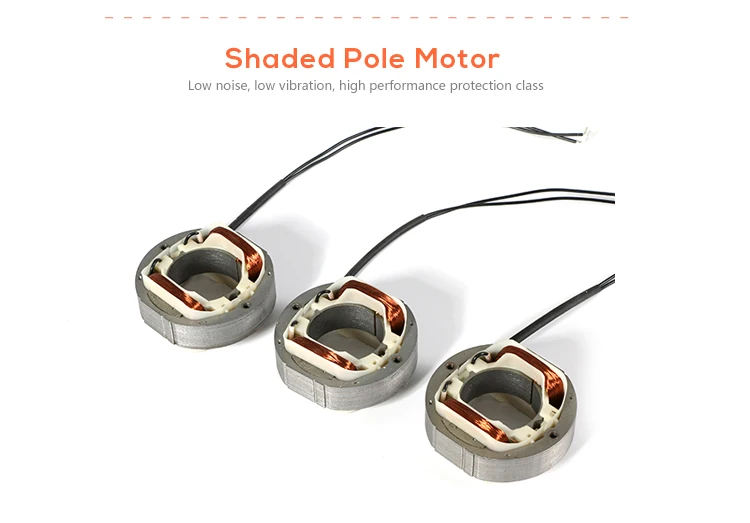

| Motor | Shaded-Pole Motor |
| Bearing | Ball Beairng |
| Current | 0.78/0.4/0.24A |
| Certification | ce,RoHS |
| Selling Units | Single item |
| Single Package Size | 47X24X48 cm |
| Single Gross Weight | 2.000 kg |
Product Details

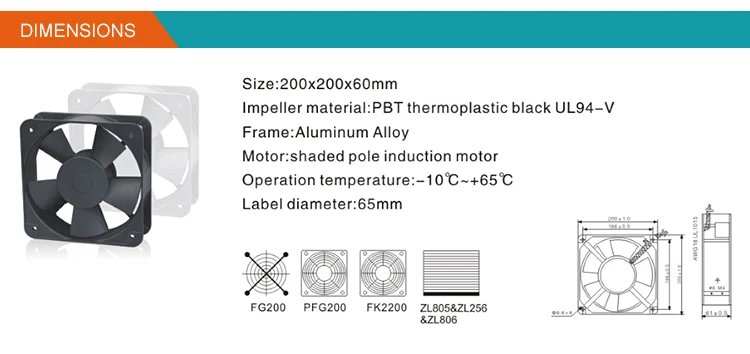

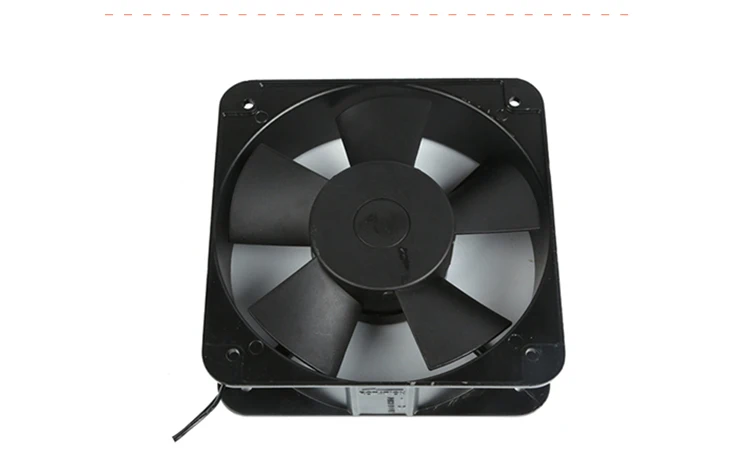

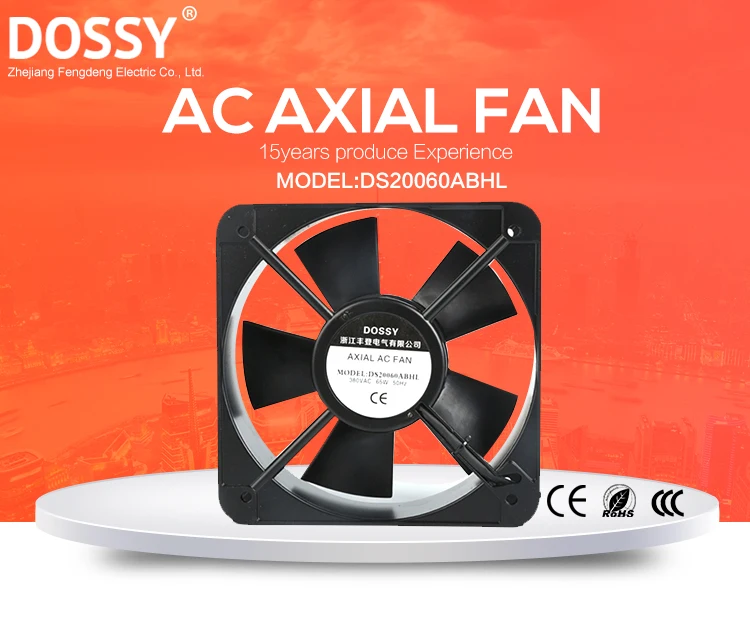

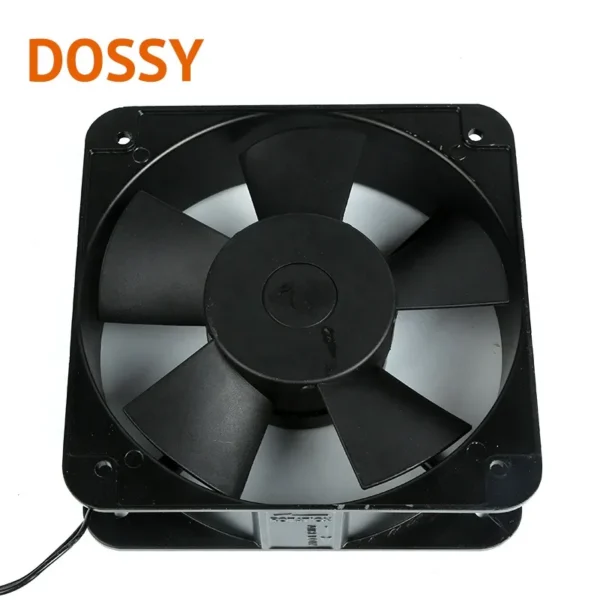

200mm ac axial cooling fan 200x200x60mm
| Factory Code | Model | Voltage | Current | Freq | Noise | Bearing | Power | Speed | Air volume | connector | Packing | |||
| (V) | (A) | (HZ) | (Db) | (Watt) | (r/min) | (m3/h) | CFM | pcs/ctn | weight | dimension | ||||
| AF2060B11L | DS20060ABHL | 110 | 0.78 | 50 | 65 | ball | 65 | 2550 | 680 | 400 | wire | 10 | 18kg | 47*24*47.2 |
| AF2060B22L | DS20060ABHL | 220 | 0.4 | 50 | 65 | ball | 65 | 2550 | 680 | 400 | wire | 10 | 18kg | 47*24*47.2 |
| AF2060B38L | DS20060ABHL | 380 | 0.24 | 50 | 65 | ball | 65 | 2550 | 680 | 400 | wire | 10 | 18kg | 47*24*47.2 |
Q1: Are you a factory or trading company ?
A1: Yes,We are the factory which have 15 years manufacture history.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose Fan?
A3: To choose a Fan, you should consider the points below:
a. Fan size b. Fan voltage c. Fan speed
d. Fan bearing type ? ( Sleeve-bearing or Ball-bearing type?)
e. Fan power ( Wattage) f. Fan airflow.
Q4: How long is the warranty?
A4: We Guarantee 1 years warranty.
Q5: What is the delivery time?
A5: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q6: Can you tell me the normal DC fan Model?
A6:
15*15*04mm/ 20*20*06mm / 20*20*10mm/ 25*25*07mm/ 25*25*10mm / 30*30*07mm/ 30*30*10mm / 35*35*10mm/40*40*07mm/ 40*40*10mm /40*40*15mm/ 40*40*20mm / 40*40*28mm /45*45*10mm/ 50*50*10mm /50*50*12mm/ 50*50*15mm/ 50*50*20mm/ 50*50*25mm/ 60*60*10mm/ 60*60*15/ 60*60*20mm/ 60*60*25mm/ 60*60*38mm/70*70*10mm/ 70*70*15mm / 70*70*25mm / 80*80*10mm/ 80*80*15mm / 80*80*20mm/ 80*80*25mm / 80*80*38mm / 92*92*20mm/ 92*92*25mm/ 92*92*38mm/ 120*120*25mm/ 120*120*32mm/ 120*120*38mm/ 127*127*38mm/140*140*25mm/ 150*150*51mm / 172*150*51mm/ 172*172*51mm/ 200*200*20mm/ 200*200*60mm
Q7: Can you tell me the normal AC fan Model?

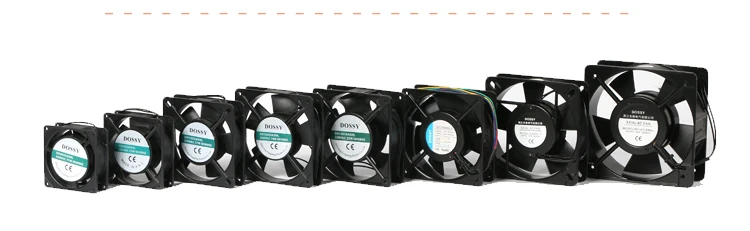

A7: 80*80*25mm, 80*80*38mm, 92*92*25mm, 92*92*38mm,
110*110*25mm, 120*120*25mm, 120*120*38mm, 135*135*32mm
172*150*38mm, 172*150*51mm, 150*150*51mm, 172*172*51mm,
180*180*61mm, 200*200*60mm, 223*223*61mm, 230*200*65mm,
107*100*30mm, 150*160*60mm, 210*210*70mm 172*150*51mm 225*225*80mm,280*280*80mm, 250*410*90mm, 300*460*100mm,
200mm-600mm External Rotor fan, 130FLJ1 blower
Back to Homepage
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $9.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this electric axial fan carry?
It is supplied with ce,RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the electric axial fan be supplied for my local voltage?
The standard configuration is 110V/220V/380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Fengdeng Electric Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Fengdeng Electric Co., Ltd. range on HVACR Nexus.
