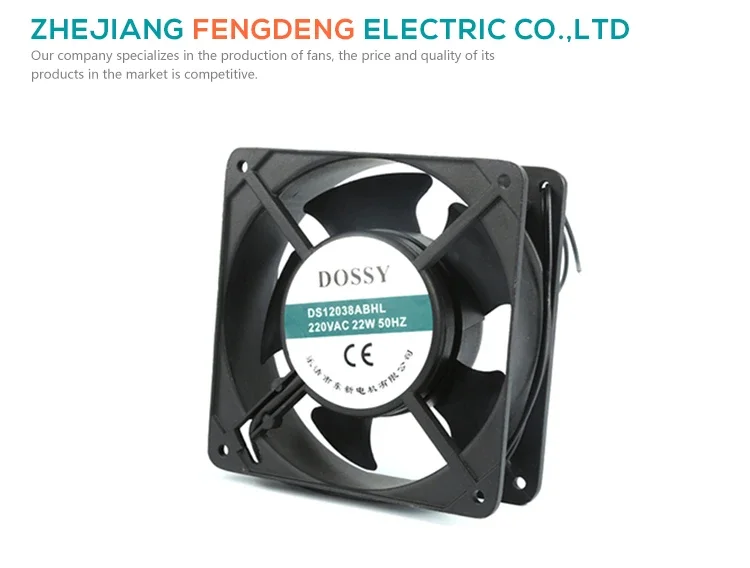

The axial fan listed here carries 110V/220V/380V, power source Electric, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
This axial fan is listed with the manufacturer’s full published specification — voltage 110V/220V/380V, power source Electric, material Aluminum Alloy. It is produced by Zhejiang Fengdeng Electric Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Fan
- Power Source: Electric
- Voltage: 110V/220V/380V
- Material: Aluminum Alloy
- Blade Material: Plastic
- Speed: 2550
- Warranty: 1 Year
Technical Specifications
| Voltage | 110V/220V/380V |
|---|---|
| Material | Aluminum Alloy |
| Speed | 2550 |
| Mounting Type | Wall Fan |
| Type | ac axial fan |
| Warranty | 1 Year |
| Blade Diameter | 4 in |
| Power Source | Electric |
| Blade Material | Plastic |
| Bearing Type | Ball Bearing |
| After-Sales Service Provided | Online support |
| Place Of Origin | Zhejiang, China |
| Selling Units | Multiple of 40 |
| Package Size Per Batch | 52X30X29 cm |
| Gross Weight Per Batch | 19.000 kg |
Product descriptions from the supplier
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
| Factory Code | Model | Voltage | Current | Freq | Noise | Bearing | Power | Speed | Air volume | connector | Packing | |||
| (V) | (A) | (HZ) | (Db) | (Watt) | (r/min) | (m3/h) | CFM | pcs/ctn | weight | dimension | ||||

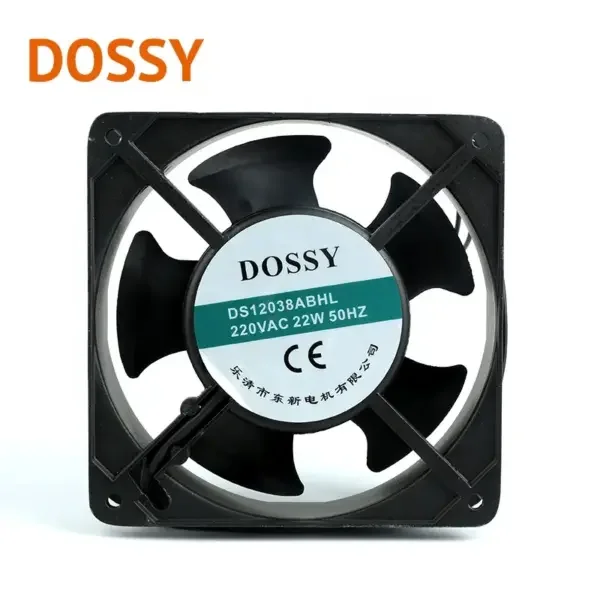

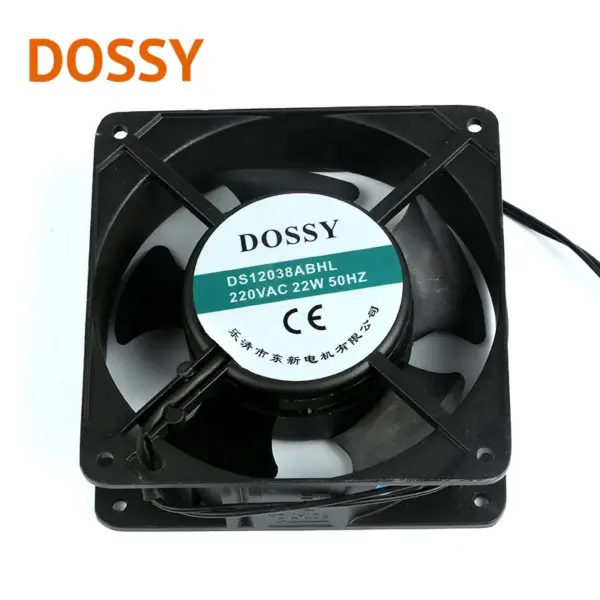

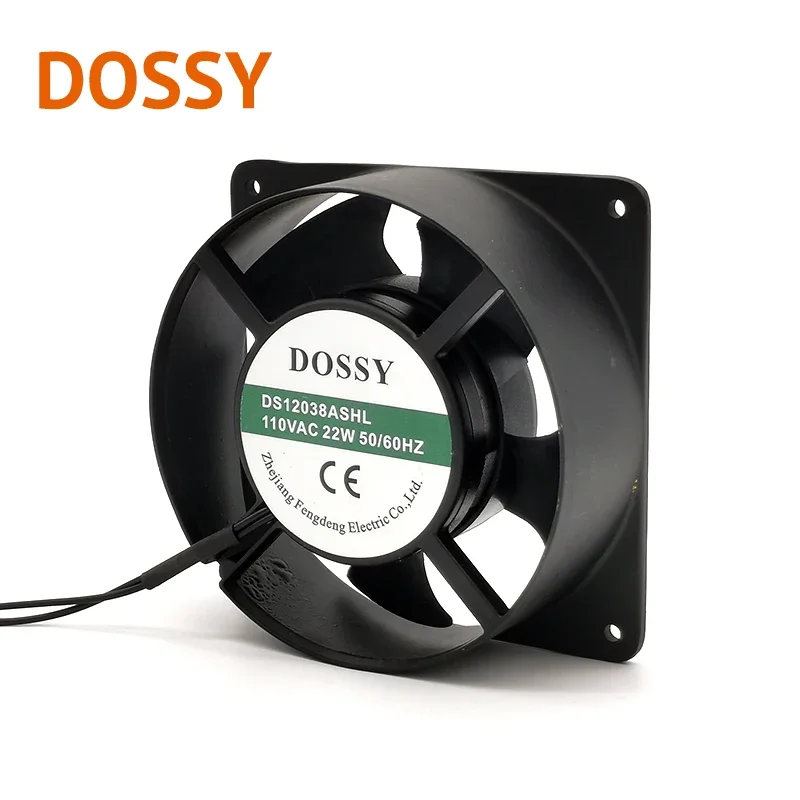

| AF12385S11L | DS12038ASHL | 110 | 0.22 | 50/60 | 39 | sleeve | 19 | 2500 | 138 | 81 | wire | 40 | 19kg | 51*29.5*29 |
| AF12385B11L | DS12038ABHL | 110 | 0.22 | 50/60 | 39 | ball | 20 | 2550 | 148 | 87 | 40 | 19kg | 51*29.5*29 | |
| AF12385S11T | DS12038ASHT | 110 | 0.22 | 50/60 | 39 | sleeve | 19 | 2500 | 138 | 81 | terminal | 40 | 19kg | 51*29.5*29 |
| AF1238511T | DS12038ABHT | 110 | 0.22 | 50/60 | 39 | ball | 20 | 2550 | 148 | 87 | 40 | 19kg | 51*29.5*29 | |
| AF12385S22L | DS12038ASHL | 220 | 0.11 | 50/60 | 39 | sleeve | 19 | 2500 | 138 | 81 | wire | 40 | 19kg | 51*29.5*29 |

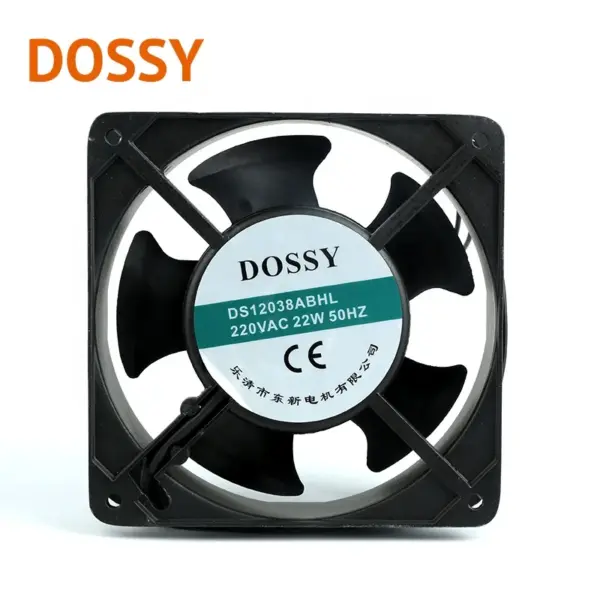

| AF12385B22L | DS12038ABHL | 220 | 0.11 | 50/60 | 39 | ball | 20 | 2550 | 148 | 87 | 40 | 19kg | 51*29.5*29 | |
| AF12385S22T | DS12038ASHT | 220 | 0.11 | 50/60 | 39 | sleeve | 19 | 2500 | 138 | 81 | terminal | 40 | 19kg | 51*29.5*29 |
| AF12385B22T | DS12038ABHT | 220 | 0.11 | 50/60 | 39 | ball | 20 | 2550 | 148 | 87 | 40 | 19kg | 51*29.5*29 | |
| AF12385S38L | DS12038ASHL | 380 | 0.06 | 50/60 | 39 | sleeve | 19 | 2500 | 138 | 81 | wire | 40 | 19kg | 51*29.5*29 |
| AF12385B38L | DS12038ABHL | 380 | 0.06 | 50/60 | 39 | ball | 20 | 2550 | 148 | 87 | 40 | 19kg | 51*29.5*29 | |
| AF12385SBVL | DS12038ASHL | 110&220 | 0.11/0.22 | 50/60 | 39 | sleeve | 19 | 2500 | 138 | 81 | 40 | 19kg | 51*29.5*29 | |
| AF123852BVL | DS12038ABHL | 110&220 | 0.11/0.22 | 50/60 | 39 | ball | 20 | 2550 | 148 | 87 | 40 | 19kg | 51*29.5*29 | |

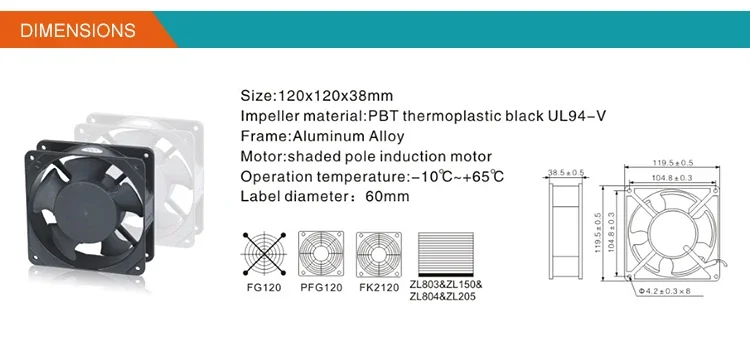

12038 Fan Series Choice
For all the 12038 fan from our company , you can customized by choosing :
(1) Bearing type: Sleeve-bearing or Ball-bearing
(2) Voltage:
Single Voltage : 110V or 220V or 380V AC
Double Voltage: 110V&220V combined
(3) Blades:
5 blades or 7 blades
(4) Shape:
Square shape or
Half Square + Half Round Shape
(5) Connect Type:
2-Lead wires or
4-Lead wires or
Terminal Type or
PIN- Type
If you need single voltage 12038 fan , please check bellows:

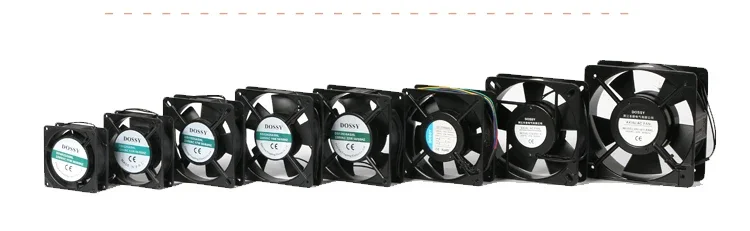

Other 12038 Fan Choice

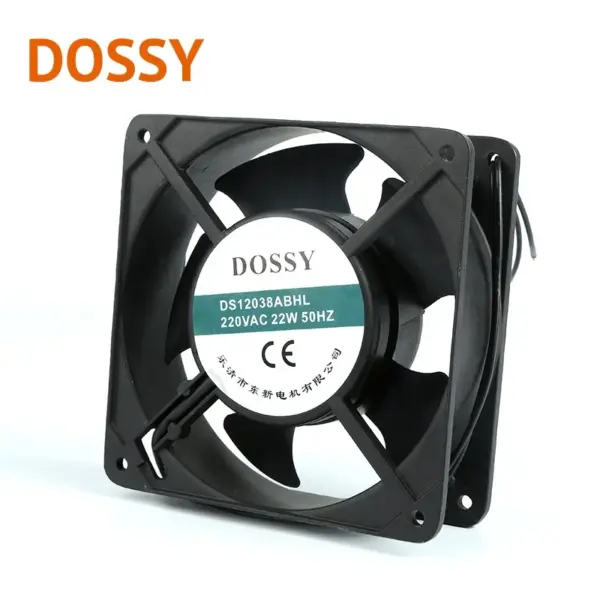

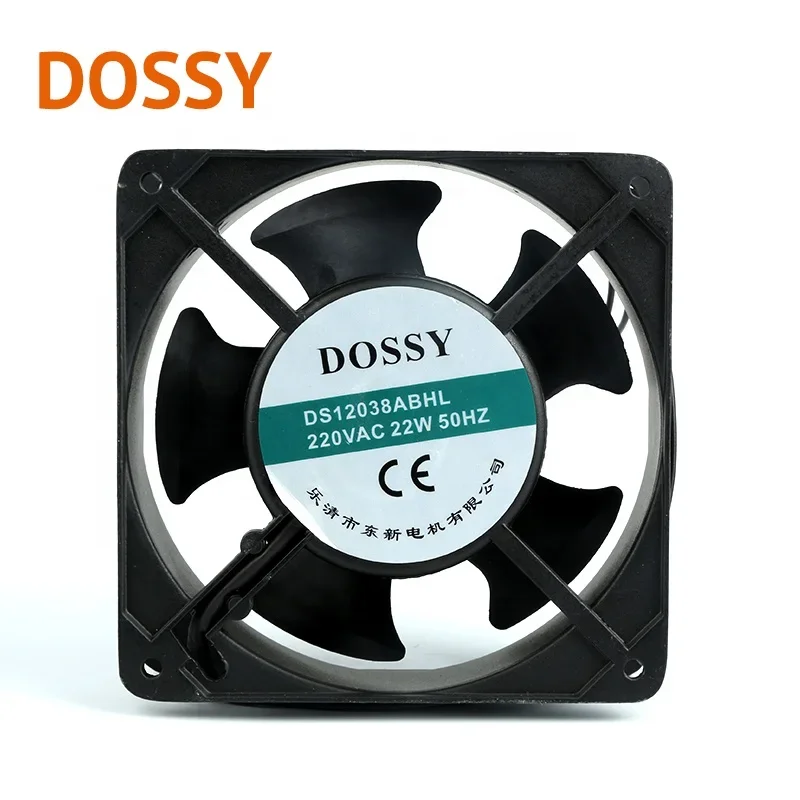

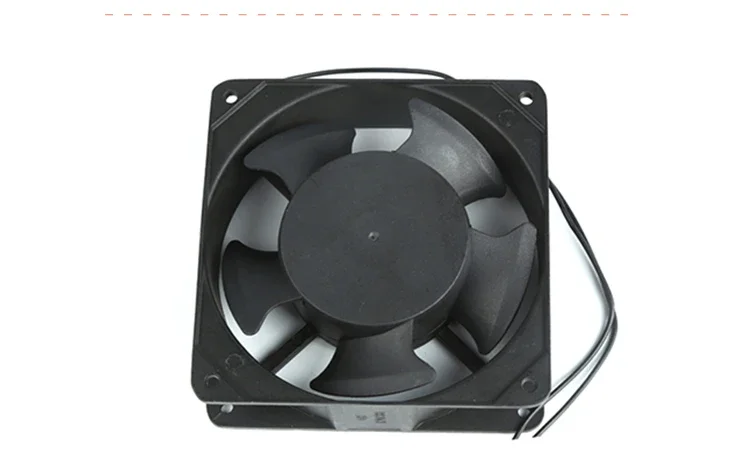

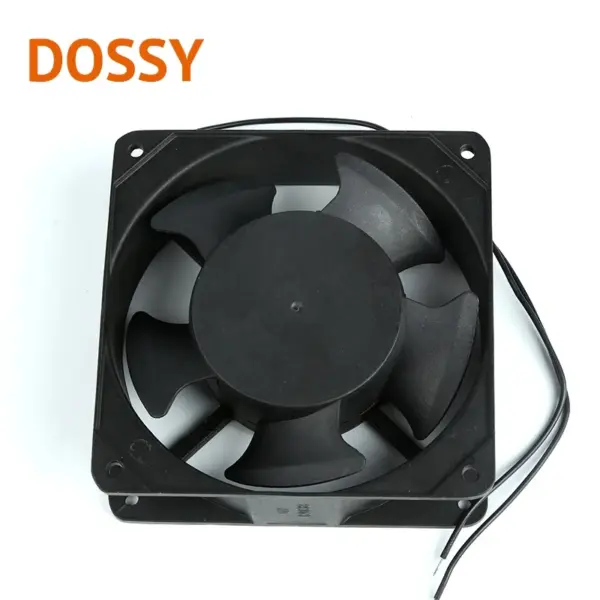

(1) Normal 120x120x38mm fan- 5 blades(Clink the picture to see details)

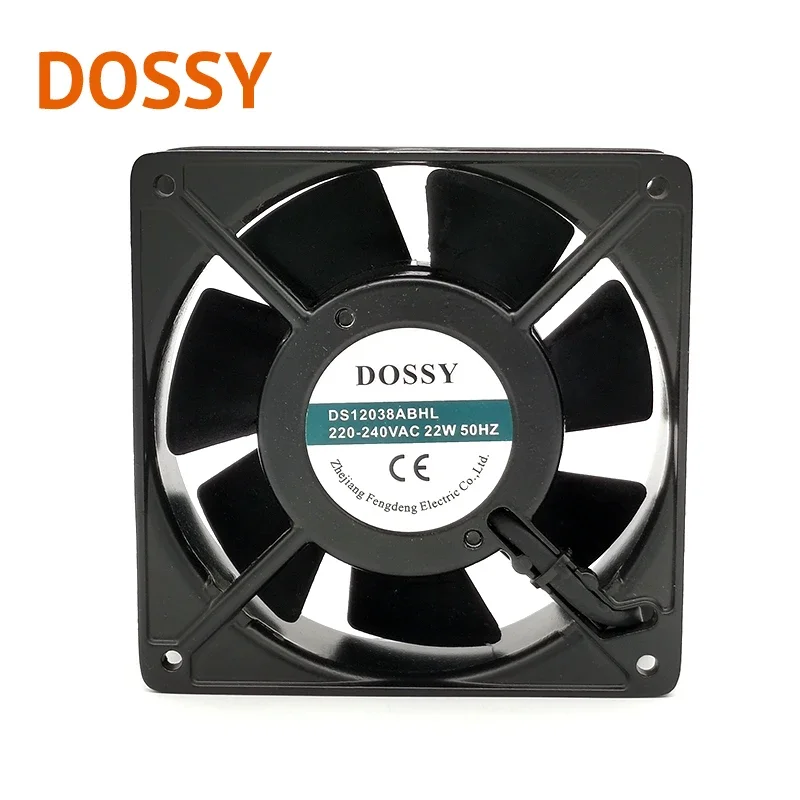

(2)120x120x38mm fan- 7 blades(Clink the picture to see details)
(3) Special shape 120x120x38mm Half Square + Half Round shape (Clink the picture to see details)

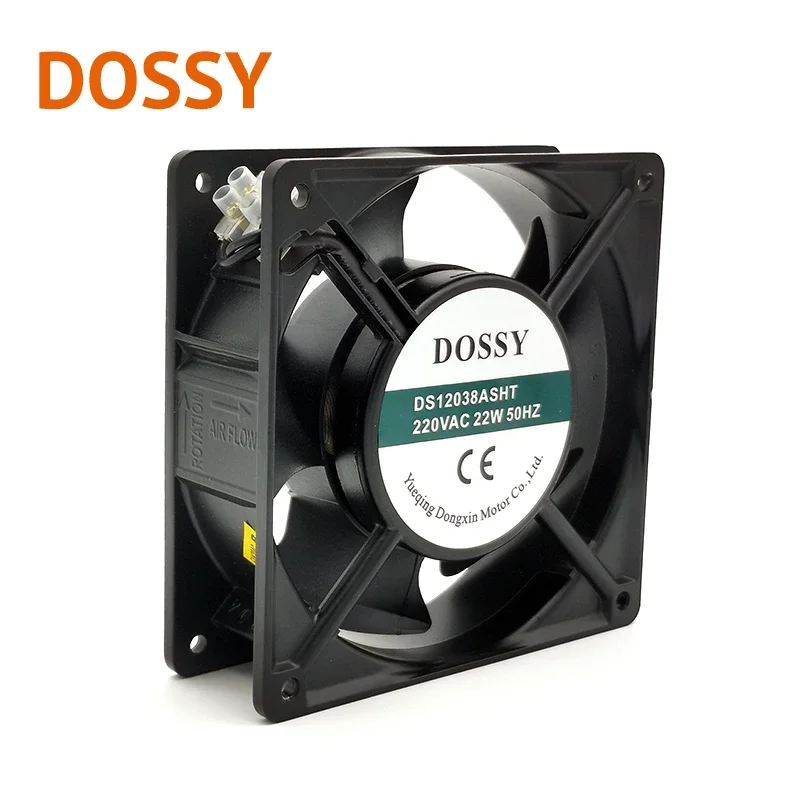

(4) Terminal Connect Type 12038 Fan
(Clink the picture to see details)

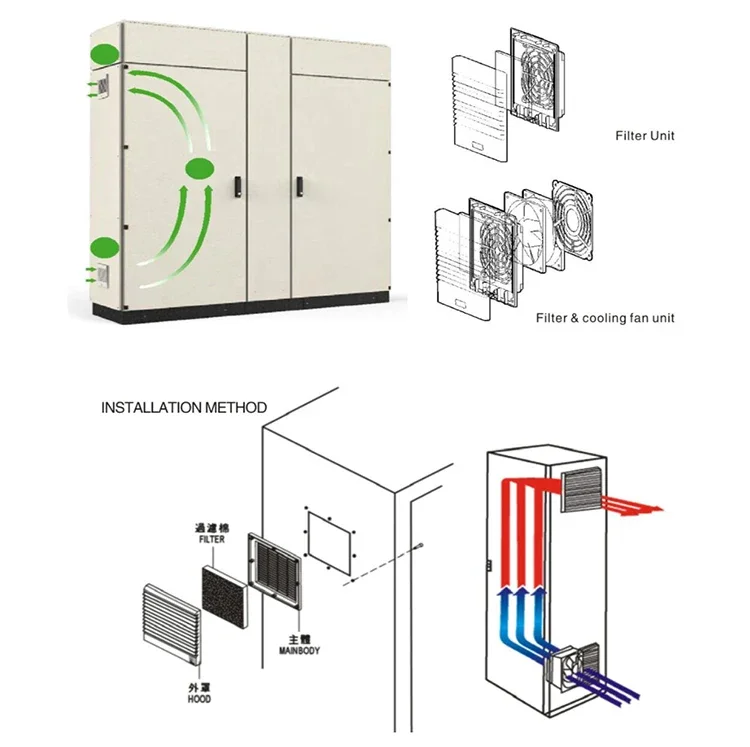

Fan unit Choice:

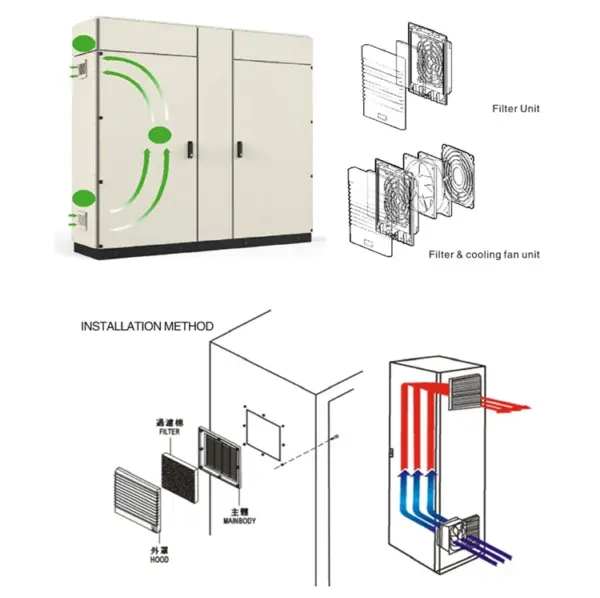

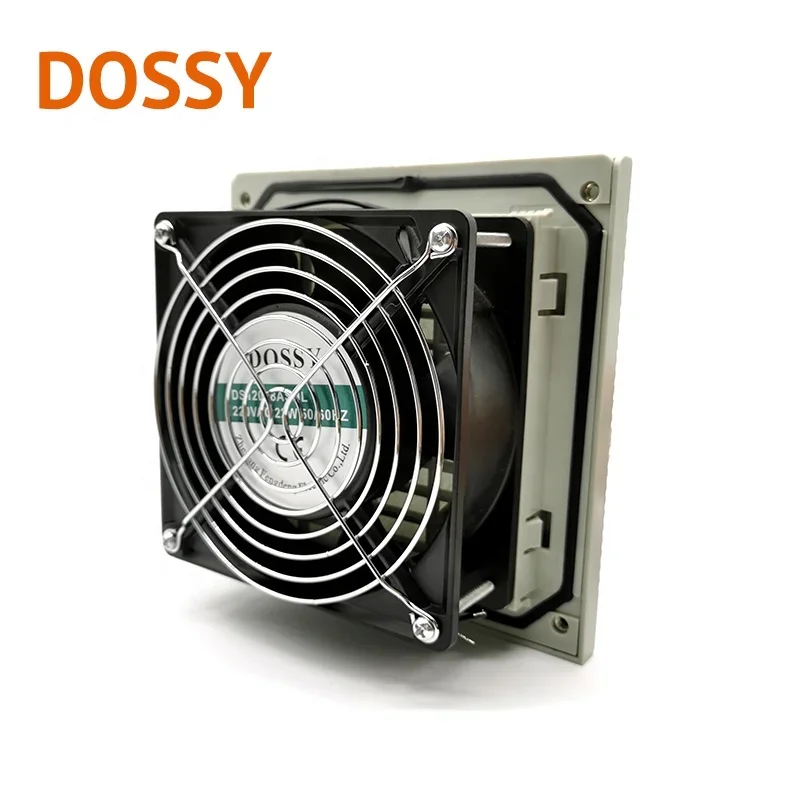

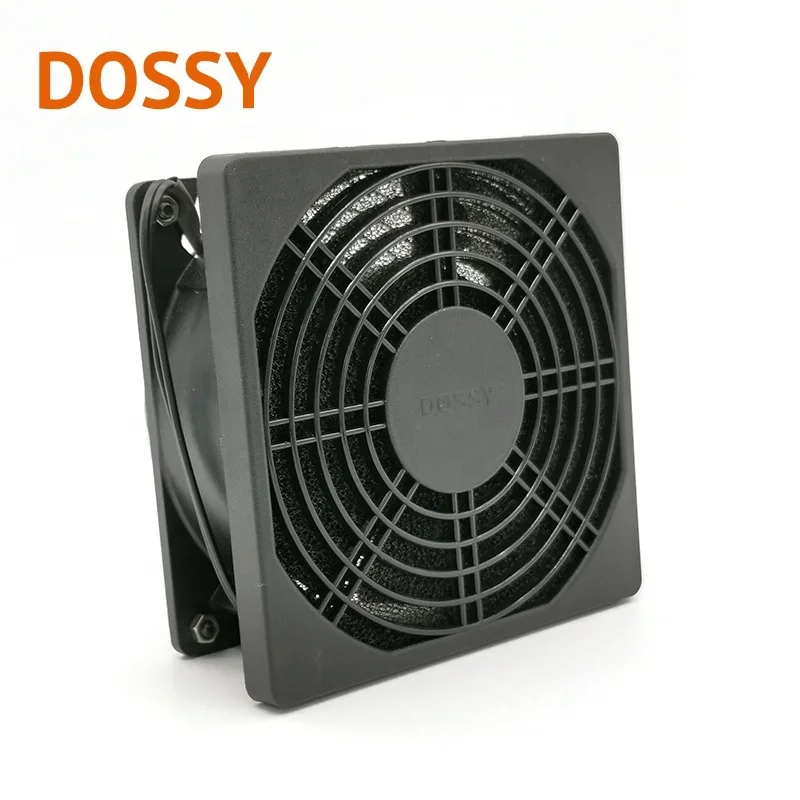

(1) 12038Fan+ DS9803 Filter+ Fan grill unit
(Clink the picture link to see more detail)
(2) 12038Fan+ FK2120 filter + Fan grill unit
(Clink the picture to see more detail)

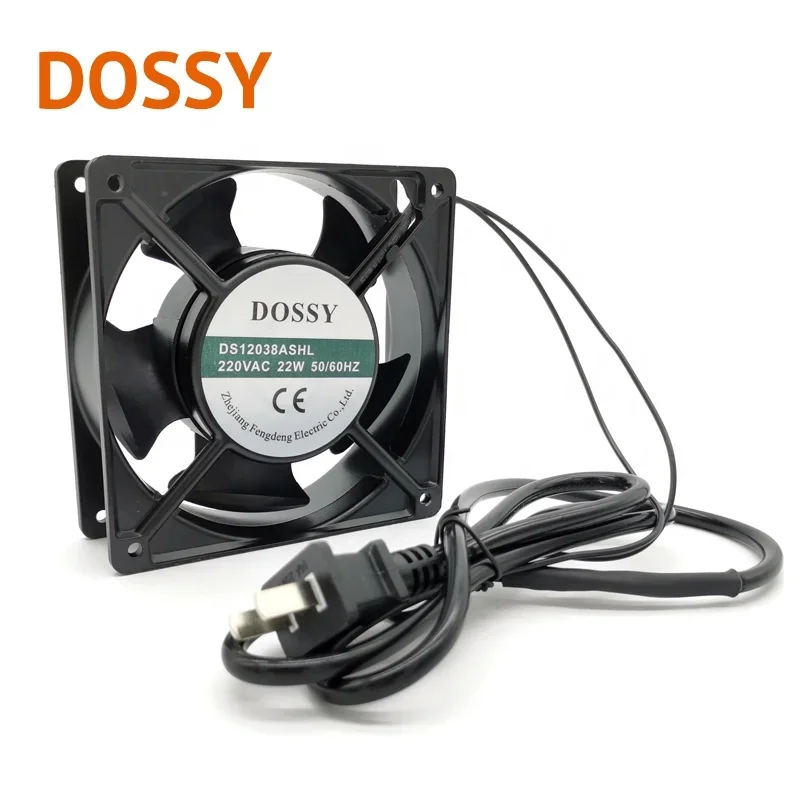

(3)12038fan + Wire with Plug Unit
(Clink the picture to see more detail)
Suitable Thermostat Choice:

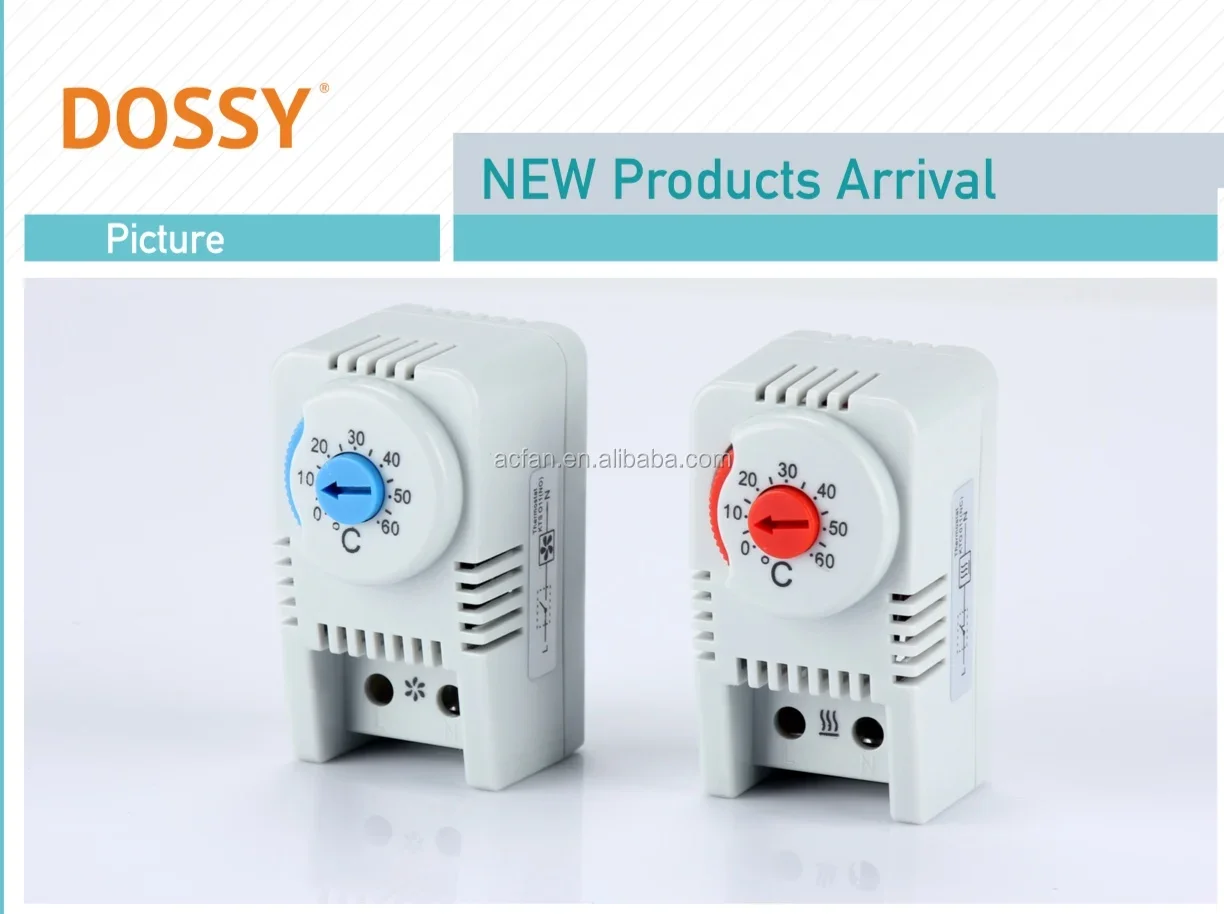

(1) DSTO01-H (red)/ DSTS01-C( Blue)

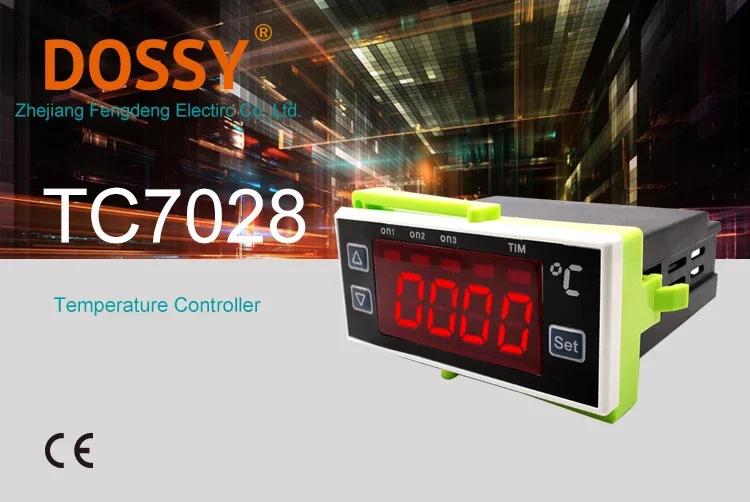

(2) Digital Thermostat

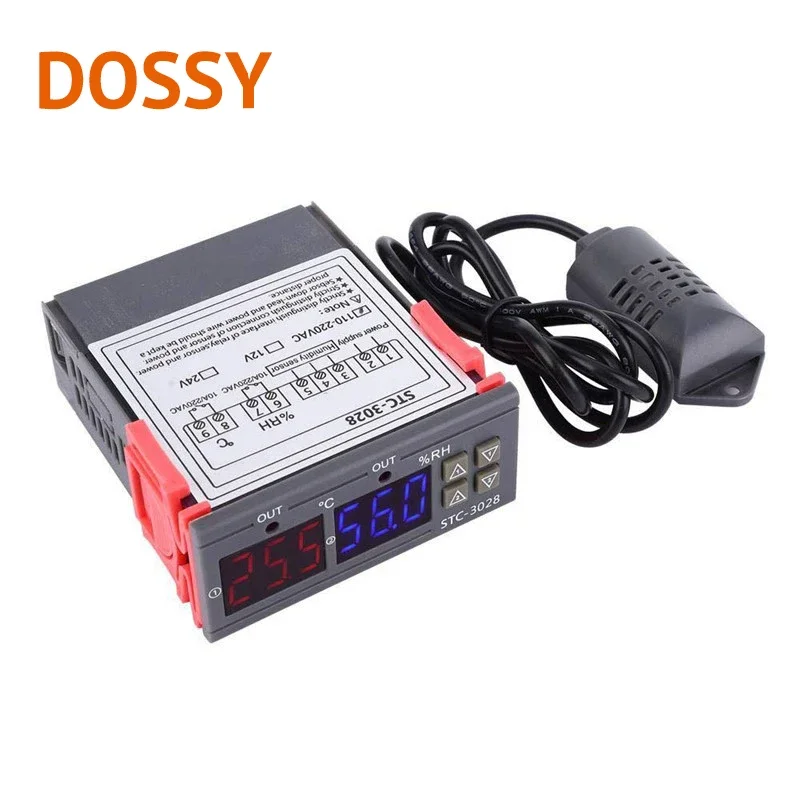

(3) Digital thermostat
with Temperature Humidity Controller
Q1: Are you a factory or trading company ?

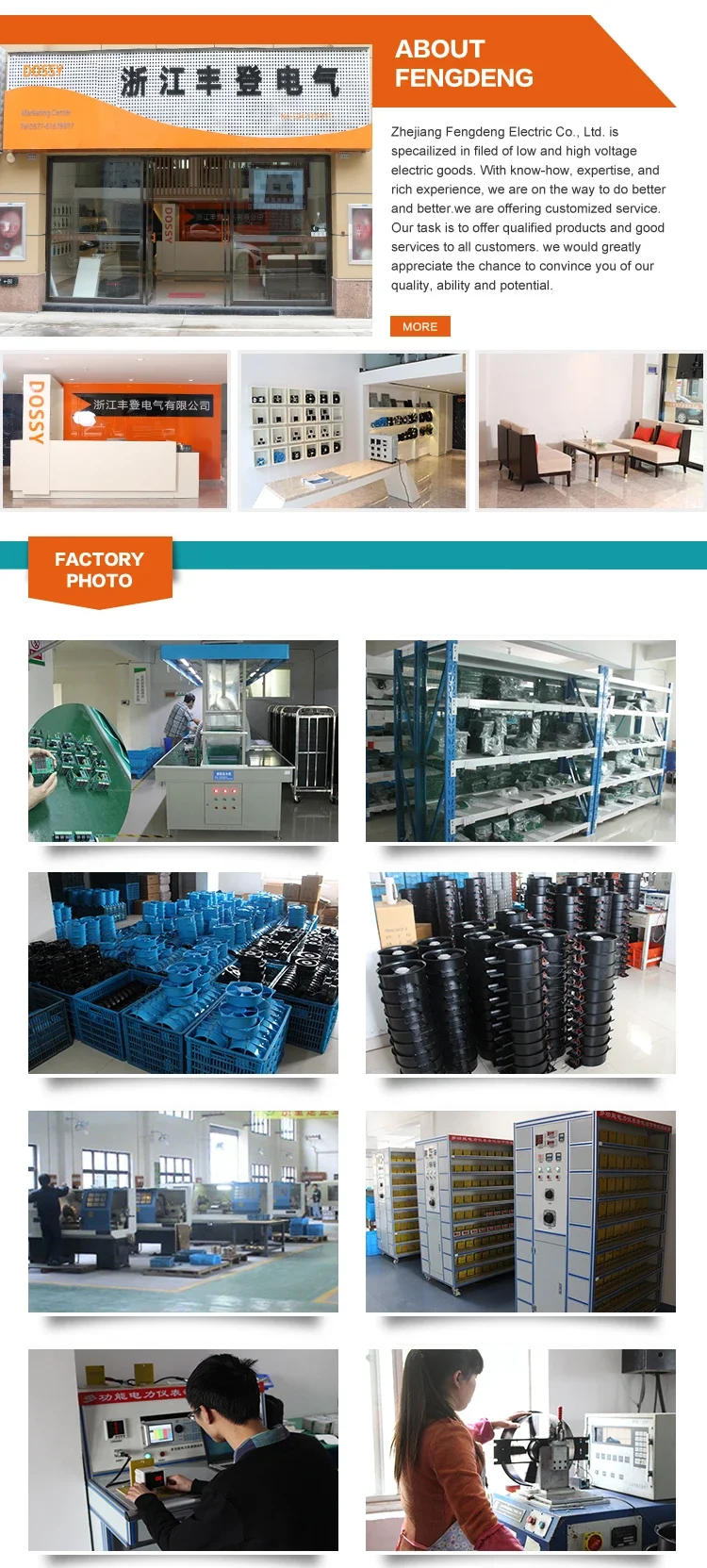

A1: Yes,We are the factory which have 15 years manufacture history.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose Fan?
A3: To choose a Fan, you should consider the points below:
a. Fan size b. Fan voltage c. Fan speed
d. Fan bearing type ? ( Sleeve-bearing or Ball-bearing type?)
e. Fan power ( Wattage) f. Fan airflow.
Q4: How long is the warranty?
A4: We Guarantee 1 years warranty.
Q5: What is the delivery time?
A5: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q6: Can you tell me the normal DC fan Model?
A6:
15*15*04mm/ 20*20*06mm / 20*20*10mm/ 25*25*07mm/ 25*25*10mm / 30*30*07mm/ 30*30*10mm / 35*35*10mm/40*40*07mm/ 40*40*10mm /40*40*15mm/ 40*40*20mm / 40*40*28mm /45*45*10mm/ 50*50*10mm /50*50*12mm/ 50*50*15mm/ 50*50*20mm/ 50*50*25mm/ 60*60*10mm/ 60*60*15/ 60*60*20mm/ 60*60*25mm/ 60*60*38mm/70*70*10mm/ 70*70*15mm / 70*70*25mm / 80*80*10mm/ 80*80*15mm / 80*80*20mm/ 80*80*25mm / 80*80*38mm / 92*92*20mm/ 92*92*25mm/ 92*92*38mm/ 120*120*25mm/ 120*120*32mm/ 120*120*38mm/ 127*127*38mm/140*140*25mm/ 150*150*51mm / 172*150*51mm/ 172*172*51mm/ 200*200*20mm/ 200*200*60mm
Q7: Can you tell me the normal AC fan Model?
A7: 80*80*25mm, 80*80*38mm, 92*92*25mm, 92*92*38mm,
110*110*25mm, 120*120*25mm, 120*120*38mm, 135*135*32mm
172*150*38mm, 172*150*51mm, 150*150*51mm, 172*172*51mm,
180*180*61mm, 200*200*60mm, 223*223*61mm, 230*200*65mm,
107*100*30mm, 150*160*60mm, 210*210*70mm 172*150*51mm 225*225*80mm,280*280*80mm, 250*410*90mm, 300*460*100mm,
200mm-600mm External Rotor fan, 130FLJ1 blower
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110V/220V/380V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
