Key specification for this electric heated blankets: 500W/sqm, type Twin Conductor. Everything below is reproduced from the factory data sheet. Made by Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd. (4 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Electric Heated Blankets
- Model Number: Black/Blue
- Power Supply: 500W/sqm
- Voltage Rating: 240V
- Material: Other
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Application | Driveway |
|---|---|
| Material | Other |
| Design Style | Modern |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Other |
| Project Solution Capability | graphic design, total solution for projects, Others |
| Place Of Origin | Shandong, China |
| Brand Name | JAE WOO |
| Model Number | Black/Blue |
| Type | Twin Conductor |

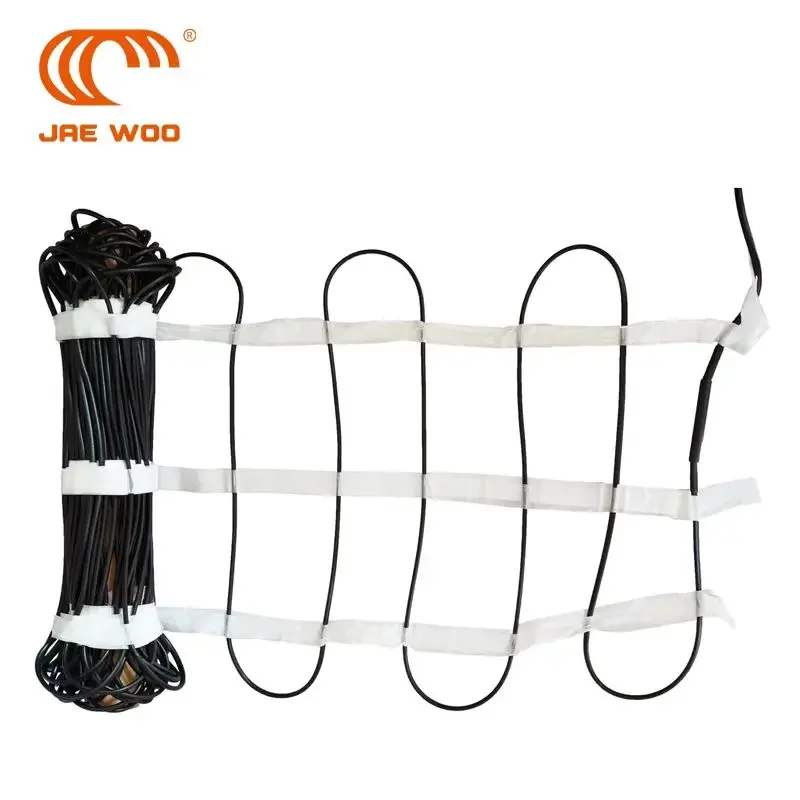

| Product Name | Snow Melting System Warm Up Cables Electric Heating Mats |
| Power Supply | 500W/sqm |
| Outer Jacket | UV Resistance PVC |
| Color | Black/Blue |
| Conductor | Nickle Alloy Wire |
| Shielding | Aluminum-Magnesium Braiding |
| Voltage Rating | 240V |
| Selling Units | Single item |
| Single Package Size | 50X40X40 cm |
| Single Gross Weight | 3.5 kg |
Product Details
Product Description
Product Name | Snow Melting System Electric Heating Mats |
Voltage | 220V 50H/230V/as your need |
Color | Black/Blue |
Power | 500 W/square meter as your need |
Length | 1/1.5/2/2.5/3/3.5㎡ as your need |
Cable spacing | 60mm/80mm/100mm as your need |
Screen Material | Alu-foil 100% /Fiberglass screen where the heating cable fixed on |
Shield Material | Aluminum-plastic tape+tinned copper or tinned copper braid |
Conductor Insulation | Insulation layer-FEP and TPEE,XLPE are optional |
Outer Insulation (Jacket) | PVDF /PVC and FEP is optional |
Cable diameter | 3.0mm |
Max.permissible use temperature,powered | 115 ℃ |
Max.permissible use temperature,unpowered | 120℃ |
Minimal installation temperature | -5℃ |
Resistance Tolerance | +10/-5% |
Control method | With a control box |
Cold lead wire | 5 m /as your need |
Cable diameter | 6.8MM+_0.2MM |
Heating Cable Matt Warranty | 1 year |
Deformation strength | 600N |
Pulling strength | 120N |
Earth Type | 100% Coverage Earth Shield |
Approval | CE/ROHS/ISO |

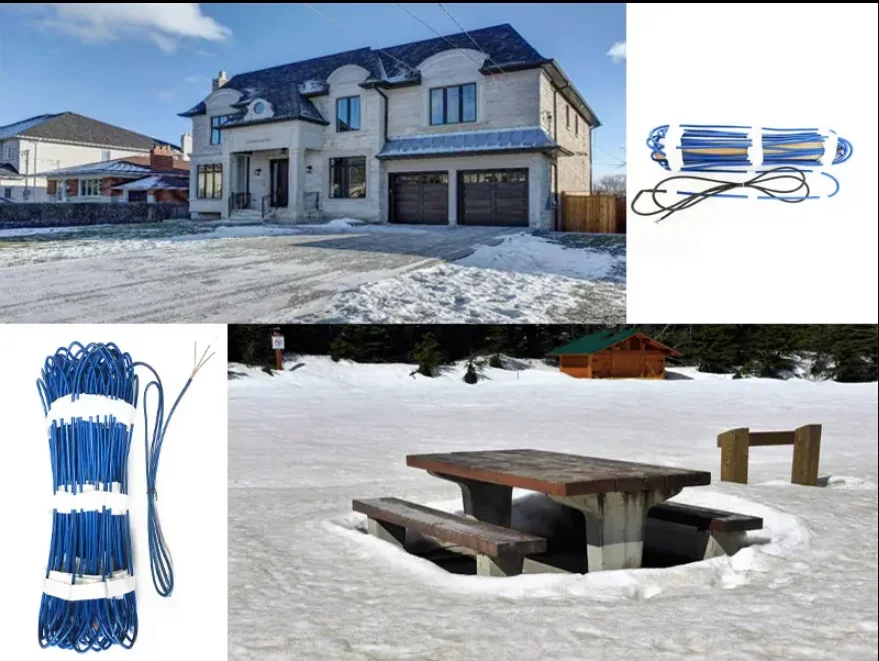

Description of product use effect
Outdoor heating mats offer an outstanding solution for keeping traffic areas safe and slip-free in winter – both in commercial and private areas. Especially in the cold season, when snow and ice become a danger, it is of the utmost importance that heavily frequented areas such as entrances, car parks, pavements, underground car park entrances and loading ramps are always safe to walk and drive on. Electric outdoor heating systems reliably ensure that such areas remain free of ice and snow without the need for conventional, often costly measures such as clearing snow or spreading environmentally harmful road salt.

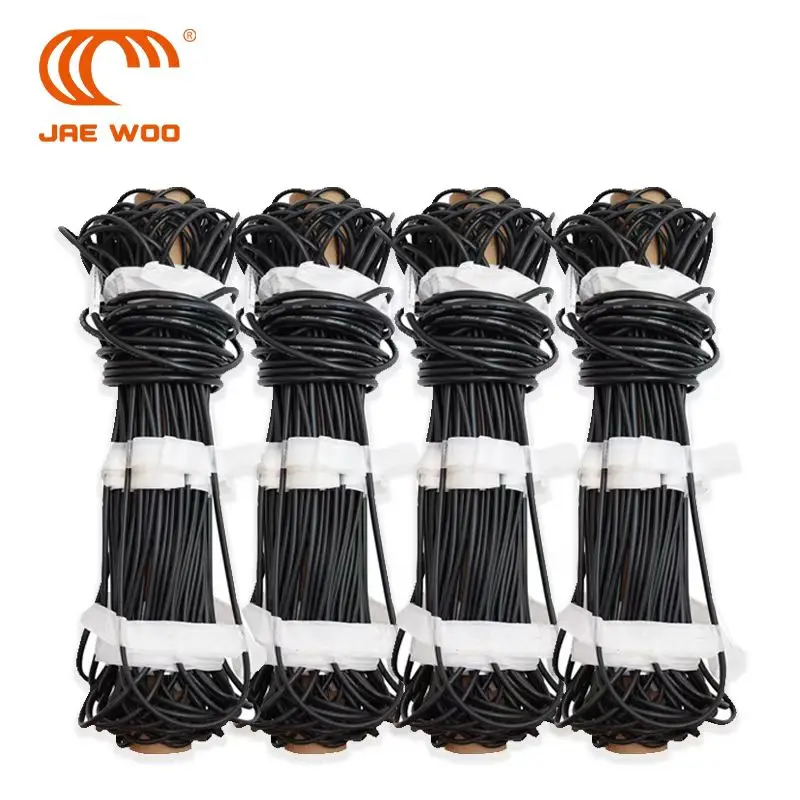

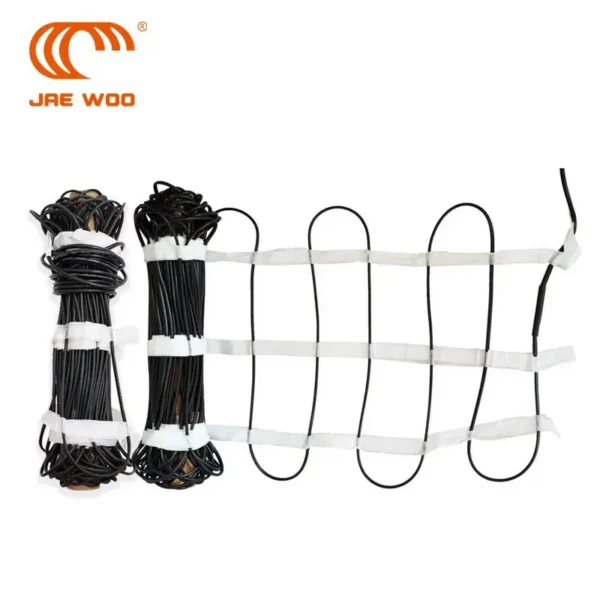

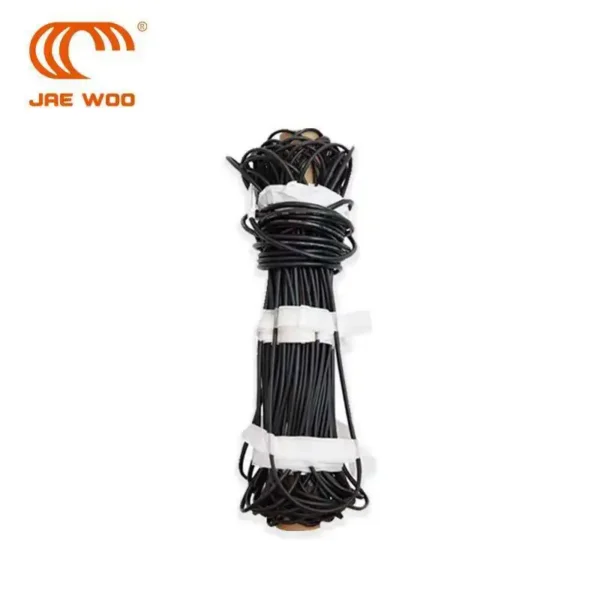

Details Images
Size(meters) | Power(W) | CABLE LENGTH(M) | COLD LEAD LENGTH(M) | Voltage(V) | Area(㎡） |
2*0.5m | 500 | 12.5 | 5 | 120V/240V | 1 |
4*0.5m | 1000 | 25 | 5 | 120V/240V | 2 |
6*0.5m | 1500 | 37.5 | 5 | 120V/240V | 3 |
8*0.5m | 2000 | 50 | 5 | 120V/240V | 4 |
10*0.5m | 2500 | 62.5 | 5 | 120V/240V | 5 |
12*0.5m | 3000 | 75 | 5 | 120V/240V | 6 |
14*0.5m | 3500 | 87.5 | 5 | 240V | 7 |
16*0.5m | 4000 | 100 | 5 | 240V | 8 |
18*0.5m | 4500 | 112.5 | 5 | 240V | 9 |
20*0.5m | 5000 | 125 | 5 | 240V | 10 |
Added Value Snow Melting Systems are more cost-effective in the long run than continual salting and can extend the life of roofs, pipes, and pavement. Our systems are also an excellent investment that can raise the value of a home.
Easy to Use Once installed and set up by a qualified installer, the systems will provide a consistent, automatic outdoor heating solution; operating while the user is asleep, at work, or away from home for an extended period of time.
Energy-Efficiency The Snow Melt Systems use a system-specific heating controller that senses precipitation and freezing temperatures. These controllers ensure the system is only active during useful periods and reduce wasteful energy consumption.
Product Usage

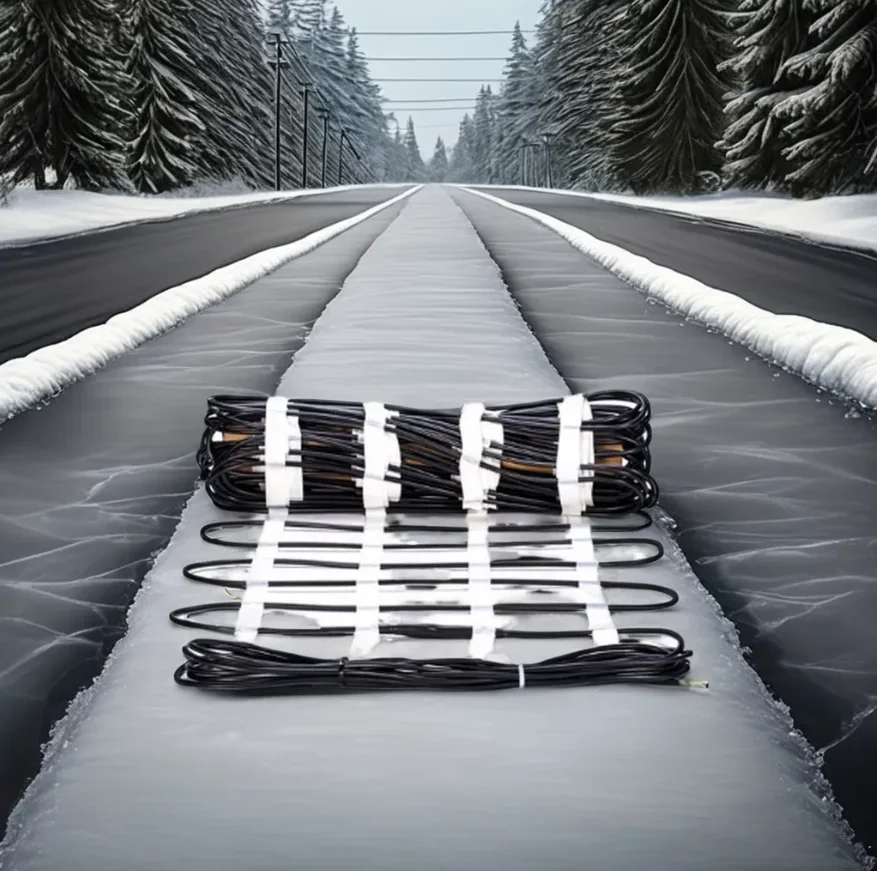

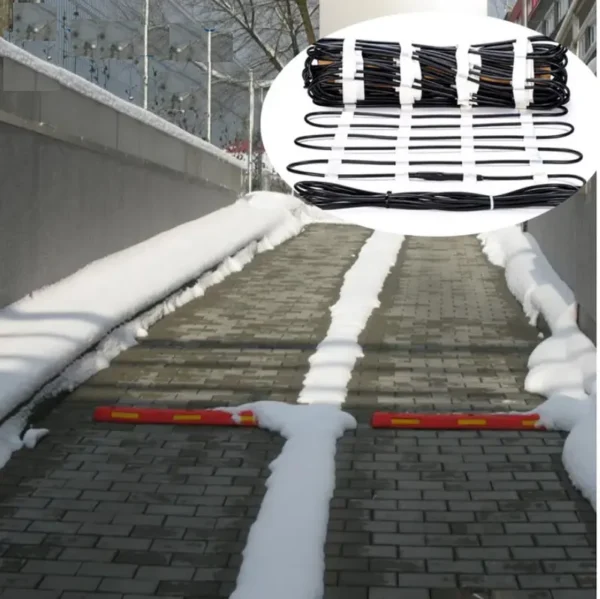

Safe through the winter thanks to outdoor driveway heating mats

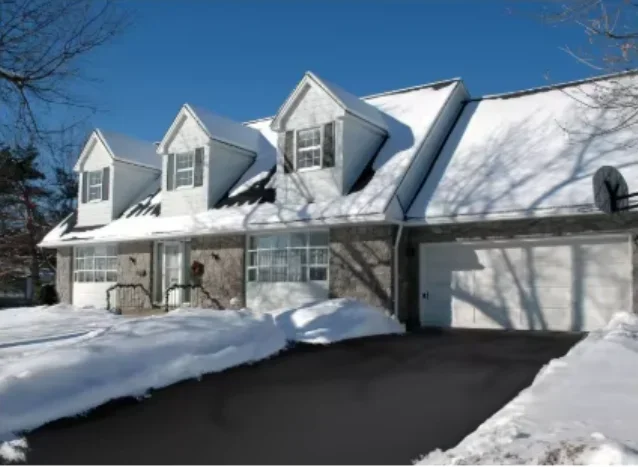

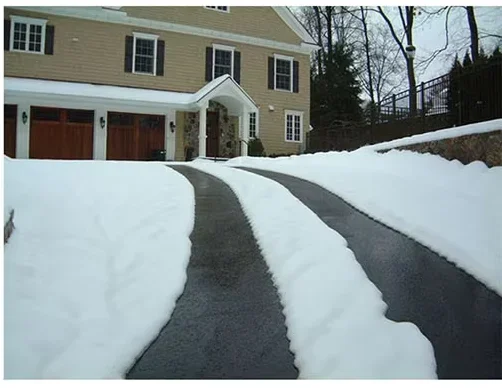

The use of Electric heated driveway systems prevents the accumulation of snow and ice. Road conditions can be very unstable and full of traffic in winter, JAE WOO outdoor heating mats offer safety in particularly risky places such as: Pavements Garage access Outside stairs Access and exit ramps e.g. from multi-storey car parks or underground car parks House access and entrances Bridges Terraces
Easy to Use
Once installed and set up by a qualified installer, the systems will provide a consistent, automatic outdoor heating solution; operating while the user is asleep, at work, or away from home for an extended period of time.
Exhibition
Packing&Shipping
Precautions for installing electric heat film: 1. Determine the load of the electric heat film according to the area and wattage of the electric heat film, and configure the corresponding international high temperature resistant wires. 2. Select the temperature controller model and quantity based on the actual situation. 3. The electric thermal film must be cut according to the cut position 4. The electric heat film must be laid face up according to the instructions. When laying, the electric thermal film should be flat, no folds, and need to be fixed with tape to prevent overlapping of the electric thermal film. 5. When installing, the electric thermal film should be at least 30 cm away from the wall with a window

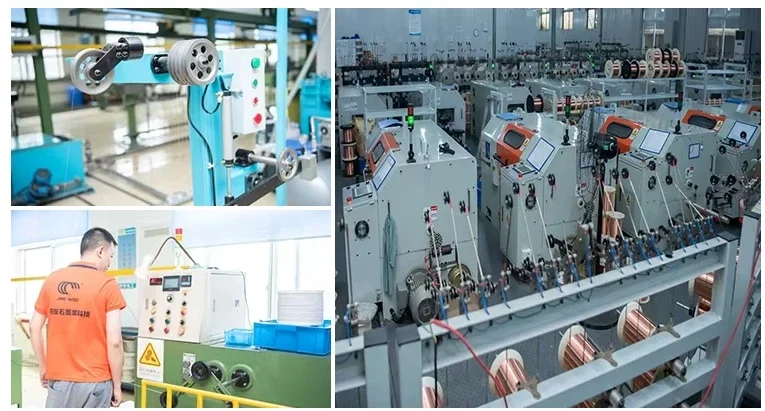

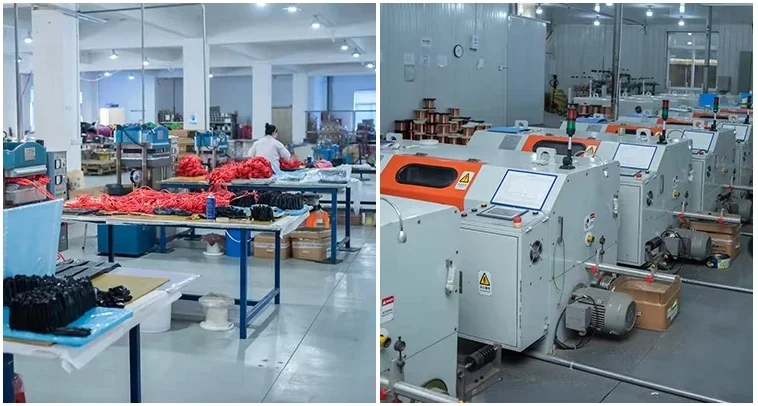

Company Introduction
WHY CHOOSE NUANJIA?
1.Over 20 years production and Sservice experience in electric heating film.
2.The real factory in China and 24-hour online real human customer service.
2.The real factory in China and 24-hour online real human customer service.
3.30 minutes fast quotation,10-20 days fast delivery, based on completeness of information provided.
4.Nuanjia have huge productivity. The daily production of electric heating film exceeds 12,000 square meters.
5.Strict quality inspection, to ensure 100% quality inspection before delivery,0 defective rate.
6.Provide OEM Service,3+ voltage choose,4+ size choose,5+ Color choose,6+shape choose, Nuanjia design it for free according to your needs.
7.Nuanjia Own a large warehouse more than 1600 square meters, which can be used as your stock base in China.
8.Nuanjia also provide the best in installation guidance, as well as post-purchase and warranty support.
9.Nuanjia have convenient transportation, close to Qingdao Port and Qingdao International Airport.
10.Nuanjia approvals:CE ,ISO ,ROHS,CCC, certified.
4.Nuanjia have huge productivity. The daily production of electric heating film exceeds 12,000 square meters.
5.Strict quality inspection, to ensure 100% quality inspection before delivery,0 defective rate.
6.Provide OEM Service,3+ voltage choose,4+ size choose,5+ Color choose,6+shape choose, Nuanjia design it for free according to your needs.
7.Nuanjia Own a large warehouse more than 1600 square meters, which can be used as your stock base in China.
8.Nuanjia also provide the best in installation guidance, as well as post-purchase and warranty support.
9.Nuanjia have convenient transportation, close to Qingdao Port and Qingdao International Airport.
10.Nuanjia approvals:CE ,ISO ,ROHS,CCC, certified.
Shipping
FAQ
FAQ about company：
2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating system is reliable and safe.
3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached underlayment like some vinyl floors have.
4.How do I install Heating Film? How does it all get connected?
Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out your underlayment and then position Heating Film above the underlayment. You can also install ThermoFilm under an MDF layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or call us anytime for assistance.
5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor height deviation allowances.
6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.
7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The key is matching the right radiant heating product with the right installation method, and of course, this is just one of the things you can call us to get help with anytime!
8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a thermostat is simple, easy, and inexpensive.
How do I pay for Nuanjia?
1.T/T wire transfer
2.NUANJIA can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.NUANJIA also can accept the western union.
1.T/T wire transfer
2.NUANJIA can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.NUANJIA also can accept the western union.
FAQ about product:
1.Does each room requireits own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more accurate temperature control of each room and will avoid heating rooms which do not require it.
1.Does each room requireits own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more accurate temperature control of each room and will avoid heating rooms which do not require it.
2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating system is reliable and safe.
3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached underlayment like some vinyl floors have.
4.How do I install Heating Film? How does it all get connected?
Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out your underlayment and then position Heating Film above the underlayment. You can also install ThermoFilm under an MDF layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or call us anytime for assistance.
5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor height deviation allowances.
6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.
7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The key is matching the right radiant heating product with the right installation method, and of course, this is just one of the things you can call us to get help with anytime!
8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a thermostat is simple, easy, and inexpensive.
Ordering and Pricing
- Minimum order quantity: 10 square meter
- Volume pricing:
- 10+ square meter: US $18 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric heated blankets?
The standard minimum order quantity is 10 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric heated blankets be supplied for my local voltage?
The standard configuration is 500W/sqm. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd. range on HVACR Nexus.
