This electric radiant underfloor heater is published with the manufacturer’s full specification — 230 V, 220W/㎡±10%. Made by Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd. (4 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Electric Radiant Underfloor Heater
- Model Number: K-305 220W
- Power: 220W/㎡±10%
- Voltage: 230 V
- Material: Other
- Warranty: More Than 5 Years
- Certifications: CE ROHS ISO
Technical Specifications
| Heating System | Electric |
|---|---|
| Application | Apartment |
| Material | Other |
| Feature | Durable |
| Relay | 15 A |
| Voltage | 230 V |
| Design Style | Modern |
| Type | Floor Heating Parts |
| Warranty | More Than 5 Years |
| After-Sale Service | Online Technical Support, Other |
| Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others |
| Place Of Origin | Shandong, China |
| Model Number | K-305 220W |
| Width | 50cm |
| Length | 150M |
| Thickness | 0.338mm |
| Color | Black |

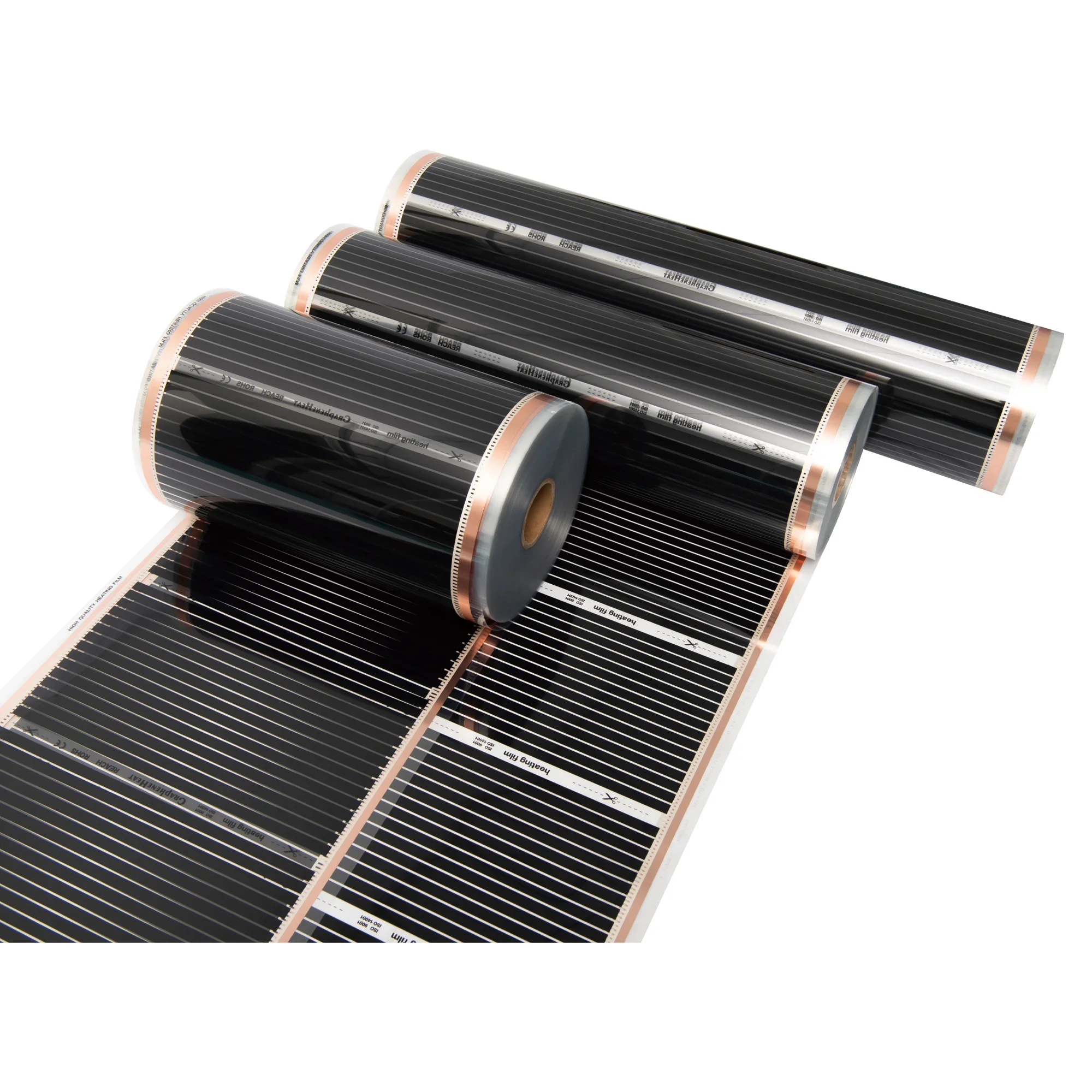

| Product Name | Underfloor Heating Film |
| Power | 220W/㎡±10% |
| Certifications | CE ROHS ISO |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
Product Description

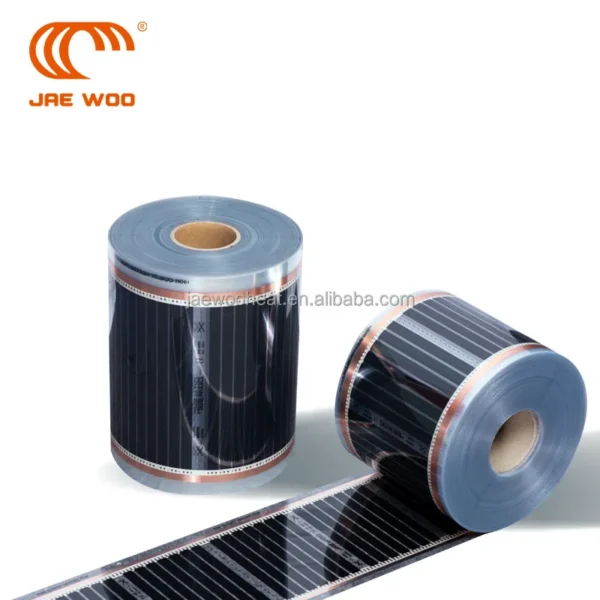

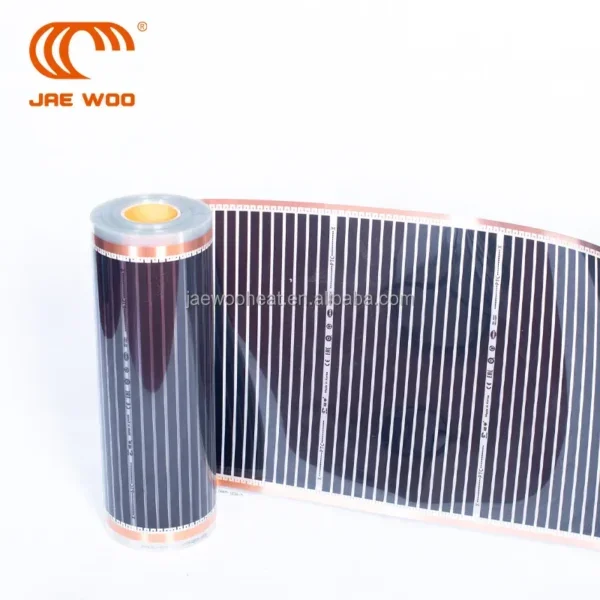

Low temperature radiation electrothermal film is a kind of polyester film that can generate heat after being electrified. It is made of electrically conductive special ink and metal current carrying strips, which are processed and hot-pressed between insulating polyester films. When working, carbon or graphene is used as a heating element to send heat into the space in the form of infrared radiation, which first warms the human body and objects. Its comprehensive effect is superior to traditional convection heating methods. The electric system consists of a power supply, a temperature controller, connectors, an electric heating film, and a decorative laver. The principle of electrothermal film heating is that under the action of an electric field. The carbon molecules in the heating body generate a "Brownian motion", causing severe friction and impact between the carbon molecules. The generated heat energy is transmitted externally in the form of far infrared radiation, and the conversion rate between electric energy and heat energy is very high.

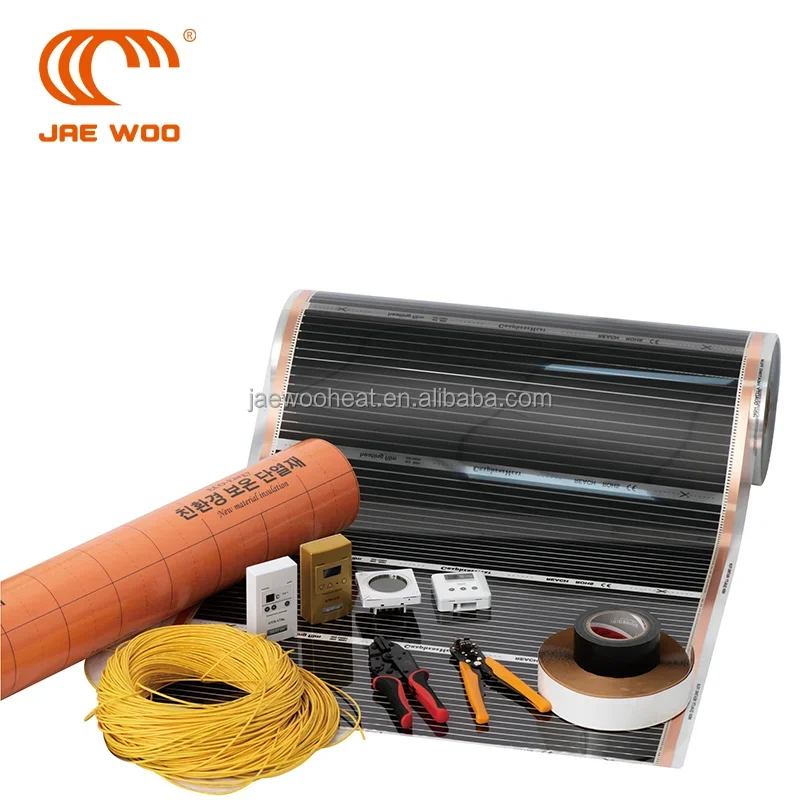

Reminding: the price is only for heating film and does not include installation accessories. If you need the installation accessories, please purchase them separately.
Specification
Product Specifications
The main parameters are as the following:

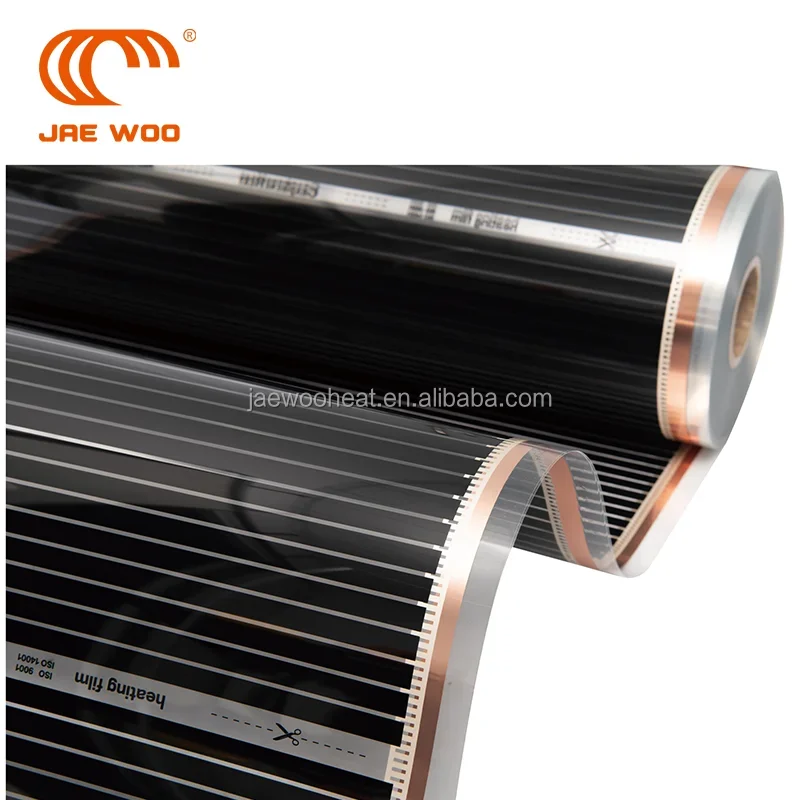

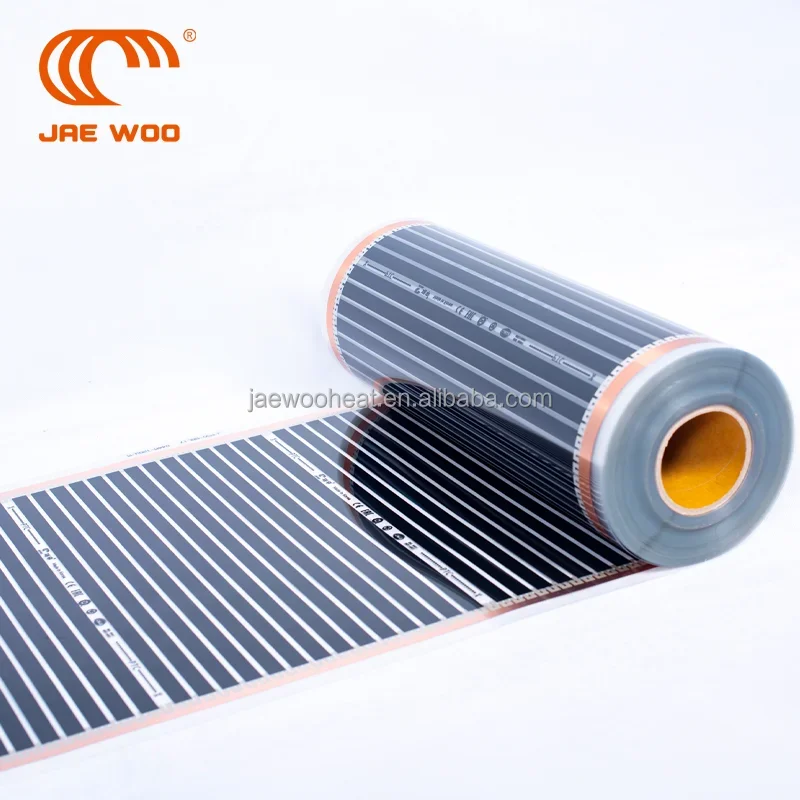

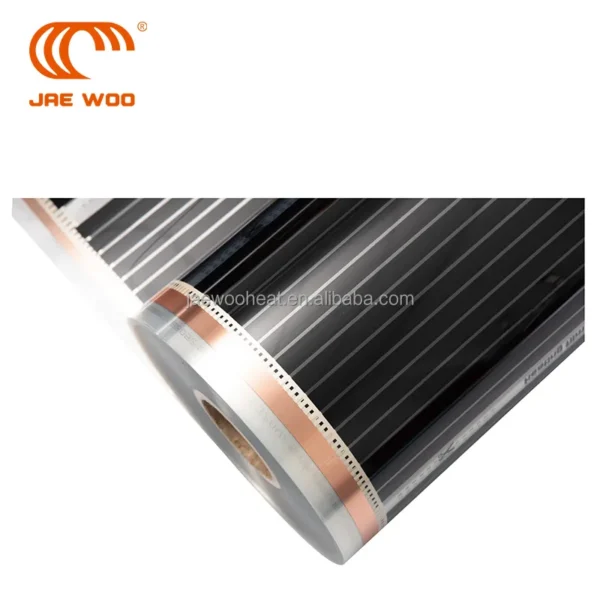

Product Name | Graphene Underfloor Heating Film |
Material | Graphene Carbon, Pure copper strip,Silver paste |
Color | Black |
Shape | Strip |
Power | 220W/m2 |
Mains Voltage | 220V |
Heating Film Size | 50cm*150m |
Heating Fim Thickness | 0.338mm |
Copper strip width | 15mm |
Silver paste width | 14mm |
Carbon paste width | 13mm |
Cutting line | 25cm of each |
Heating Film Sample | Free(The shipping cost will be borne by the buyer) |
Heating Film Warranty | 5 years |
Film melting point | 180 ℃ |
The share of IR rays in the total spectrum | 95.60% |
Efficiency of converting electricity into thermal energy | 96%-98% |
Surface temperature can achieve after covering | in the range from 39 to 49 ℃ |
Feature | No PTC; Work with a thermostat; |
Average daily electricity consumption with thermostat | 30-40 W/㎡ |
Work Scene
Application Area
The heating film is widely applied to:
1. Buildings: residential communities, hotels, office buildings, hospitals, schools, villas, senior apartments, kindergartens, libraries, shopping malls;
2. Home use: anti fog mirror, electric heating picture, electric foot mat, electric heated kang, writing desk board;
3. Industry: Tank insulation, pipeline tracing, warehouse, industrial plant;

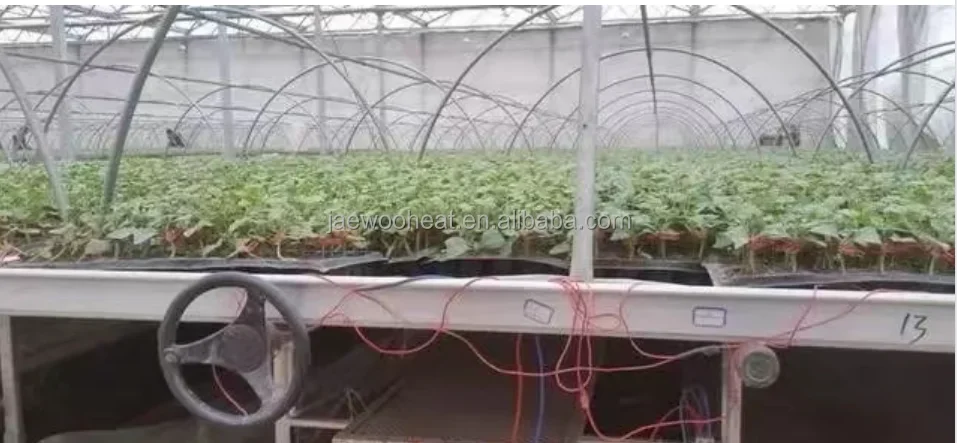

4. Agriculture: vegetable greenhouses, flower houses, incubators;
5. Transportation: platform heating, road snow melting;Exhibition
The exhibition we attended:
Precautions for installing electric heat film:
1. Determine the load of the electric heat film according to the area and wattage of the electric heat film, and configure the corresponding international high temperature resistant wires.
2. Select the temperature controller model and quantity based on the actual situation.

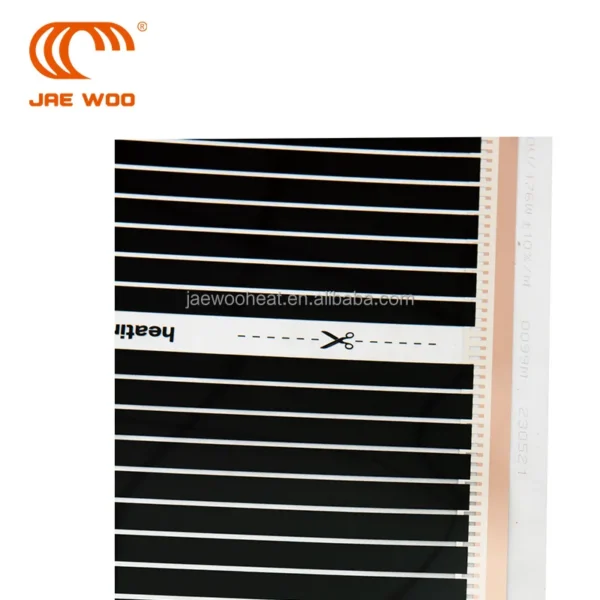

3. The electric thermal film must be cut according to the cut position.
4. The electric heat film must be laid face up according to the instructions. When laying, the electric thermal film should be flat, no folds, and need to be fixed with tape to prevent overlapping of the electric thermal film.
5. When installing, the electric thermal film should be at least 30 cm away from the wall with a window.
3. The electric thermal film must be cut according to the cut position.
4. The electric heat film must be laid face up according to the instructions. When laying, the electric thermal film should be flat, no folds, and need to be fixed with tape to prevent overlapping of the electric thermal film.
5. When installing, the electric thermal film should be at least 30 cm away from the wall with a window.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

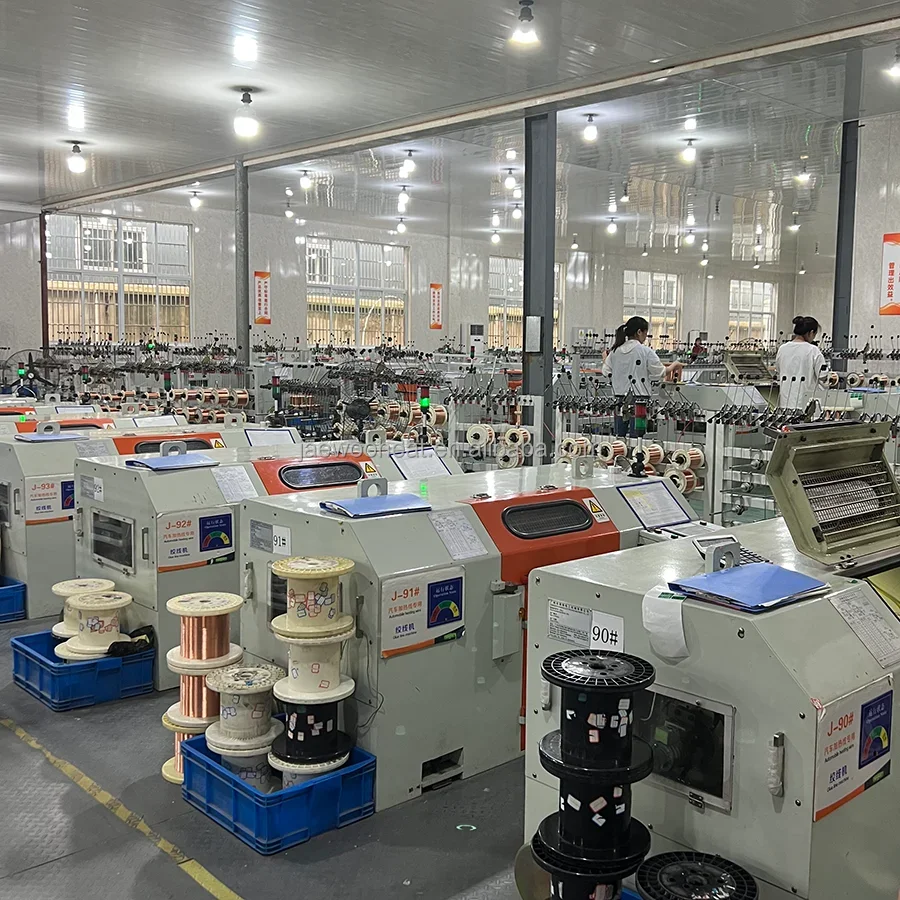

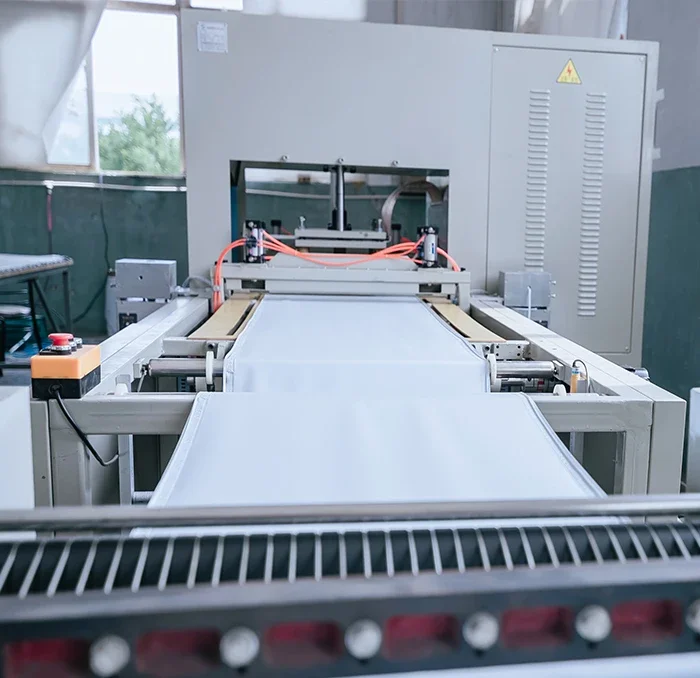

Company Profile
The advantages of electrothermal film are as follows:
1. The high voltage resistant electric heating film can withstand a test voltage of up to 3000V without breakdown.
2. The anti-aging materials for manufacturing electric heating film are all special materials with good characteristics, ant-aging, non deterioration, stable performance and long service life.
3. The moisture resistant electric heating film is made of polyester film and is waterproof as a whole.
4. High toughness. According to testing, he tensile resistance of the electrothermal film is about 20GK.
5. Small shrinkage. In aging tests, the shrinkage rate is minimal.
6. After testing, the performance and size of the electrothermal film have not changed significantly after 26000 hours of continuous operation at a surface temperature of 40℃.
7. Fully advanced heat sealing process ensures full polymerization between membranes without bubbles or delamination, ensure a close combination of the heating element and the current carrying strip.
8. The endurance radio thermal film can operate safely in an environment of- 20℃-50℃.
9. Brownian motion produces far infrared rays.
2. The anti-aging materials for manufacturing electric heating film are all special materials with good characteristics, ant-aging, non deterioration, stable performance and long service life.
3. The moisture resistant electric heating film is made of polyester film and is waterproof as a whole.
4. High toughness. According to testing, he tensile resistance of the electrothermal film is about 20GK.
5. Small shrinkage. In aging tests, the shrinkage rate is minimal.
6. After testing, the performance and size of the electrothermal film have not changed significantly after 26000 hours of continuous operation at a surface temperature of 40℃.
7. Fully advanced heat sealing process ensures full polymerization between membranes without bubbles or delamination, ensure a close combination of the heating element and the current carrying strip.
8. The endurance radio thermal film can operate safely in an environment of- 20℃-50℃.
9. Brownian motion produces far infrared rays.
10.Our company is the source production factory of graphene electrothermal film, supporting customization: voltage, power, width, color, etc. providing free design services.
Certifications
FAQ
FAQ about company：How do I pay for Nuanjia?
1.T/T wire transfer
2.NUANJIA can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.NUANJIA also can accept the western union.
FAQ about product:
1.Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more accurate temperature control of each room and will avoid heating rooms which do not require it.
2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating system is reliable and safe.
3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached underlayment like some vinyl floors have.
4.How do I install Heating Film? How does it all get connected?
Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out your underlayment and then position Heating Film above the under layment. You can also install Thermo Film under an MDF layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or call us anytime for assistance.
5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor height deviation allowances.
6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.
7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The key is matching the right radiant heating product with the right installation method, and of course, this is just one of the things you can call us to get help with anytime!
8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a thermostat is simple, easy, and inexpensive.
1.T/T wire transfer
2.NUANJIA can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.NUANJIA also can accept the western union.
FAQ about product:
1.Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more accurate temperature control of each room and will avoid heating rooms which do not require it.
2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating system is reliable and safe.
3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached underlayment like some vinyl floors have.
4.How do I install Heating Film? How does it all get connected?
Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out your underlayment and then position Heating Film above the under layment. You can also install Thermo Film under an MDF layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or call us anytime for assistance.
5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor height deviation allowances.
6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.
7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The key is matching the right radiant heating product with the right installation method, and of course, this is just one of the things you can call us to get help with anytime!
8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a thermostat is simple, easy, and inexpensive.
Ordering and Pricing
- Minimum order quantity: 2 meter
- Volume pricing:
- 2+ meter: US $2.42 / meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric radiant underfloor heater?
The standard minimum order quantity is 2 meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this electric radiant underfloor heater carry?
It is supplied with CE ROHS ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the electric radiant underfloor heater be supplied for my local voltage?
The standard configuration is 230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd. range on HVACR Nexus.
