Electric heated blankets — voltage 110-230V, type Floor Heating Systems. The complete factory specification follows. Made by Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd. (4 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Electric Heated Blankets
- Model Number: Blue
- Maximum Power Consumption:: 130W/m2
- Voltage: 110-230V
- Material: Other
- Warranty: More Than 5 Years
- Certifications: RoHS CE ISO
Technical Specifications
| Heating System | Electric |
|---|---|
| Application | Staircase |
| Material | Other |
| Feature | Water Resistant, Flexible, Durable, Easy Installation |
| Relay | 10A |
| Voltage | 110-230V |
| Design Style | Modern |
| Type | Floor Heating Systems |
| Warranty | More Than 5 Years |
| After-Sale Service | Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Other |
| Project Solution Capability | graphic design, total solution for projects, Others |
| Place Of Origin | Shandong, China |
| Brand Name | JAE WOO |
| Model Number | Blue |
| Product Name | Underfloor Heating Film |
| Maximum Power Consumption: | 130W/m2 |
| Color | Customized Color |
| Wide | 30cm |
| Temperature Resistance | up to 80 °C |
| Certifications | RoHS CE ISO |
| Heating Area Per M² | 74% |
| Selling Units | Single item |
| Single Package Size | 53X25X25 cm |
| Single Gross Weight | 36.0 kg |
Product Details
Product Description

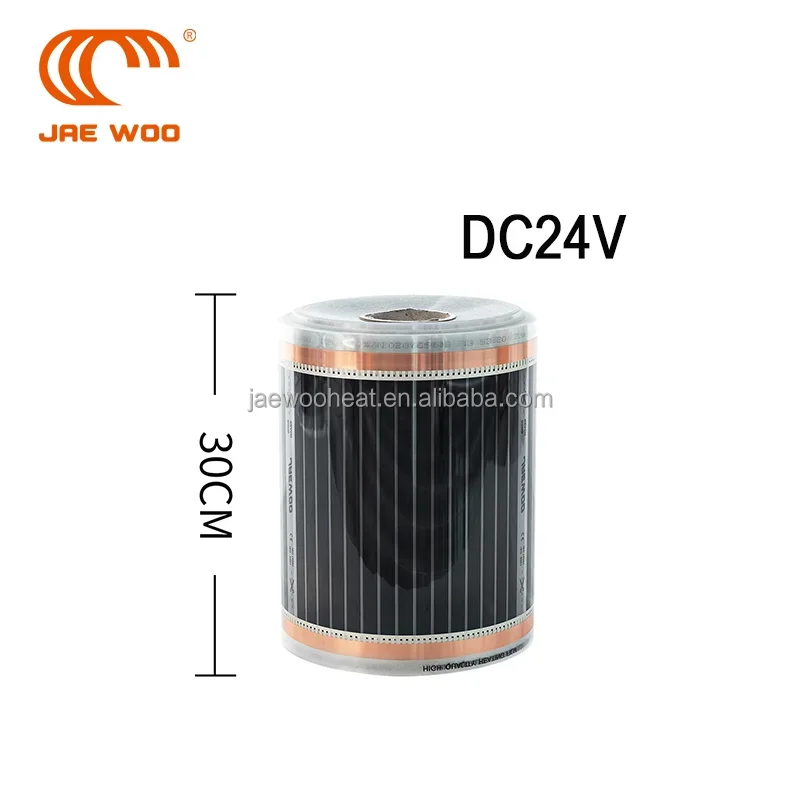

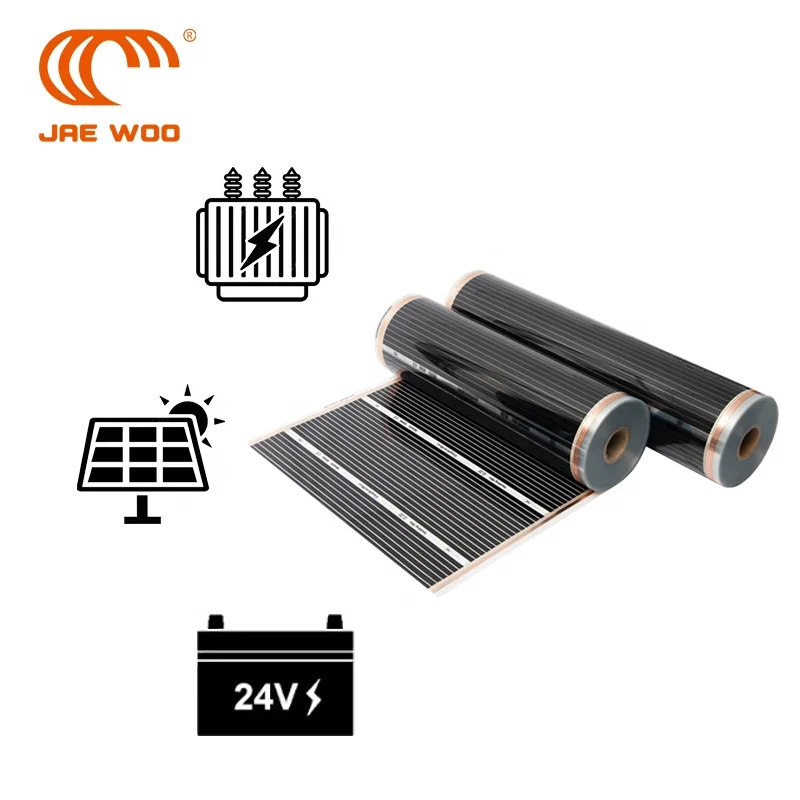

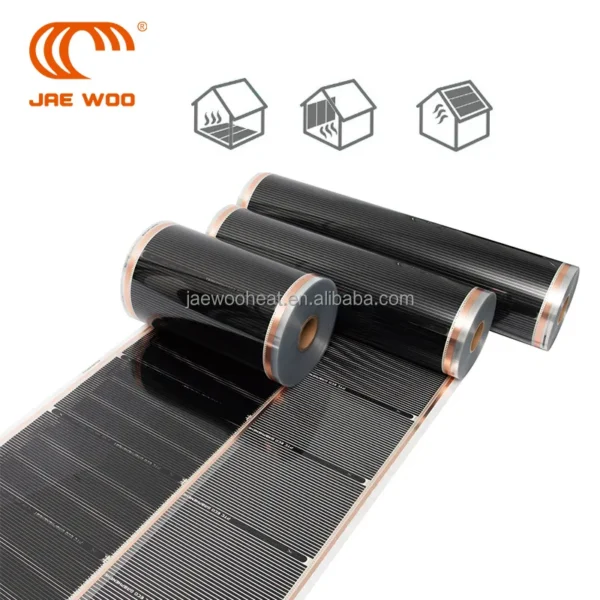

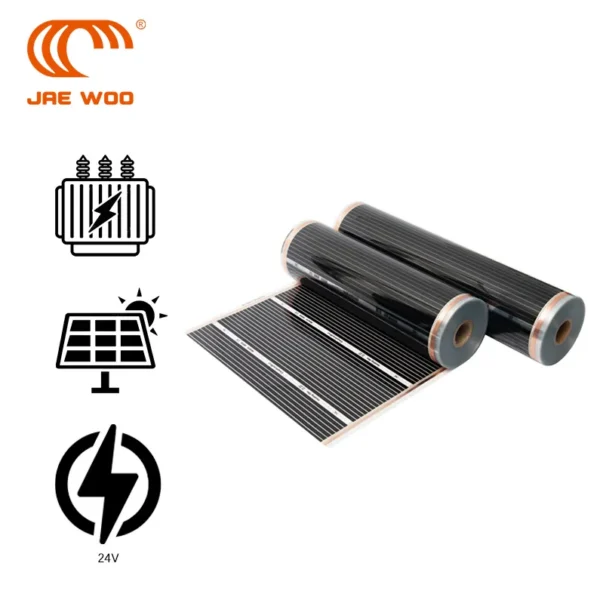

Product Name | Graphene 24V Low Voltage Heating Film |
Material | Graphene Carbon，Pure copper strip,Silver paste |
Color | Transparent |
Shape | Strip carbon |
Maximum power consumption: | 130W/㎡ |
Operating voltage | 24V |
Heating Film Size | 30 cm wide 100 meters long |
Heating Fim Thickness | 0.338mm |
Cutting line | 25cm of each |
Infrared wavelength: | 7-14 micrometers |
emperature resistance: | up to 80 °C. |
Heating Film Sample | Free(No charge for sample shipping) |
Heating Film Warranty: | 5 years |
The share of IR rays in the total spectrum | 95.6% |
Efficiency of converting electricity into thermal energy: | 96%-98% |
Surface temperature can achieve after covering | in the range from 39 to 49 °C. |
What is the heating film?
Heating film, or heating foil, also referred to as carbon heating film, is a high-quality infrared heating product used in modern underfloor heating, like floating floors, laminate, carpet or parquet. The infrared heating consumes 30% less electric energy than electric heating and over 50% less energy than conventional heating systems like oil boiler. Compared to other electric heating systems, the energy from heating film converts into infrared rays without any energy waste. It consists of two copper strips, which works as the electrical power conductor. Due to its parallel structure our heating film lets you to heat the whole house efficiently and evenly.
Details Images
Graphene Heating film is made of high-quality electrically insulating polymer material with the addition of special substances that
significantly increase the insulating properties, service life and safety of the system.
significantly increase the insulating properties, service life and safety of the system.
The heating element in it are carbon-graphite strips made using CNT (Carbon Nano Tube) nanotechnology.
The copper bars are 15 mm wide. and made of primary copper.
Product Usage
Product usage introduction

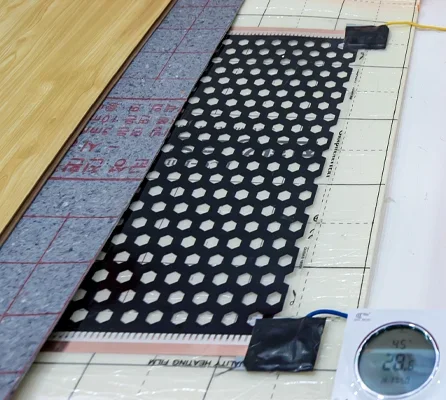

Combine mats as needed to fit open walkable space, avoiding areas covered by cabinets, vanities or other permanent fixtures. The heating mats can be shortened but cannot be reshaped. Each mat will connect to the thermostat, so larger mats will reduce required connections. DO NOT MIX VOLTAGES

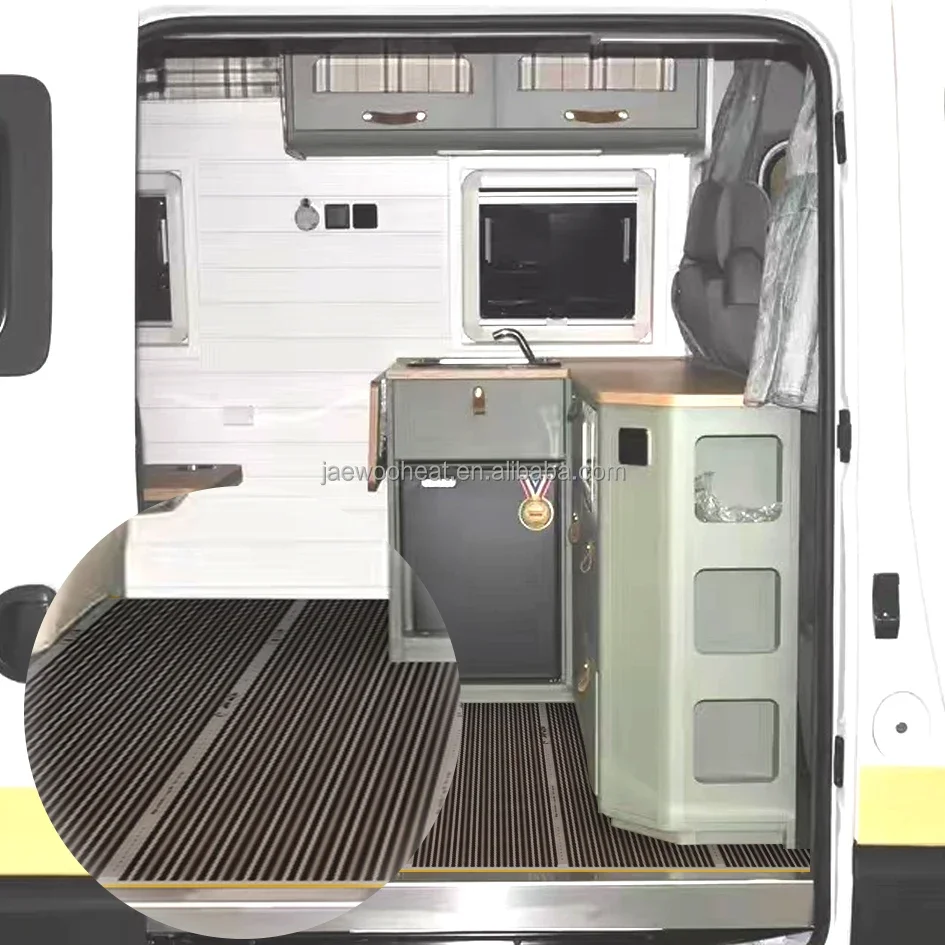

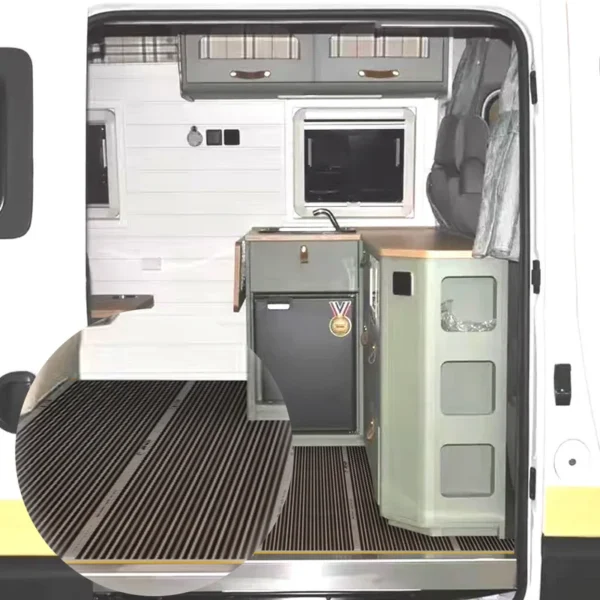

Description of product use effect
Electric radiant heat is superior for a few reasons: It is less expensive to add to your home It is a maintenance-free system with no moving parts Electric Heating Film apply a uniform distribution of heat, no uncomfortable hot and cold spots damaging your floor Total efficiency; all energy input is converted to heat you feel Easy in remodel projects as well as building projects Simple to install at the same time as your flooring.
Exhibition
Packing&Shipping

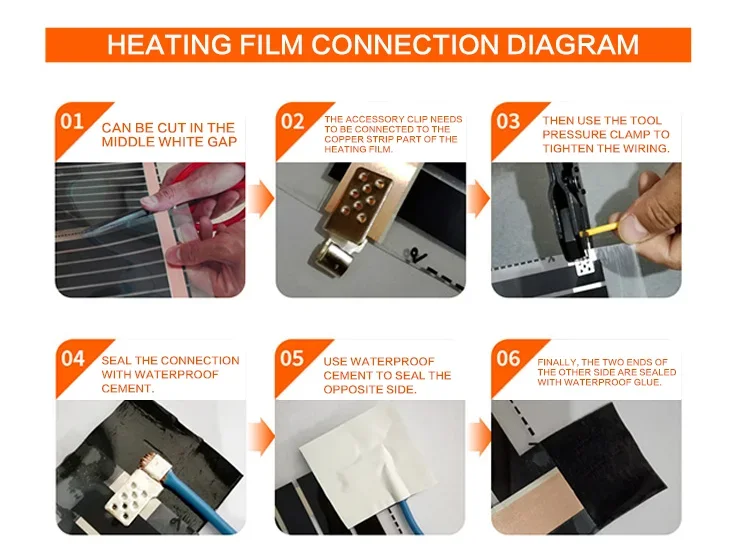

Precautions for installing electric heat film: 1. Determine the load of the electric heat film according to the area and wattage of the electric heat film, and configure the corresponding international high temperature resistant wires. 2. Select the temperature controller model and quantity based on the actual situation. 3. The electric thermal film must be cut according to the cut position 4. The electric heat film must be laid face up according to the instructions. When laying, the electric thermal film should be flat, no folds, and need to be fixed with tape to prevent overlapping of the electric thermal film. 5. When installing, the electric thermal film should be at least 30 cm away from the wall with a window

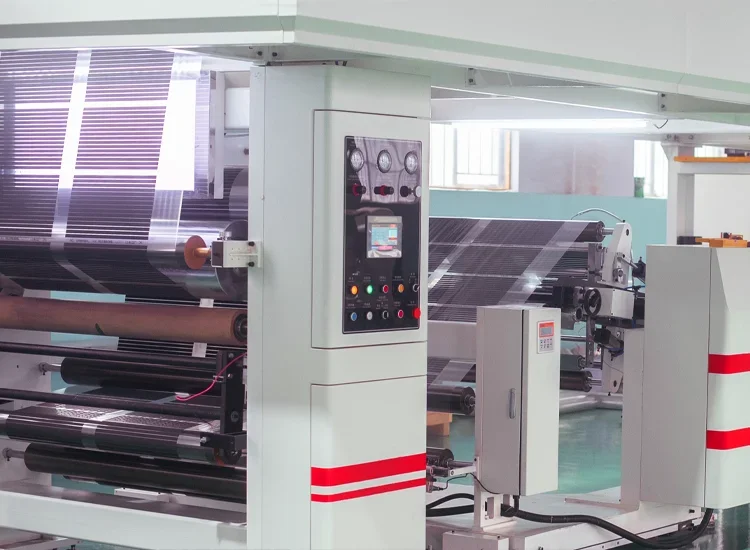

Company Introduction
WHY CHOOSE NUANJIA?
1.Over 20 years production and Sservice experience in electric heating film.
2.The real factory in China and 24-hour online real human customer service.
2.The real factory in China and 24-hour online real human customer service.
3.30 minutes fast quotation,10-20 days fast delivery, based on completeness of information provided.
4.Nuanjia have huge productivity. The daily production of electric heating film exceeds 12,000 square meters.
5.Strict quality inspection, to ensure 100% quality inspection before delivery,0 defective rate.
6.Provide OEM Service,3+ voltage choose,4+ size choose,5+ Color choose,6+shape choose, Nuanjia design it for free according to your needs.
7.Nuanjia Own a large warehouse more than 1600 square meters, which can be used as your stock base in China.
8.Nuanjia also provide the best in installation guidance, as well as post-purchase and warranty support.
9.Nuanjia have convenient transportation, close to Qingdao Port and Qingdao International Airport.
10.Nuanjia approvals:CE ,ISO ,ROHS,CCC, certified.
4.Nuanjia have huge productivity. The daily production of electric heating film exceeds 12,000 square meters.
5.Strict quality inspection, to ensure 100% quality inspection before delivery,0 defective rate.
6.Provide OEM Service,3+ voltage choose,4+ size choose,5+ Color choose,6+shape choose, Nuanjia design it for free according to your needs.
7.Nuanjia Own a large warehouse more than 1600 square meters, which can be used as your stock base in China.
8.Nuanjia also provide the best in installation guidance, as well as post-purchase and warranty support.
9.Nuanjia have convenient transportation, close to Qingdao Port and Qingdao International Airport.
10.Nuanjia approvals:CE ,ISO ,ROHS,CCC, certified.
Shipping
FAQ
FAQ about company：
2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating system is reliable and safe.
3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached underlayment like some vinyl floors have.
4.How do I install Heating Film? How does it all get connected?
Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out your underlayment and then position Heating Film above the underlayment. You can also install ThermoFilm under an MDF layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or call us anytime for assistance.
5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor height deviation allowances.
6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.
7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The key is matching the right radiant heating product with the right installation method, and of course, this is just one of the things you can call us to get help with anytime!
8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a thermostat is simple, easy, and inexpensive.
How do I pay for Nuanjia?
1.T/T wire transfer
2.NUANJIA can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.NUANJIA also can accept the western union.
1.T/T wire transfer
2.NUANJIA can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.NUANJIA also can accept the western union.
FAQ about product:

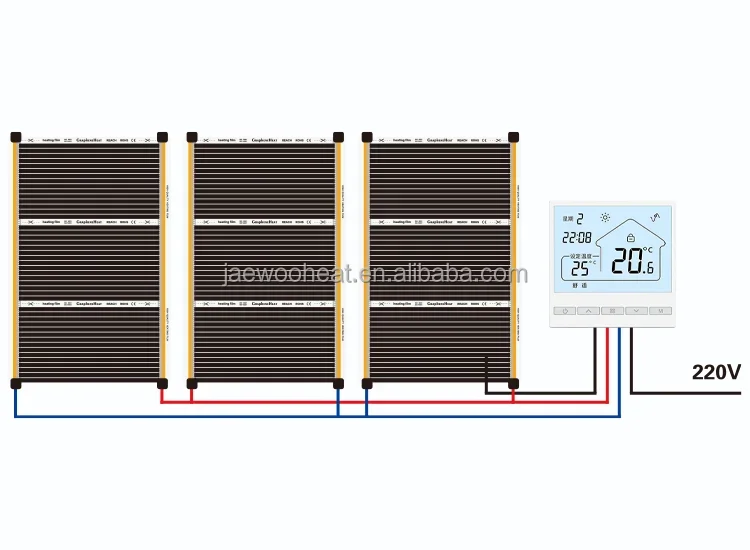

1.Does each room requireits own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more accurate temperature control of each room and will avoid heating rooms which do not require it.
1.Does each room requireits own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more accurate temperature control of each room and will avoid heating rooms which do not require it.
2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating system is reliable and safe.
3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached underlayment like some vinyl floors have.
4.How do I install Heating Film? How does it all get connected?
Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out your underlayment and then position Heating Film above the underlayment. You can also install ThermoFilm under an MDF layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or call us anytime for assistance.
5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor height deviation allowances.
6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.
7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The key is matching the right radiant heating product with the right installation method, and of course, this is just one of the things you can call us to get help with anytime!
8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a thermostat is simple, easy, and inexpensive.
Ordering and Pricing
- Minimum order quantity: 100 meter
- Volume pricing:
- 100–499 meter: US $1.85 / meter
- 500+ meter: US $1.8 / meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric heated blankets?
The standard minimum order quantity is 100 meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this electric heated blankets carry?
It is supplied with RoHS CE ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the electric heated blankets be supplied for my local voltage?
The standard configuration is 110-230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nuanjia Graphene Carbon New Energy (qingdao) Co., Ltd. range on HVACR Nexus.
