Key specification for this electric heaters: 240V, 2000W. Everything below is reproduced from the factory data sheet. Made by Foshan Tengnuo Technology Co., Ltd. (9 years on the platform, typical reply ≤9h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Electric Heaters
- Input Voltage(V): AC 220V-240V( ± 10%)
- Voltage: 240V
- Material: Quartz Glass
- Base Material: Ceramic
- Warranty(Year): 1-Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Input Voltage(V) | AC 220V-240V( ± 10%) |
|---|---|
| Lifespan (Hours) | 10000 |
| Lamp Luminous Efficiency(Lm/W) | 15 |
| Color Temperature(CCT) | 2450K |
| Color Rendering Index(Ra) | 82 |
| Support Dimmer | No |
| Color | Transparency |
| Warranty(Year) | 1-Year |
| Lighting Solutions Service | Lighting And Circuitry Design |
| Material | Quartz Glass |
| Place Of Origin | Guangdong, China |
| Brand Name | Tepro |
| Beam Angle(°) | 360 |
| Lamp Luminous Flux(Lm) | 0 |
| Product Weight（Kg） | 0.025 |
| Voltage | 240V |
| Wattage | 2000W |
| Heating Length | 500mm |
| Total Length | 580mm |
| Color Temperature | 2450k |
| Leading Wires | 350mm |
| Base Material | Ceramic |
| Mark | Printing |
| OEM | Yes |
| Feature | Water Proof |
| Selling Units | Single item |
| Single Package Size | 50.9X27.5X7 cm |
| Single Gross Weight | 50.0 kg |
Product Details

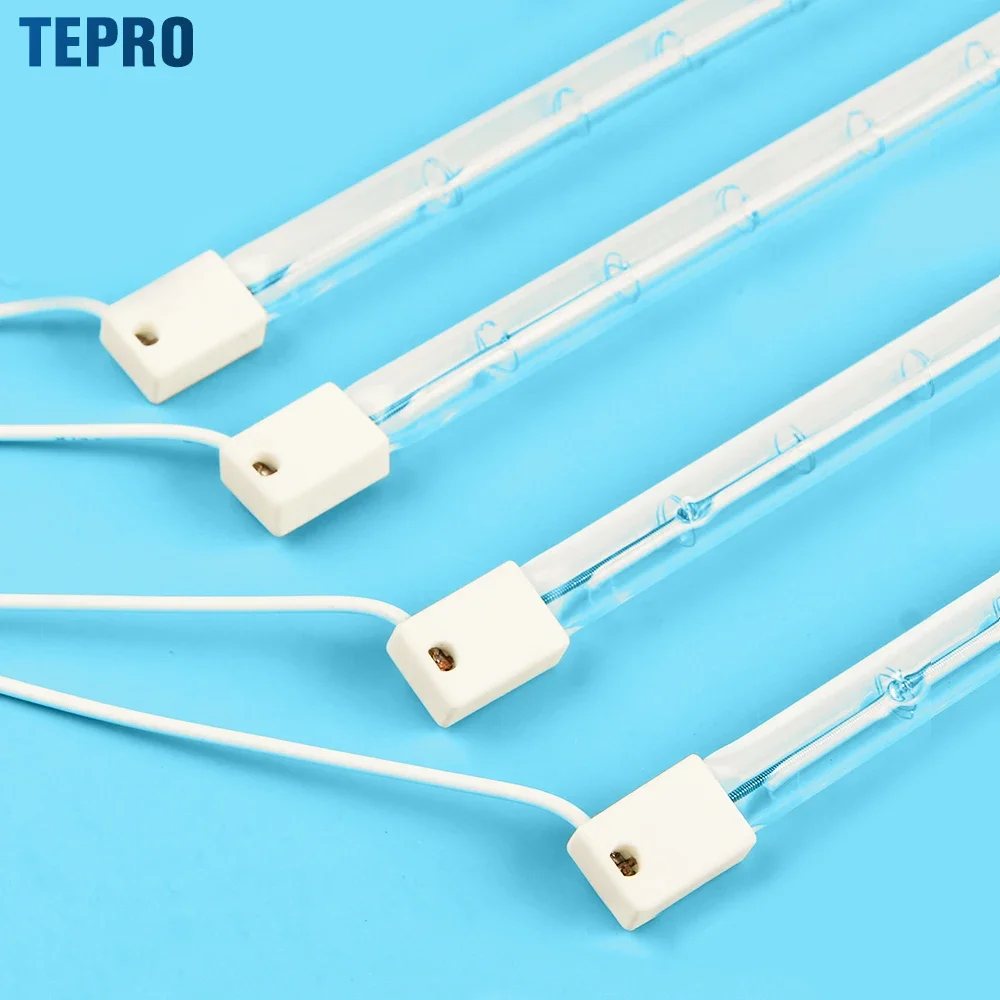

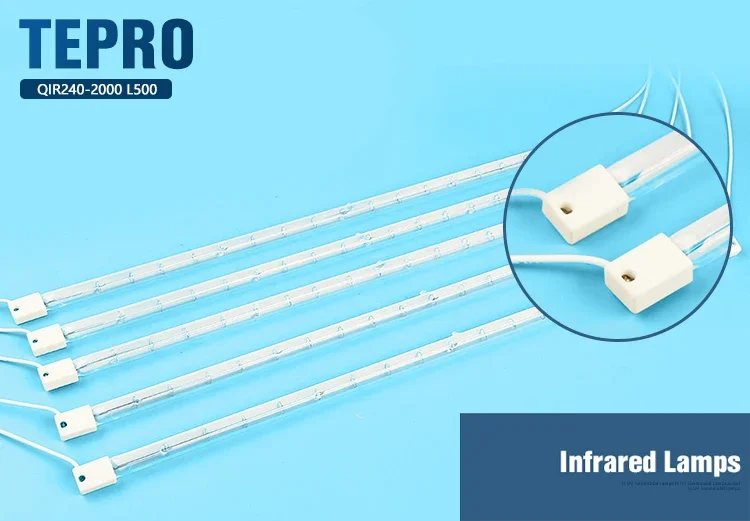

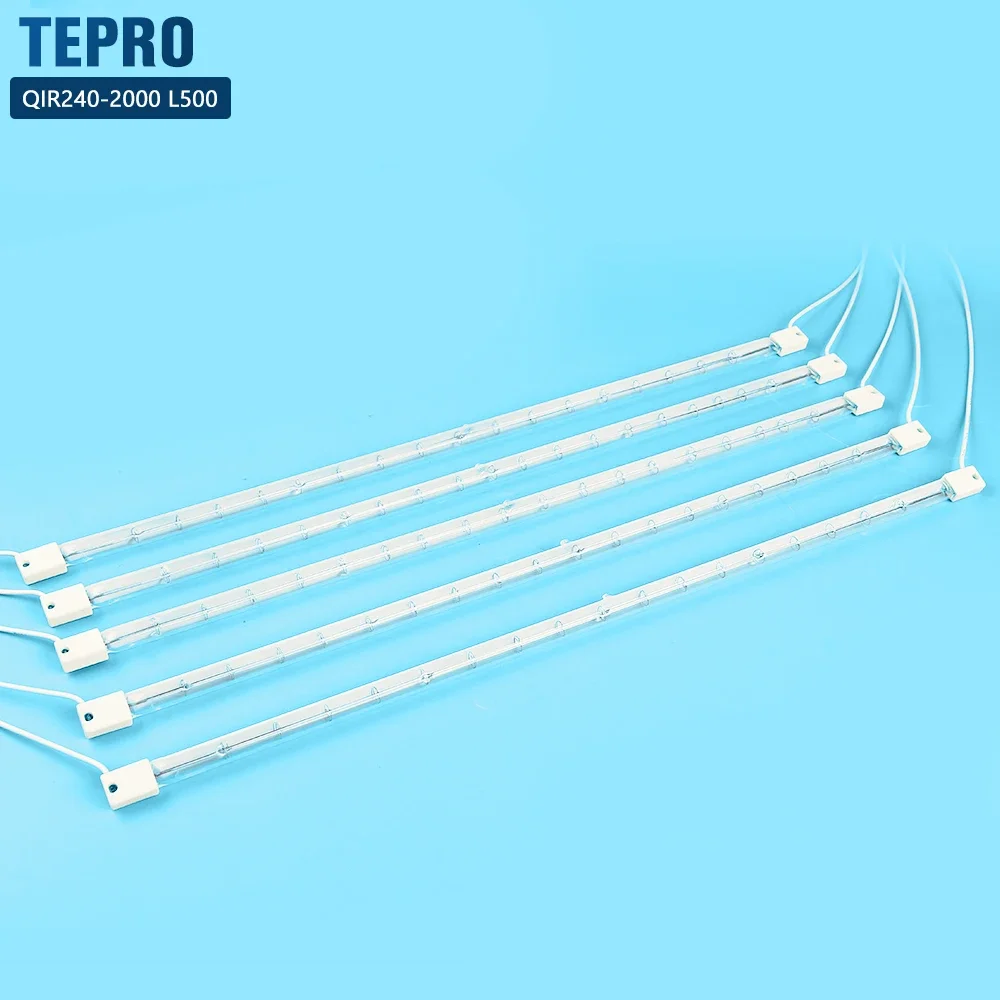

Infrared Lamp，Click to ask more detailed questions
Infrared lamp radiation heating working principle
When the electric current passes through the heating wire of the heating tube made of special material, the heating tube (quartz glass) will radiate infrared rays of a certain wavelength, and when the infrared rays are absorbed by the object, the molecules inside the object are activated to produce collision movement, generating a large amount of heat energy, and the object is heated "from inside to outside". The technology that uses this property to heat objects is called infrared radiation heating technology. By changing the cross-sectional size and length of the heating wire, the winding method and the composition of the inert gas material, infrared radiation of different wavelengths can be generated to suit different heating objects. Infrared radiation for industrial use is mainly short-wave with a wavelength of about 076-1.6um, medium-wave with a wavelength of about 16-4um and long-wave with a wavelength greater than 4um. Short-wave infrared radiation, medium-wave and long-wave is also called far infrared radiation. Because the thermal inertia of infrared radiation tube is very small and the thermal efficiency is very high, using infrared radiation heating technology, can be high density. High energy, high intensity. High-quality heating of the workpiece to achieve energy-saving heating energy. Improve the heating quality, shorten the heating time, reduce the amount of investment and reduce environmental pollution.
Advantages of infrared lamps 1、Energy-efficient reflective coating.
2、Environmentalclean heating methods 3、Perfect suited IR ray spectrum
4、Extremely density of power output 5、Maximum efficiency in heating
6、Compact and efficient size of pyrotoxin 7、Over-long life
8、Immediate heat-up and cool down 9、Unusual mechanicalintensity and waterproof capability
10、Be made of the quartz glass which has a capacity of bestIR ray permeation
11、IR lamps with different voltagepower,lengths,color temperature,basesshape, reflectors, diameters, and plating areavailable for varieties of demands
Product Paramenters
Type | Voltage | Wattage | Effective Heating Length | Total Length | Color Temperature | Leading Wires |
V | W | mm | mm | k | mm | |
QIR240-500/A | 120/240 | 500 | 190 | 230 | 2450 | 200 |
QIR240-1000/A | 120/240 | 1000 | 280 | 355 | 2450 | 200 |
QIR240-1000/A | 120/240 | 1000 | 280 | 450 | 2450 | 200 |
QIR240-1100/A | 120/240 | 1100 | 460 | 525 | 2450 | 200 |
QIR240-1300/A | 240 | 1300 | 700 | 780 | 2200 | 200 |
QIR240-2000/A | 240 | 2000 | 280 | 355 | 2450 | 230 |

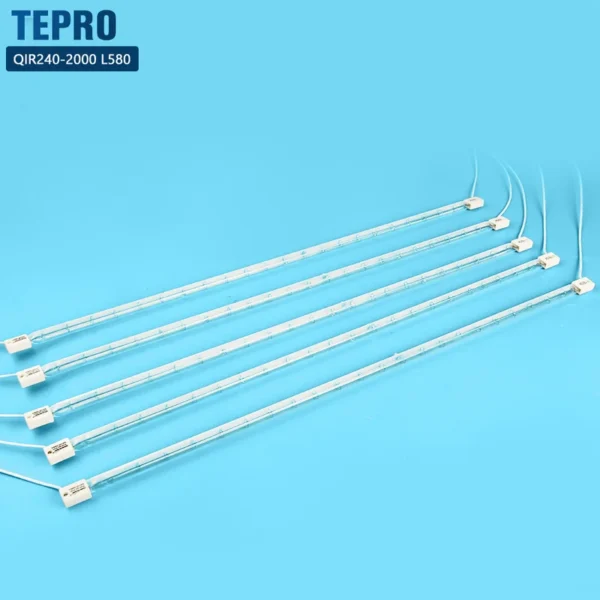

QIR240-2000/A | 240 | 2000 | 500 | 580 | 2450 | 350 |
QIR240-2000/A | 240 | 2000 | 700 | 780 | 2450 | 350 |
QIR240-2000/A | 240 | 2000 | 900 | 980 | 2450 | 350 |
QIR240-2000/A | 240 | 2000 | 1300 | 1365 | 2000 | 230 |
QIR240-2000/A | 380 | 2000 | 430 | 500 | 2450 | 350 |
QIR240-2500/A | 240 | 2500 | 280 | 355 | 2450 | 230 |
QIR400-2500/A | 400 | 2500 | 290 | 380 | 2450 | 230 |
QIR400-3000/A | 400 | 3000 | 290 | 380 | 2450 | 230 |
QIR240-3000/A | 240 | 3000 | 700 | 780 | 2450 | 230 |
QIR240-3000/A | 240 | 3000 | 900 | 980 | 2450 | 350 |
QIR400-3000/A | 400 | 3000 | 1450 | 1530 | 2300 | 230 |
QIR400-4000/A | 400 | 4000 | 1450 | 1530 | 2300 | 230 |

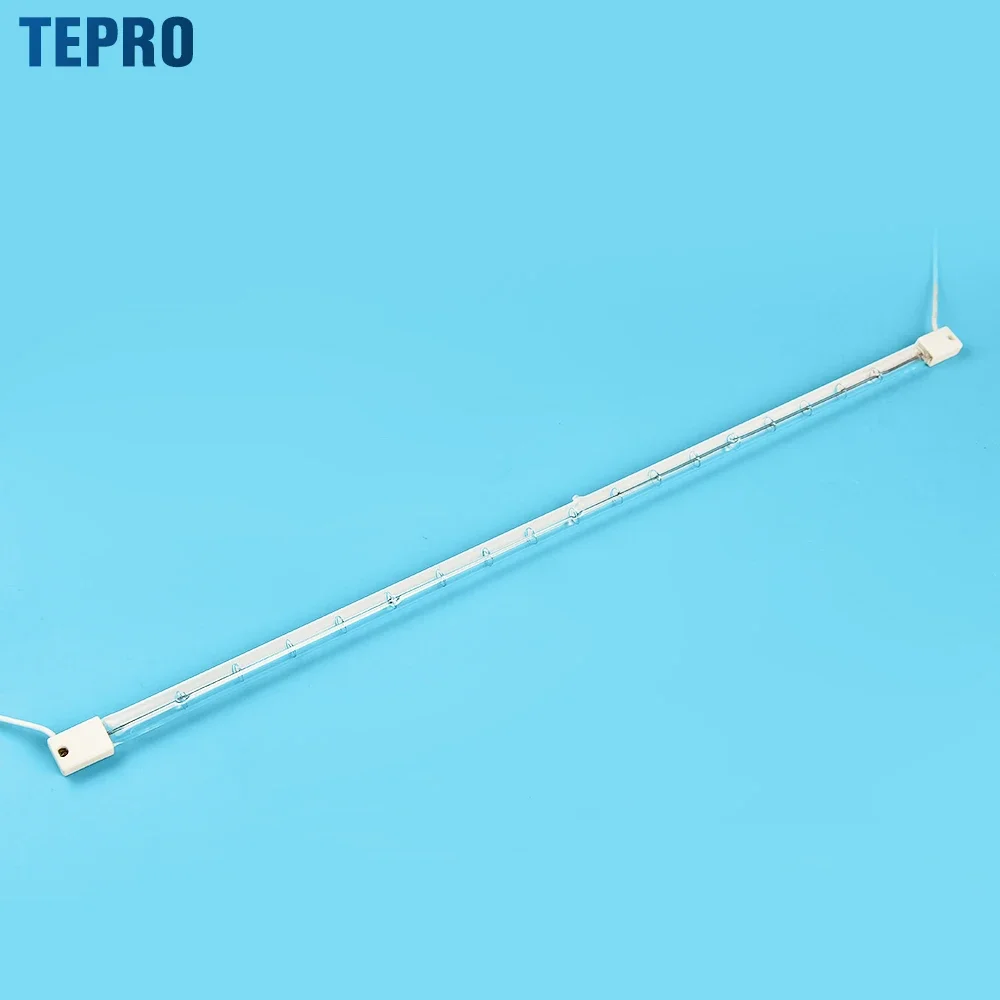

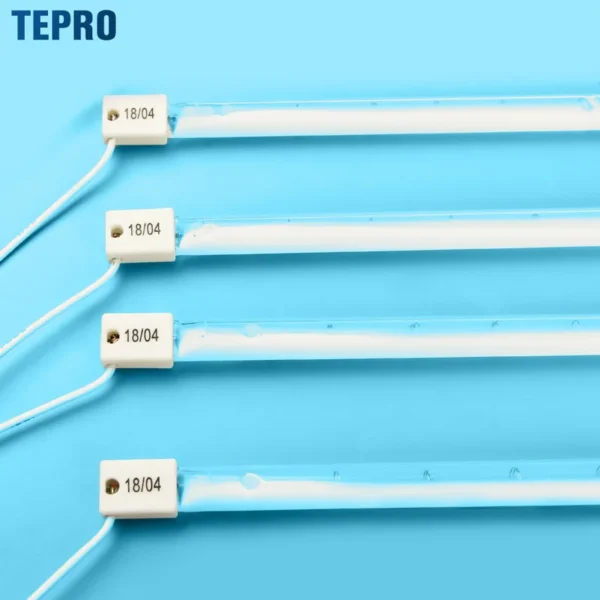

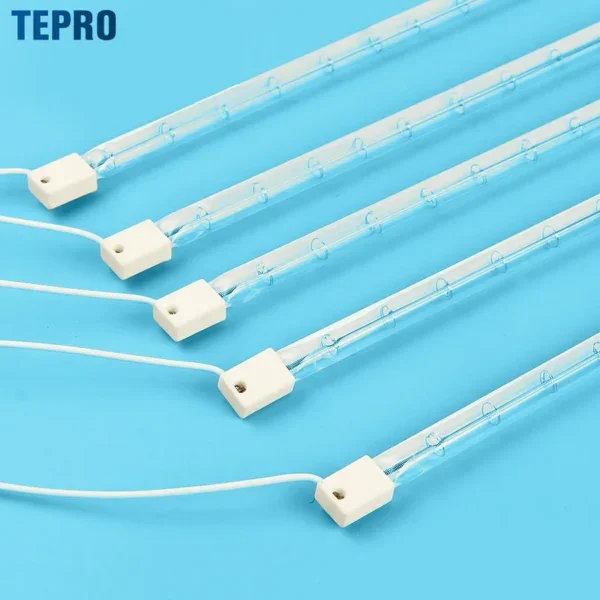

Details Images
If you still want to know more details, please click to contact our customer service
Recommend Products

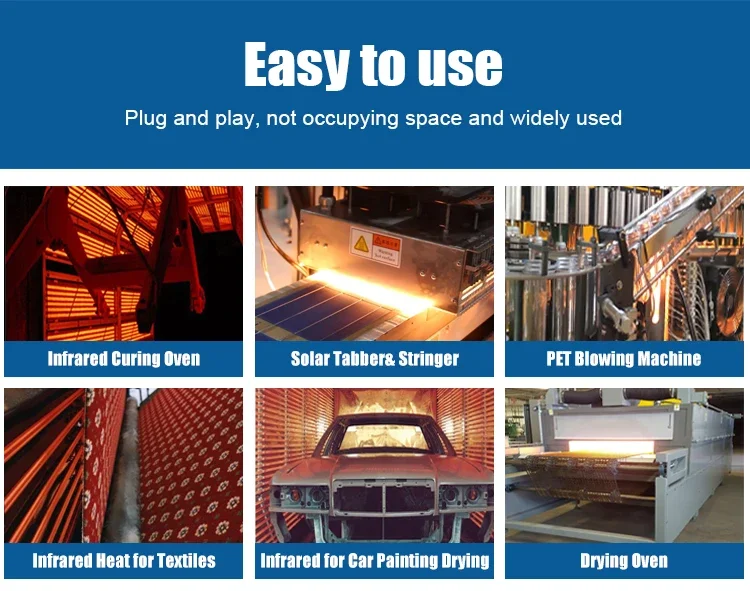

Applications
Tepro (China) co., LTD is a dynamic enterprise with a wild variety of professional ultraviolet lamp in China. Our tec
hnical team was found in 2003. 19 years of professional experiment and technology ensures our capacity of scientific
research. The stability and high quality of the products are generally recognized and praised by customers. It is widely
used by many different industries such as aquariums, water treatment, home appliances, medical equipment disinfec
tion, food, pharmaceuticals, cooking fume purification; exhaust fumes treatment and air disinfection.
UV sterilizer, sterilizer, electronic ballast, quartz sleeve are our main products.

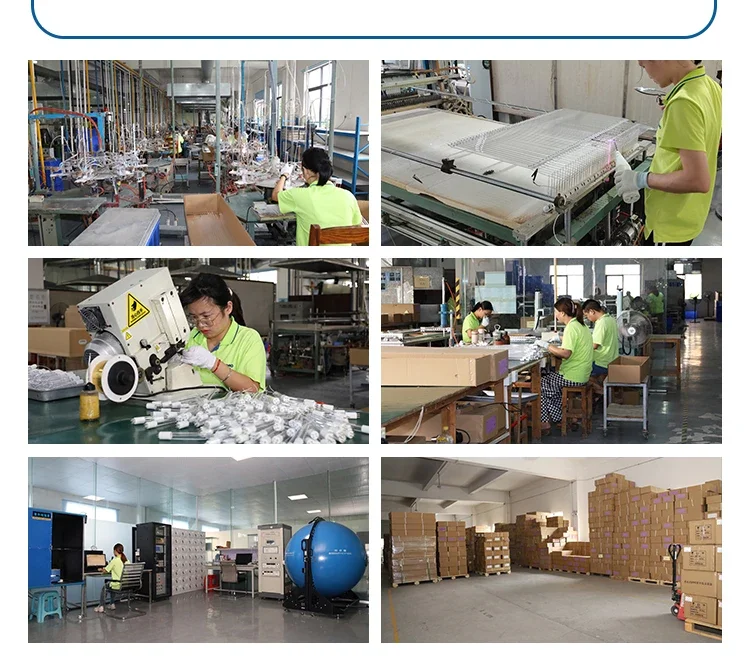

Our company has modern factories and laboratories in Foshan, China, with more than a dozen automated production
lines that keep an annual output of more than one million. A large scale and standardized production provides our cus
tomers with high efficiency and high quality UV sterilization products and solutions.
In the process of manufacturing and development of vita light lamp, we seek for materials with long production life
and higher output constantly, while expanding production capacity and shortening delivery times. At the same, we
also provide OEM and ODM to meet the requirements of various customers and create more value for them.
FAQ
Q: What is your MOQ?
A: The standard models are 10pcs each model. For the customized models are 50 pieces for each model.
Q: How can I get the discount?
A: The discount is following the quantity of UVC lamp in your order.
Samples or small quantity need higher price. There are many steps to produce the UVC lamps in our workshop. Rolling the orders to get a bigger discount
Q: What about the delivery time?
A: It is 7 days for the sample order. And there are 15-25 days for the mass production.
Q: About the Shipping and freight?
A: We ship the goods by DHL, FedEx, UPS, or others. If the GW and Dimension is large, we will arrange to ship by sea or air
freight.
Q: How do you control the quality?
A: Our factory has more than 19 year experiences in UV lamp manufacture. Each UVC lamp is tested 2 times in the processing.
Q: What is your payment term?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance/deposit, the balance cost before the shipping.
Q: How about your warranty?
A: One year guarantee for the UVC lamp.
A: The standard models are 10pcs each model. For the customized models are 50 pieces for each model.
Q: How can I get the discount?
A: The discount is following the quantity of UVC lamp in your order.
Samples or small quantity need higher price. There are many steps to produce the UVC lamps in our workshop. Rolling the orders to get a bigger discount
Q: What about the delivery time?
A: It is 7 days for the sample order. And there are 15-25 days for the mass production.
Q: About the Shipping and freight?
A: We ship the goods by DHL, FedEx, UPS, or others. If the GW and Dimension is large, we will arrange to ship by sea or air
freight.
Q: How do you control the quality?
A: Our factory has more than 19 year experiences in UV lamp manufacture. Each UVC lamp is tested 2 times in the processing.
Q: What is your payment term?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance/deposit, the balance cost before the shipping.
Q: How about your warranty?
A: One year guarantee for the UVC lamp.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $10 / piece
- 100+ piece: US $8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric heaters?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1-Year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric heaters be supplied for my local voltage?
The standard configuration is AC 220V-240V( ± 10%). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

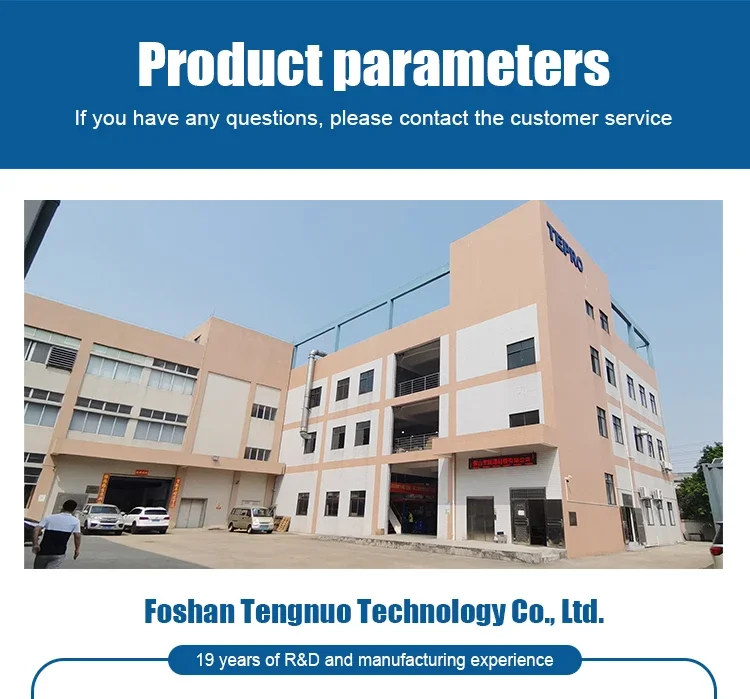

About the Manufacturer
This product is produced by Foshan Tengnuo Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Tengnuo Technology Co., Ltd. range on HVACR Nexus.
