Factory direct sales 8000W high power SCR electronic voltage regulator motor fan electric drill variable speed governor thermostat 220V

AC voltage regulator
8000W SCR high power
Electronic voltage regulation dimming speed regulation temperature controller

Circuit function:
AC 0V-220V continuously adjustable, zero lag, zero delay, super heat dissipation.

Circuit characteristics:
Anti-surge, anti-spike, RC absorption multiple protection!

technical parameter:
Operating voltage: AC 220V
High power: 8000W, resistive load limit power, long-term use should reduce the power to use, it is recommended that the room temperature resistive load is within 4000W (key parameters, please pay attention). Tin plating on the back can be increased as needed.
Voltage adjustment: AC 0V-220V continuously adjustable. The step-down voltage can reach 0, and the step-up step is about 60V.

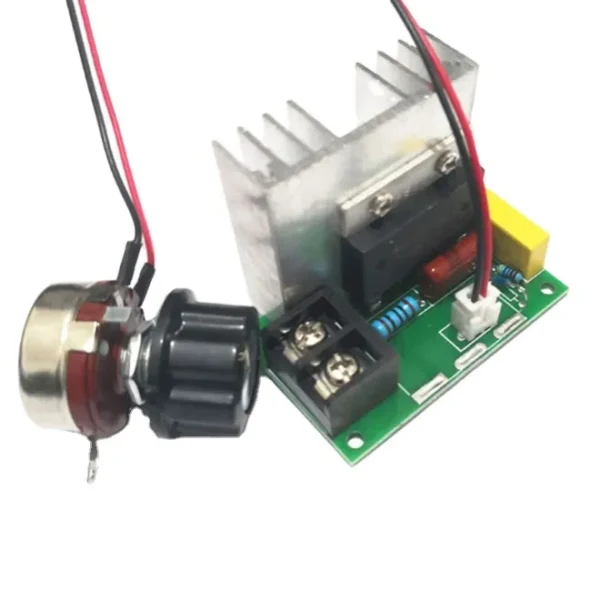

Specification and size: high temperature and fire resistant FR4 circuit board, circuit board size 60mm * 37mm high 45mm

Note that the load must be connected to adjust the voltage.

Instructions:
Connect the voltage regulator in series in the circuit, and connect the voltage regulator to the lamp and electrical appliances in series in the circuit (that is, disconnect any one of the live wire or the neutral wire from the lamp, electrical appliance, etc., and connect it to the wiring of the "product" The terminal can be used), turning the knob cap, you can adjust the light, speed, temperature, and pressure; the operation is simple and convenient.

The use of a new type of bidirectional high-power thyristor, the current is up to 100 amperes, it is a good solution to the overcurrent problem caused by the resistance of the electric furnace wire being too small when it is cooling; it can easily adjust the output voltage of the mains, at 0V— Continuously adjustable between 220V, zero delay and zero hysteresis. Examples of use: heat adjustment of electric furnaces and water heaters, light adjustment of lamps, small motor speed adjustment, electric soldering iron temperature adjustment, voltage adjustment of imported 110V electrical appliances (220V to 110V), etc., so as to achieve temperature adjustment, light adjustment, speed adjustment, The effect of pressure regulation. Load high power: 8000W. It can be used for large, medium and small electrical appliances. Since the power is already large, general household electrical appliances or small factories are sufficient (inductive load or capacitive load power should be reduced). Rotate the knob cap gently to adjust flexibly, without adding any components, the product is practical and convenient.

Using high-power thyristor, BTA100-600B/800B, high efficiency!
1.6mm thick epoxy copper clad laminate, high current design, buyers can use it when they get it.
This voltage regulator is equipped with a peak voltage absorption circuit to effectively protect the high-power thyristor, and has a longer life and more durable.
