The erv air exchanger listed here carries power supply 220~240V / 1 Phase / 50Hz, airflow rate 350 / 450 / 850 m³/h, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (11 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Erv Air Exchanger
- Model Number: AV-TPF75- EFW/ AV-TPF85- EFW
- Power Supply: 220~240V / 1 Phase / 50Hz
- Airflow Rate (M³/H): 350 / 450 / 850 m³/h
- Material: Aluminum, Galvanized Steel
- Noise Level DB(A): 30 / 32 / 47 dB(A)
- Warranty: 1 Year
Technical Specifications
| Application | Villa, Hotel, Office Building, School |
|---|---|
| Material | Aluminum, Galvanized Steel |
| Current Rating | 1.6A |
| Installation | Floor Mounted |
| Shape | Rectangle |
| Feature | Flexible, Energy Saving, Easy Install, Anti-Corrosion |
| Design Style | Contemporary, Modern |
| Warranty | 1 Year |
| After-Sale Service | Free Spare Parts |
| Project Solution Capability | total solution for projects |
| Model Number | AV-TPF75- EFW/ AV-TPF85- EFW |
| Place Of Origin | Guangdong, China |
| Brand Name | AIRWOODS |
| Product Name | Vertical Energy Recovery Ventilator |
| Mounting | Floor Standing |
| Airflow Rate (M³/H) | 350 / 450 / 850 m³/h |
| Heat Exchanger Type | Counterflow Total Heat Exchanger Core |
| Heat Recovery Efficiency | Up to 93% |
| Fan Motor Type | EC Fan Motors |
| Noise Level DB(A) | 30 / 32 / 47 dB(A) |
| Power Supply | 220~240V / 1 Phase / 50Hz |
| Filtration System | G4 Coarse Filter + F7 Medium Filter +Optional HEPA Filter |
| Smart Controls | LCD Touchscreen Control Panel + Wi-Fi App Management |
| Selling Units | Single item |
| Single Package Size | 71X86X215 cm |
| Single Gross Weight | 179.5 kg |
Product Details
PRODUCT HIGHLIGHTS

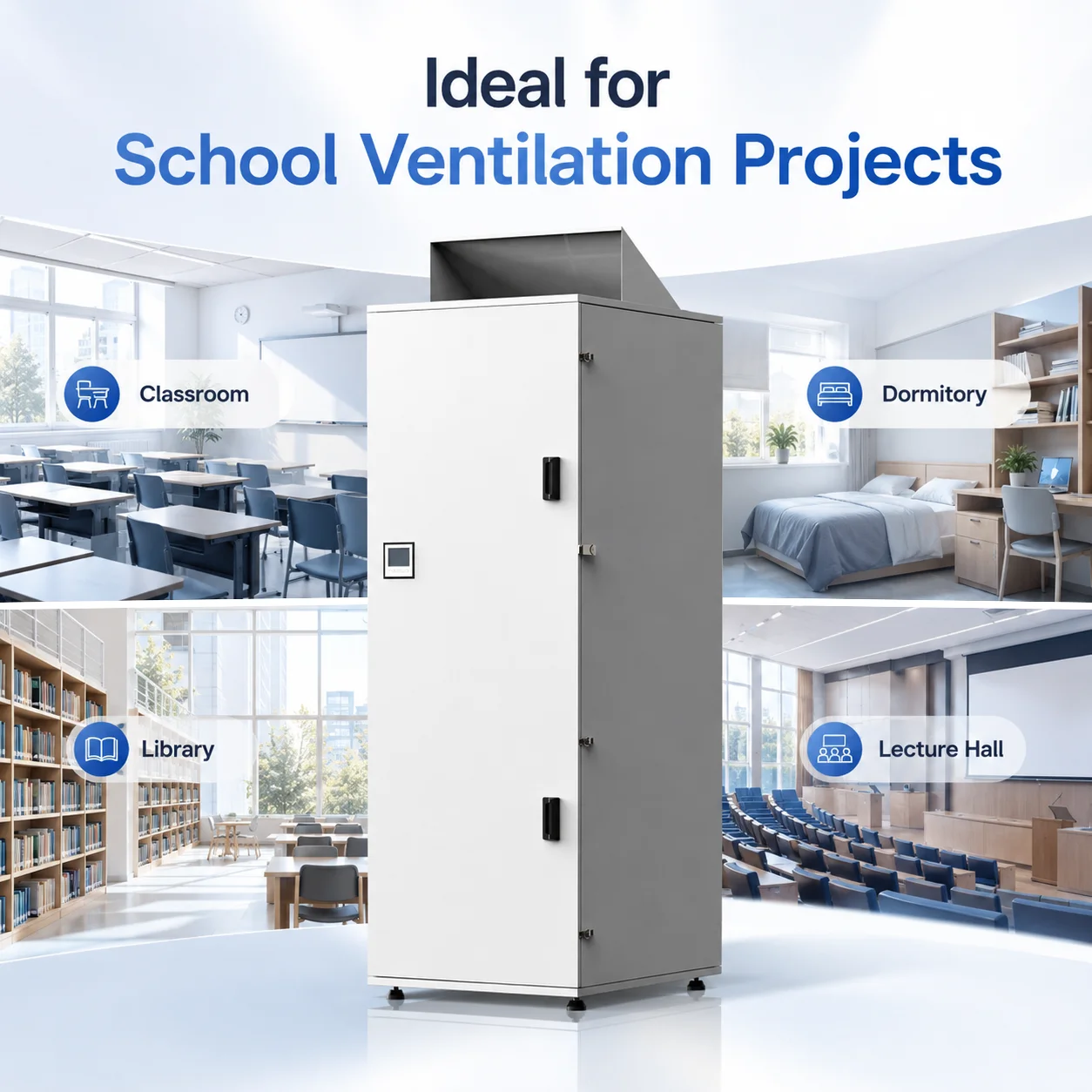

- Vertical Energy Recovery Ventilator for School Classrooms :This vertical ERV is designed for school classrooms, educational buildings, dormitories, libraries, and training centers, providing a reliable fresh air solution for crowded indoor spaces.

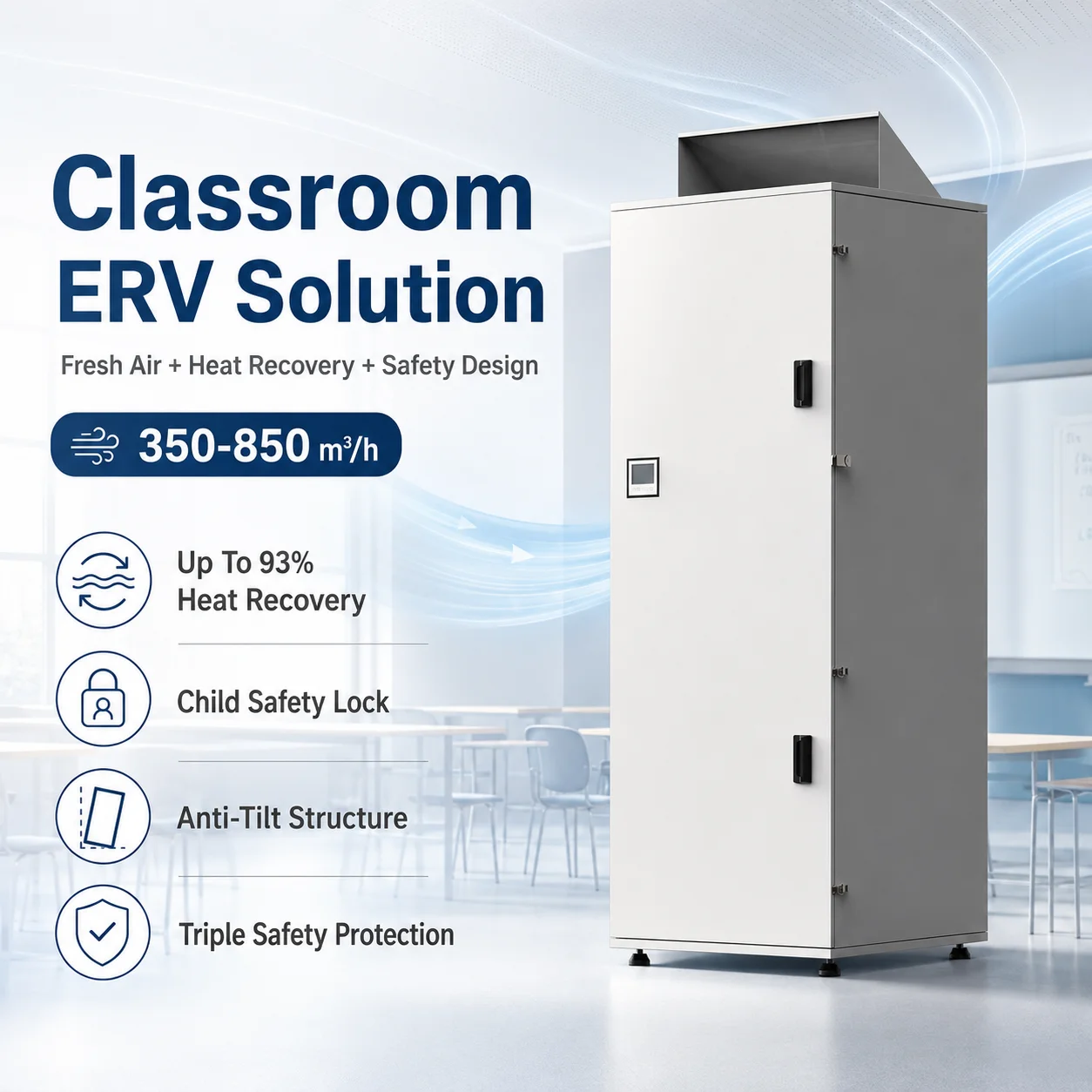

- Heat Recovery Ventilator with Up to 93% Efficiency: Built with a counterflow heat exchanger, this energy recovery ventilation system helps recover heat from exhaust air, reduce energy loss, and improve indoor comfort in both hot and cold seasons.
- Quiet Fresh Air Ventilation System for Learning Spaces :With EC fan motors , this low noise ERV operates as quietly as 30 dB(A), making it suitable for classrooms, study rooms, and other noise-sensitive environments.
- Smart School Ventilation Unit with WiFi and CO2 Control :Supports touchscreen control, WiFi remote , CO2 control, 7-day timer, and Modbus BMS integration, helping schools manage indoor air quality more efficiently.

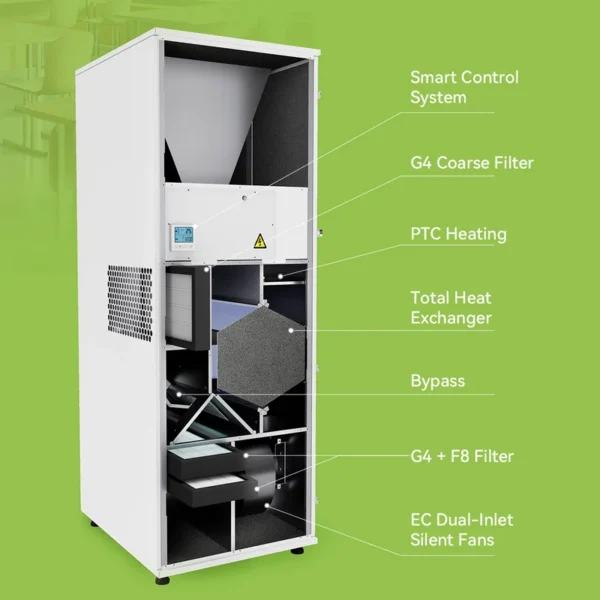

- Safe and Reliable Classroom ERV with Multi-Stage Filtration: Featuring anti-tilt structure, child lock, key-locked access, G4 + F7 filters, PM2.5 filtration, automatic defrost, summer bypass, and 2200W PTC heating, this school fresh air unit is built for stable and safe operation.

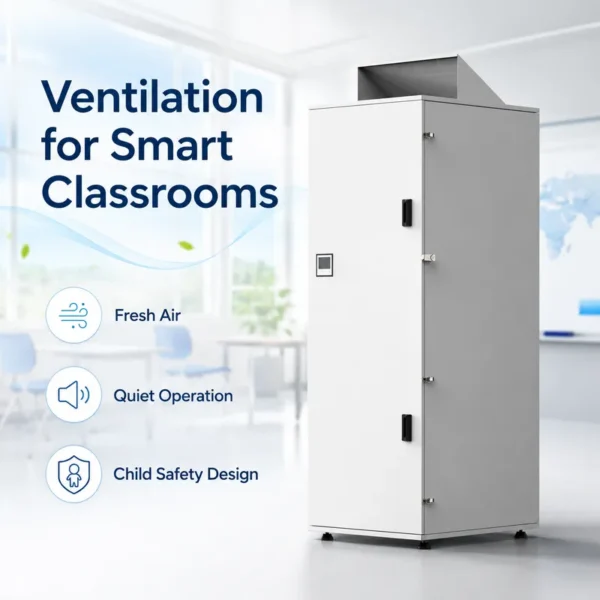

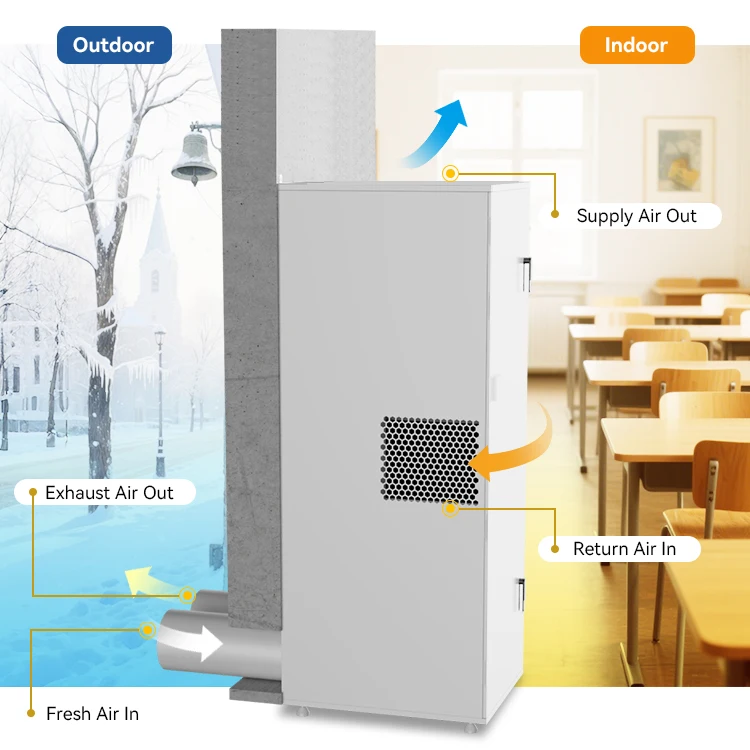

The Vertical Energy Recovery Ventilator is specially designed for school environments where fresh air, safety, and low noise are essential. Unlike ceiling-mounted systems, this freestanding vertical design makes installation and maintenance easier while saving ceiling space. It provides continuous fresh air supply, removes stale indoor air, and recovers energy from exhaust air to reduce operating costs. With advanced filtration, smart controls, and child-safe structure, it is an ideal fresh air
The counterflow heat exchanger delivers up to 93% heat recovery efficiency, helping maintain indoor comfort in both summer and winter while reducing energy loss.

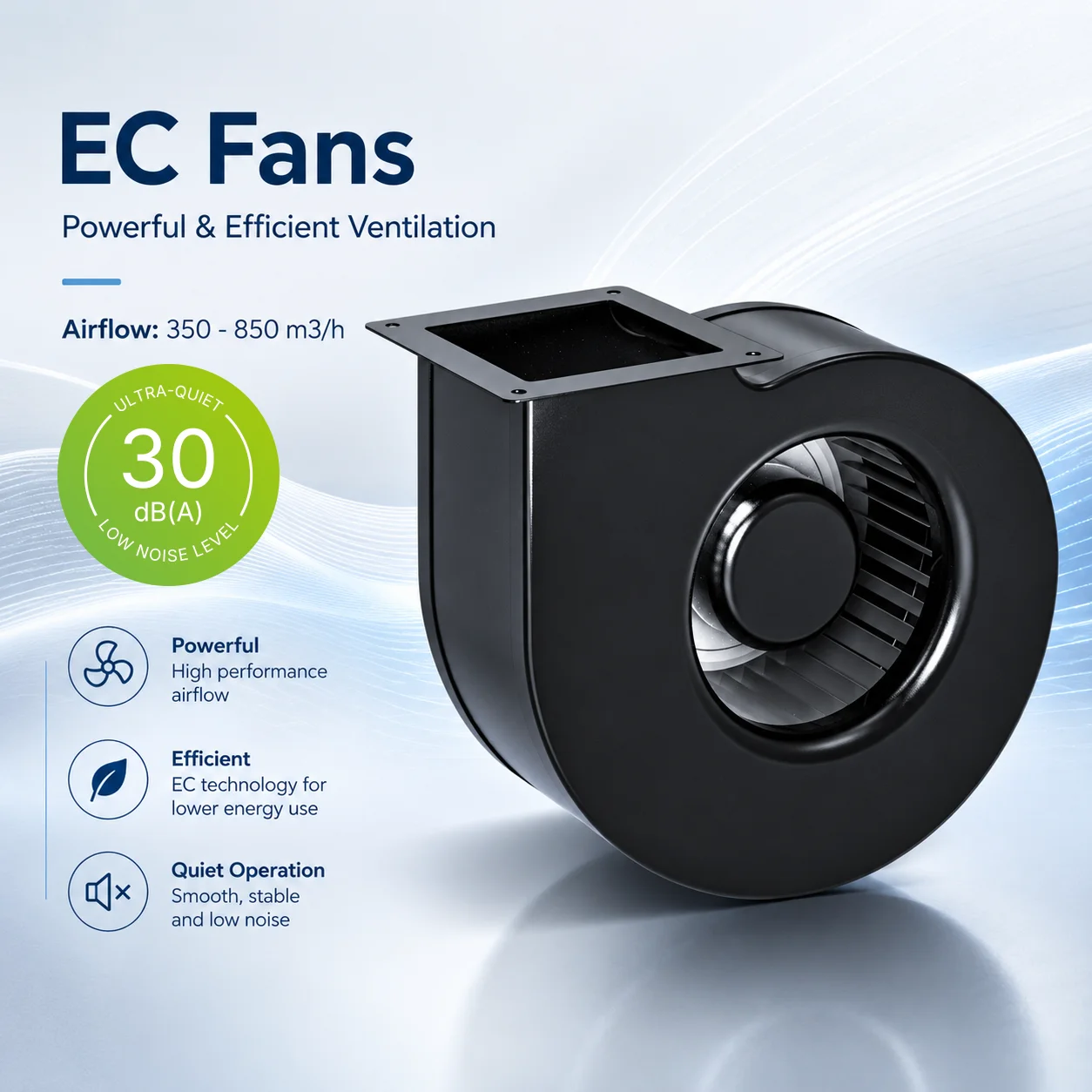

Designed with EC dual-inlet fans and acoustic insulation, the unit operates at only 30 dB(A) at low speed, suitable for quiet learning environments.

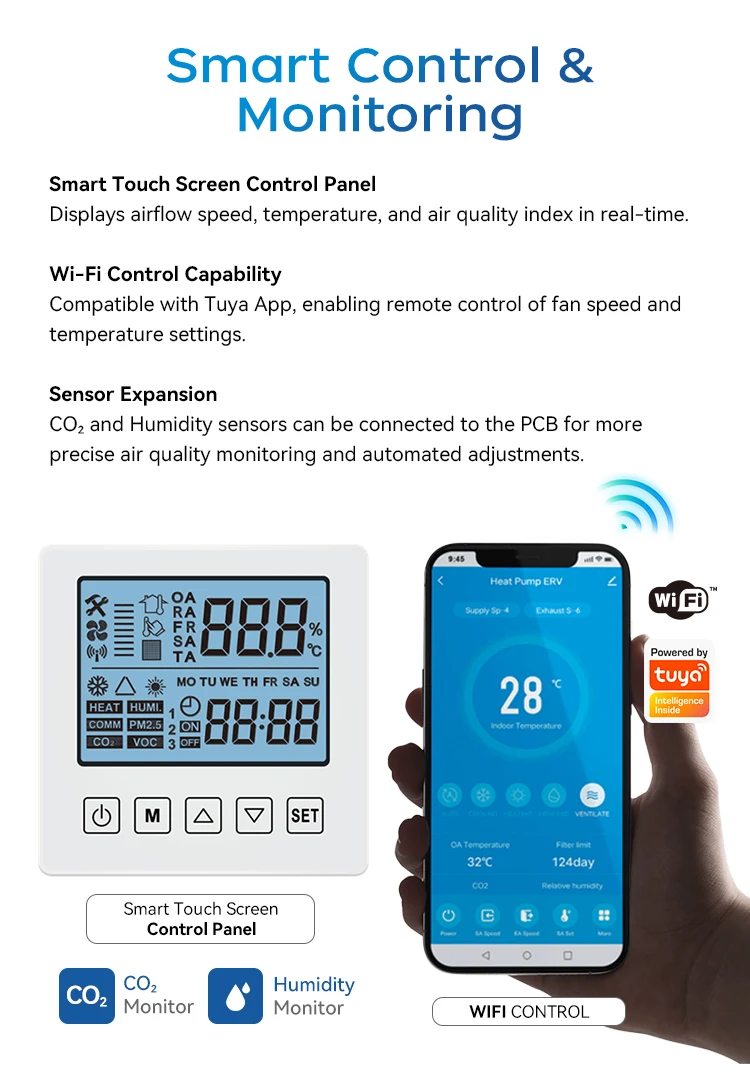

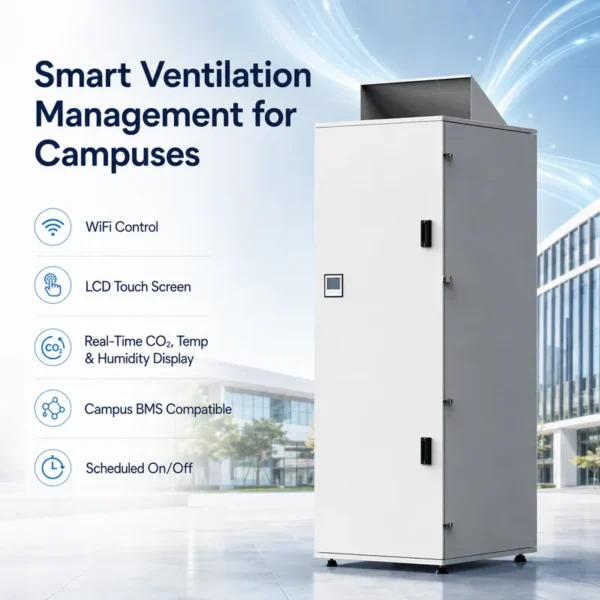

The built-in LCD touchscreen and WiFi function allow real-time monitoring of temperature, humidity, and CO2..The system supports scheduled operation, remote control, and BMS integration.
Model | AV-TPF75-EFW | AV-TPF85-EFW | |||
Airflow (m3/h) | 350/450/750 | 350/450/850 | |||
Enth. Eff (%) | Cooling | 77–90 | 75–90 | ||
Heating | 69–83 | 66–81 | |||
Temp. Eff (%) | 79–93 | 77–92 | |||
Noise dB(A) at 1 meter | 30/32/44 | 30/32/47 | |||
Power Supply | 220~240V/1Ph/50Hz | ||||
Input Power (W) | 340 | 350 | |||
Electric Current (A) | 1.55 | 1.6 | |||
Power Cable (mm2) | 3×4 | ||||
Control Cable (mm2) | 4×0.5 | ||||
Control | Standard | Yes (7-Day Time–clock) | |||
(BMS) Mod Bus | Yes | ||||
Fan Type | EC Fan Motors | ||||
Fan Speeds (Supply) | 3 Speed Fan Control | ||||
Fan Speeds (Exhaust) | 3 Speed Fan Control | ||||
Summer Bypass | Yes (Automatic with adjustable range) | ||||
Defrost | Yes (Automatic with adjustable range) | ||||
CO2Control | Yes (On / Off control with adjustable range) | ||||
Electric Heating | Yes (2200W,On / Off control) | ||||
Fan Boost Contacts | Yes (1x available connections to Volt–Free contacts:Close= boost to High Speed) | ||||
Fire Shutdown | Yes (1x available connection to Volt–Free contacts:Closed = Shutdown) | ||||
Weight (Kg) | 135 | 140 | |||

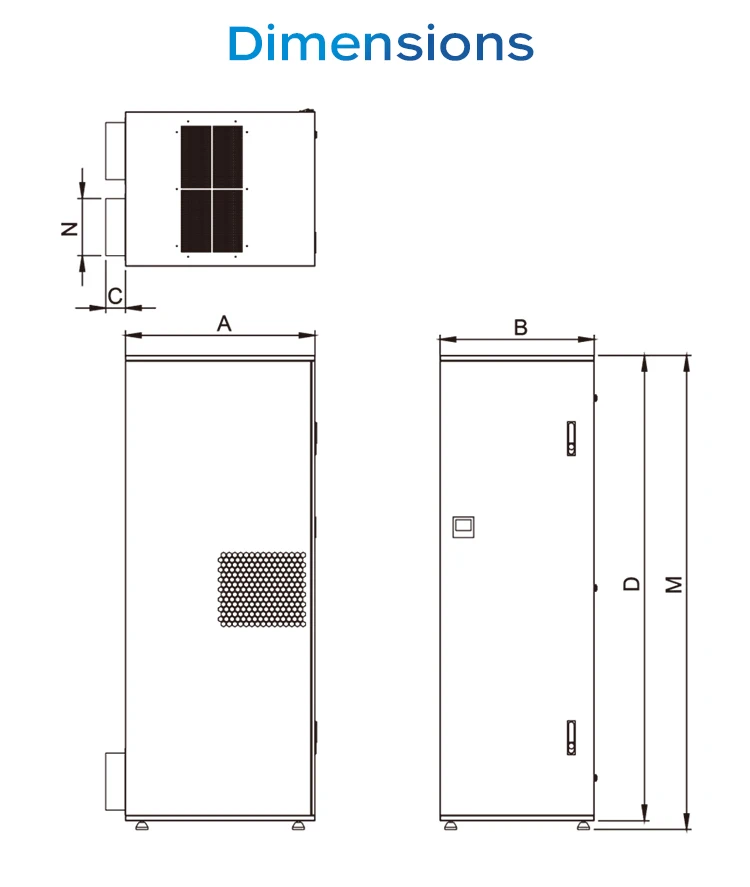

Size (W×H×D) (mm) | 800×650×1997 | 800×650×1997 | |||
Duct Size (mm) | ⌀250 | ⌀250 | |||
FAQs
Why should schools choose this over simply opening windows?
Opening windows leads to uncontrolled temperature swings, outdoor noise pollution (traffic, construction), and the entry of unfiltered pollutants (pollen, PM2.5). The Airwoods ERV provides controlled, filtered, and whisper-quiet ventilation while keeping CO2 levels below 1000ppm automatically, which is proven to improve student concentration and grades.
Is the unit safe to be placed directly in a classroom with active children?

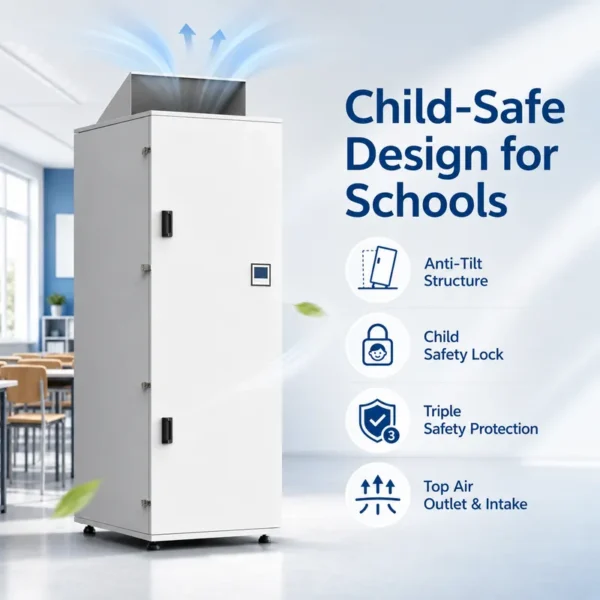

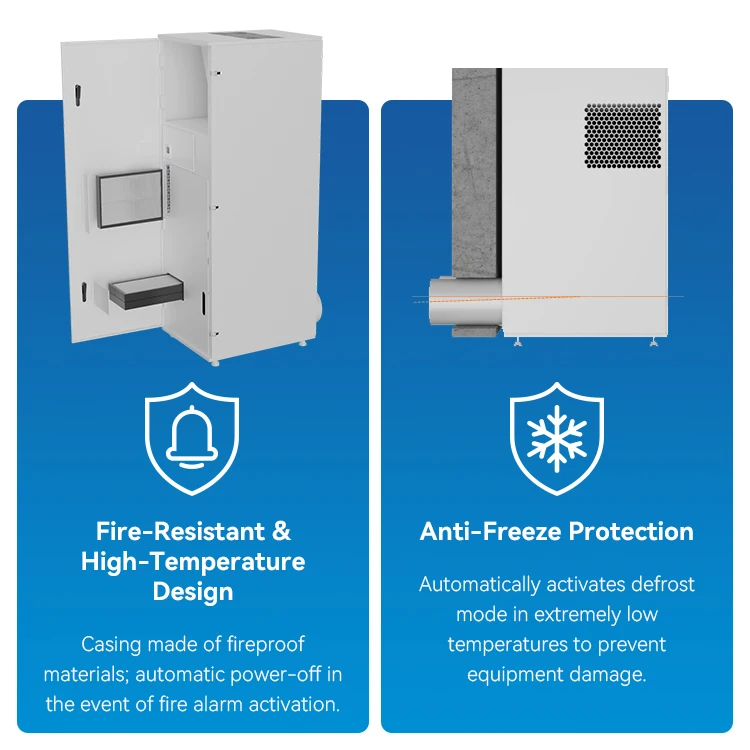

Yes, safety is our top priority. The unit features: Anti-Tilt Structure: Secured with L-shaped wall brackets to prevent tipping. Triple Protection: Front panels and filter access are secured with keys and screws to prevent unauthorized access. Top Air Design: Air intake and outlets are located at the top to keep them out of reach of children. Child Safety Lock: The smart controller can be password-locked to prevent tampering.
Can this system handle extremely cold winters?
Absolutely. The unit is equipped with a 2200W intelligent PTC auxiliary heater and automatic defrost functions. It can operate reliably in temperatures as low as -25°C, ensuring that the fresh air delivered into the classroom is always at a comfortable, warm temperature.
How effective is the air filtration against PM2.5 and allergens?
The unit comes standard with a dual-stage filtration system (G4 + F7). The F7 medium-efficiency filter removes over 95% of PM2.5 particles, dust, and pollen. An optional medical-grade sterilization filter is also available for enhanced protection against bacteria and viruses.
How much maintenance does the unit require?

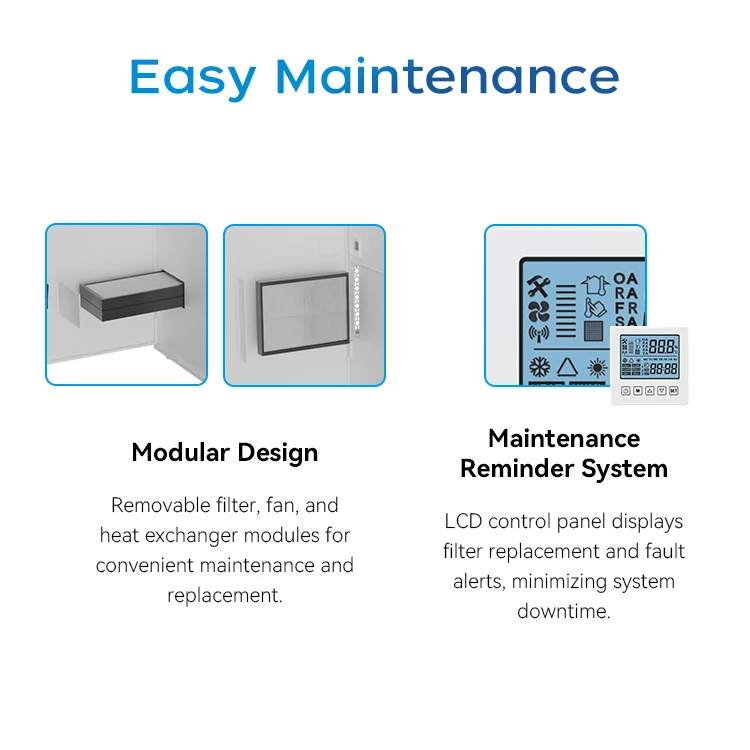

Maintenance is simple and cost-effective: Filters: G4/F7 filters are easily accessible via the front panel. We recommend checking them every semester. Exchanger: The polymer heat exchanger is washable and mold-resistant, with a lifespan exceeding 10 years. Access: Since it is floor-standing, no ladders or specialized ceiling access equipment are required.
Can I manage multiple units across different classrooms?
Yes. The AV-TPF85 EFW supports Tuya Wi-Fi App control for individual management via smartphone and is fully compatible with BMS (Modbus) systems. This allows facility managers to monitor air quality, set schedules, and control units across an entire campus from a single central office.
How many units do I need per classroom?
Generally, one AV-TPF85 EFW unit is sufficient for a standard classroom of 20-30 students. Based on international standards (like DIN EN 13779), we calculate approximately 30m³/h of fresh air per student to maintain CO2 levels at a healthy 1000ppm.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this erv air exchanger?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the erv air exchanger be supplied for my local voltage?
The standard configuration is 220~240V / 1 Phase / 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
